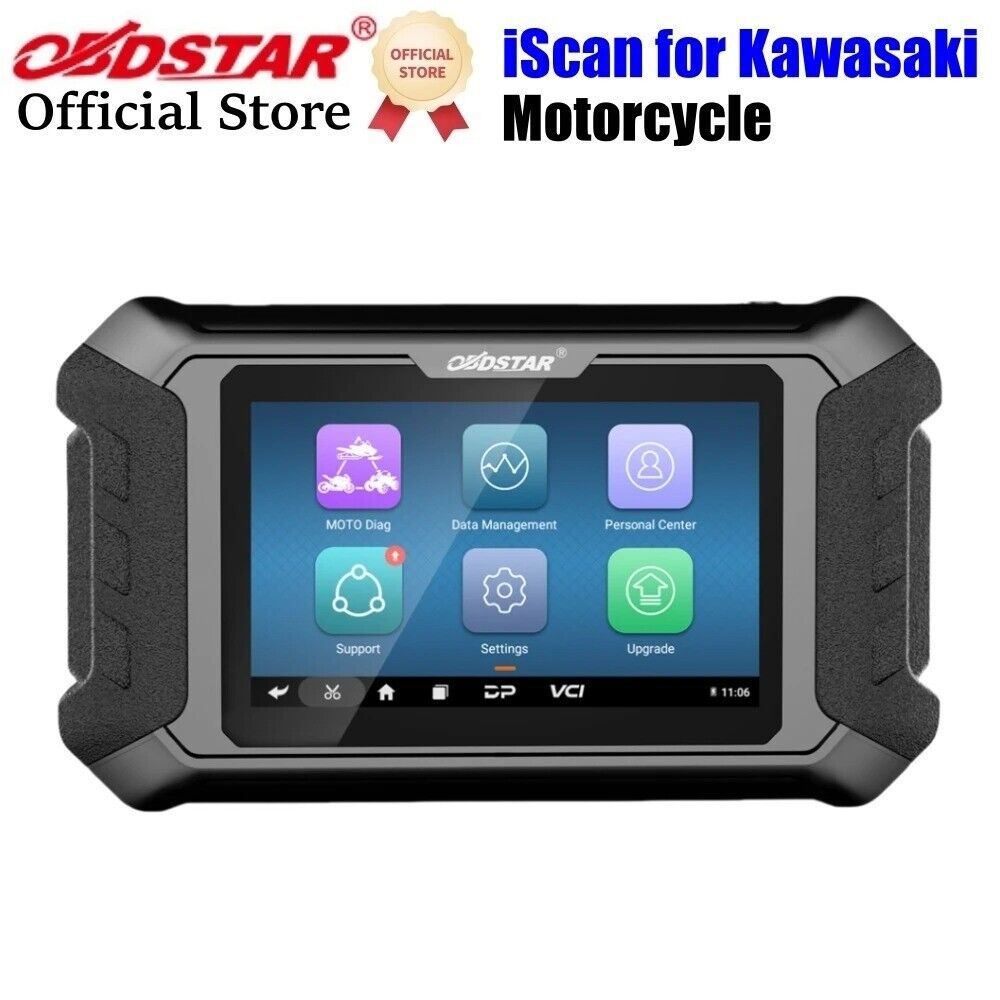

OBDSTAR ISCAN KAWASAKI Motorcycle Diagnostic Scanner

Professional Diagnostic Tablet for KAWASAKI Motorcycles

The OBDSTAR ISCAN KAWASAKI is a professional-grade, portable diagnostic tablet designed specifically for KAWASAKI motorcycles. Built with a durable industrial design and powered by advanced diagnostic technology, it delivers accurate, fast, and reliable diagnostics for workshops, technicians, and motorcycle service professionals.

Powered by the RK3128 Quad-Core processor and running on Android 5.1.1, this intelligent diagnostic device ensures stable performance and smooth operation. The 5-inch capacitive touchscreen provides a user-friendly interface for efficient diagnostic workflows.

Product Overview

The ISCAN KAWASAKI is a next-generation motorcycle diagnostic solution engineered to support comprehensive system-level diagnostics, ECU communication, and advanced programming functions. It is designed to help technicians quickly identify faults, perform system analysis, and execute key maintenance procedures with precision.

Key Product Highlights

Intelligent Diagnostic Assistance

• Fault guidance with integrated help data

• Technical bulletins for repair support

• Diagnostic socket and connector location guidance

• Built-in troubleshooting support system

Advanced Data Analysis

The device supports multiple data visualization modes for improved diagnostic accuracy:

• Text-based live data display

• Waveform graph analysis

• Instrument-style data visualization

These tools allow technicians to clearly interpret sensor data and system behavior for efficient fault diagnosis.

Comprehensive System Functions

The ISCAN KAWASAKI provides advanced diagnostic capabilities, including:

• Automatic system scanning

• Automatic VIN recognition

• ECU programming and coding

• Control module configuration

• Instrument cluster coding

• Tire Pressure Monitoring System (TPMS) functions

• Maintenance light reset

• CO adjustment

• Idle speed adjustment

• A/F value reset

• ABS system control functions

• End-of-Line (EOL) mode

• Transmission memory reset

• ECU memory clearing

• Additional system adaptation and configuration functions

Key Features

• Android 5.1.1 Operating System

• Simple and intuitive menu navigation

• Full diagnostic functions (read/clear codes, live data, actuation tests, coding, configuration)

• Fast and efficient menu operation

• Real-time data recording and playback

• Wi-Fi connectivity for software updates

• One-click online upgrade support

• Remote technical assistance via OBDSTAR

Advanced Functions

The ISCAN KAWASAKI supports OE-level diagnostic and programming capabilities, including:

• ECU programming and configuration

• Control module coding

• Live data stream monitoring

• System reset and adaptation functions

• Fault code reading and clearing

• Intelligent guided diagnostics

Supported Vehicle Type

• KAWASAKI motorcycles

• Motorcycle / ATV / UTV / Snowmobile platforms (depending on system compatibility)

Package Includes

• 1 × Diagnostic Tablet

• 1 × M001A Main Cable

• 1 × 12V 2A Charger

• 1 × N041 OBD-6 Cable

• 1 × M005 KAWASAKI Cable

• 1 × M006 KAWASAKI Cable

Technical Specifications

• Model Name: HKSP523

• Software Version: ISCAN for KAWASAKI Motorcycle

• Hardware Version: ISCAN for KAWASAKI Motorcycle

• Operating System: Android 5.1.1

• Processor: RK3128 Quad-Core ARM Cortex-A7

• Display: 5.0-inch Capacitive Touchscreen

• Resolution: 800 × 480

• Battery: 2600mAh Rechargeable Lithium Battery

• Storage Expansion: Supports up to 32GB Micro SD (TF) Card

• Wi-Fi: Supported

• Working Temperature: -10°C to 55°C

• Storage Temperature: -20°C to 70°C

• Weight: Approximately 700g

• Dimensions: 198mm × 115mm × 31mm

Function Display Overview

The ISCAN KAWASAKI interface includes:

• Main page with supported vehicle selection

• Integrated help data and technical bulletins

• Supported vehicle and system lists

• Diagnostic socket and connector location guidance

• Special function menu access

Why Choose OBDSTAR ISCAN KAWASAKI?

The OBDSTAR ISCAN KAWASAKI is a dedicated diagnostic solution built for precision, reliability, and professional use. It delivers advanced ECU programming, system diagnostics, live data monitoring, and intelligent fault guidance tailored specifically for KAWASAKI motorcycles.

Its portable design, stable performance, and intuitive interface make it an essential tool for workshops and technicians requiring efficient and accurate motorcycle diagnostics.

Function Display

1) Main Page/Brand Supported

2) Help Data/Technical Bulletin

3）Supported Systems List/Vehicles List

4) Diag Socket/Diag Connector Location

5) Special Function
