iCarsoft JP V3.0 for Nissan/Infiniti/Toyota/Lexus/Scion/Honda/Isuzu/Hyundai

ICARSOFT JP V3.0 – Professional Automotive Diagnostic & Key System Tool (Korean & Japanese Vehicles)

Product Overview

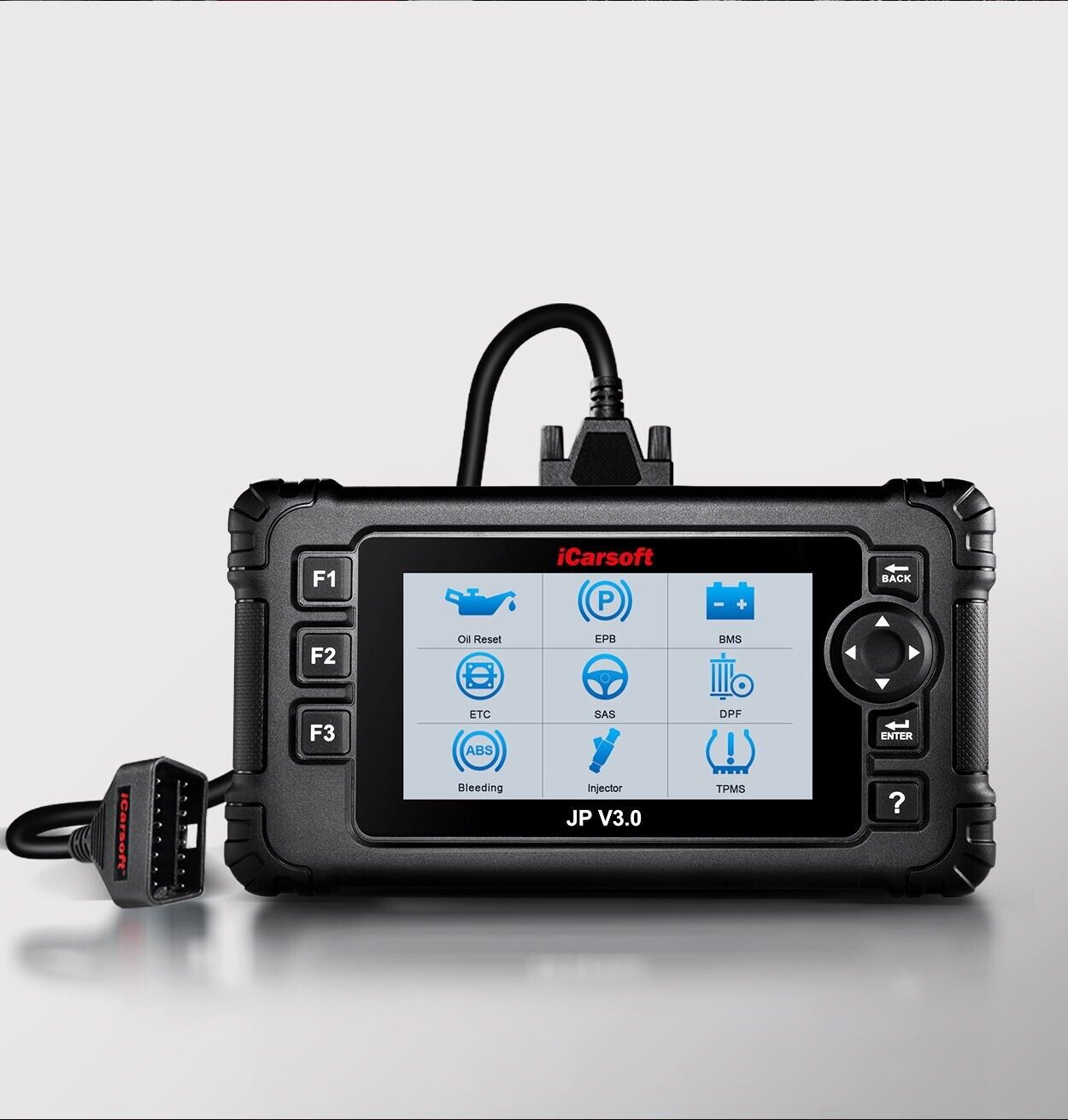

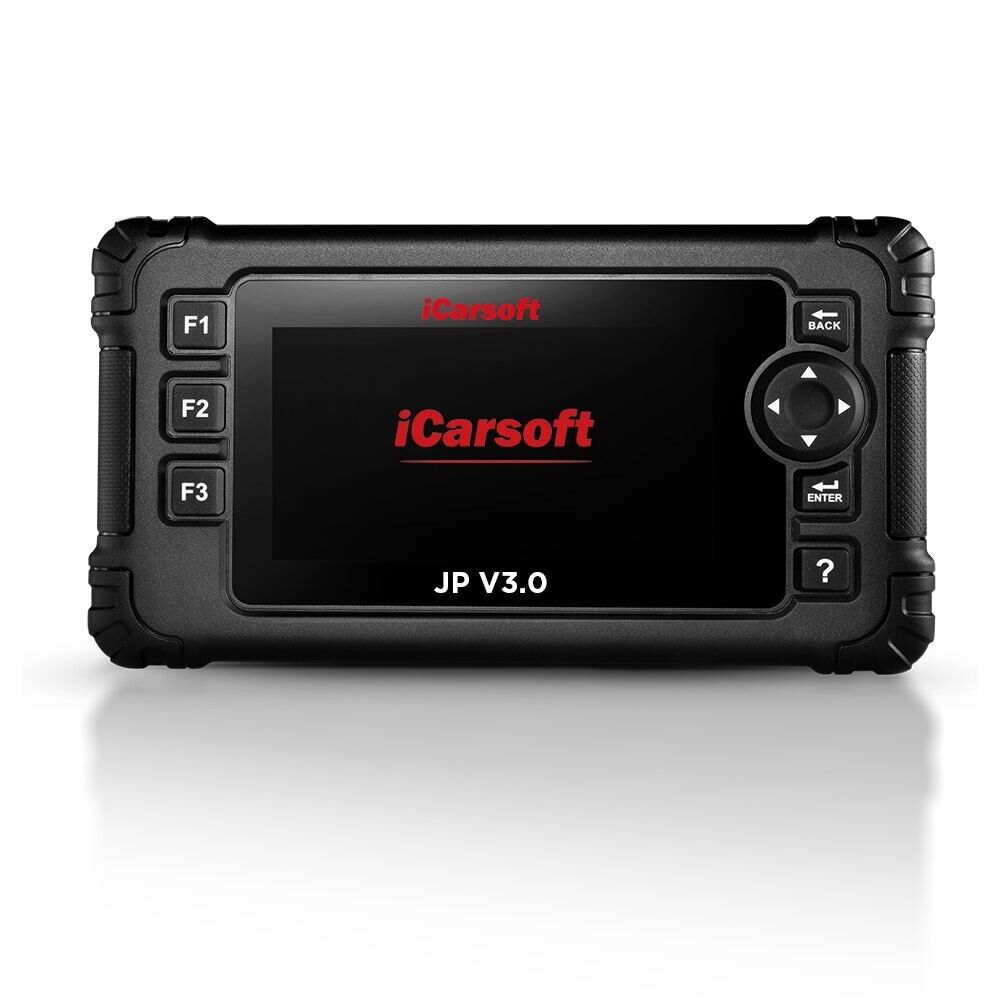

The iCarsoft JP V3.0 is a professional-grade automotive diagnostic scanner specifically engineered for Japanese and Korean vehicle brands. Developed by iCarsoft Technology Inc., it is designed to deliver advanced full system diagnostics, ECU analysis, and bi-directional control functions for workshops, technicians, and serious automotive users.

This tool combines a 4.3-inch TFT LCD (800×480 resolution) with dedicated diagnostic software to provide accurate fault detection, system control, and real-time vehicle data monitoring. It supports multiple communication protocols including CANBUS, ISO9141, KWP2000, and J1850, ensuring compatibility with a wide range of modern and older vehicles.

Vehicle Coverage

The JP V3.0 is optimized for a wide selection of Asian automotive manufacturers, including:

• Nissan

• Infiniti

• Toyota

• Lexus

• Scion

• Honda

• Acura

• Mazda

• Subaru

• Mitsubishi

• Suzuki

• Hyundai

• Kia

• Isuzu

• Daewoo

This broad coverage makes it suitable for workshops handling mixed fleets of Japanese and Korean vehicles, offering consistent diagnostic depth across brands.

Core Diagnostic Capabilities

The device provides full ECU-level diagnostics, allowing users to communicate with all major vehicle systems. It can:

• Read and clear diagnostic trouble codes (DTCs) from all modules

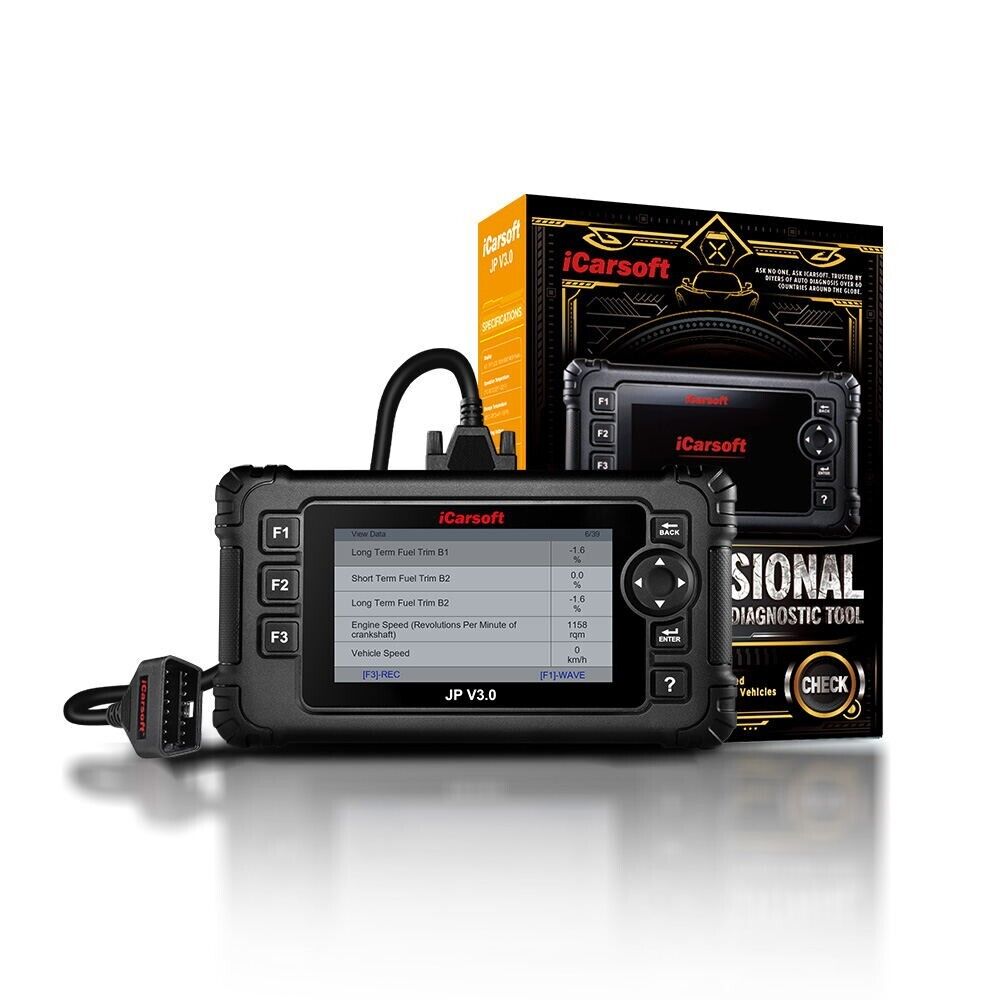

• Access live data streams in text, graph, and analog formats

• Perform bi-directional actuator tests for component-level control

• Automatically identify vehicle information using Auto VIN technology

• Record and store diagnostic history for future reference

These functions allow technicians to move beyond simple code reading and perform advanced system-level troubleshooting.

Advanced Service Functions

The JP V3.0 includes over 20 specialized maintenance and reset functions designed for professional repair work, including:

• Oil Service Reset – resets service reminders after oil changes

• EPB (Electronic Parking Brake) Service – maintenance and brake system calibration

• SAS Calibration – steering angle sensor adjustment after suspension or steering repairs

• DPF Regeneration – clears diesel particulate filter blockages

• BMS Reset – battery registration after replacement

• Throttle Adaptation – recalibrates throttle body response

• ABS Bleeding – removes air from braking system after repairs

• Injector Coding – programs fuel injectors after replacement

• TPMS Programming – registers tire pressure sensor IDs

• Air Conditioning Calibration – system adaptation and reset

• Air Suspension Reset – restores ride height control systems

These functions make it a complete workshop-level service tool rather than a basic scanner.

OBDII Functions

The JP V3.0 also supports standard OBDII/EOBD diagnostics, including:

• Reading and clearing fault codes

• Live PCM data streaming

• Freeze frame data analysis

• O2 sensor testing

• EVAP system testing

• I/M readiness checks

• Vehicle information retrieval (VIN, CVN, etc.)

• On-board monitoring tests

It supports all major OBD protocols, making it compatible with most vehicles from 1996 onward (US/Asia) and 2001+ petrol / 2004+ diesel European vehicles.

Technical Specifications

The device is built for durability and professional usage:

• Display: 4.3” TFT LCD, 800×480 resolution

• Operating Voltage: 9–18V

• Operating Current: ~200mA

• Power Consumption: ~2.4W

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -20°C to 70°C

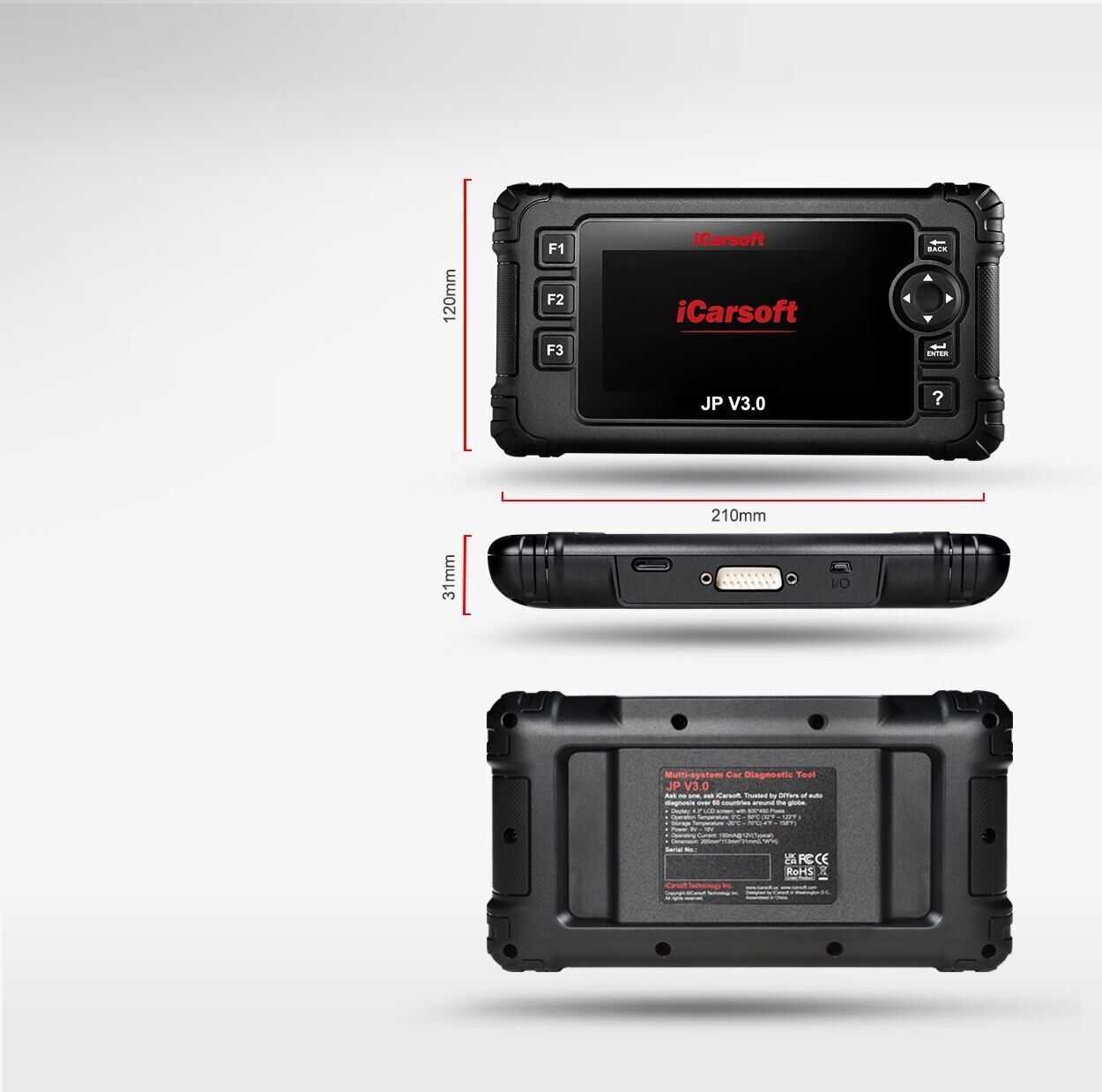

• Dimensions: 205mm × 113mm × 31mm

• Weight: <400g

Key Highlights

• Full system diagnostics for Korean & Japanese vehicles

• Advanced ECU-level communication and control

• 20+ professional reset and service functions

• Real-time live data in multiple formats

• Bi-directional actuator testing capability

• Auto VIN vehicle identification

• Multi-protocol OBDII compatibility

• Designed for workshops, technicians, and automotive specialists

Summary

The iCarsoft JP V3.0 is a powerful diagnostic platform tailored for Asian vehicle systems, combining advanced ECU diagnostics, service reset functions, and real-time data analysis in one compact handheld device. It is suitable for both professional workshops and advanced DIY automotive users, offering comprehensive system coverage and reliable performance across a wide range of Japanese and Korean vehicles.
