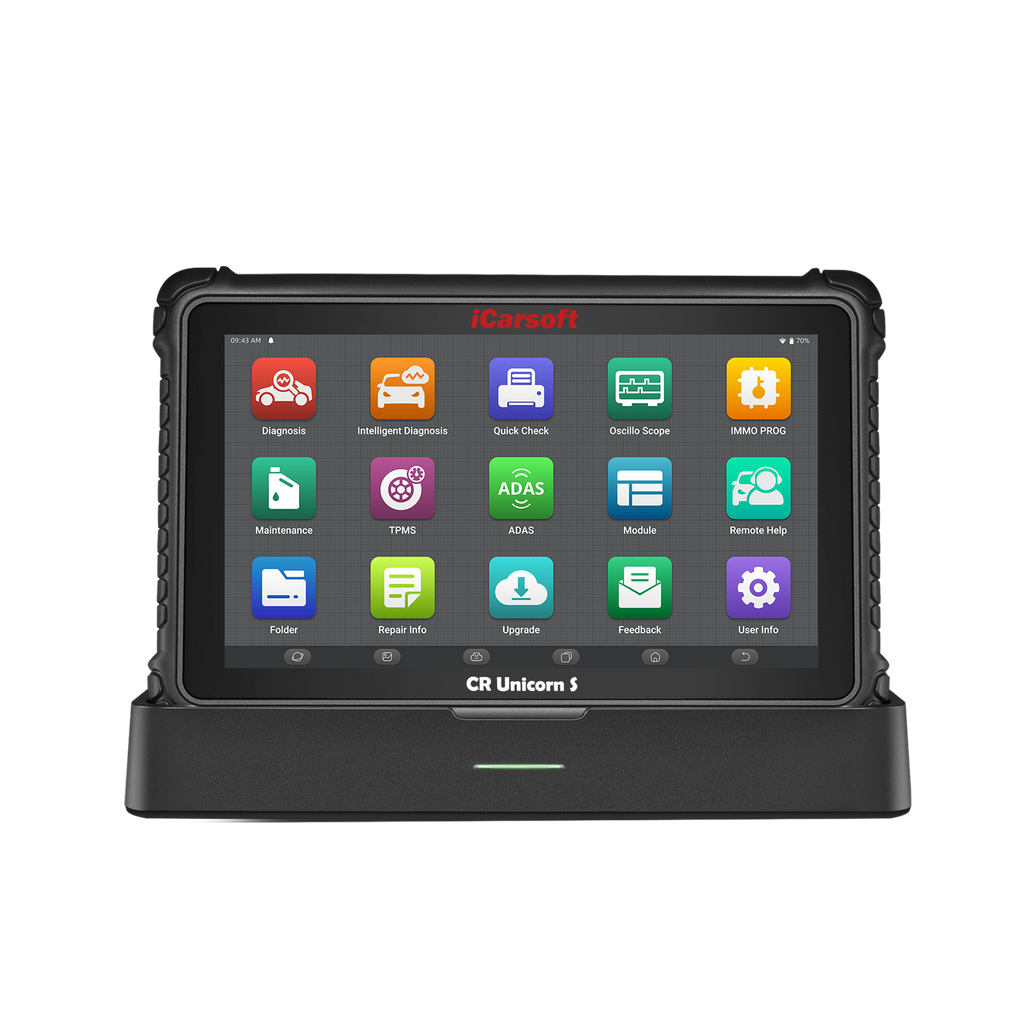

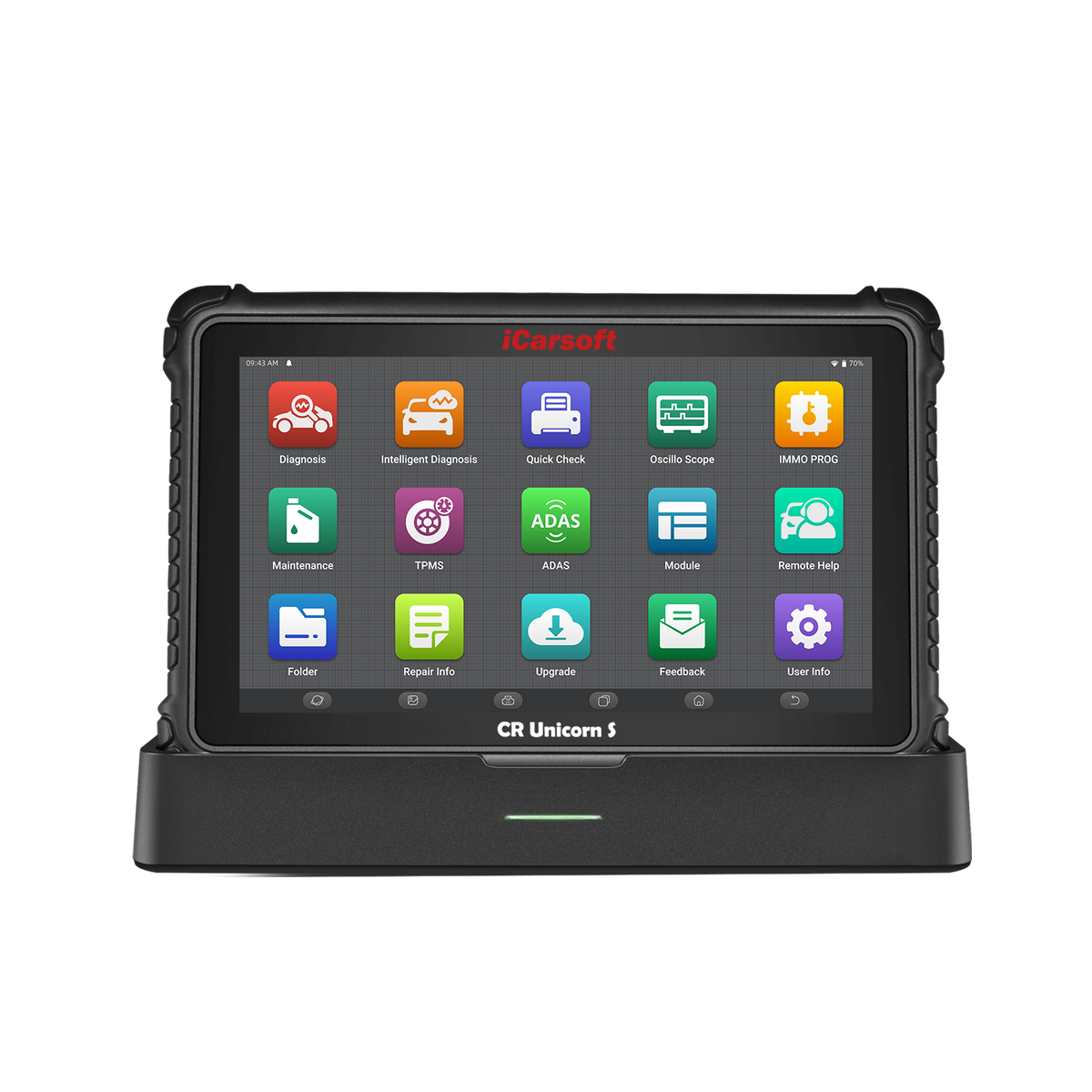

iCarsoft CR Unicorn S — One-Stop OE-Level Professional Automotive Car and Truck Diagnostic Tool

Omni-Directional • Integrated • Smart • Ultra-High Cost Performance

Product Overview

The iCarsoft CR Unicorn S is iCarsoft’s latest one-stop intelligent automotive car and truck diagnostic tool, purpose-built for professional technicians who demand OE-level performance in a single integrated platform. With a massive 13.3-inch full HD touchscreen, this state-of-the-art diagnostic system maximizes technician intelligence and efficiency on every job.

The CR Unicorn S ships with a smart VCI (Vehicle Communication Interface) that supports the latest communication protocols including J2534, DoIP, CanFD, D-PDU, and RP1210 — giving it the power to diagnose, code, and program a wider range of passenger and commercial vehicles than conventional J2534 tools. It also includes a comprehensive heavy-duty package with common adapters for trucks, making it a true all-in-one solution for any shop.

Standard equipment includes an iCarsoft T-WAND 9000 TPMS Programming Tool, a Thermal Printer, a Digital Inspection Camera (Video Scope), and a Battery Tester. Optional add-ons including a 4-Channel Oscilloscope (Scope Box), Key Programming (IM2000 Pro Immobilizer Programmer), and ADAS calibration allow you to expand the system on demand.

Combined with dynamic Topology Module Mapping, enhanced Camera Scan features, and Intelligent Diagnosis options, the CR Unicorn S provides technicians with step-by-step repair guidance to resolve issues faster and more accurately than ever before.

Key Features

• 13.3-Inch Full HD Touchscreen — 1920×1080 resolution for crisp, clear data visualization
• Android 9.0 OS with 8GB RAM and 256GB ROM for fast, responsive performance
• Smart VCI supporting J2534, DoIP, CanFD, D-PDU, and RP1210 protocols
• Cloud-Based ECU Programming & Coding for comprehensive module management
• Revolutionary Topology Module Mapping — color-coded full-system fault visualization
• Bi-Directional Control / Active Test — send direct commands to ECU subsystems
• 41 Special Service Functions for passenger vehicles
• OE-Level Diagnostics for all major car and truck makes
• 18,600mAh Battery for extended field use without interruption
• Bluetooth 5.1 and Wi-Fi (WLAN 802.11b/g/n) for wireless connectivity
• Rear 13.0MP Camera for professional documentation
• Expandable with optional Scope Box, IM2000 Pro, and ADAS calibration modules

Cloud-Based Advanced ECU Programming and Coding

The need to perform programming and coding services has never been more critical in the aftermarket. More situations than ever require programming or coding — including replacing a module, updating ECU software or firmware, and resolving software-controlled drivability and emissions issues. The CR Unicorn S supports two core types of programming operations:

A. ECU Coding (Teach-In / Component Adaptation)

ECU Coding, also known as Teach-In Program or Component Adaptation, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts. This ensures all replacement components are properly matched and calibrated to the vehicle’s electronic systems.

B. ECU Programming

With support for D-PDU, SAE J2534, and RP1210 protocols, the CR Unicorn S can diagnose, code, and program a broader range of passenger and commercial vehicles than conventional J2534 programming tools. Whether you are replacing modules, updating firmware, or fixing complex software-controlled issues, the CR Unicorn S handles it all with cloud-based precision.

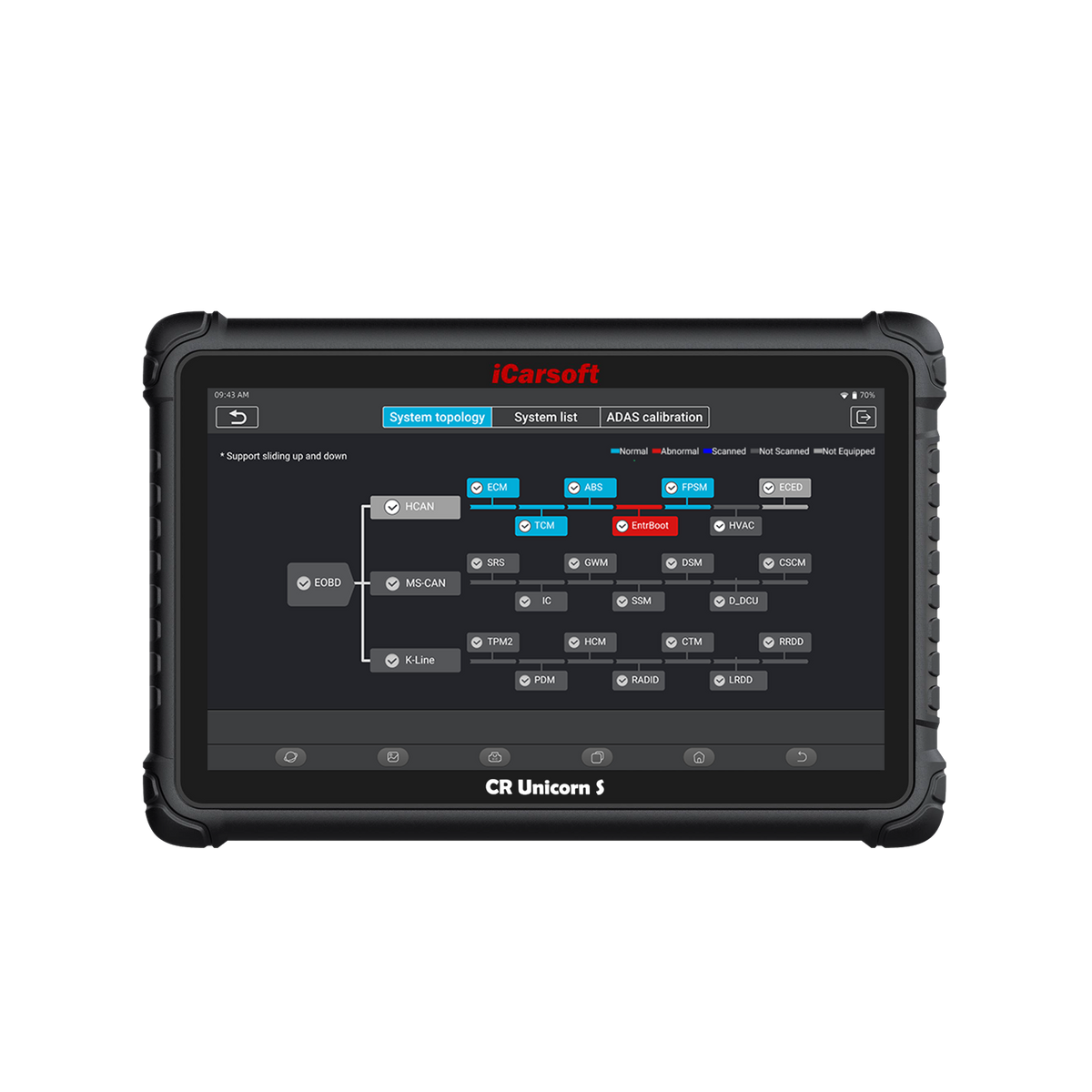

Revolutionary Topology Module Mapping

The CR Unicorn S features an industry-leading Topology Module Mapping system that gives technicians a powerful, visual diagnostic overview of the entire vehicle. Key capabilities include:

• Displays the entire vehicle system through a Topology Map, allowing technicians to instantly identify all modules with active faults
• Color-coded topology displays all system statuses on a single page for rapid assessment
• Shows the full communication structure between modules for deep diagnostic insight
• Supports topology mapping for: BMW, Ford, Volkswagen, Audi, GM, Chrysler, Nissan, Honda, Toyota/Lexus, Jaguar/Land Rover, Mercedes-Benz, Hyundai, Kia, Volvo

Bi-Directional Control / Active Test

The CR Unicorn S is a full bi-directional diagnostic scanner capable of sending direct commands to the ECU to activate and test vehicle-specific subsystems and components. This allows technicians to precisely verify component operation without the need for manual testing. Supported components and systems include:

• Fuel Pump
• Valves
• Injectors
• Solenoids
• Relay
• AC Clutch
• Wipers
• Windows
• Doors
• Sunroofs
• EVAP System Tests
• Solenoid Switching Tests
• And many more vehicle-specific subsystems

Special Service Functions for Cars (41 Reset & Relearn Functions)

The CR Unicorn S covers an extensive range of 41 special service and reset functions for passenger vehicles, enabling complete aftermarket service capability in a single tool:

1. OIL — Maintenance Light Reset
2. ETS — Throttle Matching
3. SAS — Steering Angle Reset
4. BMS — Battery Matching
5. BLEEDING — ABS Bleeding
6. BRAKE — Electronic Parking Brake Reset
7. DPF — DPF Regeneration
8. GEAR — Tooth Learning
9. IMMO — Anti-Theft Matching
10. INJEC — Injector Coding
11. TPMS — Tire Pressure Reset
12. SUS — Suspension Level Calibration
13. AFS — Adaptive Front-Lighting System Reset
14. GEAR BOX — A/T Learning
15. SUN — Sunroof Initialization
16. EGR — EGR Adaptation
17. ODO — ODO Reset
18. AIR BAG — Airbag Reset
19. TRANSPORT — Transport Mode
20. A/F — A/F Reset
21. STOP/START — Stop/Start Reset
22. NOX — NOx Sensor Reset
23. ADBLUE — Diesel Engine Exhaust Gas Filter
24. SEATS — Seat Calibration
25. COOLANT — Coolant Bleeding
26. TYPE — Tire Reset
27. WINDOWS — Windows Calibration
28. LANGUAGE — Language Change
29. AC System — Relearn / Initialization
30. Engine Power Balance Monitoring
31. Gas Particulate Filter Regeneration
32. High Voltage Battery Diagnostics
33. Intelligent Cruise Control System
34. Motor Angle Calibration
35. IMMO PROG — (Optional)
36. Clutch Matching
37. ECU Reset
38. FRM Matching
39. Gateway Module Data Calibration
40. Rainfall Light Sensor
41. Turbocharging Matching

Standard Configuration — What’s Included

iCarsoft T-WAND 9000 TPMS Programming Tool

The CR Unicorn S ships standard with the iCarsoft T-WAND 9000, a professional TPMS solution offering:

• Support for TPMS Sensor Activation
• Support for TPMS Sensor Programming
• Read and Clear Tire Pressure Faults

Thermal Printer

The included thermal printer allows technicians to instantly print diagnostic reports and vehicle health summaries directly from the CR Unicorn S tablet — ideal for customer-facing documentation and shop records.

Battery Tester

The integrated battery tester delivers full battery check services including:

• Battery Health Test
• Start System Test
• Charging Health Test
• Comprehensive Test Report Generation

Digital Inspection Camera (Video Scope)

The included digital inspection camera turns the CR Unicorn S tablet into a professional video inspection scope. Designed to examine difficult-to-reach areas normally hidden from sight, this tool allows technicians to:

• Record digital still images and videos
• Inspect machinery, facilities, and vehicle infrastructure safely and efficiently
• Document findings directly within the diagnostic workflow

Optional Configuration — Expand Your Capabilities

iCarsoft Scope Box — 4-Channel Oscilloscope (Optional)

The iCarsoft Scope Box is an optional add-on oscilloscope module designed specifically for automotive maintenance diagnosis. It integrates modularly with the CR Unicorn S diagnostic host and features customized software for the automotive industry.

• Ultra-high configuration: 100MHz bandwidth, 4 channels, up to 1GSa/s sampling rate, with 50Mpts record length
• Focused on automobile maintenance diagnosis with modular integration to the diagnostic host
• Perform different vehicle ignition tests, and a variety of sensor and actuator tests
• Support for multi-vehicle BUS decoding
• Wide range of applications for gasoline, diesel, hybrid, new energy vehicles, and trucks

Note: The iCarsoft Scope Box is an optional device available for separate purchase at: icarsoft.com — iCarsoft Scope Box

iCarsoft IM2000 Pro Immobilizer Programmer (Optional)

The iCarsoft IM2000 Pro Anti-Theft Immobilizer Programmer is a powerful optional device that integrates with the CR Unicorn S for advanced key programming and ECU replacement operations. Core functions include:

1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (reads engine ECU data directly from the key)
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning
3. Supports ECU replacement for the fifth-generation Audi (0AW/0B5) gearbox
4. Supports reading, writing, and cloning the ECU for the fourth-generation VW UDS engine
5. Supports BMW E chassis 8HP gearbox ECU reprogramming to empty
6. Works with reprogramming device to backup/restore programming data for Bosch/Siemens engine ECU
7. Integrated functions of key matching/copy, anti-theft IC reading & writing, and ECU reading & writing
8. Supports common ECU/MCU/EEPROM major manufacturers with over 1,200 product models and continual updates
9. Supports ECU replacement for all lost without disassembly for VW/AUDI non-35XX instrument (readable directly through independent harness without removing the IC)
10. Supports ECU replacement for the fourth-generation VW/AUDI engine
11. Supports ECU replacement for the fifth-generation VW/AUDI Bosch and Siemens engines
12. Supports all-lost and replacement for the fourth-generation AUDI EZS, comfort ECU, and KESSY IC
13. Supports BMW F and G chassis 8HP gearbox ECU reprogramming to empty
14. Supports BMW CAS4/CAS4+ module replacement
15. Supports ECU cloning and replacement for BMW Siemens engines
16. Erases password for Mercedes-Benz engine and gearbox within 3 seconds
17. Calculates password for Mercedes-Benz key within 1 minute

IM2000 Pro Technical Parameters

• Input Voltage: 12V
• Input Current: 500mA
• Working Environment: 0°C ~ 50°C
• Storage Environment: -20°C ~ 70°C
• Vehicle Connection: For most vehicles, connect via the included OBD II extension cable to the VCI of the diagnostic tool (CR Unicorn, CR Unicorn S, or CR Ultra) into the vehicle’s DLC port

Note: The iCarsoft IM2000 Pro is an optional device available for separate purchase at: icarsoft.com — IM2000 Pro

Technical Specifications

Main Tablet Specifications

• Operating System: Android 9.0
• RAM: 8GB
• ROM: 256GB
• Screen: 13.3 inches, Touchscreen
• Battery Capacity: 18,600mAh / 3.8V
• Resolution: 1920 × 1080

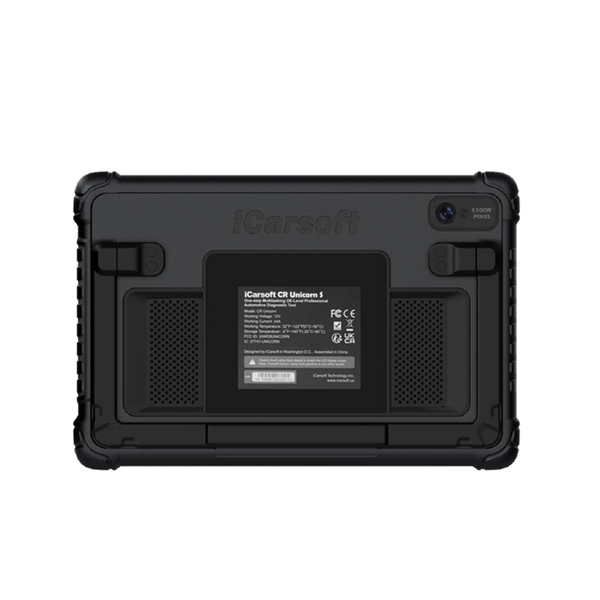

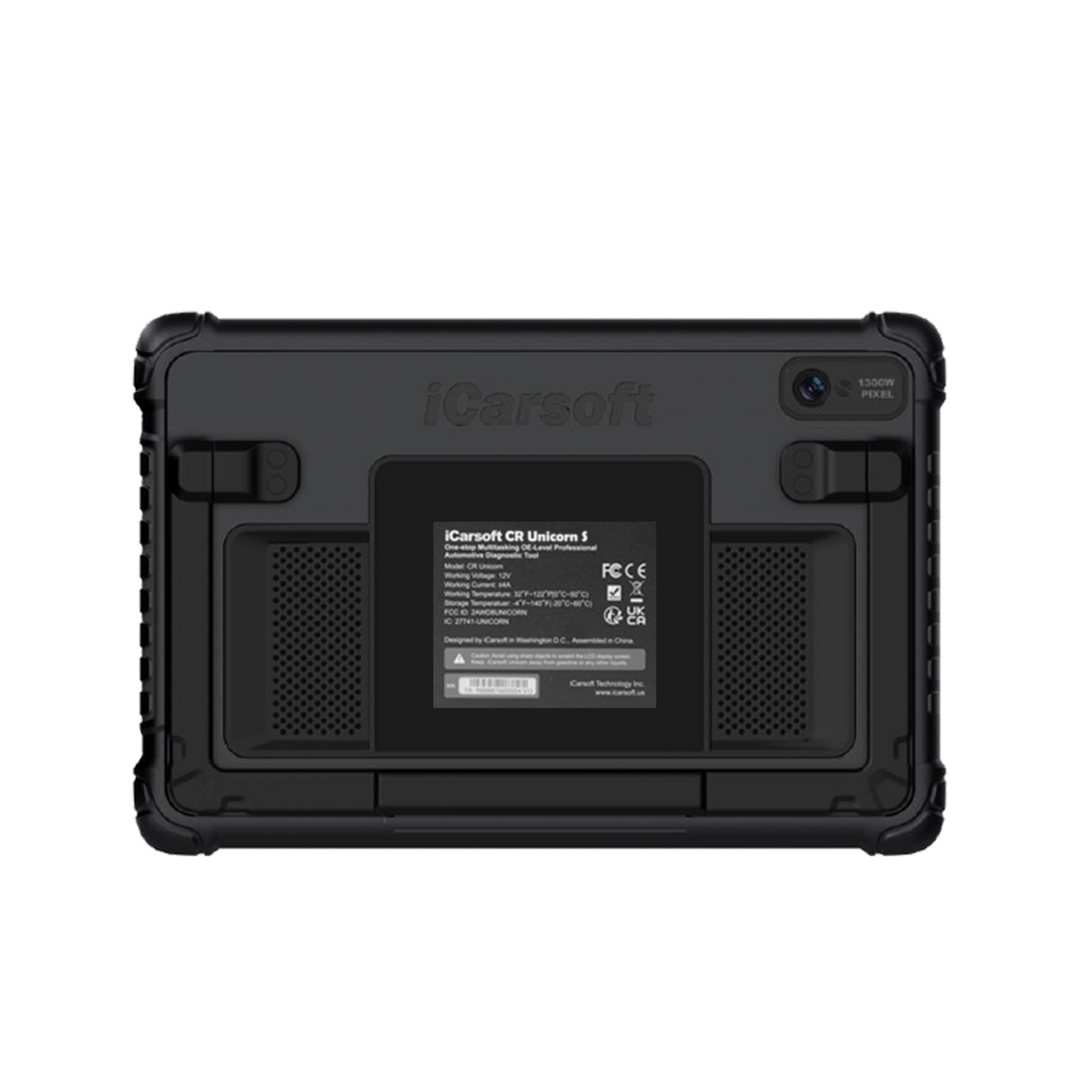

• Camera: Rear 13.0MP
• Network: Wi-Fi, WLAN 802.11b/g/n
• Bluetooth: Bluetooth 5.1
• Working Temperature: 32°F ~ 122°F (0°C ~ 50°C)
• Storage Temperature: -40°F ~ 140°F (-20°C ~ 60°C)
• Dimensions: 14.33 × 11.22 × 3.23 inches (364 × 285 × 82 mm)
• Weight: 5.54 lb (2,512g)

VCI (Vehicle Communication Interface) Specifications

• Screen: 3.97 inches
• RAM: 256MB
• ROM: 8GB
• Power: 6W
• Operating Voltage: 9 ~ 36V
• Local Diagnostic Communication: Wi-Fi / USB
• Working Temperature: 32°F ~ 122°F (0°C ~ 50°C)
• Storage Temperature: -40°F ~ 140°F (-20°C ~ 60°C)
• Dimensions: 7.72 × 5.31 × 1.70 inches

Vehicle Compatibility

The iCarsoft CR Unicorn S provides OE-level diagnostics for a comprehensive range of passenger cars, light commercial vehicles, and heavy-duty trucks. Topology Module Mapping is specifically supported for the following makes:

• BMW
• Ford
• Volkswagen (VW)
• Audi
• GM (General Motors)
• Chrysler
• Nissan
• Honda
• Toyota & Lexus
• Jaguar & Land Rover
• Mercedes-Benz
• Hyundai
• Kia
• Volvo

Additional makes and models are supported for full OBD diagnostics, special functions, bi-directional control, and ECU programming. The tool also includes a heavy-duty truck package with common adapters, making it suitable for commercial vehicle diagnostics.

Product Details Display

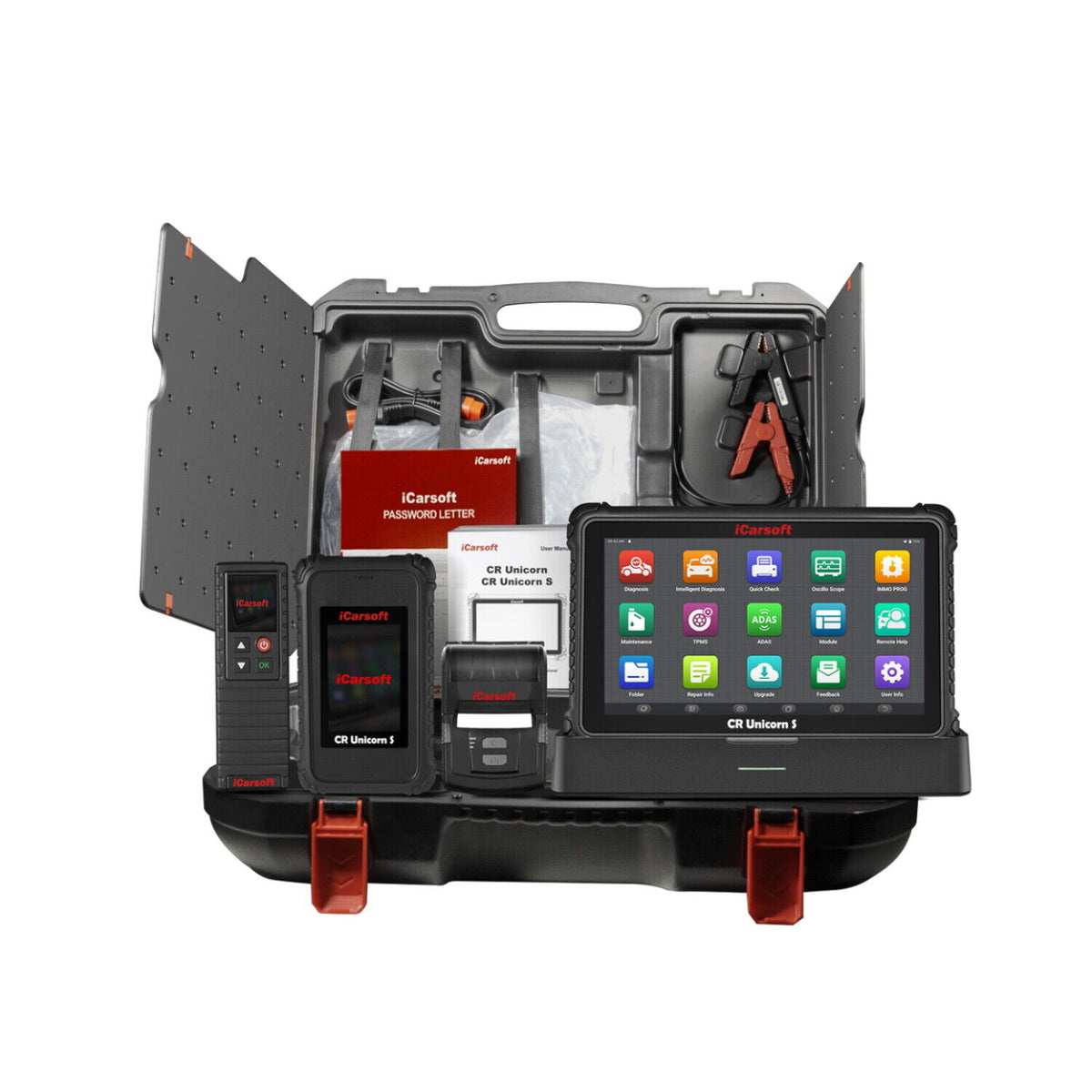

Package Contents

• 1 × iCarsoft CR Unicorn S Diagnostic Tablet (13.3-inch)
• 1 × Smart VCI (Vehicle Communication Interface)
• 1 × iCarsoft T-WAND 9000 TPMS Programming Tool
• 1 × Thermal Printer
• 1 × Battery Tester
• 1 × Digital Inspection Camera (Video Scope)
• Heavy Duty Truck Adapter Package (Common Adapters)
• OBD II Extension Cable
• Additional Accessories (see product images for full contents)

Optional Accessories

• iCarsoft Scope Box — 4-Channel, 100MHz Oscilloscope for advanced signal analysis
• iCarsoft IM2000 Pro — Advanced Immobilizer Programmer and Key Programming Tool
• ADAS Calibration Module — Advanced Driver Assistance Systems calibration support

Why Choose the iCarsoft CR Unicorn S?

• True OE-Level Diagnostics: Achieve factory-level diagnostic depth across all major vehicle makes without manufacturer-specific tools.
• All-In-One Platform: TPMS, battery testing, video scope, printing, ECU programming, and bi-directional control in a single device — no juggling multiple tools.
• Future-Proof Protocol Support: J2534, DoIP, CanFD, D-PDU, and RP1210 ensure compatibility with modern and future vehicle architectures.
• Massive 13.3” HD Display: More screen space means more data at a glance, reducing errors and speeding up diagnostics.
• Topology Mapping: Visualize an entire vehicle’s module communication at once — instantly locate faults instead of testing systems individually.
• Expandable Ecosystem: Start with what you need and add the Scope Box, IM2000 Pro, or ADAS modules as your business grows.
• 18,600mAh Battery: All-day field use without needing to locate a power outlet.
• Cloud-Based Updates: Always stay current with the latest vehicle coverage and software improvements.
• Heavy Truck Support: Includes commercial vehicle adapters for shops servicing both cars and trucks.
• Step-by-Step Repair Guidance: Intelligent Diagnosis features walk technicians through complex repairs with structured guidance.
