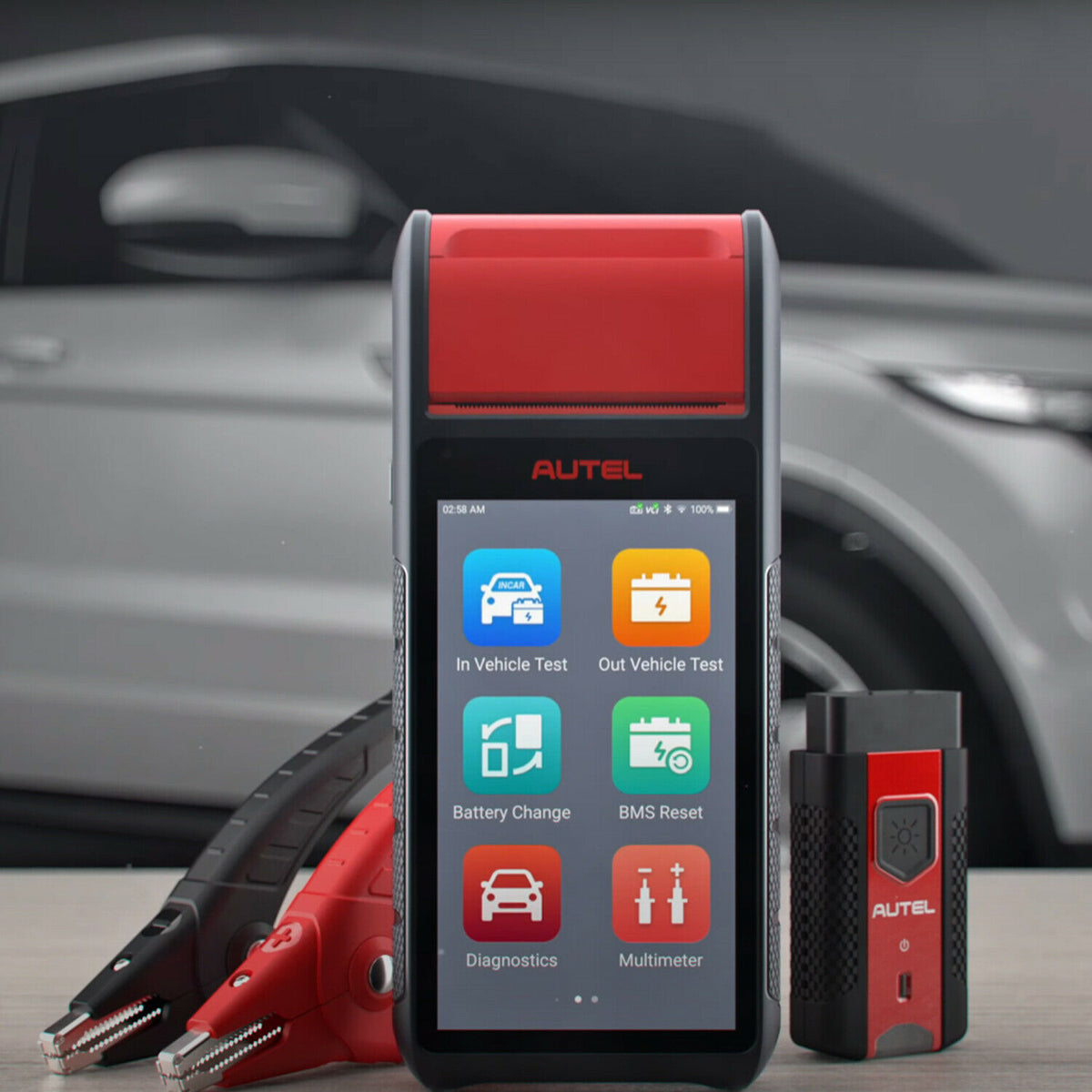

Autel MaxiBAS BT608 Auto Diagnostic Battery & Electrical System Analyzer Scanner
SKU:
AL108
$949.99
Couldn't load pickup availability
Proudly Australian
Technical Support
Easy Returns
Fast & Free Shipping
Return policy
Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.
Shipping
We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.

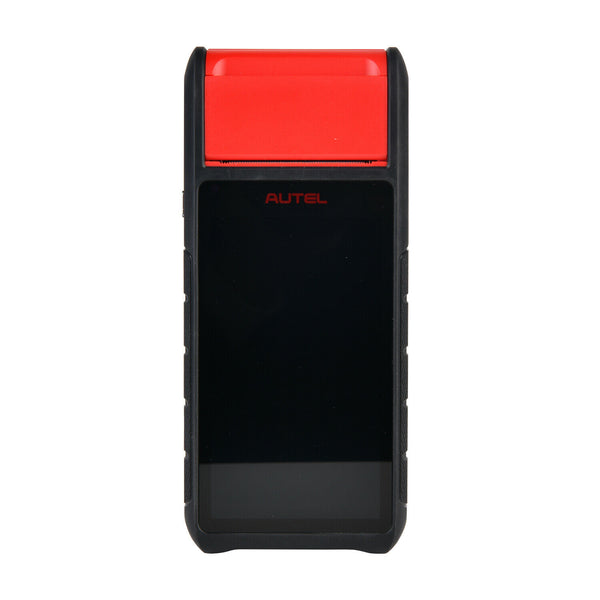

Autel MaxiBAS BT608 Auto Diagnostic Battery & Electrical System Analyzer Scanner
$949.99

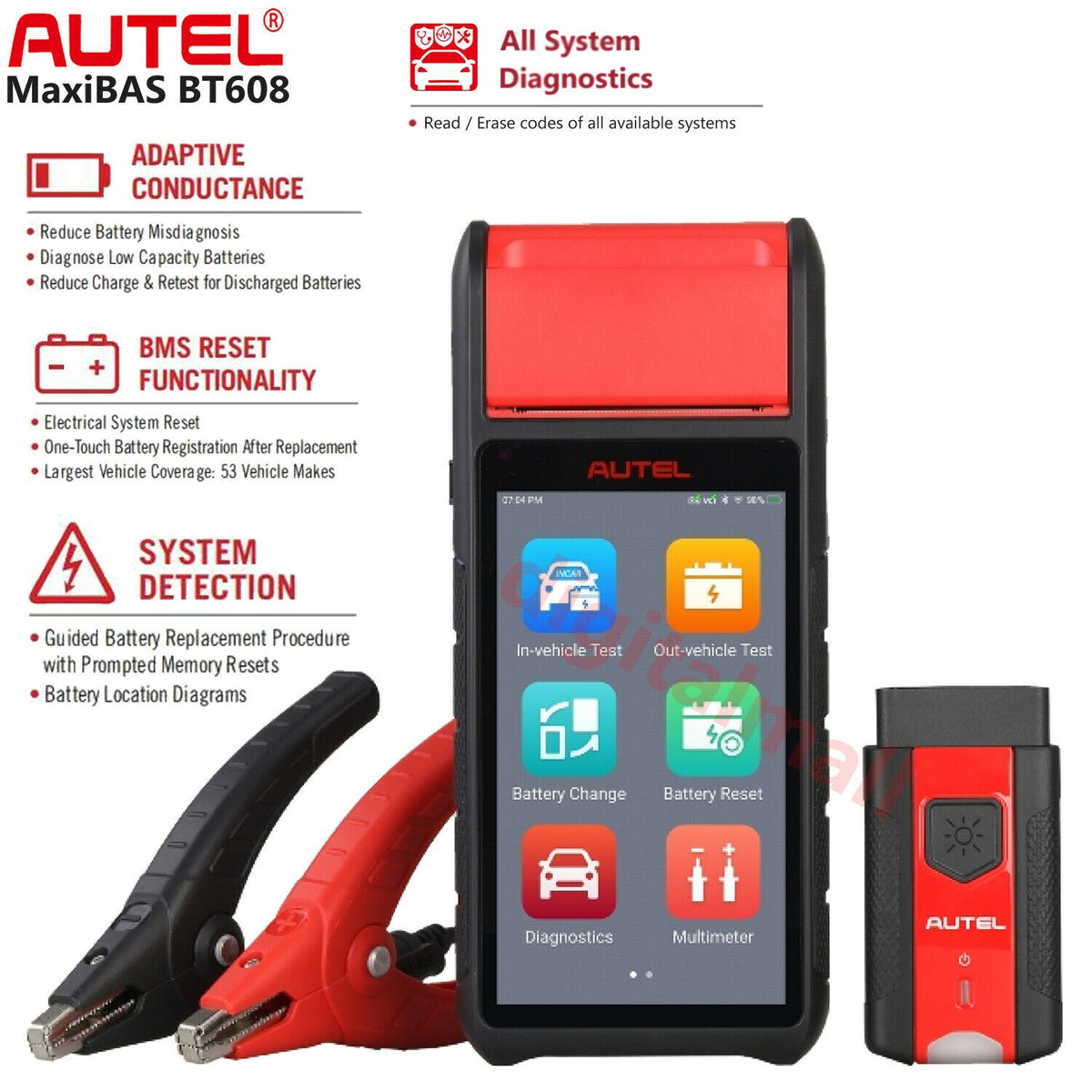

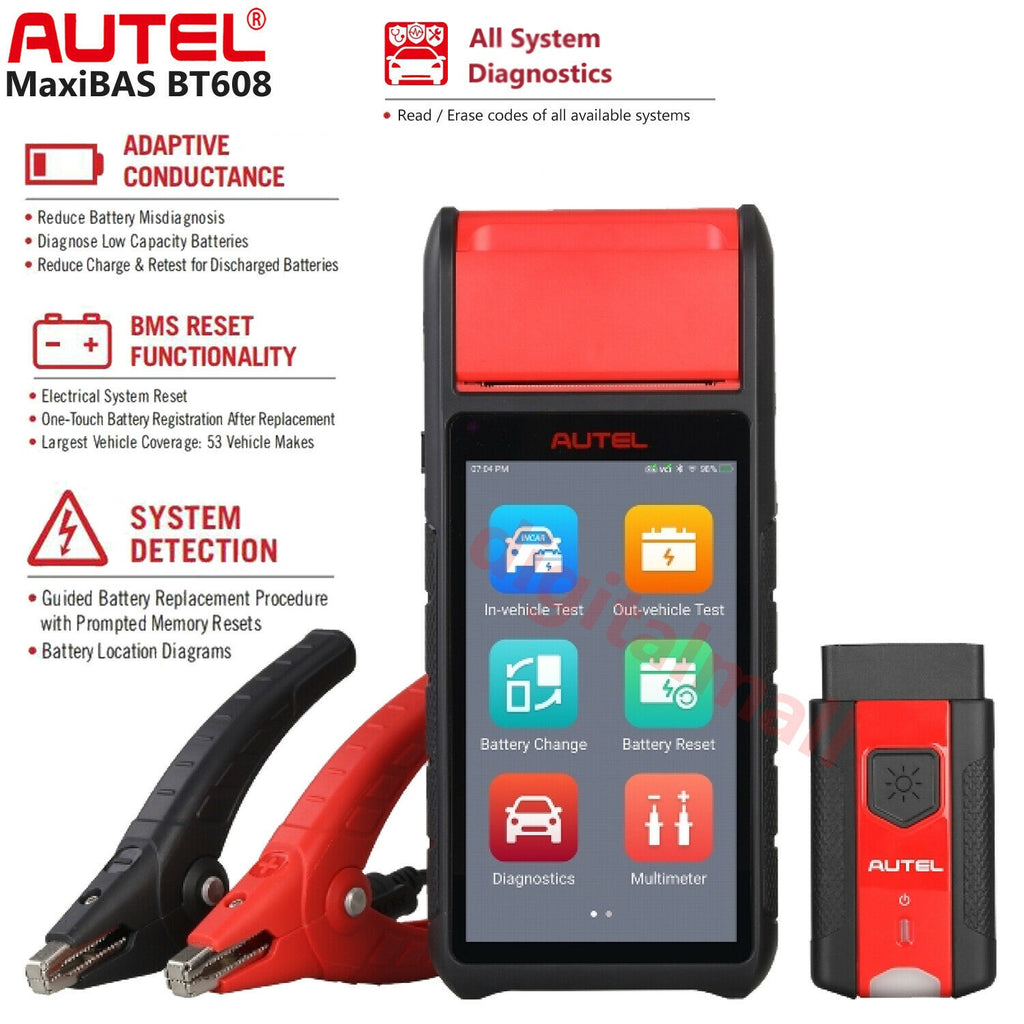

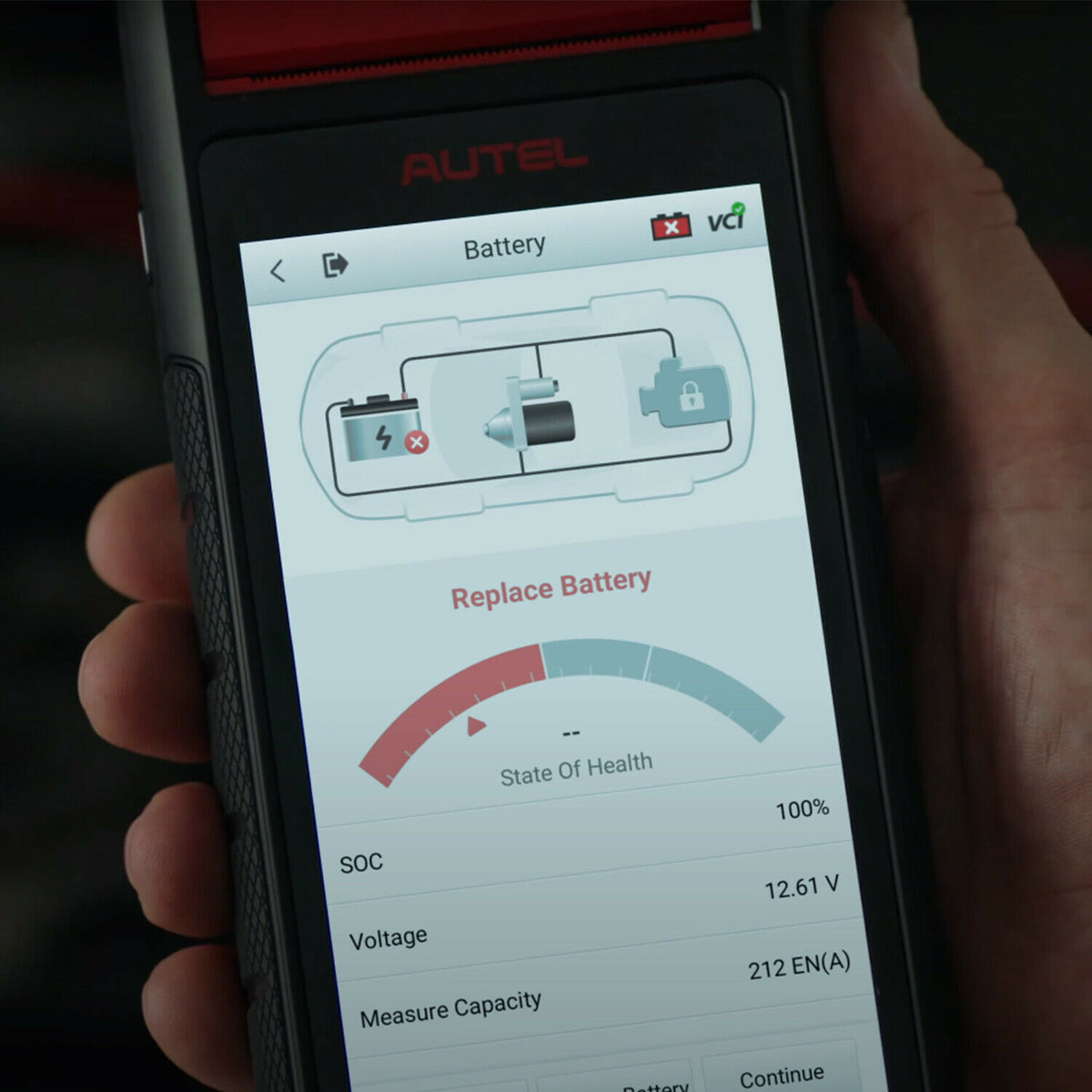

Autel MaxiBAS BT608 is a touchscreen Battery & Electrical System analyzer that applies Adaptive Conductance, an advanced battery analysis method that produces a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT608 can display a quick health status of the existing battery, register a new battery and perform advanced battery and electrical system diagnostics. The BT608’s VINscan function enables quick identification of the vehicle and battery specifications. Read/Clear codes on all available vehicles systems. Print or share customized reports via Wi-Fi or print test reports via the built-in thermal printer.
Autel MaxiBAS BT608 Features
*Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
*Test 6- and 12-volt batteries: 100 - 3000 CCA

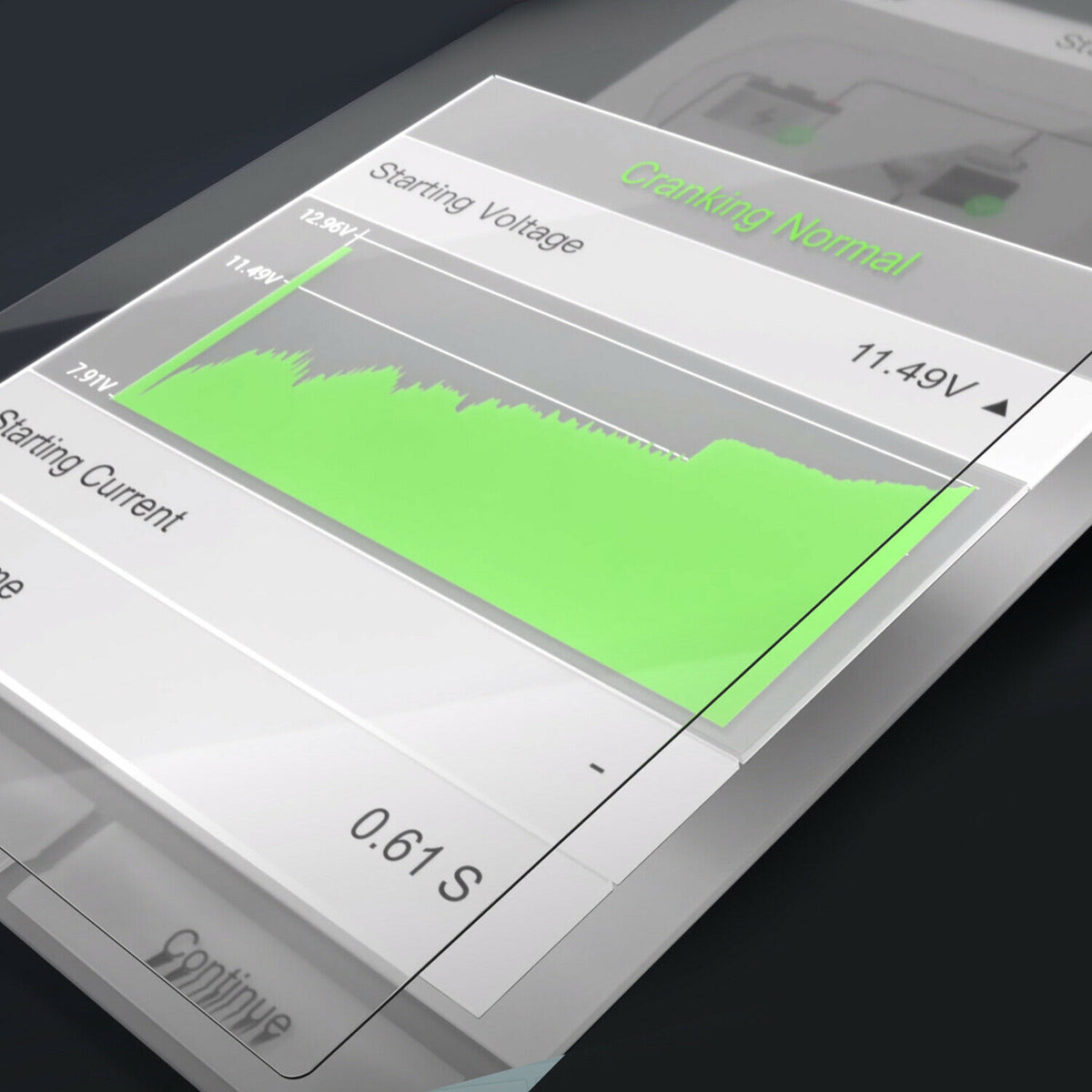

*Test 12- and 24-volt cranking/charging systems
*Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
*Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

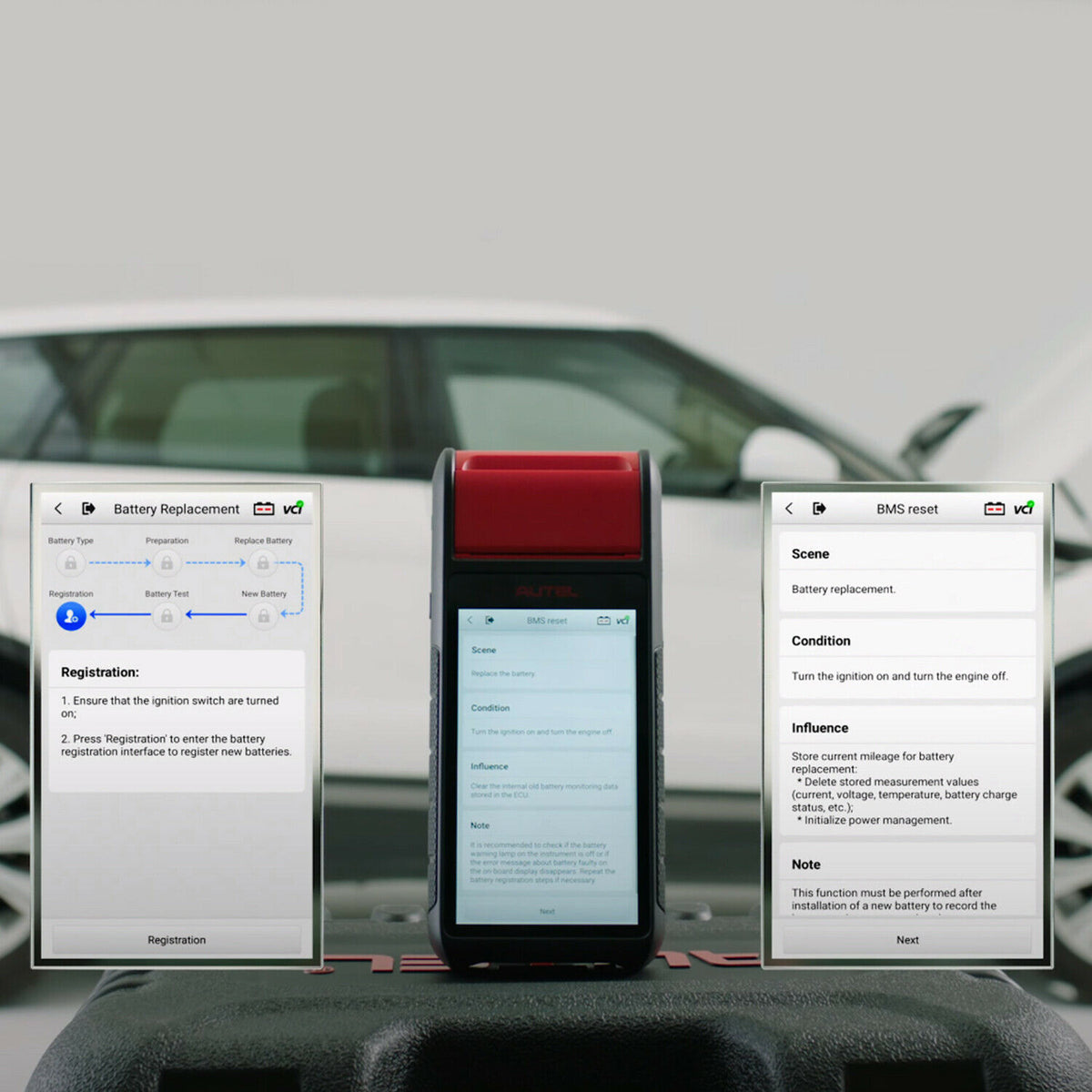

*One-touch Battery registration
*Quick display of battery specifications through battery barcode scan, Auto and manual VIN entry

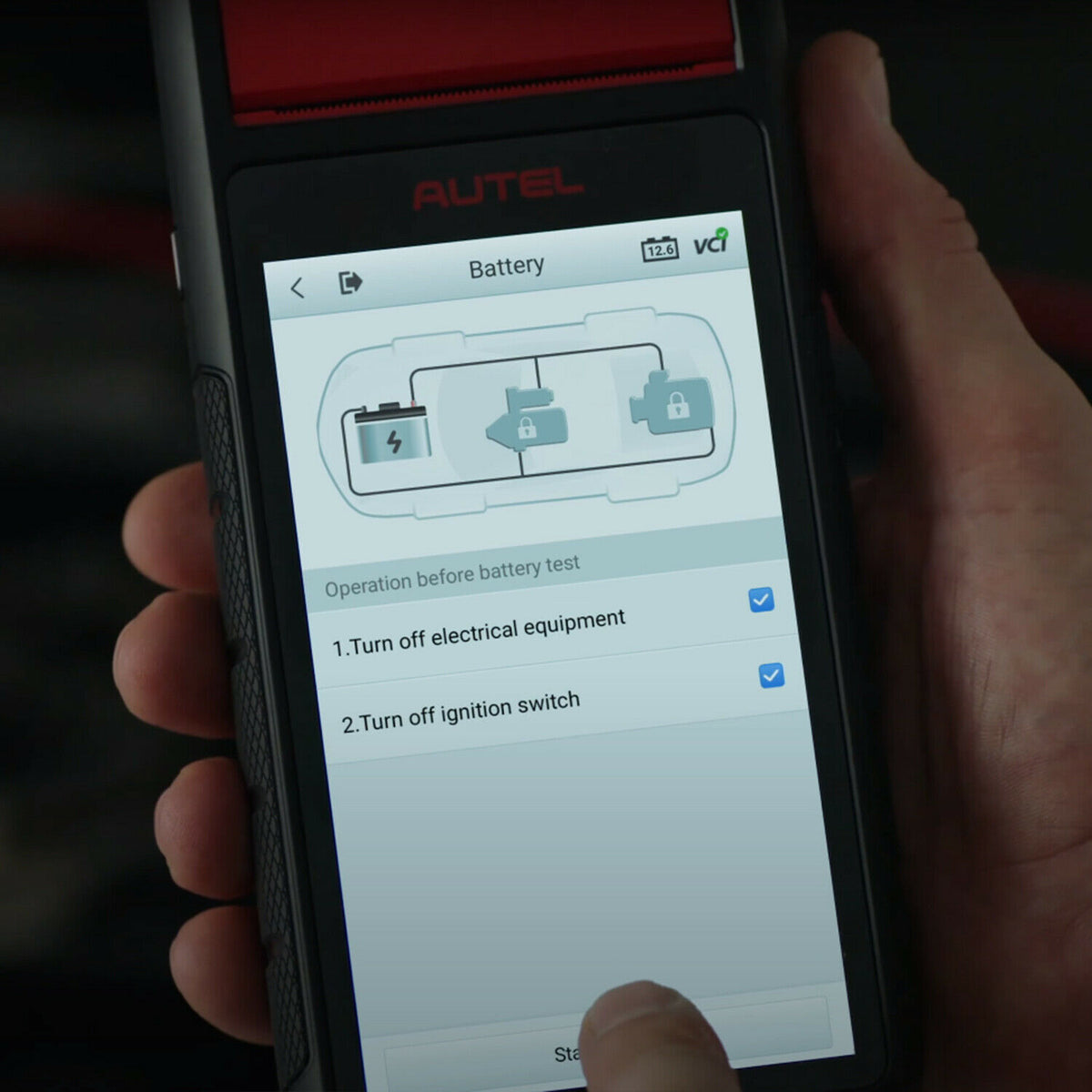

*Illustration instruction guides for battery positioning and testing

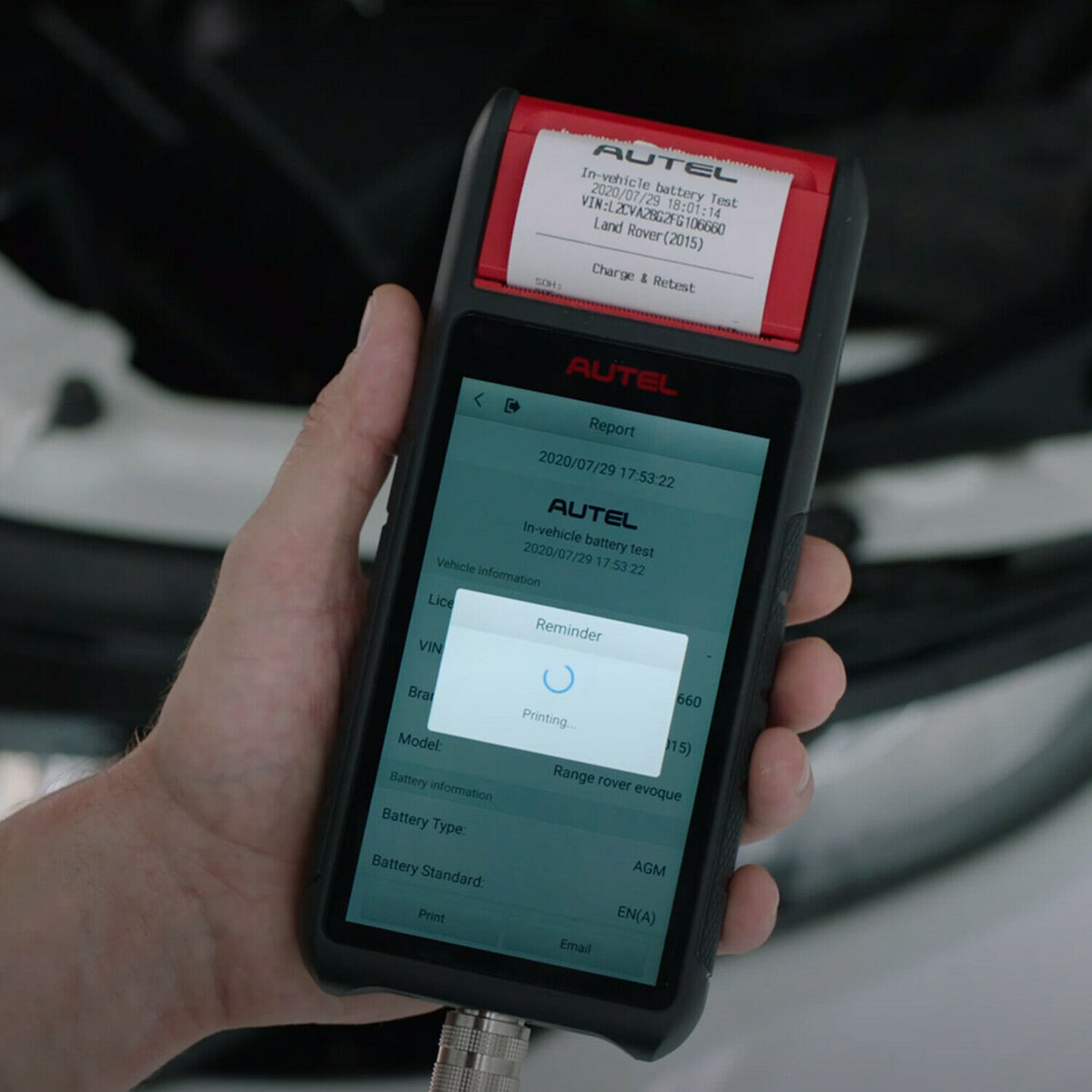

*Print test reports via built-in thermal printer

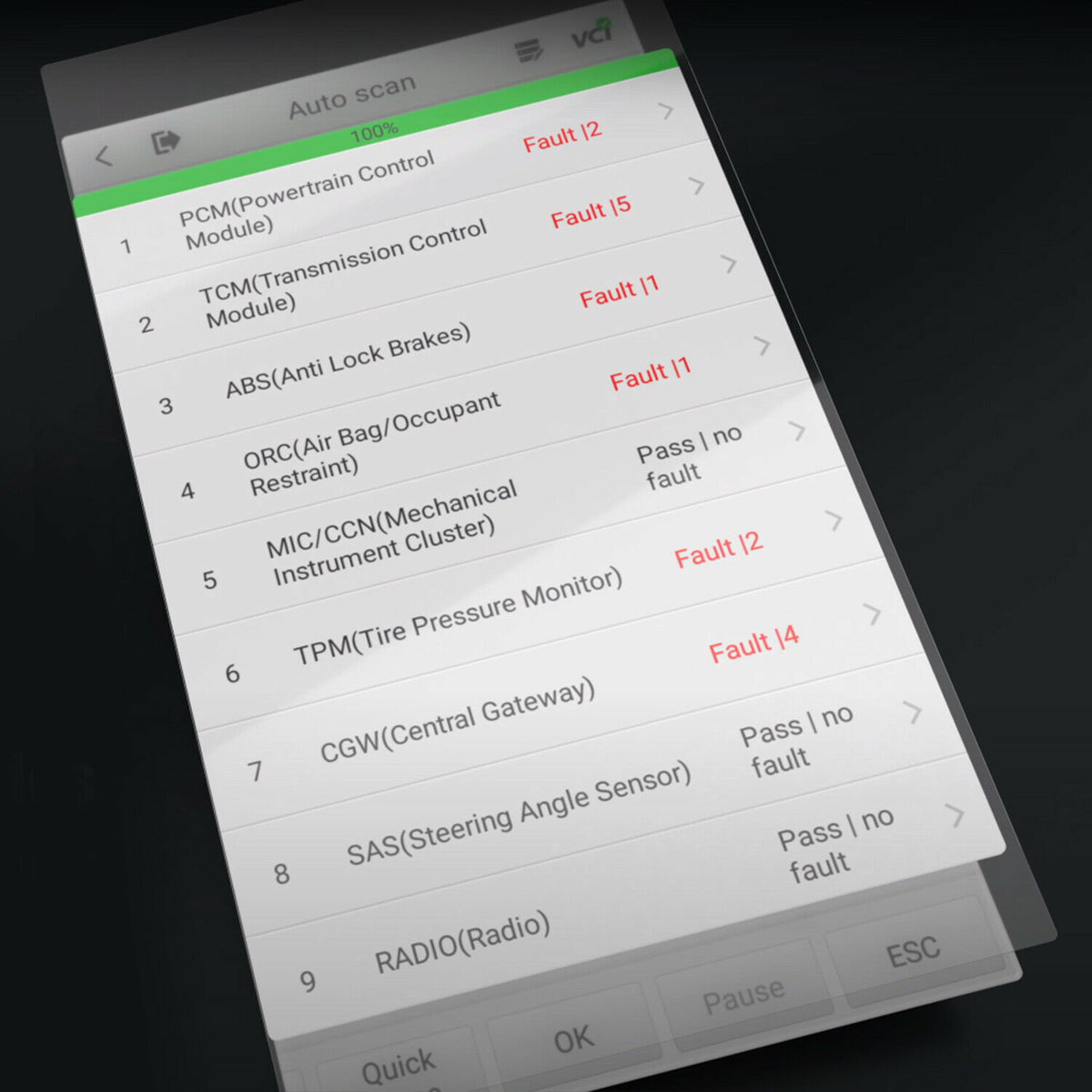

*Read and erase codes of all available systems
*Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
*Test 6- and 12-volt batteries: 100 - 3000 CCA
*Test 12- and 24-volt cranking/charging systems
*Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
*Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
*One-touch Battery registration
*Quick display of battery specifications through battery barcode scan, Auto and manual VIN entry
*Illustration instruction guides for battery positioning and testing
*Print test reports via built-in thermal printer
*Read and erase codes of all available systems
Autel BT608 Specifications
*Operating System: Android 9.0
*Screen Display: 5.5'' LCD touch screen with 720*1280 resolution
*Storage: 32GB
*Connectivity: Wi-Fi (802.11 a/b/g/n/ac), USB 2.0 Type C, BT5.0+EDR
*Camera: 8 Megapixel
*Input Voltage: SV DC
*Working Current: < 450 mA at 7.7 V DC
*Internal Battery: 7.7 V, 3000 mAh
*CCA Range: 100 to 3000 A
*Voltage Range: 1.5 to 36 V
*Working Temperature: 0° to 50° C (32° to 122° F)
*Storage Temperature: -10° to 60° C (14° to 140° F )
*Dimension (L x W x H): 204 mm (8.03”) x 90 mm (3.54”) x 32 mm (1.25”)
*Weight: 510 g (1.12 lb.)

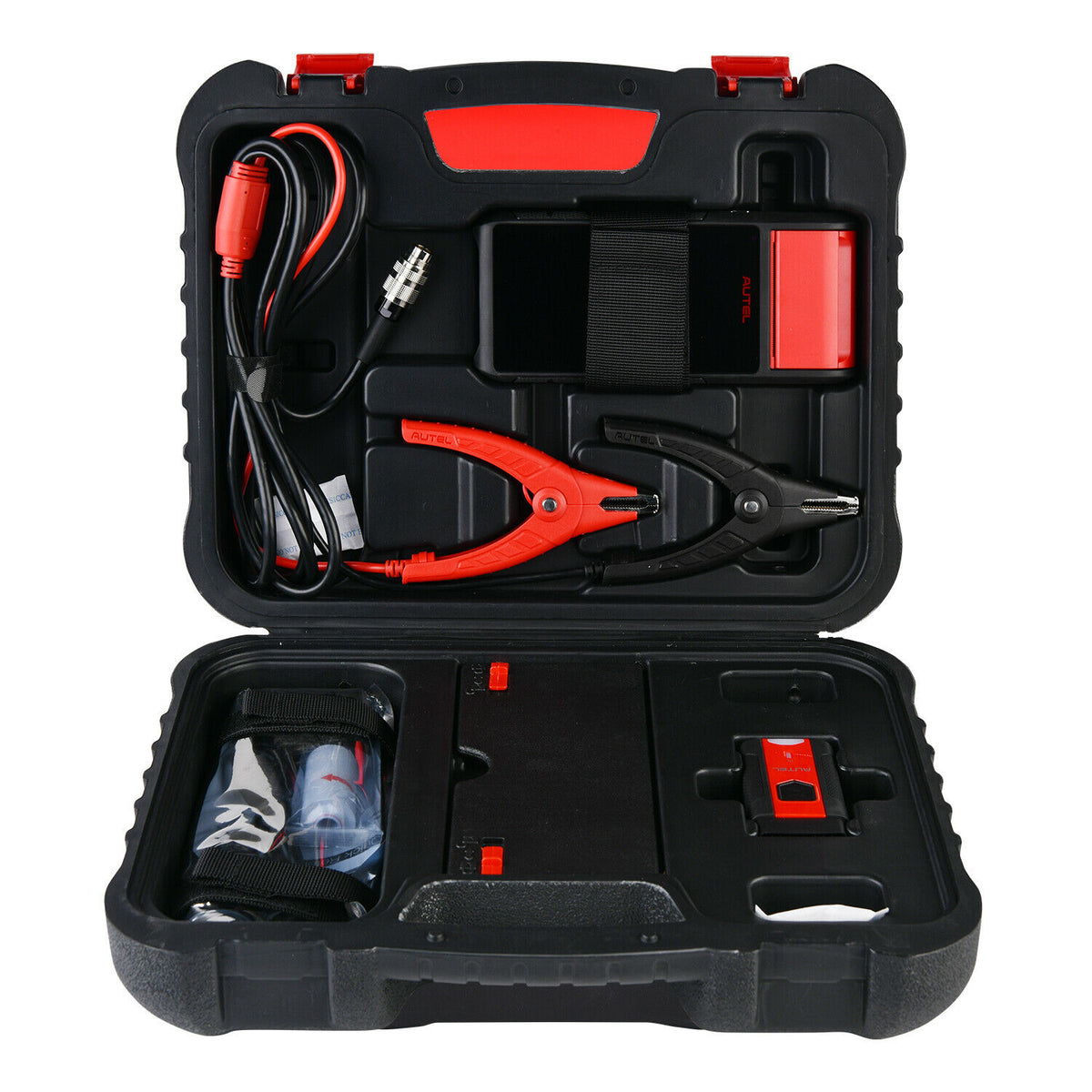

Autel BT608 Package Content

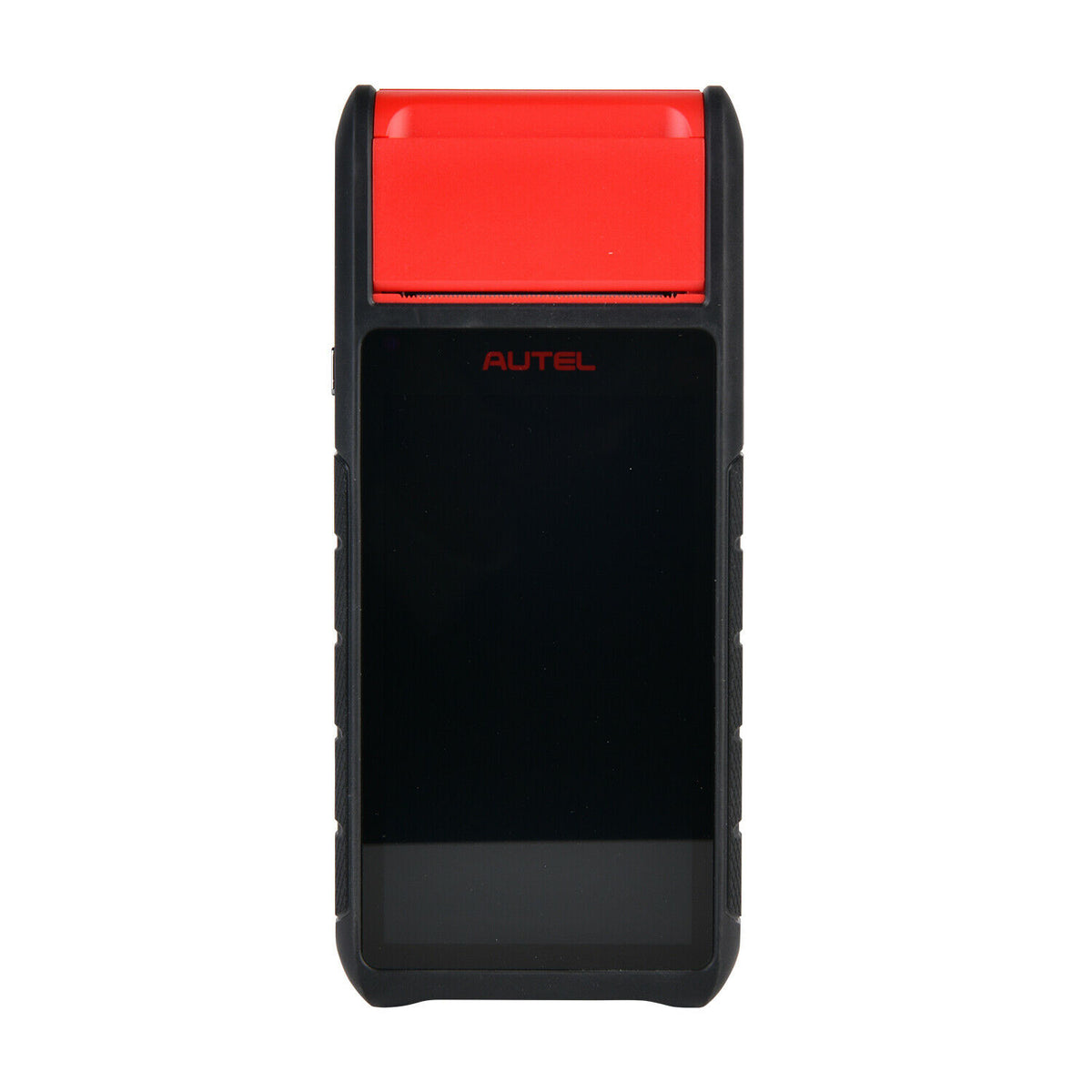

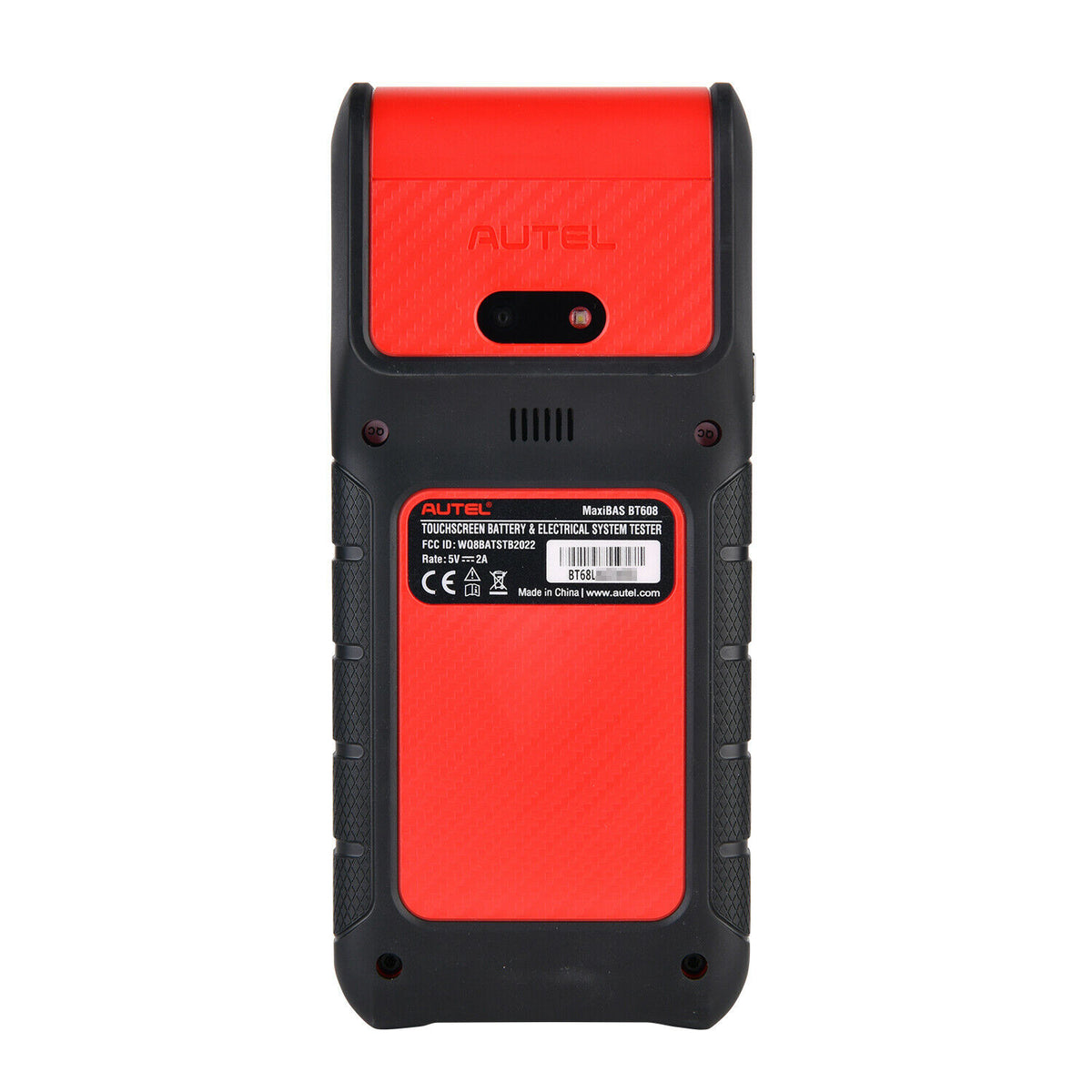

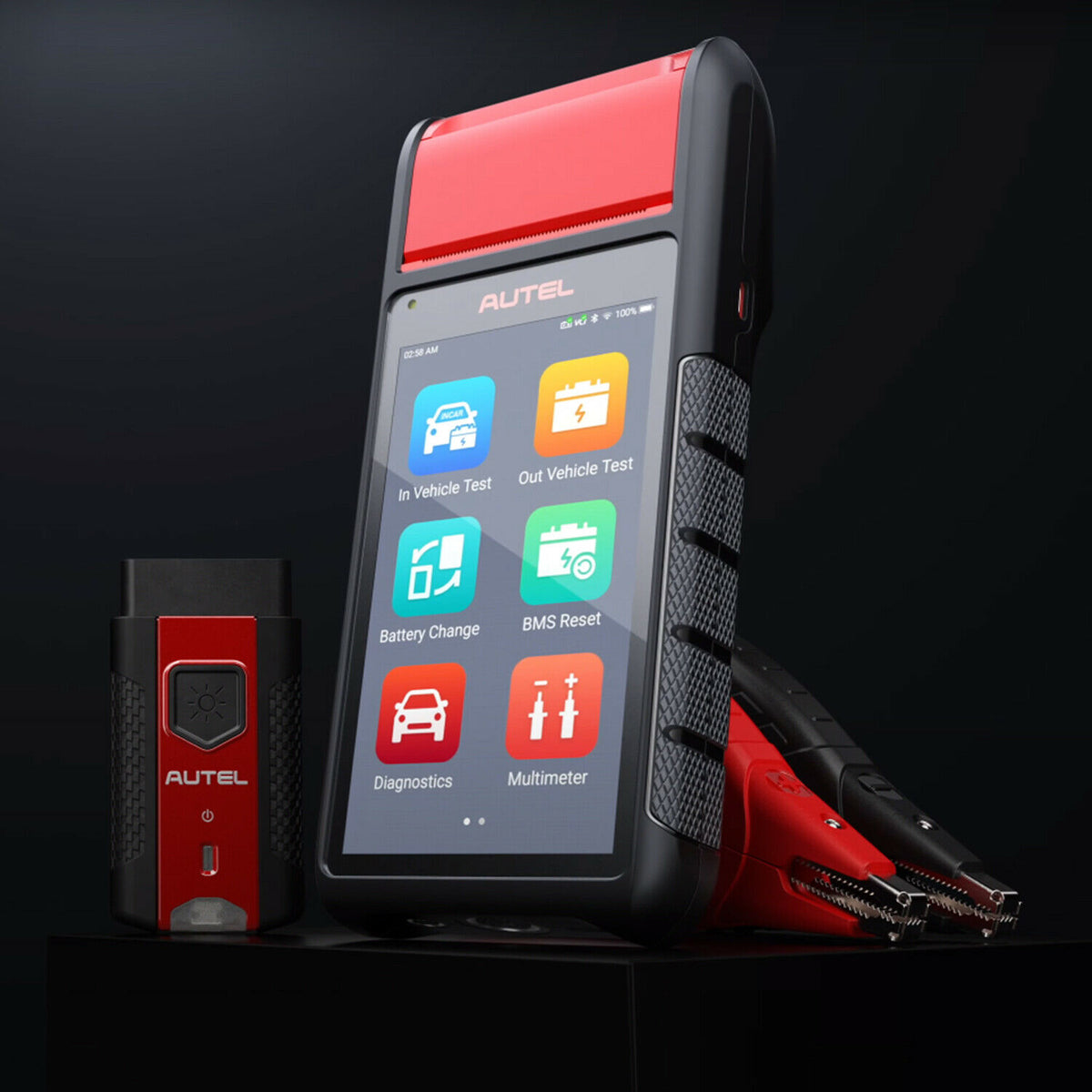

1x BT608 Main Unit
1x MaxiCVI MV200 Series
1x Battery Clamp Cable
2x Paper Roll
2x Battery Side Post Terminal TYPE T
2x Battery Side Post Terminal TYPE S
1x Power Adapter
1x USB Cable
*Operating System: Android 9.0
*Screen Display: 5.5'' LCD touch screen with 720*1280 resolution
*Storage: 32GB
*Connectivity: Wi-Fi (802.11 a/b/g/n/ac), USB 2.0 Type C, BT5.0+EDR
*Camera: 8 Megapixel
*Input Voltage: SV DC
*Working Current: < 450 mA at 7.7 V DC
*Internal Battery: 7.7 V, 3000 mAh
*CCA Range: 100 to 3000 A
*Voltage Range: 1.5 to 36 V
*Working Temperature: 0° to 50° C (32° to 122° F)
*Storage Temperature: -10° to 60° C (14° to 140° F )
*Dimension (L x W x H): 204 mm (8.03”) x 90 mm (3.54”) x 32 mm (1.25”)
*Weight: 510 g (1.12 lb.)
Autel BT608 Package Content
1x BT608 Main Unit
1x MaxiCVI MV200 Series
1x Battery Clamp Cable
2x Paper Roll
2x Battery Side Post Terminal TYPE T
2x Battery Side Post Terminal TYPE S
1x Power Adapter
1x USB Cable
