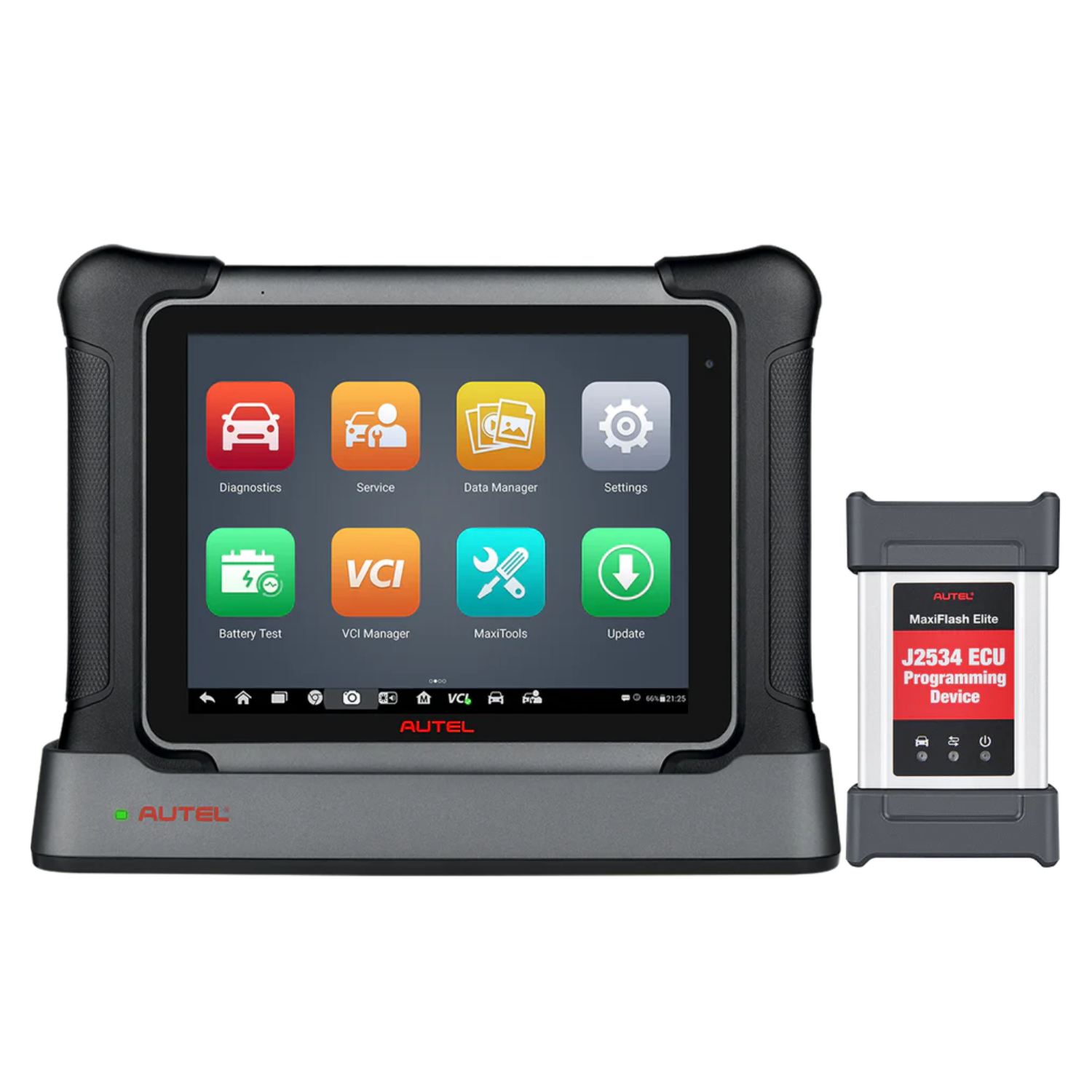

Autel Maxisys Elite II Car Diagnostic Scanner OE-Level Elite 2 Diagnostic Scan
Autel Maxisys Elite II Car Diagnostic Scanner OE-Level Diagnostic Scan Tool with J2534 ECU Programming ECU Coding Upgraded of MK908P MS908P MK908 MaxiSys Elite
Autel Elite II is upgraded on the software and hardware platform with a brand new operating experience. With Samsung Exynos8895 8 core, 5M/16M camera,4G/128G super memory,15400mAh battery, OE-level all system, 38+ service functions, advanced ECU programming/coding, wide vehicle coverage, bi-directional, support Remote Expert, battery detection (BT506), GPS etc.
What's New in Elite II?
1. Hardware and Software Platform Upgrade: Samsung Exynos8895 8 core, Android 7.0, 5M/16M camera,4G/128G memory,15400mAh battery.
2. More Expansion Functions which Autel Elite can not Support : Battery detection (work with BT506), GPS.
3. MaxiFix Cloud Service: Support Remote expert service, RealFix, SMS, Data management/report management.
Full-System Diagnosis
Simply accessing the diagnostic modes viaAutoVinor Control Unit, and you’re able to perform diagnosis overall systemson the vehicle’sECUin order to locate fault systems and retrieve DTCs.
ECU Information– provides the retrieved ECU information in detail.
Read Codes– displays detailed information of DTC records retrieved from the vehicle control module.
Erase Codes– erases DTC records and other data from the ECM.
Live Data– retrieves and displays live data and parameters from the vehicle’s ECU.
J2534 ECU Programming
The diagnostic tool comes with a freeJ2534 ECU programmingdevice that helpsBenzandBMWusers replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues.
J2534 ECU programming tool (also used as a VCI box) that is a SAE J2534-1 & -2 compliant pass thru reprogramming interface device.
Using the updated OEMsoftware, it is capable of helping BMW and Benz users replace the existing software/firmware in the Electronic Control Units (ECU), program new ECUs and fix software-controlled drivability issues and emission issues.
It supports BT and USB communications and can transmit vehicle data to the MaxiCOM display tablet with a physical connection.
ECU Coding
The Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as toreprogramadaptive data for certain components, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts.
Languages
English, Simplified Chinese, Traditional Chinese, Spanish,French, German, Polish, Japanese, Korean, Dutch,Portuguese, Swedish,Russian
After you get the product, please tell us your SN of machine to activate the language you need .
38+ SERVICES Functions
The most commonly performed service functions include:
Oil Reset Service:
Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.
EPB Service:
Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
SAS Service:
Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
DPF Service:
Allows you to carry out numerous functions to the Diesel Particulate Filter system.
TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
IMMO Service:
Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.
And Many More…
Bi-directional Control
The diagnostic tool supports bi-direction control to check the vehicle operating conditions. The bi-directional control of the ECM in Component Test enables the MK908P to transmit control commands to operate the vehicle systems.
NEW ADDED FUNCTIONS, WIDE COMPATIBILITY
New extended functions have been added in Autel Elite II scanner, like Guided Functions for Audi/ VW, Online Parameterization, Maxifix cloud service, Component Matching, Battery Test for Volkswagen, Audi, Benz, BMW, Nissan, Honda, Hyundai, etc. Covering 99% vehicles including Tesla, Mclaren, Lamborghini, Ferrari, Benz, BMW, Nissan, Ford, etc.
WIDE VEHICLE COVERAGE
Autel Maxisys Elite II car diagnostic tablet covers more than 150 + car brands and 10000+ vehicles worldwide of 80+ USA, EU, Asian Car Makes.
Same Hardware as Autel MS909
The MaxiSys Elite II has the same hardware as Autel MS909. Compare to MS909, Autel Elite II is more economical if you don't need Intelligent diagnosis function.
Remote Tech Support
When you have any problems or questions when using the device, you can upload the data log directly on the device so that the engineer can solve your problem faster.
Autel Elite II supports remote technical support, you only need to provide the Team viewer ID, you can directly communicate with the engineer, which greatly improves the efficiency of problem solving.
Specification
RAM:4 GB
Hard Drive:128 GB
Average Battery Life (in hours):8 Hours
Standing screen display size:9.7 Inches
Update:1 year free update
Warranty:1 year
