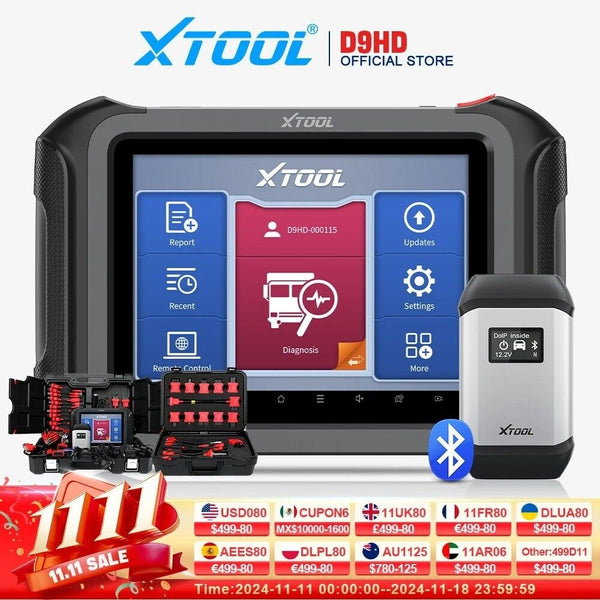

XTOOL D9HD Heavy Duty Truck Scanner Full System Diagnostic Tool With Topology

2 sold in last 8 hours
In stock
$3,738.24
Title *
$3,738.24
Add to Wish List
customers are viewing this product
XTOOL D9HD Heavy Duty Truck Scanner Full System Diagnostic Tool With Topology

PRODUCT HIGHLIGHTS

Specifications

  • Hign-concerned Chemical
    none
    Electronic
    Yes
  • Item Weight
    13kg
    Item Height
    15cm
  • Item Width
    22cm
    Item Length
    32inch
  • External Testing Certification
    ce
    Voltage
    V
  • Special Features
    Bluetooth,Wifi
    Power
    W
  • Model Name
    XTOOL D9 HD
    Software Version
    Upgradeable
  • Hardware Version
    Newest
    Item Type
    Other
  • Brand Name
    XTOOL
    Origin
    Mainland China
  • Certification
    CE
    D9 HD Support Vehicle 1
    For 24V Heavy Duty Trucks
  • D9 HDSupport Vehicle 2
    For 12V Cars
    XTOOL D9HD Trucks Diagnostic Tools Function 1
    ECU Coding & online Coding
  • XTOOL D9HD Trucks Diagnostic Tools Function 2
    Active test, Bi-Directional control
    XTOOL D9HD Trucks Diagnostic Tools Function 3
    OE Level All Systems Diagnostics
  • XTOOL D9HD Trucks Diagnostic Tools Function 4
    Key Programming / IMMO
    XTOOL D9HD Trucks Diagnostic Tools Function 5
    42+ Services Functions
  • XTOOL D9HD Trucks Diagnostic Tools Function 6
    Module Topology Mapping
    XTOOL D9HD Trucks Diagnostic Tools Function 7
    Support CAN FD Protocol
  • XTOOL D9HD Trucks Diagnostic Tools Function 8
    Support DOIP Protocol
    XTOOL D9HD Trucks Diagnostic Tools Function 9
    Guided Functions
  • XTOOL D9HD Trucks Diagnostic Tools Function 10
    Flash Hidden Functions
    XTOOL D9HD Trucks Diagnostic Tools Function 11
    Auto Scan & Auto VIN
  • Connection Method
    BT & Wired Connection
    Updates
    3 Years Updates($900 Value)
  • OS
    Android 10
    Screen
    9.7 inch touch screen
  • Battery
    6400mAh 7.2V
    Memory
    4GB+128GB

Description

Report Item / Suspicious Activity

XTOOL OFFICIAL STORE PROMISE




1. All Products in XTOOL Official Store are 100% Official Authentic and have a 5-Year Warranty




2. XTOOL has US/UK/CA/EU/AU/RU/BR/MX Overseas Warehouse Merchants to Bear the Tax, and can be Delivered Within 2 Days




3. XTOOL Provides 24-Hour Online Service and Professional Technical Support




4. Hope you have a Good Shopping Experience in XTOOL, Thank you again for Shopping in XTOOL




5. After Confirming Receipt, You Can Get a Gift if you Give a 5-Star Review + Post a Picture, Please Contact the Seller

XTOOL D9HD Car Diagnostic Tools Designed For Mechanics, Electricians, and Car Maintenance Shops. XTOOL D9HD Trucks Diagnostic Scanner Supports Full System Diagnostics for passenger cars, commercial vehicles, and heavy-duty trucks, ECU Online Coding + PMI, Bi-Directional Control, Key Programming, For VAG Guided & Unlock Hiden Functions, 42 common special functions, Module Topology Mapping, Support CAN FD/DoIP Protocols, 3 Years Updates, Under the system menu, you can also explore a wealth of functions. 98% vehicle coverage, work on more than 85 brands, 10000 cars.


XTOOL D9HD 12V & 24V HEAVY DUTY TRUCK DIAGNOSTIC TOOL FOR MECHANICAL WORKSHOP, ELECTRICIAN, AFTER-SALES REPAIR SHOP!
1. XTOOL D9HD 12V & 24V Truck Diagnostic Tool Coverage for 150+ Models
XTOOL D9HD Bluetooth Diagnostic Tool, work for Cars/Passenger Cars/Commercial Vehicles/heavy-duty trucks/trailers/excavators/diesel engine/ construction machinery/ Pickup trucks.etc, XTOOL D9HD Diagnostic Tools heavy duty Module shows the current communication mode and status timely through the LED screen and can automatically switch power between 12V and 24V.

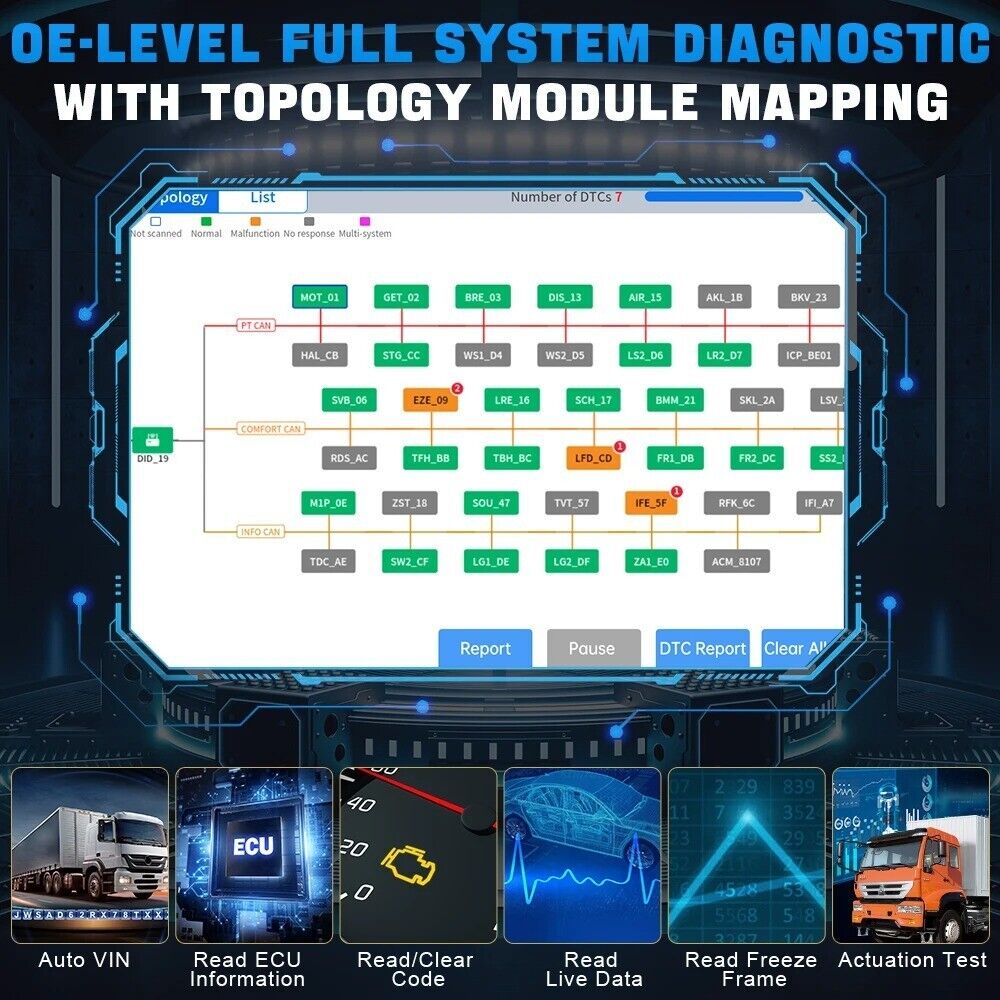

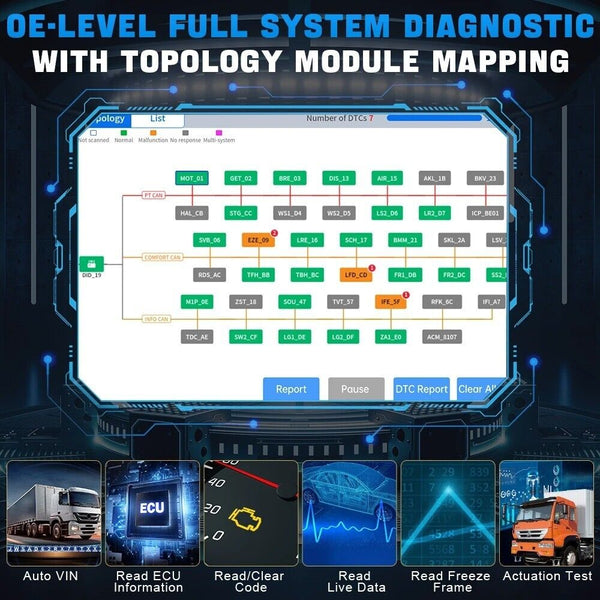

2. Module Topology Mapping- Boosting Diagnostic Efficiency by 65%
XTOOL D9HD Automotive Scanner intelligent diagnostic computer comes with Module Topology Mapping that displays interrelationships among various vehicle modules and views faulty modules in one glance to reduce guesswork performing all systems scan and improve diagnostic efficiency by 60% for automotive technicians, mechanics, car dealers and advanced DIY mechanics.
3. ECU Online Coding + PMI (Programmable Module Installation)
XTOOL D9 HD Diagnostic Tools has the abilities to perform ECU Coding(for VW/Audi/Skoda) and custom configurations are designed to unleash the hidden functions for BMW, for Ford/Lincoln, for Mazda, for VW/Audi/Skoda, for Toyota//Lexus, etc. You can activate the higher-level car functions and disable any annoying features. New launched PMI function for Ford, Lincoln, Mazda to copy data into new modules.
4. For VAG Guided & Unlock Hiden Functions
XTOOL D9HD Truck Diagnostic Scanner Performs Guided Functions for V.A.G. vehicles to perform many functions with step-by-step on-screen instructions to boost efficiency. XTOOL D9HD Automotive Scanner Unlock Hiden Functions can unlock multiple hidden functions of VAG vehicles to enhance vehicle convenience, personalization and driving experience.
5. Bi-Directional Control Capability & OE Level All Systems Diagnostics
XTOOL D9 HD Car Diagnostic Tools can read stored codes, pending codes, manufacturer-specific codes, clear codes, view live data in text & graphing, freeze frame, ecu info, do various active tests and special functions. It can check misfire data, O2 sensors, fuel trims, trans. oil temp., abs speed sensors, fuel pressure, fuel temperature, cylinder balance rates and etc. except that, D9HD has full control over various car sub-systems, components like valves, solenoids, pumps, motors, to perform vehicle-specific active tests like EVAP tests, injector tests, fuel pump test, cooling fan test, EGR test, compression test, abs motor pump test, window/door/sunroof/wiper/horn/lighting tests.
6. Key Programming/IMMO Functions
XTOOL D9HD Immobilizer Tool Can Disable a Lost Vehicle Key and Program the Replacement Key Fob. One or more Replacement Key Fobs can be Programmed. Like Programming New Key Fobs, Read PIN Code/Pin Code Calculation, Check Number of Keys, Generate Key, Add Key, All Key Lost. XTOOL D9 HD Key Generator can works with KC501, KS01, M822, SK1, KC100, EEPROM, ADAS.
7. 42+ Advanced Special Features
XTOOL D9HD Auto Scanner offers 42+ Service Options enough for Daily Auto Maintenance Services including: Oil Reset, EPB, SAS, BMS, DPF/GPF, Throttle, TPMS Reset, Gearbox Match, Suspension, ABS Bleed, Injector Coding, Key Programming, Airbag Reset, Headlight, Power Balance, Seat Configurations, A/F Reset, Start/Stop Reset, A/C Relearn, HV Battery, VGT Relearn, VIN Writing, etc.
8. Support CAN FD/DOIP Protocols
CAN FD Provides Higher Transmission rates and is suitable for modules that need to process large amounts of real-time data. Compatible More CAN FD Protocol Vehicles (For GM Vehicles After 2020); DoIP provides fast Ethernet-based remote diagnostics and programming, suitable for the latest remote updates and complex diagnostic needs. Compatible For BMW E/F/G Chassis, Jaguar, Land Rover vehicle makes.
9. XTOOL D9HD Scanner with 3 Years Updates($900 Value), Free Tech Support from XTOOL Team
XTOOL D9HD Car Diagnostic Scanner comes with 3-YEAR FREE software updates to optimize user experience and improve software issues to add more vehicle coverage and incoming features irregularly updated. For any questions or concerns, feel free to reach us via 24/7 support team.

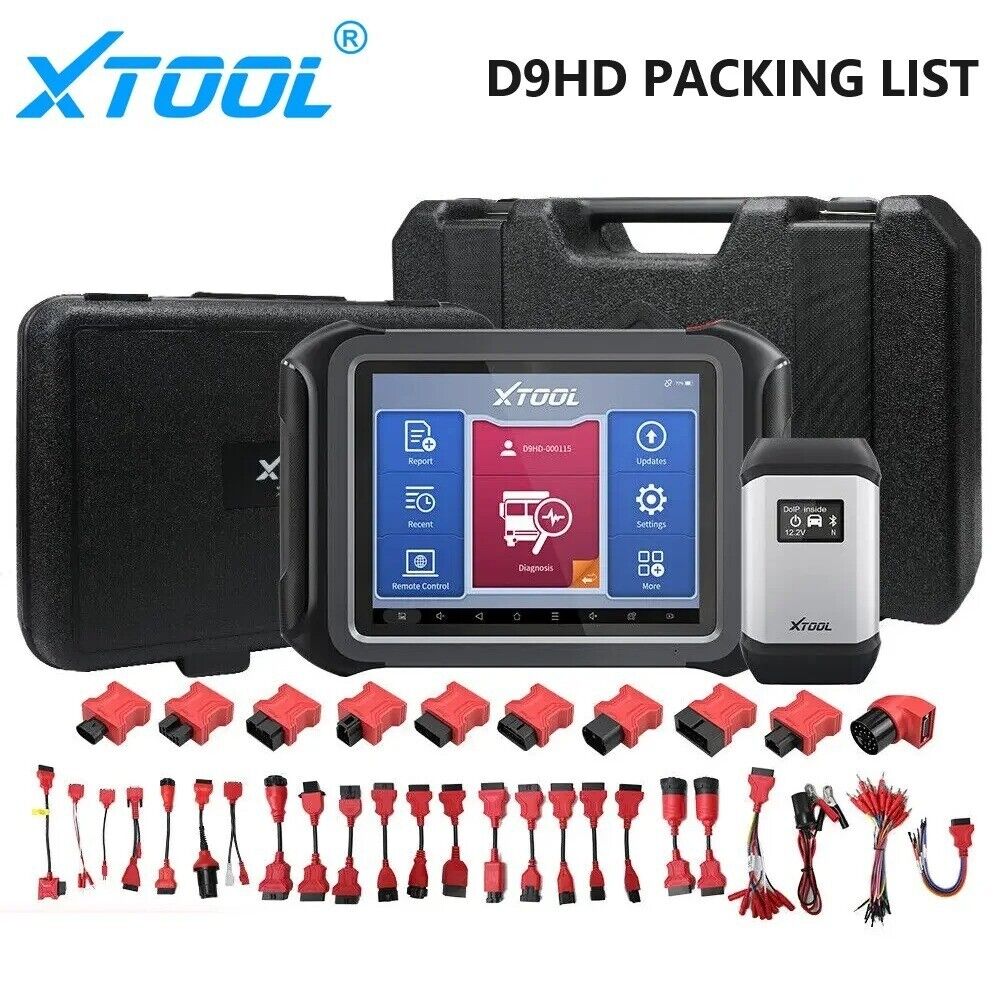

10. Premium Hardware + Complete Connector Kit
XTOOL D9HD Scanner is powered by intuitive Android 10 OS, 9.7” Touch Screen, 1.8Ghz 4 Core Processor, 6400mAh 7.2V Built-in Rechargeable Battery, 4GB+128GB Memory, Wired/Bluetooth Connection, 8MP Rear Camera, Microphone, Speaker and Comes with a box of Complete Connector Kit to access and scan various car modules or vehicles models.


ADVANCED ECU CODING & ECU CONFIGURATION

➤Advanced ECU Coding: ECU coding capability for VW/AUDI/SKODA ONLY which performs online Coding, Component Matching, Adaptive Data Reset, Flash Hidden Functions, etc to optimize vehicle performance and customize car settings.

➤Flash Hidden Functions (ECUConfiguration): For BMW/VW/AUDI/SKODA/TOYOTA/LEXUS/SCION/ MAZDA/FORD/LINCOLN, help refresh hidden functions to reprogram adaptive data for certain components after making repairs or replacements. You can activate the higher-level car functions and disable any annoying features. Customize some extra options such as disabled the seat belt buzzer, wind the windows down with the remote fob.


OE-LEVEL FULL SYSTEMS DIAGNOSTICS

XTOOL D9HD All System Diagnostics Tool not only detect the engine system, but also include the transmission, ABS (anti-lock braking system), air bag system, steering system, suspension system, air conditioning system, etc. It can scan and read data from various electronic control units (ECUs) to ensure that the vehicle's various systems can operate normally.
➤Fault Code Reading: Read and decode the fault codes in each system to provide detailed fault information and possible fault causes.
➤Parameter Monitoring: Real-time display of operating data of various vehicle systems, such as engine speed, fuel pressure, temperature sensor readings, air flow, etc.
➤Data Logging: Records real-time data streams to facilitate analysis and comparison of data at different points in time, helping technicians diagnose intermittent problems.
➤Reset Fault Codes: After repairing or replacing parts, the fault codes can be cleared and the fault indicator lights can be reset to ensure that the system can operate normally again.


BI-DIRECTIONAL CONTROL/ACTIVE TEST

Full bi-directional control ability to verify system input/output by sending commands to vehicle’s systems/ components. Such as EVAP Tests, Compression Test, turn on/off radiator fan, A/C Clutch On/Off, Fuel Pump, Window/Mirror/Door Lock Test, Pump and Value Tests, Interior & exterior lights Test, Sound horn Test, etc


XTOOL D9HD 42+ CALIBRATION/INITIALIZATION/MATCHING/RELEARN FUNCTIONS

Oil Reset: Reset service intervals after oil change and turn off the oil light.

EPB Reset: Reset brake pads after replacement of brake system.

SAS Adjustment: Perform calibration of the steering angle sensor

DPF Reset: Perform DPF regeneration

BMS Reset: Register the new battery to the ECU after replacement.

Throttle Relearn: Enables you to make initial settings to throttle to adjust the amount of air intake.

ABS Bleeding: Perform ABS Brake Bleed function to cycle the ABS pump to bleed the air out of the ABS.

Injector Coding: Coding injectors after replacement.

Transmission Match: Reset the adaptive shifting points in your automatic Transmission Control Unit.

Gear Learning: Crankshaft position sensor learns crankshaft tooth machining tolerance and saves to the tablet to diagnose engine misfires more accurately.

Key Programming/IMMO: Disable the lo~st vehicle keys and program a new replacement key fob.

Advance Special Functions Added: Steering position sensor calibration, SWS Calibration, Yaw Rate Sensor calibration, Zero Point Calibration, Hybrid Control Compression Test, HVAC Control Module Calibrate, Injector balance test, ECU Configuration, VGT Turbo Calibration, Idle Learn Reset, Alcohol Content Reset, ABS Initialization, Seat Weight Sensor Calibration, Fuel Trim Reset, Cylinder Power Balance, Crankshaft Sensors Relearn, Language change, A/F Settings, Stop/Start Reset, reset control unit, A/C Relearn, etc.

Note: ALL the service functions available vary acorss vehicles. Please come to us to check compatibility with car VINs.



XTOOL D9HD PROFESSIONAL KEY PROGRAMMING/IMMO EQUIPMENT


XTOOL D9HD Key Fob Programmer can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed. like programming new key fobs, Read PIN code/pin code calculation, Check number of keys, Generate key, Add key, All key lost.

➤Read PIN Code/Pin Code Calculation

➤Check Number of Keys

➤Generate Dealer Key

➤All Key Los

➤Add Key

➤Delete Key


Note: This Key Programming Function is not Universally Compatible, Please Check Compatibility with us if necessary.




GET MORE FUNCTIONS WITH EXPANSION ACCESSORIES (Need Purchase Separately)



KC501:

➤For VW 4th & 5th IMMO

➤For Mercedes-Benz Infrared key Increase

➤Read & Write Chip


KC100:

➤For VW/Audi/Skoda/Seat/Bentley

➤For 4th&5th, MQB IMMO


M822:
➤For Mercedes-Benz All Key Lost
➤For Toyota 8A AIl Key Lost


KS-1:

➤For Toyota Smart Key All Key Lost

➤For 94 Chip Smart Key


SK1:

➤For 2013-2022 Toyota/Lexus Models With 8A/4A Chip Smart Keys

➤Add Key/All Keys Lost

➤Emergency Start

➤Frequency & Key Type Reading




PROFESSIONAL DIAGNOSTIC TOOL PROVIDE MORE COMPREHENSIVE FUNCTIONS


➤Intelligent Topology Map: XTOOL D9HD intelligent diagnostic tool has a module topology, which can scan all available car modules, and the topology map displays the diagnostic status in different colors, showing the communication structure between modules, which greatly improves the maintenance efficiency of the workshop.

➤Support CAN FD/DoIP Protocols: With CAN FD protocol covers for GM MY2020+ models. No extra CAN FD adapter needed. with DoIP protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle makes.

➤BT Connection & Wired Connection: XTOOL D9HD Bluetooth Diagnostic Tool offers BT connection feature to achieve remote diagnosis at a long range, get rid of the shackles of cables, make it easy to move from the dash to the front of the car. Besides, you can use the USB to Type B cable to achieve wired connection.

➤3 Years Free Update & One Click WIFI Update: XTOOLD9HD automotive scanner With 3-Year Free Software Update, you are free to update available softwares in any times. Recommend to download the newest software if it is available to get the best experience, as we always focus on our scanner to optimize user experience and improve software issues, improve vehicle coverage and the accuracy of repair.

➤Auto Scan & Auto VIN: Simplify the vehicle diagnostic process with just one click. XTOOL D9HD scanner tool adopts the latest car VIN technology, allowing technicians or repairers to easily identify vehicle information such as manufacturer, model, year and place of manufacture, etc.

➤For VAG Guided Functions: With VAG Guide Functions, D9HD can perform complex functions such as special functions, ECU coding, etc., to help your diagnostic step by step with instructions for VW/Audi/Skoda, etc.


COVER FOR 12V & 24V HEAVY DUTY TRUCK DIAGNOSTIC TOOL

XTOOL D9HD automotive scanner is ALL-IN-ONE Scan Tool for 12V cars and 24V Heavy-duty trucks which provide the most extensive multi-brand coverage and comprehensive diagnostics for you. Passenger vehicles: Cars, SUV, MPV, Pickup truck; Commercial vehicles: Heavy Duty Truck, Passenger Bus, Excavator, Tractor, Recreational Vehicle.

Diagnostic For Trucks: For ALLISON, For ALLISONELE, For AUTOCAR, For BEIQl, For BENDIX, For BENZ, For CAT, For CATERPILLAR, For CATJIXI, For CUMMINS, For CUMMINSQ, For DAF, For DAXINJIXIE, For DETROIT, For EATON For ECUMANUFACTURES, For ERF, For FOTON, For FREIGHTL, For FUSO, For HINO, For HYUNDAI, For INTERN, For ISUZU, For IVECO, For KENWORTH, For MACHINERY, For MACK, For MAN, For MANENG, For MAXXFORCE, For PETERBILT, For PIERCE, For RENAULT, For SANYI, For SANYIZHONGGONG, For SCANIA, For SHANMAOJIXIE, For SINOTRUCKOVERSEA, For STERLING, For TELEIKESI, For TOYOTA, For TRANSMISSION, For TRUCK, For UD, For VOLVO, For WABCO, For WABCOELE, For WESTERNSTAR, For XIAOSONGJIXIE, For ZF, For ZHONGLIANJIXIE...

Diagnostic For Car: For ABARTH, For ACURA, For ASTONMARTIN, For AUDI, For AUSFORD, For BENTLEY, For BENZ, For BMWPRG, For BUGATTI, For BUICK, For BYD, For CADILLAC, For CHANGCHENG, For CHANGHE, For CHEVROLET, For CHRYSLER, For CITROEN, For CVVW, For DACIA, For DAEWOO, For DAIHATSU, For DODGE, For EURFORD, For FERRARI, For FIAT, For GAZ, For GM, For GMC, For GQCQ, For HOLDEN, For HONDA, For HUACHEN, For HUMMER, For HYUNDAI, For HYUNDAICV, For INFINITI, For ISUZU, For JAC, For JAGUAR, For JEEP, For JIAO, For JILI, For KIA, For LAMBORGHINI, For LANCIA, For LANDROVER, For LEXUS, For LIFAN, For LINCOLN, For LUXGEN, For MASERATI, For MAYBACH, For MAZDA, For MINI, For MIT, For NISSAN, For NISSANGTR, For OPEL, For PERODUA, For PEUGEOT, For PORSCHE, For PROTON, For QIRUI, For RENAULT, For RENAULTSAM, For ROLLS, For ROMEO, For RONGWEI, For SAAB, For SATURN, For SCION, For SEAT, For SHVW, For SKODA, For SMART, For SQDTZY, For SQMG, For SSANGYONG, For SUBARU, For SUZUKI, For TLI5UZU, For TOYOTA, For TRANSPORTER, For UAZ, For USAFORD, For VAUXHALL, For VAZ, For VOLVO, For VW, For YQAUDI, For YQVW...




XTOOL D9HD DIAGNOSTIC SCANNERCOVER 15 MENU LANGUAGES


English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese. Greatly enhances its accessibility and usability to a global audience, targeting different Language requirements provide a more intuitive and effective diagnostic experience.

Activate Device Language Tutorial


1. Activate the Device with Email and S/N

2. Send S/N to Seller Authorize Language

3. Switch Language in Settings

4. Click Update Device，Update All


Note: English is default language, if you need other language, Please send the S/N to seller authorized language.




XTOOL D9HD ADVANCE HARDWARE CONFIGURATION


Operating System：Android 10.0

Processor：4 Core 1.50GHz

Memory：4G+128G

Display：9.7-inch, 1024×768P

Camera：8.0 Megapixel, AF with Flashlight

Auto Input/Output：Microphone, Speaker

Dimension (L×W×H)：313X218X30 mm

Communication Method：Wi-Fi, Wired

Connectivity：Type-C

Working Voltage：9-36V

Battery：6400 mAh, 7.2V

Working Temperature：0 to 40℃

Storage Temperature：-40 to 60℃

Compatible Protocol：CANFD, DoIP
