THINKCAR Thinktool Mini OBD2 Scanner Professional Full System DiagnosticTool ECU

2 sold in last 8 hours
In stock
Item *
customers are viewing this product
THINKCAR Thinktool Mini OBD2 Scanner Professional Full System DiagnosticTool ECU - Auto Lines Australia


THINKCAR Thinktool Mini OBD2 Scanner Professional Full System DiagnosticTool ECU

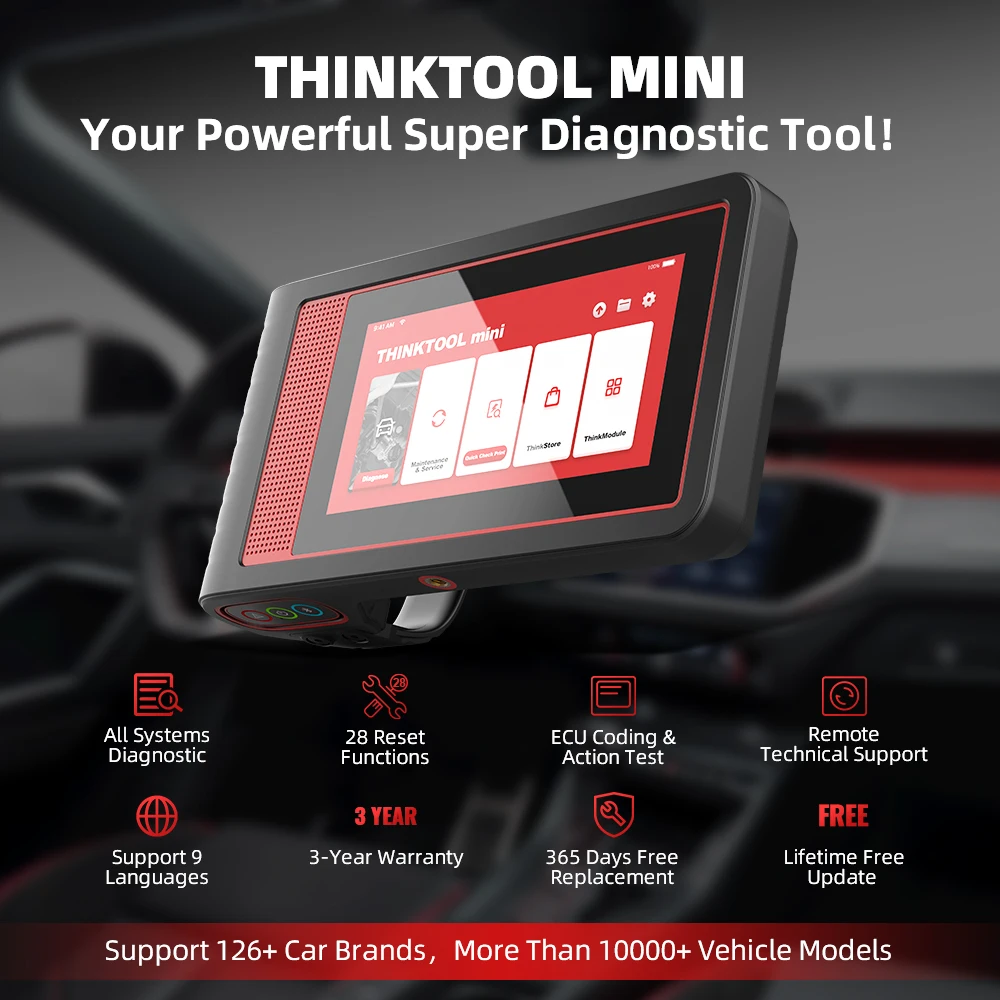

Thinktool mini,Your Powerful Super Diagnostic Tool!

THINKTOOL MINI, as the highest-level FULL OBD2 diagnostic equipment in 2021, supports DIY users including code reading/clearing data stream, drive test, special functions, remote diagnosis and other functions. It is your powerful super diagnostic tool!
1. Free code reading, code clearing, data transfer, and upgrade of all models in the whole system.
2.28 reset functions are free to use (all cars are free to use and update for life).
3. After subscribing to the software, the entire system can be diagnosed with full functions (all cars can be used and updated for free for life).
4. Support remote diagnosis service (all cars are free to use and update for life)
5. Android 10.0 system can be upgraded online.
6. Support more than 126 car brands.
7. The diagnosis covers all models that support the OBD protocol after 1996.
8. Equipped with VIN code intelligent recognition model.
9. THINKCAR series design, dustproof, shockproof and easy to store.
10.5.99-inch display is convenient for you to diagnose the car in real time.
11.2G RAM/ 32G ROM, support Bluetooth and WiFi connection.
12. Buying a car brand's software can enjoy a free upgrade of the complete system for 1 year, such as: ECU coding/action test and other special functions
Cost: 49.95 USD/year (you can buy it directly from the THINKCAR store)This product includes a 3-year warranty and 365-day free replacement service.
13. After-sales support including a 3-year warranty and 365-day free replacement

Full Systems Diagnostic For All Cars Lifetime Use and Upgrade

This option allows you to detect whether the system parameters are normal or not.
Include : ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System ,Oil Service System , SRS System ,DPF System ,Air Conditioning System,Transmission System, ect...
Read and erase codes for all available systems, turn off MIL light (Indicator light), display live data in text, graph & analog for easy data review.

28 Maintenance Resets Services For All Cars Lifetime Use and Upgrade

1.Oil Lamp Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change
This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.ODO Reset
a) ODO reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it
is necessary to do ODO reset after maintenance.

25.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

Support BI-DIREACTIONAL Test (Actuation Test)

Use Thinktool mini to test whether the actuator is normal, without using vehicle control, to significantly improve efficiency: turn on the radiator fan | adjust the throttle | open/close the window | operate the mirror | turn on/off the light | turn on/off the horn | test the door lock ...

Support to ECU Coding

The Coding function is used to re-flash the vehicle control modules.It is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts;Provide solutions for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts etc.;Brake the limitations and restrictions; make full use of the car hidden features, like change the chimes on car, set how many times the one-touch signal flickers for one touch, remember settings for Start/Stop systems, and more.

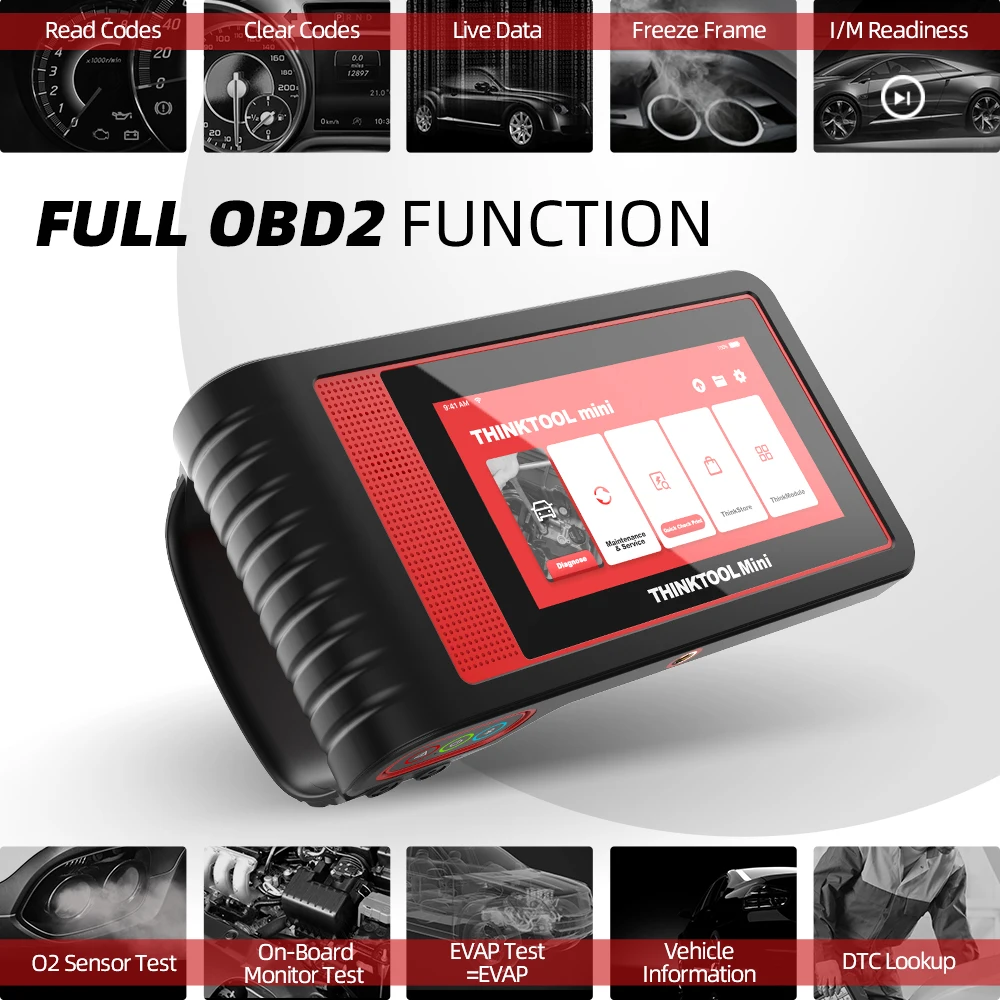

All Cars Lifetime Free 10 Mode OBDII/EOBD Functions

1.Reading Codes:Show the detailed description of the Diagnostic Trouble Code (DTCs)

2.Erasing Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets monitors.

3.Data Stream:Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4.I/M Readiness Status:Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.Read Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6.View Freeze Frame Data:Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7.O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8.On-Board Monitor Test:Retrieves and displays test results for emission-related powertrain components and systems.

9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10.Component Test:Certain vehicle components can be actuated by commands sent from the scanner to test their operability

Remote Technical Support

Thinktool mini Quick Support Remote technical support via Teamviewer QuickSupport

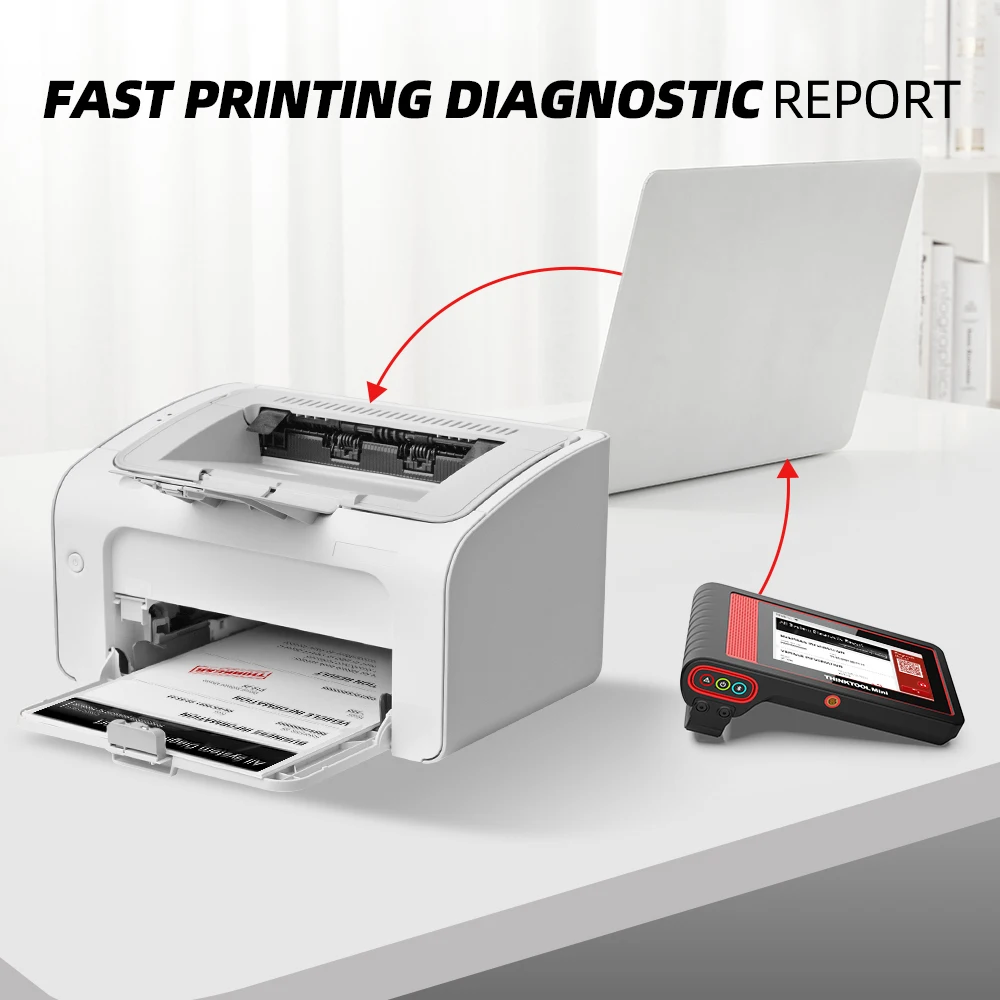

Fast printing Diagnostic Report

Thinktool mini can be connected to a computer to export the diagnostic report for printing, or use the printer expansion module for fast printing

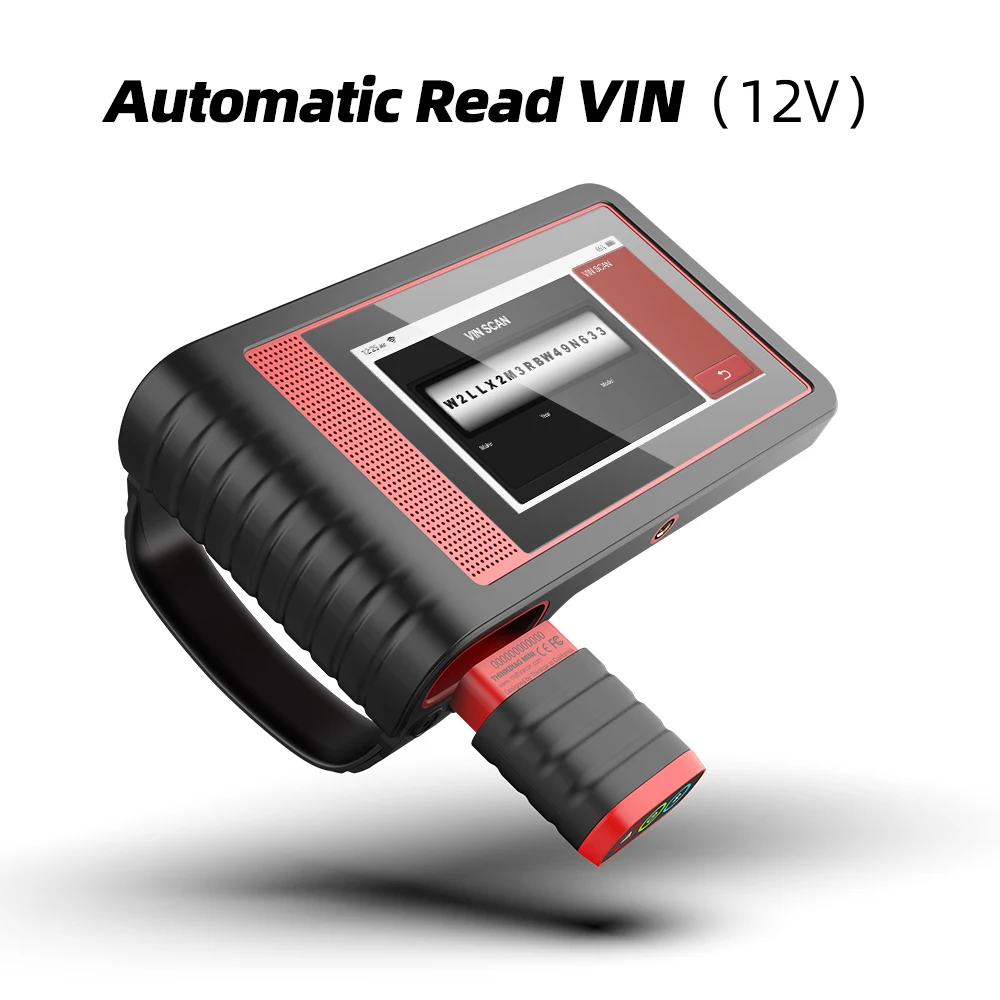

Automatic Read VIN(12V)

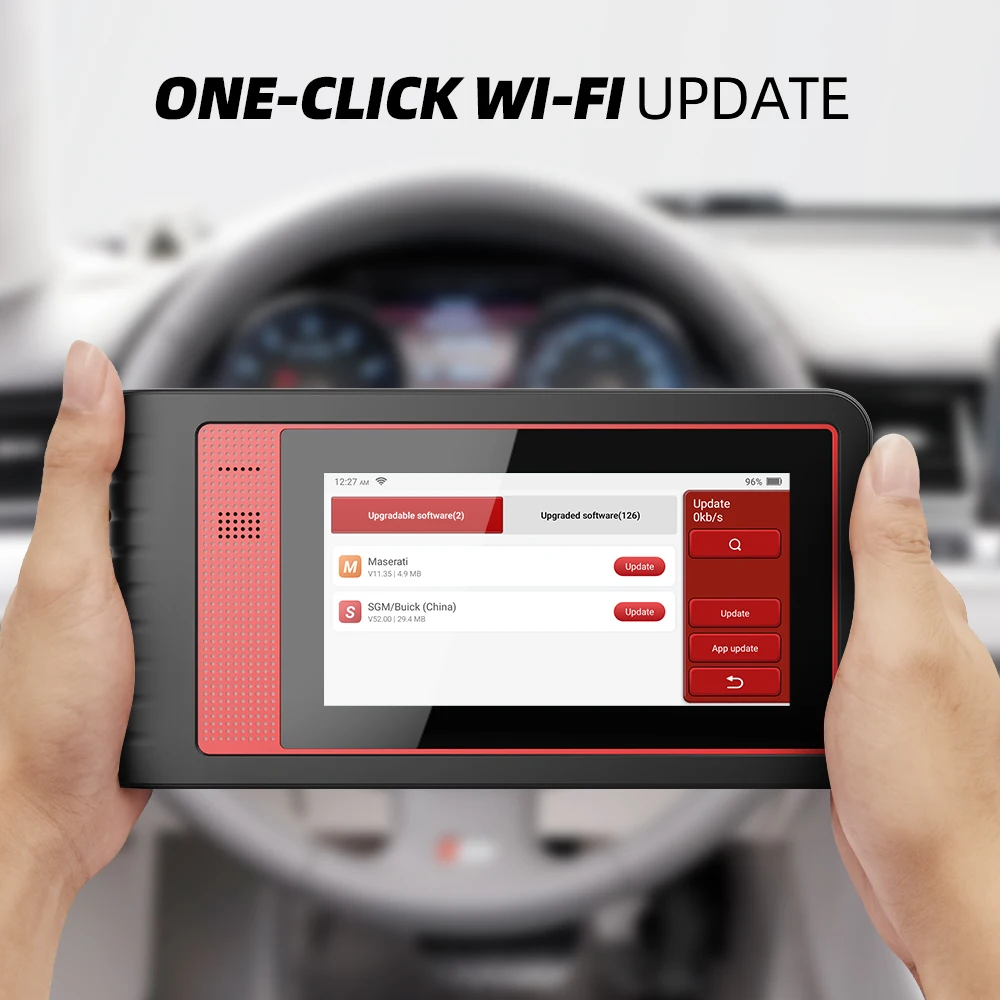

One-click Wi-Fi Update
Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

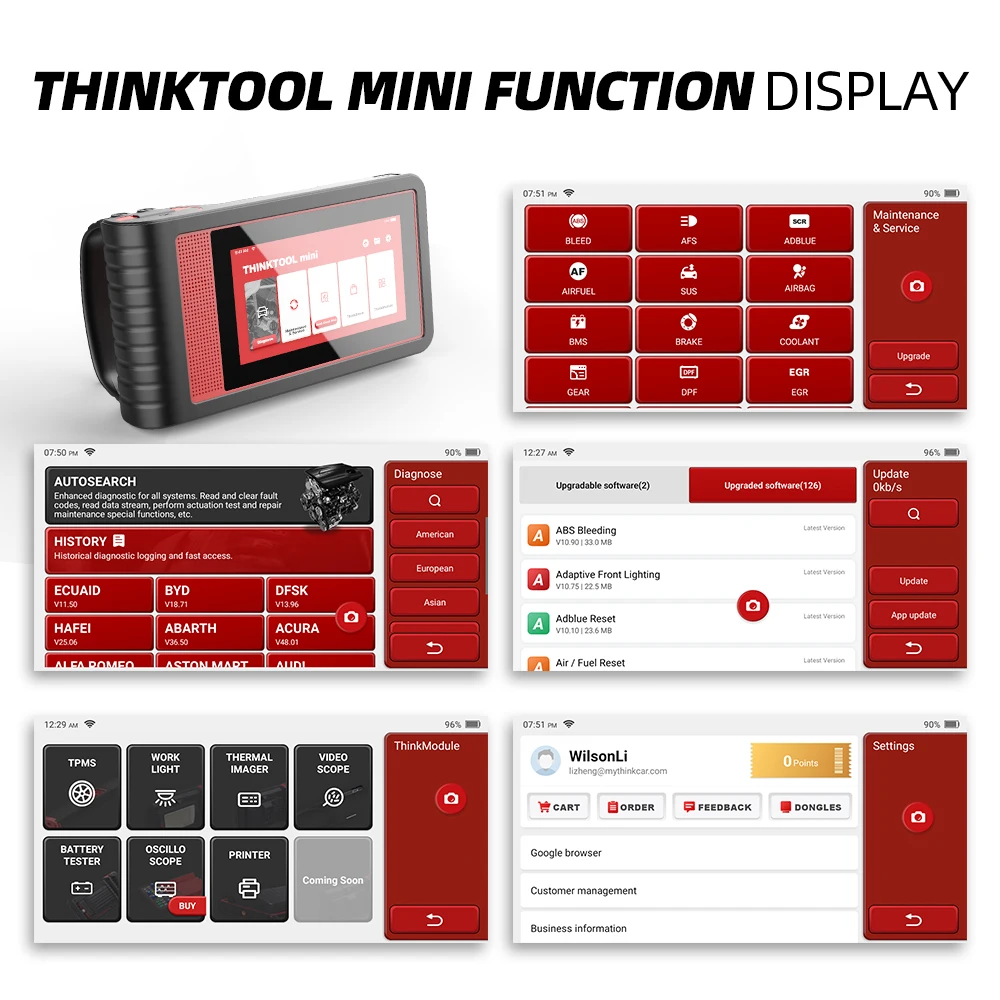

Thinktool Mini Function Display

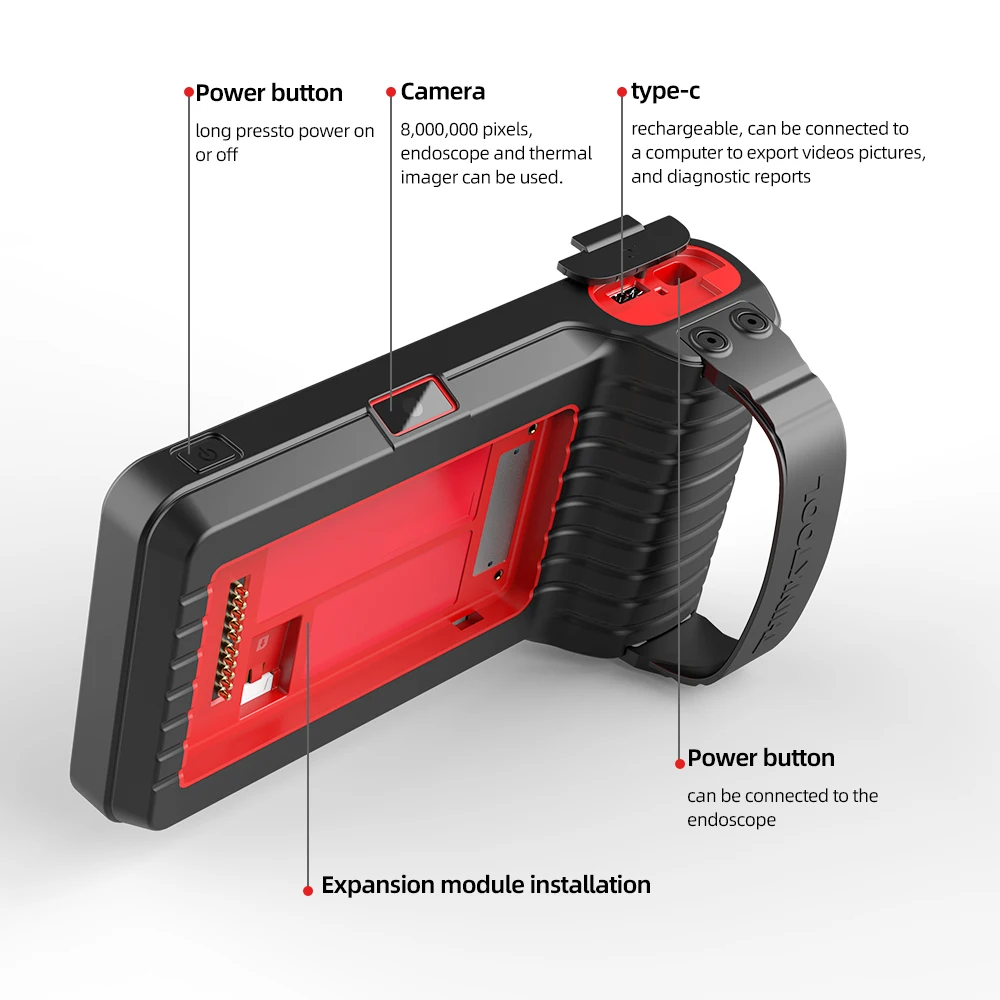

Support 8 Expansion Modules(Need to buy)

Video Scope
Work Light
Therml Imager
Battery Tester
ThinkTPMS G1
Module Dock

If you are interested in the expandable module,you can buy it separately.Click the picture.

Compatible with 1996 OBDII Protocol Models OVER 126+ CAR BRANDS AND 10000+ Vehicles

Support 9 Language

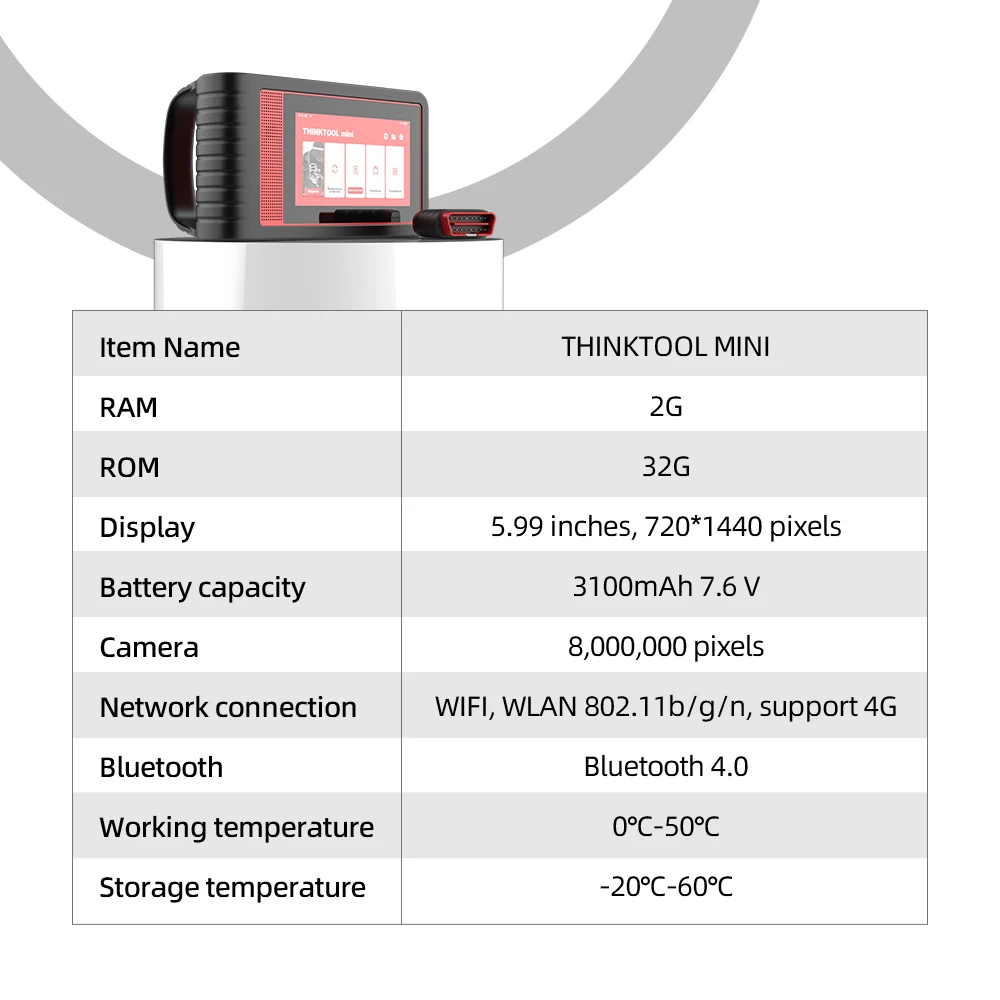

Memory: 2G
Storage capacity: 32G

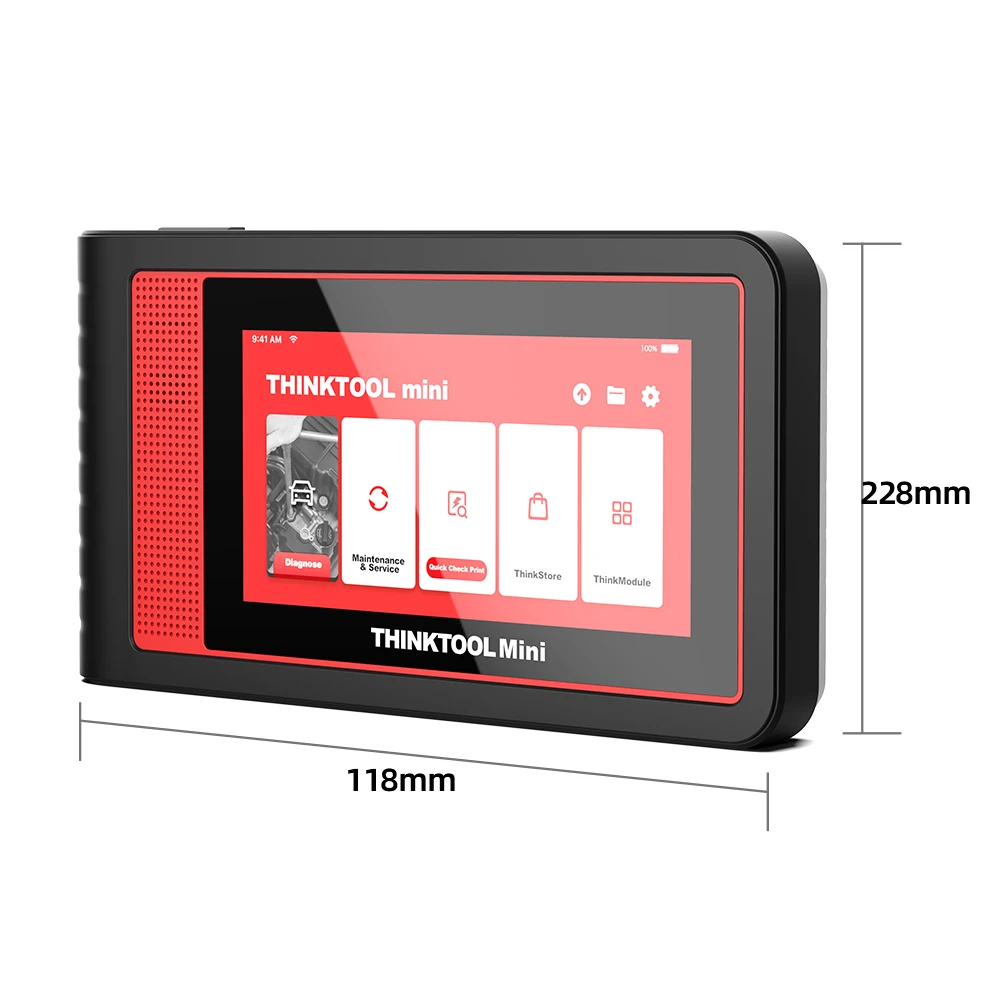

Display: 5.99 inches, 720*1440 pixels
Battery capacity: 3100mAh 7.6 V
Camera: rear 800w pixels
Network connection: WIFI, WLAN 802.11b/g/n, support 4G
Bluetooth: Bluetooth 4.0
Working temperature: 0℃-50℃
Storage temperature: -20℃-60℃

How to Register/Update Thinktool mini?

1.Initial Use
2.Turn on the Machine
3.Language Setting
4.Connect WIFI
5.Choose Time Zone
6.User Agreement
7.Create an Account
8.Typing in Business Information


Here we list some common questions and answers related to this tool.

Q: Why does it have no responses when connected to a car computer?
A: Check whether the connection with the vehicle diagnostic socket is normal, whether the ignition switch is on, and whether the tool supports the car.

Q: Why does the system stop while reading the data stream?
A: This may be caused by loose diagnostic dongles. Please unplug the dongle and reconnect it firmly.

Q:Communication error with vehicle ECU?
A: Please confirm:
1.Whether diagnostic dongle is correctly connected.
2.Whether ignition switch is ON.
3. If all checks are normal, send vehicle year, make, model and VIN number to us using
Feedback feature.
Q: Why does the host screen flash when the engine ignition starts?
A: It is normal and caused by electromagnetic interference.

Q: How to upgrade the system software?
A: 1. Start the tool and ensure a stable Internet connection.
2.Go to "Set up" -> "App Update", click "OTA" and then click "check version" to enter the system upgrade interface.
3. Complete the process by following the instructions on the screen step by step. Itmay take a few minutes depending on the internet speed. please be patient. After successfully completing the upgrade, the tool will automatically restart and enter the main interface.

Q: Please explain the account and points.
A: To use Thinktool mini, you need to register an account. Each account has the opportunity to earn points by recommending others to buy products and participating in official events. 1 point can be deducted for 1 dollar when purchasing products or services

Q: How to capture the screenshot?
A: A"Screenshot" icon is always floating on the screen. Tap it to capture the current screen and the screenshot is saved in the File module.

For people

1.Car service technician
2.Small and medium repair shop
3.Individual owners who like deep DIY vehicles.

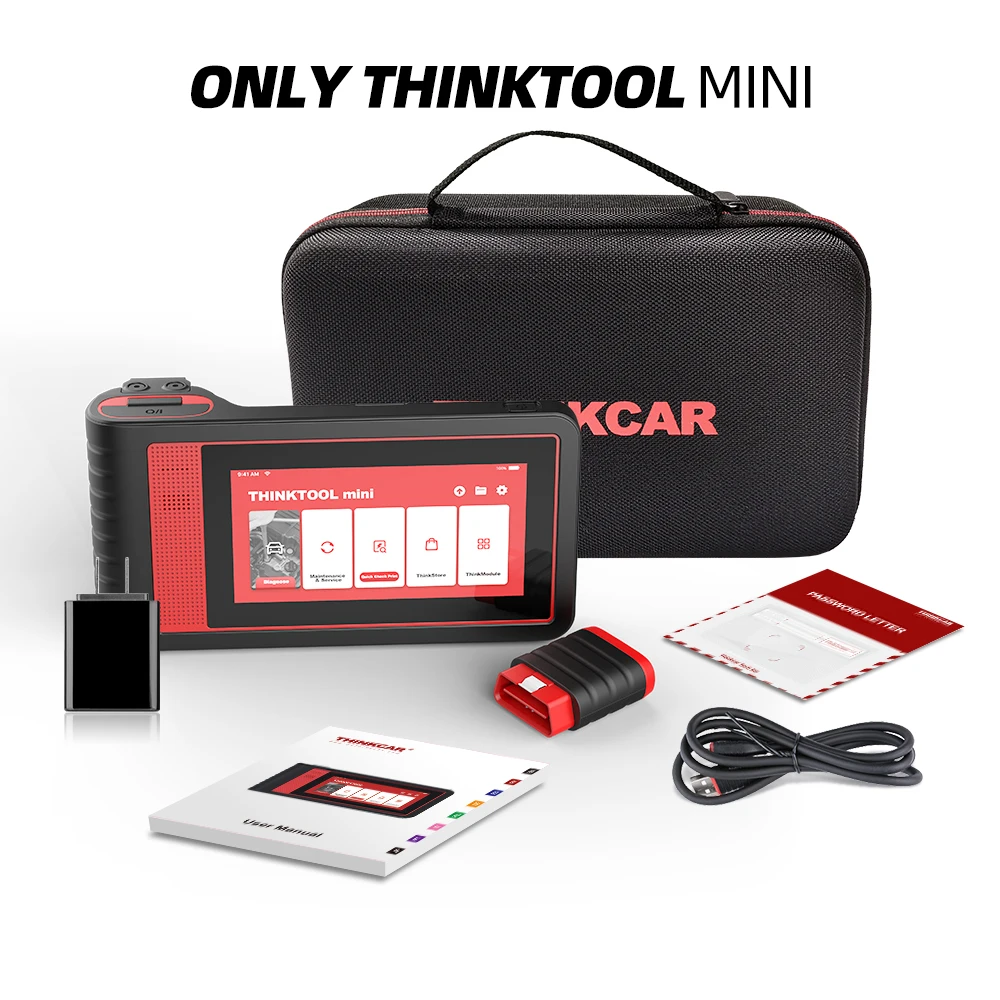

Package List(only thinktool mini)

1*Main tablet
1*Cloth bag
1*Charge cable
1*US Plug
1*Password paper

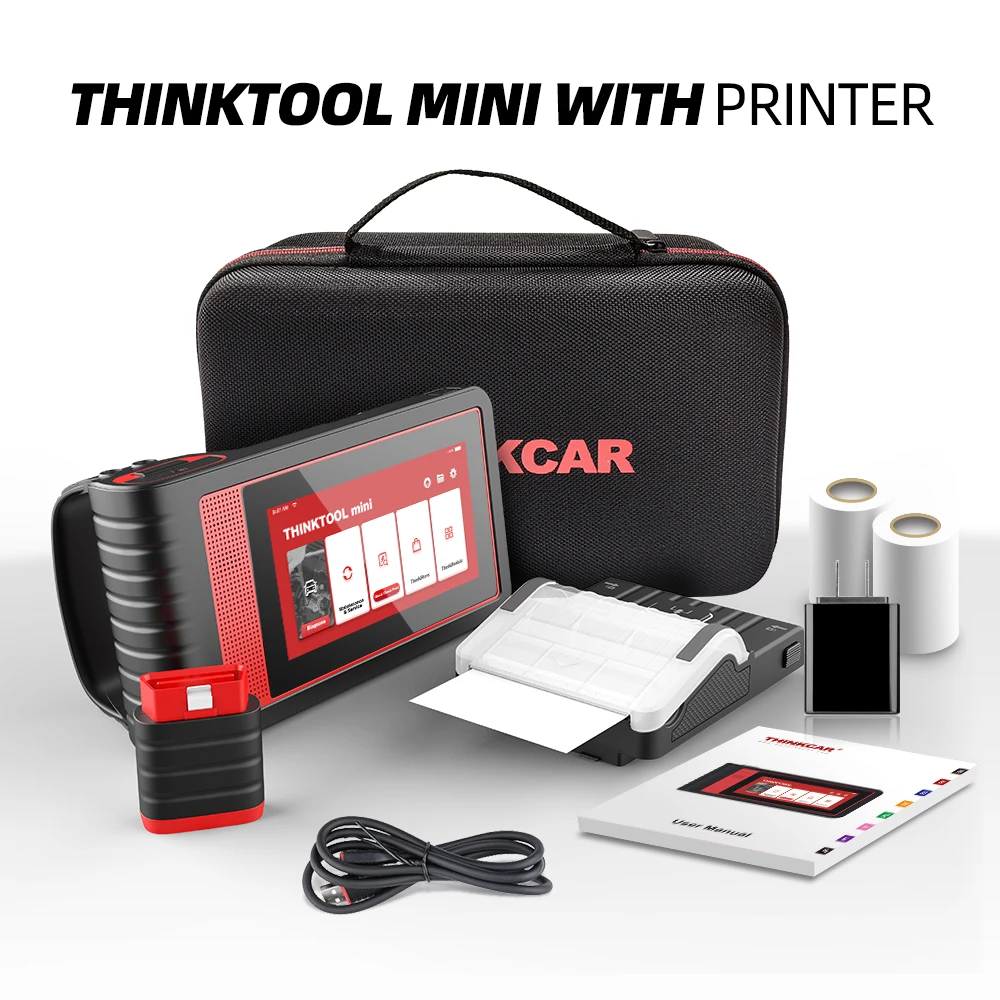

Package List (thinktool mini with printer)

1*Main tablet
1*Cloth bag
1*Charge cable
1*US Plug
1*Password paper
2*Printer paper
