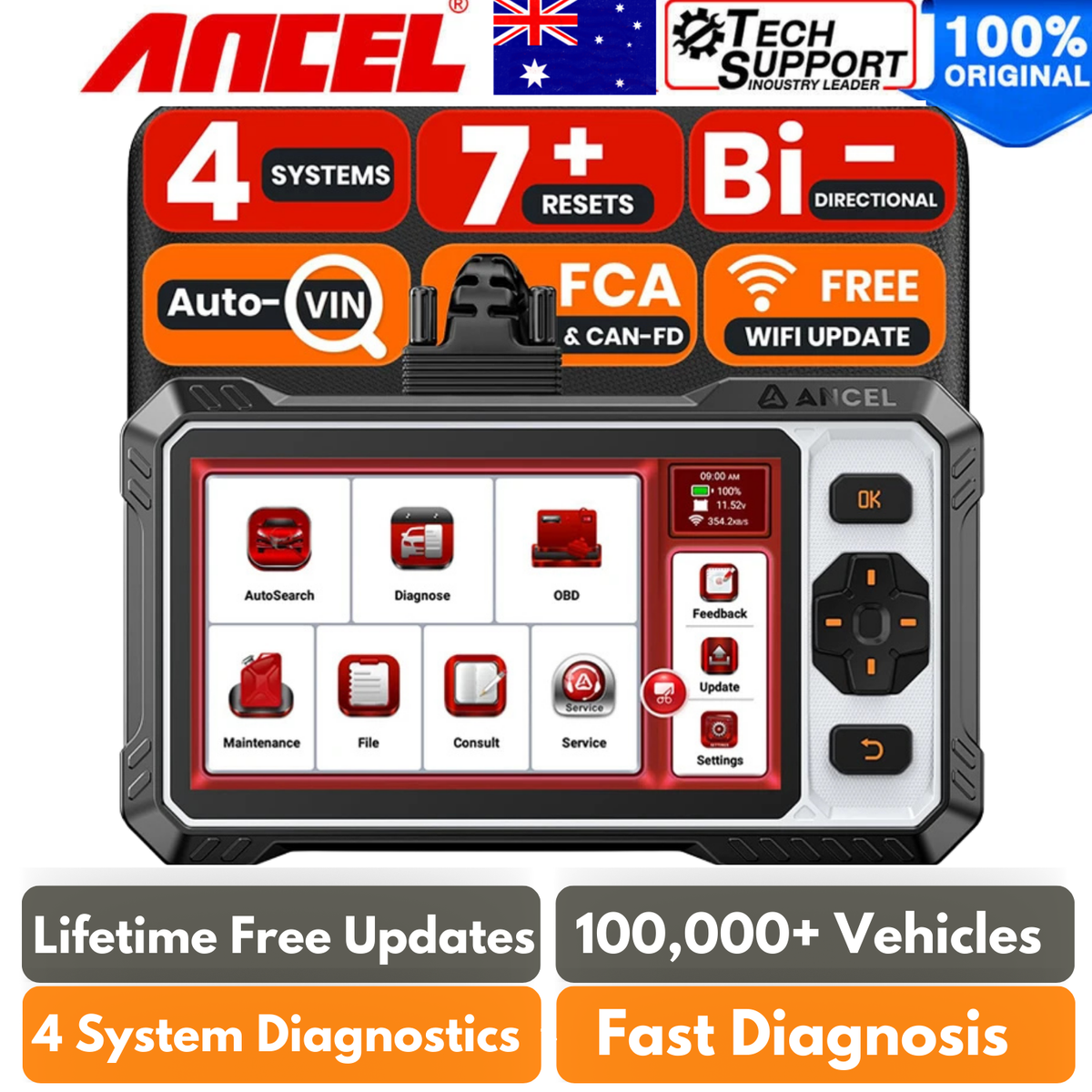

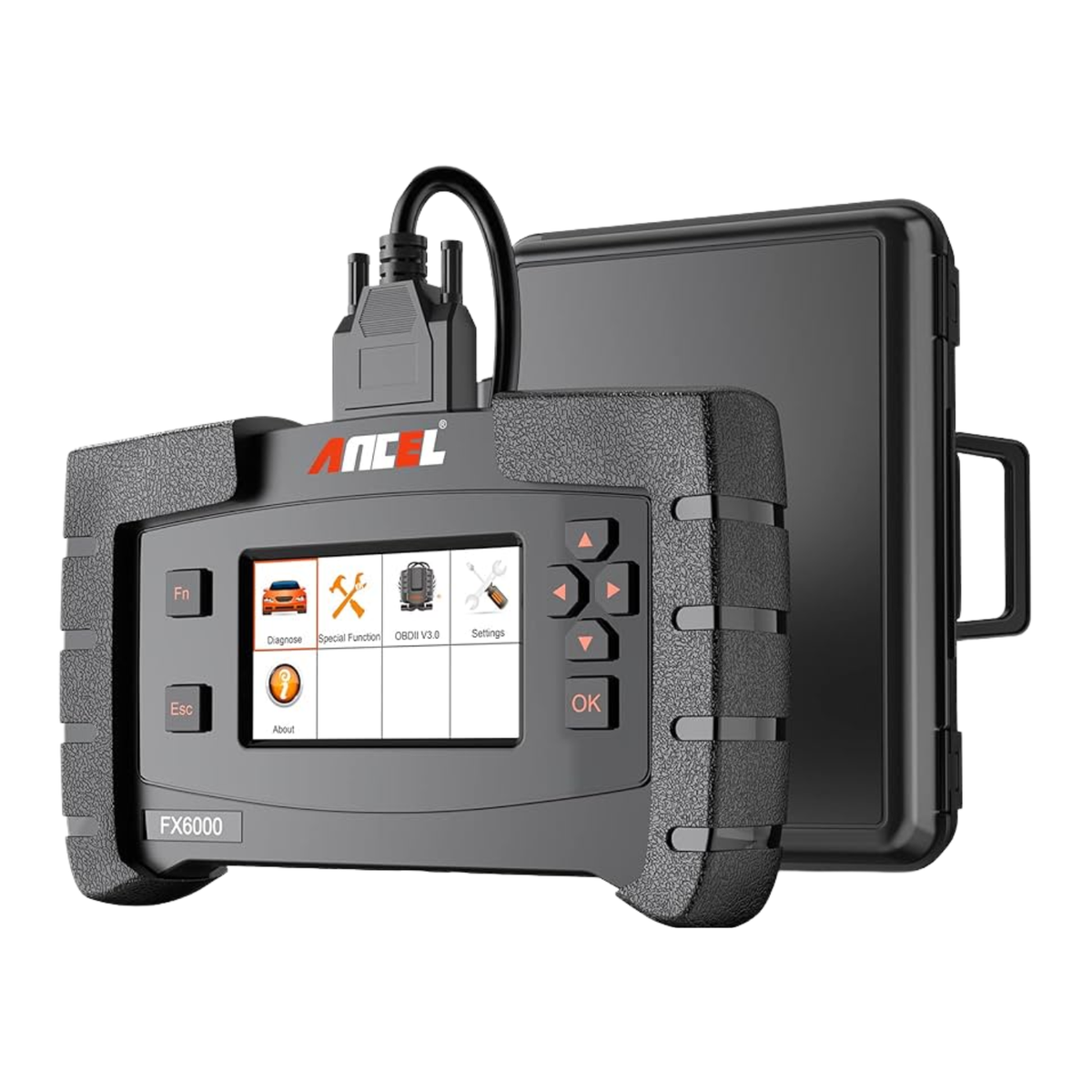

ANCEL FX6000 Bi-Directional OBD2 Scanner BS SRS Engine Transmission Free Updates

ANCEL FX6000+ 4 System Car Diagnostic Scan Tool Automotive Scanner with 7 Special Functions +Bi-Directional Control + Lifetime free updates Online + Multi Languages Supporte

ANCEL FX6000 is an intelligent automotive fault diagnosis instrument that is compatible with both touch and button operations. Capable of reading fault codes, clearing fault codes, reading data streams, reading ID information, and performing action testing.
✅System diagnosis: Engine, transmission, ABS and airbag system diagnosis
✅Maintenance function: （ABS Bleeding,SAS Rest,EPB Reset，Battery Matching，Gear Learning,Oil Reset,Throttle Learning ）
✅Action testing: refers to the execution of components, corresponding to the execution components and switch components on the car, such as the switch of lights, window lifting, etc.

ANCEL FX6000 Characteristic:

1. Supports 4 system diagnosis+ Active test functions+7 common maintenance functions

2. Lifetime free upgrade and use, no additional cost required

3. Equipped with a 1.2-meter pluggable DB15 diagnostic cable, the diagnosis is stable and reliable;

4. Supports up to 100+brands and 100000+vehicle models

5. Support the system languages of 20 countries (English, German, Spanish, French, Italian, Portuguese, Japanese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese Traditional, Korean, Greek, Slovakia, Arabic, Czech, Indonesian, Swedish)

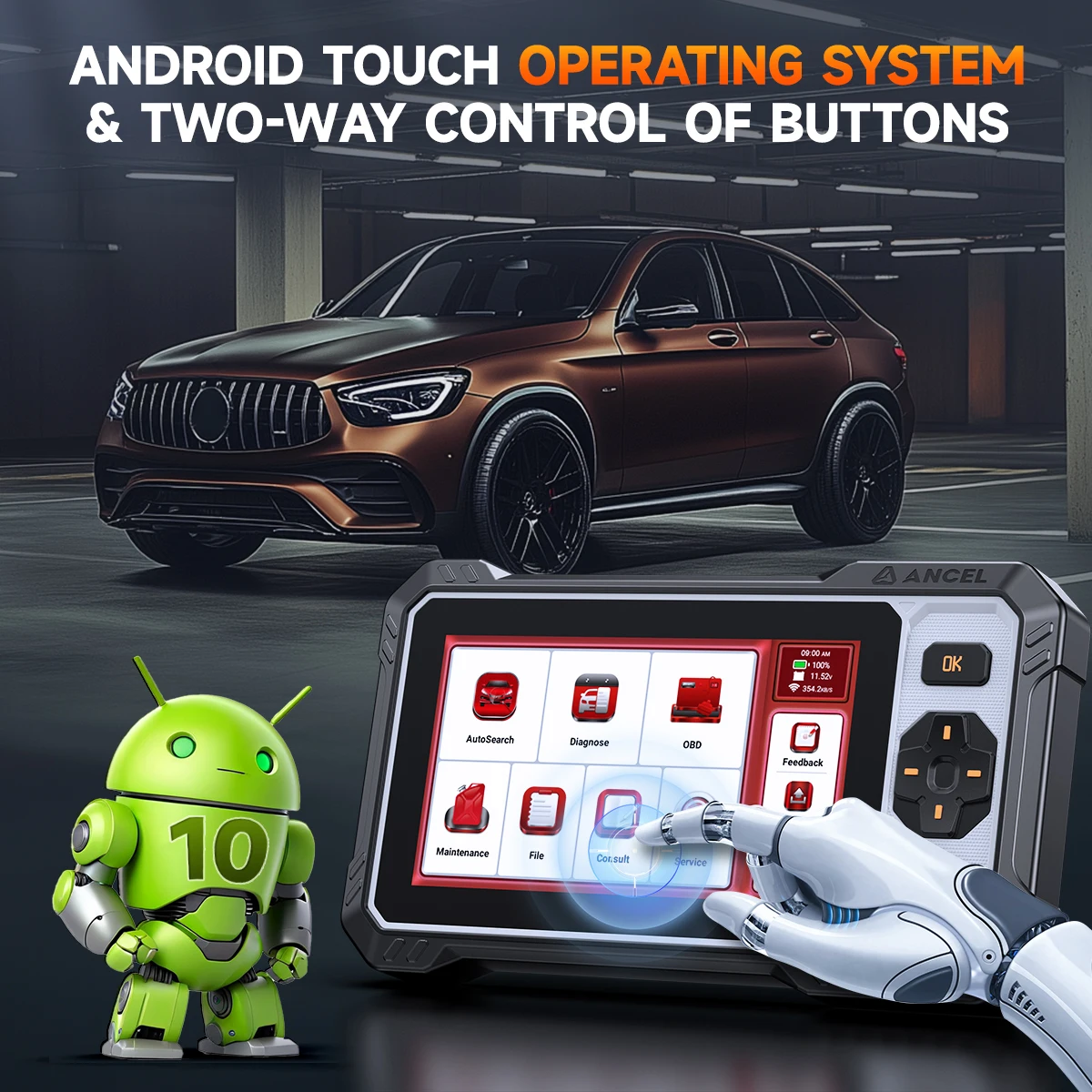

6. Dual directional control of Android touch operating system and buttons

7.6.2-inch high-definition LCD screen

8. Equipped with 32GB storage capacity, expandable up to 128GB

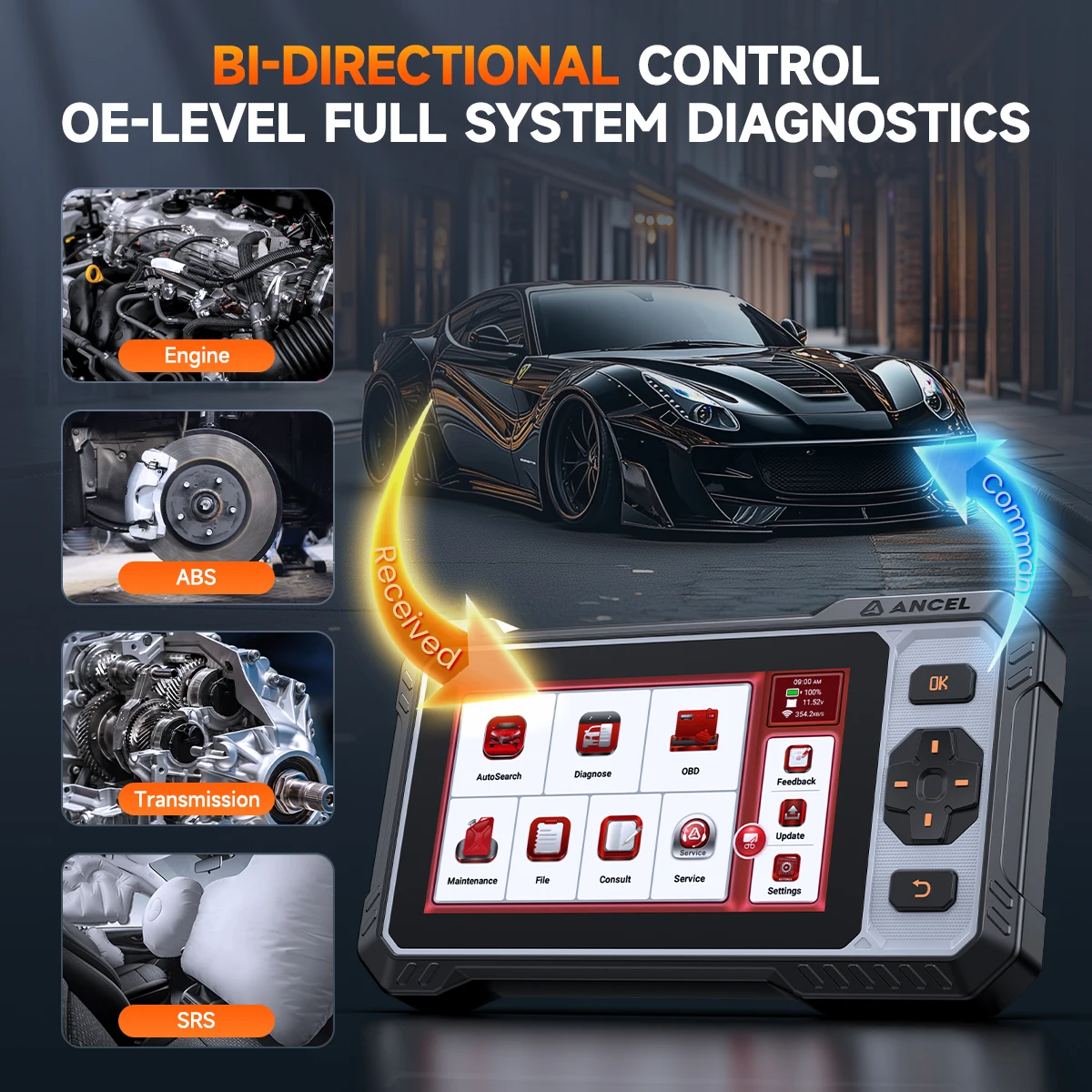

Four System diagnosis of Engine / ABS /SRS/ Transmission

including reading fault codes, clearing fault codes, reading ECU ID information, and reading data streams.

✅Check ECM(Engine System):

Today’s engines are complex systems, using feedback loops from intake air temperature and flow, manifold absolute pressure, engine coolant temperature, crankshaft and camshaft position, oil pressure, fuel rail pressure, fuel tank pressure, vehicle speed and many other inputs to determine correct air/fuel ratios, camshaft timing, ignition timing and other, critical, operational parameters. The ANCEL FX6000 obd2 scanner speeds diagnosis by providing the user access to critical OBD II standard data as well as extended, manufacturer specific, data on engine, fuel, emissions and performance parameters, at the touch of a button.

✅Check TCM(Transmission System):

Today’s automatic transmissions (A/T), like our engines have evolved into a complex system of mechanical, electrical and control systems interaction. Today’s transmissions provide a wealth of information about the success of up and downshifts, solenoid action (too harsh, too soft), clutch engagement, fluid temperature, fluid level, pressure, and other, critical, operational and diagnostic information. The ANCEL FX6000 obd2 scanner provides the user a detailed view into this critical components operation and function, allowing fast, accurate and complete diagnosis of existing, or potential issues.

✅Check ABS(Anti-lock Braking System):

Like other systems, braking systems have evolved and become more complex, with multiple sensors and actuators operating together to make braking more smooth, consistent and safe for everyone. The ANCEL FX6000 scanner allows the user to monitor and diagnose critical ABS systems to ensure that repairs to this critical system are effective, and complete.

✅Check SRS(Airbag System):

A well-functioning, always ready, Supplemental Restraint System (SRS) is absolutely critical for occupant and driver safety. Even minor issues might impact the operation, and performance, of the SRS system. The ANCEL FX6000 quickly, and efficiently, allows the user to retrieve, read and interpret SRS system issues and monitor SRS system functionality to rapidly diagnose, and repair, the cause of the issue. Once repaired, The ANCEL FX6000 will allow the code to be cleared and the SRS system to be tested, by the PCM, to ensure that the fixes are complete.

Bi-directional/ Active Test

1. Coolant pump
2. Open/close the window
3. Light control
4. Rearview mirror control
5. Windshield adjustment
6. Adjust the wiper
7. Fuel injector test
8. Starting fuel pump
9. Open and close the clutch
10. Turn the speaker on/off

7 Most Common Reset Services

✅ABS Bleeding:

When changing a new brake fluid, there is a high possibility that air will enter the brake fluid pipeline. In the traditional way, one person steps on the brake and another person changes the operating fluid. This function can perform the brake operation, and only one person is required to change the brake fluid.

✅Battery Matching:

When the Main battery is replaced, or battery monitoring sensor is replaced，battery matching must be performed. This function enables you to perform a resetting operation on the monitoring unit of the vehicle battery, in which the original low battery fault information will be cleared and the battery matching will be done.

✅EPB Reset:

1. The brake pad and brake pad wear sensor are replaced. 2. The brake pad indicator lamp is on. 3. The brake pad sensor circuit is short, which is recovered. The servo motor is replaced. By using this function, the braking process is therefore made much simpler and easier.

✅Throttle Relearn:

This automotive scan tool can make initial settings to throttle actuators so you’ll have smooth dri-ving after the throttle body has been replaced or cleaned.

✅Gear Information Learning:

The purpose of tooth signal learning is to ensure that the engine ignition timing is accurate and avoid engine failure caused by signal loss. Through tooth signal learning, the signal of the crankshaft position sensor can be recalibrated to restore the normal operation of the engine.

✅Oil Reset:

If the service lamp is on, you need to reset the Oil Life Reminder and switch off the Oil Light for a new calculation of Engine Oil Life system. Your driving safety would gets ensuring. 2. After replacement engine oil, you need to reset the service lamp.

✅Steering Angle Learning:

After replacing the steering angle position sensor, obd2 scanner can effectively perform SAS ca-libration, i.e., clear the fault steering angle sensor memories, set the steering angle to zero, and turn off steering wheel warn-ing light on supported models. You can easily set the steering in its default position and align it with the front tires.

Full OBD2 Check--Make a Better Detection for Car Engine System!

This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:

1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

3. Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4. I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9. Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Support the launguages you need

English,French,German,Italian,Spanish,Portuguese,Japanese,Russian,Polish,Hungarian,Arabic,Greek,Slovakia,Dutch,Korean,Swedish,Turkish,Czech,Indonesian,Chinese

How to do Language Setting？

Once the DLC is connected, the device will automatically power on. For first-time use, the first step is to set the language. The default language of the device is English. If you want to change the language, please proceed to the next step and connect to Wi-Fi to download the latest diagnostic software for the selected language.

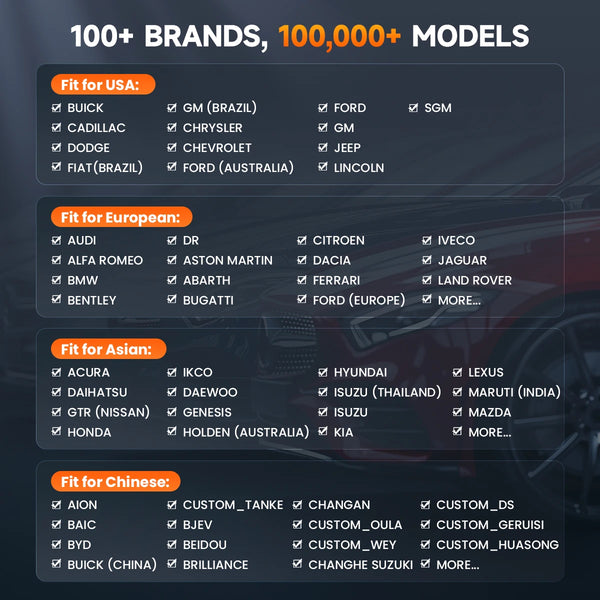

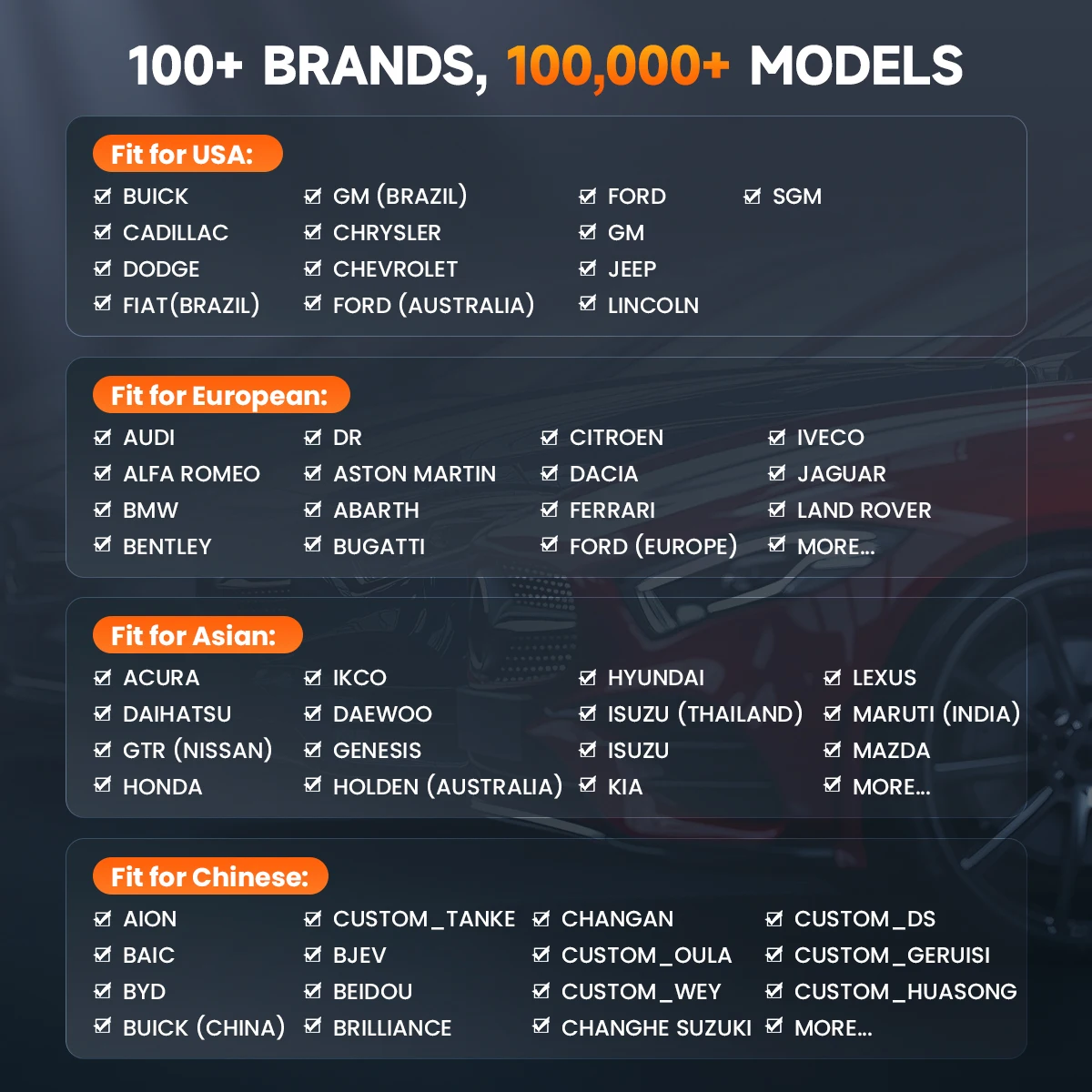

FX6000 Support car brands from 1996- newer

American: /For Buick/For Chrysler/For Cadillac/For Chevrolet/For Dodge/For Ford(Australia)/For Fiat(Brazil)
/For Ford/For GM(Brazil)/For GM/For Jeep/For Lincoln/For SGM

European: /For Audi /For Aston Martin /For Alfa Romeo /For Abarth /For BMW /For Bentley /For Bugatti /For Citroen /For DR /For Dacia /For Ferrari /For Fiat /For Ford(Europe) /For GAZ /For Iveco /For IZH /For Jaguar /For Lancia /For Land Rover /For Lamborghini /For Maybach /For MAN TGE /For OBFCM /For OPEL(South Africa) /For OPEL /For PAZ /For Peugeot /For Porsche /For Polestar /For Rolls Royce /For Renault /For Rover /For SEAZ /For Saab /For Seat /For Skoda /For Smart /For Sprinter /For UAZ /For Vauxhall /For VAZ /For Volvo /For Mercedes-Benz /For VW CV /For MINI /For Maserati /For Volkswagen /For ZAZ

Asian:/For Acura /For Daewoo /For Daihatsu /For Genesis /For GTR(Nissan) /For Holden(Australia) /For Honda /For Hyundai /For LKCO /For Isuzu(Thailand) /For Isuzu /For Infiniti /For KIA /For Luxgen /For Lexus /For MVM /For Mahindra(India) /For Maruti(India) /For Mahindra /For Maruti /For Mazda /For Mitsubishi /For Nissan

Chinesse:/For Aion /For Bjey /For BAIC /For Beidou /For BYD /For Brilliance /For Buick(China) /For Changan /For Custom_Wey /For Custom_Oula /For Custom_Hafo /For Custom_Tanke /For Changhe Suzuki /For Changhe /For Custom_DS /For Custom_Jinbei /For Custom_Geruisi /For Custom_Zhonghua /For Custom_Huasong /For Custom_Jxwushiling /For Custom_Baojun /For Custom_Wuling /For Chery

Auto VIN Scan

Automatically read the vehicle VIN code, analyze the vehicle brand, model, year and other information, and then perform the next diagnostic action to directly diagnose the car, which is convenient and fast

Diagnostic Report

Once the diagnostic process is successfully finished, a diagnostic report will be automatically generated and sent to your mailbox. You can download it, and then print it to share it with others.

24-Hour Technical Support Online Customer Service

ANCEL FX6000 Overview , All-in-One Functions in Your Hand

●One-click Online Free Update anytime and anywhere, you do not need any SD cards, cables or PC.

●One-Click AUTO-VIN&SCAN to do a comprehensive diagnostic for your cars.

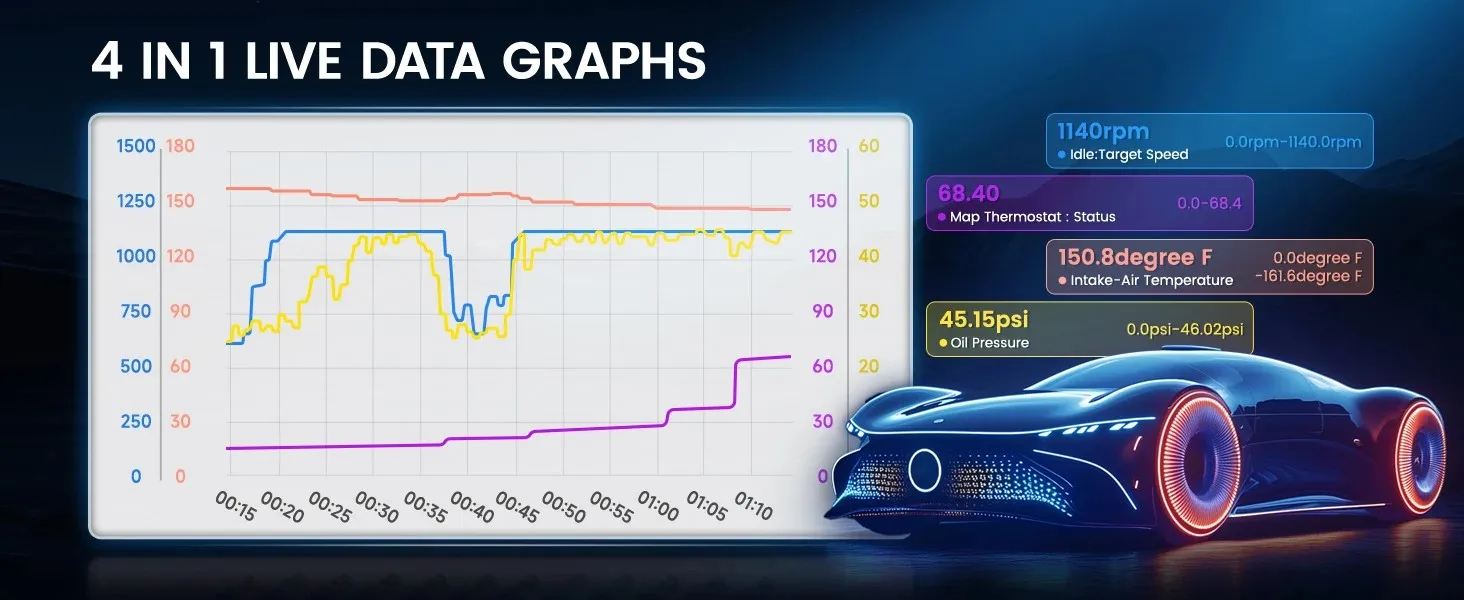

●4 in 1 Live Data Graph to show the live vehicle conditions in text and graph to help you to analyze the abnormal parameter easily.

●Android Operation System and smooth interface make it simple for beginners. Stable and Smooth Performance farewell to slow loading thus enjoy fast diagnosis

●Bright & Intuitive Full Touchscreen, you can enjoy the clear and vibrant details of diagnostic data with fewer distractions.

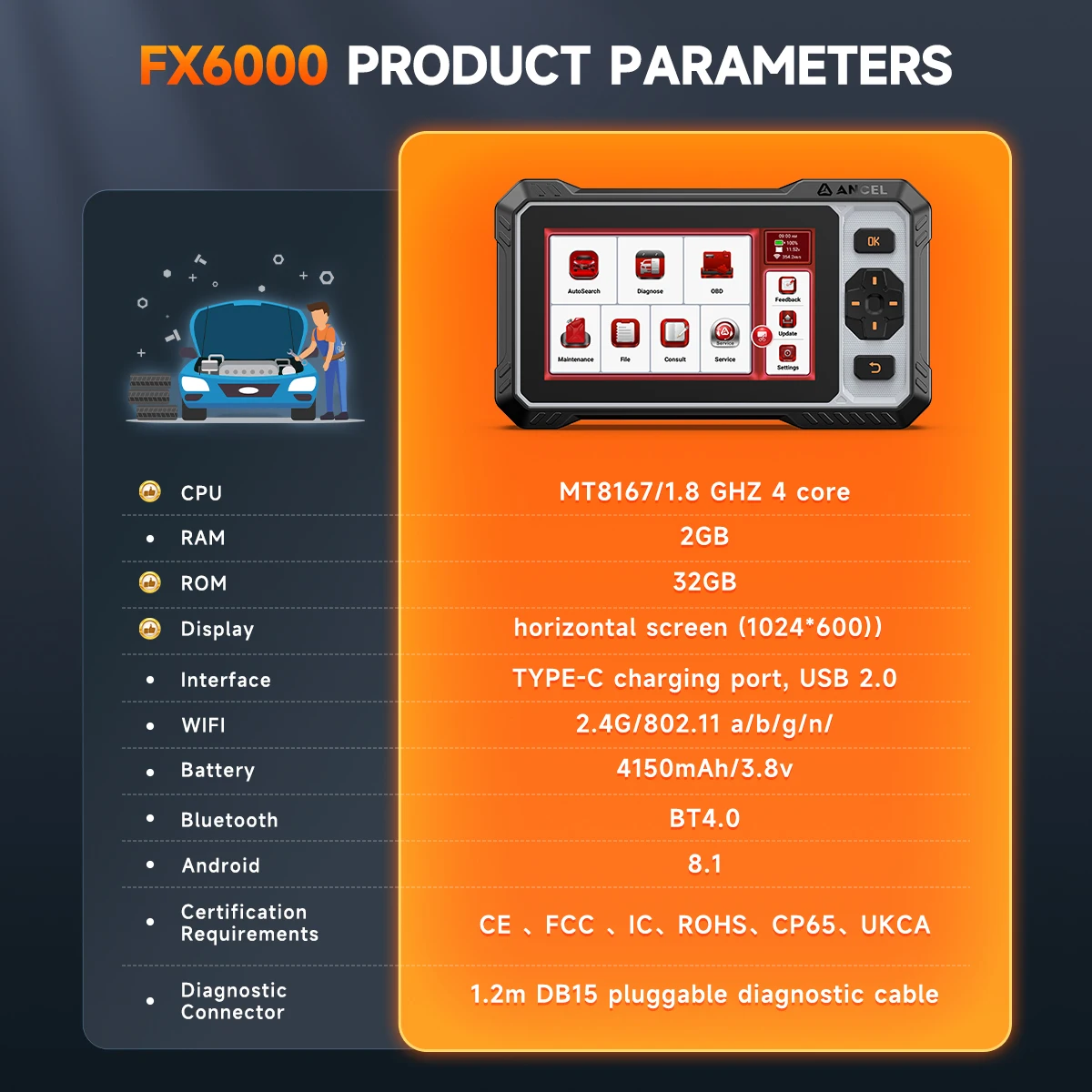

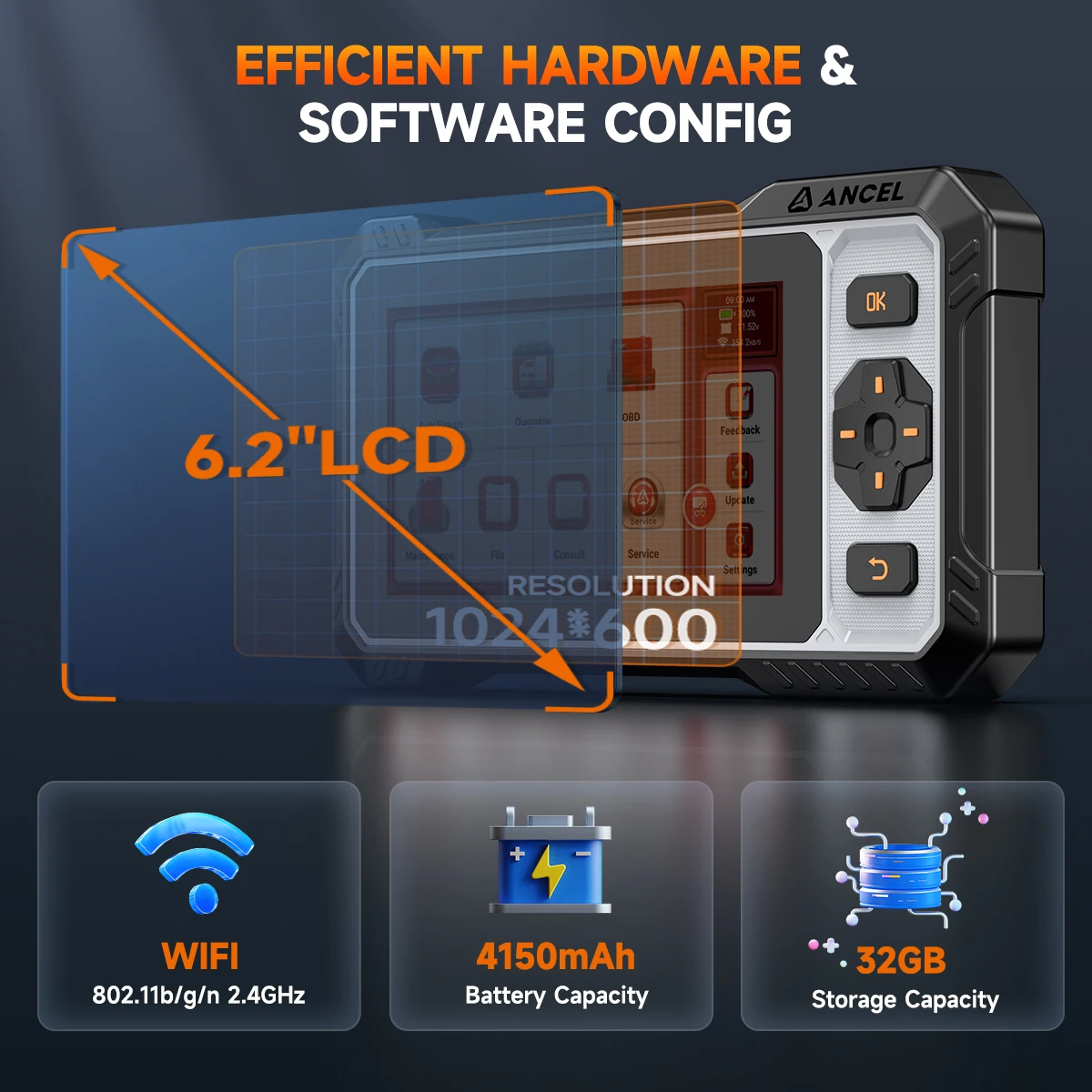

Product parameters

CPU: MT8167/Cortex-A53 4-core 1.8GHz
Memory: 2GB
Storage: 32GB
Screen: 6.2-inch touch 1024 * 600
Battery: 4150mAh/3.8V
Diagnostic interface: DB15 (adapter OBD16)
Android：10.0
Bluetooth: 4.0
WiFi: 2.4G/support 802.11b/g/n
USB: Type C
Working voltage: 9-18V
Working temperature: 0~50 ℃
