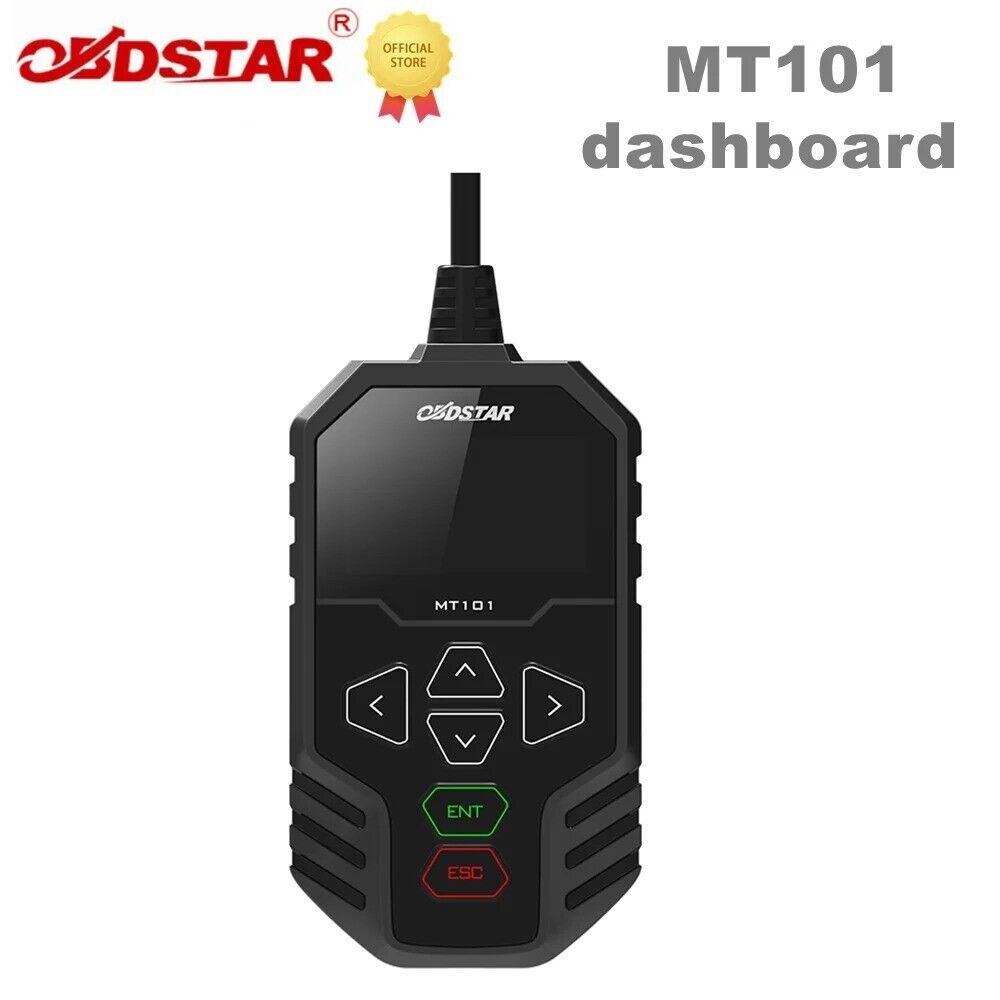

MT101 is OBDSTAR's newly developed automotive dash BENCH way drive test tool, support more models, compact equipment, cheap, is a good helper for automotive electronic maintenance engineers!
Nowadays, many cars have dashboard, audio, gear lever, handbrake modules, etc., which are activated by CAN communication with the relevant modules in the car to bring the mainframe into the drive state. This function can simulate CAN communication to activate the secondary power supply and bring the main unit into drive, so that the main unit can be tested and verified. It also eliminates the need to purchase a large number of boot platforms and wiring harnesses for each vehicle model, saving a large amount of money for the automotive mechanic.
Features
1. using STM32 processor for fast running speed.
2. support for hundreds of instrument types of drivers.
3. easy and intuitive menu for you to quickly master the operation of the tool.
4. the wiring diagram can be accessed via OBDSTAR APP.
5. the tool is portable and cost-effective.
6. Mini USB upgrade cable connects directly to the computer for one-click upgrade.
Supported brands
1. For Audi
2. For BMW
3. For Porsche
4. For Mercedes-Benz
5. For Volkswagen
6. For Dodge
7. For FORD
8. For Jaguar
9. For Lamborghini
10. For Rolls-Royce
11. For Land Rover
12. For Volvo
OBDSTAR mobile APP function diagram
1) Main interface of Test Platform
2) Dash Pinout usage
Specification:
Screen Type |
LCD |
USB Type |
miniUSB |
Operating Temperature Range |
-20℃~55℃（14℉~131℉） |
Storage temperature range |
-20℃~70℃（-4℉~158℉） |
Weight |
about 160g |
External Dimensions |
120mm*70mm*21mm |
Operating Voltage |
12V |
