OBDSTAR ISCAN PRO Yanmar Marine Diagnostic Scanner Tool Service Reset Tests
Diagnostic Support Series
- 4BY2-150/150Z, 4BY2-180/180Z, 4BY3-150/150Z, 4BY3-180/180Z, 4JH110, 4JH45, 4JH57, 4JH80
- 4LV150, 4LV170, 4LV195, 4LV230, 4LV250
- 6BY2-220/220Z, 6BY2-260/260Z, 6BY3-220/220Z, 6BY3-260/260Z
- 6LY3_ETA, 6LY3_ETP, 6LY3_STA, 6LY3_STB, 6LY3_STP, 6LY3_UTP
- 8LV-320/320Z, 8LV-350/350Z, 8LV-370/370Z and other models
OBDSTAR iScan Pro Yanmar (Marine)

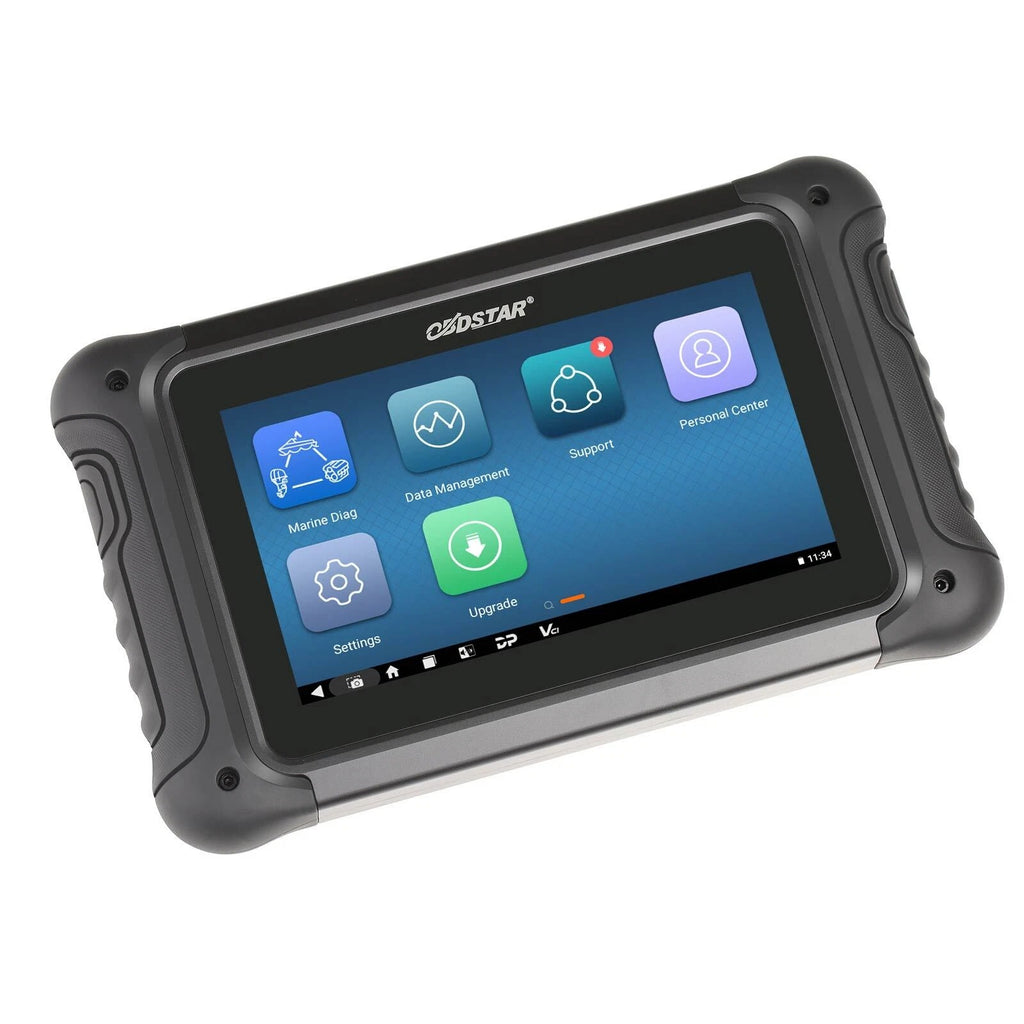

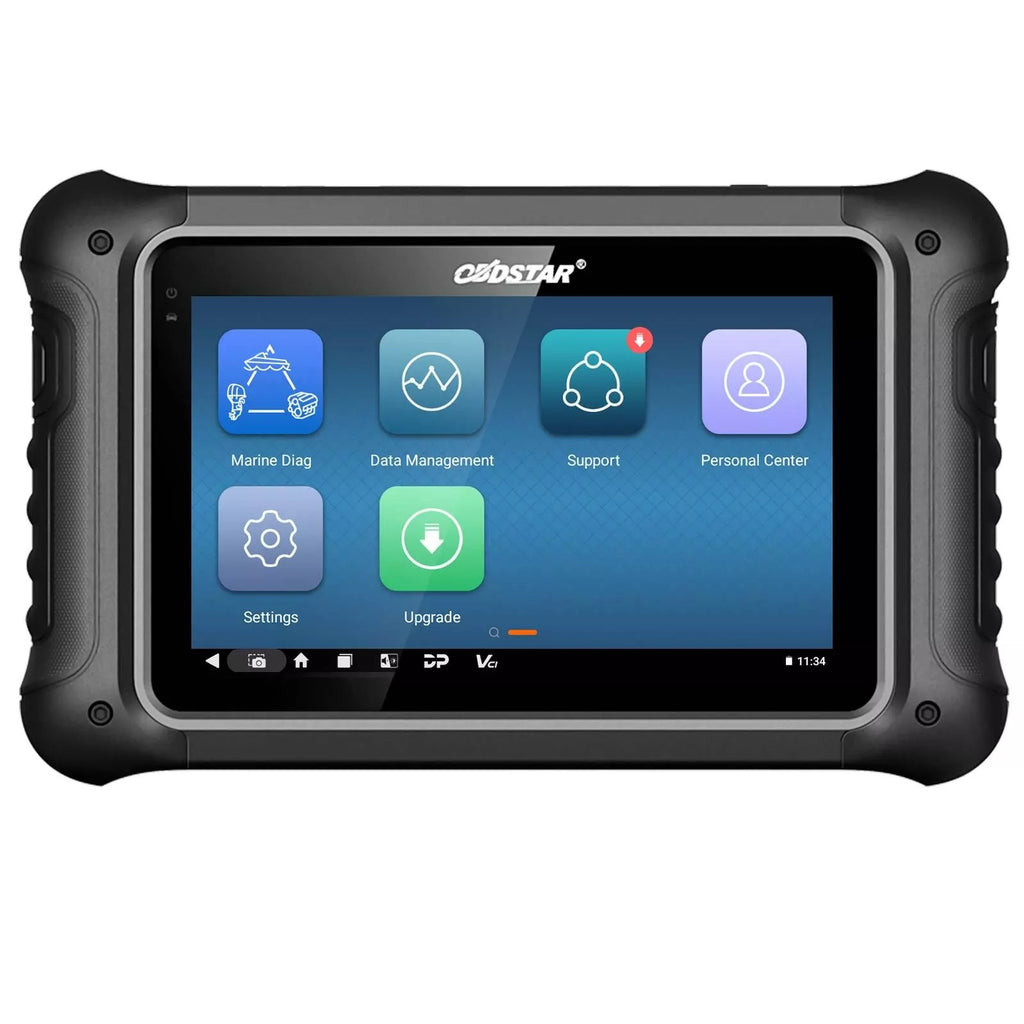

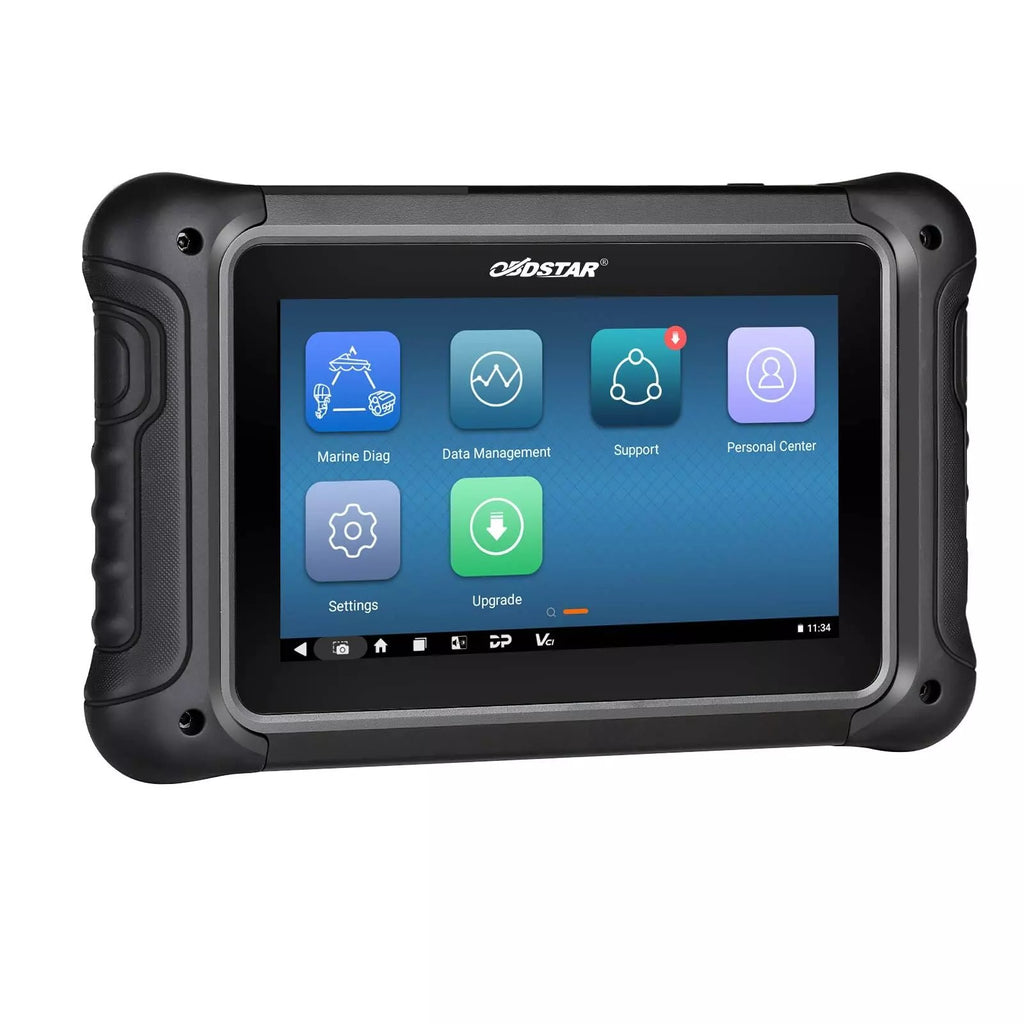

The OBDSTAR iScan Pro Yanmar (Marine) is a professional diagnostic tool designed for Yanmar marine engines. Powered by Android 5.1.1 and a RK3128 quad-core processor, it features a 7-inch capacitive touchscreen for intuitive operation. It offers comprehensive diagnostic functions, including code reading, code clearing, data flow analysis, action tests, setting, and coding, with support for service reset, idle control, and DC24V input. The OBDSTAR mobile app enhances functionality with diagnostic socket location and technical bulletins.
Functions
- Android 5.1.1 operation system for smooth performance
- Simple and intuitive menu guidance for quick mastery
- Complete diagnostic functions: code reading, code clearing, data flow, action test, setting, coding
- Flexible menu selection for convenience and speed
- Record and playback real-time data flow to locate sensor and component faults
- Wi-Fi internet connection for one-click software upgrades
- One-click remote assistance from OBDSTAR technical staff
Advanced Functions
- OBDSTAR mobile app integration for diagnostic socket location and technical bulletins
- Multiple data flow display modes: text, waveform, and instrument diagrams
- Supports special functions like Service Reset and Idle Control
- Supports DC24V input for marine applications
Diagnostic Connector Information
Details on locating diagnostic sockets and connectors for Yanmar marine engines.
Diag Socket/Diag Connector Location
Guides for finding diagnostic sockets and connectors via the OBDSTAR mobile app or device interface.
Diag Socket/Diag Connector Location
Service Function Details
Instructions for performing service lamp reset and other maintenance functions.
Manual Service Function (Service Lamp Reset)
Step-by-step guidance for resetting service lamps on supported Yanmar marine engines.
Manual Service Function (Service Lamp Reset)
Manual Service Function (Service Lamp Reset)
Supported Brands/Models
List of supported Yanmar marine engine models and diagnostic capabilities.

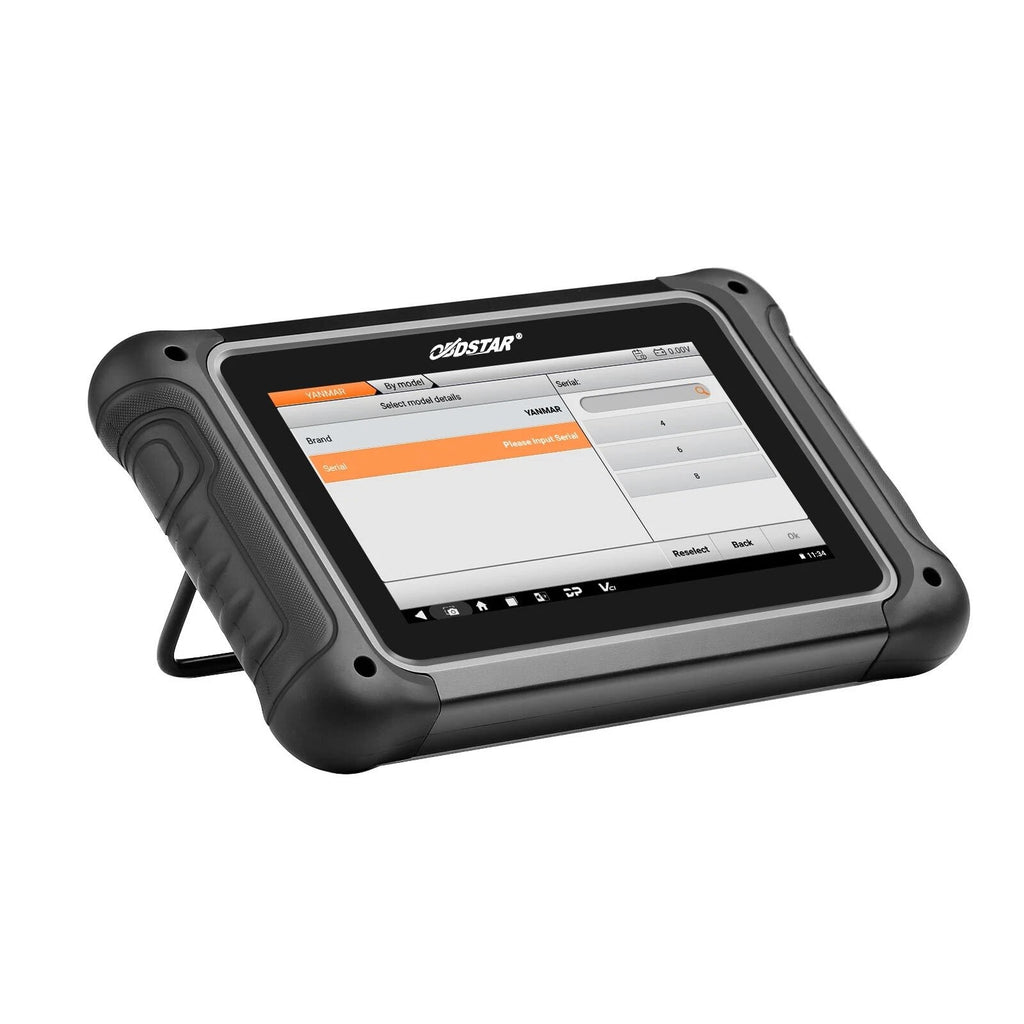

Main Page/Brand Supported
Overview of supported Yanmar marine engine models and diagnostic functions accessible via the main page.
Main Page/Brand Supported
Data Flow Display Modes
Supports text, waveform, and instrument diagram displays for data flow analysis.
Data Flow Text/Waveform Diagram
Multiple display modes for real-time data flow to facilitate fault diagnosis.
Data Flow Text/Waveform Diagram
Data Flow Text/Waveform Diagram
Data Flow Text/Waveform Diagram
Specifications
| Operation System | Android 5.1.1 |
|---|---|
| CPU | RK3128 quad-core ARM cortex A7 |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension Memory Card | 32G micro SD (TF) card supported |
| Storage Capacity | 16GB |
| LCD | 7.0 inch |
| LCD Resolution | 1024*600 |
| Touch Screen | Capacitive touch screen |
| Wifi | Supported |
| Working Temperature | -20℃ ~ 55℃ (14℉ ~ 131℉) |
| Storage Temperature | -20℃ ~ 70℃ (-4℉ ~ 158℉) |
| Weight | About 0.766kg |
| Dimension | 243mm*148mm*36mm |

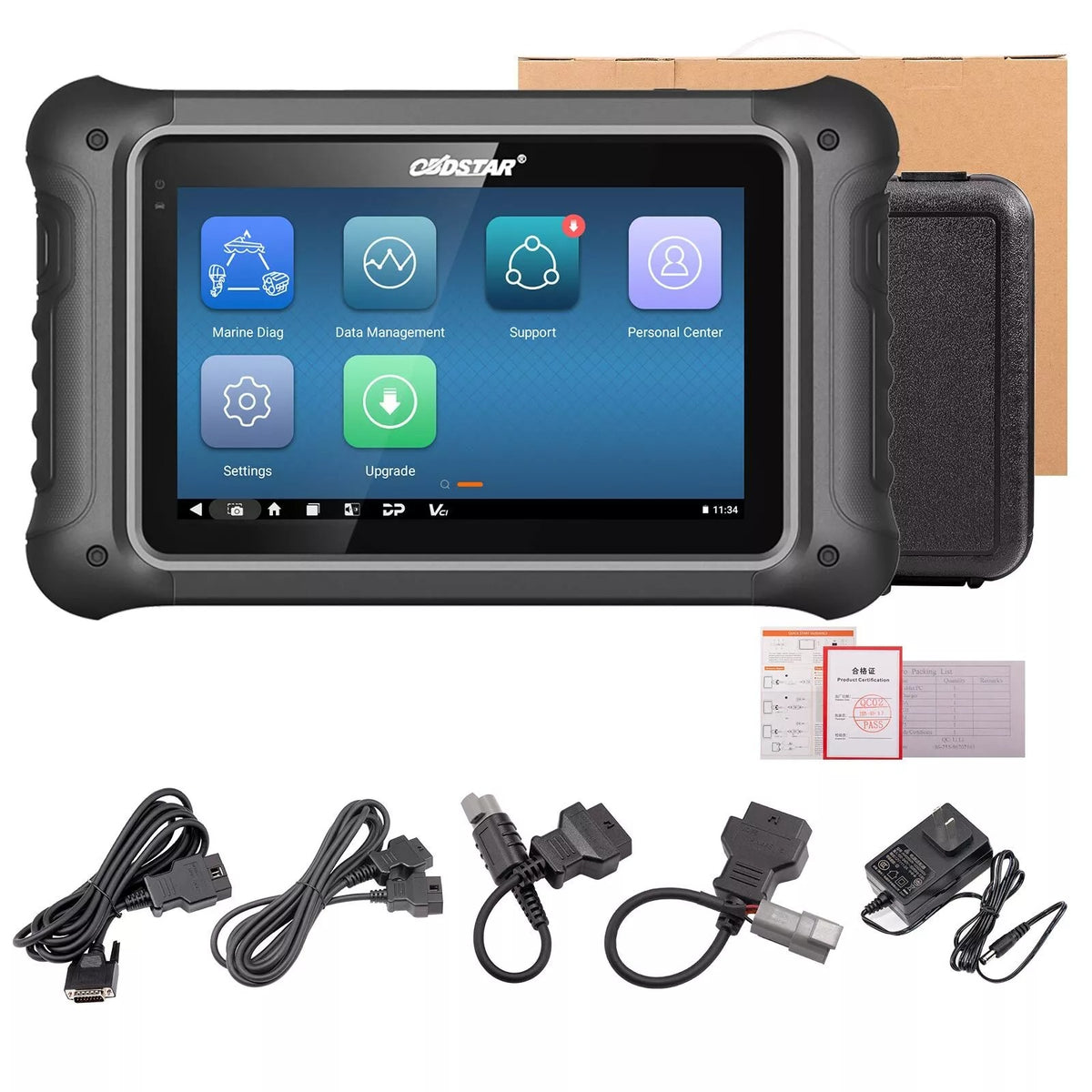

Package Includes
- 1pc x iScan Pro Tablet PC
- 1pc x 12V2A Charger
- 1pc x M000A Cable
- 1pc x M001B Cable
- 1pc x M074 Cable
- 1pc x M075 Cable
- 1pc x Quick Start Guide
- 1pc x Certificate

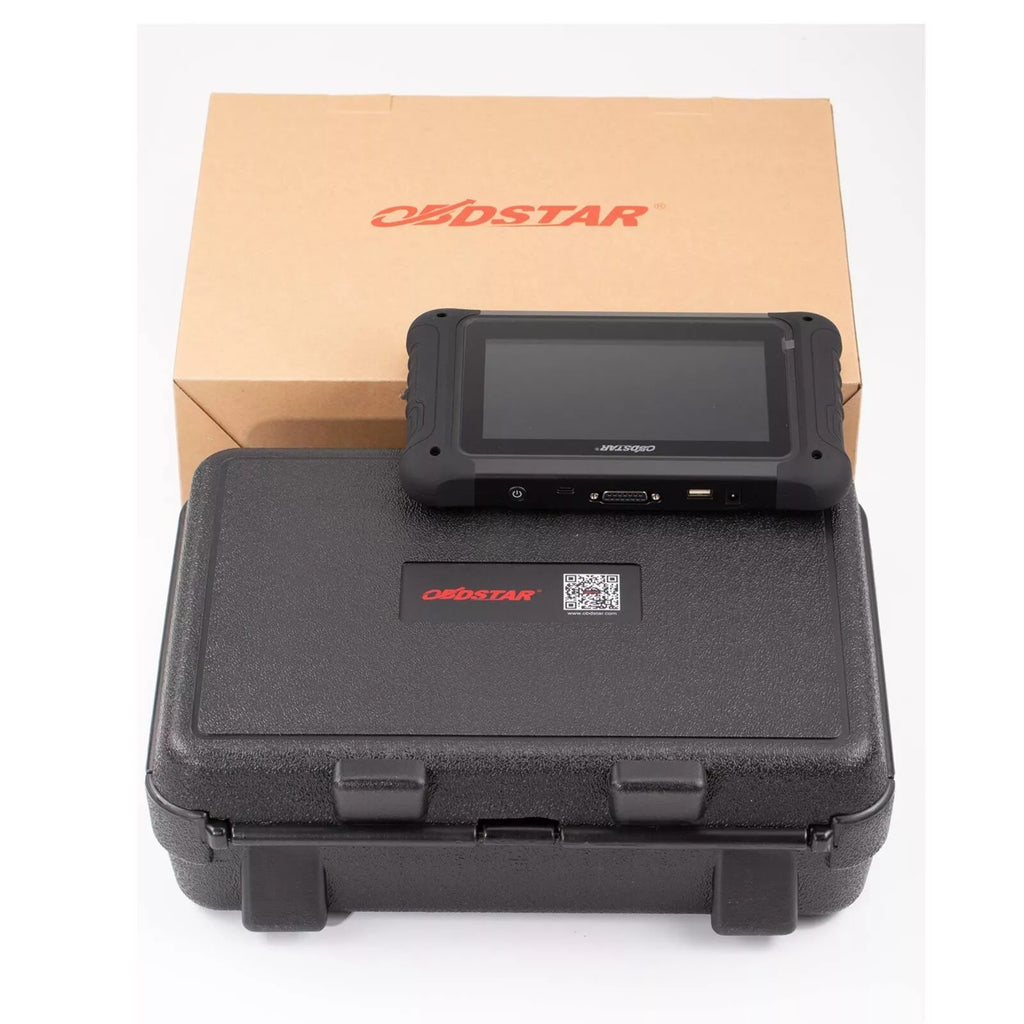

Package Overview
