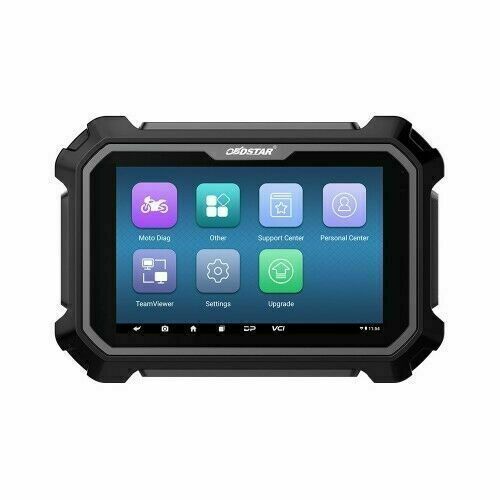

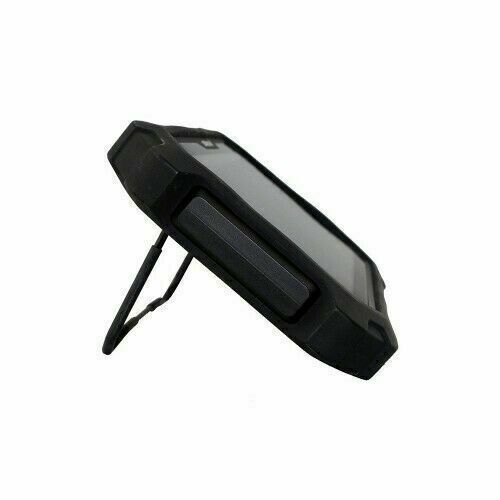

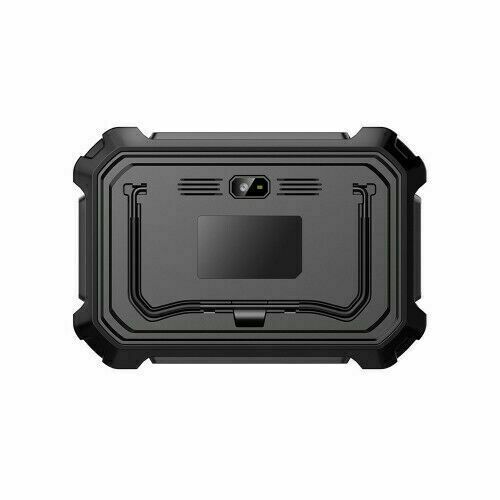

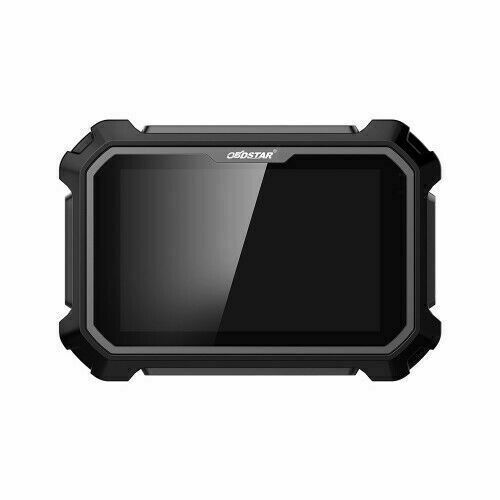

OBDSTAR iScan Harley-Davidson Motorcycle Diagnostic Tool

The OBDSTAR iScan Harley-Davidson is a portable, high-performance diagnostic tablet designed specifically for Harley-Davidson motorcycles. Powered by a RK3128 quad-core processor and featuring a 5.0-inch capacitive touchscreen, it delivers a professional and user-friendly diagnostic experience tailored for Harley-Davidson owners and technicians.

Key Features

• Operating System: Android 5.1.1 with a 5-inch touchscreen and USB interface

• Storage: 16GB internal storage, expandable up to 32GB via Micro SD (TF) card

• Portability: Lightweight at approximately 700g

• Battery: 2500mAh rechargeable polymer lithium battery, charges via OBD

• Connectivity: Wi-Fi for one-click software upgrades and remote assistance from OBDSTAR technical staff

• Diagnostics: Specific diagnostic connector eliminates the need for disassembly

• User Interface: Intuitive menu for quick and flexible navigation

• Data Analysis: Records and plays back real-time data streams in text, waveform, or instrument diagram formats for accurate fault detection

• High-Performance Hardware: Powered by an RK3128 quad-core processor and a 5.0-inch capacitive touchscreen, running on Android 5.1.1 for a seamless user experience.

• Portable Design: Lightweight and user-friendly, optimized for professional diagnostic tasks.

• Comprehensive Diagnostics: Supports a wide range of functions, including:

  • Auto Scan and VIN Recognition

  • Control module programming and coding

  • ECU and gauge settings

  • Maintenance tasks such as tire pressure monitoring, indicator reset, and more

• Real-Time Data Monitoring: Records and plays back real-time data streams in text, waveform, or instrument diagram formats, enabling quick and accurate identification of sensor and component issues.

• User-Friendly Interface: Intuitive touchscreen navigation for efficient operation.

OBDSTAR iScan Harley-Davidson Technical Specifications

• Operating System: Android 5.1.1

• Processor: RK3128 Quad-Core ARM Cortex A7

• Battery: 2600mAh rechargeable polymer lithium battery

• Storage: Supports up to 32GB Micro SD (TF) card

• Display: 5.0-inch LCD with 800x480 resolution

• Touchscreen: Capacitive

• Connectivity: Wi-Fi supported

• Operating Temperature: -20°C to 55°C (14°F to 131°F)

• Storage Temperature: -20°C to 70°C (-4°F to 158°F)

• Weight: Approximately 700g

• Dimensions: 198mm x 115mm x 31mm

Professional Diagnostic Solution

The OBDSTAR iScan Harley-Davidson is a specialized diagnostic and IMMO programming tool designed for Harley-Davidson motorcycles. With its compact, practical design, it is an essential tool for professional mechanics and motorcycle enthusiasts, ensuring efficient maintenance and repair.

Diagnostic Functions

• Vehicle Support: Compatible with Harley-Davidson motorcycles, snowmobiles, ATVs, and UTVs, with continuous updates

• Comprehensive Diagnostics:

  • Automatic scanning and VIN recognition

  • Control module programming and coding

  • ECU settings and instrument coding

  • Tire Pressure Monitoring System (TPMS)

  • Maintenance light reset

  • CO adjustment, idle speed adjustment, A/F value reset

  • ABS control unit settings

  • EOL mode, transmission memory reset, and computer memory clearing

• Fault Guidance: Includes help data, technical bulletins, and diagnostic socket information for efficient and accurate troubleshooting

• Data Display: Supports multiple data stream display modes (text, waveform, instrument diagram) for easy fault analysis

Key Programming (IMMO)

Supports pincode changes, proximity, and remote key programming for the following Harley-Davidson models:

• CVO (2017-)

• DYNA (2012-2017)

• SOFTAIL (2011-)

• SPORTSTER (2014-)

• S SERIES (2017-)

• STREET (2015-)

• TOURING (2012-)

• TRIKE (2011-)

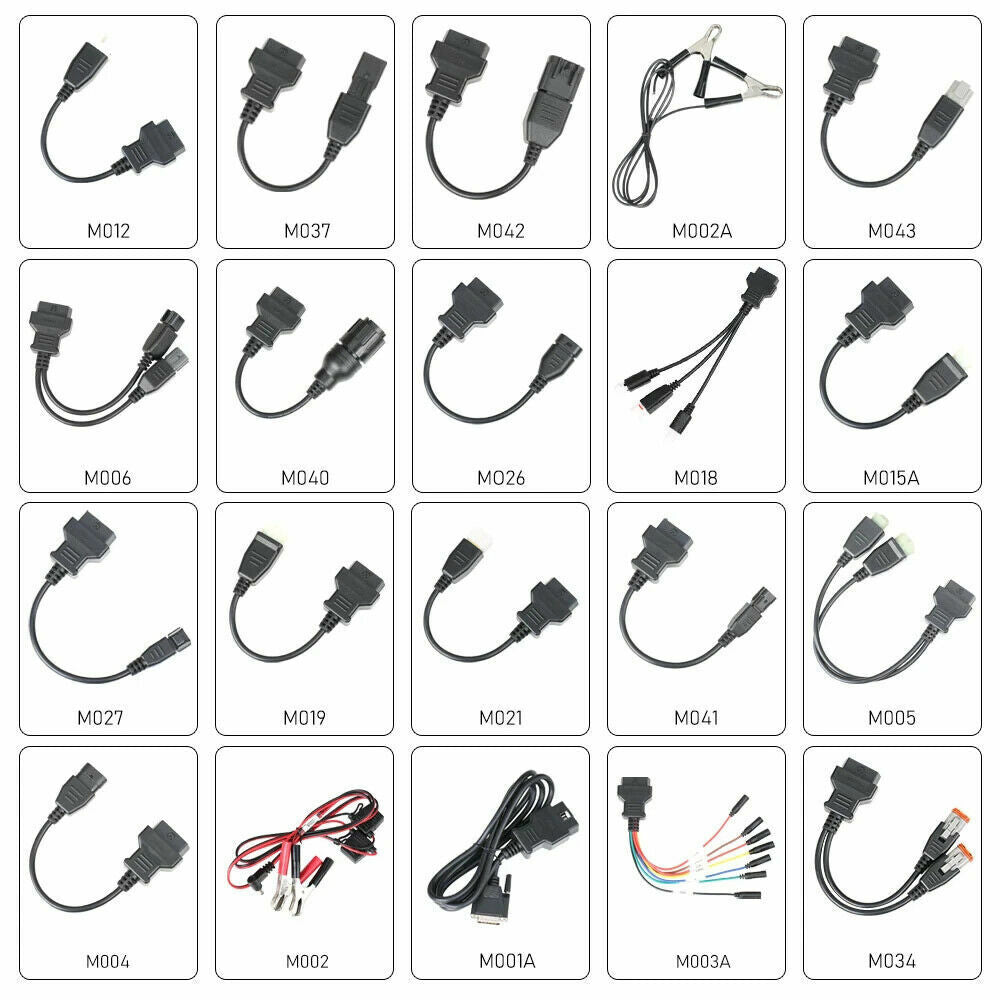

Package Contents

• 1x iScan Harley-Davidson Main Unit

• 1x M001 iScan Harley Main Cable

• 1x M034 Harley-Davidson Cable

• 1x M041 Euro V Adapter

• 1x N041 OBD-6 Connector

• 1x 12V2A Charger

• 1x English Manual

Additional Information

• Warranty: 12 months

• Software Updates: 1-year free updates; subsequent updates cost $80-$100/year (depending on subscription status)

• Multi-Language Support: English (default), Spanish, French, Portuguese, German, Italian, Polish, Russian, Turkish, Indonesian, Persian, Thai, Vietnamese (language switching available after device registration)

• Note: Exclusively supports Harley-Davidson; cannot add software for other motorcycle brands. For 2019+ models, an additional M041 cable is required (not included).

Benefits

• Versatile Tool: Ideal for troubleshooting, maintenance, and performance optimization of Harley-Davidson motorcycles.

• Professional and DIY-Friendly: Designed to meet the needs of both professional mechanics and motorcycle enthusiasts, delivering reliable diagnostics and ease of use.
