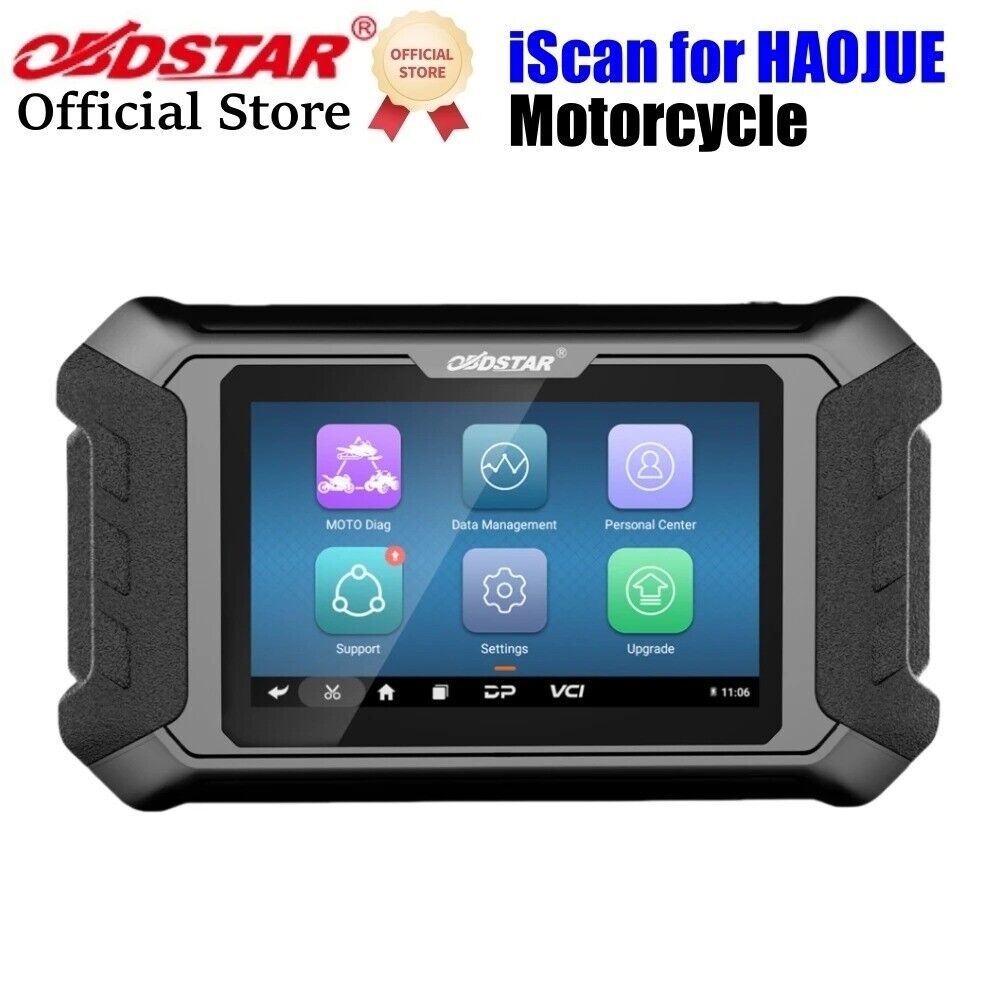

OBDSTAR iScan HAOJUE Motorcycle Diagnostic Scanner (HKSP538)

Professional Intelligent Diagnostic Tablet for HAOJUE Motorcycles

The OBDSTAR iScan HAOJUE (Model: HKSP538) is a dedicated professional motorcycle diagnostic tablet designed specifically for HAOJUE motorcycles. Built for workshops, technicians, and advanced users, it delivers accurate system diagnostics, real-time data analysis, and comprehensive maintenance functions in a compact, portable design.

Powered by the RK3128 Quad-Core ARM Cortex-A7 processor and operating on a stable Android 5.1.1 system, this intelligent diagnostic device ensures smooth performance, fast processing, and reliable vehicle communication through its 5.0-inch capacitive touchscreen display.

Advanced HAOJUE Diagnostic Coverage

The iScan HAOJUE provides complete diagnostic support for HAOJUE motorcycles, enabling efficient fault detection and system analysis.

Core Diagnostic Functions

• Read Diagnostic Trouble Codes (DTCs)

• Clear Fault Codes

• Live Data Stream Monitoring

• Active Tests / Action Tests

• ECU Configuration and Settings

• Coding and Programming Functions

• System Reset Functions

• Sensor and Component Testing

• Vehicle Health Diagnostics

Intelligent Fault Detection System

The device includes advanced fault analysis support to improve diagnostic accuracy and reduce troubleshooting time.

Built-in Assistance Features

• Fault Guidance System

• Technical Support Data

• Technical Bulletins

• Diagnostic Socket / Connector Information

• Step-by-Step Diagnostic Assistance

These features help technicians quickly identify problems and apply correct repair procedures.

Advanced Data Stream Analysis

The iScan HAOJUE offers multiple real-time data visualization modes to enhance diagnostic efficiency:

• Text Data Stream Mode

• Waveform Graph Analysis

• Instrument Cluster Style Display

These modes allow detailed monitoring of engine performance, sensors, and electronic systems for accurate fault detection.

Smart Vehicle Functions

The system supports intelligent automation and service functions including:

• Automatic System Scanning

• Automatic VIN Recognition

• ECU Programming and Coding

• ECU Parameter Setting

• Instrument Cluster Coding

• Tire Pressure Monitoring System (TPMS) Reset

• Maintenance Light Reset

• CO Adjustment

• Idle Speed Adjustment

• A/F Ratio Reset

• ABS System Configuration

• EOL Mode Functions

• Transmission Memory Reset

• ECU Memory Clearing

User-Friendly Interface

Designed for simplicity and efficiency, the iScan HAOJUE ensures smooth workflow for both professionals and technicians.

Key Features

• Intuitive Android-Based Interface

• Easy Menu Navigation

• Quick Function Access

• Real-Time Data Recording

• Data Playback for Fault Analysis

• Fast and Accurate Diagnostics

Connectivity & Software Updates

The device includes modern connectivity options for continuous updates and remote support.

Key Connectivity Features

• Wi-Fi Enabled

• One-Click Software Updates

• Online System Upgrade Support

• Remote Technical Assistance from OBDSTAR Engineers

Technical Specifications

System

• Operating System: Android 5.1.1

• Processor: RK3128 Quad-Core ARM Cortex-A7

Display

• Screen Size: 5.0 Inch

• Touch Type: Capacitive Touch Screen

Connectivity

• Wi-Fi Supported

Power

• Voltage: 12V

• Power Consumption: 8W

Build & Design

• Portable Industrial Design

• Durable Workshop-Grade Construction

Supported Vehicle Range

• HAOJUE Motorcycle Series

Package Includes

• 1 × OBDSTAR iScan HAOJUE Diagnostic Tablet

• 1 × M001 Main Cable

• 1 × N041 OBD-6 Cable

• 1 × 12V 2A Charger

Why Choose OBDSTAR iScan HAOJUE?

The OBDSTAR iScan HAOJUE (HKSP538) is a professional-grade diagnostic solution engineered specifically for HAOJUE motorcycles. It combines advanced ECU diagnostics, intelligent fault guidance, live data analysis, and complete system servicing functions into one compact device.

With features such as automatic VIN recognition, real-time data monitoring, coding functions, and wireless updates, it significantly improves diagnostic efficiency and workshop productivity.

This makes it an essential tool for professional motorcycle technicians working with HAOJUE systems.

1) Main Page/Brand Supported

2) Help Data/Technical Bulletin

3）Supported Systems List/Vehicles List

4) Diag Socket/Diag Connector Location

5) Special Function
