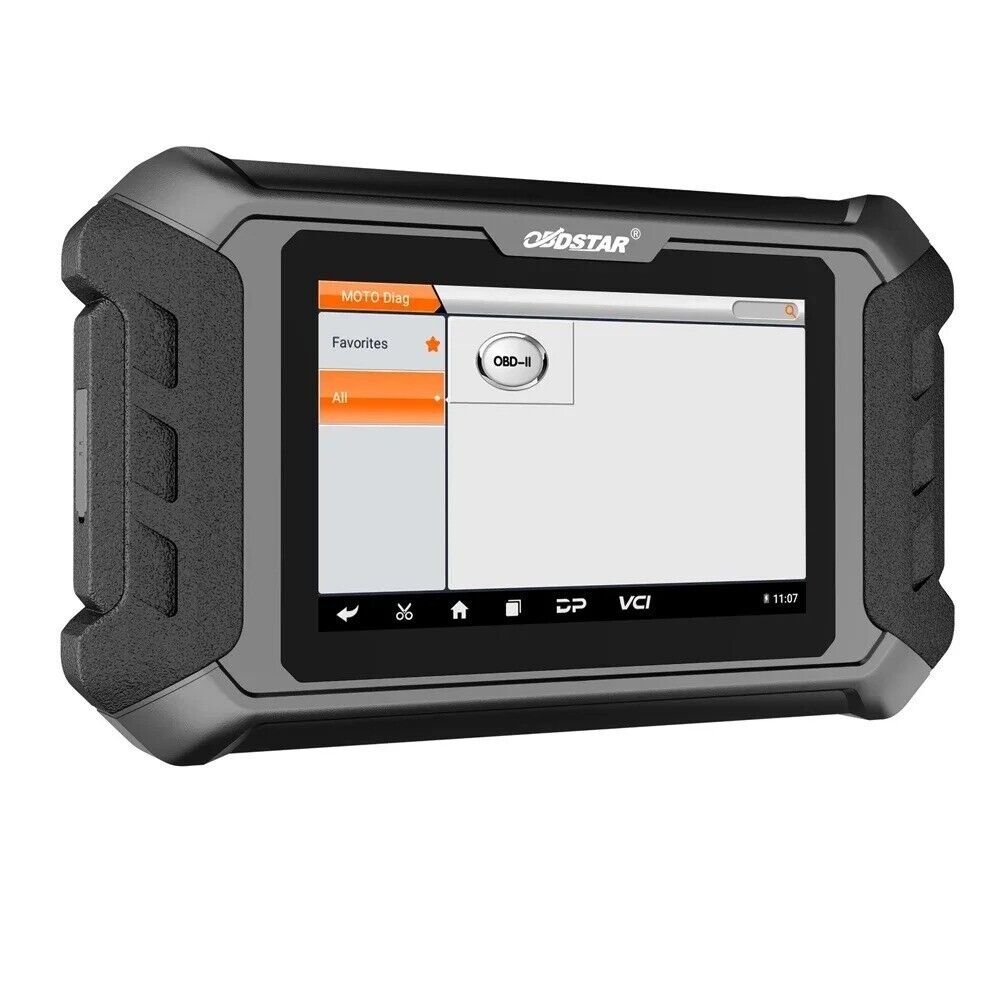

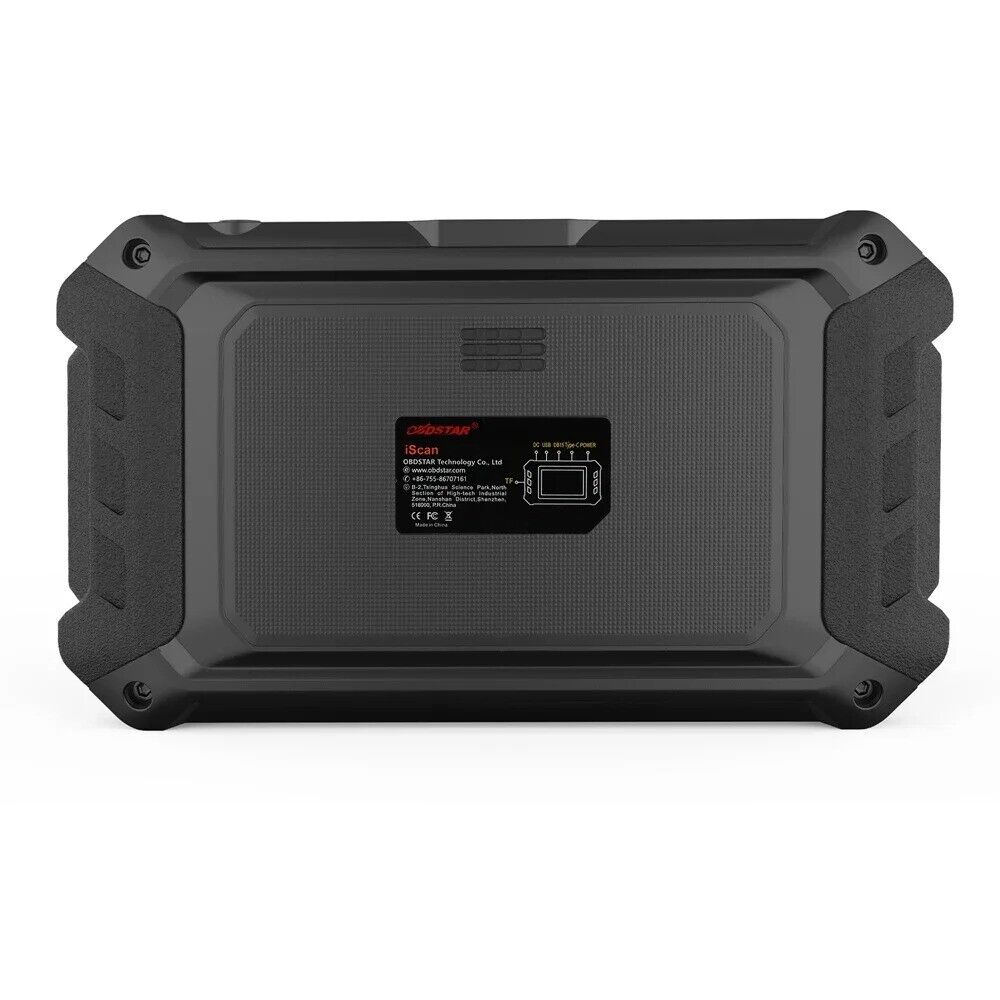

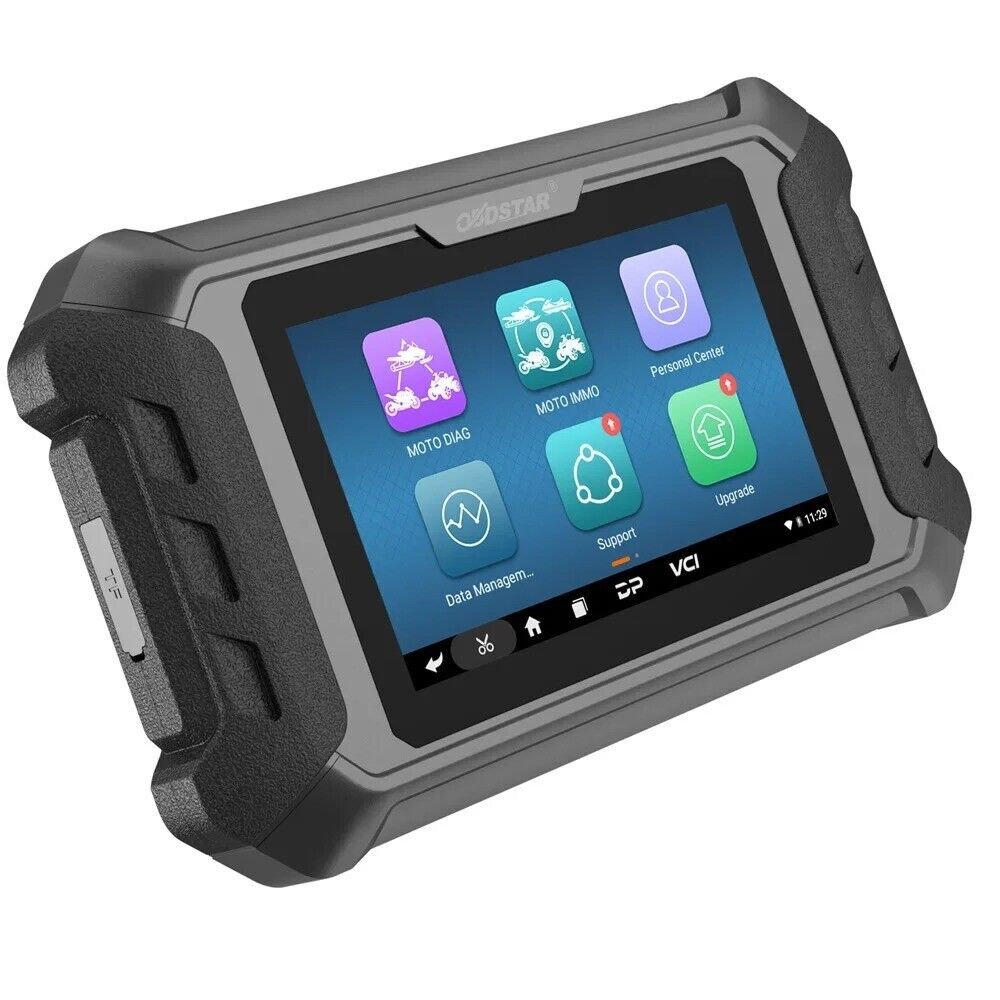

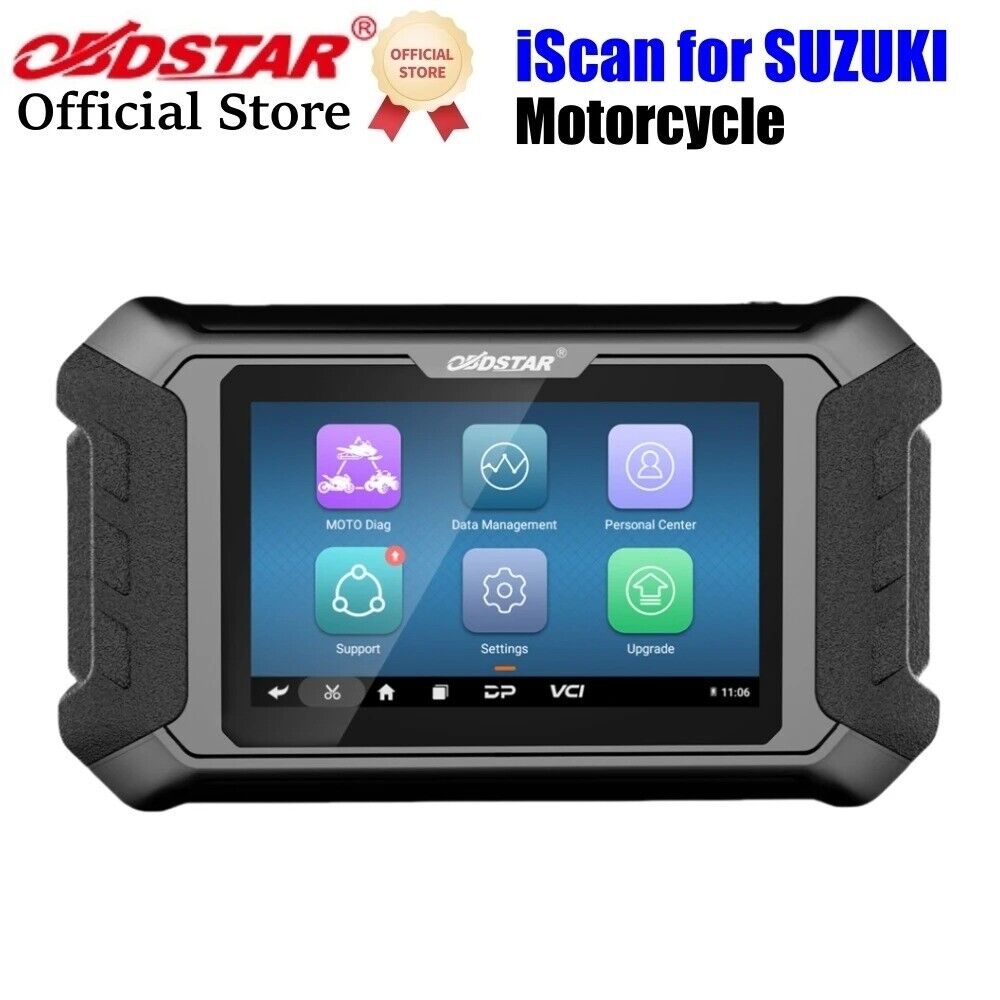

OBDSTAR ISCAN SUZUKI Motorcycle Diagnostic Scanner

Professional Diagnostic Tablet for SUZUKI Motorcycles

The OBDSTAR ISCAN SUZUKI is a dedicated motorcycle diagnostic tablet engineered specifically for SUZUKI motorcycles. Designed with a rugged industrial-grade housing and powered by advanced diagnostic technology, it delivers professional-level diagnostics, maintenance, and troubleshooting capabilities for workshops, technicians, and motorcycle enthusiasts.

Built on the reliable RK3128 Quad-Core ARM Cortex-A7 processor and running the Android 5.1.1 operating system, the ISCAN SUZUKI provides fast system performance, responsive operation, and comprehensive vehicle diagnostics. The integrated 5-inch capacitive touchscreen ensures smooth navigation and an intuitive user experience.

Comprehensive SUZUKI Motorcycle Diagnostics

The ISCAN SUZUKI offers complete diagnostic coverage designed to help technicians quickly identify faults, analyze vehicle systems, and perform essential maintenance operations.

Diagnostic Functions

• Read Diagnostic Trouble Codes (DTCs)

• Clear Fault Codes

• Live Data Stream Monitoring

• Active Tests and Actuation Functions

• ECU Configuration and Coding

• System Settings and Adaptations

• Vehicle Health Checks

• Component Testing

Advanced Diagnostic Features

Intelligent Fault Guidance

Built-in assistance tools help improve diagnostic efficiency and accuracy:

• Fault guidance information

• Technical bulletins

• Diagnostic connector location guides

• Repair assistance data

• Built-in help documentation

Advanced Data Analysis

Multiple data display formats provide greater insight into vehicle performance:

• Text Data Display

• Waveform Graph Display

• Instrument Dashboard Display

These visualization options allow technicians to monitor sensors, actuators, and system performance in real time.

Professional Service Functions

The ISCAN SUZUKI supports advanced system operations, including:

• Automatic Vehicle Scanning

• Automatic VIN Recognition

• ECU Programming and Coding

• Control Module Configuration

• Instrument Cluster Coding

• Tire Pressure Monitoring System (TPMS) Functions

• Maintenance Light Reset

• CO Adjustment

• Idle Speed Adjustment

• A/F Value Reset

• ABS Control Unit Functions

• End-of-Line (EOL) Mode

• Transmission Memory Reset

• ECU Memory Clearing

User-Friendly Design

Designed for both professional workshops and mobile technicians, the ISCAN SUZUKI offers:

• Simple and intuitive menu navigation

• Fast system response

• One-click software updates via Wi-Fi

• Real-time data recording and playback

• Remote technical assistance support from OBDSTAR

• Compact and portable tablet design

Multi-Language Support

Supports a wide range of languages for international users:

• English

• Spanish

• Russian

• Portuguese

• Thai

• Turkish

• Persian

• French

• German

• Polish

• Italian

• Indonesian

• Vietnamese

Technical Specifications

System

• Operating System: Android 5.1.1

• Processor: RK3128 Quad-Core ARM Cortex-A7

Display

• Screen Size: 5.0 Inch

• Resolution: 800 × 480

• Touchscreen: Capacitive Touch Screen

Storage & Connectivity

• Wi-Fi Supported

• Supports up to 32GB Micro SD (TF) Card

Battery

• 2600mAh Rechargeable Polymer Lithium Battery

Environmental Specifications

• Working Temperature: -10°C to 55°C

• Storage Temperature: -20°C to 70°C

Physical Specifications

• Weight: Approximately 700g

• Dimensions: 198mm × 115mm × 31mm

Package Contents

• 1 × OBDSTAR ISCAN SUZUKI Tablet

• 1 × M001A Main Cable

• 1 × N041 OBD-6 Cable

• 1 × N012A SUZUKI-6 Cable

• 1 × 12V 2A Power Charger

Why Choose OBDSTAR ISCAN SUZUKI?

The OBDSTAR ISCAN SUZUKI is a powerful diagnostic solution specifically developed for SUZUKI motorcycles. Combining advanced ECU diagnostics, coding capabilities, live data analysis, and intelligent fault guidance, it provides a complete diagnostic platform for modern motorcycle servicing.

Whether you are performing routine maintenance, troubleshooting complex faults, or carrying out advanced system functions, the ISCAN SUZUKI delivers the reliability and professional performance required by today's motorcycle technicians.
