LAUNCH X431PAD VII Automotive Diagnostic Tool All-in-One Scan Tool with SmartBox

2 sold in last 8 hours
In stock
$4,700.44
Item *
$6,798.44
customers are viewing this product

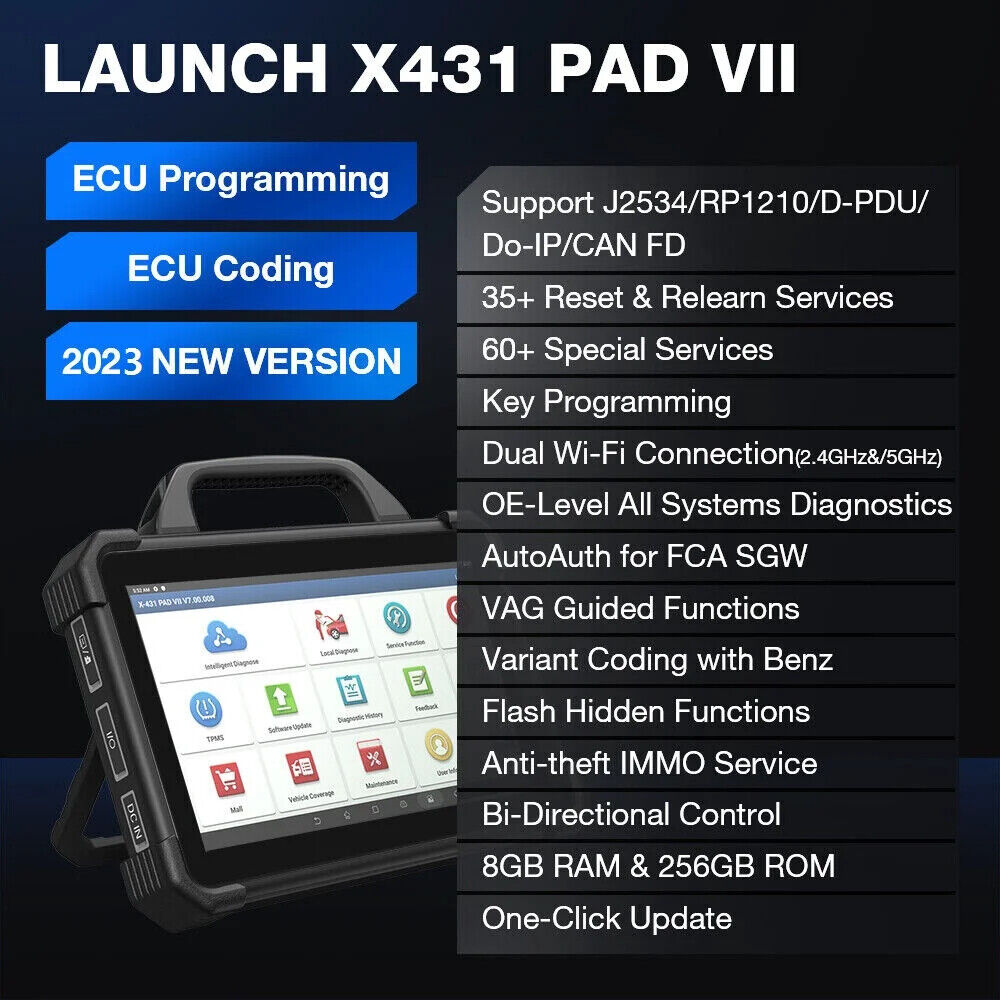

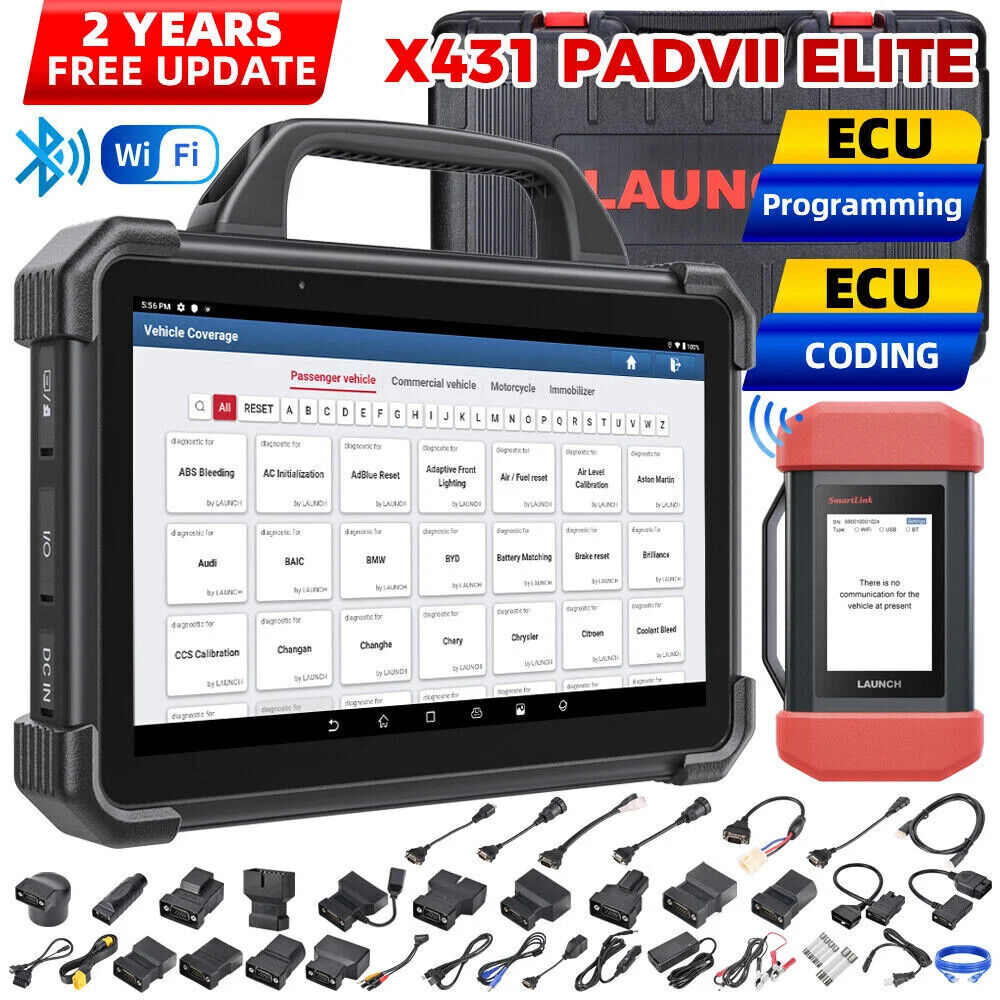

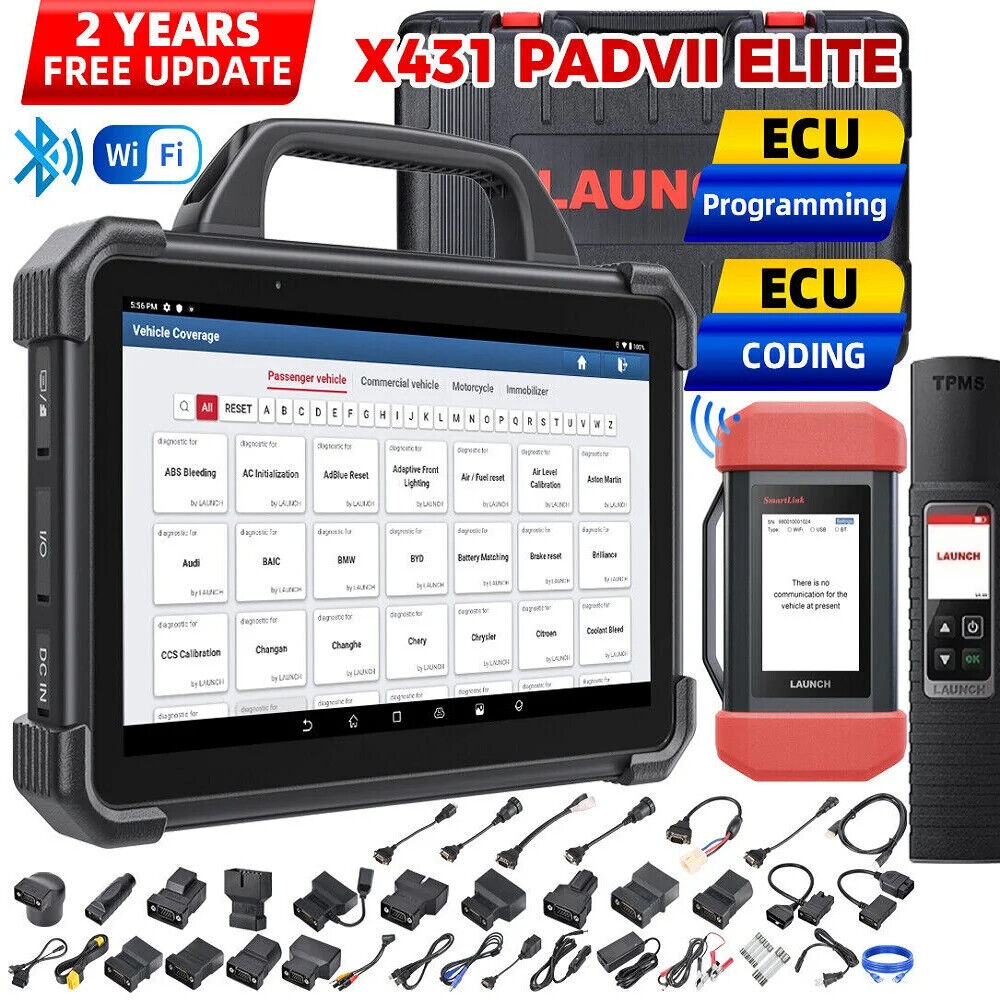

LAUNCH X431PAD VII Automotive Diagnostic Tool All-in-One Scan Tool with SmartBox

PRODUCT HIGHLIGHTS

LAUNCH X431 PAD VII is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X-431 PAD VII makes your intelligent diagnosis faster than ever.

LAUNCH X431 PAD VII advantages:

1. Larger memory (8GB), smoother operation; strong light readable screen; support for three defenses
2. Support 9 kinds of module expansion such as oscilloscope, sensor, battery, tire pressure gun, endoscope,PRO G3, etc.
3. Support smartlink remote diagnosis
4. Support D-PDU/J2534/RP1210 diagnostic standard, CAN/CAN FD/DOIP protocol.

Supported Languages

English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkey, Dutch, Greek,Hungarian, Arabic, Denish, Korean, Farsi, Romanian, Serbian, Finish, Swedish, Czech.

BULLET POINTS of LAUNCH X431 PAD VII:

The phenomenal all-in-one diagnostic scanner, the newest upgraded scan tool of ProS V, V+, PAD III/V in X431 series. All set to top-notch standards to make your ECU Programming/Coding, 35+ Reset Services, 60+ Special Functions, Active Test, All System Diagnostics, Topology Mapping, DTC Troubleshooting Guidance, OBDII Connector Pin Detection, etc. accurate, efficient and OE-level approved. Together with worldwide car coverage of 110 brands (J2534/RP1210/D-PDU/CAN/DOIP/CAN FD) + 30 days unconditional return & replacement policy + 1 years product quality backup.

J2534 ECU Programming:

This diagnostic tool comes with SmartLink CVCI box as a pass-thru tool to connect with OEM software for effective J2534 ECU programming, to replace the existing software/firmware in the ECU, program new ECUs, and fix software-controlled driving performance and emission issues. Available for VAG Group Vehicles, Benz, BMW, and Porsche etc, without use of often very expensive factory automotive scan tools. **Reach us for details.

ECU Programming & Coding:

This diagnostic tool comes with SmartLink CVCI box as a pass-thru tool to connect with OEM software for effective J2534 ECU programming, to replace the existing software/firmware in the ECU, program new ECUs, and fix software-controlled driving performance and emission issues. ECU Coding for Component Matching after replacement, or reflashing modules to active features / deactivate hidden features, without use of often very expensive factory automotive scan tools. **Reach us for details.

Support Latest Car Protocols:

To diagnose the complex issues for passenger cars and even trucks, SmartLink CVCI Box is developed as a smart solution to support wide array of diagnostic protocols (J2534/RP1210/D-PDU - for passenger cars and commercial vehicles; CAN/DOIP/CAN FD - the latest protocols), covering U.S., Asian and European markets over 110 brands, and is continually updated. You may go to the “MALL” module to make in-app purchase of HD vehicle software.

OE-LevelDiagnostic Tool:

35+ Reset & Relearn Services (Oil Reset, Injector Coding …) for necessary repairs and adjustments in workshop; 60+ Advanced Special Functions (PMI, Power Balance, Online Calibration, Online Account Login Service …) for complete diagnostics to help grow customer base. Meanwhile, 8 extended modules include Videoscope, Oscilloscope, SensorBox, TPMS Tool, Key Immobilizer and Battery Tester. This pro-level diagnostic scanner has everything to meet your various diagnostic needs and scenarios. **See details on page.

User-Oriented Diagnostic Scanner

Factory-level All System Diagnostics: in-depth inspection of all accessible car modules as ECM, transmission, ABS, airbag, EVAP, TPMS, BMS, etc. to troubleshoot complex manufacturer-specific issues;
②Topology Mapping: check DTCs and all systems communication status visually.
③Merged 4-in-1 Live Data Graph: effortlessly detect problems during a test drive;
④Auto-detects the communications protocol; check OBDII connector pin damaged or not.

GreatCombination :Based on Android 9.0 O.S, powered by fast 2.0GHz Octa-core optimized chipset, with visually stunning 13.3” 1920*1080 touchscreen, 2.4/5Ghz dual Wi-Fi connection, 8GB RAM+256GB ROM. 9360mAh battery (20+ continuous work), AutoVIN & AutoSCAN (2006+), one-touch2 years software upgrade (no charge), massive built-in repair materials, etc., this 2021 newest diagnostic tool of LAUNCH X431 line makes your intelligent diagnosis faster than ever.

LAUNCH X431 PAD VII Feature

1. Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is continually updated

2. Upgrade and expand the X-431 PAD VII with more software and service via the new module 'MALL' as demanded

3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis

4.Topology mappinggives a visual checking on DTCs and all systems communication status

5. Support automotive communication protocolsCAN/CANFD/DoIPand automotive communication standardsJ2534/D-PDU/RP1210

6. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not

7. Intelligent diagnostic enable identify VIN automatically and access system quickly

8.Guided function for VW and AUDI

9. OptionalADAS calibrationfunction increases more revenue

10.Advanced coding and programming function

11. An extended solutio to support TPMS service

12. 2.4GHz & 5GHz dual band communication ensures quick and stable connection

13. Empower technician to diagnose light, medium & heavy duty vehicles with Smarlink C

14. The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.

15. Build-in repair information and training video modules help to track and fix issue fast

60+ Special MaintenanceServices:

VAGGuided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and basic settings for VW / Audi / Skoda / Seat.

Component Matching: Rematch ECU (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.

Power Balance: Identify the less productive cylinder for Chrysler / GM / Ford.

Programmable Module Installation (PMI): Ensure the correct software/calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.

Personalization: Compatible with BMW / Porsche / Toyota / Subaru.

Online Calibration: For some car systems’ calibration. Compatible with VW / Audi / Skoda / Seat.

Online Account Login Service: Access to the login codes for coding, matching, and basic settings of all available systems.

OnlineParameterization … and many more are coming soon; expanding regularly.

35+ Reset & Relearn Services

Oil Reset, Injector Coding, Brake Reset, SAS Reset, BMS Service, ABS Bleeding, Throttle Matching, TPMS Reset, DPF Reg, Gear Learning, AFS Reset, EGR Adaption, Gearbox, Sunroof, SUS Reset, Windows Calibration, Seats Calibration, Language Change, A/F Reset, Coolant Bleed, Transport Mode, Adblue Reset, NOx Sensor Reset NOx, Stop/Start Reset, Headlamp Fitting, Seat Matching, Door & Window Initialization Study, Air Suspension Matching, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change, and more.

**Cover the majority of makes and models worldwide up to 2018/2019/2020/2021; still growing.

**Function menus vary by your vehicle’s make, model year.

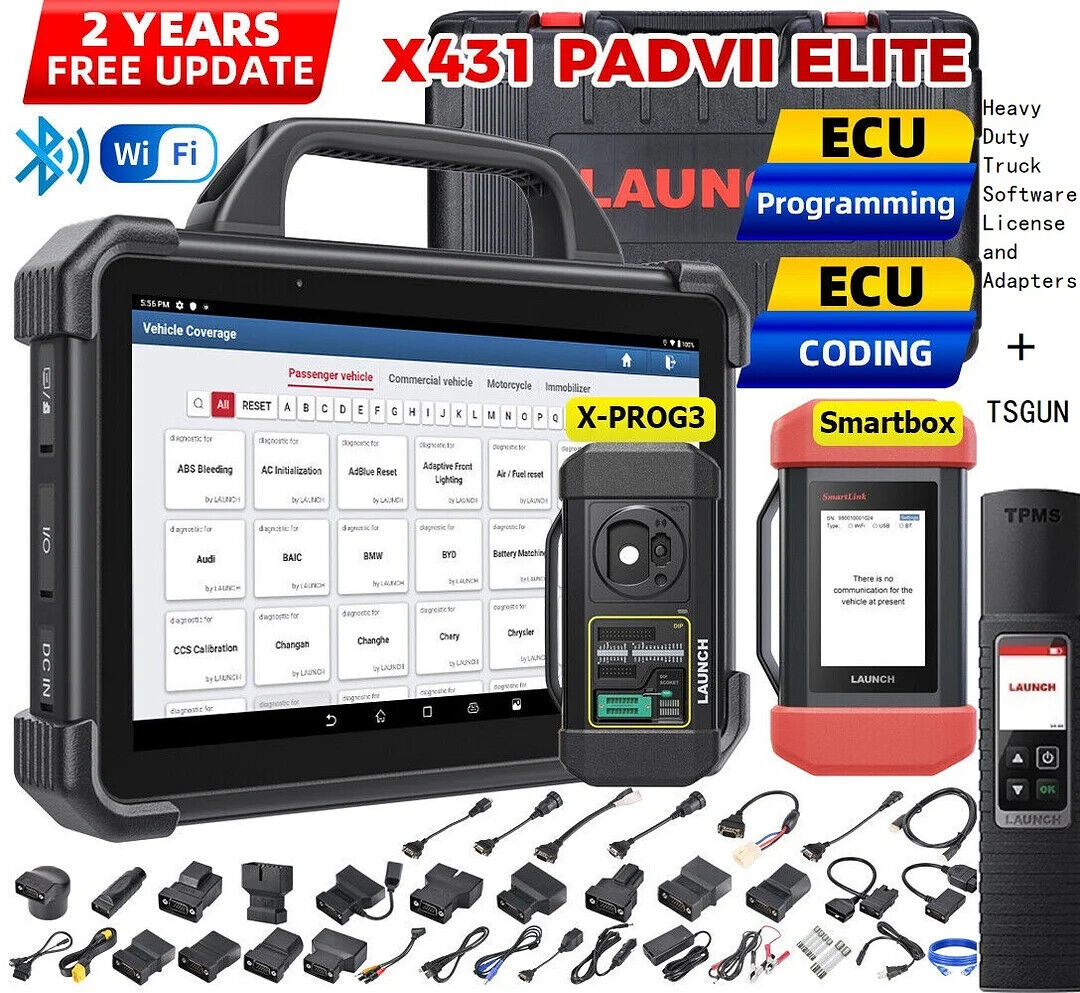

8 Extended Modules Design to Expand Your BusinessHorizons

This LAUNCH X431 diagnostic tool PAD VII supports 8 extended modules including:

VSP-600 VideoScope: for up-close visual inspections in confined areas.

X-PROG &X-PROG3 Immobilizer: for lock-smith level key programming & IMMO service.

S2-2 SensorBox: diagnose and simulate vehicle sensor faults quickly.

O2-1 ScopeBox,Oscilloscope: quickly acquire the circuit signal, and slowly display the waveform to observe and analyze.

Wi-Fi Printer:print out diagnostic data & reports.

X431 TSGUN: activate all sensors, relearn & program LAUNCH sensors.

BTS360 Bluetooth Battery Tester: get a thorough test of the vehicle battery.

**Need extra costs to buy these 8 extended function modules.

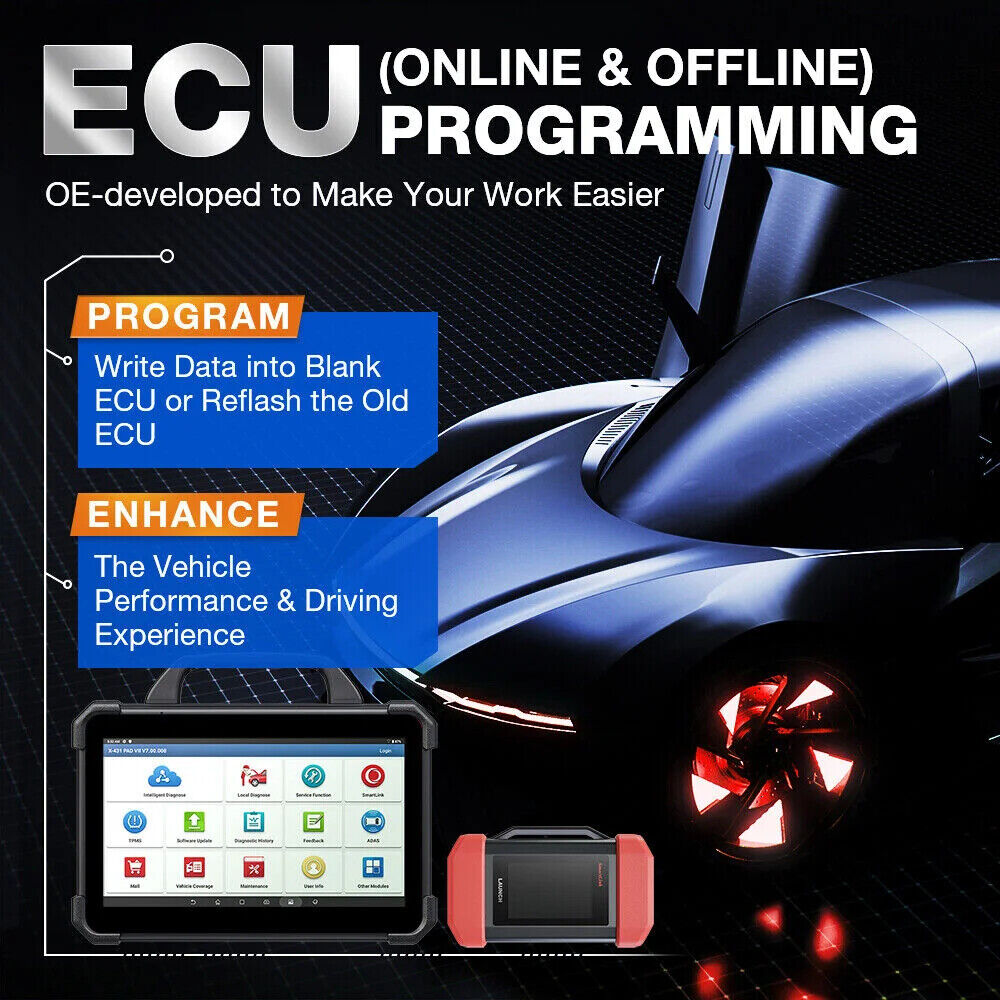

ECU Programming& Coding for Ultimate Car Diagnostics

ECU Programming

The CVCI box can be used as a J2534 ECU programming tool, a SAE J2534-1 & -2 compliant pass thru a reprogramming interface device, to help upgrade the OEM software and replace the existing software/firmware in the Electronic Control Units (ECU). Program new ECUs and so fix software-controlled drivability and emission issues.

ECU Coding

Component Matching: You can use this LAUNCH X431 diagnostic scanner to re-flash the vehicle control modules, clear the original memories stored in ECU, and write the adaptive data into specific components. And so to build stable communication between ECU modules after repair or replacement.

Activate / Deactivate Functions: You can also use this scan tool to alter how your vehicle behaves originally - disable some annoying functions, or unlock high-end car features as following:

>> Deactivating the Start/Stop function | Beeping when unlocking and locking | Locking the doors once a certain speed is reached (e.g. from 15 km/h) | Seatbelt warning sounds | Mirrors automatically folding and unfolding | Closing the windows after locking the car door with the key | Flashing the brake lights during emergency braking | Activating/deactivating daytime running lights | Changing the brightness of daytime running lights | Flashing of the headlights when locking or unlocking the doors via the remote control | Flashing of the headlights when the alarm system is triggered | Displaying of the real speed via GPS signal | Displaying the amount of fuel consumption at a given speed | Changing the brightness of the dashboard | Displaying the optimal gear changing time in eco or sport mode | Select whether the display should be on the dashboard or head-up display | Incoming call display | And many more …

** NOT universally compatible. Function menus vary by your vehicle’s make, model, year.

Topology Module Mapping

The Smart Topology Module Mapping in this diagnostic tool allows you to directly view the color-coded topology display for all communication structures between vehicle modules, and click to check the fault code, saving the hassle of toggling menus back and forth to find what you want.

99.99% Vehicle Coverage, the Maximum on the Market.

This automotive scanner comes with different adapters, and supports new protocols of CAN/CANFD/DoIP, and new communication standards of J2534/D-PDU/RP1210, covering 99.99% of the vehicle models (including Heavy Duty Vehicle brands) made in the USA, Europe, Asia, to meet the needs of diagnosing almost every vehicle coming into your workshop:

Passenger Vehicles:

USA: Compatible with USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep.

Asia: Compatible with Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti

Europe: Compatible with Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar

Australia: Compatible with AUST Holden, AUST Ford.

Heavy-Duty Vehicles (Optional):

Compatible with Nissan (Diesel)/ Mitsubishi (Diesel)/ USA Ford Diesel, Kenworth/ Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel/ Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty/ Iveco Heavy Duty, JAC Heavy Duty, Mack, MAN …. **Need to make an in-app purchase of the heavy-duty vehicle diagnostics software you need; reach us 24/7 for details.

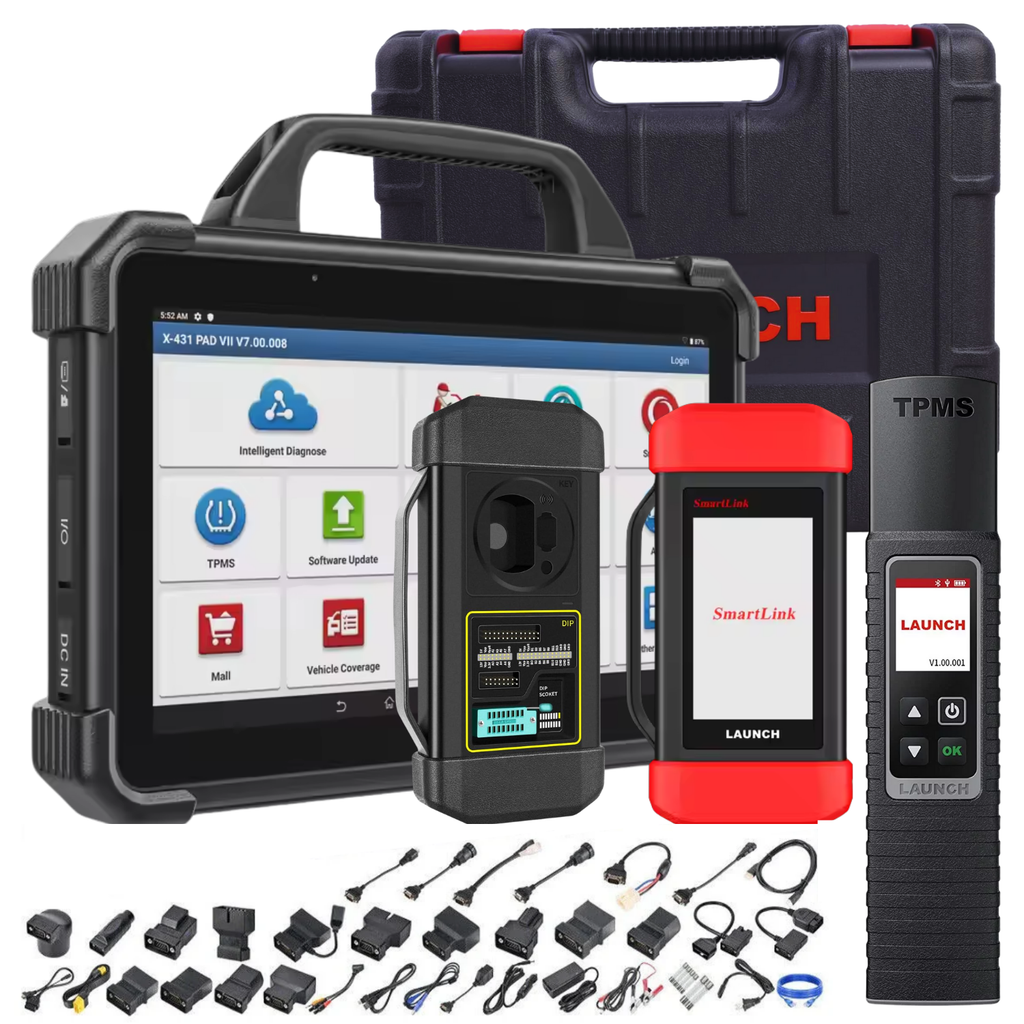

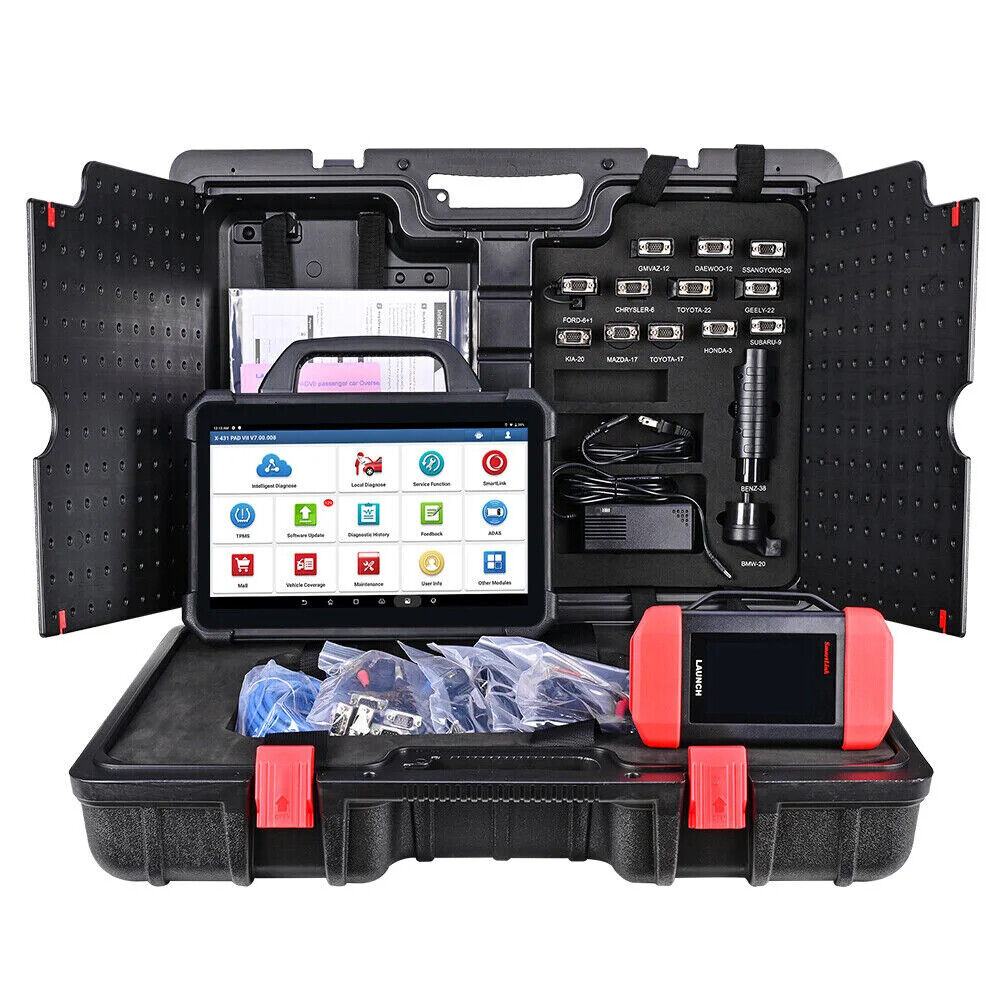

LAUNCH X431 PAD VII Package List:

1x X-431 PAD VII main unit
1x Smartlink C diagnostic connector
1x Micro USB cable
1x Cigarette lighter cable
1x 5V DC out power adaptor
1x Battery clamps cable
1x OBD II extension cable
1x Non-16pin connector converting cabel
1x Password envelope
1x Non-16pin connectors set
