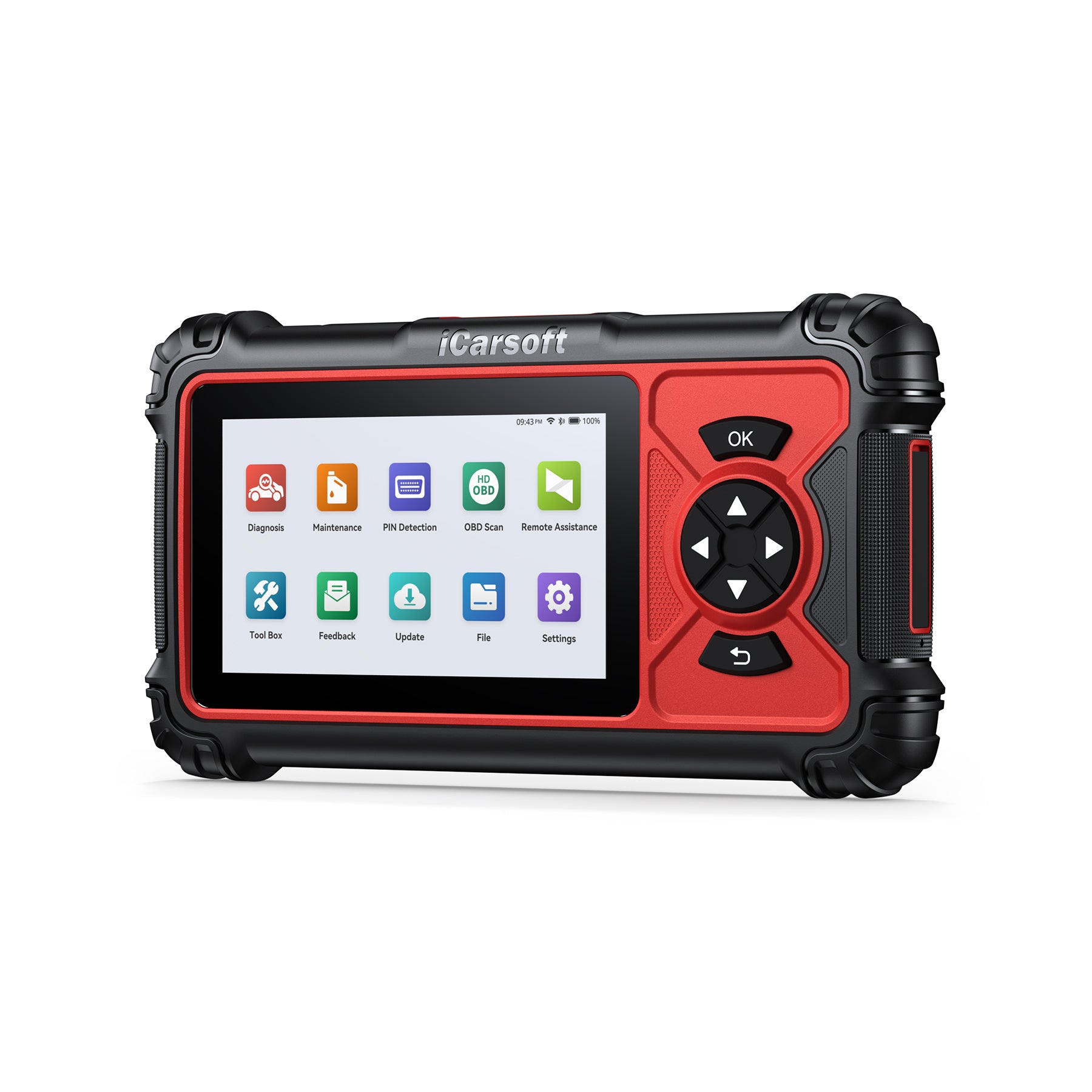

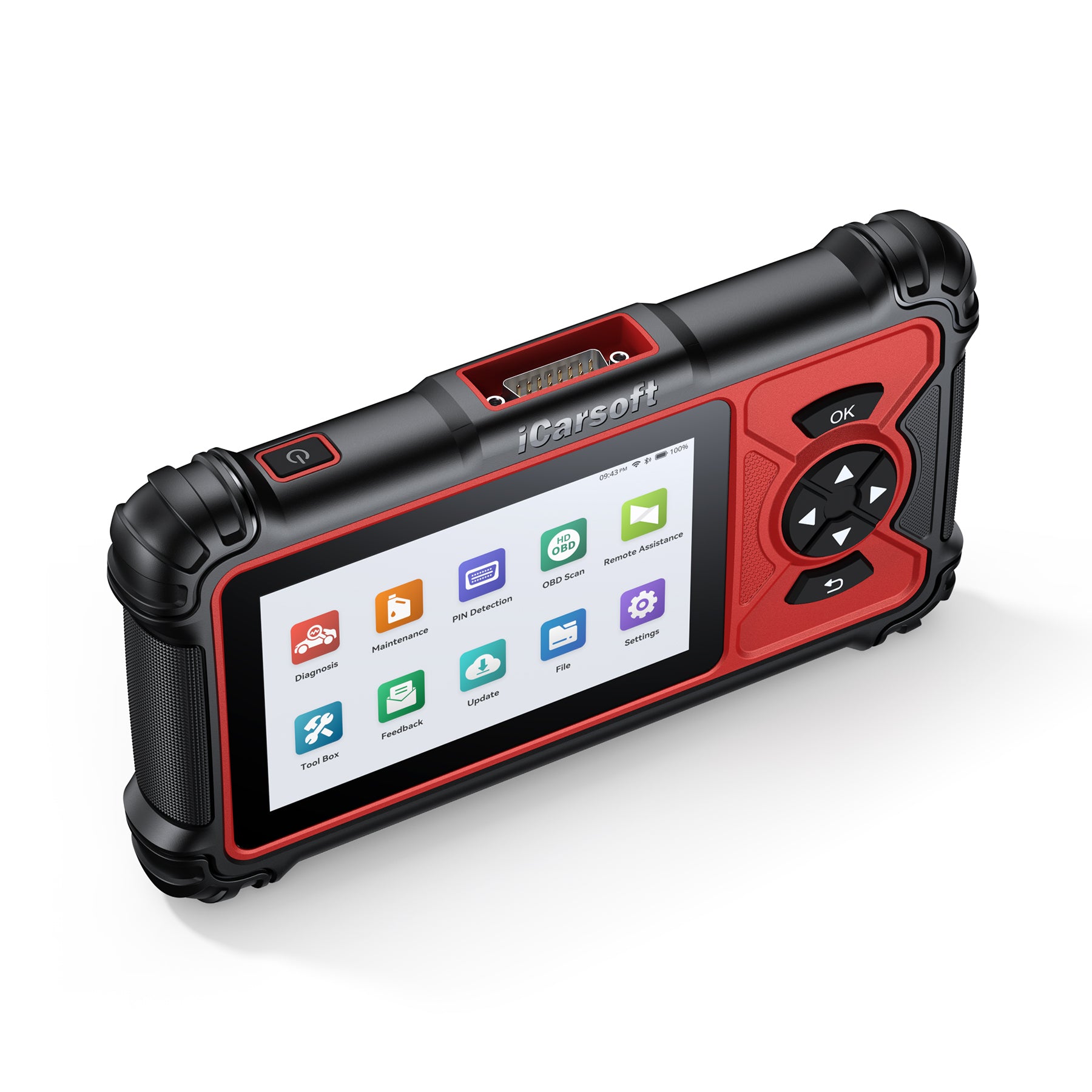

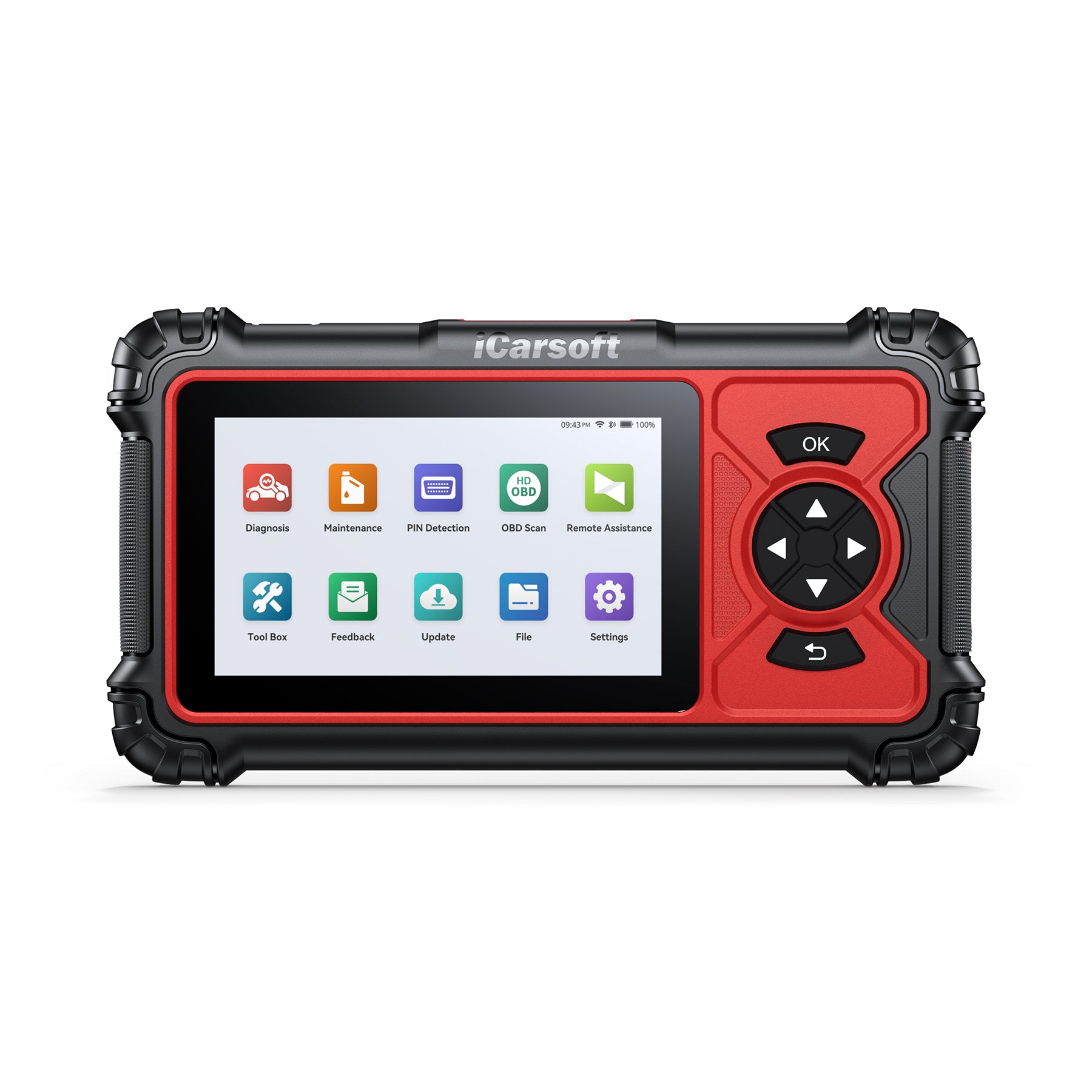

iCarsoft HD V4.0 Heavy Duty Truck Scanner: Comprehensive Diagnostic Tool with 8 Reset Functions

The iCarsoft HD V4.0 is a versatile, heavy-duty truck scanner designed for professional-grade diagnostics on both commercial trucks and 12V passenger vehicles. This full-system diagnostic tool supports over 37 truck brands, including Cummins, Detroit, Caterpillar, and Hino, delivering in-depth analysis and maintenance capabilities. Equipped with advanced features like DPF Regeneration, Injector Coding, and Limit Setting, it serves as a reliable 2-in-1 code reader that minimizes downtime and optimizes vehicle performance. Whether you're a fleet manager, independent mechanic, or truck owner, the HD V4.0 empowers you to perform OEM-level services efficiently and cost-effectively.

Latest Innovation

The iCarsoft HD V4.0 represents the pinnacle of diagnostic technology, offering upgraded OBD2 functions tailored for heavy-duty trucks and standard 12V vehicles. This innovative scanner provides full-system diagnostics and five essential reset maintenance services across 37 major truck brands and a wide array of models. It seamlessly supports a broad spectrum of communication protocols, including SAE-J1850 PWM, SAE-J1850 VPW, ISO 9141, ISO-14230-2 ISO, ISO 14230-4 KWP, ISO 15765-4 CAN, J1708, J1939, CANFD, and more. The device comes bundled with specialized adapters such as OBD-6, OBD-9, CAT-9, and OBD1, ensuring compatibility with diverse vehicle architectures.

What sets the HD V4.0 apart is its user-centric design: a responsive touch screen combined with intuitive button controls for effortless navigation, even in challenging workshop environments. WiFi-enabled updates keep the software current with the latest vehicle data and protocols, doubling the device's convenience and longevity. Powered by premium hardware—including a 5-inch high-resolution display (854x480 pixels), Android 8.1 operating system, 2GB RAM + 64GB ROM storage, and a robust 3150mAh/3.8V battery—the HD V4.0 delivers smooth, lag-free performance during complex module diagnostics. This configuration not only handles intensive scans but also supports multitasking, making it an indispensable tool for modern automotive professionals.

Advanced DPF Regeneration

At the core of the HD V4.0's capabilities is its sophisticated DPF (Diesel Particulate Filter) regeneration functionality, engineered to address one of the most common challenges in diesel engine maintenance. Unlike basic scanners that offer superficial cleaning, the HD V4.0 performs thorough, in-depth DPF diagnostics and regeneration processes. It can initiate active DPF regeneration to burn off accumulated soot, reset DPF clog readings, synchronize the DPF service clock, and recalibrate the pressure sensor for optimal accuracy.

Key features include real-time monitoring of the DPF sensor module status and filter working conditions, allowing users to track backpressure, temperature, and differential pressure with precision. This enables proactive interventions that optimize engine performance, reduce emissions, and extend the lifespan of the DPF system. For instance, after replacing the exhaust backpressure sensor or removing the PM trap, the HD V4.0 ensures seamless recalibration to prevent error codes and maintain compliance with environmental standards. By providing more accurate and comprehensive DPF regeneration than competitors, this tool helps fleet operators avoid costly downtime and comply with stringent regulations like Euro 6 or EPA standards.

• Active Regeneration Initiation: Forces a controlled burn-off cycle to clear blockages efficiently.
• Sensor Recalibration: Adjusts pressure and temperature sensors post-maintenance for reliable readings.
• Real-Time Monitoring: Displays live data on filter efficiency and soot load to prevent premature failures.
• Service Clock Reset: Tracks and resets maintenance intervals to align with manufacturer guidelines.

Diagnose Most Major or Sub-Systems with Ease

The iCarsoft HD V4.0 heavy-duty truck diesel scanner excels in full-system diagnostics, granting access to nearly all major and sub-systems for comprehensive troubleshooting. It effortlessly reads and clears fault codes, retrieves live data streams, displays ECU information, and extinguishes MIL (Malfunction Indicator Lamp) warning lights, ensuring vehicles return to the road swiftly and safely.

This tool covers critical systems such as the engine, Transmission Control Module (TCM), Anti-lock Braking System (ABS), brake control, emissions, DPF/DEF/SCR (Selective Catalytic Reduction), Body Control Module (BCM), airbag, fuel delivery, coolant, and intake systems. By providing detailed error code interpretations and graphical live data, it empowers users to pinpoint issues like sensor malfunctions, hydraulic leaks, or electronic faults with minimal guesswork. This reduces diagnostic time by up to 50% compared to traditional methods, allowing for earlier interventions and lower repair costs.

For example, in the emissions system, the HD V4.0 can identify SCR catalyst efficiency drops or DEF dosing anomalies, while in the ABS module, it reveals wheel speed discrepancies that could compromise safety. Whether dealing with a Caterpillar loader or a Hino delivery truck, the scanner's bidirectional controls enable active tests, making it a go-to solution for proactive maintenance.

• Engine System: Analyzes fuel injection timing, compression, and misfire detection.
• ABS/Brake Control: Tests solenoid valves and monitors hydraulic pressure.
• Emissions & Aftertreatment: Validates DPF, SCR, and EGR performance.
• Safety Systems: Scans airbag deployment readiness and BCM fault isolation.

8 OEM-Level Maintenance Services

The HD V4.0 elevates routine maintenance to OEM standards with eight specialized services, enabling users to complete complex procedures at home or in the field without specialized dealership equipment. These functions not only clear warning lights but also reset learned adaptive values, recalibrate sensors, and match components for peak efficiency—potentially saving thousands in service fees annually.

From DPF regeneration to speed limit adjustments, each service is designed for precision and ease, supporting a wide range of heavy-duty applications.

• DPF Regeneration: Performs forced regen cycles and resets post-repair.
• Oil Reset: Clears oil life monitors after fluid changes to prevent false alerts.
• Injector Coding: Matches new injectors to the ECU for precise fuel trim and reduced emissions.
• Clutch Matching: Adapts clutch adaptation values after replacement for smooth shifting.
• Brake-Pad Reset: Recalibrates wear sensors following pad or sensor swaps.
• SCR Reset: Initializes DEF system after component changes to restore NOx reduction.
• Speed Limit Reset: Adjusts governor settings for compliance or performance tuning.
• Cylinder Cut-Out Test: Isolates faulty cylinders for targeted repairs.

These services ensure vehicles operate within manufacturer specifications, enhancing reliability and fuel economy.

2-in-1 OBD2 Scanner for Trucks & 12V Cars

Versatility defines the HD V4.0 as a true 2-in-1 OBD2 scanner, bridging the gap between heavy-duty trucks and everyday 12V cars. Through its standard OBD interface, it scans engine modules on both vehicle types, delivering full HD-OBD/EOBD/OBD2 compliance. This includes reading and clearing diagnostic trouble codes (DTCs), viewing live data and freeze frames, checking I/M readiness status, performing EVAP leak tests, accessing on-board monitors, conducting O2 sensor evaluations, retrieving vehicle information, and providing built-in DTC lookup libraries.

The scanner's rapid engine scan identifies issues like ignition timing errors or catalytic converter inefficiencies in seconds, supporting accurate troubleshooting across brands like Ford, Toyota, and Cummins-powered rigs. Available in English and Spanish, it caters to a global user base, with multilingual DTC definitions for faster resolutions. This dual compatibility makes it an essential tool for multi-vehicle workshops, where switching between truck fleets and passenger cars is routine.

Battery Voltage Monitoring

Maintaining electrical health is crucial for any vehicle, and the HD V4.0's integrated battery voltage monitoring feature provides proactive insights to avert failures. By conducting regular status checks via the OBD port, the scanner evaluates battery condition, charge level, and cranking voltage in real-time, alerting users to degradation before it leads to no-start scenarios or stranded vehicles.

This function is particularly valuable for heavy-duty trucks under constant load, where alternator issues or parasitic drains can accelerate battery wear. Accurate diagnostics help prioritize replacements, extending component life and slashing unexpected repair bills—often by identifying problems during routine scans rather than roadside emergencies.

• Voltage Trending: Tracks fluctuations over time to detect weakening cells.
• Health Assessment: Rates battery capacity and recommends actions like charging or replacement.
• Integration with Diagnostics: Correlates low voltage to related faults, such as starter motor draws.

Unique Pin Detection Function

Efficiency starts with connectivity, and the HD V4.0's exclusive Pin Detection Function streamlines diagnostics by pre-scanning the OBD port. Before initiating any test, it verifies the port's condition, measures voltage levels, and auto-detects the active communication protocol—such as J1939, J1708, or ISO variants—eliminating "no communication" errors that plague fieldwork.

This is invaluable for roadside repairs or diagnosing unfamiliar trucks, where mismatched protocols can waste hours. By confirming port integrity and protocol compatibility upfront, technicians can dive straight into troubleshooting, boosting productivity and reducing frustration. Paired with its adapter suite, this feature ensures broad applicability across global vehicle standards.

Eight Resets

Clutch Matching

 Brake-Pad Reset

Cluth Matching

Brake-Pad Reset

Injector Coding

Oil Reset

Cylinder Cut Out

Sp-eedLi.mit Service

C. -R Service

Conquer the Road with Confidence: iCarsoft HD V4.0

Keep your fleet moving and your business profitable. The iCarsoft HD V4.0 is your all-in-one professional diagnostic companion, engineered to tackle the toughest truck maintenance challenges directly on the roadside or in the shop. Move beyond guesswork and gain complete control over your truck’s health.

1. Comprehensive Full-Systems Diagnostics

Gain deep insights into every critical system. Access all available ECU modules for a complete picture of your truck’s status.

• Modules Covered: Engine, Transmission, ABS, SCR/DEF, Brake, Battery, and more.

• Key Actions: Read and clear trouble codes, view live data streams, and retrieve module information for thorough status checks.

2. Vital Reset & Service Functions

Perform essential maintenance resets and adaptations without a shop visit. Our eight core functions restore performance and clear warning lights after service.

• D.P.F. Regeneration: Clear soot blockages to restore engine power and efficiency.

• Oil Service Reset: Reset maintenance intervals accurately after an oil change.

• Injector Coding: Recalibrate or code new fuel injectors for optimal combustion.

• Clutch Matching: Adapt new clutches post-replacement for seamless drivability.

• Brake Pad Reset: Reset wear indicators and clear warnings after pad replacement.

• SCR System Reset: Reset the Selective Catalytic Reduction system post-repair to eliminate malfunction lights.

• Speed Limitier Adjustment: Adjust or restore factory velocity settings to suit different transport tasks.

• Cylinder Cut-Out Test: Quickly identify misfiring or weak cylinders to diagnose power loss and fuel efficiency drops.

3. Smart Pin Detection: Diagnose the Diagnoser First

Avoid frustrating "no communication" errors before you even start. This unique feature ensures your diagnostic session begins smoothly.

• Port Health Check: Verifies the condition and voltage of the vehicle’s OBD port.

• Protocol Detection: Automatically identifies the communication protocol (J1939, J1708, ISO, etc.) used by the truck.

• Time Saver: Confirms a healthy connection instantly, perfect for roadside repairs or unfamiliar vehicles.

4. Real-Time Live Data Monitoring

When problems strike on the highway, real-time data is your key to a quick diagnosis. Monitor critical parameters directly from the ECU to identify the root cause.

• Solve Limp Mode: If your truck suddenly loses power, use live data to determine if the issue is a clogged DPF, a faulty injector, or another sensor failure.

5. Built for the Real World of Trucking

Designed to thrive in the harsh environments where trucks work and break down.

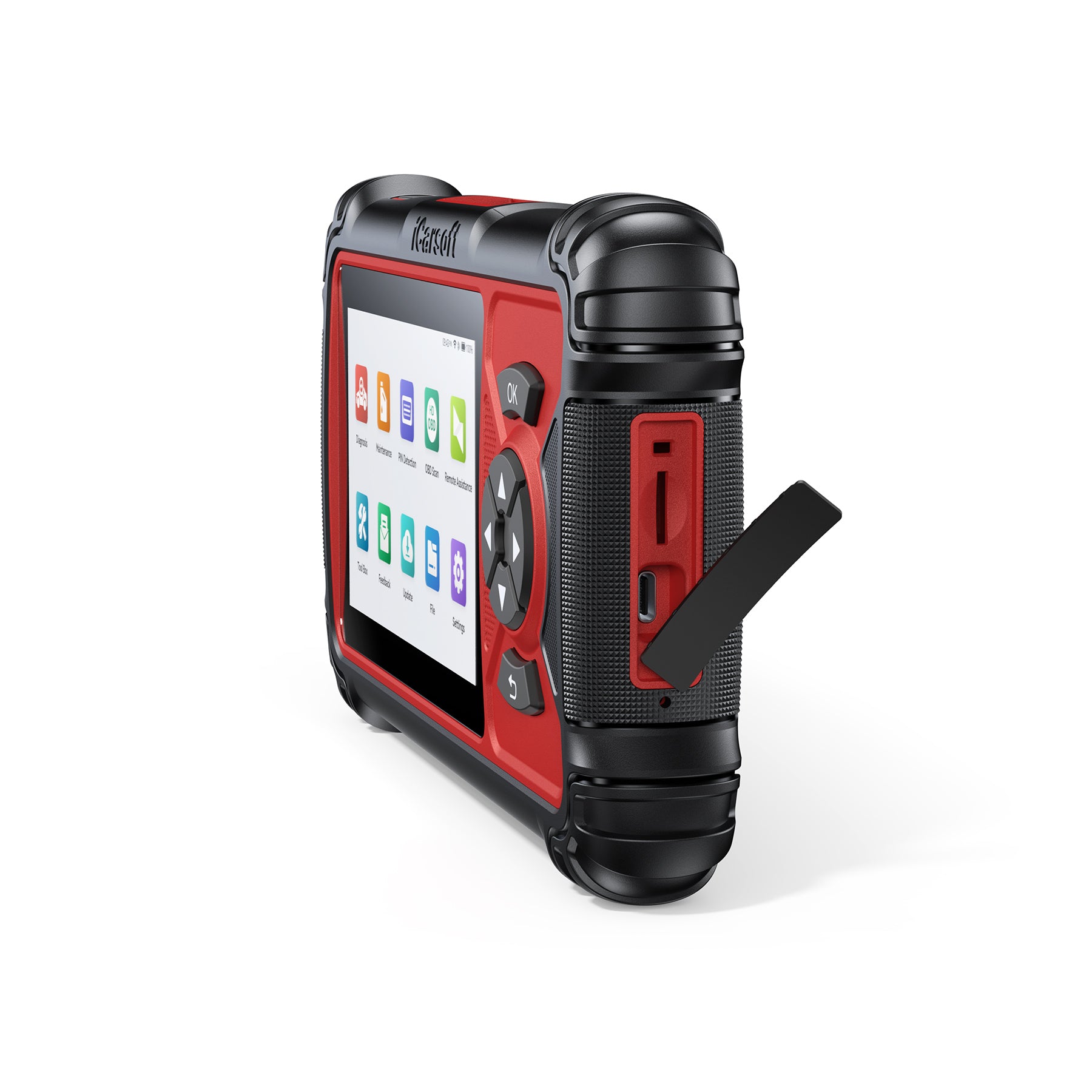

• Rugged & Reliable: Features an impact-resistant housing that stands up to dirt, vibration, rain, and extreme temperatures.

• Glove-Friendly Operation: Use the responsive touchscreen or durable rubber-key buttons even while wearing work gloves.

• Fully Portable: A standalone tool requiring no laptop, giving you full-system access anywhere—at the shop or on the shoulder of the highway.

Turn Breakdowns into Quick Fixes

Long-haul transport is riddled with unpredictable issues: warning lights, clogged filters, injector faults, and clutch failures. The iCarsoft HD V4.0 empowers you to perform on-the-spot diagnostics and critical resets, dramatically reducing costly towing and downtime. Get back on the road faster, with confidence.

Packing Box

• HD V4.0
• PC Connecting Cable
• CAT 9
• OBD 6
• OBD 9
• OBD Diagnostic Cable
• OBD I Adapter
• Packing List
• User Manual
