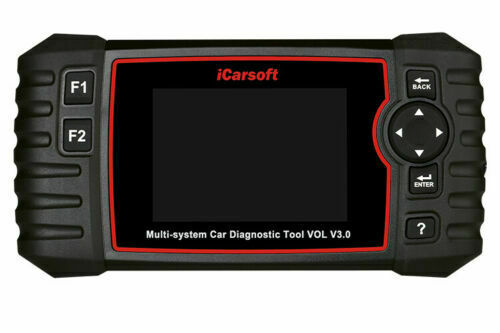

iCarsoft VOL V3.0 Car Full Diagnostic Code Scan Tool For Volvo & Saab

iCarsoft VOL V3.0

COMPATIBLE WITH VOLVO/SAAB MODELS

This full function diagnostic tool, is compatible with OBD2 (1996-2019) vehicle models and will work on most on-board electronic systems. Supports the OEM of brands made in America, Asia and with PETROL and DIESEL in Europe OBD2/EOBD. This car computer reader can also be used as a universal OBD scanner to retrieve generic check engine light codes allowing you to read or clear the codes. Simply connect OBD II port on your car, turn the ignition on and go

BEST IN CLASS INNOVATION

iCarsoft VOL V3.0 can do it all-reads and clears trouble codes on most systems such as engine, transmission, ABS and airbag etc. Supports OBDII/EOBD, with Ten Modes of Operation, read live data, full Control Unit diagnosis etc. It automatically detects your car model and scans all modules for error codes. This special technology allows for specific diagnostic functions and testing!

PROFESSIONAL

• FAST

• SMART

• POWERFUL

PRODUCT INTRODUCTION

ICARSOFT VOL V3.0 IS A PROFESSIONAL AND POWERFUL VEHICLE FAULT DIAGNOSIS TOOL FOR VOLVO/SAAB DEVELOPED BY ICARSOFT TECHNOLOGY INC. WITH A 4.0" TFT LCD AND UNIQUE DIAGNOSTIC SOFTWARE, IT FEATURES FULL Control Unit DIAGNOSIS OF SINGLE VEHICLE BRAND AND TEST MODES MAINLY INCLUDE: CANBUS, ISO9141, KWP2000, AND J1850 ETC. IT ENABLES TECHNICIANS TO ACCURATELY DIAGNOSE COMPLEX PROBLEMS.

TWENTY SUPER ADVANTAGES

• Diagnose Single Brand of most Models (OBDII-16DLC)

• Steering Angle Sensor (SAS) Calibration

• Full System Diagnosis

• Brake System Service (Some vehicles do not enjoy this function)

• Auto Identify Technology

• Injector Calibration (Some vehicles do not enjoy this function)

• Actuation Test / Bi-directory Test

• Read & Clear DTC

• Supports Freeze Frame of Fault Code functions

• Read Live Data

• Support Oil Service Reset

• Supports Battery Test

• Electronic Parking Brake (EPB) system maintenance

• Supports Data Review and Print

• Battery Management System (BMS) (Some vehicles do not enjoy this function)

• Full Speed Upgrade via Computer

• Diesel Particulate Filter (DPF) Regeneration Control System (Some vehicles do not enjoy this function)

• 4.0” TFT LCD, 480*320 Pixels

• Supports Multi-Language

• Electronic Throttle Control System (ETC)

READ & CLEAR CODES FOR ALL AVAILABLE SYSTEMS

DISPLAY LIVE DATA IN TEXT, GRAPH & ANALOG FOR EASY DATA REVIEW. ACTUATION TEST / BI-DIRECTORY TEST IS USED TO ACCESS VEHICLE-SPECIFIC SUBSYSTEM AND COMPONENT TESTS.

THE VOL V3.0 CAN RECORD THE VEHICLE TEXTS HISTORY AND IDENTIFY THE VEHICLE INFORMATION AUTOMATICALLY. ALSO KEEP THE LIVE DATA INFORMATION.

PRODUCT FEATURES

• iCarsoft VOL V3.0 can do it all-reads and clears trouble codes on most of the systems such as engine, transmission, ABS and airbag etc.

• Support OBDII/EOBD Ten Modes of Operation.

• Read Live Data.

• Full Control Unit Diagnosis.

• Applies to the single Brand of most of the Models which equipped with OBDIl-16 DLC.

• Easy To Use With Silicone Keys.

• Auto VIN technology can automatically identify model and year information in no time.

• Actuation Test / Bi-directory Test is used to access vehicle-specific subsystem and component tests.

• Support Freeze Frame of Fault Code functions.

• Oil Light/Service Reset: Support service lamp reset.

• Electronic Parking Brake (EPB) system maintenance deactivates and reactivates the EPB system for replacement and initialization.

• Battery Management System (BMS), registers new battery to the BMS while battery replacement.

• Diesel Particulate Filter (DPF) regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.

• Electronic Throttle Control system (ETC) relearns the throttle valve control value while clear or replace the throttle valve.

• Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.

• Brake System Service, release the air to restore ABS brake sensitivity, or relearn while ABS replaced.

• Injector Calibration, relearn the injector control parameter while the injector renewed or replaced.

• Air Suspension, Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.

• TPMS service function include displaying sensor IDs from the vehicle`s Control Unit, inputting TPMS sensor replacement lDs and testing sensors.

• Head Lamp is about the headlamp maintenance, maintenance and other related operations (including AFS setting), and then perform this function for calibration.

• The Print Data function allows you printing out diagnostic data recorded by the scan tool or customized test reports.

• Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.

• DTC Library to lookup when user is operating this tool.

• Upgrade Via Computer.

• Multi-language: English, German, Dutch, Spanish, French and more.

Note!

• Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.

• This scan tool covers over 20 years of models, so some functions may not be available on all years/models.

PRODUCT DETAILS DISPLAY

• Dimensions (WHD): 206104.132.6 mm (L x W x H)

• Display: 4.0″ TFT LCD, 480*320 Pixels

OBDII FUNCTION

• Read Codes

• Erase Codes

• I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.

• DataStream

• Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.

• O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.

• On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.

• Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.

• Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.

• Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.

• Turn off Check Engine Light (MIL), clear codes and reset monitors

• Read live PCM DataStream

• Support CAN (Controller Area Network) and all other

• Multilingual menu and DTC definitions- English, Spanish, and German, etc.

• Read pending DTCs

• Read permanent DTCs

• DTCs search

• Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.

• Works on most of 2001 and later OBDII compliant PETROL European vehicles

• Works on most of 2004 and later OBDII compliant DIESEL European vehicles

• Works on most of 1996 and later OBDII compliant US and Asian vehicles

• View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.

• Comprehensive Help, Including OBD Parameter, Mode Explanations & More.

PRODUCT SPECIFICATIONS

• Display: 4.0″ TFT LCD, 480*320 Pixels

• Operation Temperature: 0°C ~ 50°C

• Storage Temperature: -20°C ~ 70°C

• Operating Voltage: 9 ~ 18V

• Operating Current: 150mA@12V (Typical)

• Power Consumption: 1.8W (Typical)

• Dimension: 206104.132.6 mm (L x W x H)

CONTENTS

DYNAMIC TEST CAPABILITIES

The Multi-lingual function allows you to view & graph live data in color while graphing at a blazing fast refresh rates for quicker results. Our OBD2 scanner allows you to read pending DTCs and permanent DTCs with a DTC Library to lookup while operating the tool. Providing you with accurate data results for all your error codes

Key Product Features

DIAGNOSTIC FUNCTIONS & ADVANCED FEATURES

Along with the standard OBD functions, this automotive diagnostic scanner also includes special functions including control service interval reset, brake deactivation, battery registration, oil light service reset, throttle body adjustment, Suspension calibrate, Headlamp adjustment, Freeze Frame, O3 Sensor Test, and Evap System Test are just a few of the special functions this professional quality car scanner provides

Packaging list

• iCarsoft VOL V3.0 Diagnostic Tool

• Packaging

• Nylon Carry Case

• Main Cable

• PC Connecting Cable

• User's Manual

• TF Card
