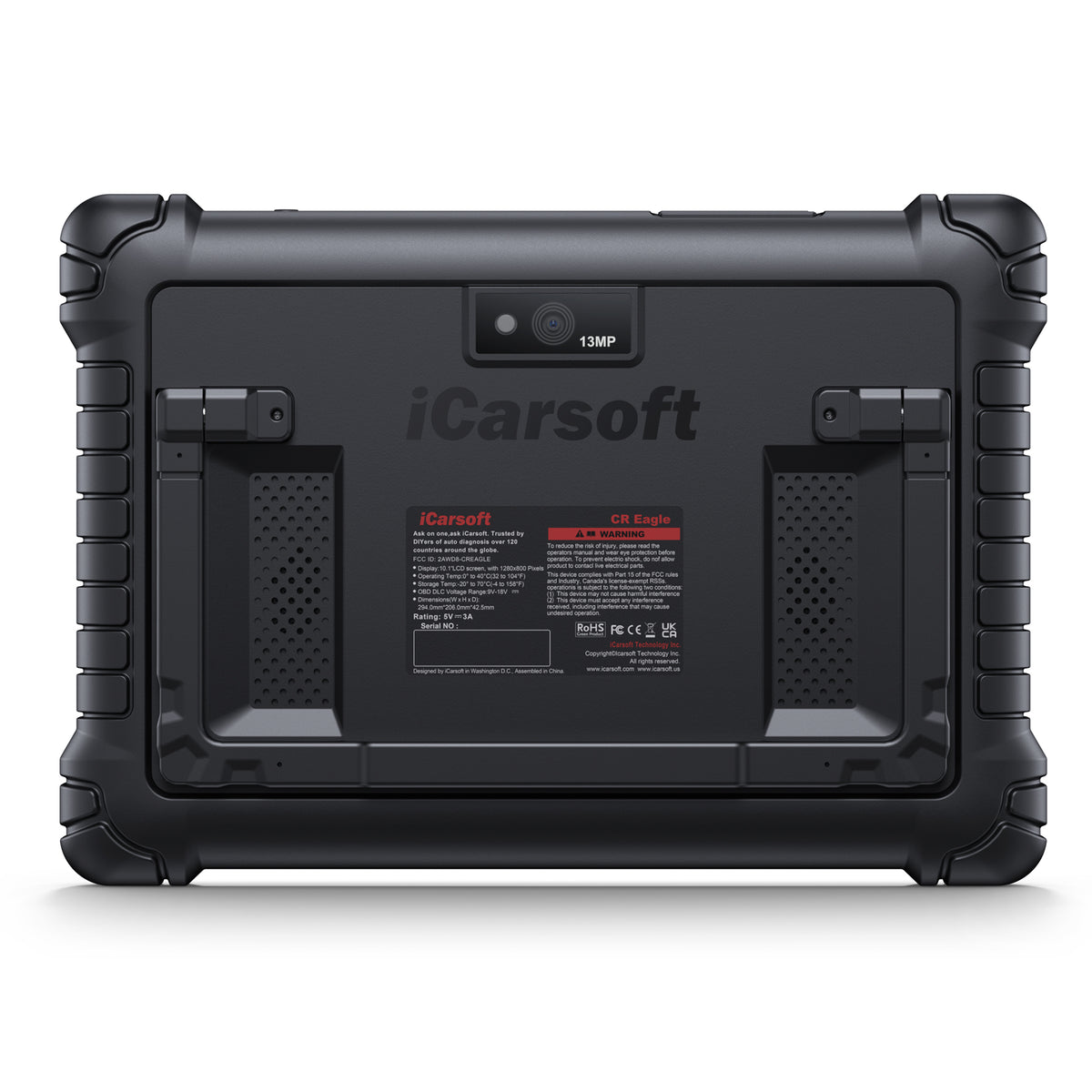

iCarsoft CR Eagle Wireless OBD2 Car Scanner Bi-Directional ECU Coding TPMS CANFD
Couldn't load pickup availability
CR Eagle
The iCarsoft CR Eagle Professional Automotive Diagnostic Scanner is an advanced full-system car diagnostic tool designed for professional automotive workshops and experienced technicians. Featuring a 10-inch touchscreen, full bi-directional control, ECU coding, AutoVIN identification and more than 50 service functions, it supports vehicle fault diagnosis, component testing, maintenance resets and selected module programming tasks. The integrated TPMS programming module supports sensor activation, programming and relearning, with 4 programmable TPMS sensors included. Additional features include CAN-FD, DoIP and SAE J2534 pass-thru support, compatibility with over 58 vehicle makes, 128GB storage and lifetime free Wi-Fi software updates without an annual subscription. Supplied with an HD videoscope, OBD-I adapter kit and heavy-duty storage case, the CR Eagle provides a comprehensive diagnostic solution for a wide range of supported vehicles, with specific functions depending on vehicle make, model, year and system configuration.
Engineered for professional repair shops, the CR Eagle delivers complete OE-level diagnostics without the subscription burden. Go beyond basic code reading with advanced ECU coding, full bidirectional control, and 50+ built-in service functions. A dedicated master-level TPMS module handles full sensor programming and relearning to keep high-margin jobs in-house. Maximize your bay efficiency and unlock new revenue streams with lifetime free updates and zero hidden fees.
- 10″ Ultra HD Touchscreen
- CAN-FD, DoIP & J2534
- TPMS Programming (4 Sensors)
- Full Bi-Directional Control
- OE-Level ECU Coding
- Lifetime Free Updates
One flagship kit — every system, every revenue stream.
The CR Eagle is the high-ticket flagship of the iCarsoft CR line: a 10-inch Ultra HD Android tablet pairing full-system OE-level diagnostics with full bi-directional control, OE-level ECU coding across 8 major car groups, 50 service functions, CAN-FD, DoIP and SAE J2534 pass-thru, a master-level TPMS module with 4 sensors, an HD videoscope and an OBD-I adapter kit — all in the box, with lifetime free Wi-Fi updates and no subscription.
From luxury marques to daily drivers — one tool speaks them all.
Over 58 vehicle makes covered out of the box — pick a region below, or search for your make.
All Makes 58 Worldwide coverage
European36 EU marques
Americas 5 US makes
Asia-PacificAsian 17 imports
Four sensors in the box — tire jobs stay in your bay.
The CR Eagle fully supports advanced TPMS sensor programming. Powered by an integrated TPMS module, this diagnostic tool is the ultimate all-in-one solution for comprehensive tire pressure management. Best of all, it comes standard with 4 premium iCarsoft TPMS sensors inside the package — offering you a complete, out-of-the-box solution with zero extra cost.
4 premium iCarsoft TPMS sensors included in every box — complete tire-pressure programming, out of the box, at zero extra cost.

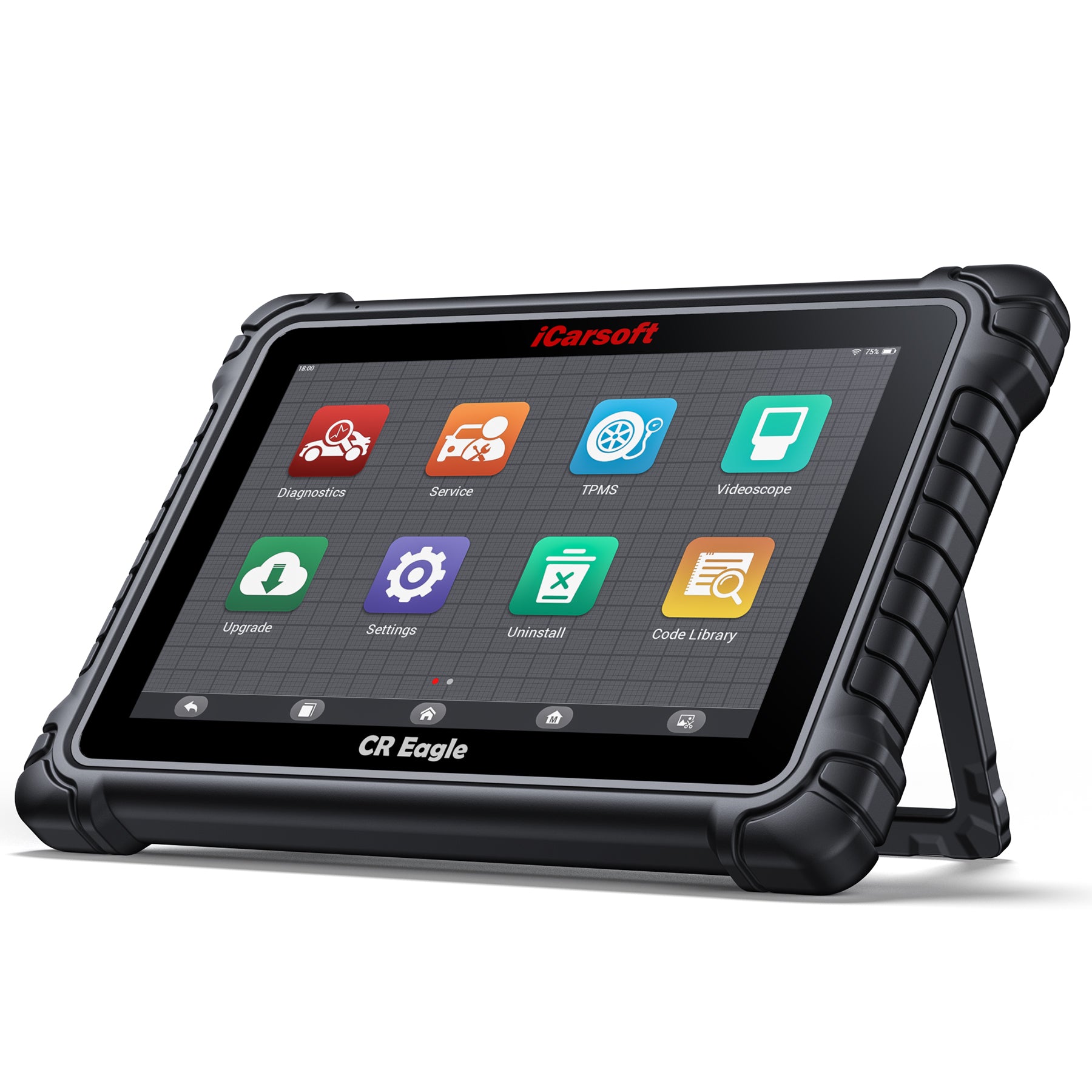

Ten inches of Ultra HD, built for the long shift.
- 10″ Ultra HD touchscreen
- Quad 2.0 GHz quad-core
- 128GB On-board storage
- 10000 mAh battery
- 8 hrs Continuous use
- Android Operating system

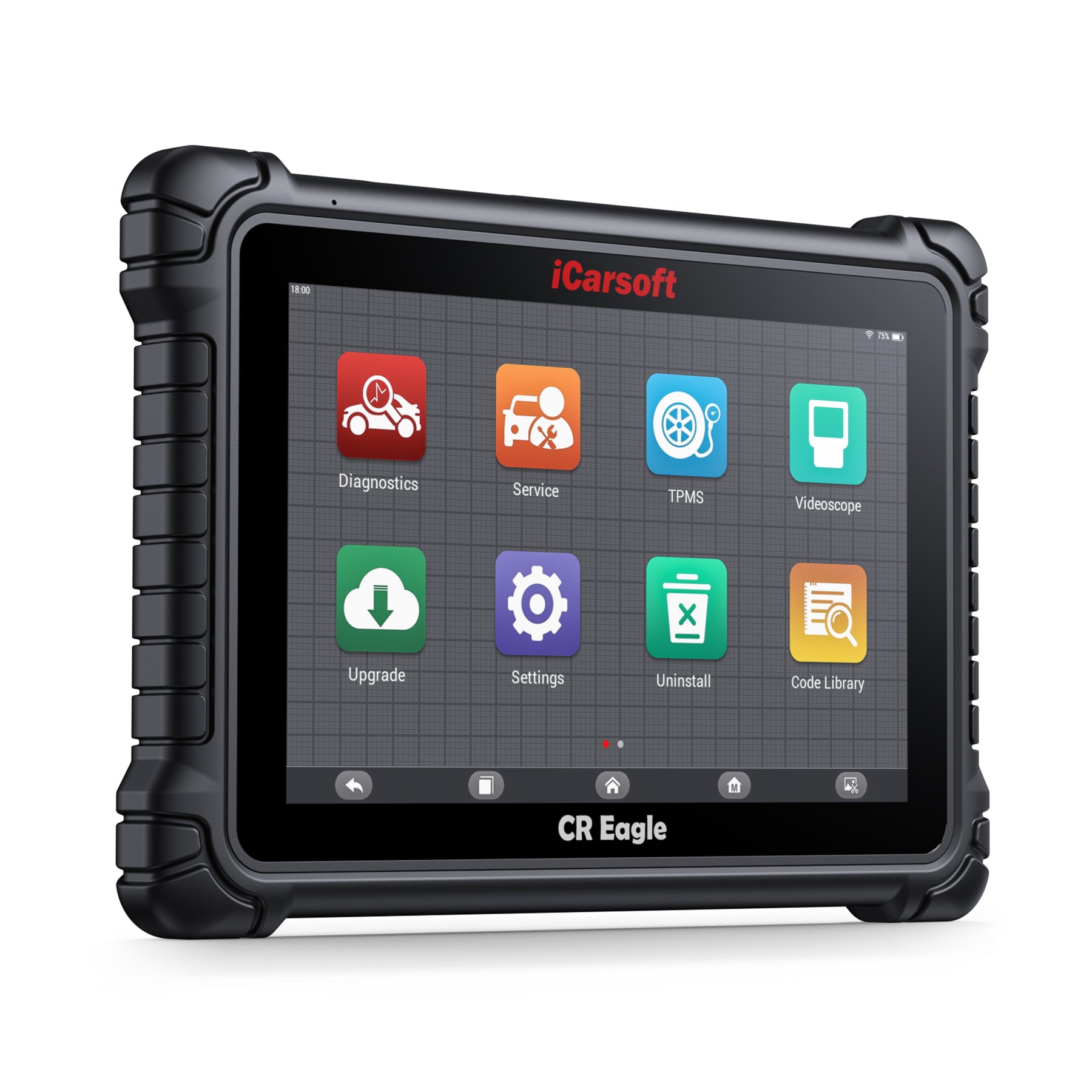

iCarsoft CR Eagle diagnostic tool features a 10-inch Ultra HD touchscreen. Powered by a 2.0 GHz quad-core processor and Android system, it comes with 128GB storage and a 10000mAh battery, supporting up to 8 hours of continuous operation. Boasting an intuitive interface, it delivers seamless vehicle diagnosis performance.
Pay once. Upgrade forever.
Unlike other professional car diagnostic tools on the market that require annual subscription fees, the CR Eagle offers lifetime free software upgrades. Updates are delivered wirelessly via Wi-Fi, with new diagnostic protocols and vehicle model coverage continuously released.
- No subscription fees, ever No renewals, no unlocks, no paywalls
- Wireless Wi-Fi delivery Updates arrive over the air, no cables
- New protocols & model coverage Continuously released as cars evolve
Dealer-only reprogramming, brought in-house.
The iCarsoft CR Eagle features a fully compliant SAE J2534-1 & J2534-2 Pass-Thru device, serving as a powerful hardware bridge to bypass dealership exclusivity.
It empowers independent workshops to program blank modules, reflash outdated ECU firmware to fix software glitches, and unlock hidden vehicle parameters.
The interface flawlessly pairs with official OEM software applications—including BMW ISTA, Mercedes XENTRY, Ford IDS, and GM GDS2—to maximize your shop’s repair capabilities and profits.
Speaks the language of the newest cars on the road.

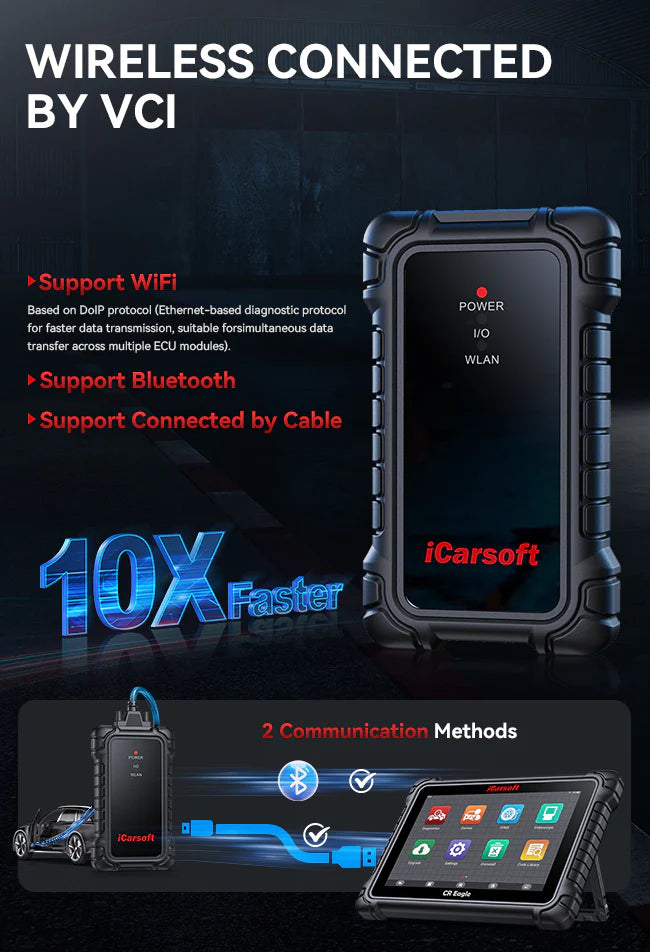

CAN-FD and DoIP are next-generation automotive communication protocols adopted by today’s modern vehicles, allowing faster data transfer without buying extra adapters.
Stop guessing — command the part and watch it respond.
The CR Eagle goes beyond reading codes. With full bidirectional control, you can command individual components and watch them respond in real time — cycle the ABS pump motor, run window regulators, activate the fuel pump, open the throttle, and run output tests on almost every onboard module. Pinpoint the faulty part in minutes, without trial-and-error.
Coding, adaptation & personalization — the dealer’s playbook, in your hands.
Maximize your workshop’s capabilities with our professional-grade ECU Coding feature. Seamlessly bridge the gap between component replacement, software troubleshooting, and personalized driving experiences across 8+ major car groups.
| Vehicle Make / Group | Supported Years | Primary Application | Diagnostics Entry Path |
|---|---|---|---|
| For BMW | 2006 – Present | ECU Troubleshooting & Data Recovery | Main Menu➜Coding |
| For V.A.G (VW, Audi, Skoda, Seat) | 2010 – Present | Component Adaptation & Parameter Calibration | Main Menu➜Coding |
| For Hyundai / KIA | 2010 – Present | Module Matching & Data Migration (Backup/Clone) | Service➜Variant Coding |
| For Ford | 2003 – 2023 | Hidden Function Activation & Personalization | Programming➜Programmable Parameters |
| For Mazda | 2003 – 2020 | Hidden Function Activation & Personalization | Programming➜Programmable Parameters |
| For Renault | 2005 – Present | Comfort Features & System Customization | Service➜Configure Function |
| For Chrysler / Jeep / Dodge | Specific Years | Alert Logic & Basic Vehicle Settings | Service➜Coding |
| For Subaru | 2014 – Present | Warning Systems & Functional Toggles | Service➜VSP Category |
Plug in — from instant VIN recognition to full network mapping in seconds.
Skip manual typing and eliminate input errors. Once identified, the system immediately loads a visual topology tree, giving you a crystal-clear overview of all vehicle ECUs and bus networks at a glance.
Read every code in the language you think in.
The universal OBD scanner CR Eagle supports English, German, French, Dutch, Spanish, Czech, Swedish, Russian, Hungarian, Norwegian, Portuguese, Italian, Polish, Danish, and Finnish.
- EN English
- DE Deutsch
- FR Français
- NL Nederlands
- ES Español
- CS Čeština
- SV Svenska
- RU Русский
- HU Magyar
- NO Norsk
- PT Português
- IT Italiano
- PL Polski
- DA Dansk
- FI Suomi
Fifty resets and relearns, ready the moment a job hits the bench.
The CR Eagle is far more than a basic scan tool. It integrates 9 commonly-used service functions for daily maintenance and 41 advanced professional functions for complex repair tasks.
9Hot Service FunctionsDaily maintenance
9 Hot Service Functions covering your daily maintenance needs.
-
Oil Reset For 57 vehicle makes
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
-
Electronic Throttle Control For 56 vehicle makes
Relearns throttle valve control parameters after resetting or replacing the throttle body.
-
EPB-Brake-Pad Reset (EPB) For 53 vehicle makes
Retracts the electric parking brake calipers and resets the brake pads after replacement.
-
Steering Angle Reset (SAS) For 57 vehicle makes
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
-
DPF Regeneration For 54 vehicle makes
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
-
Injector Coding For 54 vehicle makes
Relearns the injector control parameters when an injector is renewed or replaced.
-
ABS Bleeding For 53 vehicle makes
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
-
Air Suspension Service For 22 vehicle makes
Supports calibration, height adjustment, system reset, and fault code clearing for air suspension systems. Let’s you precisely set ride height, perform system initialization, and resolve common air suspension faults.
-
Battery Management Service (BMS) For 48 vehicle makes
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle’s sleep mode.
▸ 41 High level service functions for professional technicians:
-
TPMS Reset For 56 vehicle makes
Allows you to look up the tire sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.
-
Air Conditioner Service For 22 vehicle makes
Supports routine maintenance of A/C modules, including A/C system adaptation reset, compressor reset, compressor break-in, and stepper motor initialization.
-
Head Lamp Service For 44 vehicle makes
Initializes the adaptive headlamp system.
-
Body Stability Control Service For 35 vehicle makes
Supports routine maintenance of DSC modules, including resetting or deleting adaptation values, and initializing the unit.
-
Engine Control Service For 48 vehicle makes
Supports routine maintenance of engine modules, including resetting or deleting adaptation values, and calculating fuel consumption.
-
Transmission Control Service For 48 vehicle makes
Supports routine maintenance of transmission modules, including resetting adaptation values and transmission fluid level adaptation.
-
Air-Bag Reset For 29 vehicle makes
Resets airbag data to clear the airbag (SRS) warning light after a collision.
-
Seat Service For 34 vehicle makes
Calibration after repairing or replacing the seat position drive motor.
-
Immobilizer Service For 40 vehicle makes
Anti-theft Matching, disable any lost keys and add new keys. ONLY for vehicles with basic Immobilizer system.
-
Engine Idle Service For 37 vehicle makes
Adjusts the engine idle speed.
-
Door-Window-Roof For 34 vehicle makes
Learns the top position of the door window glass, enabling pinch protection and the one-touch-up function.
-
Fuel Pump Service For 30 vehicle makes
Activates the fuel pump after replacement.
-
Air Filter Control Service For 8 vehicle makes
Initiates the self-learning process after replacing the air filter.
-
ODO Meter Reset For 16 vehicle makes
Reads odometer values stored in multiple ECUs (for service and verification purposes).
-
Door Service For 20 vehicle makes
Performs full calibration after window lift motor repair or replacement.
-
Turbocharger For 33 vehicle makes
Performs turbocharger learning after component replacement, or resets stored learned values.
-
Exhaust Gas Recirculation For 38 vehicle makes
Recirculates a portion of engine exhaust gas back into the intake system.
-
Engine Cylinder Service For 26 vehicle makes
Performs inspection, maintenance and diagnosis of the engine cylinder system.
-
Engine Correction Service For 1 vehicle make
Performs engine module data calibration.
-
AdBlue For 40 vehicle makes
Resets the AdBlue (urea) level counter after the diesel exhaust fluid is refilled or replaced.
-
Clutch Matching For 41 vehicle makes
Learns the clutch contact point and engagement position where the clutch begins to transmit engine torque. Applicable after ECU replacement, transmission removal/replacement, or clutch replacement. For adaptive clutches only.
-
Electronic Water Pump For 13 vehicle makes
Activates the electronic water pump
Activates the electronic water pump for testing or after replacement.
- Crankshaft Learning For 20 vehicle makes: Performs crankshaft position learning and related calibration after engine repair.
- High Voltage Battery For 26 vehicle makes: Supports EV/hybrid high-voltage battery maintenance, including replacement adaptation and status monitoring.
- Cruise Control System For 23 vehicle makes: Performs adaptive cruise control (ACC) calibration and personalization.
- Language Setting For 24 vehicle makes: Changes the vehicle’s system language.
- Radar/Camera For 38 vehicle makes: Performs radar and camera learning and calibration.
- Vehicle Setup For 21 vehicle makes: Personalize your vehicle’s driving and comfort preferences.
- Cylinder Shutoff Test For 13 vehicle makes: Tests each engine cylinder individually by disabling its fuel supply — useful for diagnosing cylinder-specific issues such as misfires or low compression.
- Speed Limit Assist For 26 vehicle makes: Sets or removes the vehicle’s maximum speed limit.
- Head-Up Display For 6 vehicle makes: Used for learning and calibration of heads-up display.
- Cylinder Misfire Check For 13 vehicle makes: Identifies engine misfires, addressing issues like sluggish acceleration, high fuel consumption and severe vibration.
- Control Unit Reset For 29 vehicle makes: Performs full reset and initialization of vehicle control units after part replacement or fault repair, clearing stored data and restoring normal module operation.
- O2S (Oxygen Sensor) For 35 vehicle makes: Supports oxygen sensor replacement adaptation and initializes the three-way catalytic converter learned values.
- Seat Belt For 28 vehicle makes: Performs seatbelt pretensioner reset and related maintenance after airbag deployment.
- Gas Particulate Filter For 4 vehicle makes: Performs service operations including GPF replacement and regeneration.
- NOx Sensor For 29 vehicle makes: Resets NOx sensor-related learned values (e.g., catalytic converter parameters) stored in the ECU.
- Rain-Light Sensor For 18 vehicle makes: Calibrates the rain sensor after windshield replacement or sensor renewal.
- Stop And Start For 22 vehicle makes: Set up the automatic start-stop function in ECU.
- Mileage Verification For 56 vehicle makes: Checks and compares odometer data stored across multiple ECUs to detect mileage tampering.
- VIN Verification For 56 vehicle makes: Reads and matches the VIN across all vehicle ECUs to detect inconsistencies or unauthorized module replacement.
- Oil Reset
- DPF Regeneration
- EPB-Brake-Pad Reset (EPB)
- Steering Angle Reset (SAS)
- Battery Management Service (BMS)
⚠ Compatibility Notice: The specific diagnostic service functions vary by vehicle brand, model, production year, and ECU configuration.
How the CR Eagle Compares
Find the right iCarsoft for the way you work.
Every model shares the same full-system diagnostic core. Here is exactly how the all-in-one CR Eagle hardware kit stacks up against the wireless CR Max P and the top-tier CR Eagle P.
12 Powerful Full Systems Diagnostics
Every module the dealer sees — engine to chassis.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the CR Eagle provides diagnostic coverage for more complex vehicle systems.
- Read and Clear DTCs: Pull and clear diagnostic trouble codes across every available module.
- Read ECU Information: Read control-unit part numbers, software versions and status.
- Read Live Data: Stream live sensor readings in clear on-screen lists.
- Access all ECU modules via OBDII-16 DLC: Reach every onboard module through the standard 16-pin port.
- Read and Clear Freeze Frame Data: Capture the snapshot stored at the moment a fault was set.

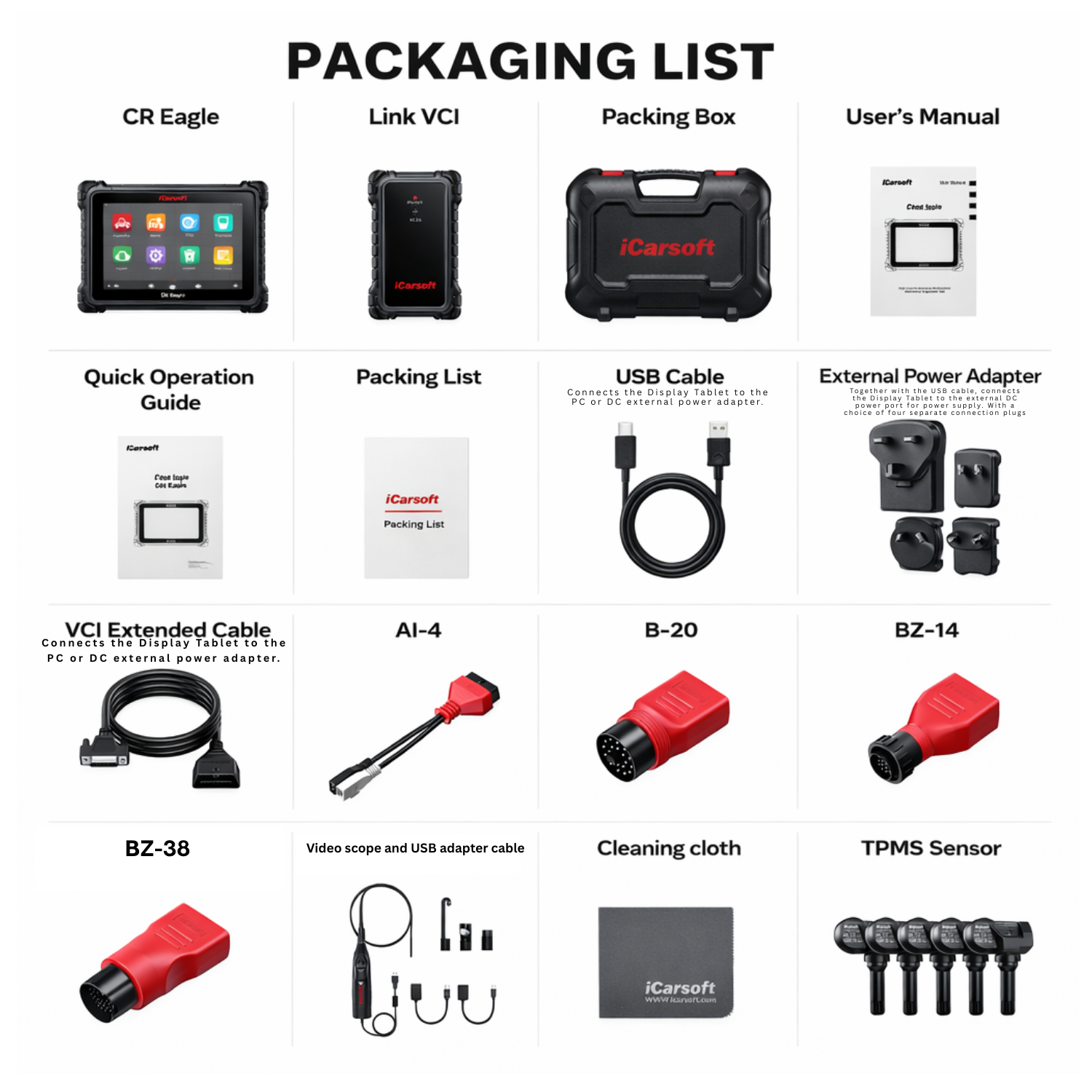

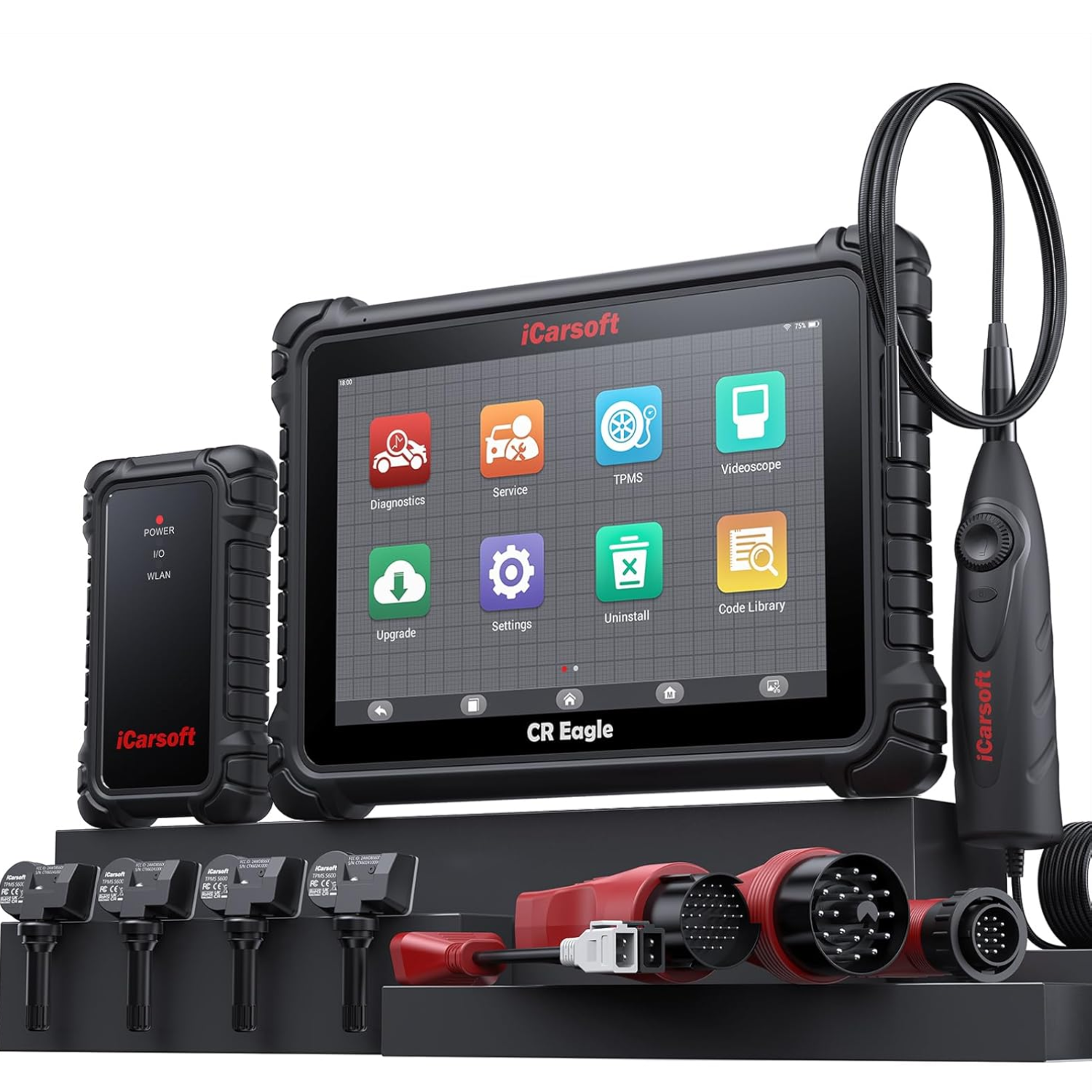

13 The Ultimate Diagnostic Toolkit: Premium Accessories Included (over $100 in added value!)
Open the case and start earning — from day one.
Why spend extra on separate diagnostic add-ons? The CR Eagle redefines workshop value by packing essential professional-grade hardware right into the box.
We don’t just give you a scanner—we supercharge your diagnostic bay from day one. Inspect hidden engine wear and deep cylinder carbon with the included HD Videoscope, and replace damaged sensors instantly with 4 included premium programmable TPMS Sensors.
Out of the box and straight to work. Stop buying essential accessories separately and start maximizing your garage’s efficiency and daily revenue immediately!

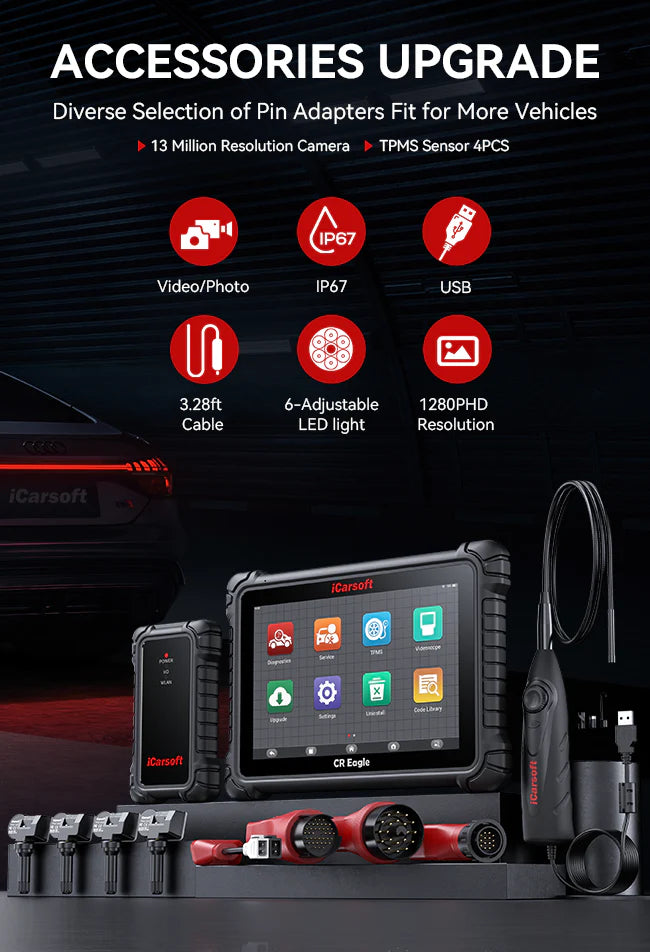

- HD Videoscope: Inspect hidden engine wear and deep cylinder carbon without tear-down.
- 4× TPMS Sensors: Premium programmable sensors, ready for tire jobs out of the box.
- OBD-I Adapter Kit: Reach select legacy and specialty vehicles other tools can’t.
- Heavy-Duty Case: Keeps all 10+ items organized and impact-protected.
Essential OBD-I Adapters Included
The CR Eagle supports select OBD-I compliant vehicles and comes standard with 4 of the most widely used adapters:
- Adapterx1 - Benz 38-Pin (Multi-System): Benz 38-Pin (Multi-System)
- Adapterx1 - BMW 20-Pin: BMW 20-Pin
- Adapterx1 - Sprinter 14-Pin: Sprinter 14-Pin
- Adapterx1 - Audi 2x2 Pin: Audi 2x2 Pin
Save it, share it, print it — a clean record every time.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
- Diagnostic History & Reports: Quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
- Feedback & PC Printing: Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance. Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
15 Product Specifications
The complete technical rundown.
- Operating System: Android
- Processor: Quad Core 2.0 GHz
- Storage: 128GB
- Display: 10-inch HD touchscreen with 1280x800 resolution
- Connectivity: USB Host / USB Type C / Wi-Fi (2.4GHz) / Bluetooth
- Battery Capacity: 3.8V 10000mAh 38Wh
- Tested Battery Life: Up to 5 hours of continuous use
- Type C Input: 5V / 2A
- Power Consumption: 600mA (LCD on with default brightness, Wi-Fi on) @3.8 V
- Operating Temp.: 0 to 40°C (32 to 104°F)
- Storage Temp.: -20 to 70°C (-4 to 158°F)
- Operating Humidity: 5% - 95% non-condensing
- Dimensions (W x H x D): 294 × 206 × 42.5 mm (11.57 × 8.11 × 1.67in)
- Net Weight: ≈ 1500 g
- Supported Automotive Protocols: ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 (High-speed, Medium-speed, Low-speed, and Single-wire CAN), CAN-FD, SAE J2610, G.M UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
Good to know before you buy.
Is the software updated regularly? Are updates free?
Yes. CR Eagle includes lifetime free Wi-Fi software upgrades. No annual subscription required.
What is the difference between CR Eagle and CR Max P?
The CR Eagle is the heavy-duty workshop upgrade of the standard CR Max P. While both share the same advanced software, the CR Eagle includes a comprehensive hardware kit built for professional repair shops:
- 4x OBD1 Adapters: Instantly scan older, specialty vehicles.
- 4x Premium TPMS Sensors: Ready for complete tire programming out of the box.
- Digital Videoscope: Perform non-invasive engine and tight-space inspections.
The CR Eagle cannot recognize my vehicle by AutoVIN, does it mean the device is faulty?
Not necessarily. Send your VIN to our support team and our team will check AutoVIN identification and coverage. In the meantime, you can manually select your vehicle model — available functions depend on the exact vehicle and installed software. Support will review your VIN; a future update or release date is not guaranteed.
- Heavy-Duty Blow-Molded Case: Keep all items organized and shop-protected.
Why should a repair shop choose the CR Eagle over the CR MAX BT or CR Max P?
The CR Eagle eliminates the need for expensive add-ons. It expands your shop’s compatibility to legacy cars, adds visual diagnostic capabilities, and provides immediate revenue from tire pressure services with zero extra tool costs.
DTCs can be read normally but fail to be cleared or reappear after clearance, why?
- Please keep ignition on and engine off. Record freeze frame data first before clearing codes.
- Persistent hardware faults need physical repair prior to code clearance.
- Some fault codes of systems like SRS and ABS can only be cleared after finishing bidirectional tests.
How to pair Bluetooth VCI?
- Step 1. Insert the VCI into vehicle OBD port, turn ignition to ON position.
- Step 2. Enable Bluetooth on tablet, search and connect “CR Eagle VCI”.
- Step 3. Green VCI icon means successful pairing.
- Step 4. Select Bluetooth connection to start diagnosis.
Fifteen pieces, one heavy-duty case.

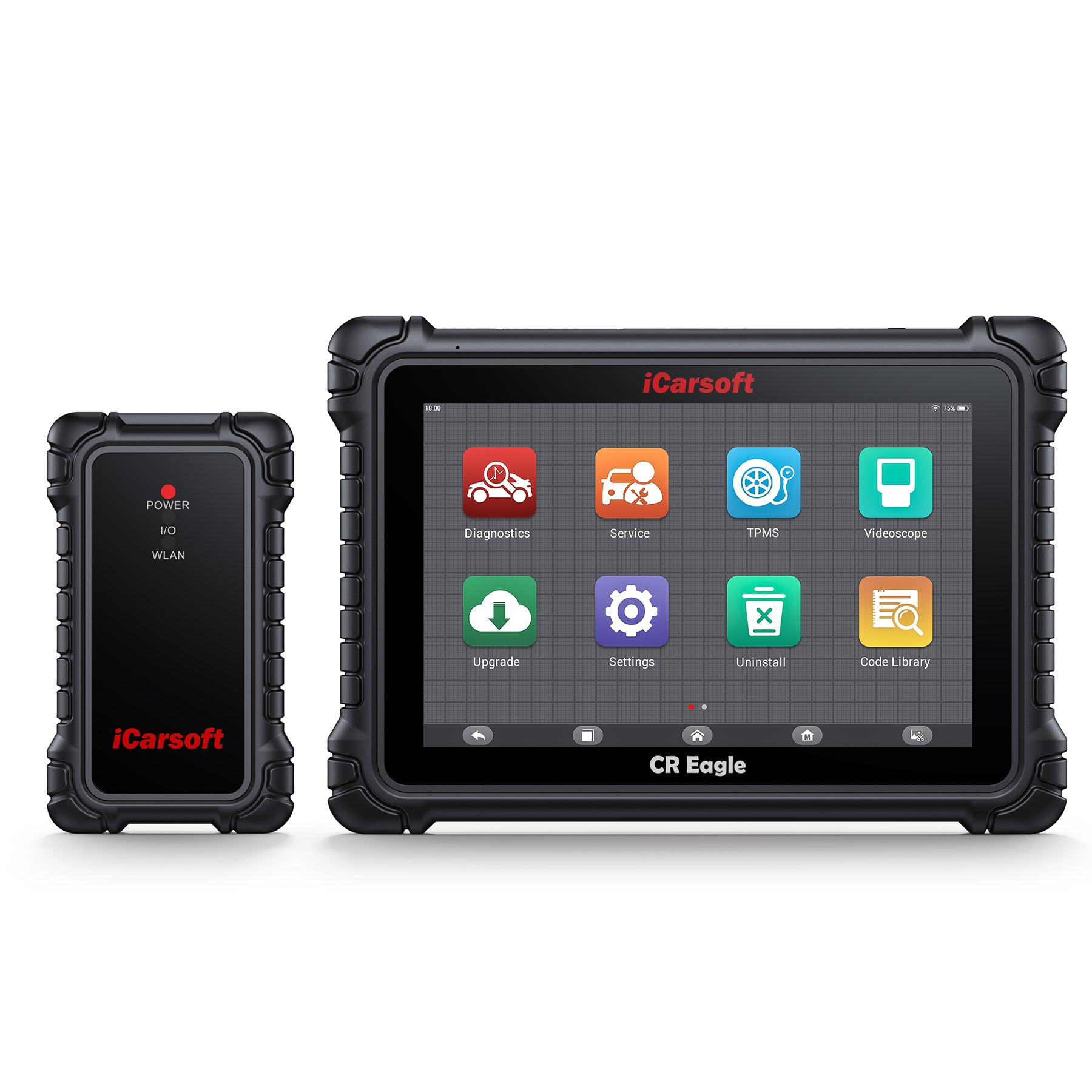

Upgrade your workshop diagnostic capabilities with the iCarsoft CR Eagle, a professional car scanner that combines full-system diagnostics, advanced ECU coding, bi-directional testing and TPMS sensor programming in one comprehensive kit. The four included TPMS sensors, HD videoscope and OBD-I adapters add practical versatility for different diagnostic and maintenance tasks, while lifetime free Wi-Fi updates help keep the software current as supported coverage expands. Whether you are diagnosing vehicle faults, performing service resets, testing electronic components or servicing compatible tyre pressure monitoring systems, the CR Eagle offers a versatile addition to your automotive toolkit without recurring software subscription fees. Check vehicle compatibility and the availability of specific functions before purchasing to ensure the scanner meets your workshop's requirements.
