PROFESSIONAL MULTI-SYSTEM AUTO DIAGNOSTIC TOOL MB V2.0

FOR MERCEDES-BENZ / SPRINTER / SMART  |  OIL RESET + EPB + DPF + SAS + ETC + OBD II

Overview

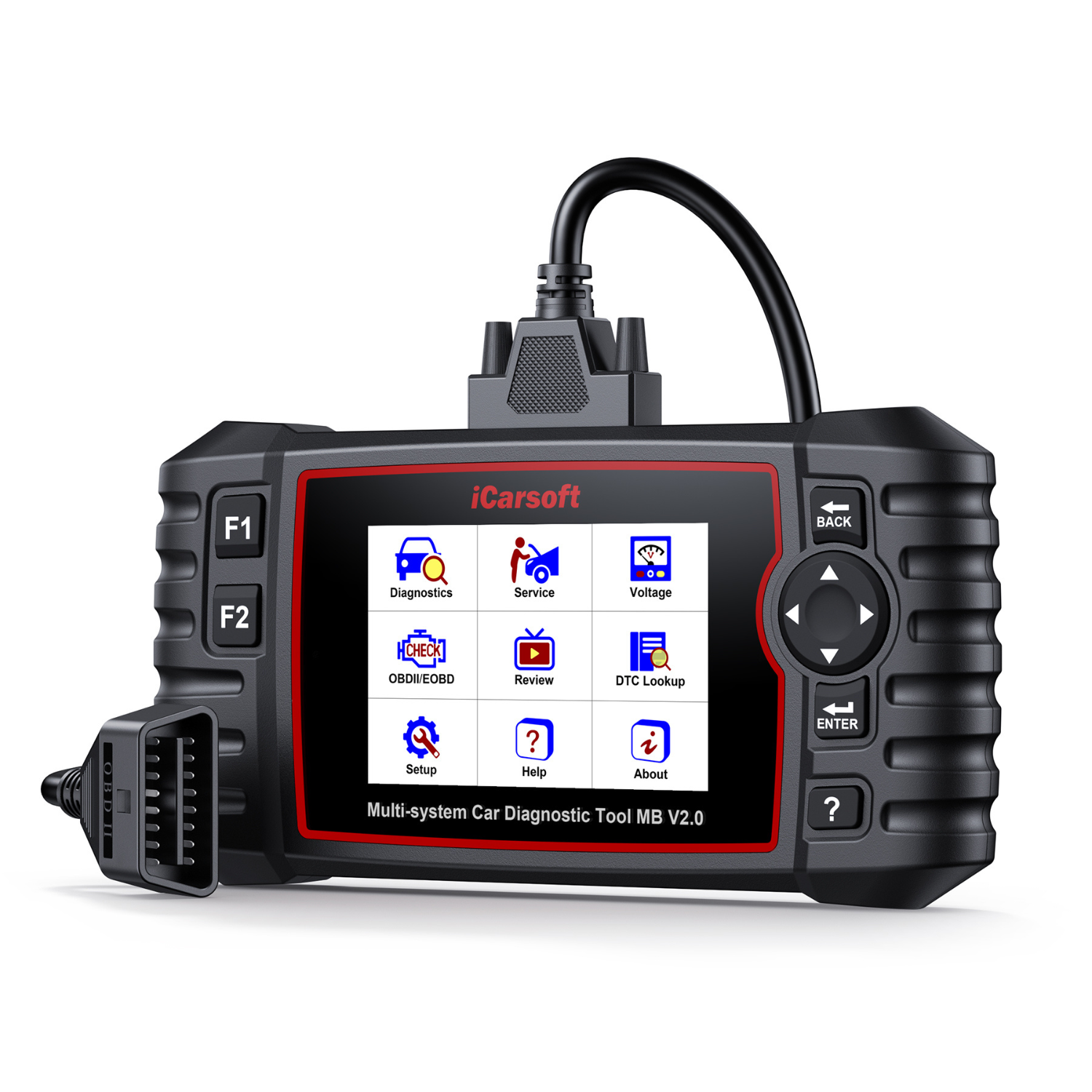

iCarsoft MB V2.0 is a professional and powerful vehicle fault diagnosis tool for Mercedes-Benz, Sprinter, and Smart vehicles, developed by iCarsoft Technology Inc. Featuring a 4.0" TFT LCD display and unique diagnostic software, it provides full ECU diagnosis for a single vehicle brand. Supported test modes include CANBUS, ISO9141, KWP2000, and J1850, enabling technicians to accurately diagnose complex problems.

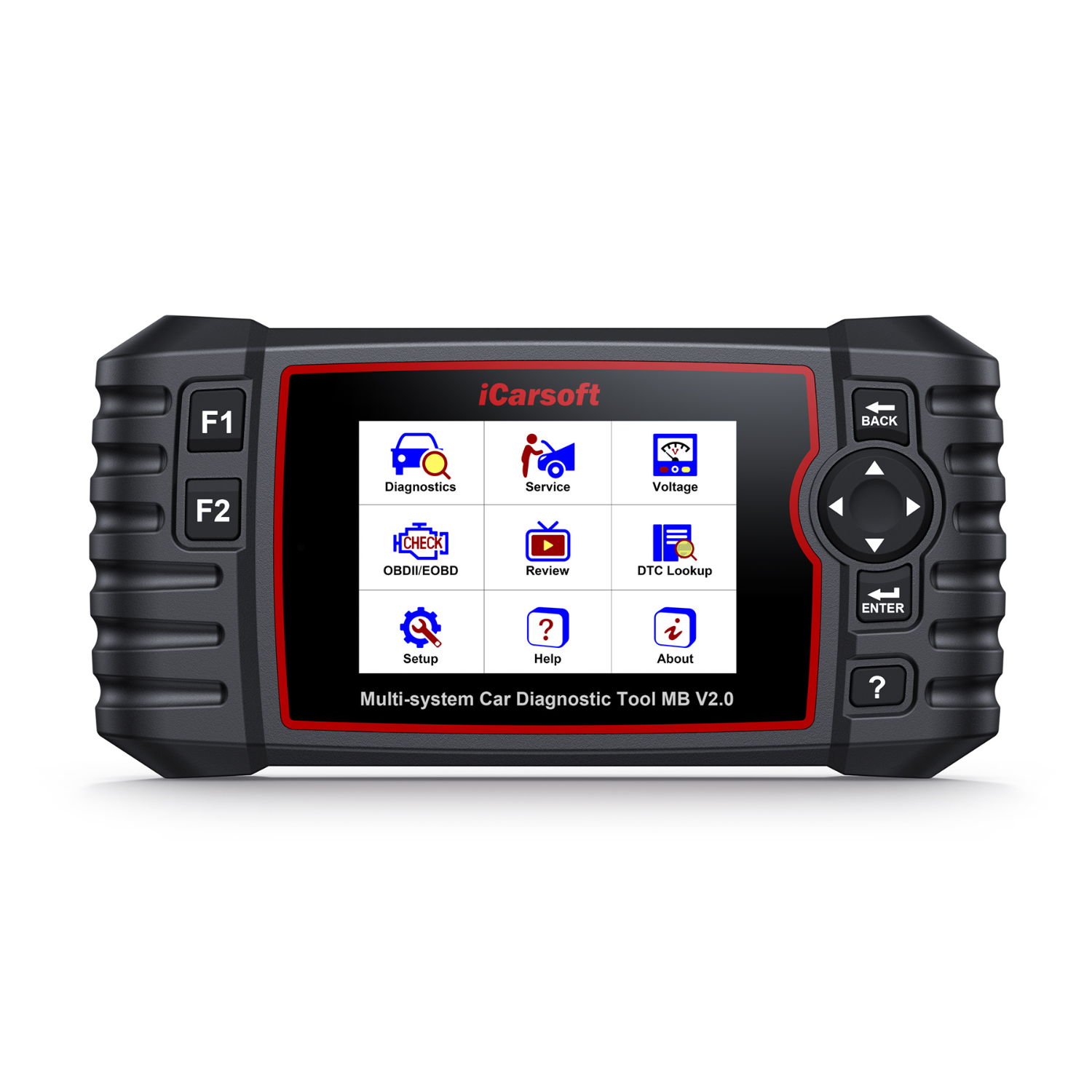

Device Layout & Button Functions

1. BACK BUTTON – Returns to previous menu.
2. UP BUTTON – Moves cursor up for selection.
3. LEFT BUTTON – Moves cursor left for selection.
4. RIGHT BUTTON – Moves cursor right for selection.
5. DOWN BUTTON – Moves cursor down for selection.
6. ENTER BUTTON – Confirms a selection or action from a menu list.
7. HELP BUTTON – Shows help information for test results or user operation.
8. F1 FUNCTION BUTTON – In case of special use.
9. F2 FUNCTION BUTTON – In case of special use.

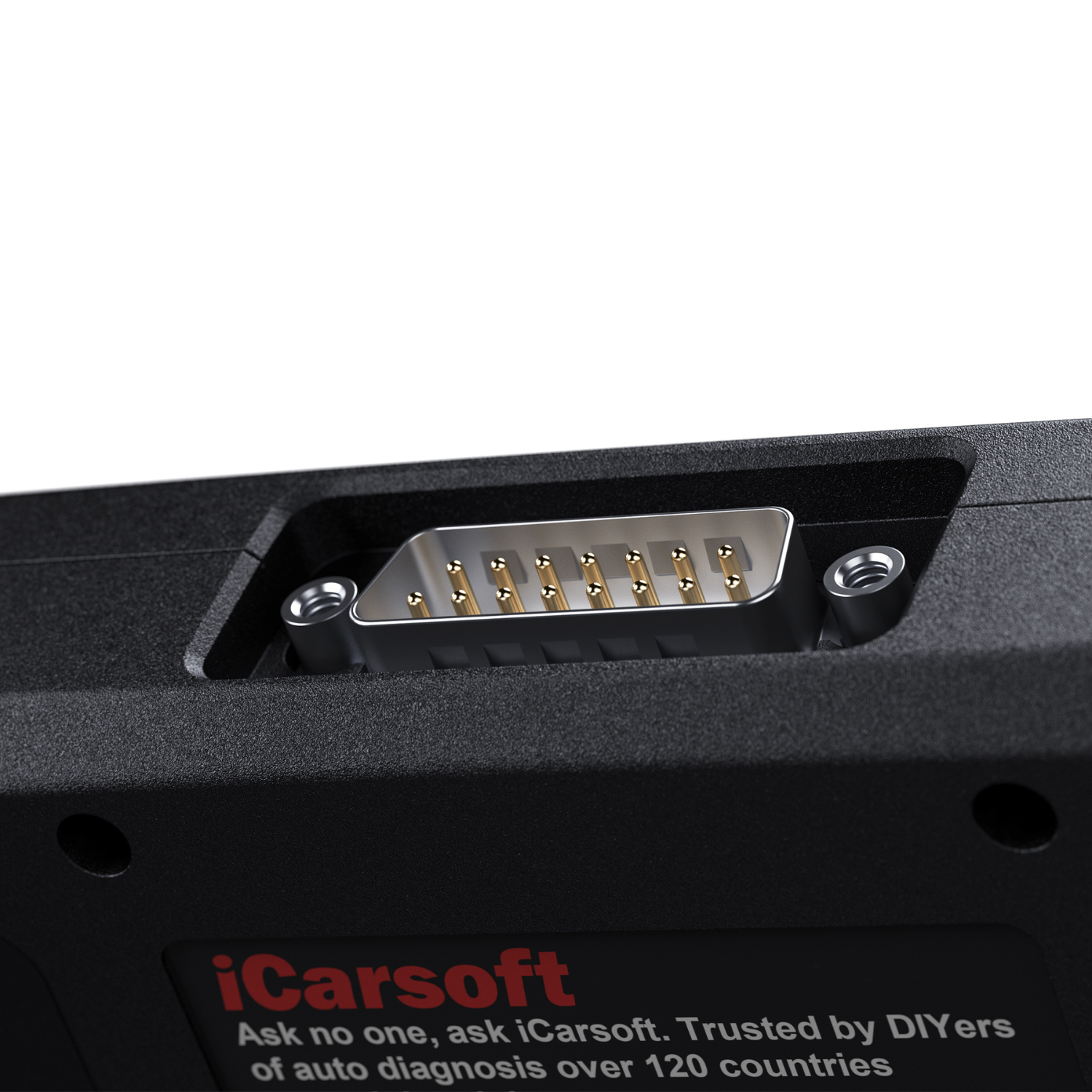

10. OBDII CONNECTOR – Connects the scan tool to the vehicle's Data Link Connector via OBDII Cable.

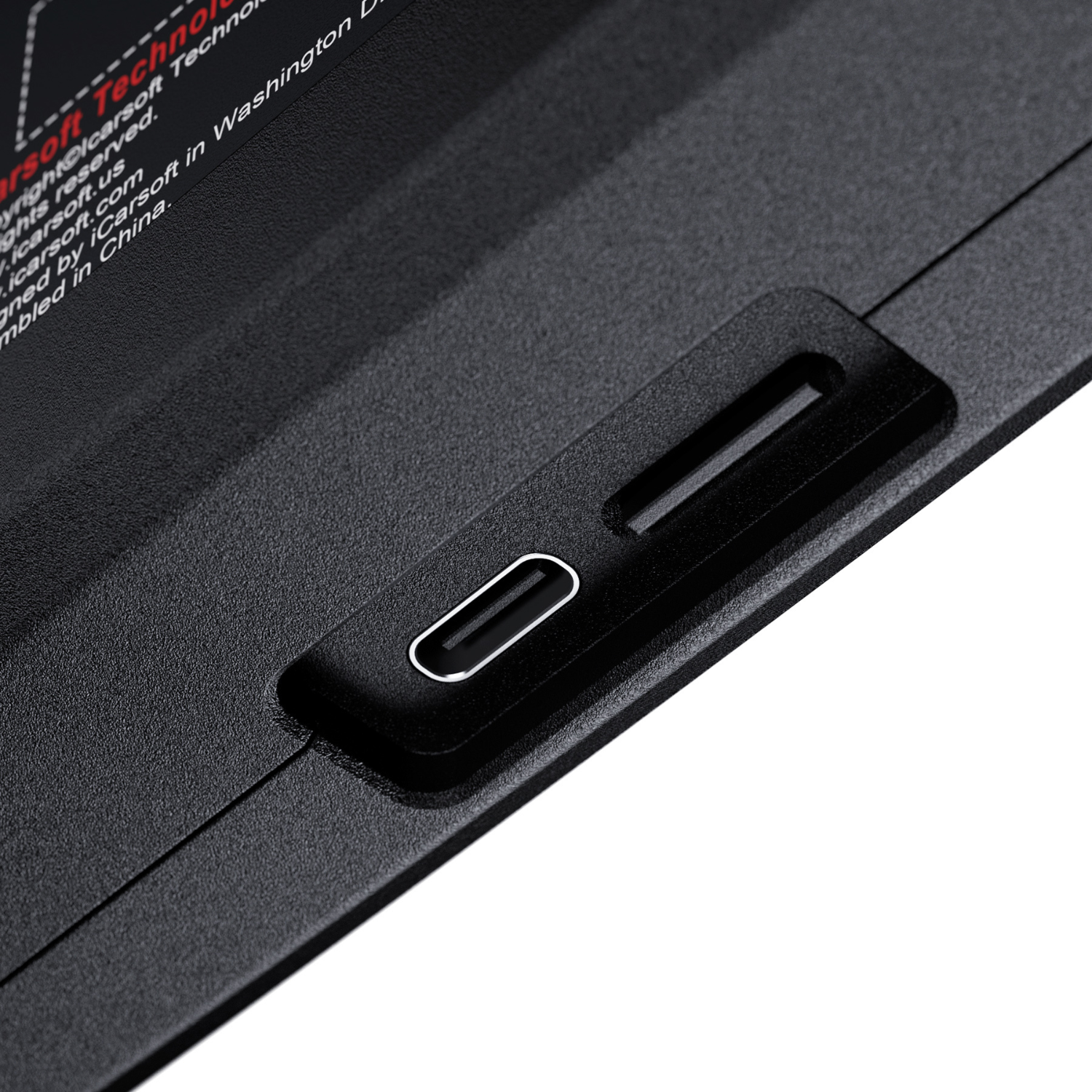

11. STORAGE CARD SLOT – Holds the system of the scan tool.
12. DATA CABLE CONNECTOR – Connects the scan tool for power supply and to update the software if needed.

Product Features

1. Reads and clears trouble codes on most systems including Engine, Transmission, ABS, and Airbag etc.
2. Supports OBDII/EOBD Ten Modes of Operation.
3. Read Live Data.
4. Full ECU Diagnosis.
5. Applies to a single brand covering most models equipped with OBDII-16 DLC.
6. Easy to use with silicone keys.
7. Oil Light / Service Reset: Supports service lamp reset.
8. Electronic Parking Brake (EPB): System maintenance deactivates and reactivates the EPB system for replacement and initialization.
9. Diesel Particulate Filter (DPF): Regeneration control system requests the DPF regeneration process while DPF blockage and turns off the DPF indicator.
10. Electronic Throttle Control (ETC): Relearns the throttle valve control value while clearing or replacing the throttle valve.
11. Steering Angle Sensor (SAS): Calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
12. The Print Data function allows printing out diagnostic data recorded by the scan tool or customized test reports.
13. Battery test allows getting the voltage of battery with OBD port by the scan tool when the engine starts.
14. DTC Library to look up when user is operating this tool.
15. Upgrade via PC.
16. Multi-language support: English, German, Dutch, Spanish, French.

Fourteen Super Advantages

1. Diagnose single brand of most models (OBDII-16DLC)
2. Full System Diagnosis
3. Support Oil Service Reset
4. Electronic Parking Brake (EPB) System Maintenance
5. Diesel Particulate Filter (DPF) Regeneration Control System
6. Electronic Throttle Control System (ETC)
7. Steering Angle Sensor (SAS) Calibration
8. Read & Clear DTC
9. Read Live Data
10. Support Battery Test
11. Support Data Review and Print
12. Full Speed Upgrade via Computer
13. 4.0" TFT LCD, 480×320 Pixels
14. Support Multi-Language

OBDII Functions

1. Read Codes – Retrieves stored fault codes from the vehicle's ECU.
2. Erase Codes – Clears stored trouble codes from the ECU memory.
3. I/M Readiness – Indicates whether the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. Data Stream – Displays real-time live sensor data from the vehicle.
5. Freeze Frame – When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data — a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test – Allows retrieval and viewing of O2 sensor test results for the most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring – Reads the results of on-board diagnostic monitoring tests for specific components and systems.
8. EVAP System Test – Initiates a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information – Displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes.
11. Turns off Check Engine Light (MIL), clears codes, and resets monitors.
12. Reads live PCM DataStream.
13. Supports CAN (Controller Area Network) and all other OBD protocols.
14. Multilingual menu and DTC definitions: English, Spanish, German, and more.
15. Read pending DTCs.
16. Read permanent DTCs.
17. DTCs search.
18. Supports most OBDII/EOBD test modes including: CAN, ISO9141, KWP2000, J1850 VPW, and J1850 PWM.
19. Works on most 2001 and later OBDII compliant PETROL European vehicles.
20. Works on most 2004 and later OBDII compliant DIESEL European vehicles.
21. Works on most 1996 and later OBDII compliant US and Asian vehicles.
22. View & graph live data in color graphing with fast refresh rate for better graphing and live data readings.
23. Comprehensive help, including OBD parameter, mode explanations, and more.

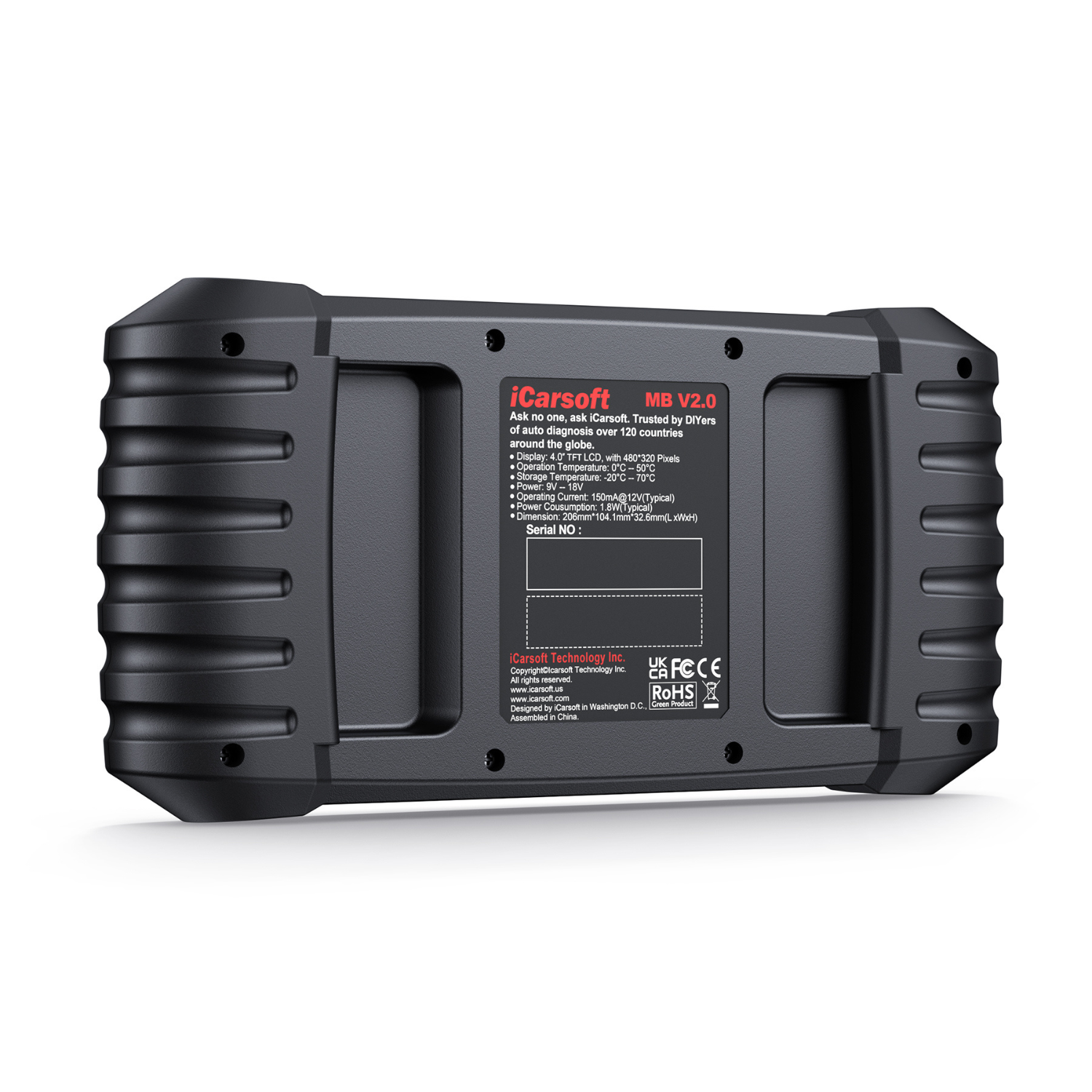

Specifications

Package Contents

• MB V2.0 Main Unit
• TF Card (pre-installed in the main unit)
• Main Cable
• Data Cable
• User Manual

Contents / Box Image
