iCarsoft i610 ELM327 WiFi OBD2 Diagnostic Scanner Tool ANDROID iOS iPHONE iPAD

2 sold in last 8 hours
In stock
$139.90
Title *
$139.90
customers are viewing this product
iCarsoft i610 ELM327 WiFi OBD2 Diagnostic Scanner Tool ANDROID iOS iPHONE iPAD

PRODUCT HIGHLIGHTS

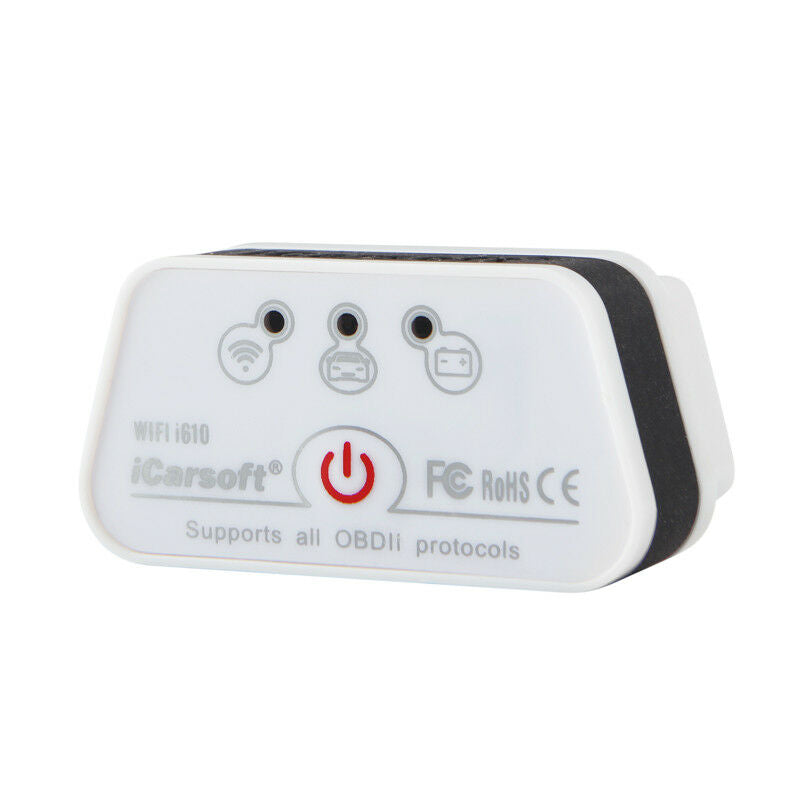

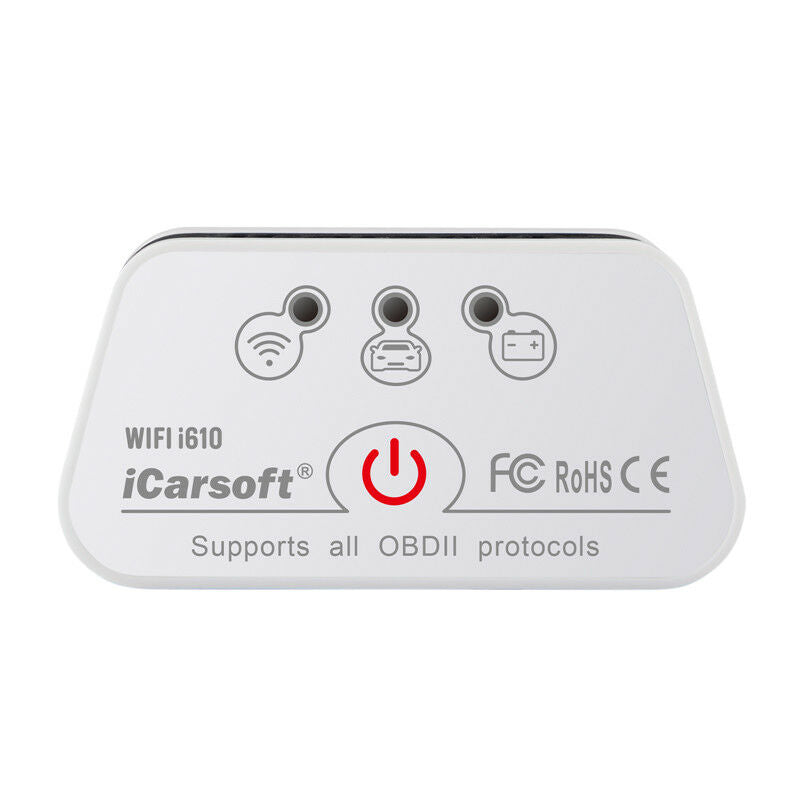

iCarsoft WIFI OBD Multi-scan Tool i610

iCarsoft i610 is a WiFI OBD-II adapter for all OBD-II compliant vehicles.
It can be used as a diagnostic scan tool and real-time performance monitor.

SUPPORT
OBDII PROTOCOLS

1.ISO15765-4 (CAN)
2.ISO14230-4 (KWP2000)
3.ISO9141-2
4.J1850 VPW
5.J1850 PWM.

FEATURES

• The chip is using ARM chip which is twice faster. Protocol communicating speed

  is also twice faster than WIFI ( CLK DEVICE )

• Cute and portable design without the long cable.

• Automatically power off, power save function. When chief chip sensor that the

  communication is off for one hour, it will automatically power off and entre power

  save mode. It helps a lot for saving power.

• J1939 and stable J1979 protocol offers strong second development for customers.

• Support all WIFI system ( Android, PC, WINCE, IPHONE, IPAD ect. ),

• Allocate address freely, not traditional ADHOC address mode any more.

• Offers simple connecting way for customers.

FUNCTIONS

• Read diagnostic trouble codes, both generic and manufacturer specific,

and display their meaning (over 3000 generic code

definitions in the database).

• Clear trouble codes and turn off the MIL("Check Engine" light)

• Display current sensor data

• Engine RPM

• Calculated Load Value

• Coolant Temperature

• Fuel System Status

• Vehicle Speed

• Short Term Fuel Trim

• Long Term Fuel Trim

• Intake Manifold Pressure

• Timing Advance

• Intake Air Temperature

• Air Flow Rate

• Absolute Throttle Position

• Oxygen sensor voltages/associated short term fuel trims

• Fuel System status

• Fuel Pressure

TECHNICAL
SPECIFICATIONS

• SSID: V-LinK

• IP: 192.168.0.10

• Subnet: 255.255.255.0

• Port: 35000

• Range: 50 ft (Line of sight)

• Antenna: Internal

• Power Consumption: 0.75 Watts (With Power Switch)

• Wifi Standard: 802.11a/b/g

• Operating Temperature: -15 to 100 Deg Celsius

• Plastic: Automotive Grade Physical Dimensions: 2.75 x 1.25 x 1.2 inches


ICARSOFT WIFI QUICK START

Dear friends when you get this exquisite device, please operate as following.

First Step: Install related software to your mobile phone, if your mobile-phone using android system then please download the TORQUE from Android Market, if you mobile-phone is Apple phone(Or iPad) then please download Dashcommand from APP Store.After install the related software to your mobile-phone then all is finished.Of course you also can use the TORQUE and Dashcommand software from the CD of the device which we supply to you. Please refer to the following pictures.
Second Step: Connect the iCarsoft Wifi OBD Multi-Scan Tool i610 to your Car OBD interface, you can find the light of the iCarsoft Wifi OBD Multi-Scan Tool i610 will flash (it shows the the connection is good), then it coming in standby and waiting for working.Usually the CAR OBD interface are under the steering wheel (above the brake), some are hided in the tool box of the hand brake,you can refer to the following picture to find it.
NOTE!!! the switching function of i610: No need to draw the iCarsoft Wifi OBD Multi-Scan Tool i610 after the car stall (but still have power supply) ,30 minutes later it will automatically come to sleep mode and stay in power saving condition.Tomorrow morning or next time to start the vehicle you can use the iCarsoft Wifi OBD Multi-Scan Tool i610 directly only by press the switch, no need do plug again,you don't need to make mobile-phone connection again,it can connect to it automatically.
Third Step: Connect with mobile phone
iCarsoft Wifi OBD Multi-Scan Tool i610 (wifi) don't need the password to make verification,open the 'Settings' of your mobile phone, select the WLAN,click the (iCarsoft ) then finished operation.
Forth Step: After connection and setting, exit and open the related software TORQUE or Dashcommand, then respectively doing several settings as following:
Open Dashcommand, select 'setting', click 'OBD II interface', choose iCarsoft do pretermission as instructions, then exit and back. Reopen the software, and then it can connect automatically and read data.

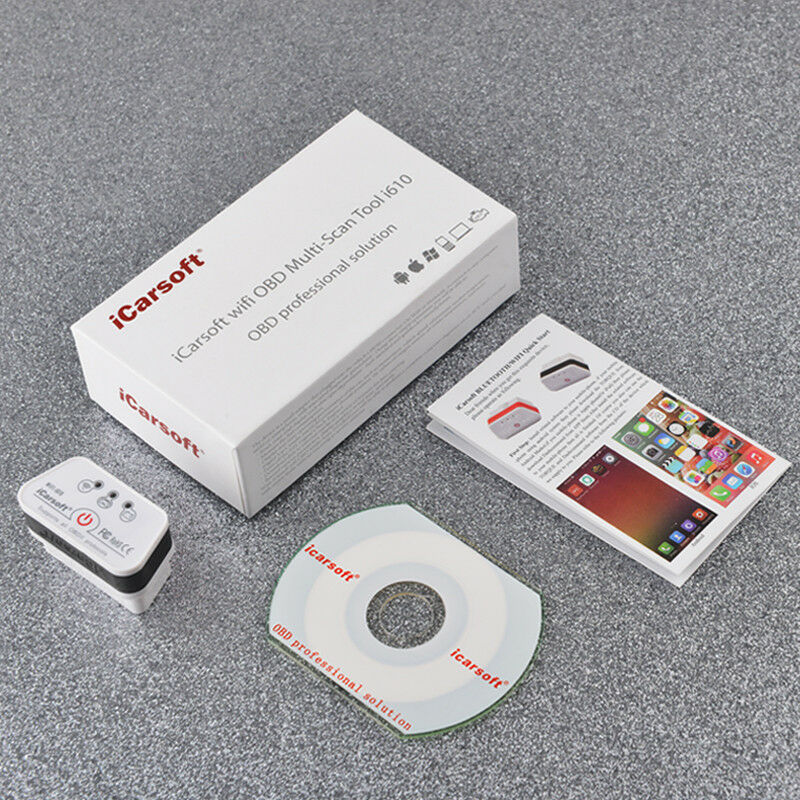

CONTENTS
