HEAVY DUTY & CAR DIAGNOSTIC TOOL – TWO IN ONE

Professional multi-system diagnostic scanner designed for heavy-duty trucks and passenger vehicles. Supports full ECU diagnosis, live data, and advanced service functions.

PRODUCT INTRODUCTION

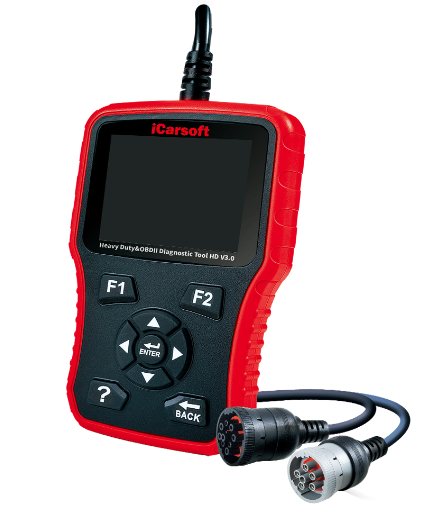

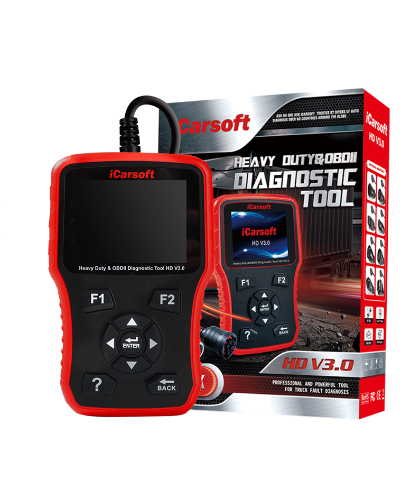

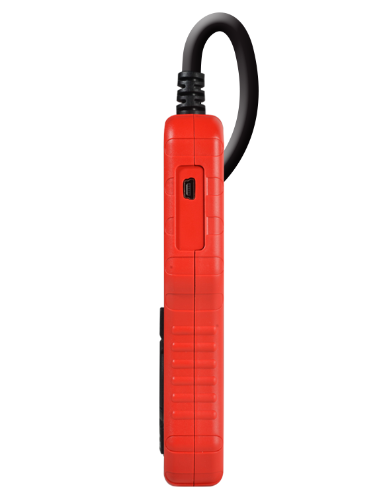

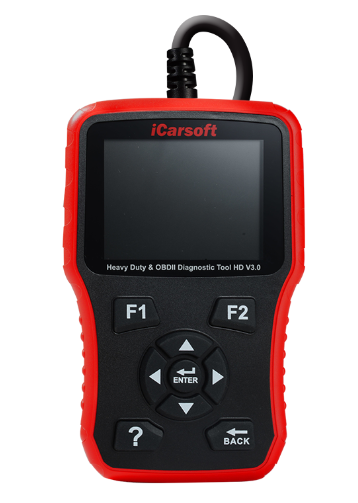

This HD V3.0 OBDII diagnostic tool is developed by iCarsoft Technology Inc. for professional vehicle diagnostics. It supports multiple communication protocols including J1587, J1939, and J1708 for heavy-duty trucks, along with full OBDII/EOBD support for cars.

It provides full system diagnostics, allowing technicians to read and clear fault codes, view live data, perform actuation tests, and carry out advanced service functions.

VEHICLE COVERAGE

European: BMW, Mercedes-Benz, Audi, VW, Volvo, Renault, Peugeot, Fiat, Porsche, Jaguar, Land Rover, Opel, etc.

Asian: Toyota, Honda, Nissan, Lexus, Hyundai, Kia, Mazda, Mitsubishi, Subaru, Suzuki, Isuzu, etc.

American: Ford, GM, Chrysler

Heavy Duty: Trucks supporting J1587 / J1939 / J1708 protocols

KEY FEATURES

• Read & Clear DTC codes for all available systems
• Live data stream in text, graph & analog format
• Auto VIN identification
• Bi-directional control / active tests
• Full ECU diagnosis across multiple modules
• Freeze frame data analysis
• DTC lookup library
• Software auto-upgrade support
• Multi-language interface

SPECIAL FUNCTIONS

• Oil Service Reset
• EPB (Electronic Parking Brake)
• DPF Regeneration
• Battery Registration / BMS Reset
• Throttle Adaptation
• ABS Bleeding
• Injector Coding
• TPMS Service Functions
• Steering Angle Sensor Calibration

OBDII FUNCTIONS

• Read & Erase Codes
• I/M Readiness Test
• Live Data Stream
• Freeze Frame Data
• O2 Sensor Test
• EVAP System Test
• Vehicle Information (VIN, CVN)
• Mode 6 Advanced Testing

PRODUCT SPECIFICATIONS

• Display: 2.8” TFT LCD (320×240)
• Operating Voltage: 9–28V
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Power Consumption: 1.8W
• Operating Current: 150mA @ 12V
• Dimensions: 142mm × 90mm × 22.5mm

PACKAGE CONTENT

1× Diagnostic Scanner
1× OBD Cable
1× User Manual
1× Packaging Box

PROFESSIONAL WORKSHOP-GRADE DIAGNOSTIC TOOL
