Why Need It?
For example: 1. The rupture of the vacuum hose will cause the mixture to be too thick, the idle speed will increase, the hot car will not start well, the engine will surge during acceleration, the fuel consumption will increase significantly, and the exhaust pipe will emit black smoke.
2. Blocking will cause the idle speed to drift, and the idle speed is easy to stall.
3. Air leakage in the vacuum tube will cause the engine to run weakly

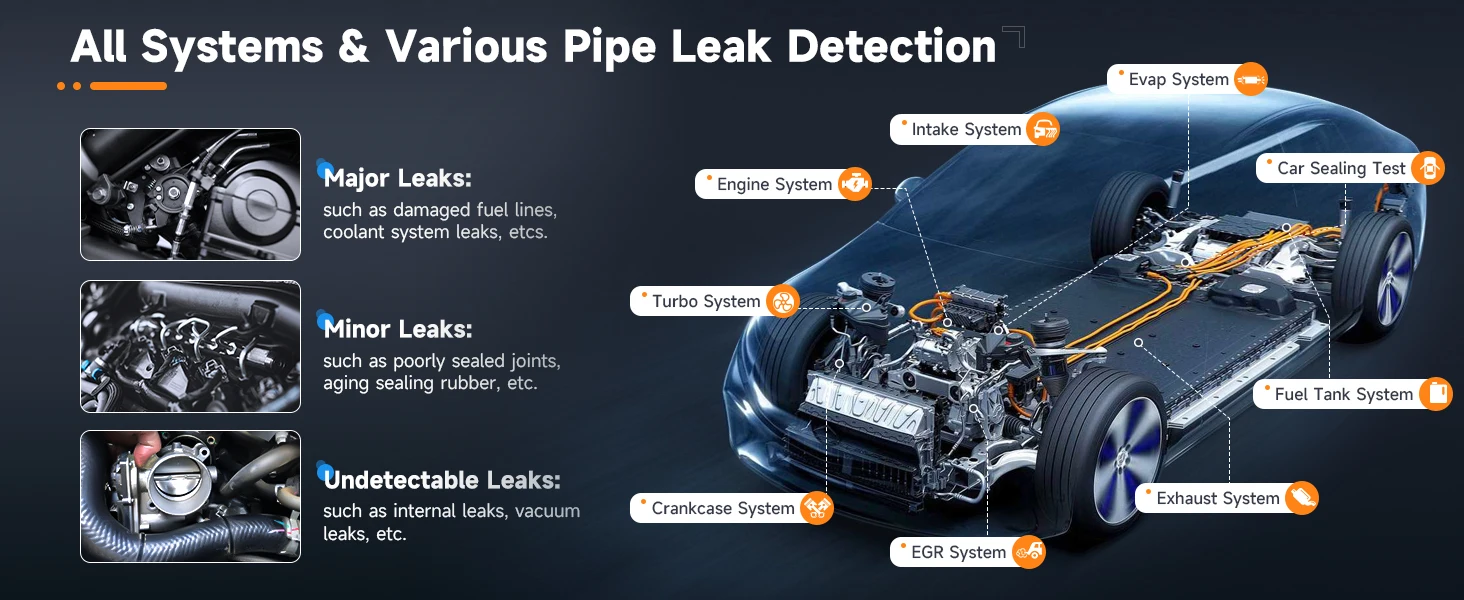

Precision Testing for Sensitive System
Crankcase System Test: Excessive pressure or corrosion of the crankcase is the main reason to damage the seal of the crankcase and cause oil leakage.
Intake System Test: Leakage in the air intake system will lead to insufficient intake of the car engine, which will result in scant engine power.
Car Sealing Test: Poor airtightness of the car may lead to a lot of inconvenience like inability to keep warm dusty, not soundproof, and not waterproof , etc.
Fuel Tank System Test: When there are gaps in the fuel tank and piping caused by improper installation or insufficient sealing of the fuel tank cap, it can cause leaks in the fuel tank system.
Turbo Test: The leakage of coolant would cause the engine to report high water temperature.Various Pipe Fittings Test: Smoke testing of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.

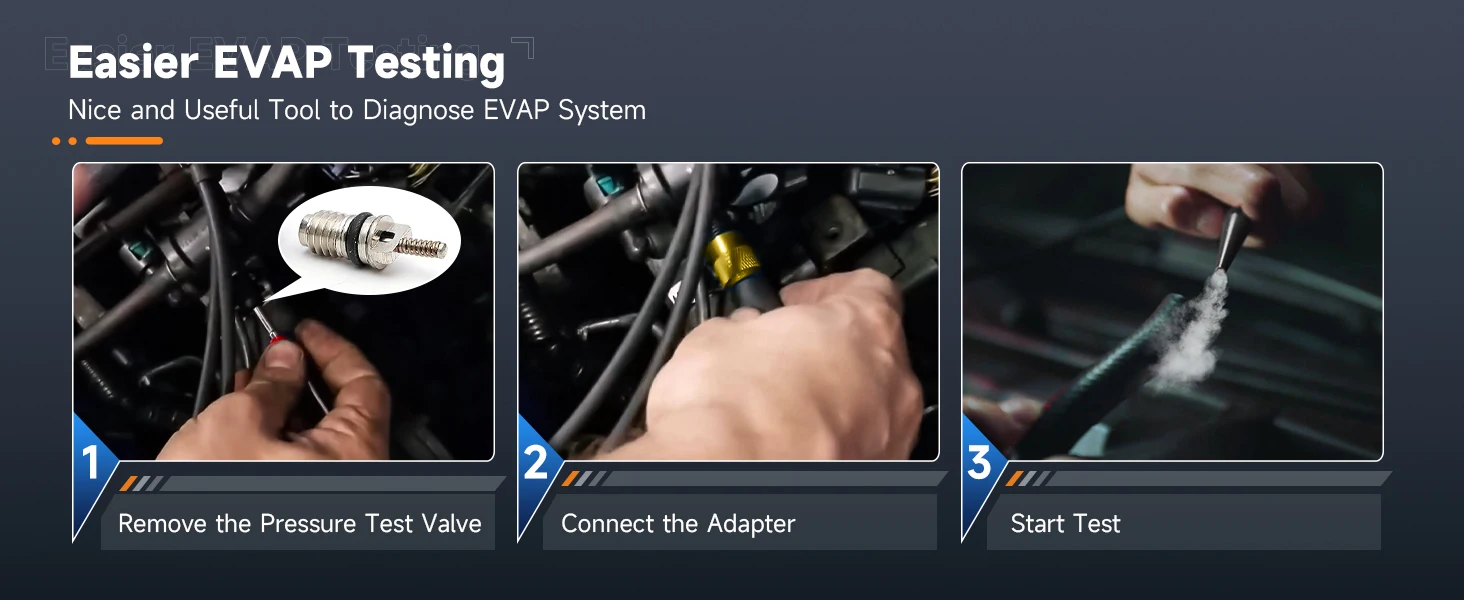

EVAP System Test: Leakage of the fuel evaporation system will cause fuel vapor to leak into the atmosphere, causing waste and pollution or unstable engine idling.
Exhaust System Test: Unpurified harmful gases to be discharged into the atmosphere or increase vehicle noise is the main disadvantage when leaks happened in the exhaust.

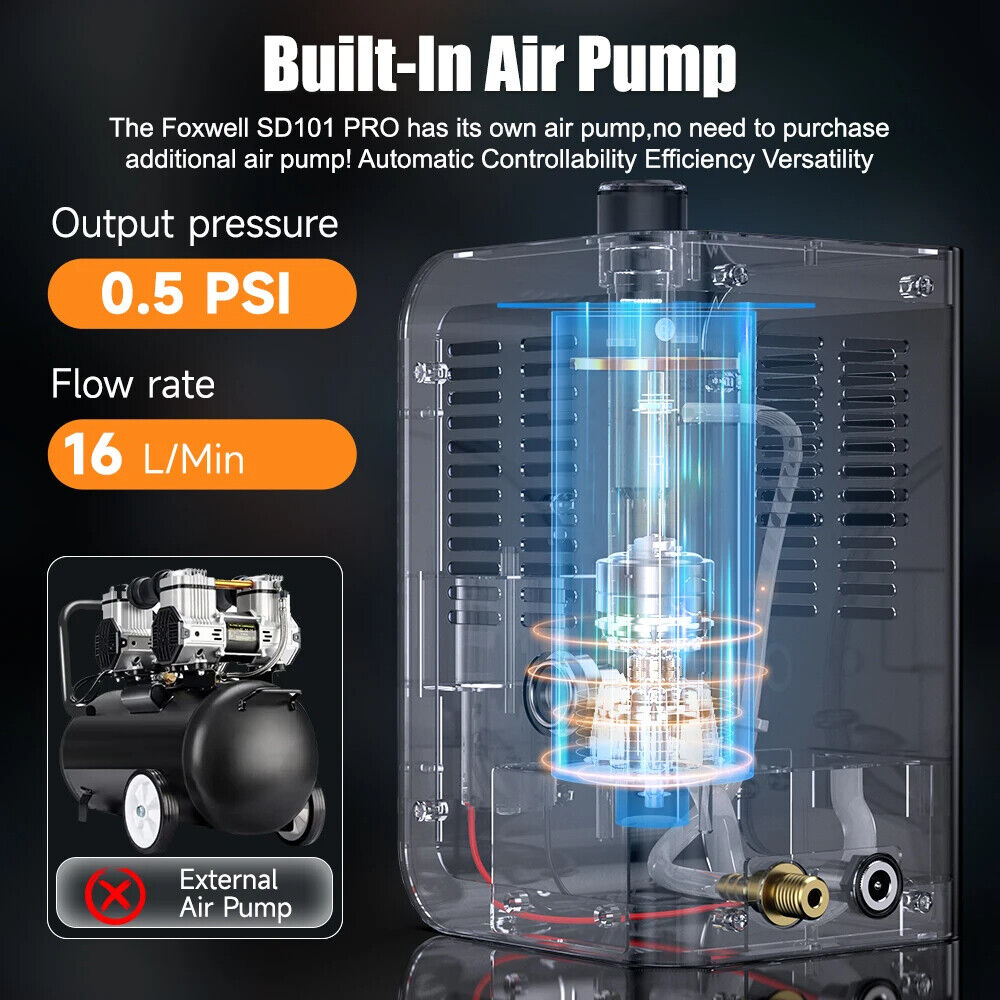

Integrated Air Pump, Highly Flexible
Engineered for ease, SD101 Pro eliminates the need for external gas sources, offering swift setup and immediate functionality. The built-in pump ensures efficient operation while enhancing portability, allowing you to effortlessly move the smoke tester automotive wherever it's needed.
A Must-have Flow Meter

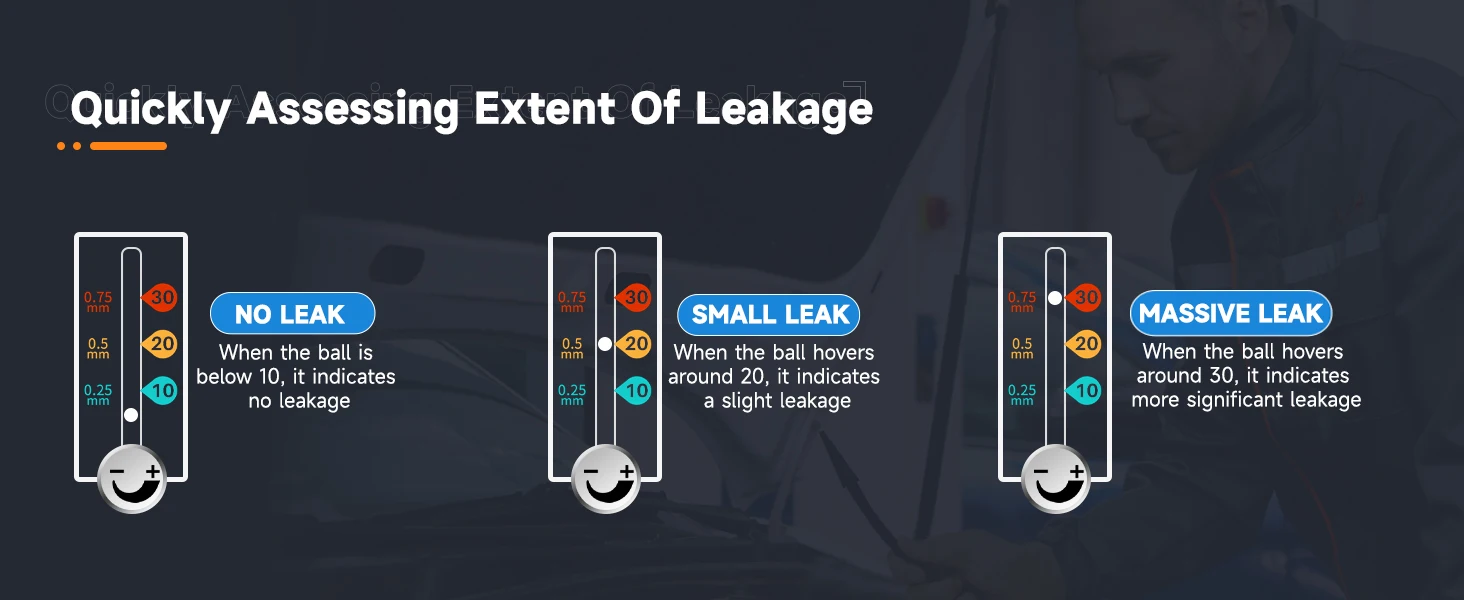

Check out the float in the flow meter to see if there's any change - that helps confirm if there's a leak. Plus, it lets you figure out how big the leak is, down to the millimeter. Twist the knob a bit, and you can keep the smoke and air flow just right, meeting the testing needs of different car systems.
When you opt for the air mode, the flow meter helps you swiftly confirm if there's a leak. After that, switch to the smoke mode to pinpoint exactly where the leak is happening. This significantly boosts diagnostic efficiency and prevents the wastage of a large amount of smoke fluid, saving costs.

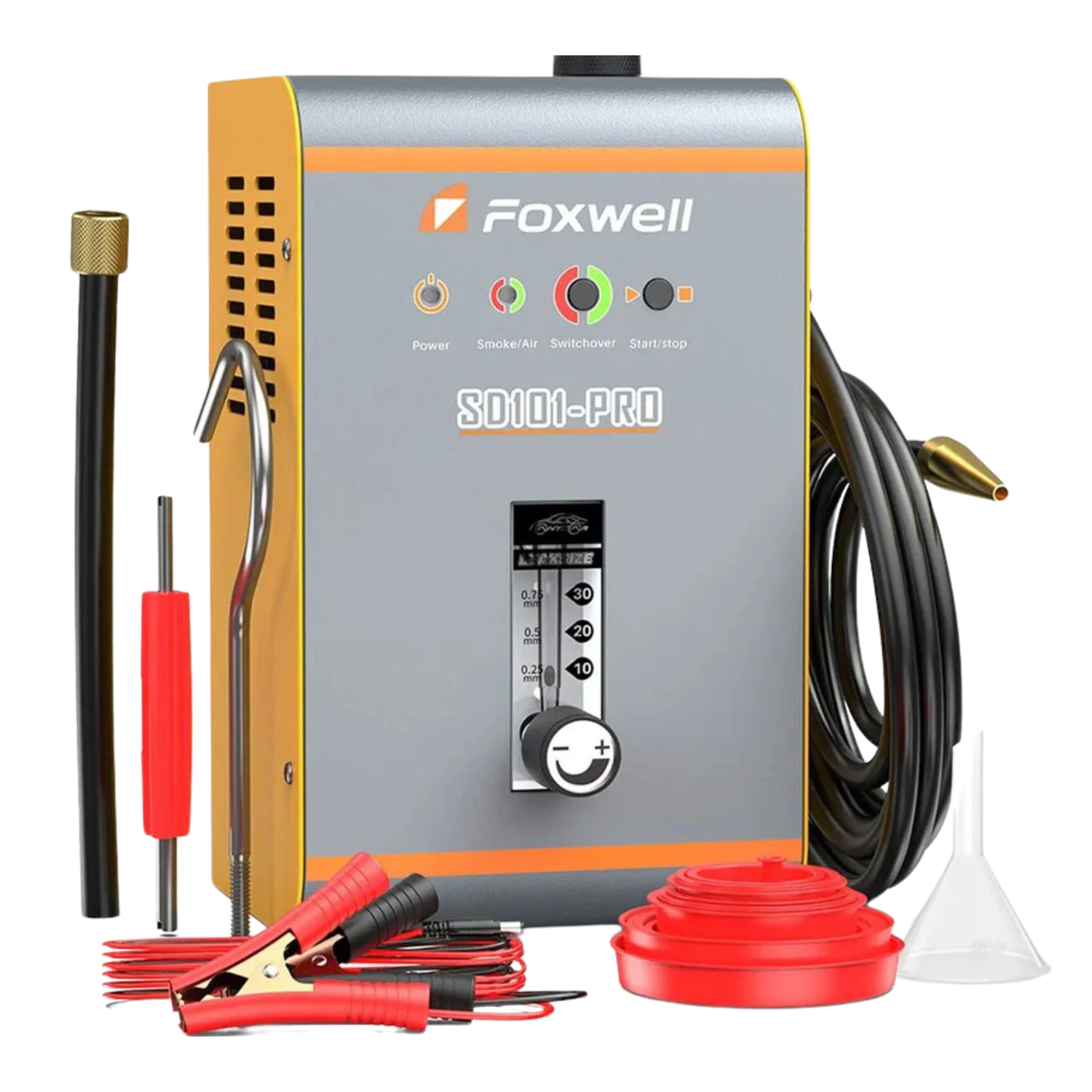

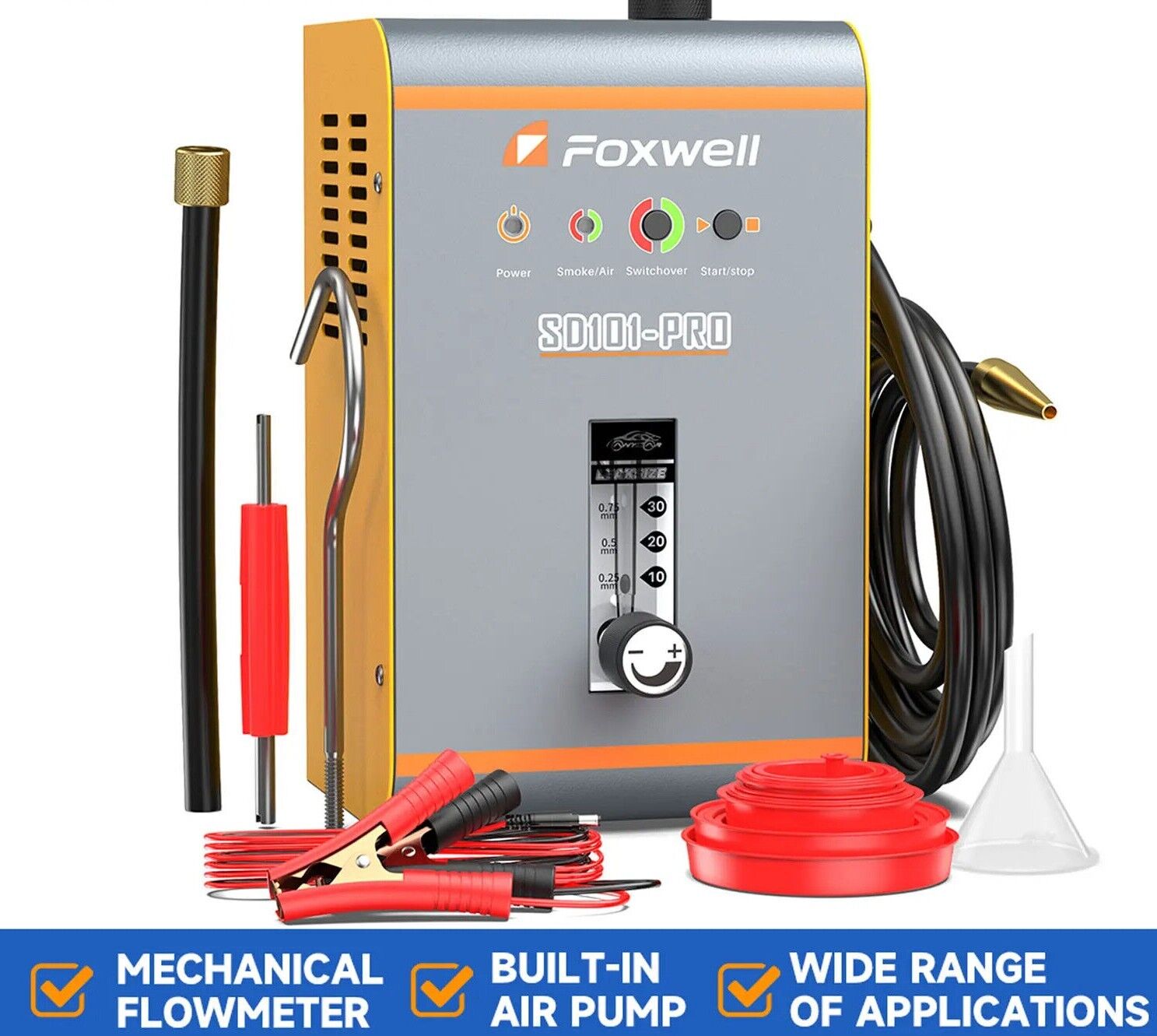

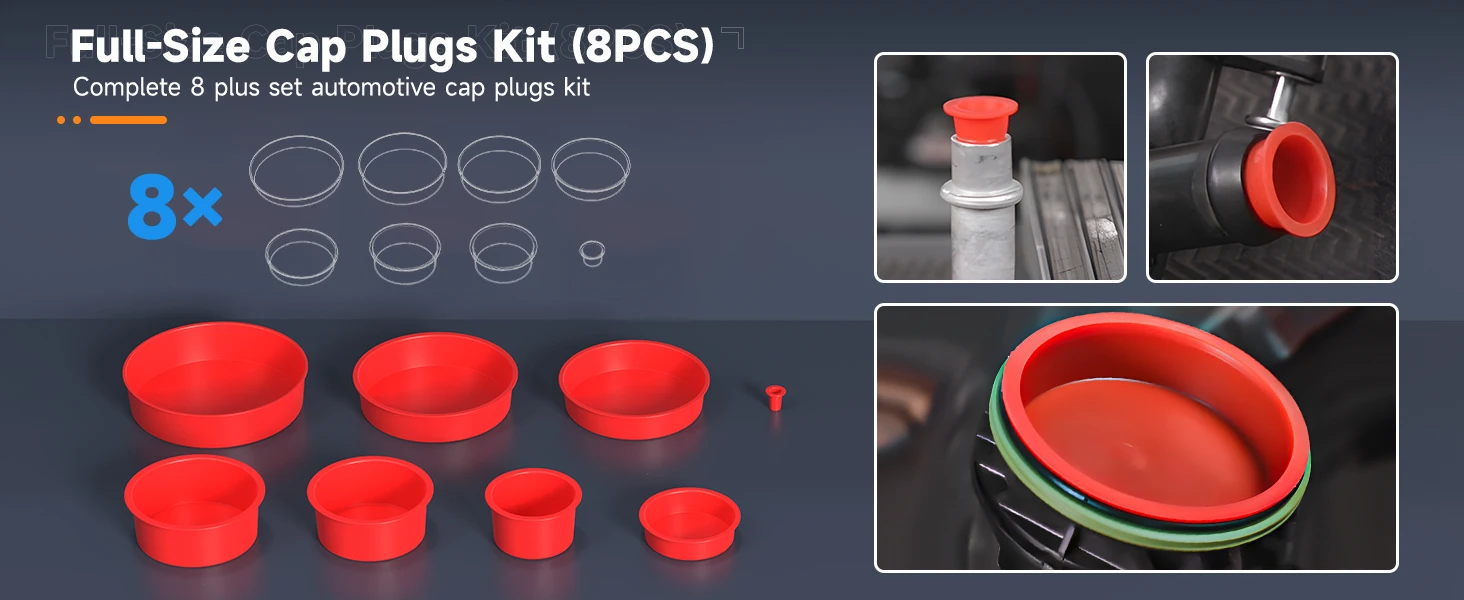

Compatibility with most vehicles and systems, EVAP service kit and sealing plugs
All in One, Meet Your Need!
The C-shaped embedded structure design has a stronger sense of hierarchy, making it not only a car repair tool, but also a handicraft.
A brand new smoke generation device with patented technology. Compared with peer products, at the same smoke concentration, it consumes less electricity and less e-liquid.
With the support of frequency conversion technology, even under high temperature protection, it can meet daily testing needs without the need to stop and wait. 10 minute work cycle
Compared to the 5-minute working cycle of peers, a longer testing time means it can meet the testing needs of more systems, such as the cab, large volume piping systems, water tanks, and so on.
Wide compatibility:
The Foxwell SD101 PRO automotive smoke leak detector is suitable for detecting pipeline system leaks on cars, motorcycles, snowmobiles, beach bikes, light trucks, heavy-duty trucks, and speedboats.
How to Test It?
1. Inject 10ml-20ml of test oil into the smoke leak detector, filling 20ML of test fluid, under standard working conditions, can be used continuously for about 10 minutes; (about Smoke Oil: advise use the Baby oil)
2. Open the pipe that needs to be connected with the leak detector.
3. Install the airbag adapter into the sealed pipe and connect the device to the smoke conduit.

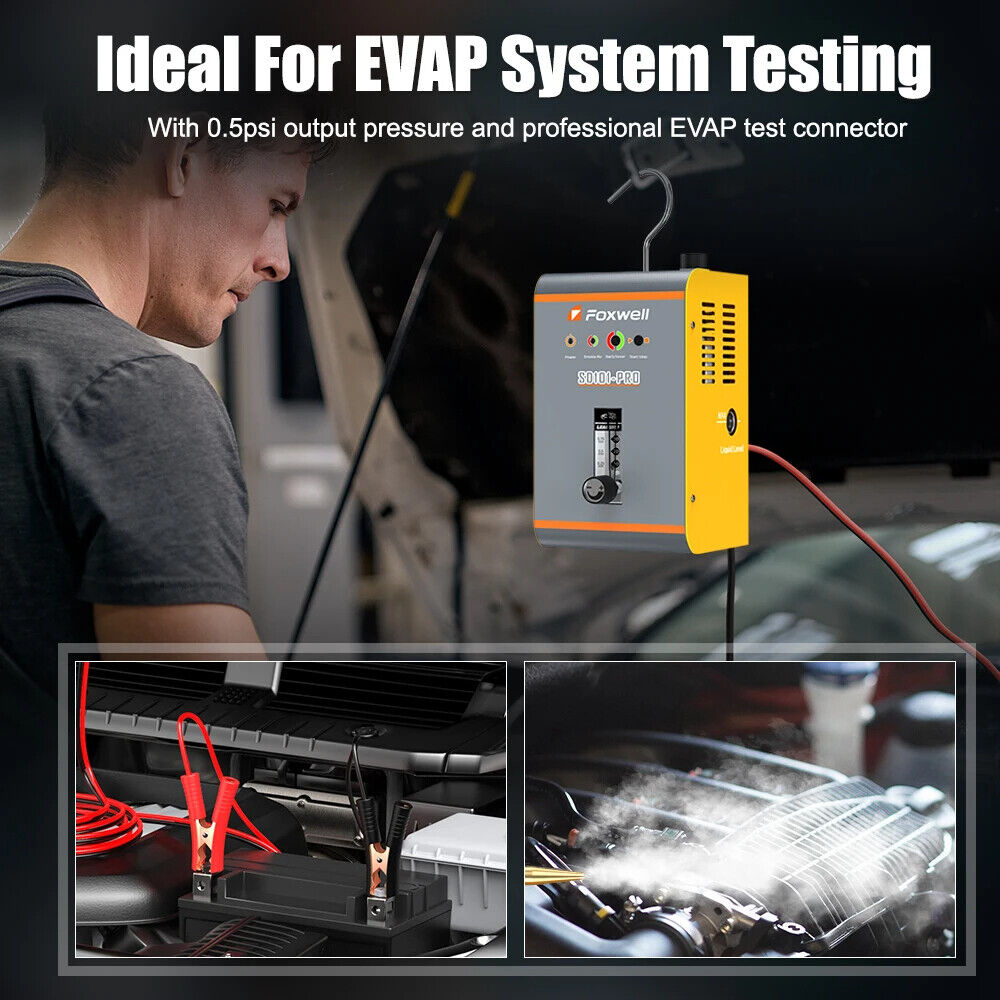

4. Connect the leak detector to the DC12V battery and the device will start working. NOTE: red clamp tp positive(+), and black clamp to negative(-)
5. The pipe will be filled with smoke and the leakage point will be checked.
6. Test the leaking pipeline, under the premise of sealing accurately, generally about 1 minute can be filled with smoke, if there is a leak, within 3 minutes, you can observe the results.
