MaxiLink auto diagnostic scan tools are specially designed to provide complete diagnoses for your car. You can use them to monitor emission control systems, Anti-lock Braking System (ABS) or Supplemental Restraint System (SRS/AIRBAG). They are capable of reading and clearing trouble codes from these systems and turning off Check Engine Light or warning lights. Besides, they provide you with some troubleshooter code tips. With these features, they are of great help in your daily maintenance.

Functions

MaxiLink619 is an advanced version of MaxiLink series. Besides OBD2 diagnostic functions, it is the perfect tool for detecting faults on vehicle Anti-Lock Braking System (ABS) and Supplemental Restraint System (SRS)/Airbag system. This ML619 can provide your car with much more complete detection.

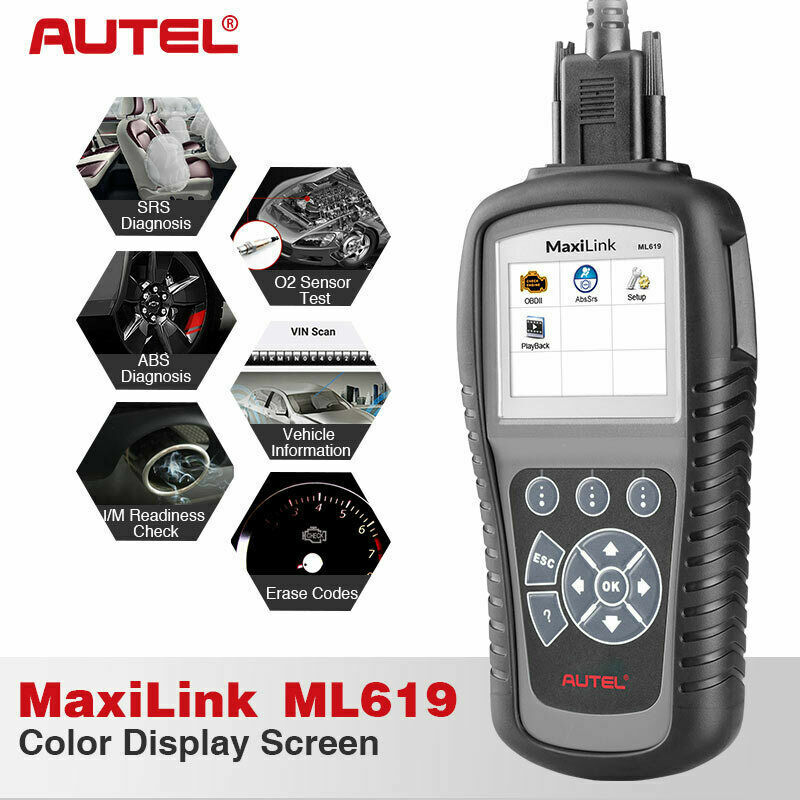

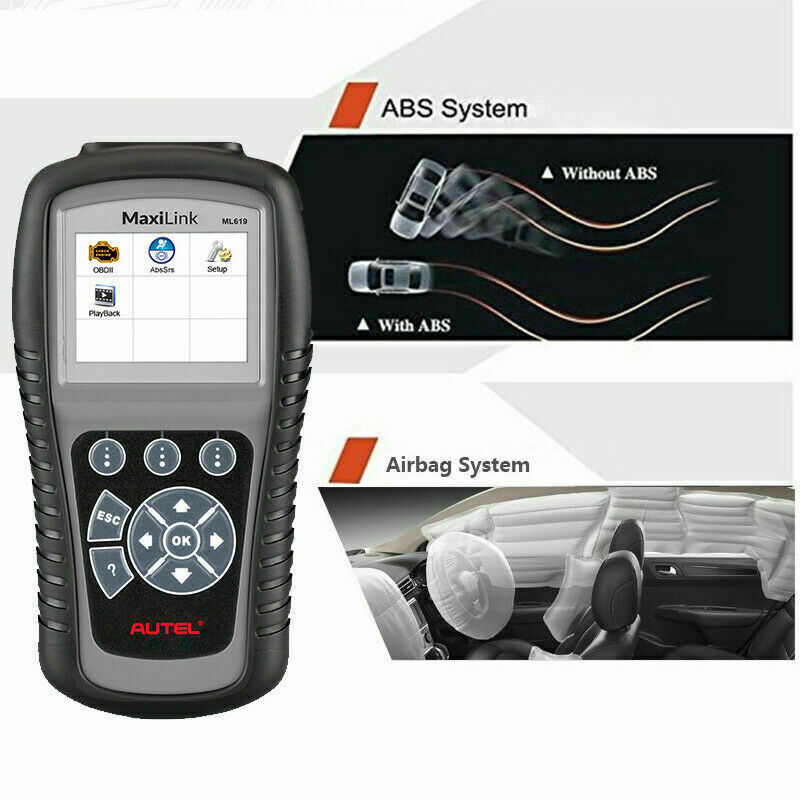

1 Diagnoses on ABS/SRS

This ML619 can be used to read and clear trouble codes from Anti-lock Braking System (ABS) and Supplemental Restraint System (ARS), which let you get to know your car better. Therefore, it can help you improve your vehicle safety and avoid some serious accidents while you’re driving.

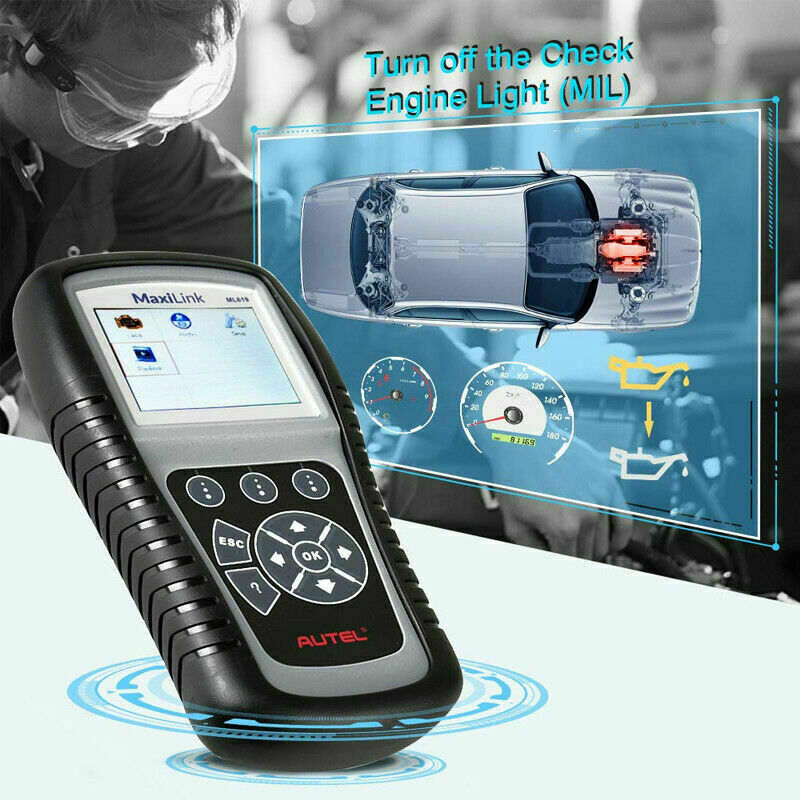

2 Turn off Check Engine Light (MIL) & ABS/SRS Warning Light

After you make all-round detection for your cars, find out the wrong places and fix problems according to DTCs definition and maintenance tips offered by ML619, you can use ML619 easily to turn off the Check Engine Light or warning light without extra payment on your own. ML619 helps you save time and money.

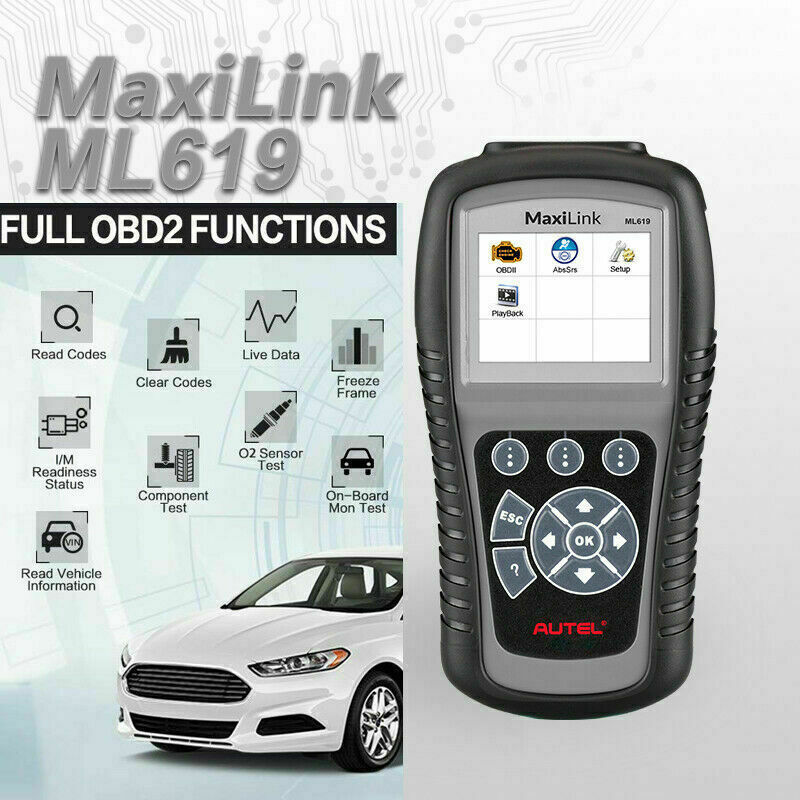

3 Full OBD2 Functions

*Reads and clears pending, current and permanent trouble codes.

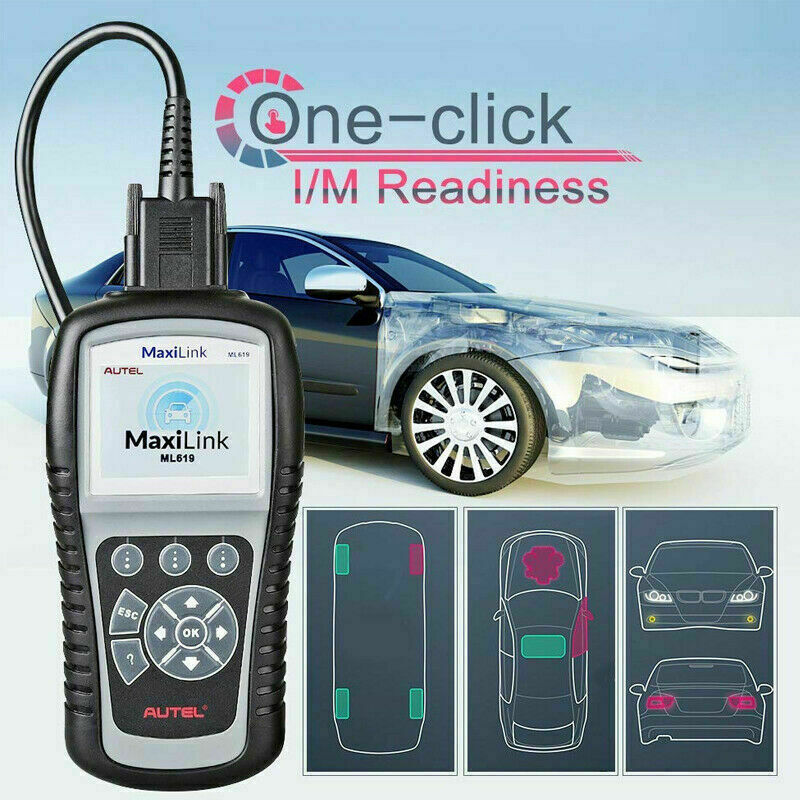

*Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.

*Easily determines the cause of the Check Engine Light (MIL).

*Turns off Check Engine Light (MIL), clears codes and resets monitors.

*Reads freeze frame data which shows engine conditions such as fuel trim, engine coolant temp, at the time the Malfunction Indicator Lamp (MIL) was set.

*Reads live O2 sensor test data and dynamic data streams, displays monitor and I/M readiness status (emissions).

*On-board system or component control: On-board monitor test can be utilized to read the results of on-board diagnostic monitoring.

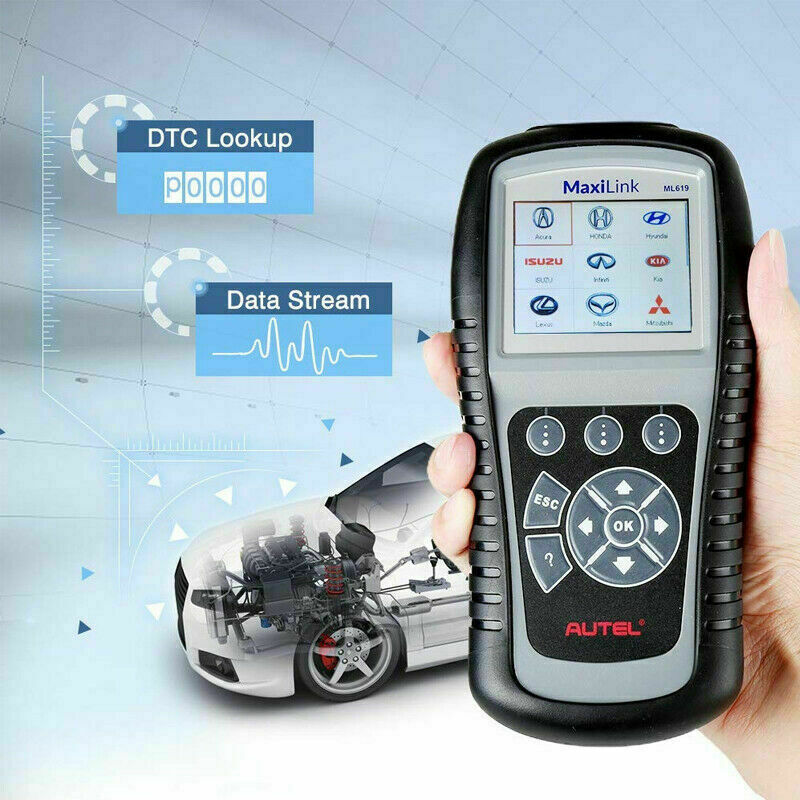

4 DTCs Definitions & Troubleshooter Code Tips

*This ML619 is more than reading and clearing trouble codes.

*It provides DTC definitions to help you diagnose problem area from systems that may cause the malfunction indicator light on.

*It also offers troubleshooter code tips which guide you to the root cause of trouble codes faster and help you save diagnosis and repair time.

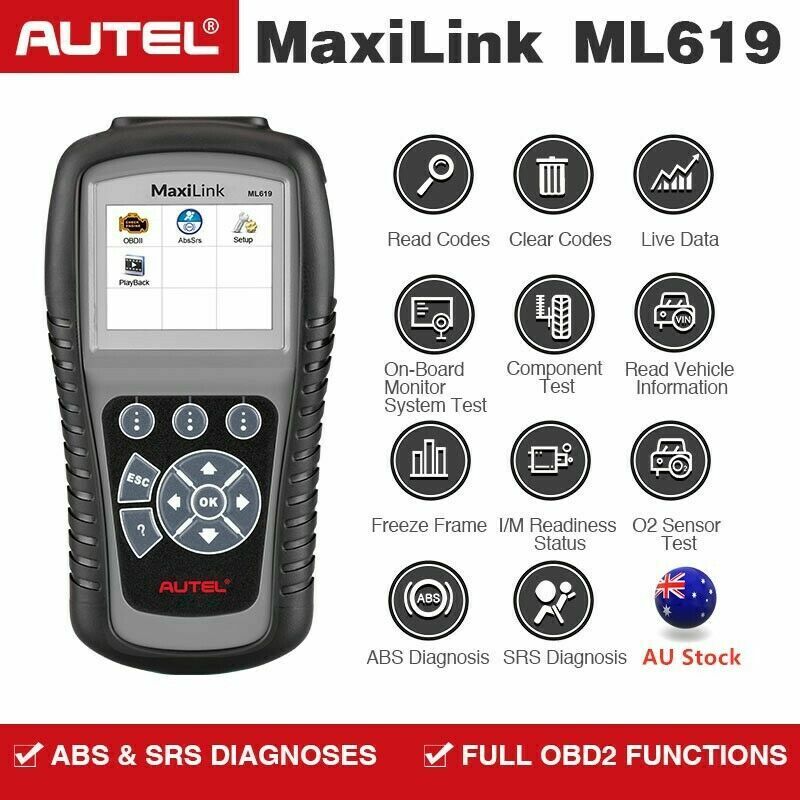

Features

*Diagnoses ABS/SRS and resets monitors

*Data Graph provides you with intuitive data analysis

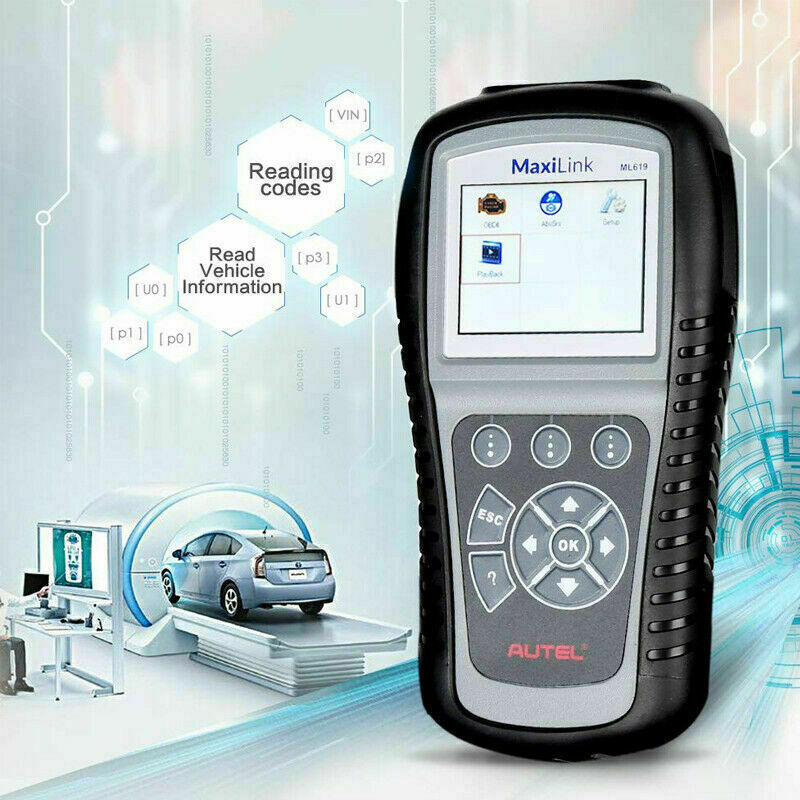

*Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes

*Supports data graph; reads, stores and playbacks live PCM (Powertrain Control Module) datastream and live sensor data

*Retrieves vehicle information (VIN, CALID and CVN)

*Multilingual (including English, Spanish and French) menus and DTC definitions

*TF memory card for data backup and software update

*Prints data via Windows-based PC

Registration

Step1

*Visit AUTEL official website.

*Create an Autel ID and register the product with device’s SN and password.

Step2

*Connect the OBD II cable’s female adapter to the MaxiLink ML619.

*Tighten the captive screws.

Step3

*Connect the OBD II cable’s 16-pin male adapter to the Vehicle’s DLC which is generally located under the vehicle dash.

*The device will be automatically powered up and can start to work.

Update

Please download the Maxi PC Suite from

AUTEL official site > Support & Updates > Firmware & Downloads > Update Client, and install to your Windows-based computer.

Step1

*Take out the TF card of your device & insert it into the PC.

*Run the Maxi PC Suite on the computer.

*Wait for the Log In window to display.

Step2

*Enter your Autel ID&password

*Wait for the Update window to display.

*Select tool and serial number, click OK to continue.

Step3

*In the Update window, select the appropriate files to install.

Step4

*Click on the Installed tag and the list of installed programs will display.

*Select the program(s) you would delete.

Specification

*Display: TFT color display (320x240 dpi)

*Operating Temp.: 0 to 60 ℃ (32 to 140 ℉)

*Storage Temp.: -20 to 70 ℃ (-4 to 158 ℉)

*Power: 8.0 to 18.0 V provided via the vehicle battery

*Dimensions (LxWxH): 199 mm x 104.5 mm x 37.5 mm

/ (7.83”) x (4.11”) x (1.48”)

*Weight: 280 g (without wire) 484 g (with wire)

Vehicle Coverage

Holden, Ford AUS, GM, Ford, Chrysler, Audi, Benz, BMW, Bentley, Bugatti, EU Ford, Mini, Maybach, Seat, Skoda, VW, Volvo, Acura, Honda, Hyundai, Infiniti, Kia, Lexus, Mazda, Nissan, Scion, Toyota, Peugeot, Citroen.

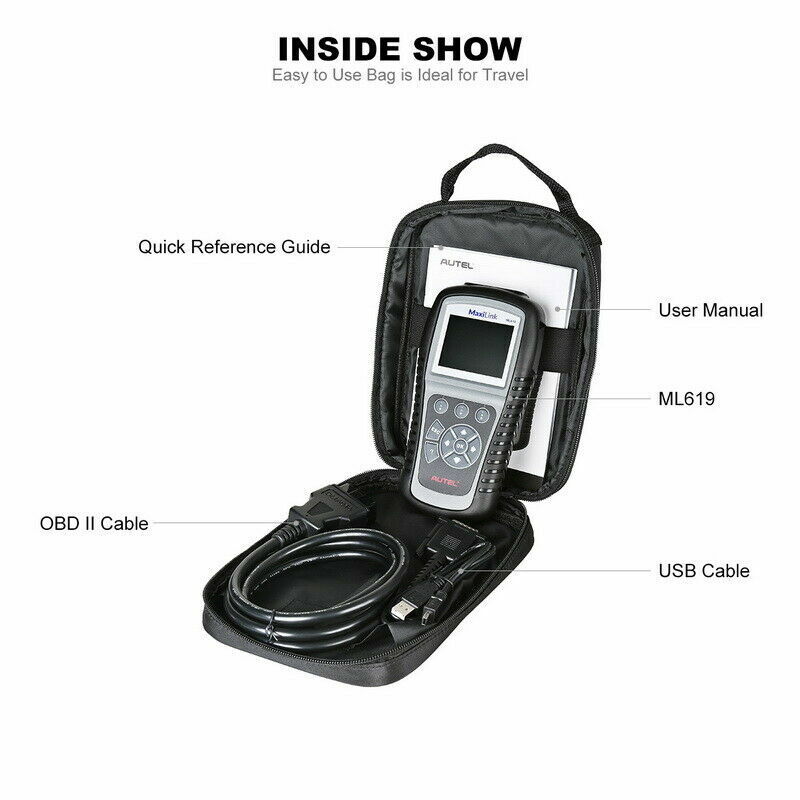

Package List

1 * Main Unit

1 * OBD2 Cable

1 * USB Cable

1 * TF Card

1 * Protective Nylon Case

1 * User Manual
