CR Genius Vehicle Coverage

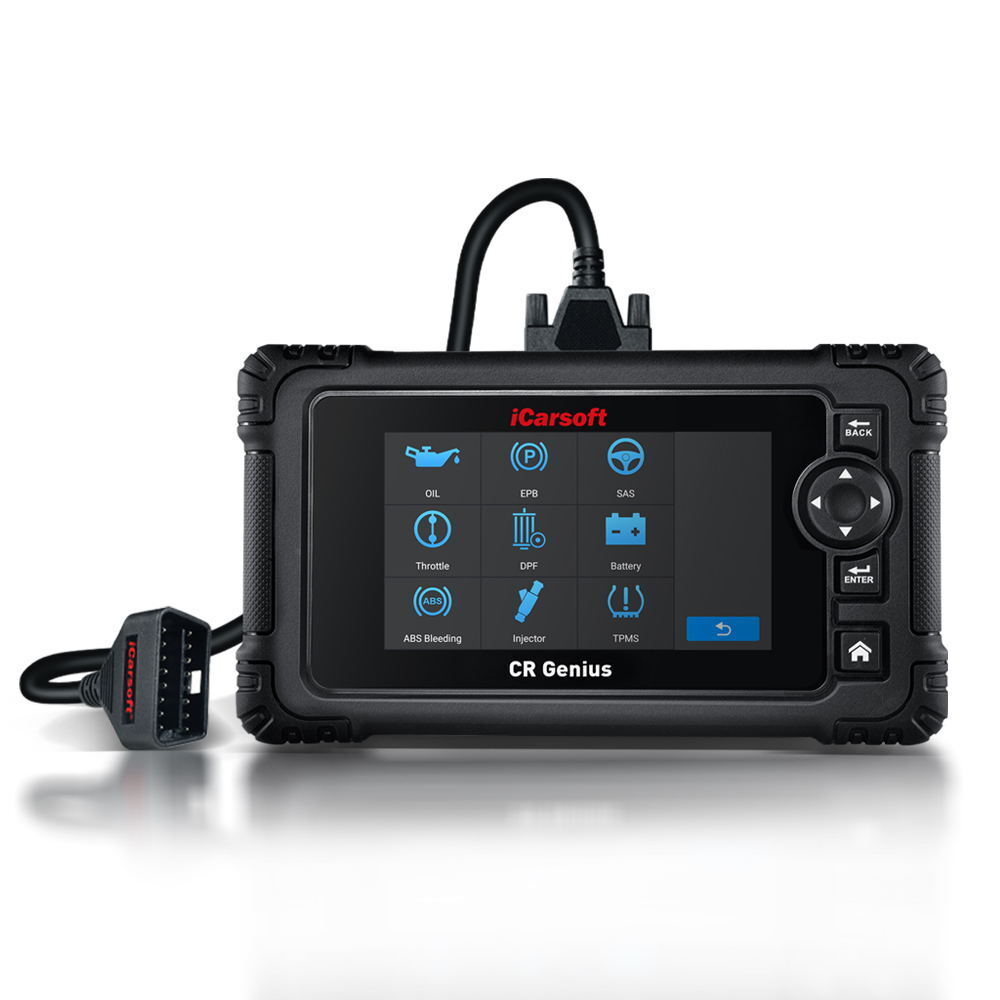

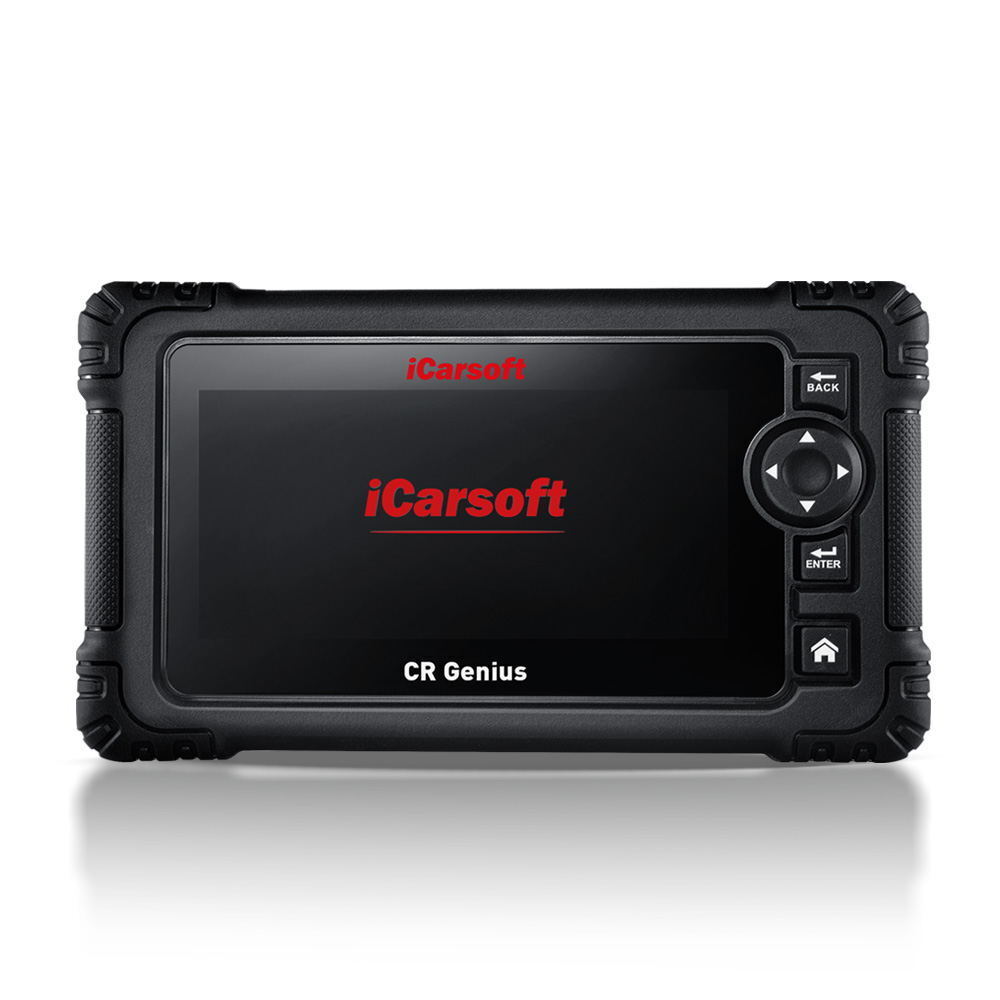

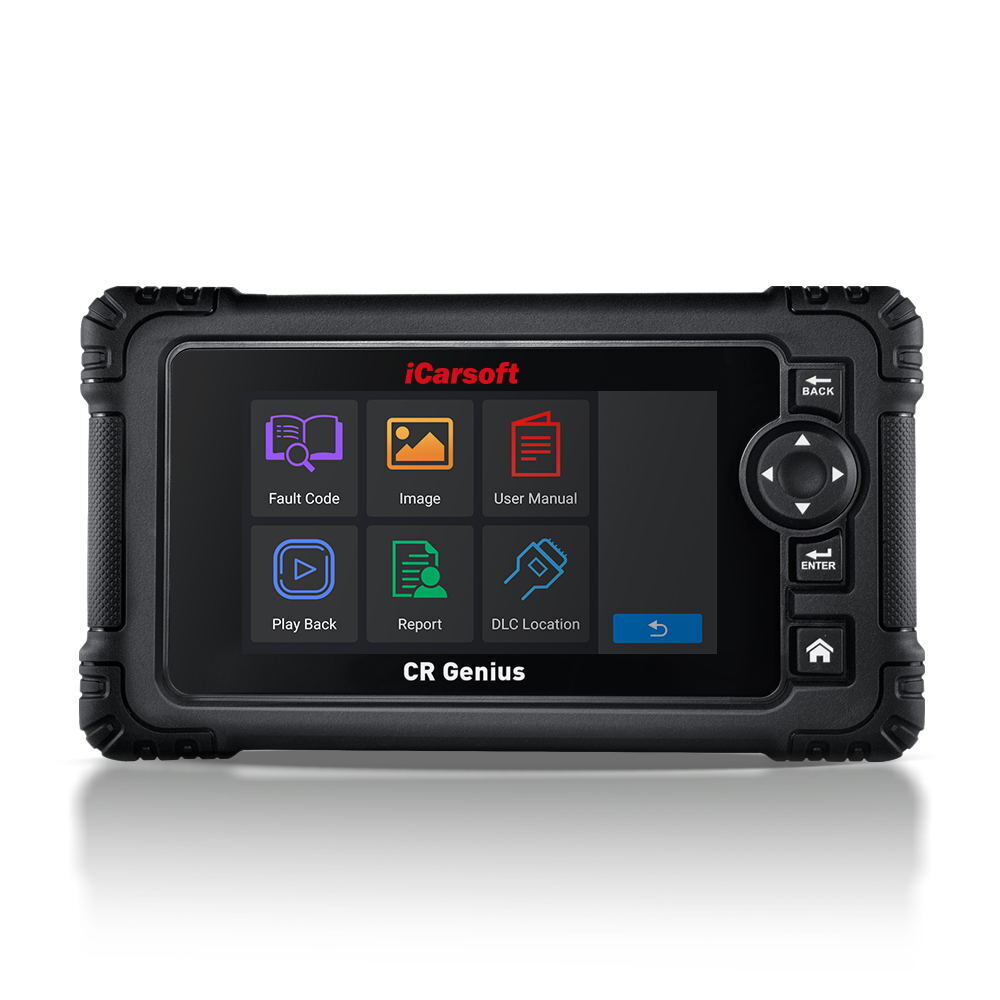

CR GENIUS
OPERATING SYSTEM：ANDROID 8.1.0
PROCESSOR：Quad Core 1.3GHz
MEMORY：16GB
DISPLAY：5-inch LCD capacitive touchscreen with 1280x720 resolution
CONNECTIVITY：MINI USB 2.0/ WI-FI/ BLUETOOTH/OBD II
BODY COLOR：BLACK
POWER AND BATTERY：OBD DLC VOLTAGE RANGE:9-18V
3.7 V/5000MAH UITHIUM-POLYMER BATTERY
CHARGES VIA 5 VDC POWER SUPPLY
TESTED BATTERY LIFE：AROUND 5 HOURS OF CONTINUOUS USE
BATTERY CHARGER：5V/2A
POWER CONSUMPTION：500MA(LCD ON WITH DEFAULT BRIGHTNESS,WI-FI ON)@3.7 V
OPERATING TEMP.:0℃~40℃ (32~104 °F)
STORAGE TEMP.:-20℃~70℃ (-4~158°F)
OPERATING HUMIDITY: 5%-95% NON-CONDENSING
DIMENSIONS(W*H*D):210*120*31 mm(L xWx H)
NET WEIGHT:≈510g
SUPPORT PROTOCOLS:
ISO9141-2, ISO14230-2, ISO15765, KL-LINE
Flashing Code, SAE-J1850 VPW,SAE-J1850PWM,
ISO11898(HIGHSPEED,MIDDL ESPEED, LOWSPEED AND SINGL .EWIRE CAN)
SAE J2610, GM UART UART ECHO BYTE PROTOCOL
HONDA DIAG-H PROTOCOL ,TP2.0,TP1.6.
