LAUNCH X431 CRB3001 Car Battery Tester OBD OBD2 Scanner Auto 12V Battery Diagnostic Tools Free Update PK CR3008 BST360

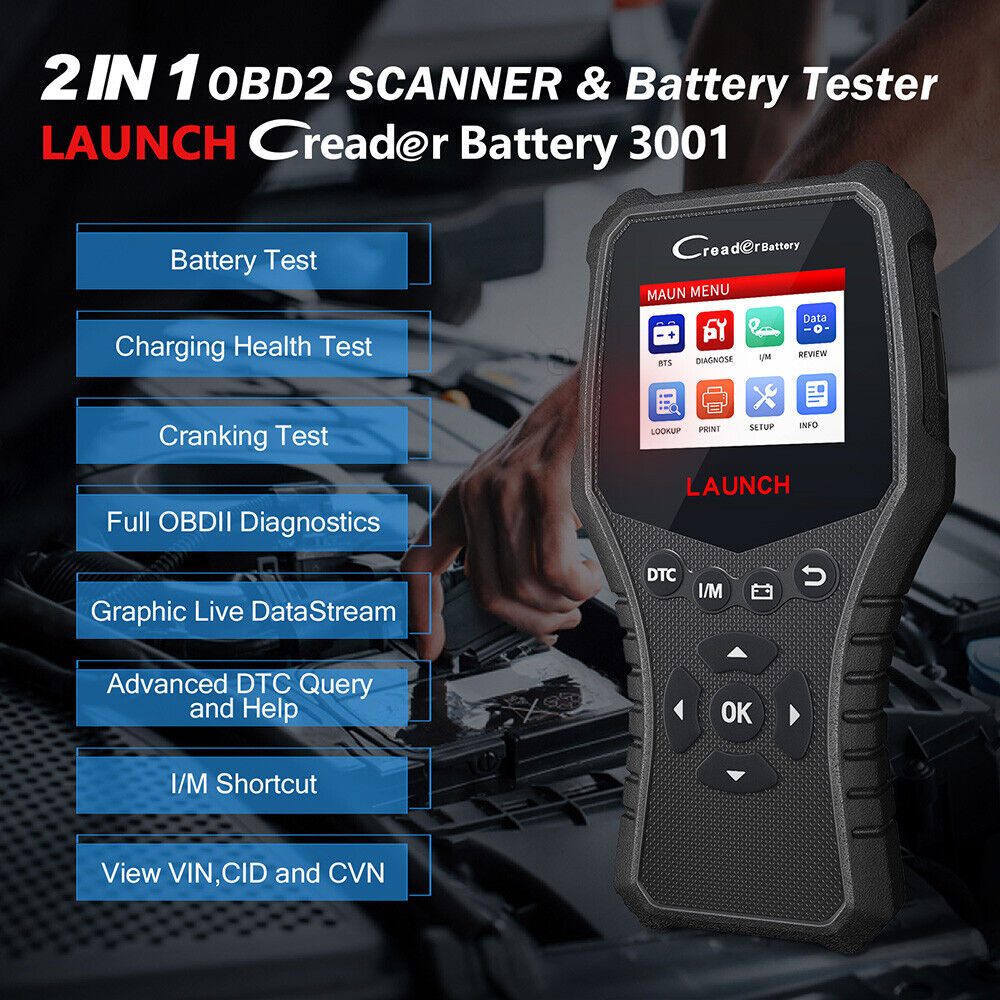

1.Battery Tester & OBD2 Scanner :The LAUNCH CRB3001, a 2-in-1 vehicle diagnostic tool , is not only a battery tester that can do battery tests (including battery health test, start system test, and charging health test) to provide a quick and accurate test result for most types of 12V batteries, but also perform OBD diagnostics to read/clear DTCs and read data stream.
2. Support Full OBDII Function : With full OBD2 functions, including reading/clearing codes, live data stream/freeze frame , I/M Readiness,O2 Sensor Test,On-Board Monitor Test ,EVAP Test and read Vehicle Information. The LAUNCH CRB3001 can work well with all 1996 and newer 12V gasoline and diesel that are OBD II compliant.
3. Battery Standard : Using the included battery cable, the LAUNCH CRB 3001 can help you to determine whether the battery is normal or not. It supports various battery standards, including CCA(100~1700), DIN, IEC, EN, JIS, SAE, and GB, etc.
4. Built-in DTC Library & One-click I/M Readiness : It allows you to retrieve the desired DTC and view its detailed definition and supply the fault code maintenance help functions ,and comes with one-click I/M readiness for detecting emissions status quickly.
5. Widely Used Battery Tester: It enables you to check battery condition of 12V car lead-acid batteries, including ordinary Lead-acid batteries, AGM batteries,and Gel batteries, and provides you an accurate test result.
6. User-friendly Design: The LAUNCH Creader Battery 3001 diagnostic scan tool has I/M and DTC Hotkeys,2.8" color display, Red-Green indicator that helps to display car status directly, plug and play. It is powered through the OBD2 interface, no battery required, easy to use.
7. Lifetime Free Update & Print : It provides lifetime FREE software updated by connecting to a PC through a USB cable to keep the latest software version. Moreover, it has the ability to print the diagnostic records through a connection to a PC.

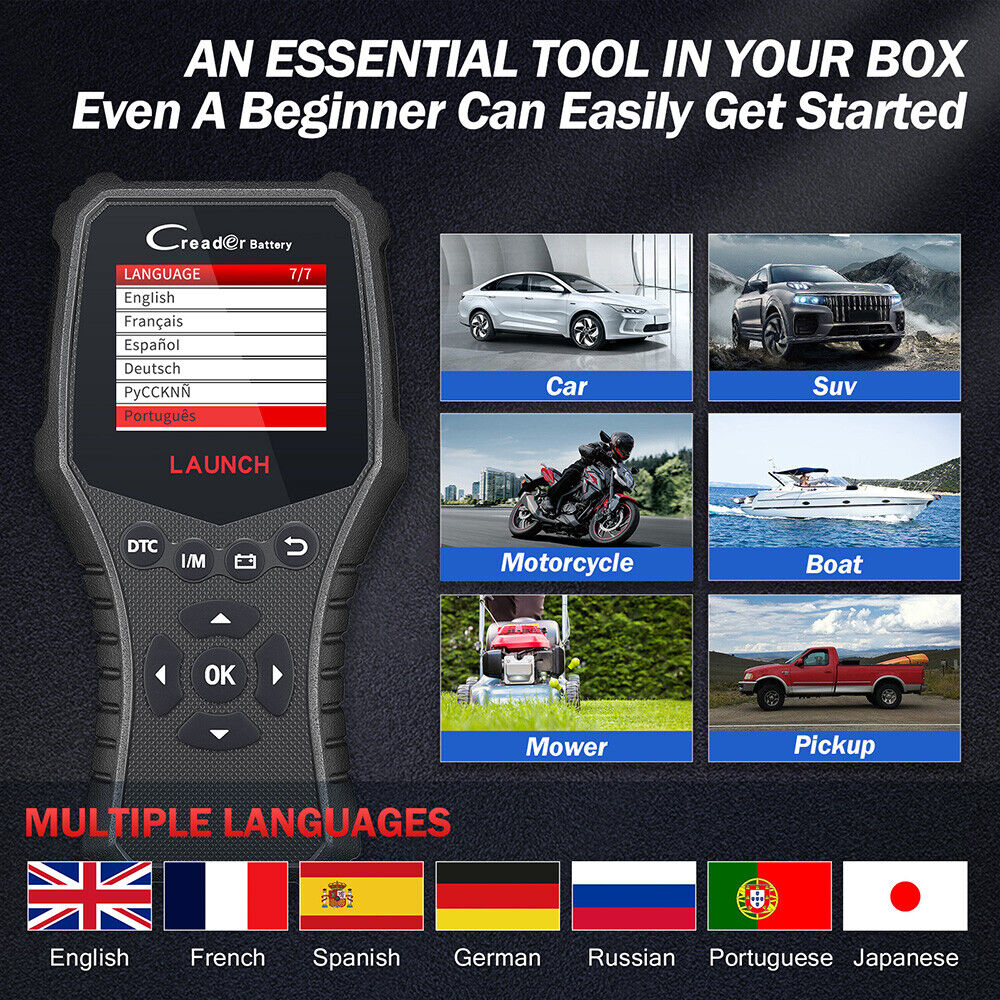

8. Supports Multiple Languages: Available in 7 languages, including English, French, German, Portuguese, Spanish, Russian, and Japanese,you can switch back and forth between multiple languages as needed which can solve the language barrier you may encounter.

3 Battery Test Modes

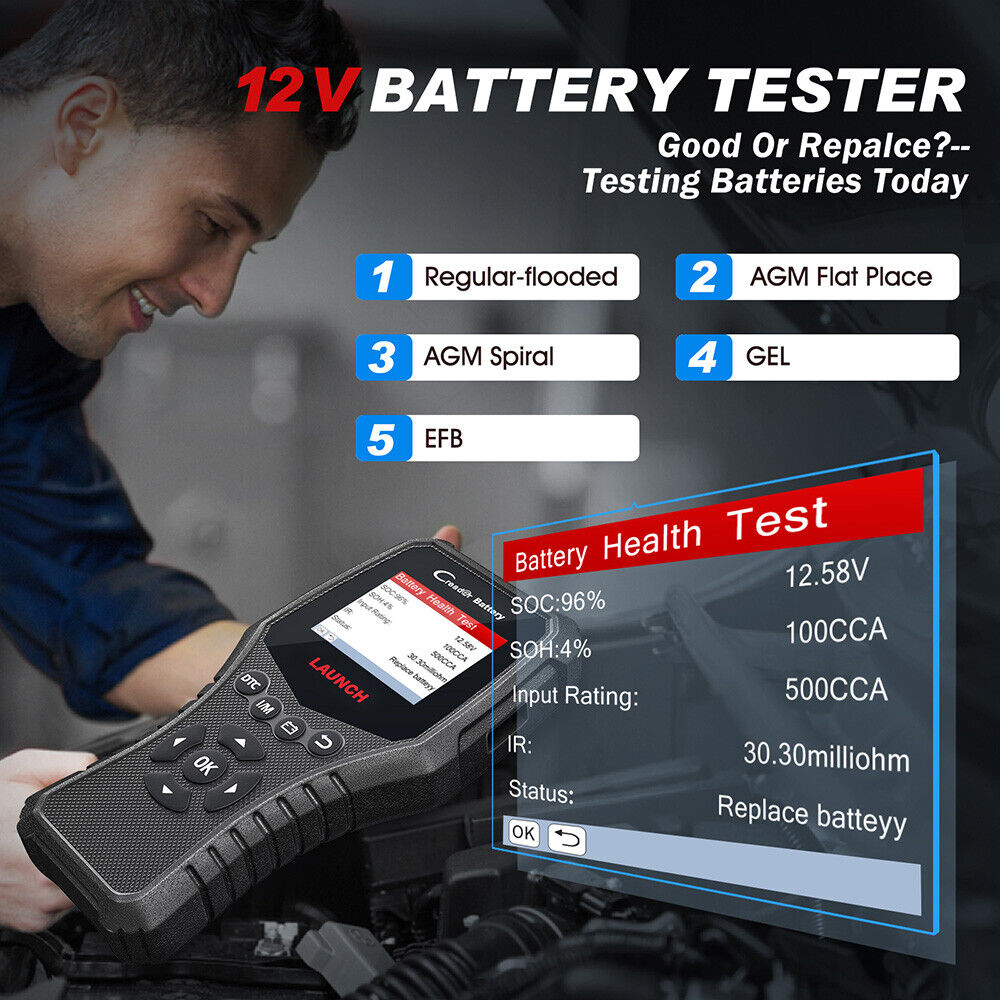

Battery Health Test
Battery Health Test is mainly to analyze,calculate the health status of the battery and judge the aging degree of the battery ( Displays 5 test results, and tells you whether you should replace or charge the battery)

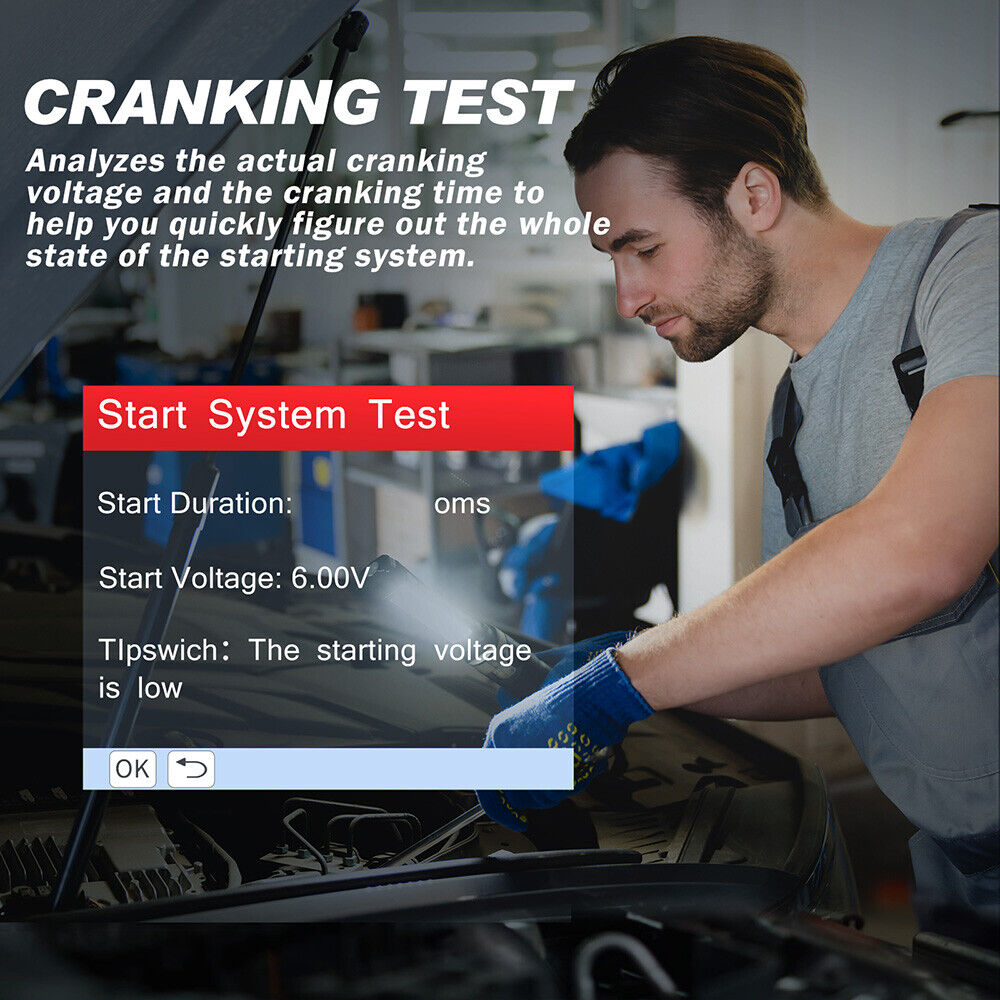

Start System Test
Start System Test is mainly to detect and analyze the starting motor, detect the actual starting
current and starting voltage required by the starting motor
Charging Health Test
3.Charging Health Test is to check and analyze the charging system, including generators, rectifiers, rectifier diodes, etc.

Compatible with all 6V 12V lead-acid batteries include regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries with the test range (100-2000 CCA)
Support common battery types, such as ordinary battery (Regular Flooded), AMG start-stop battery (AGM Plate), GEL start-stop battery (GEL), EFP start-stop battery (EFP)
Standard --- Description --- (Testing Range )
CCAãBCIãCAãMCAãJISãDINãIECãENãSAEãGB
CCA --- Cold Cranking Amps, as specified by SAE. The most common rating for cranking batteries at 0°F (-18°C).--- (100-1100 )
CA --- Cranking Amps standard. The effective starting current value at 0°C (32°F). --- ( 100-1100 )
MCA --- Marine Cranking Amps standard. The effective starting current value at 0°C (32°F). --- (100-1100 )
JIS --- Japanese Industry Standard, shown on a battery as a combination of numbers and letters.--- ( 26A17--245H52 )
DIN --- Deutsche Industrie-Norm. --- ( 100-1100 )
IEC --- International Electro technical Commission. --- ( 100-1100 )
EN --- Europa-Norm --- ( 100-1100 )
SAE --- Society of Automotive Engineers --- ( 100-1100 )
BCI---American Battery Council International ( Publishes Automotive Battery Standards)

Battery Test Results(Battery Health Test):
1. Good battery - Indicates that the battery is normal.
2. Replace battery - Indicates that the battery is aged or becomes rejected, or the battery life cycle is nearly exhausted. In this case, battery voltage appears to be normal, but the battery itself is not well, i.e. battery polarity board has been completely vulcanized or aged. Please replace the battery immediately.
3. Good-recharge - Stands for low battery. The battery is good itself.
4. Charge-retest - It is better for a few batteries to be fully charged before testing in order to avoid judging in error under special conditions.
5. Bad cell - Indicates one of the battery cells is bad and cannot work
normally, but for which one is bad, it canât be verified. In this case, battery voltage is generally lower than 11V, mainly resulting from internal circuit

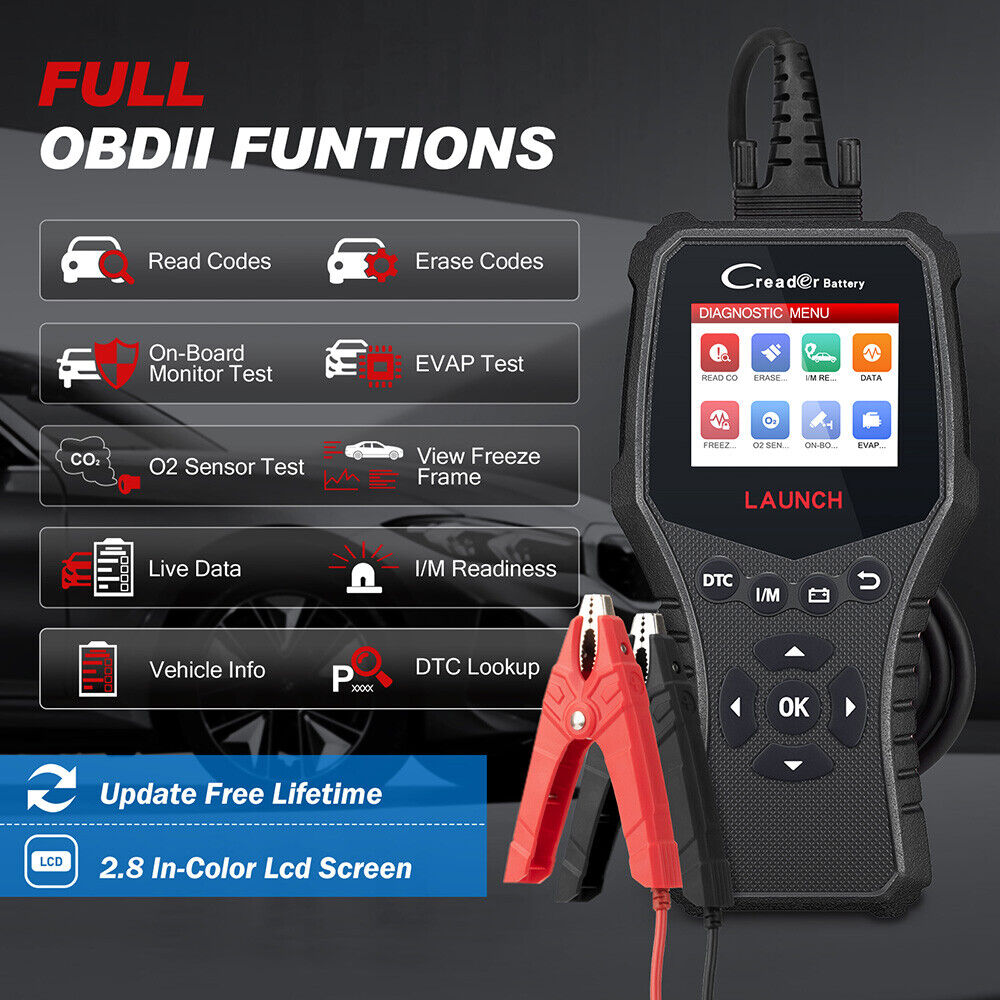

LAUNCH Creader Battery 3001 Support Full OBD2 Functions
1.Read Codes: Show the detailed description of the Diagnostic Trouble Codes (DTCs).
2.Clear Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets monitor.

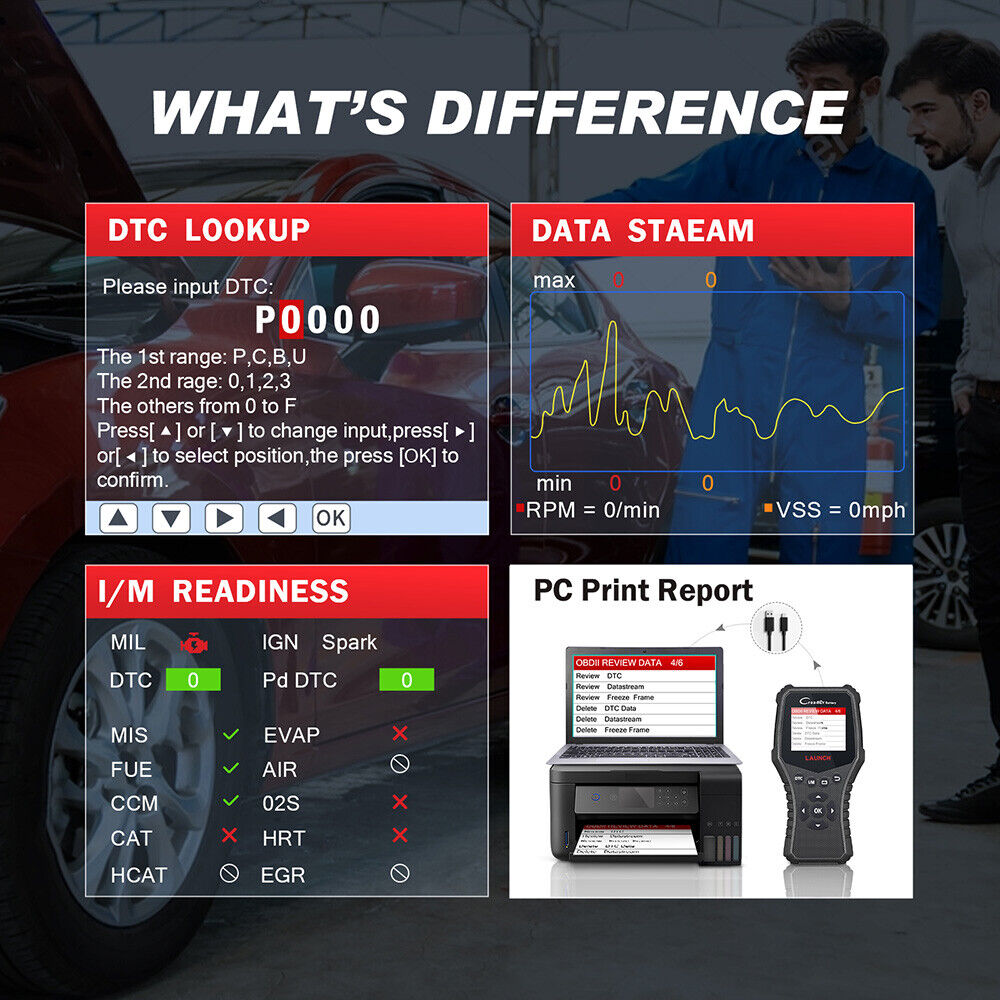

3.Data Stream:Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.Read Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7.O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.
8.On-Board Monitor Test: Retrieves and displays test results for emission-related Powertrain components and systems.
9.Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
