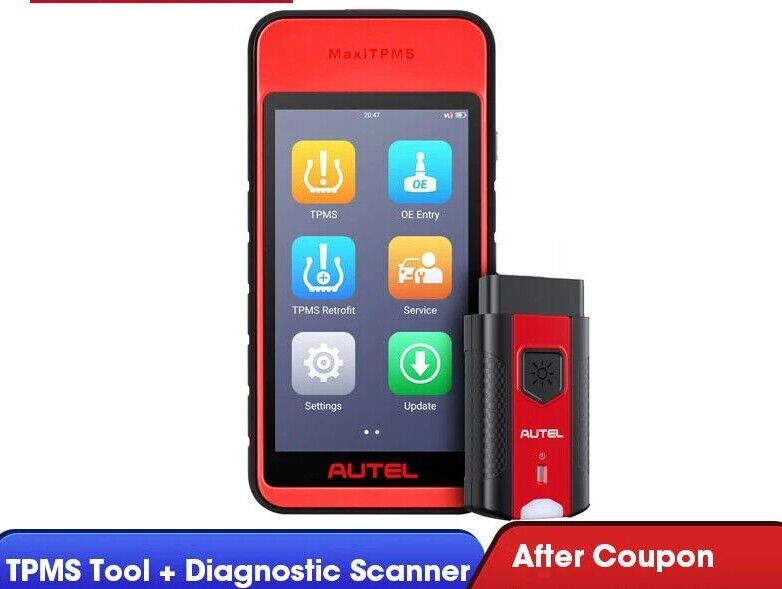

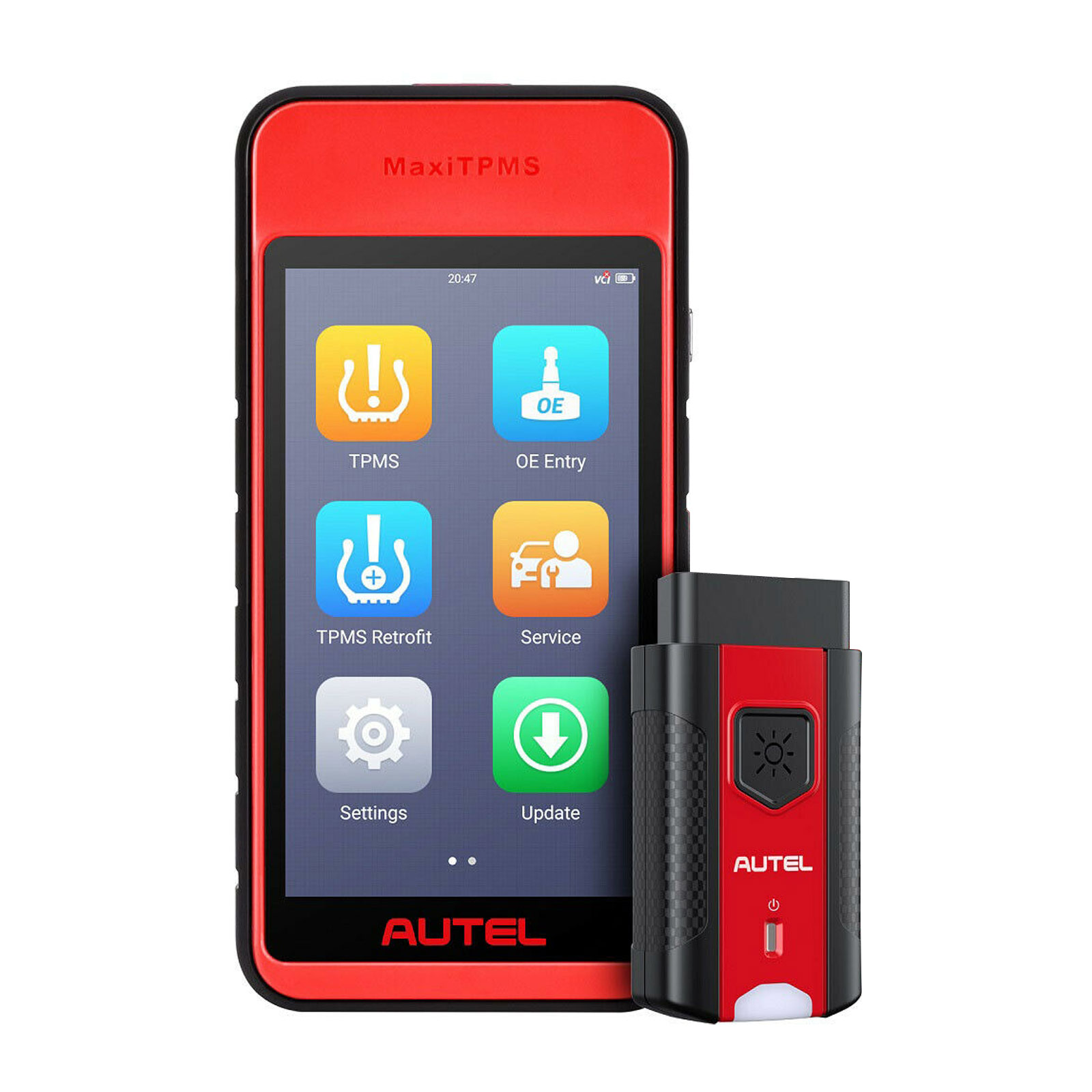

Autel MaxiTPMS ITS600E TPMS Diagnostic Tool
Autel MaxiTPMS ITS600E Upgrade of TS408/TS501/TS508/TS601 TPMS scanners and based on Android OS, the 2021 version ITS600E TPMS tool not only has the essential TPMS sensor programming, sensor relearning, sensor activating functions but also added user-friendly tire functions, quick vehicle identification, TPMS module retrofitting, etc. There is no doubt that Autel ITS600E is your reliable helper and professional doctor.
When it comes to TPMS functions, ITS600E has the same as the TS608, but better in UI design and more details (like tire functions, vehicle scanning, reset functions).Reasons for Choosing Autel ITS600E as Your Partner:

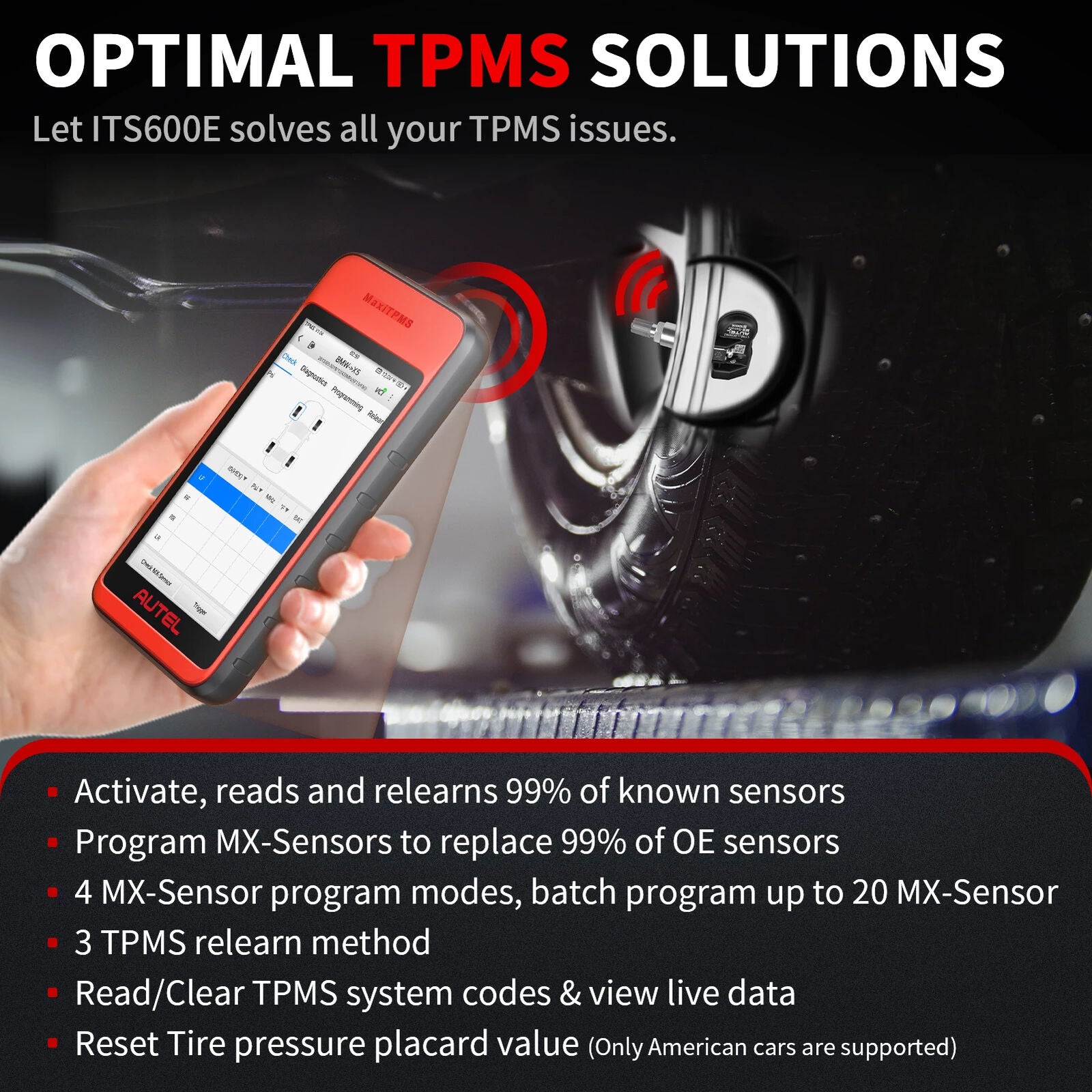

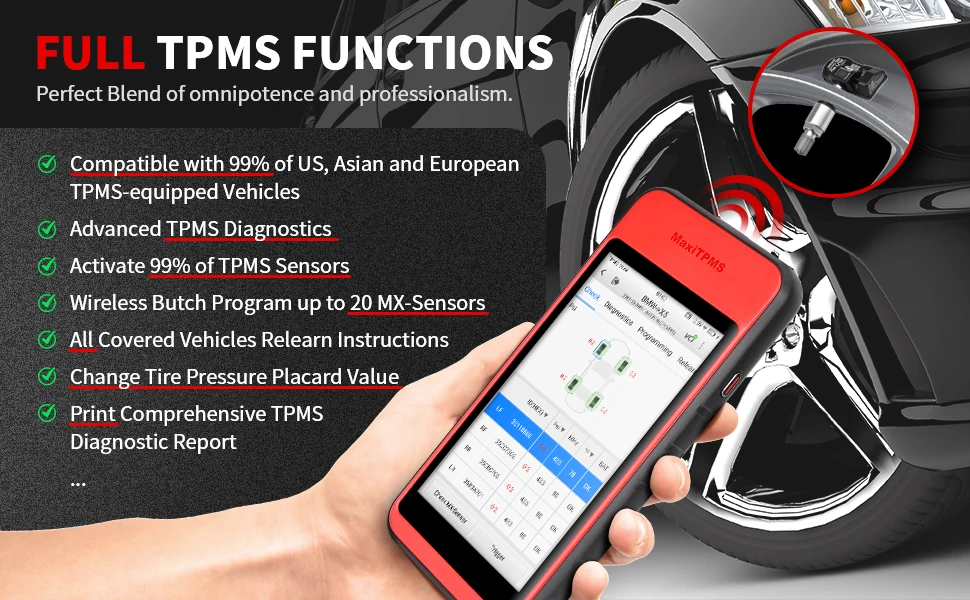

Everything TPMS Solutions
• Activates, reads and relearns all known sensors • Enhanced, at-a-glance diagnostics status screen • Fast OBDII relearn for most vehicles • Program MX-Sensors to replace 99% of OE sensors • Copy By OBD sensor programming for faster service • Four MX-Sensor program modes; batch program up to 20 MX-Sensors • Includes wireless Bluetooth vehicle communication interface (VCI) • Tire pressure placard value reset • Read/Clear TPMS system codes & view live data • Free Wi-Fi software updates for the life of the tool
4 Programming Options: Copy by Activation, Copy by OBD, Manual Input, and Auto Create
3 Relearn Methods: OBD Relearn, Automatic Relearn, and Stationary Relearn.
4 Common Used Reset Functions: Oil Reset, EPB Reset, BMS Reset, SAS Reset.
The Programming function allows users to program the sensor data to the MX-Sensor to replace existing sensors with low battery life and ones that are no longer functioning.
ITS600E activating tool can handle maximum of 20 MX-Sensors at the same time. (TS608 only programs 16 MX-Sensors.) ITS600 reset tool is designed with 4 options for program the MX-Sensors and users can choose the appropriate method to obtain the ID according to the actual situation of the original sensor.
Copy by OBD: If the IDs retrieved from sensor activation and those registered to the TPMS ECU are different, ITS600E TPMS scanner will program the sensor IDs retrieved from the ECU to the new MX-Sensors.
Copy by Activation: If the original sensor still can be activated, you can use the ITS600 activating tool to trigger it, obtain the original IDs, and then write them into the new MX-Sensors.
Manual Input: If the original sensor is completely broken or can’t be activated, you can find the old ID from the label, and manually input it to new MX-Sensors.
Auto Create: If the original sensor cannot be activated or the original sensor ID cannot be obtained, you can use the ITS600E TPMS scan tool to automatically create a new random ID to MX-Sensor.
Autel ITS600E= TPMS Tool + Diagnostic Scanner
ITS600E diagnostic scanner is specially designed with 4 commonly used diagnostic functions to provide quick access to the vehicle systems for various scheduled reset and maintenance tasks. ITS600 relearn tool innovates the design of configuring the diagnostic function on the tire pressure tool and performs Oil reset, EPB, BMS, and SAS Calibration.
Oil Reset: Reset the oil life system and turn off the oil light after replacing the oil or oil filter to start a new cycle.
EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.
BMS Reset: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information, and prevent the related control module from detecting false information.
SAS Calibration Reset: Calibrate the steering angle after replacing the steering angle position sensor and the mechanical parts of the steering system, etc. Stores the current steering wheel position as the straight-ahead position in the steering angle sensor and clear fault memory.

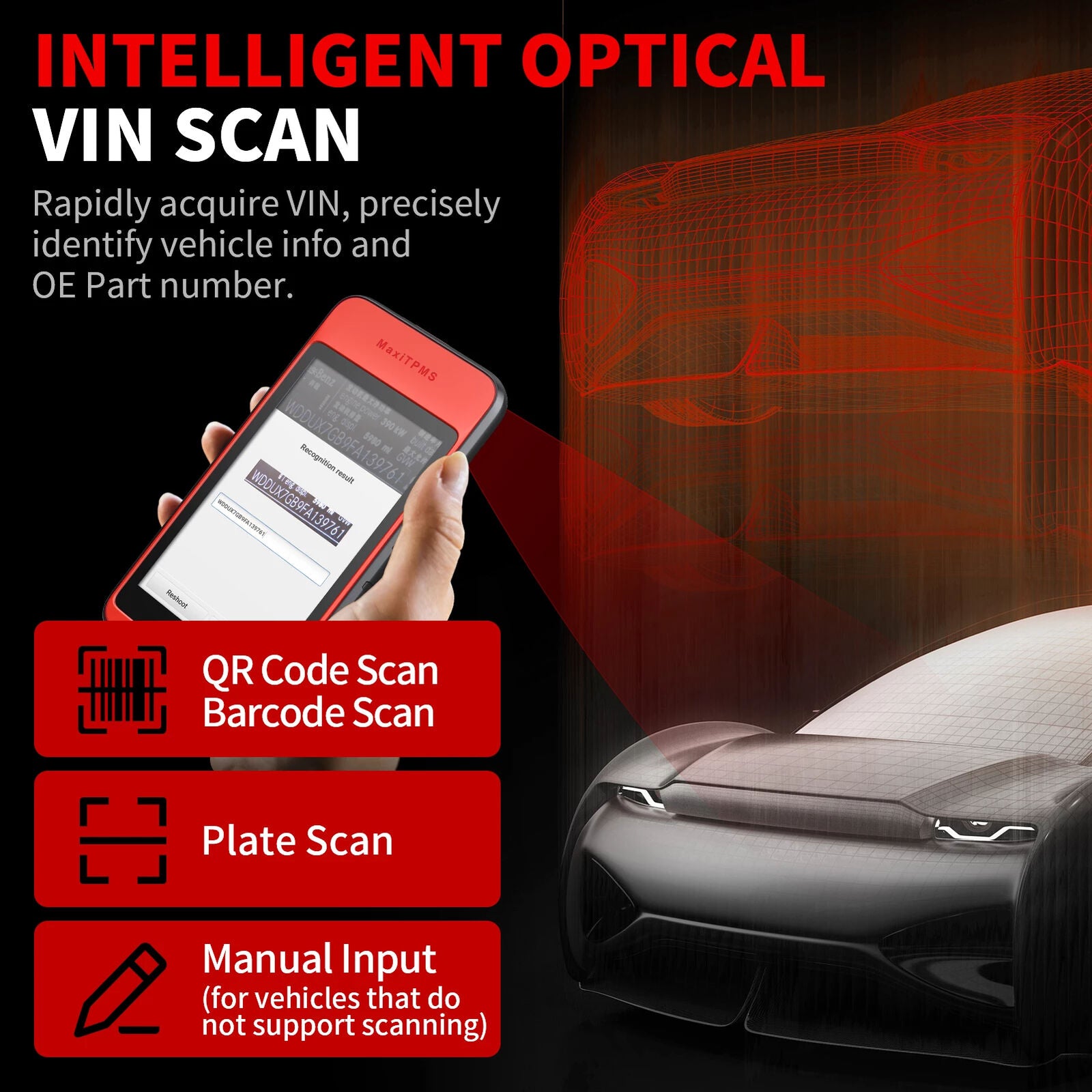

Quick Vehicle Identification
ITS600E TPMS tool couples with 3 quick and convenient methods available for acquiring VIN information to finish vehicle identification:
Auto VIN Detect, Scan License, and Scan VIN. This technology greatly reduces the diagnostic time and brings convenience for users. If you cannot find the VIN or the camera cannot successfully identify the VIN/license number, you can manually select vehicle make, model, and year to complete vehicle identification.
Auto VIN Detect: Automatically acquire vehicle information and identify the application electronically through the OBDII Diagnostic Port.
Scan License: Open the camera and scan the license number to enter the identification page, easy and useful.
Scan VIN: Scan the vehicle's VIN or Barcode/QR code directly to get information (vehicle make, model, year, etc.)
English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Russian, Italian, Japanese, Hungarian, Czech. (Please leave the S/N of machine to authorize the language you want after you receive it.)

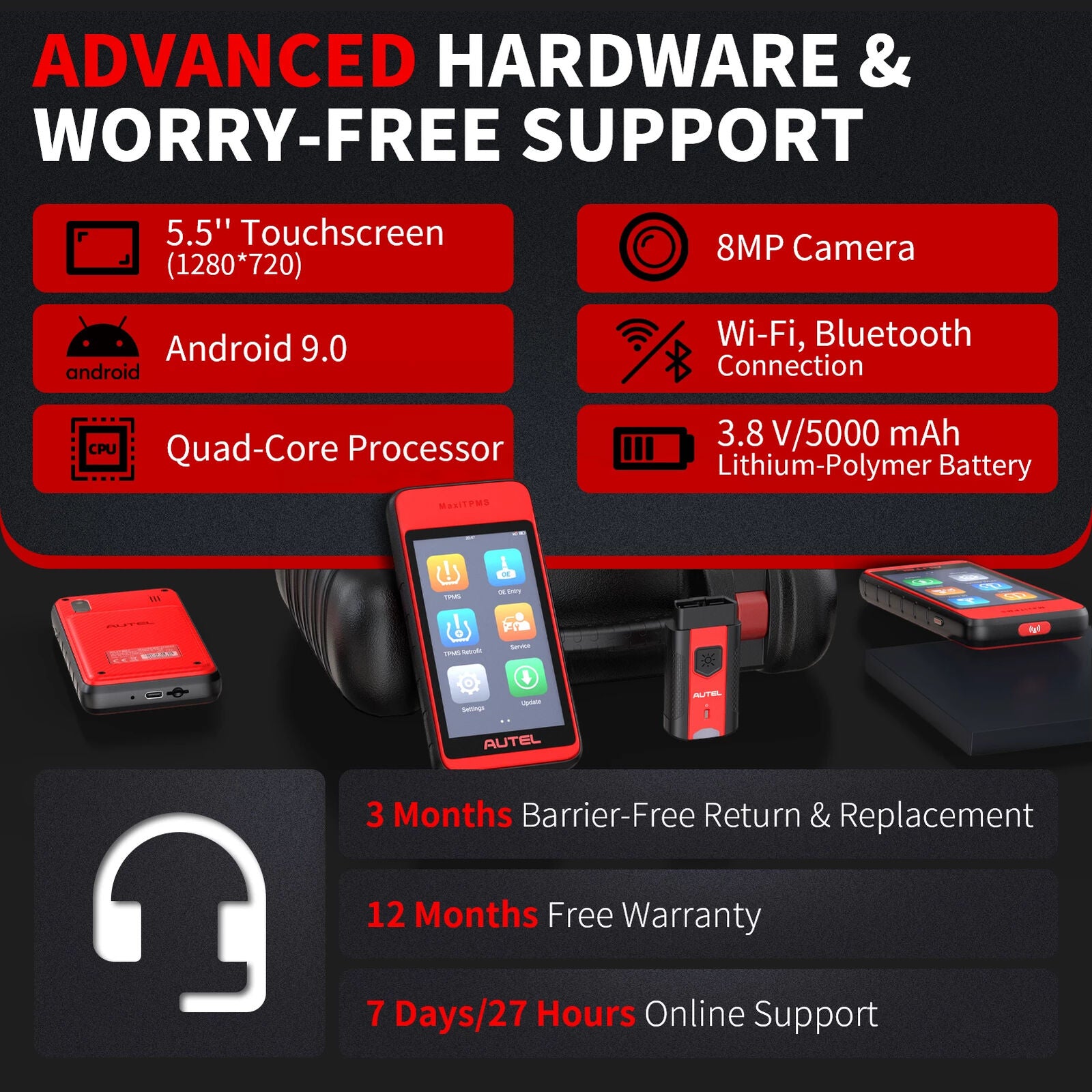

MaxiTPMS ITS600E Specifications:
Recommended Use:Indoor Operating System:Android™ 9.0 Processor:Quad-core processor (1.5 GHz) Memory:1GB RAM DDR4 & 64GB ROM Display:5.5-inch LCD capacitive touchscreen with 1280x720 resolution Connectivity:• Wi-Fi• USB 2.0, Type C• BT Sensors:Light sensor for brightness auto adjust Audio input/output:Input: N/AOutput: Beep Power and Battery:• 3.8 V/5000 mAh lithium-polymer battery• Charges via 5 V AC/DC power supply Battery Charging Input:5 V/2 A Power Consumption:600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V Operating Temp. -10 to 45°C(14 to 113°F) Storage Temp. -20 to 60°C (-4 to 140°F) Dimensions (W x H x D):183.0 mm (7.2'') x 89.0 mm (3.5'') x 22.0 mm (0.87'') Net Weight:368 g (0.8 lb.) Protocols:ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66
