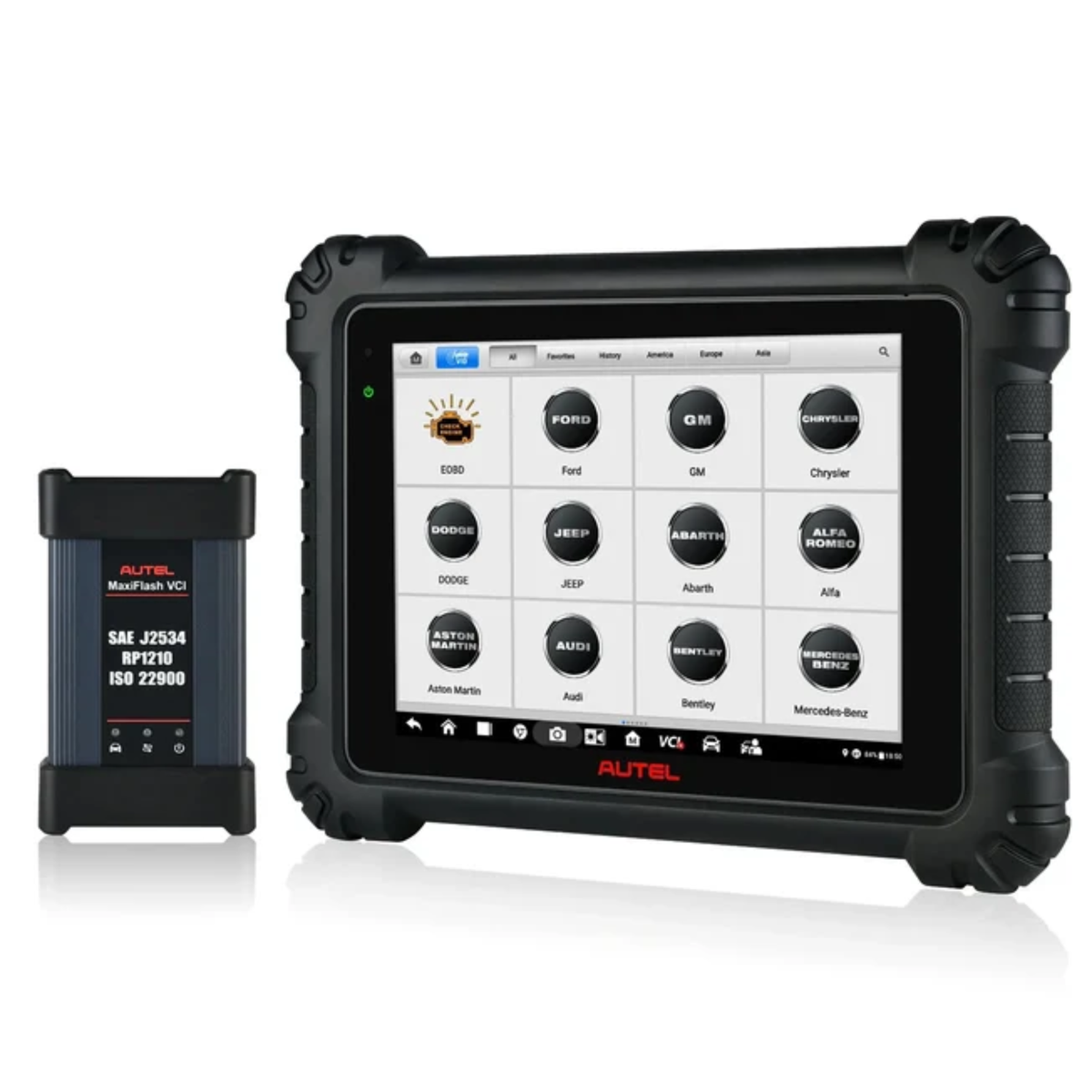

The Autel MaxiSYS MS909 is a next-generation professional automotive diagnostic scanner designed for workshops and advanced technicians who require OE-level diagnostics, ECU programming, and intelligent repair guidance. As a powerful upgrade comparable to flagship models like MS919, Ultra, and Elite II Pro, the MS909 scanner delivers high-end performance at a more cost-effective level, making it an ideal solution for expanding diagnostic capabilities and improving workshop efficiency.

Built with cutting-edge hardware and intelligent software, the MS909 integrates Motor TruSpeed Repair technology, Topology Mapping 2.0, advanced ECU programming, and full system diagnostics, ensuring fast, accurate, and reliable vehicle analysis across a wide range of modern vehicles up to 2026.

Motor TruSpeed Repair & Intelligent Diagnostic System

The Autel MS909 diagnostic tool introduces the advanced Motor TruSpeed Repair system, a powerful intelligent diagnostic solution designed to significantly enhance repair efficiency. This feature, similar to those found in premium models like MS919 and Ultra, provides deep diagnostic insights and guided repair workflows.

With Motor TruSpeed Repair, users gain access to:

• Technical Service Bulletins (TSB) for OEM fault solutions
• DTC Analysis with detailed fault definitions and causes
• Repair Assistant with prioritized diagnostic steps and completion tracking
• Repair Tips with structured procedures for fault resolution
• Relevant Case Studies for real-world repair references

This system can improve diagnostic and repair efficiency by up to 90%, making it an essential tool for professional technicians.
Note: This feature is optional and subscription-based, priced at approximately $650 per year, and is currently available for USA and Canada regions only.

Revolutionary Topology Module Mapping 2.0

The Topology Mapping 2.0 system in the Autel MS909 scanner transforms traditional diagnostics by providing a visual representation of vehicle communication networks. Instead of viewing faults in simple lists, technicians can analyze a color-coded topology structure showing the status of all ECU modules in real time.

This feature allows for:

• Faster identification of faulty modules
• Clear visualization of ECU communication
• Improved diagnostic accuracy
• Reduced troubleshooting time

Supported vehicle brands include Volkswagen, Audi, BMW, Ford, Jaguar, Land Rover, Chrysler, and Fiat, ensuring broad compatibility with modern vehicle systems.

OE-Level Full System Diagnostics & ECU Programming

The MS909 automotive diagnostic scanner delivers comprehensive OE-level diagnostics, allowing technicians to perform:

• Full system scans across all vehicle modules
• Read and clear diagnostic trouble codes (DTCs)
• Live data streaming and analysis
• Freeze frame data retrieval
• ECU information access

Equipped with an advanced J2534 ECU programming interface, the MS909 supports:

• ECU programming and reprogramming
• Software and firmware updates
• Fixing drivability and emission-related issues

With support for multiple communication standards including D-PDU, RP1210, CAN FD, DoIP, and J2534, the scanner ensures compatibility with up to 99% of vehicles through 2026, including major brands such as BMW, Mercedes-Benz, Ford, GM, Toyota, Nissan, Honda, Volkswagen, Porsche, Ferrari, Volvo, and more.

Bi-Directional Control & 3000+ Active Tests

The Autel MS909 bi-directional scan tool enables advanced active testing capabilities, allowing technicians to send commands directly to vehicle systems and components. This feature is essential for verifying repairs and diagnosing issues efficiently.

With 3000+ active tests, users can control and test components such as:

• Fuel pumps and injectors
• Radiator fans and cooling systems
• Throttle bodies and actuators
• Mirrors, windows, and lighting systems
• Horns, wipers, and interior electronics

This level of control provides precise fault isolation and faster troubleshooting, making it ideal for professional automotive repair environments.

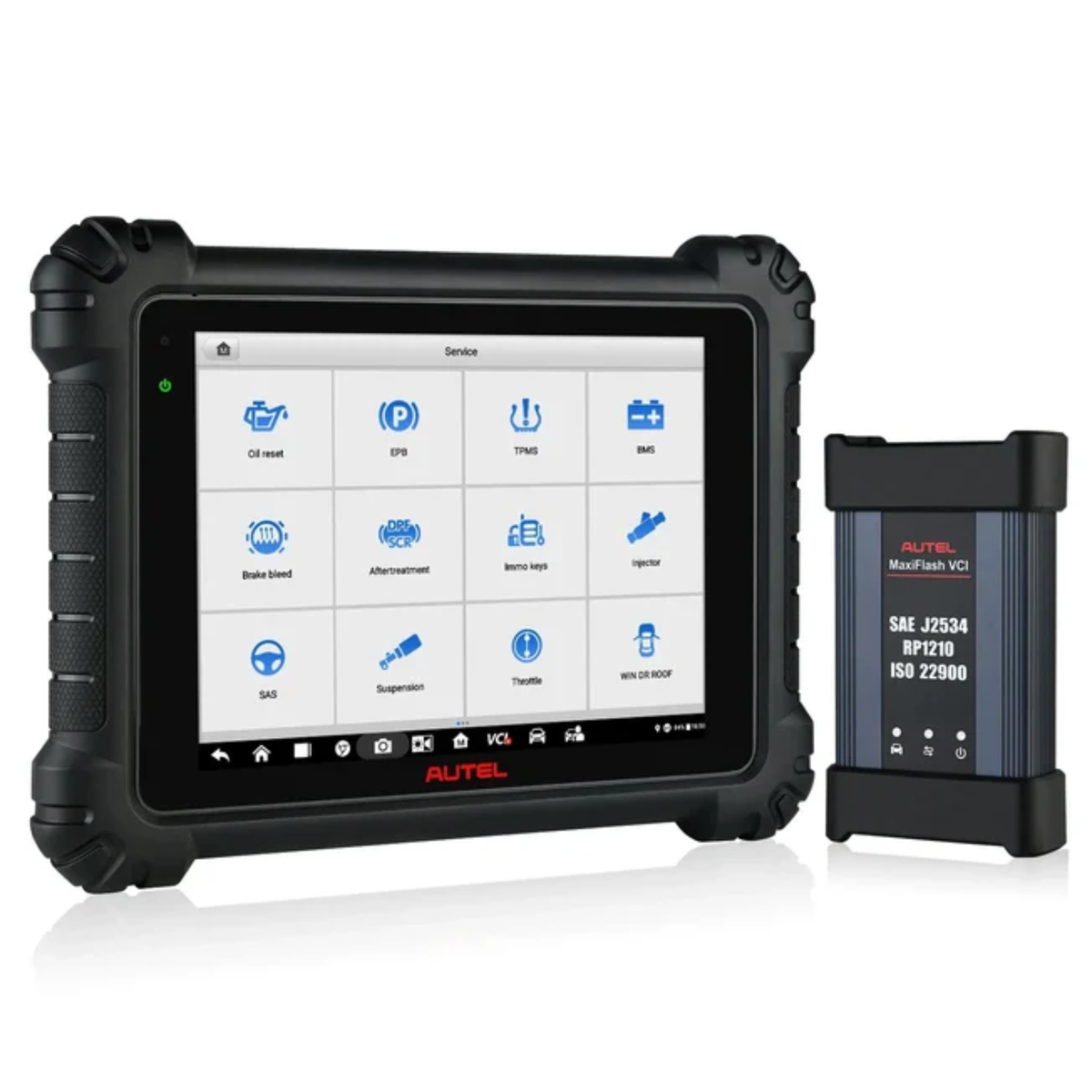

36+ Advanced Service Functions for Complete Maintenance

The MS909 diagnostic scanner includes 36+ advanced service functions, covering nearly all routine and complex maintenance needs. These services include:

• Oil Reset
• EPB (Electronic Parking Brake Reset)
• ABS Bleeding
• SAS (Steering Angle Sensor Calibration)
• TPMS Reset
• BMS (Battery Management System Reset)
• Injector Coding
• Throttle Relearn
• Headlamp Adjustment
• Seat Calibration
• Airbag Reset
• Cylinder Power Balance

These features provide a complete maintenance solution, reducing the need for multiple tools.

Advanced Protocol Support & Wide Vehicle Coverage

The Autel MaxiSYS MS909 supports the latest automotive communication protocols, including:

• CAN FD (for modern GM and newer vehicles)
• DoIP (Diagnostics over Internet Protocol)
• J2534 Pass-Thru Programming
• D-PDU and RP1210 protocols

This ensures compatibility with modern vehicles and complex electronic systems, eliminating the need for additional specialized tools.

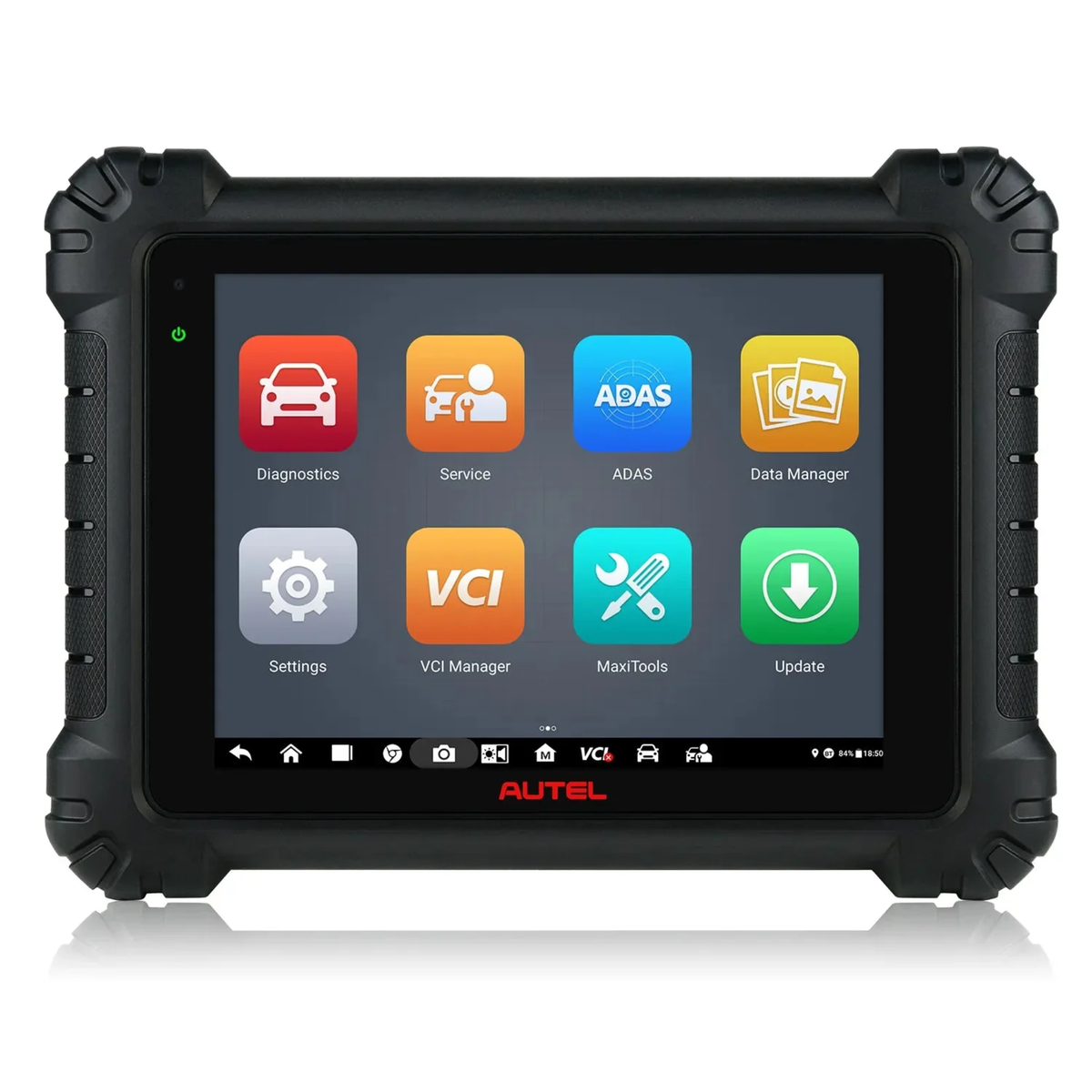

Powerful Hardware for High-Speed Diagnostics

The MS909 diagnostic tablet is built with premium hardware to ensure fast, stable, and efficient performance:

• 10-inch TFT-LCD touchscreen (1536 × 2048 resolution)
• Android 7.0 operating system
• Octa-core processor (2.3GHz + 1.7GHz)
• 128GB internal storage
• 15000mAh battery (up to 8 hours continuous use)
• 16MP rear camera + 5MP front camera
• Dual-band Wi-Fi for fast and stable connectivity

This hardware configuration guarantees smooth operation, faster diagnostics, and improved workflow efficiency.

2026 Newly Added Advanced Features

The latest version of the Autel MS909 scanner introduces several enhanced features to expand functionality:

• FCA Secure Gateway Access (AutoAuth) for 2018+ FCA vehicles (Chrysler, Dodge, Jeep, Fiat)
• Battery Testing Capability (requires BT506 battery tester)
• Remote Expert Support for advanced diagnostics (activation required)
• Cloud-Based Diagnostic Reports for data storage and sharing
• Wi-Fi Printing for instant report generation
• Pre-Scan and Post-Scan Reports for before-and-after diagnostics
• AutoVIN and License Plate Recognition for quick vehicle identification
• Endoscope Compatibility (MV108S/MV105S) for internal inspections
• EV Upgrade Support (MS909EV) for electric vehicle diagnostics (with additional purchase)
• Support for Tesla and McLaren diagnostics

These features make the MS909 a future-ready automotive diagnostic tool.

All-In-One Advanced Diagnostic Platform

The Autel MS909 scanner integrates the functionality of multiple Autel tools, making it a powerful upgrade over previous models such as:

MS908S Pro II, MK908P, Elite, Elite 2 PRO, MS906 Series, DS808K, MP808 Series

This consolidation allows technicians to perform comprehensive diagnostics, ECU programming, and intelligent repairs using a single device, eliminating the need for multiple tools.

2026 Newly Added High-End Functions

The latest 2026 version of Autel MS909 introduces a range of advanced capabilities designed for modern vehicles and workshop demands:

• Upgradeable to MS909EV (requires EVDiag Box for EV diagnostics)
• Support for McLaren and Tesla diagnostics
• Battery Testing functionality (requires BT506)
• Remote Expert support for advanced diagnostics assistance
• Compatibility with MV105 / MV108 videoscope
• Cloud-based report management system
• Auto VIN & License Plate Recognition (ScanVIN)
• Pre-scan & Post-scan diagnostic reports
• Wi-Fi printing functionality

These features make the MS909 automotive diagnostic tool highly adaptable for both conventional and modern vehicle systems.

MOTOR TruSpeed Repair – Intelligent Fault Solution System

The MOTOR TruSpeed Repair system delivers data-driven diagnostics and repair guidance, significantly improving workshop productivity.

Key components include:

• Service Bulletins (TSB): Access official OEM repair notices and updates
• DTC Analysis: Identify fault causes with detailed explanations and solutions
• Repair Assist: Prioritizes faults and recommends optimal repair sequence
• Repair Tips: Step-by-step troubleshooting guidance
• Relevant Case Database: Real-world repair examples for accurate diagnosis

This intelligent system uses cloud-based automotive data combined with real workshop cases, enabling technicians to diagnose and fix issues faster and more accurately.

Note: MOTOR TruSpeed Repair is optional and available primarily in the US and Canada.

Intelligent Topology Mapping 2.0 – Full System Visualization

The Topology Mapping 2.0 feature transforms diagnostics by visually displaying vehicle communication networks.

• Color-coded ECU status for quick fault identification
• Complete view of module communication structure
• Direct access to fault codes, live data, and functions
• Zoom and navigate through system modules easily

This advanced visualization significantly reduces diagnostic time compared to traditional list-based systems.

Supported brands include: BMW, Audi, Volkswagen, GM, Ford, Chrysler, Nissan, Honda, Toyota, Jaguar, Land Rover, Mercedes-Benz, Hyundai, Kia, Volvo, PSA (compatibility varies by model)

Advanced ECU Programming & Online Coding

The Autel MS909 ECU programming tool supports both online and J2534-based programming, making it essential for high-end automotive repair.

Capabilities include:

• Re-flashing ECU software to latest manufacturer versions
• Programming new or replacement ECUs
• Restoring vehicle performance and drivability
• Resolving issues such as power loss, fuel inefficiency, and fault codes

Online Programming (BMW & Mercedes-Benz):

• Update ECU software
• Reprogram adaptive data after repairs

J2534 Programming:

• Compatible with OEM software for multiple brands

ECU Coding:

• Update software configurations
• Adapt modules after replacement

36+ Advanced Maintenance & Service Functions

The Autel MS909 diagnostic scanner offers a wide range of maintenance and reset functions, continuously expanding with updates:

• Oil Reset – Reset oil service interval
• ABS Bleeding – Restore brake system performance
• EPB Reset – Electronic parking brake calibration
• SAS Calibration – Steering angle sensor reset
• BMS Reset – Battery management system reset
• Injector Coding – Program new injectors
• TPMS Reset – Tire pressure monitoring reset
• Sunroof Initialization – Relearn sunroof system
• AFS Headlamp Reset – Adaptive lighting calibration
• Gearbox Reset – Transmission relearn

…and many more depending on vehicle compatibility.

Full Bi-Directional Control (Active Tests)

The MS909 bi-directional control scanner allows technicians to actively test vehicle components by sending commands directly to ECUs.

Examples include:

• Activate fuel pump
• Control radiator fan
• Operate A/C system
• Test solenoids and valves
• Control lights, windows, mirrors, and wipers

This functionality ensures accurate fault isolation and efficient repair verification.

VAG Guided Functions – Step-by-Step Diagnostics

For Volkswagen Group vehicles (VW, Audi, Skoda, Seat), the VAG Guided Functions provide:

• On-screen instructions for complex procedures
• Simplified diagnostic workflows
• Reduced reliance on manual expertise

This makes the MS909 scanner suitable for both experienced technicians and beginners.

OE-Level Full System Diagnostics

The Autel MS909 professional scanner delivers OE-level diagnostics across all vehicle systems:

• Read and clear diagnostic trouble codes (DTCs)
• View real-time live data streams
• Perform active tests and special functions
• Retrieve ECU information

Supports diagnostics for systems including:

ECM, TCM, ABS, SRS, BCM, TPMS, SAS, BMS, fuel system, lighting system, HVAC system

Coverage extends to 97% of vehicles up to 2026, supporting over 200,000 models globally.

VAG Guided Functions – Step-by-Step Diagnostics

For Volkswagen Group vehicles (VW, Audi, Skoda, Seat), the VAG Guided Functions provide:

• On-screen instructions for complex procedures
• Simplified diagnostic workflows
• Reduced reliance on manual expertise

This makes the MS909 scanner suitable for both experienced technicians and beginners.

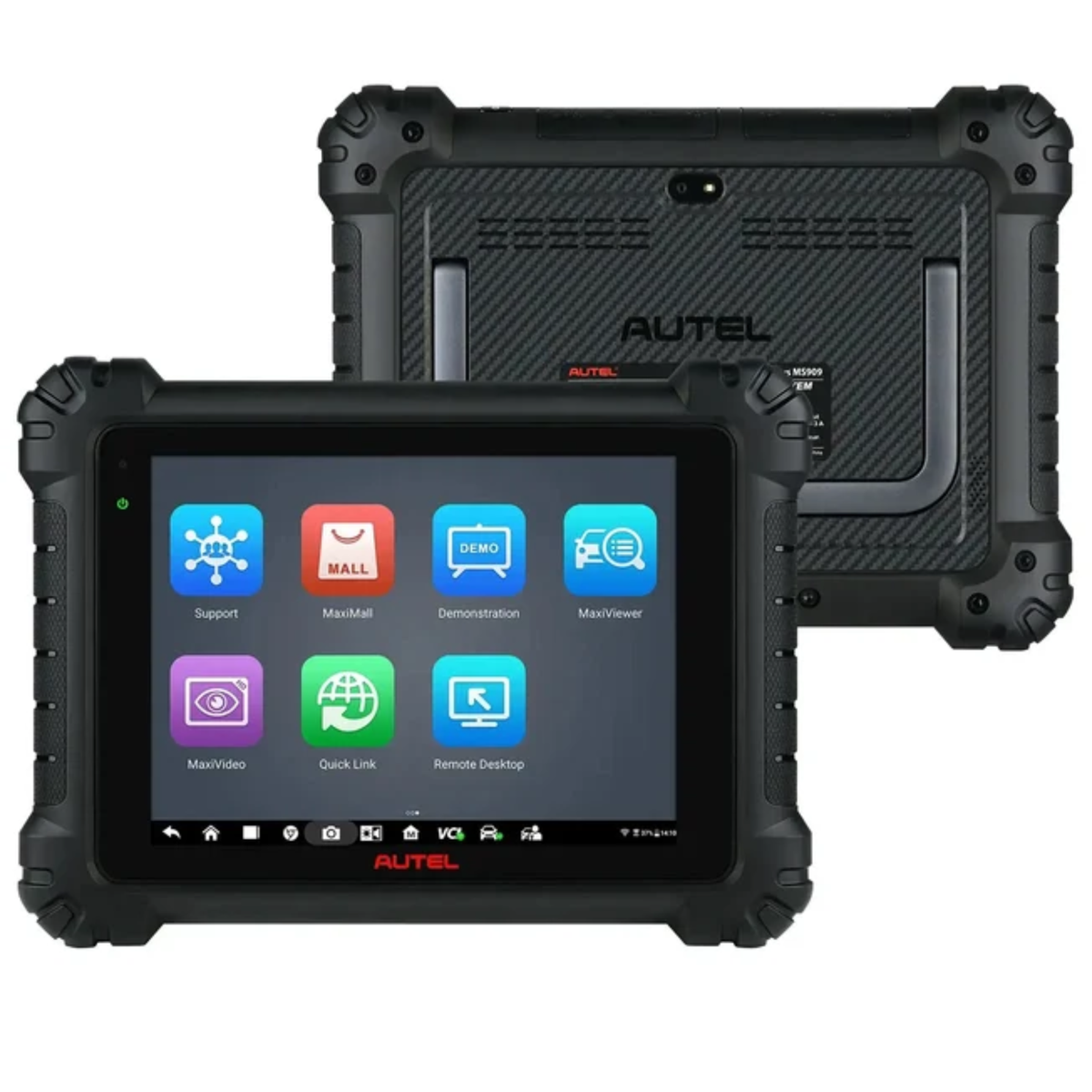

Advanced Hardware – Same Level as MS919

The Autel MS909 hardware configuration matches high-end tools like the MS919, ensuring fast and stable performance:

• Samsung Exynos 8895V Octa-core processor (2.3GHz + 1.7GHz)
• Android 7.0 operating system
• 9.7-inch TFT-LCD touchscreen (1536 × 2048 resolution)
• 4GB RAM + 128GB storage
• 15000mAh battery (up to 8 hours continuous use)
• Dual-band Wi-Fi (2.4GHz & 5GHz)
• 16MP rear + 5MP front cameras

The rugged design is oil-resistant and durable, suitable for workshop environments.

MaxiFlash VCI – Advanced Communication Interface

The MaxiFlash VCI supports the latest automotive communication protocols:

• CAN FD – For newer GM and modern vehicles
• DoIP – For BMW, Volvo, Jaguar, Land Rover
• D-PDU, J2534, RP1210 – OEM-level communication standards

This ensures compatibility with latest vehicle architectures and advanced diagnostics.

Extended Professional Functions

Additional tools expand the MS909’s diagnostic capabilities:

• Videoscope Support (MV105S / MV108S)
  Inspect hard-to-reach areas like engine cylinders and internal components
• Battery Testing (BT506 required)
  Perform cranking, charging, and health tests
• FCA AutoAuth Support
  Access secure gateway modules on 2018+ FCA vehicles (Chrysler, Jeep, Dodge, Fiat)

Summary – Why Choose Autel MaxiSys MS909

The Autel MaxiSys MS909 automotive diagnostic scanner stands out as a premium workshop solution combining:

• Intelligent diagnostics with MOTOR TruSpeed Repair
• Advanced ECU programming & coding
• Full bi-directional control & active testing
• Topology mapping for faster fault detection
• Extensive vehicle coverage up to 2026
• High-end hardware performance matching MS919

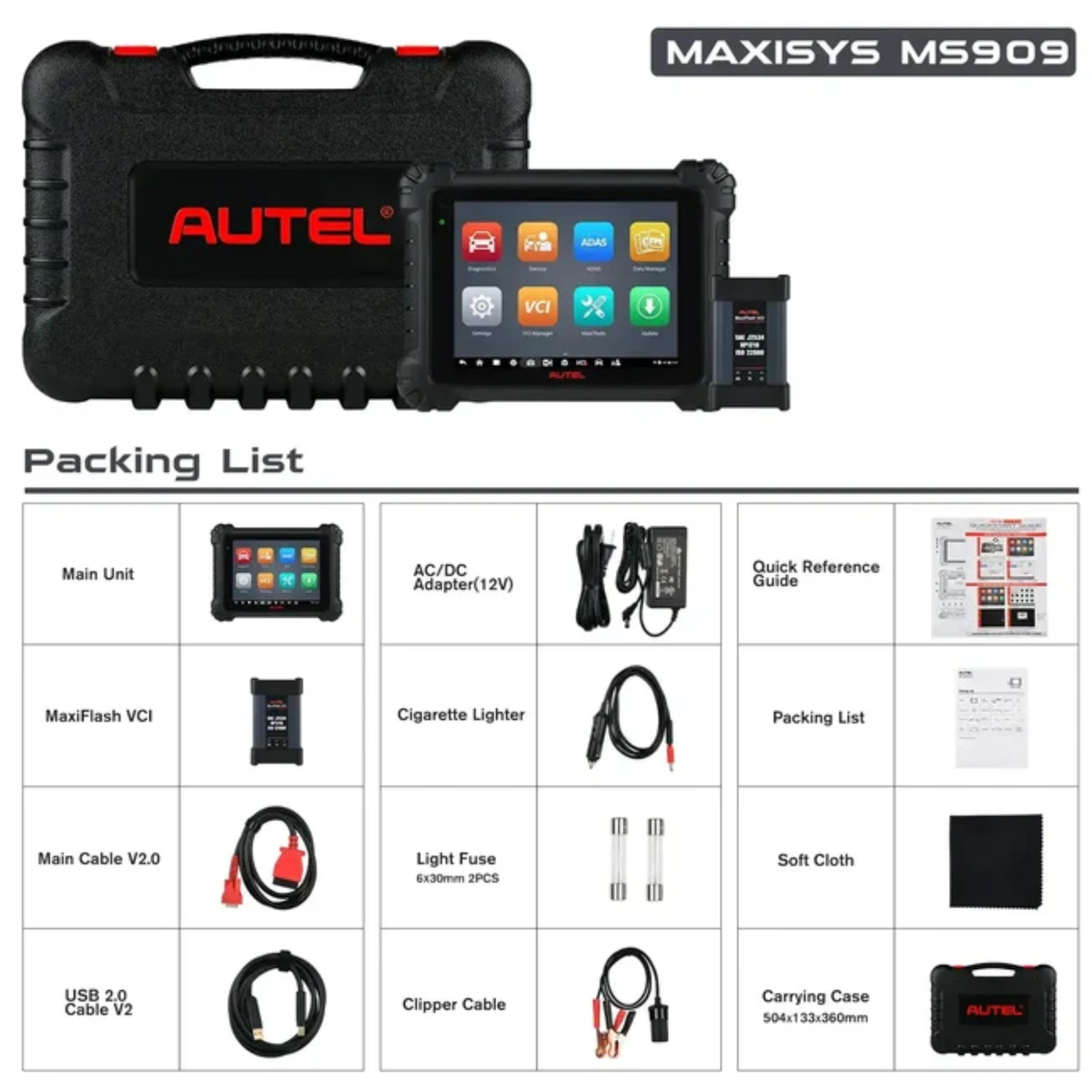

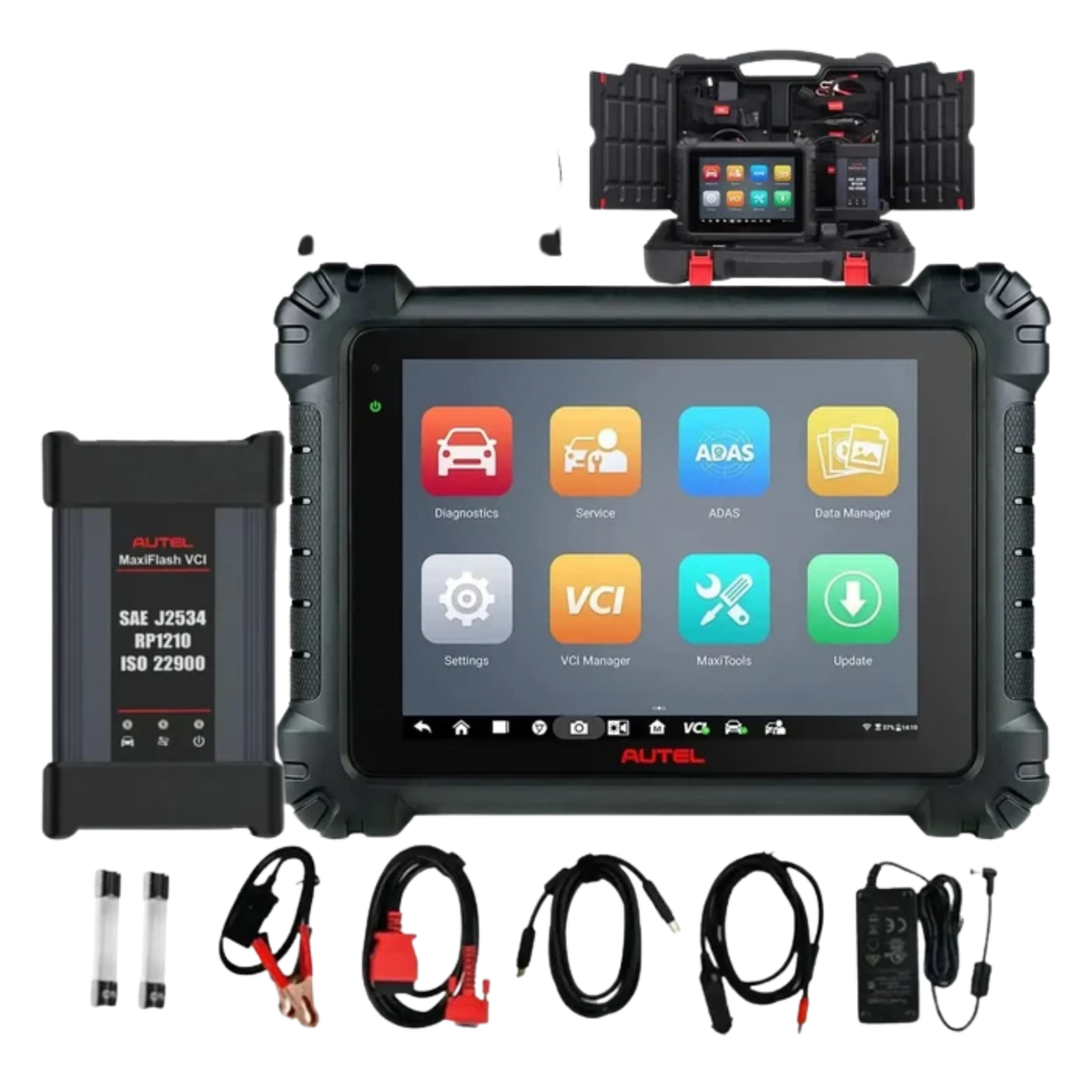

MaxiSYS MS909 Package Content:

• 1x MS909 Main Unit
• 1x MaxiFlash VCI
• 1x Main Cable V2.0
• 1x USB 2.0 Cable V2
• 1x AC/DC Adapter(12V)
• 1x Cigarette Lighter
• 2x Light Fuse 6x30mm
• 1x Clipper Cable
• 1x Quick Reference Guide
• 1x Packing List
• 1x Soft Cloth
• 1x Carrying Case 504 x 133 x 360 mm

• Question: What functionalities does the Autel Scanner MaxiSys MS909 offer?

  Answer: The Autel Scanner MaxiSys MS909 is equipped with advanced diagnostic capabilities suitable for automotive professionals. It provides comprehensive vehicle coverage, including reading and clearing trouble codes, advanced functions like oil reset, TPMS, and EPB, along with TSB (Technical Service Bulletins) access. Its Topology 2.0 feature offers a visual layout of vehicle systems, simplifying diagnostic processes. For instance, if you're experiencing multiple warning lights, the MS909 can efficiently identify the root cause across various control units.
• Question: What is the significance of the TruSpeed feature?

  Answer: The TruSpeed feature on the MaxiSys MS909 is designed to enhance the accuracy of vehicle diagnostics by providing real-time data streaming. This function allows technicians to analyze vehicle performance parameters dynamically, ensuring precise troubleshooting. For example, if you're diagnosing an engine issue, TruSpeed can help you monitor sensor data while operating the vehicle, leading to quicker and more informed repairs.
• Question: How does the Autel MS909 compare to previous models?

  Answer: The Autel MS909 boasts several enhanced features over its predecessors like MSUltra and MS908S PRO. Notably, it offers improved diagnostic speed and functionality, along with a more user-friendly interface. The integration of Topology 2.0 and access to an extensive database of TSB sets it apart, enabling more efficient vehicle analysis without compromise. This makes it ideal for busy workshops where quick turnarounds are essential, allowing mechanics to spend less time diagnosing and more time repairing.
• Question: Is the Autel Scanner MS909 compatible with all vehicle brands?

  Answer: Yes, the Autel Scanner MS909 is compatible with a wide range of vehicle brands, covering both domestic and international models. It supports various communication protocols, ensuring effective diagnostics across multiple platforms. This versatility is particularly valuable in shops that service diverse vehicles; technicians can use the same tool for many makes and models, saving time and resources. Just ensure your vehicle is within the specified year range to optimize its performance.
• Question: Can the MS909 perform advanced functions like programming or coding?

  Answer: The Autel Scanner MS909 does support certain advanced functions, including programming and coding for specific vehicle makes. However, the level of functionality may vary by manufacturer. This is particularly useful for tasks like key programming or software updates on modules, which are essential after component replacements. For example, if you install a new BCM (Body Control Module), programming it with the MS909 ensures proper vehicle operation with all functions integrated seamlessly.
• Question: Does the MS909 come with an extensive online support and update service?

  Answer: Yes, the Autel Scanner MaxiSys MS909 includes access to regular updates and a robust online support system. This commitment ensures that users can benefit from the latest diagnostic capabilities and vehicle coverage enhancements. Being able to update the scanner helps maintain its relevance given the continuous changes in vehicle technology. Users can easily manage software updates via Wi-Fi, enhancing the tool's longevity and utility in the rapidly evolving automotive landscape.
• Question: What type of users will benefit the most from the Autel MS909?

  Answer: The Autel Scanner MS909 is designed primarily for automotive professionals, including mechanics, technicians, and automotive enthusiast DIYers. Its broad feature set and advanced capabilities cater to those needing reliable and efficient diagnostics. Whether you're running a busy garage or performing personal vehicle maintenance, its quick access to error codes and service functions simplifies the process. It’s an invaluable tool for ensuring that vehicles are serviced correctly and efficiently, leading to happy customers and smoother operations.
• Question: What is included in the package with the Autel MS909?

  Answer: The Autel Scanner MaxiSys MS909 package typically includes the main diagnostic tablet, a set of diagnostic connectors, an AC charger, and a user manual. Additional accessories might include carrying cases or OBD-II adapters, depending on the retailer. This comprehensive package ensures users have everything needed to start diagnosing vehicles immediately, providing a practical, ready-to-use solution right out of the box.
• Question: How user-friendly is the Autel MS909 for newcomers in the automotive field?

  Answer: The Autel MS909 is built with user-friendliness in mind, featuring a responsive touchscreen and intuitive interface. Tutorials and guided menus assist newcomers in navigating its various features. For individuals new to automotive diagnostics, the tool's clear layout of functions and accessible support resources can facilitate learning. Even if you're unfamiliar with diagnostic tools, the comprehensive instructions provided will help you gain confidence in using the device effectively.
• Question: Where can I buy the Autel Scanner MaxiSys MS909?

  Answer: You can buy the Autel Scanner MaxiSys MS909 from Ubuy. They offer a straightforward purchasing process with a variety of shipping options across different regions. Ubuy ensures that you can easily access this advanced diagnostic tool, allowing for quick acquisition and support both during and after purchase.
