AUTEL MaxiSYS MS906TS Car Diagnostic Tool - Auto Lines Australia


AUTEL MaxiSYS MS906TS Car Diagnostic Tool - 2 YEARS FREE UPDATE


As the latest addition to the MaxiSys product line of advanced wireless diagnostic devices , MaxiSys MS906TS is built on the Android operating system, and has the best possible coverage of OE-level diagnostics and TPMS integration. Taking the advantage of the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15). MaxiSys MS906TS has an 8” capacitive HD touch screen and long-distance wireless communication. MaxiSys MS906TS efficiently offers comprehensive vehicle diagnostics and analysis together with universal TPMS solutions.

Autel MS906 VS MS906TS VS MS906BT BS MS908

MS906-MS906TS-MS906BT-MS908 Diagnostic System Comparison

AUTEL MaxiSys MS906TS Features

1.Extraordinarily powerful Samsung Exynos Hexa-core processor
2.Integrated TPMS antenna module for performing comprehensive TPMS service
3.Extensive vehicle coverage for more than 80 US, Asian and European makes and models
4.Complete functions including codes, live data, active test, ECU information, adaptation, matching, coding etc.
5.Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
6.Dedicated services section - oil service reset, TPMS relearn, EPB, ABS/SRS, SAS
7.Internal reliable 32GB SSD for better performance
8.Built-in 8-megapixel rear camera with autofocus and flashlight
9.Uniquely integrated TPMS service application designed for triggering known OEM TPMS sensors, programming Autel MX-Sensor and performing TPMS sensor relearn procedure
10.Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
11.8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
12.USB, audio and auxiliary ports make it easy to connect accessories
13.Open source Android Operating System for fast boot-up and multitasking
14.Easy and intuitive navigation makes finding what you need simple and fast
15.Smart AutoVIN technology for identifying vehicle easily
16.Automatic system and software updates with real-time push message notifications via internet
17.Instant remote control tech support anytime, anywhere
18.Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
19.One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
20.Enhanced wireless connectivity between the display tablet and VCI device allows greater mobility and ease at work
21.Convenient data management system for managing internal program applications and reviewing data
22.Includes 1 year warranty / 2 year FREE software updates

AUTEL MaxiSys MS906TS Specifications

Operating System: Android™ 4.4.2, KitKat
Processor: Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory: 2 GB RAM & 32 GB ROM
Display: 8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity: Wi-Fi (802.11 b/g/n), USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a, SD Card (support up to 32 GB)
Camera (rear): Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage: 12 V (9-35 V)
Power Consumption: 5 W
Operating Temperature: -10 to 55°C (14 to 131°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Housing: Rubberized outer protection and rugged internal housing
Dimensions (W x H x D): 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight: NW: 1.10 kg (2.42 lb.)

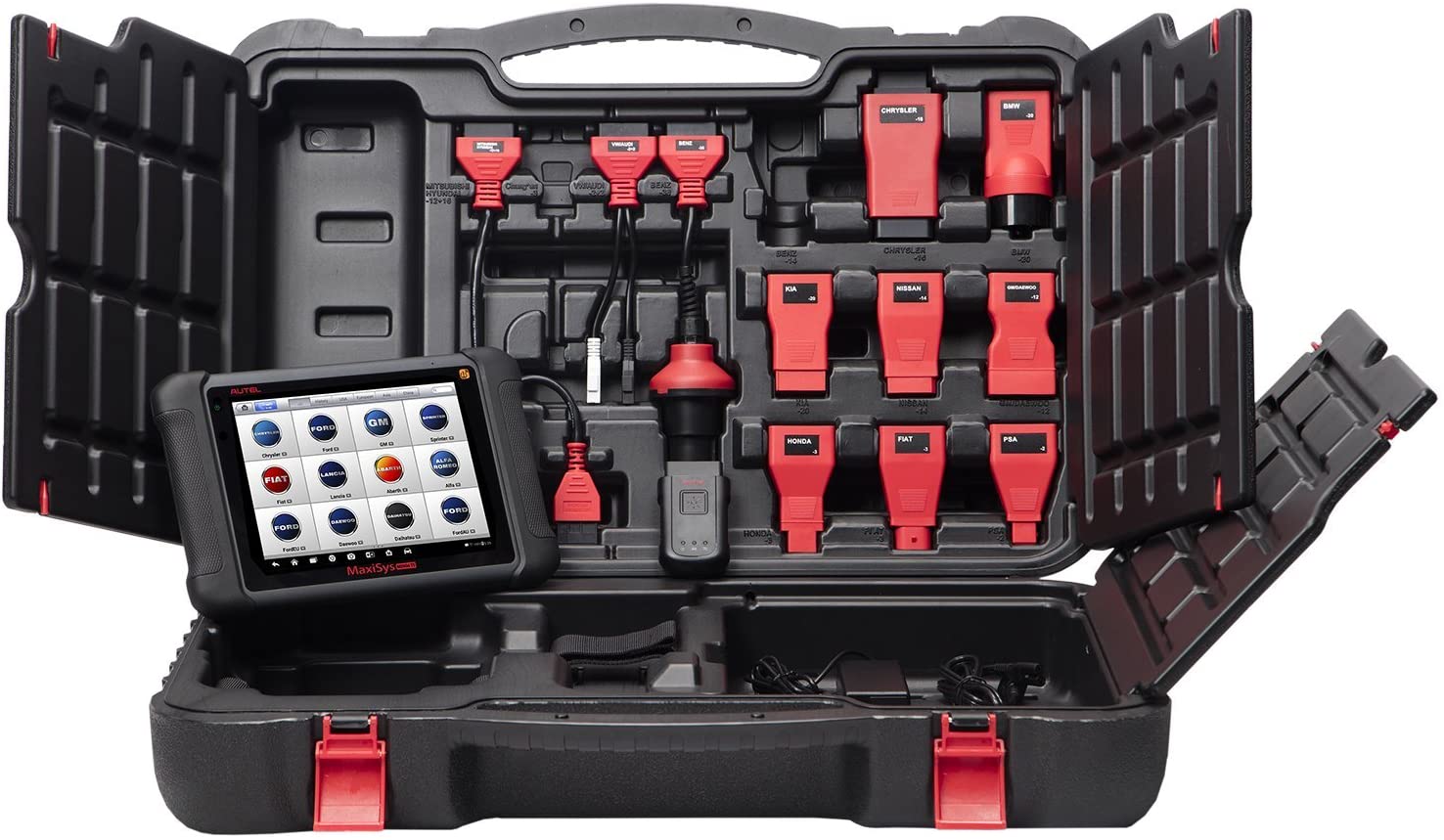

AUTEL MaxiSys MS906TS Package List

    AC/DC Adapter (12V)
    Adapter for Benz-14 (Europe Only)
    Adapter for Chrysler-16 (America Only)
    User Manual
    Carrying Case
    MaxiVCI V100
    Quick Reference Guide
    Lighter Fuse
    Adapter for GM/Daewoo-12
    Adapter for BMW-20
    Adapter for Benz-38
    Adapter for Kia-20
    Adapter for Mitsubishi/Hyundai-12+16
    Adapter for Nissan-14
    Adapter for Honda-3
    Cigarette Lighter
    Adapter for VW/AUDI-2+2
    Soft Cloth
    Packing List
    Mini USB Cable
