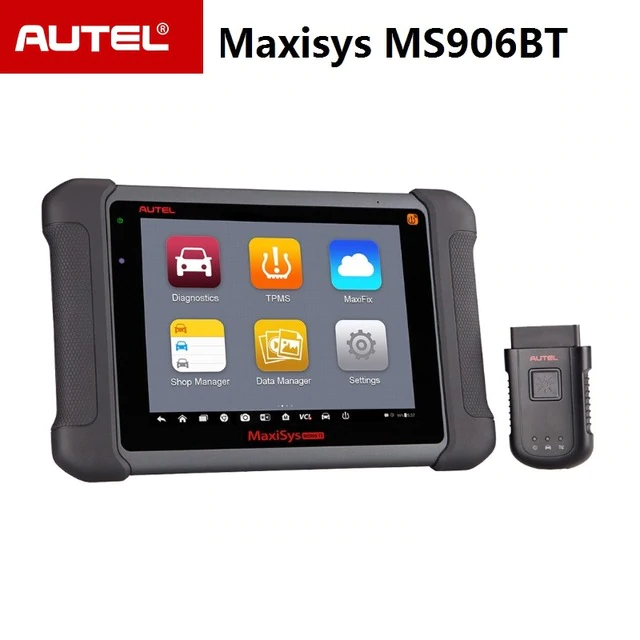

Autel MaxiSys MS906BT OBD2 Bluetooth Auto Diagnostic Scanner Tool ECU Coding AU

PRODUCT HIGHLIGHTS

Autel MaxiSys MS906BT Auto Diagnostic Scanner Wireless/Advanced/Comprehensive Scanner Tool with WIFI for OBDII & ECU Coding etc.



MaxiSys MS906BT is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8" capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906BT efficiently provides comprehensive vehicle diagnostics and analysis.



Product Features



    Extraordinarily powerful Samsung Exynos Hexa-core processor

    8.0" 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
    Internal reliable 32GB SSD for better performance

    Built-in 8-megapixel rear camera with autofocus and flashlight

    802.11b/g/n Wi-Fi to access your favorite web resources

    Unique ergonomic design with rubberized outer protection and a rugged internal housing

    Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation

    USB, audio and auxiliary ports make it easy to connect accessories

    Open source Android Operating System for fast boot-up and multitasking

    Easy and intuitive navigation makes finding what you need simple and fast

    The most extensive complete system coverage for more than 80 US, Asian and European makes and models

    Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding

    Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.

    Smart AutoVIN technology for identifying vehicle easily

    Automatic system and software updates with real-time push message notifications via internet

    Instant remote control tech support anytime, anywhere

    Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes

    Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors

    One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

    Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work

    Convenient data management system for managing internal program applications and reviewing data



Specifications



Operating System   Android 4.4.2, KitKat
Processor   Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory   2 GB RAM & 32 GB ROM
Display   8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity   Wi-Fi (802.11 b/g/n), USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a, SD Card (support up to 32 GB)
Camera (rear)   Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors   Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output   Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery   10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage   12 V (9-35 V)
Power Consumption   5 W
Operating Temperature   -10 to 55°C (14 to 131°F)
Storage Temperature   -20 to 70°C (-4 to 158°F)
Dimensions (W x H x D)   270.8 mm (10.0") x 176.0 mm (6.9") x 36.0 mm (1.4")
Weight   NW: 1.05 kg (2.3lb.)
