Autel MaxiIM IM608 PRO IMMO Programming Tool Bundle with XP400 APB112 & GBOX2

2 sold in last 8 hours
In stock
$3,883.52 $3,709.43
Title *
$3,709.43
customers are viewing this product
Autel MaxiIM IM608 PRO - Auto Lines Australia

PRODUCT HIGHLIGHTS

IM608PRO

Autel IM608Pro+IMKPA +APB112 +GBOX2

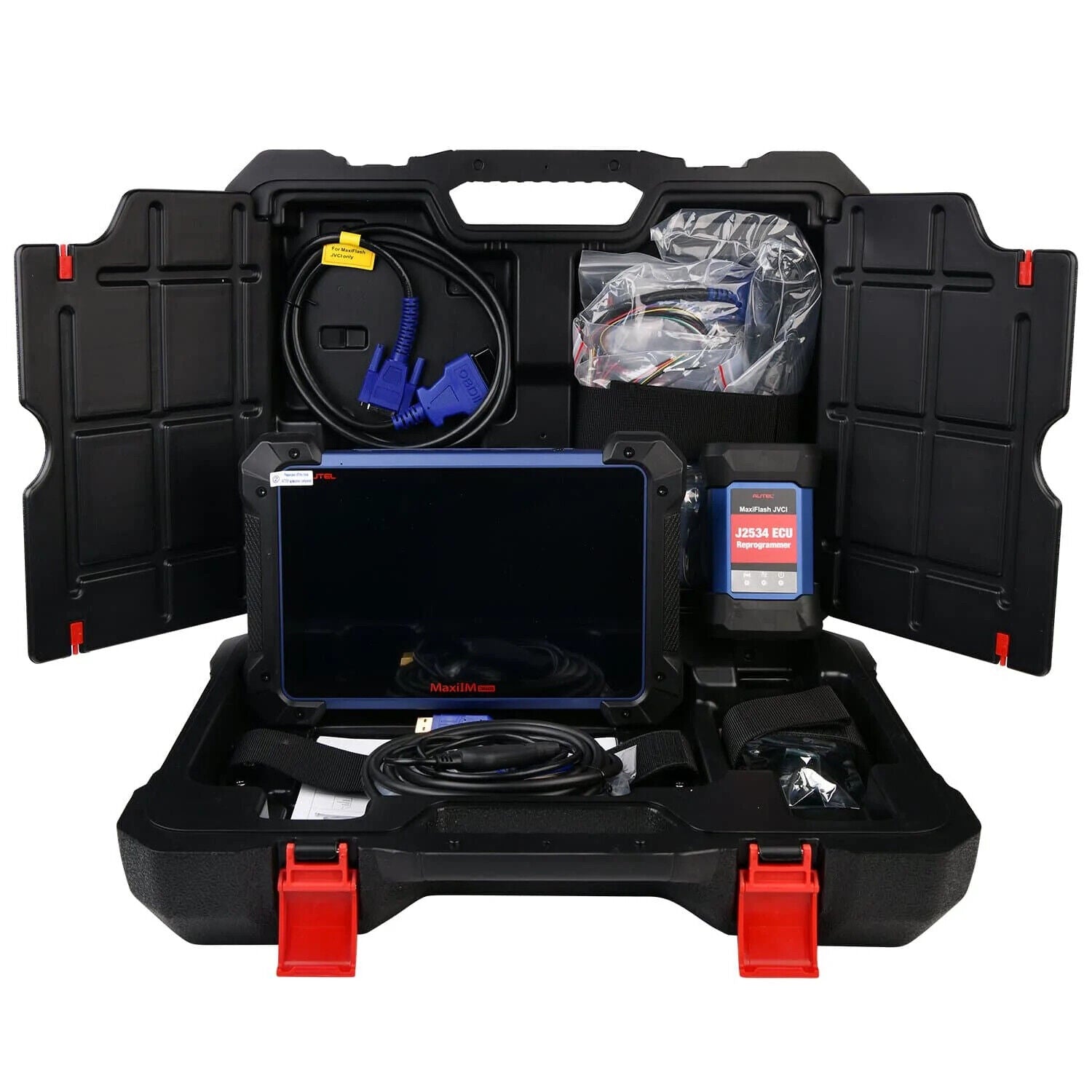

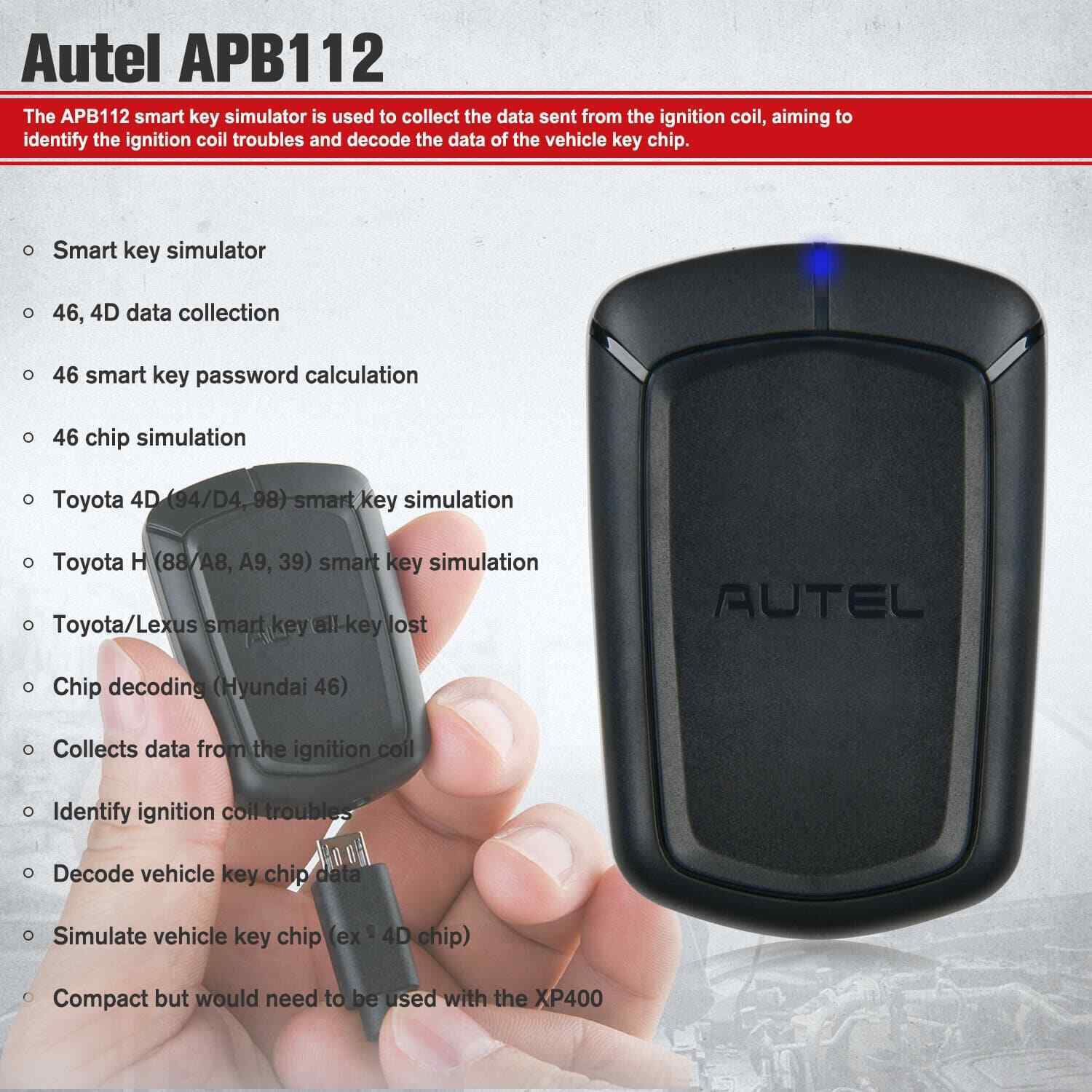

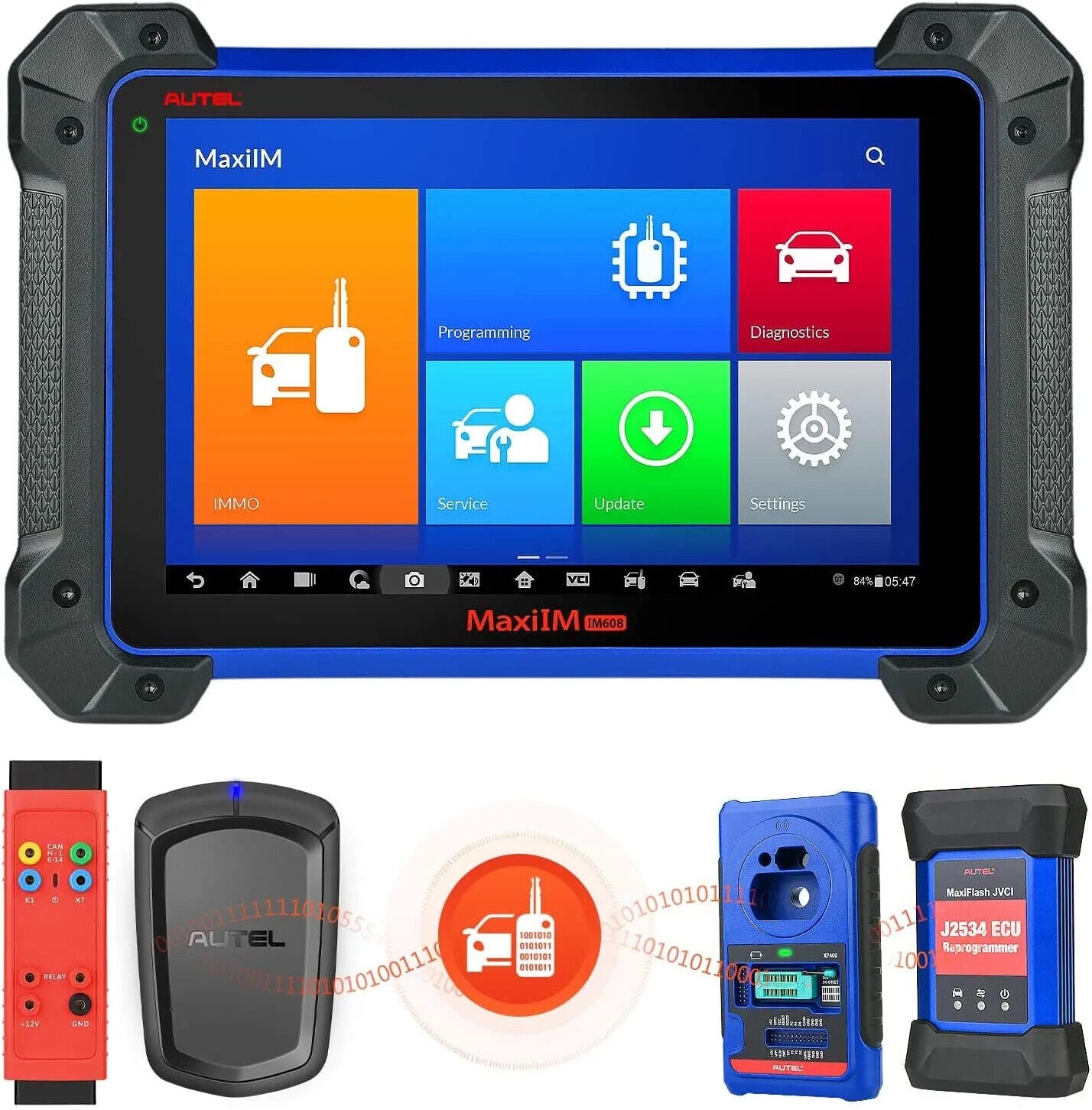

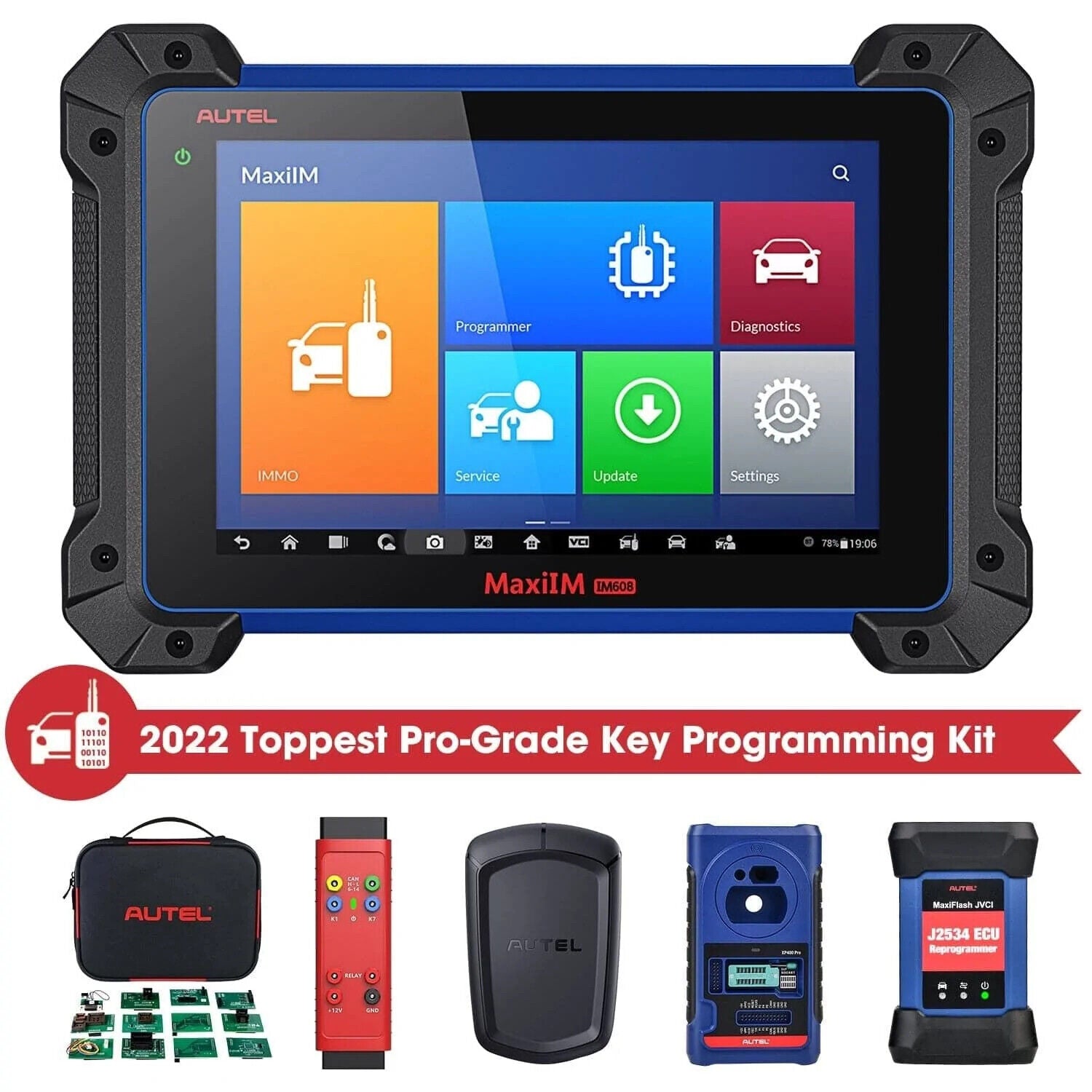

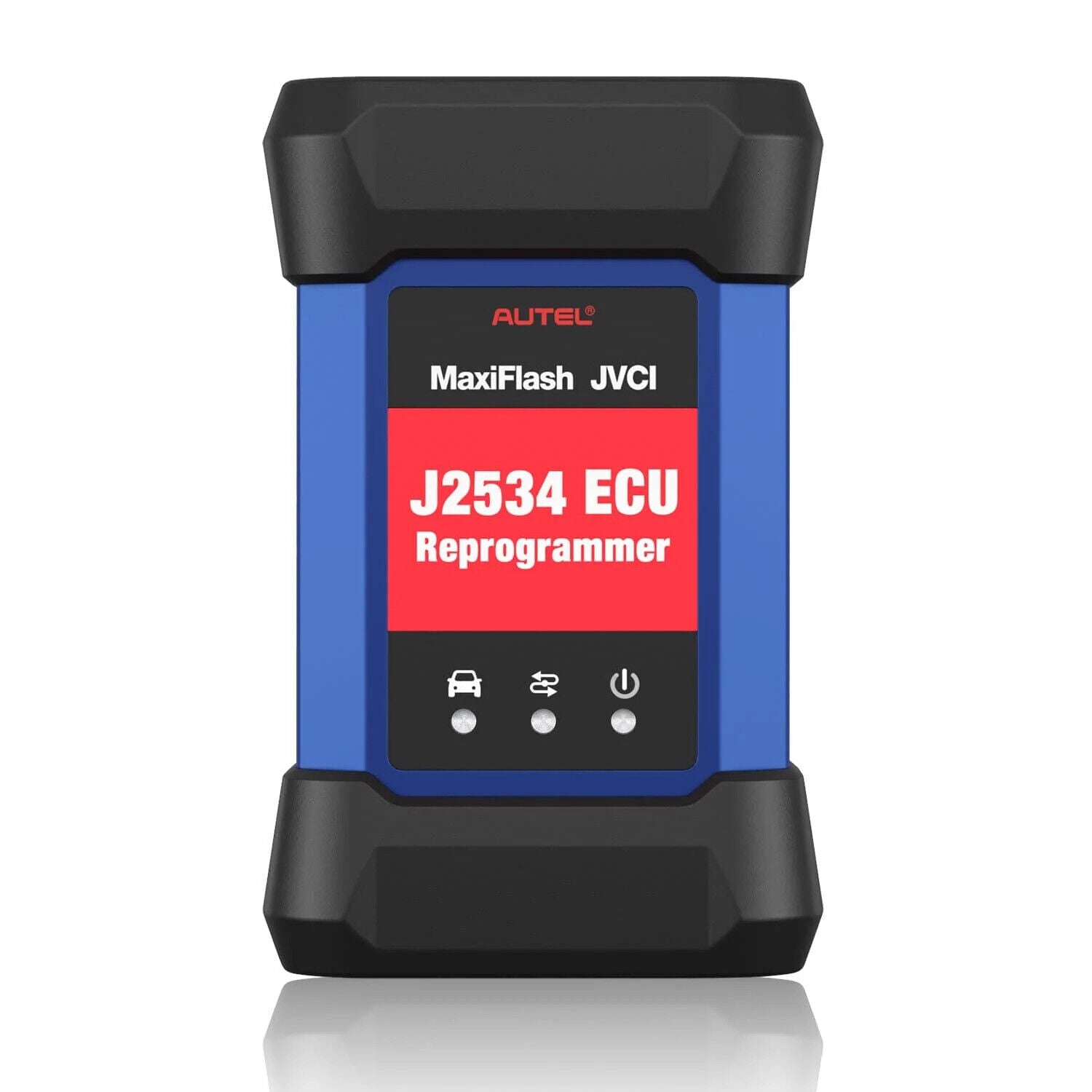

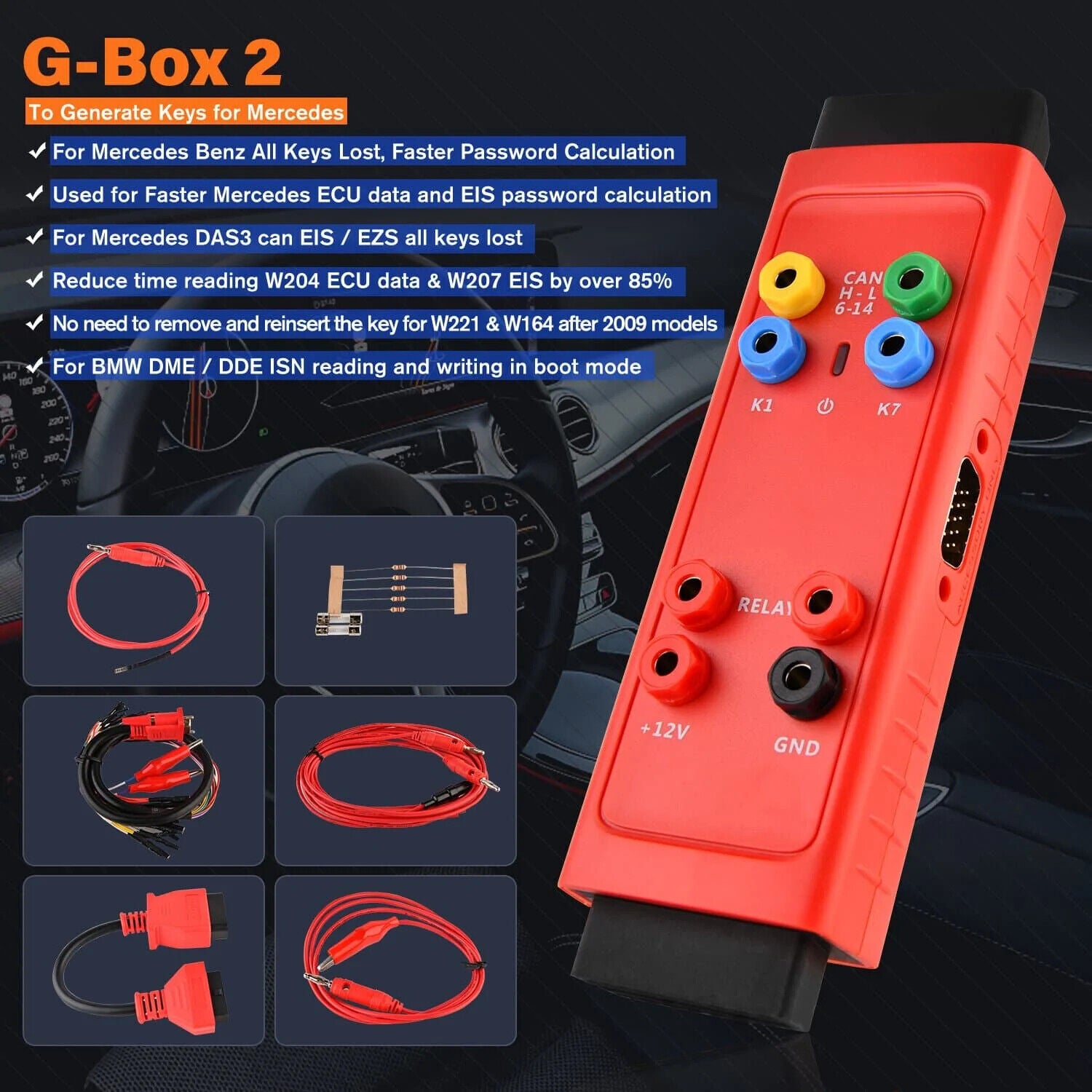

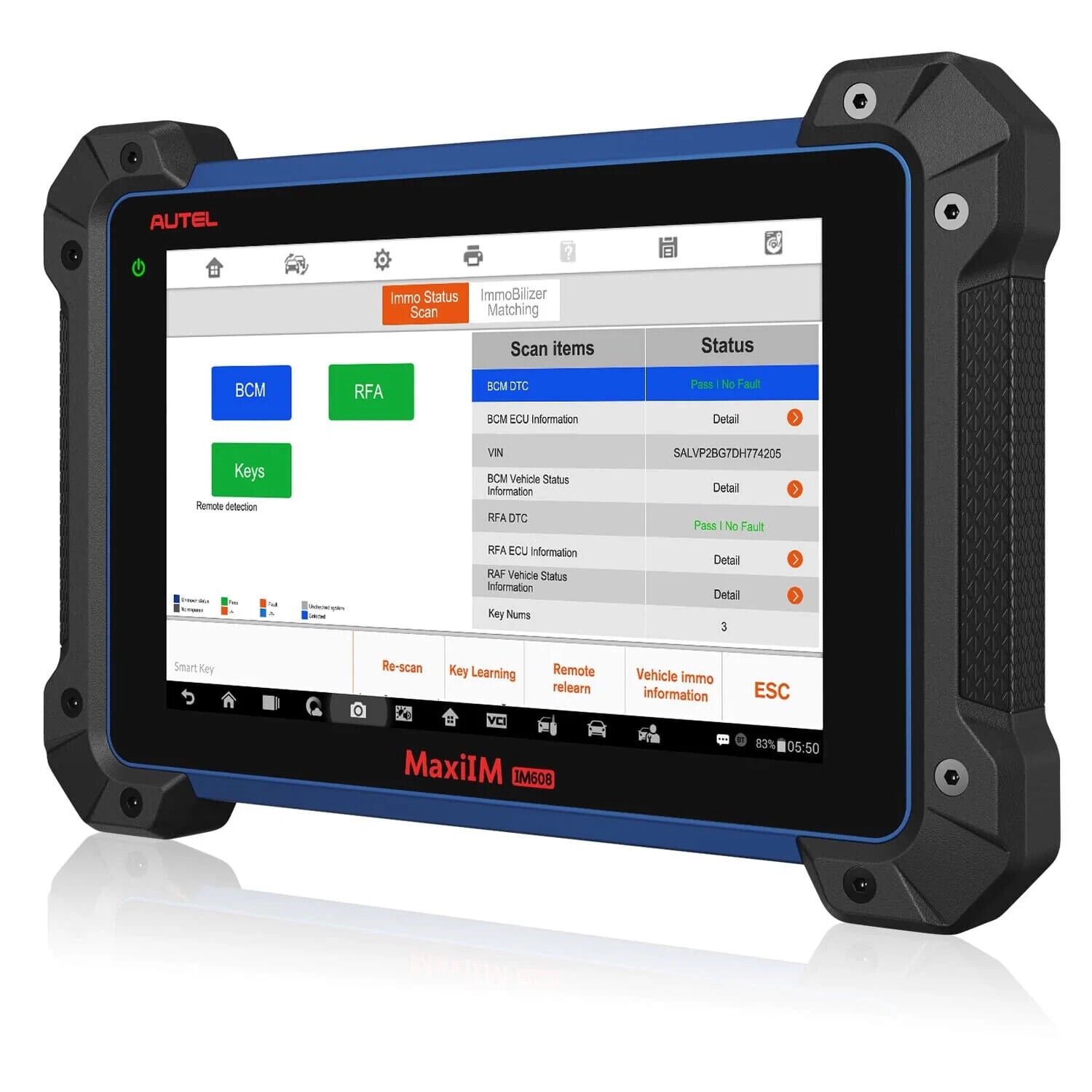

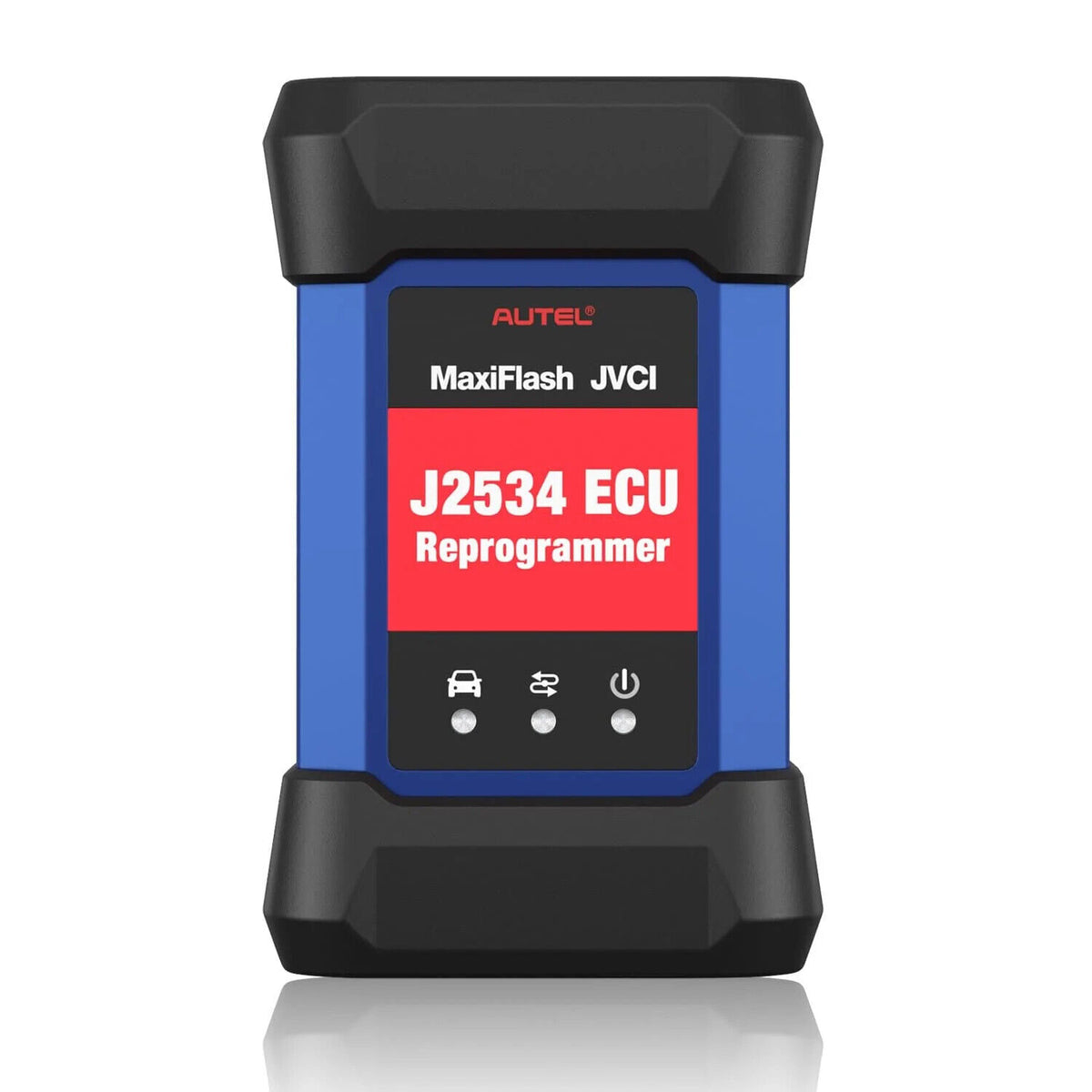

  • The IM608PRO+APB112+GBOX2 IMMO Programming Bundle is a comprehensive immobilizer. This IMMO programming bundle is composed of its Maxi IM608 10.1-in. Android touchscreen tablet, the XP400PRO IMMO and chip programmer, the wireless JVCI J2534 pass-thru programming device, the APB112 Smart IMMO Simulator, the G-BOX2 IMMO Programming Adapter. IM608 Pro is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the IM608 Pro include the ability to perform active test, coding and adaptations.
  • Connect the IM608 tablet to the XP400pro IMMO Programmer (no vehicle connection required) to access the IMMO chip, read, retrieve and write key information, as well as other IMMO related functions. The XP400prp includes 12 ports:
  • 1. DC Port – provides 12V DC power supply.
    2. USB Port – provides data communication and 5V DC power supply.
    3. DB 26-Pin Port – connects with the Mercedes Benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.
    4. Remote Control
    5. Transponder Slot – holds the transponder.
    6. Mercedes Infrared IMMO Slot – holds the Mercedes infrared IMMO .
    7. Vehicle IMMO Slot – holds the vehicle IMMO .
    8. Status LED – indicates the current operating status.
    9. Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.
    10. EEPROM Locker – locks the EEPROM component transponder slot to ensure proper functioning.
    11. EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.
    12. Cross Signal Pins
XP400 PRO

XP400Pro adds Support for following chips:

  • EEPROM-->>AMD-->>AM29FXXX series chip
  • EEPROM-->> FUJITSU-->> MB29FXXX series chip
  • EEPROM-->> ST-->> M29FXXX series chip
  • Engine control module-->> ST-->> M29FXXX series chip
  • IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function
  • IMMO-->> BMW-->>EWS3 module read/write function
  • REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase

XP400Pro adds Support for following adaptor board:

  • APB113 PCF79XXadaptor board
  • APB114 EWS3 adaptor board
  • APB115 NEC Adapter board
  • APB118 NEC ELV adaptor board
  • APB119 TB28FXXXadaptor board
  • APB120 TMS370adaptor board
  • APB121 AM29FXXX Adapter board
  • APB122 AM29FXXX adaptor board1
  • APB123 AM29FXXX adaptor board2
  • APB126 M35080/D80 adaptor board
  • APB127 MC68HC0(7)05BXX adaptor board
  • APB128 MC68HC05X32 adaptor board

IM608PRO

IMKPA Kit works with the XP400Pro and supports the following functions:

  • Currently supports over 10 key unlock types
  • BMW EWS3 key learning
  • Benz NEC IMMO learning
  • Benz ESL_W209 read/write/erase

im608pro+imkpa

im608 pro all system diagnostics

im608pro services

im608pro ecu programming

im608pro vehicle coverage
