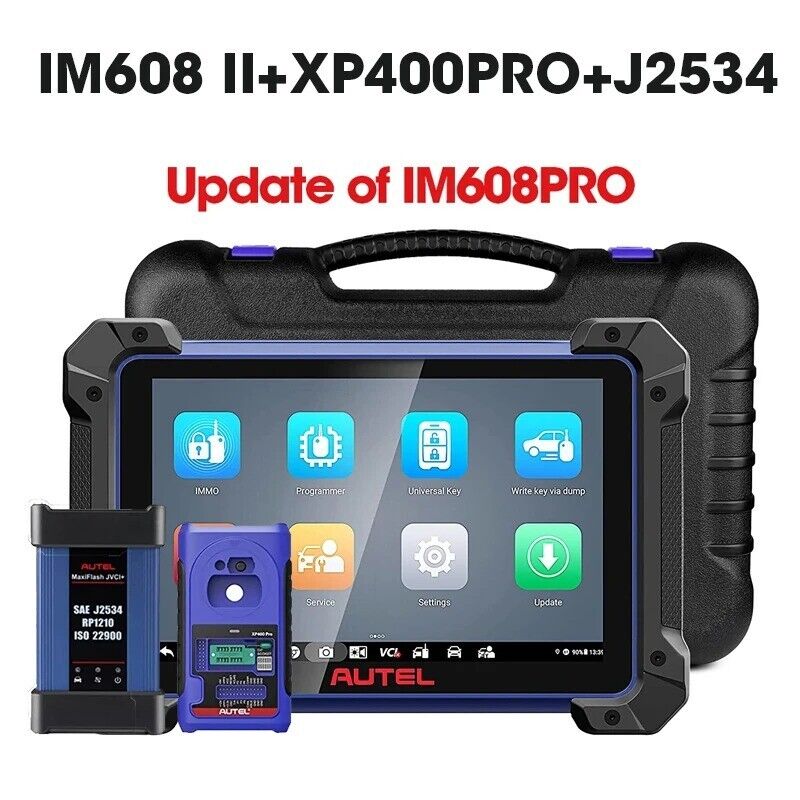

Autel MaxiIM IM608 II Programmer Android 10 IMMO Fob Programming Tool, 2023 Upgrade of IM508 & IM608 Pro, J2534 ECU Programming & Coding Same As MK908P & MS908S Pro II, 36+ Services, Active Test

IM608 II Scanner is the most advanced and the unique all in one programming and diagnostic tool that combines advanced programming, all systems diagnostics, and advanced services in one tablet. It is equipped with XP400 PRO programmer and MaxiFlash programmer to provide complete coverage of IMMO and programming functions.

It is the upgraded Version of IM608 PRO. Featuring the powerful Qualcomm SDM660 Octa-core Processor, and a 10.1 inch LCD capacitive touchscreen, based on the Android 10.0 multitasking operating system.

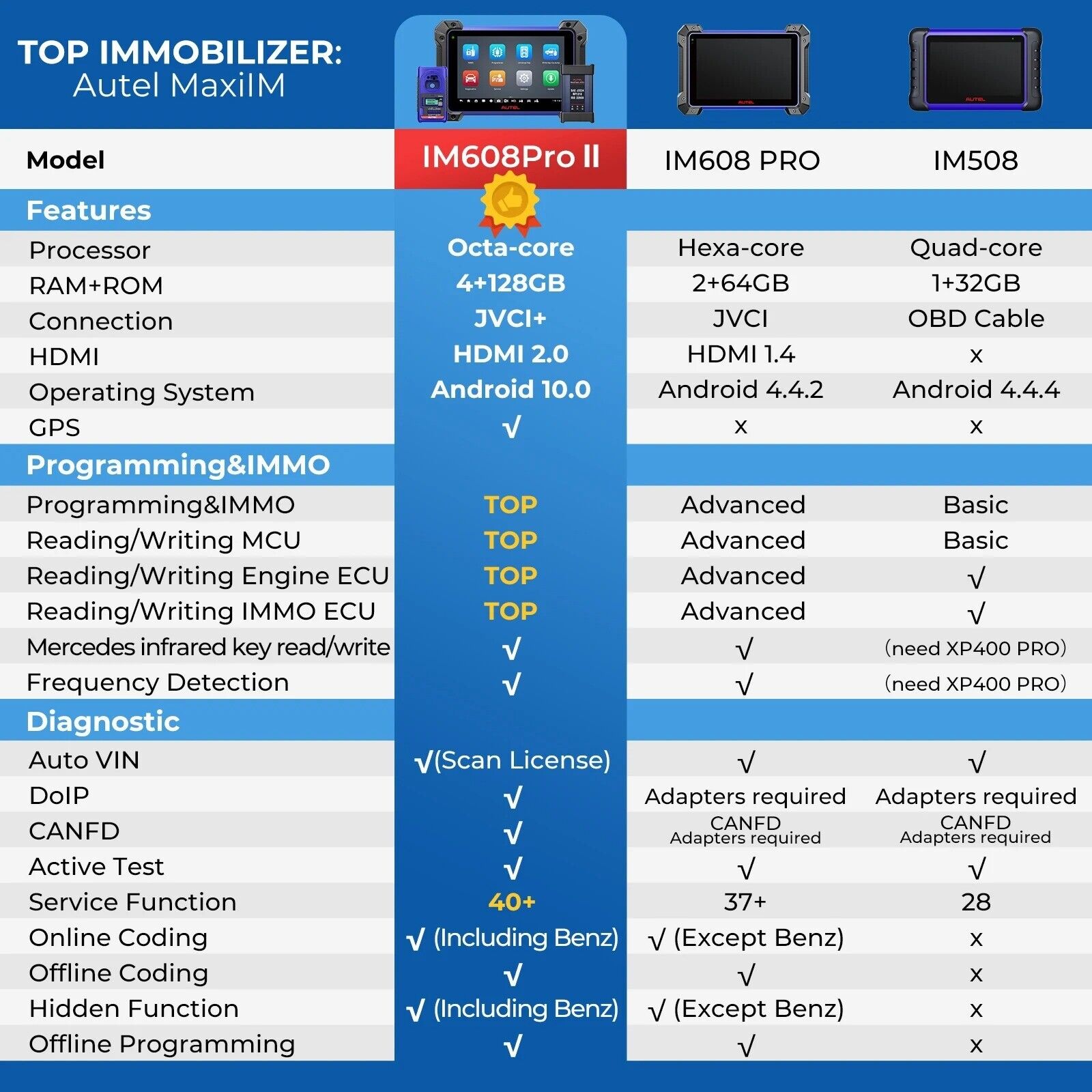

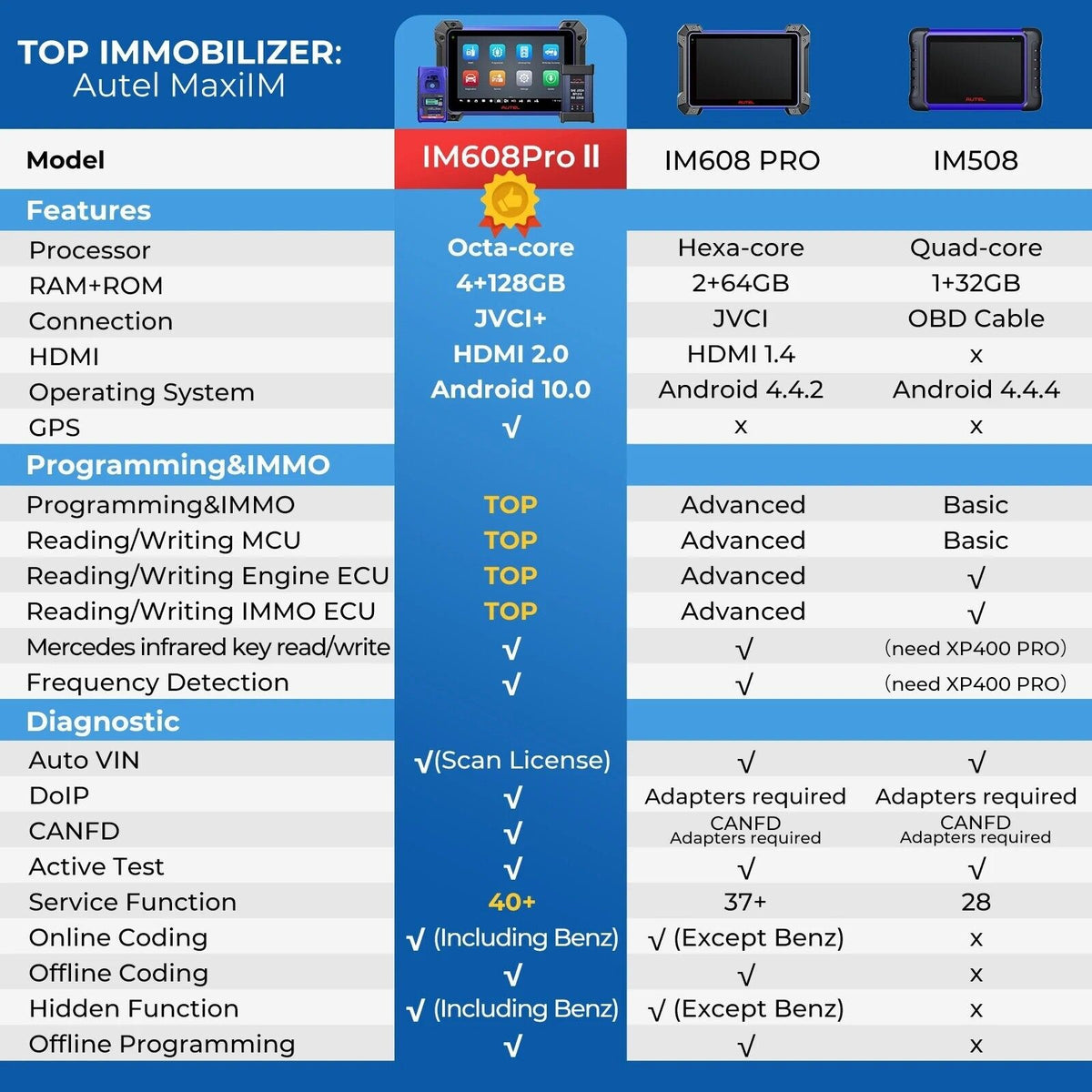

Main Configuration Updates Based on Autel IM608 Pro

1. Operating system move on to Android 10 from Android 4.4.
2. Upgraded 8-core Qualcomm SDM660 8-Core Processor replacing old Exynos T5260 6-Core Processor.
3. Doubled RAM & ROM: 4GB/128GB; SD card support up to 64GB (IM608 Pro support max 32GB)
4. 16MP Rear camera replacing the previous 8MP one.
5. Optimazed newest Software version & More Intuitive Interface.

Conclusion: Thanks to these upgrade, Autel IM608 II fix running latency problem, low response, network unstable problem and other problems that frequently happened in the old IM508/IM608/IM608 Pro. Autel IM608 II not only offers more intuitive naviagtion interface, but aslo enhanced the running & response speed by 5 times.

Powerful Programming

Upgraded Version of IM608 PRO, the professional programming tool of Autel IM608S II can work for 85% of Cars In worldwide, Including BMW, BENZ, VW, AUDI, etc. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.

1）Read PIN / CS (All Lost)
2） Generation
3）/ Remote Learning
4）Backup / Restore IMMO Data
5）IMMO ECU Reset / Adaptation / Refresh / Coding
6）BENZ 3rd Generation IMMO Add , All Lost, Learning
7）BMW FEM / BDC Learning and ECU Adaptation
8）BMW CAS4/3/2 Learning
9）VW / AUDI MQB Learning, 48 Transponder (96-bit) Add , All Lost, A6 All Lost

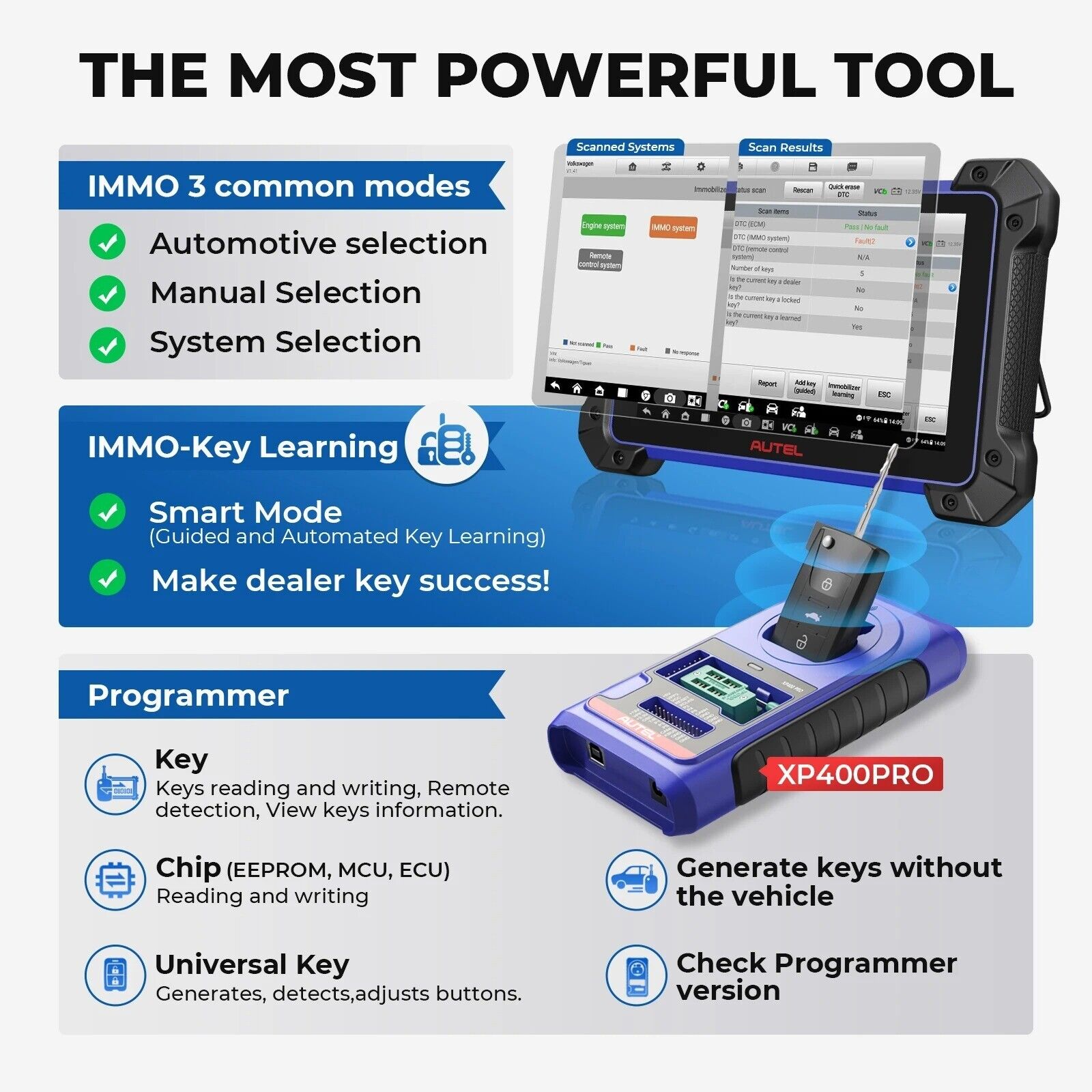

ADVANCED IMMO & PROGRAMMING

Smart Mode: for Guided and Automated Learning
Expert Mode: for Advanced Learning
·Read PIN/CS(All Lost)
·IMIMO ECU Refresh/Coding
·Generate
·BENZ 3rd Generation IMMO Add , All Lost, Learning
·Learning
·BMW FEM/BDC Learning and ECU Adaptation
·Remote Learning
·BMW CAS4/3/2 Learning
·Backup/Restore IMMO Data
·VW/AUDI MQB Learning,48 Transponder (96-bit) Add . All Lost, A6 All Lost, and More
·IMMO ECU Reset/Adaptation

What Autel X400 Pro Supported?

• XP400PRO Advanced All-in-One Programmer

• XP400Pro and Chip Programmer Reads/Writes and Learns to the Vehicle

• Performs EEPROM-data Functions Needed for European Vehicles

• Enables Programming of Infrared for Mercedes Vehicles and IC Chip on Late Model Hyundai Kia Vehicles

• Supports Data Read/Write of 3,000 Plus Chip Types (inc. EEPROM, engine ECU, MCU, IMMO ECU)

• Compatible with the IM508 and IM608

Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro.

ECU Coding

The Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts.

ECU Programming

The diagnostic tool comes with a free J2534 ECU programmingdevice that helps Benz and BMW users replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues.

J2534 ECU programming tool (also used as a VCI box) that is a SAE J2534-1 & -2 compliant pass thru reprogramming interface device.


Using the updatedOEMsoftware, it is capable of helping BMW and Benz users replace the existing software/firmware in the Electronic Control Units (ECU), program new ECUs and fix software-controlled drivability issues and emission issues.

Languages

English, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese,Swedish, Russia,Arabic,Hebrew,Turkish,Thailand,Vietnam

After getting the product,please contact with us to active the language.

All-system Diagnostic

Simply accessing the diagnostic modes via AutoVin or Control Unit, and you're able to perform diagnosis over all the systems on the vehicle's ECU in order to locate fault systems and retrieve DTCs.

ECU Information -provides the retrieved ECU information in detail.

Read Codes -displays detailed information of DTC records retrieved from the vehicle control module.

Erase Codes -erases DTC records and other data from the ECM.

Live Data -retrieves and displays live data and parameters from the vehicle's ECU.

Active Test -provides specific subsystem and component tests.

Active Test

The process of sending and retrieving information from a vehicle control module with a device is known as Actuation test or bi-directional control. The main aim of the actuation test function is to request the control module to perform a specific function including system tests, actuator tests, functional tests, inspection tests, reprogramming or reinitialization, thus saving diagnostic time.

Eg: You connect a fuel pressure gauge, cycled the and cranked the engine but you couldn’t figure out anything regarding the fuel pressure. With the actuation test function of this diagnostic tool, you can send a fuel pump command on instruction and see the proper fuel pressure, figuring out if there is a problem with the fuel pump circuit or pump.

40+ Service Functions

Autel MaxiIM IM608S II scanner includes36+ services like Oil Reset, EPB Reset, TPMS, BMS, Brake Bleed, Aftertreatment, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, ABSSRS, Cylinder, VGT Learn, Speed & PTO, Clutch, Trans Adapation, Airbag Reset, A/F Setting, Automatic Start/Stop, Electronic Water Pump Start, EGR, VIN, FRM Reset, Transport Mode, HV Battery, ACC, AC, Rain/Light Sensor, Gateway Module Data Calibration, Reset control unit, Center Console Display Service History, CCS/ACC and etc.

Oil Reset Service: Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.

EPB Service: Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

SAS Service: Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.

DPF Service: Allows you to carry out numerous functions to the Diesel Particulate Filter system.

Smart Auto VIN & Auto Scan

Get rid of manual input and use the Auto IN/Scan VIN/Scan License feature to automatically read the vehicle identification number, and then you can perform the diagnostics for the vehicle you get.

Note: Auto VIN function can NOT work on all cars. You can always navigate your vehicle through the menu manually to perform diagnostics and services.

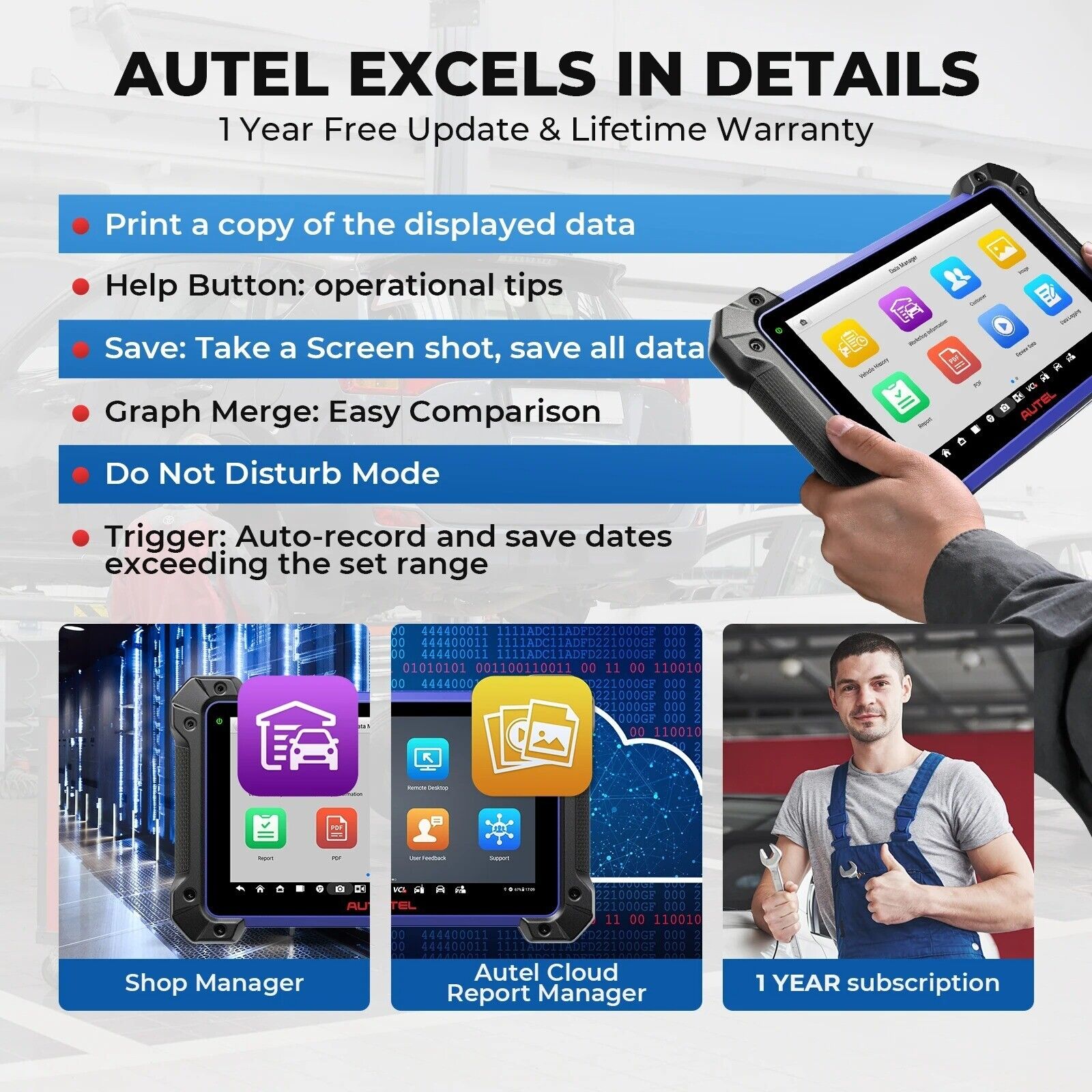

Other Feature

1.Superior Mechanics Assistant:

In addition to the MaxiCOM standard features and special functions, there are also a host of enhanced features that are specifically designed for common repair shop work, including; Relearn parking brake pad position after replacement, Force fuel injector regeneration and adjustment, Battery registration and reset, Sensor relearning after repair or replacement.

2.Shop Manager:

You can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.

3.Data Manager:

The best solution for the data related operations, you can store, print, and review the saved files in Image, PDF,Review Data, Apps Uninstall or Data Logging.

4.Remote Desk:

You can directly get ad-hoc remote support from Autel via Team Viewer software.

5. Wi-Fi Print:

It can connect with Wi-Fi printers to directly print diagnostic reports for better management and analyses.

6.Cloud Report Management:

Allows you to upload diagnostic reports to Autel Cloud so you can share reports with customers through QR Code/ email/ text message directly, customers can view the reports anytime.

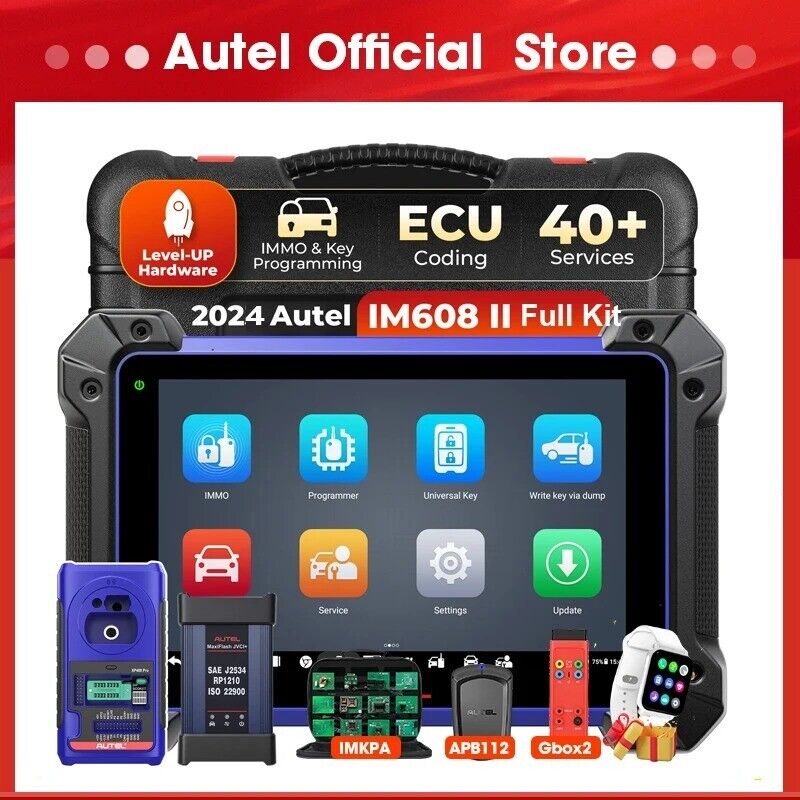

Work with G-BOX2

Autel G-Box is designed to be used for Mercedez-Benz vehicles with DAS3 CAN EIS/EZS in AKL. It helps to reduce the time for reading the ECU data from W204 and W207 EISs by over 85%

Work with APB112

Autel APB112 smart simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip.
It can also simulate the vehicle chip.

AUTEL APB112 Function List

1. Smart simulator
2. Compatible with IM608, IM508, and MX808IM
3. Compact but would need to be used with the XP400
4. Cannot be used with the XP200
5. 46, 4D data collection
6. 46 smart password calculation
7. 46 chip simulation
8. For T0yota 4D (94/ D4, 98) smart simulation
9.For T0yota H (88/ A8, A9, 39) smart simulation
10. Collects data from the ignition coil
11. Identify ignition coil troubles
12. Decode vehicle chip data
13. Simulate vehicle chip (ex - 4D chip)
14. Must be used with an Autel diagnostic tool
15. For T0yota/ Lexus smart all lost
16. Chip decoding (Hyundai 46)

Work with IMKPA

IMKPA is a Programming Adapter Kit, enable Read/Write/Erase for Mercedes Benz ESL_W209 / W906 Data, Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and Volkswagen / AUDI / BMW / Benz Unlock.

Wide Vehicle Coverage- 10,000+ models

For Audi: A1, A3, A4, A5, A6, RS4, B6, B7, RS5, RS6, A4 Allroad, A8, S8, Q3, RSQ3, Q5, Q7, R8, TT
For Seat: Alhambra, Altea, Altea, Cordoba, CupraLeon, Exeo, Ibiza, Leon, Mii, Toledo
For Skoda: Citigo, Fabia, Kamiq, Karoq, Octavia, Rapid, Roomster, Superb, Yeti
For VW: Amarok, Arteon, Atlas, Beetle, Bora, BoraGli, Caddy, Crafter, EOS, Fox Africa, Fox EU, Fox, GTI, Gol County, Gol(5U), Gol(5W), Golf PLUS, Golf/Rabbit(1K), Golf6 ESTATE, Jetta, Parati, Passat, Phaeton, Polo, Scirocco, Sharan, Suran, T-Roc, Tiguan, Touareg, Touran, Transporter5/Multivan, up, UP!/cross UP!
For Fiat: 500, 500L, 500X prox, Albea, Boxer, Daily, Doblo, Doblo New, Ducato, Egea, Fiorino, Freemont, Idea, Grande punto, Jumper, Linea, Marea, Nemo, Ottimo, Palio, Palio RST, Panda, Perla, Promaster, Punto, Sinea, Stilo, Viaggio

And many more, you can check with our official website for car list.
IM608 cannot support India local cars!

Note:
The equipment does not have the following special cars, if you need the following models, please contact us after receiving the equipment, we will provide you with the contact information of the local dealer, you yourself contact the offline dealer to add processing:
Australian car: Fordau, Holden
Malaysian car: Perodua,proton
Brazil, Latin America, South America: Fiat Brazil, Gm Brazil, Maruti Suzuki,Mahindra
Indian cars: Maruti Suzuki, Mahindra, Tat, India Datsun

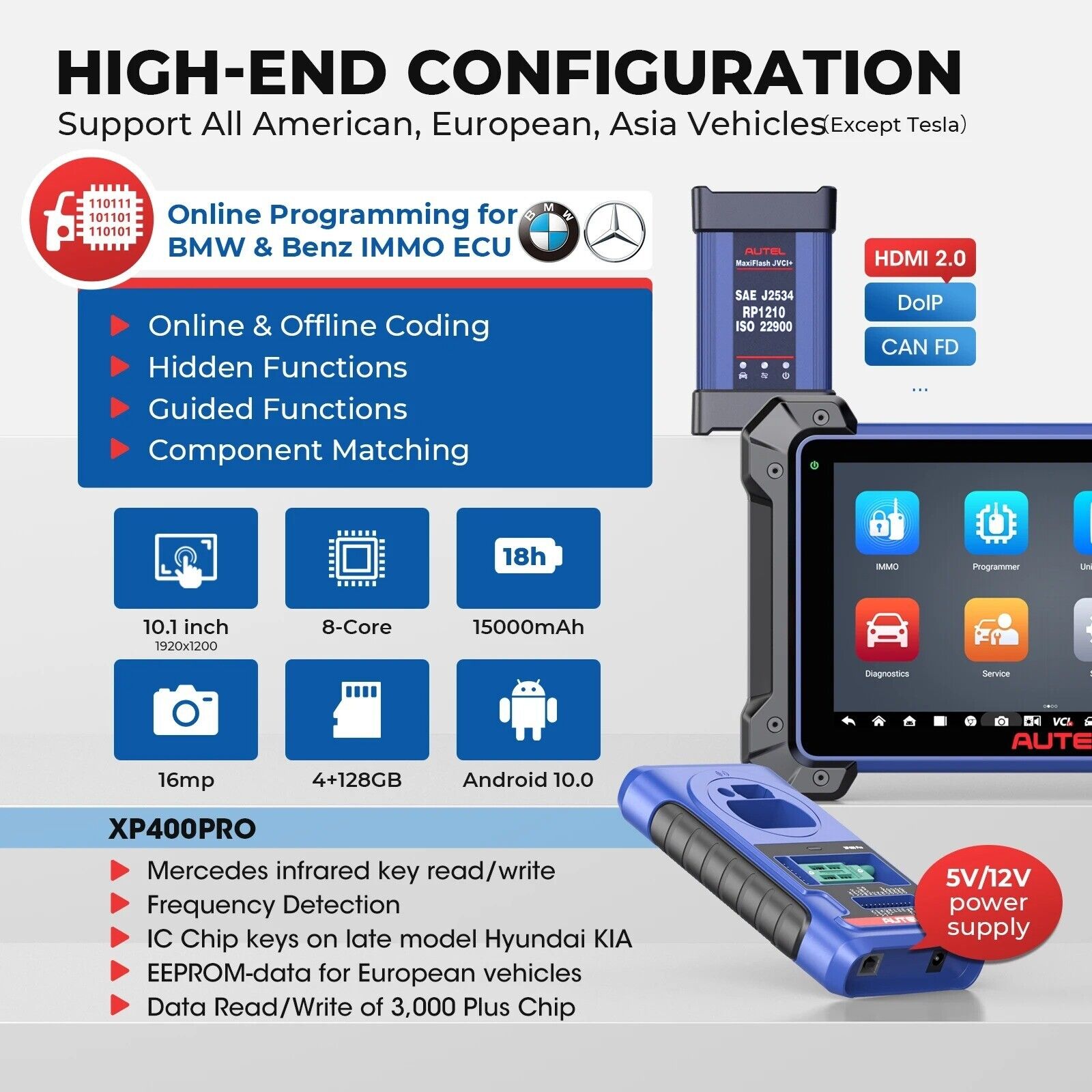

IM608S II Specification

● Operation System: Android 10.0
● Processor: Qualcomm SDM660 Octa-core Processor
● Memory: 4GB RAM & 128 GB On-board Memory
● Display: 10.1-inch LED capacitive touch screen with 1920*1200 resolution; Wi-Fi:(802.11 a/b/g/n/ac); USB 2.0
● Connectivity: BT V5.0 + BR/EDR; SD Card (Support up to 64GB); HDMI 2.0
● Camera(rear): 16 Megapixel, AF with Flashlight
● Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
● Audio: Microphone; Dual Speakers
● nput/output: 3-Band 3.5mm stereo / standard headset jack
● Power and Battery: 3.8V 15000 mAh
● Input Voltage: 12V (9-24V)
● Power Consumption: 6.5W
● Operating Temp: 0℃ to 50℃ (32 to 122℉)
● Storage Temp: -20℃ to 60℃ (-4 to 140℉)
● Dimensions(W*H*D): 300mm (11.81'') x 220.0mm (8.66'') x 50.0mm (1.97'')

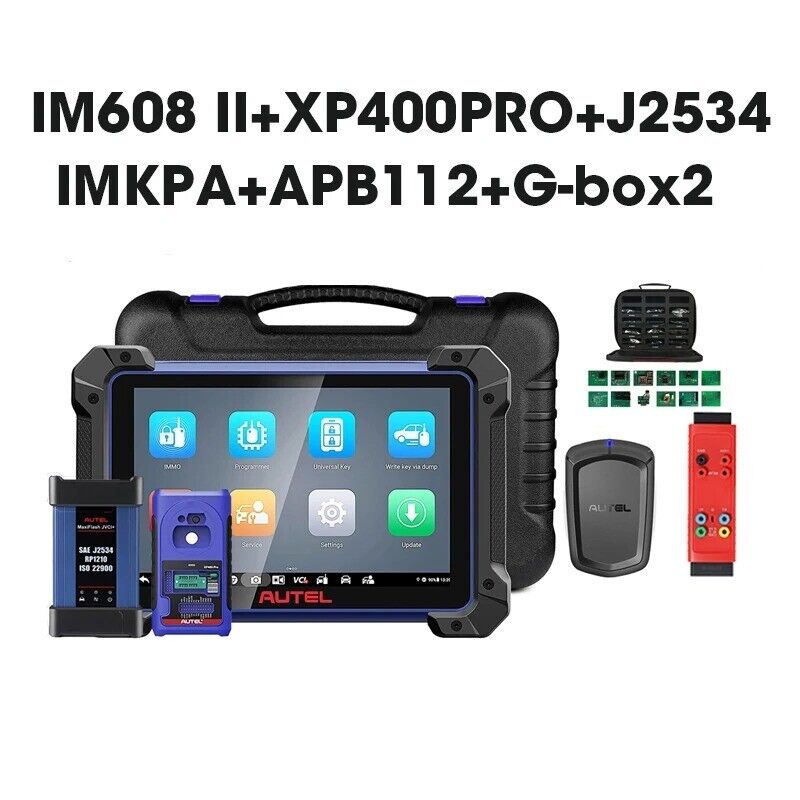

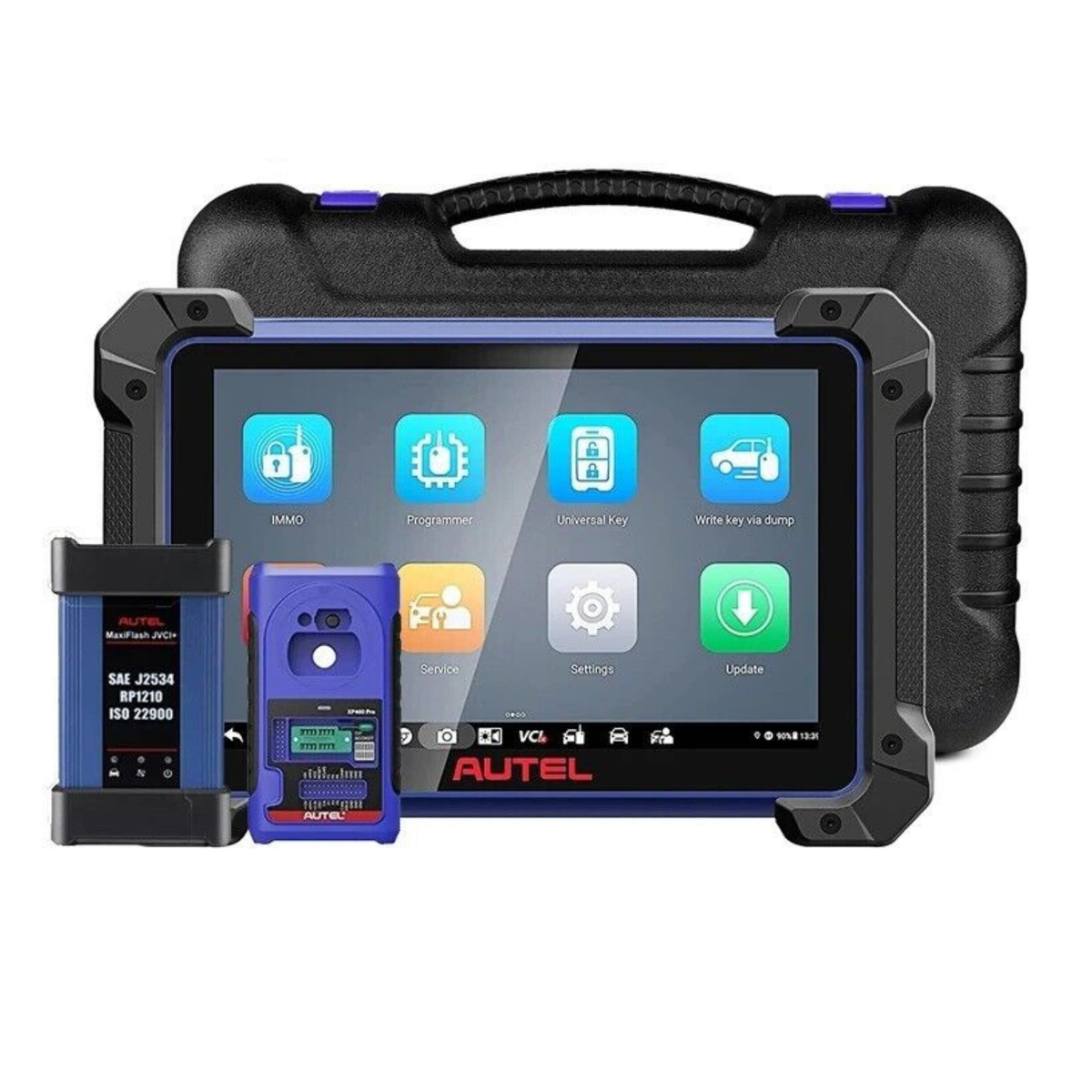

Packing list

1 x Main Unit
1 x MaxiFlash JVCI+
1 x XP400PRO
1 x Main Cable
1 x USB Cable(2m)
1 x Mini USB Cable
1 x AC/DC Adapter(12V)
1 x Light Fuse 6*30mm(2pcs)
1 x Cigarette Lighter
1 x AAC001
1 x APC101 (USB Cable)
1 x APB104 (MCU_FQFP64)
1 x APB105 (MCU_FQFP80)
1 x APB106 (MCU_FQFP112)
1 x APB107 (MCU_FQFP144)
1 x APB108 (MCU_FQFP176)
1 x APB129 (EEPROM Adapter)
1 x APB125 (Mercedes infrared Collector)
1 x APA002 (EEPROM Socket)
1 x APA101 (Signal Cable)
1 x APA103 (EEPROM Clamp)
1 x APA107 (ECU Cable)
1 x APA108 (MCU Cable)
1 x APA109 (MC9S12 Cable)
1 x Connect Cable
1 x Quick Reference Guide
1 x Packing List
1 x Carrying Case (634*170*404mm)
