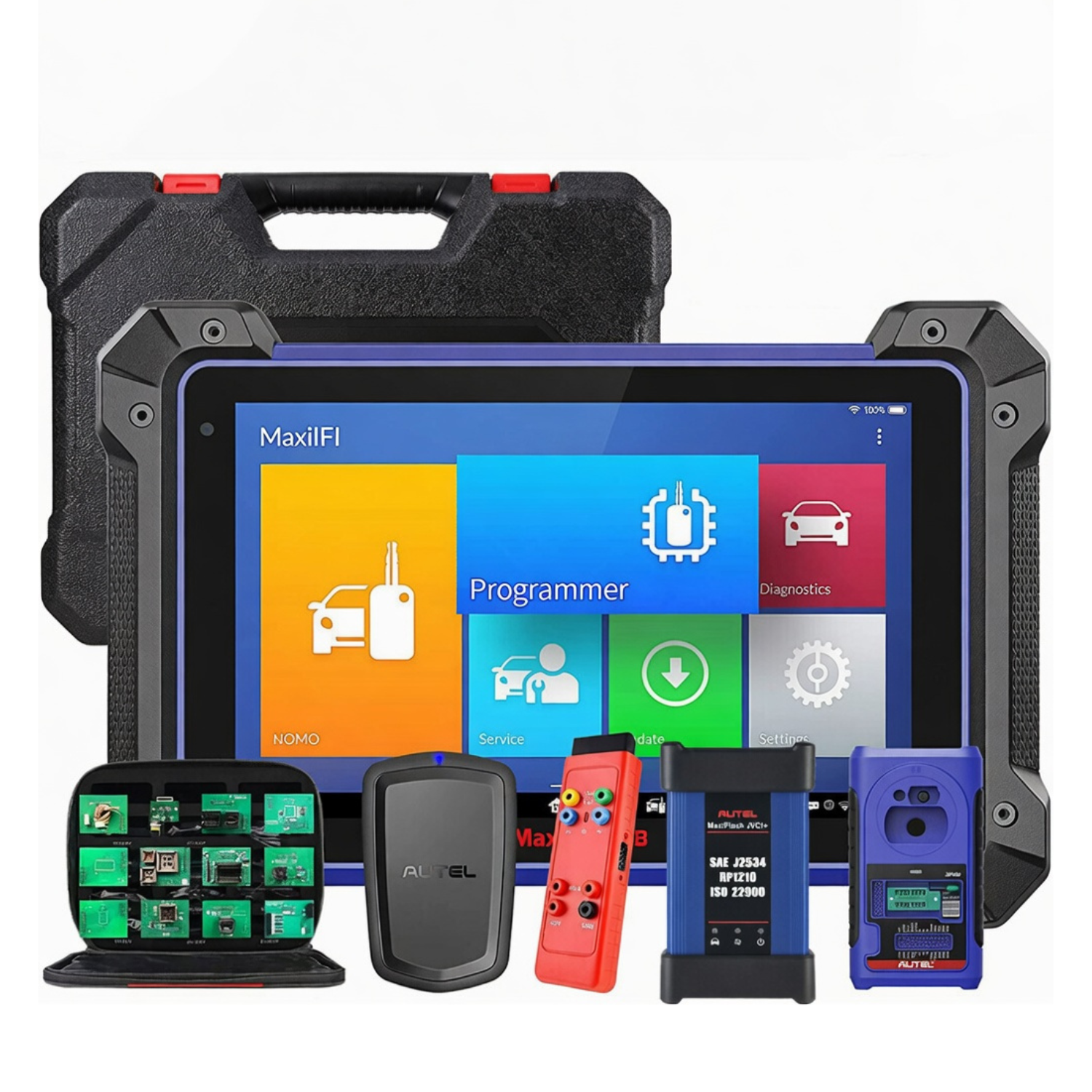

Autel MaxiIM IM608 II Key Programming IMMO Diagnostic Tool &APB112 +GBOX2+IMKPA

SKU: Upgraded of IM508,IM508S,IM608 PRO,IM608
$5,990.99
Product subtotal: $5,990.99
Proudly Australian
Technical Support
Easy Returns
Fast & Free Shipping
Autel MaxiIM IM608 II Key Programming IMMO Diagnostic Tool &APB112 +GBOX2+IMKPA
Autel MaxiIM IM608 II Key Programming IMMO Diagnostic Tool &APB112 +GBOX2+IMKPA
$5,990.99

Note:The IM608S II is only available for 1 year of free updates in America !Other countries are free updates for 2 year!

Autel IM608S II does NOT support Toyota, Lexus, or Renault.
Functions for Ford have been significantly limited since Aug 25, 2025.



The difference of IM608S II and IM608 PRO(IM608S II=IM608 II=IM608Pro II)

IM608S II is IM608 PRO's updated version.

IM608S II Free Update Online:2 Year

IM608S II have more advanced hardware.You can check the following difference:



■ IM608S II Hardware

Processor: Qualcomm SDM660 Octa-core(4x 2.2 GHz(A73),4x 1.8 GHz(A53)

RAM: 4G

ROM: 128GB

BT: BT V5.0 + BR/EDR

Android Version: Android 10

HDMI: HDMI 2.0

Screen Size: 10.1inch



■ IM608 PRO Hardware

Processor: Samsung Exynos T5260 6-Core (4x 1.3 GHz(A7),2x 1.7 GHz(A15)

RAM: 2G

ROM: 64GB

BT: BT V2.1 + EDR

Android Version: Android™ 4.4.2, KitKat

HDMI: HDMI 1.4a

Screen Size: 10.1inch



■ Support Languages:

English, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese,Swedish, Russia,Arabic,Turkish,Thailand,Vietnam



After getting the product,please contact with us to active the language.



NASTF SDRM Compliance for North America

Autel is integrating the NASTF Secure Data Release Model (SDRM) validation protocol into supported key and immobilizer programming tools used in North America.



Applicable Products: Autel MaxiIM KM100, IM508 Series and IM608 Series.



Applicable Region: This requirement applies when the device is used under a North American IP address.



Implementation Schedule: KM100 is scheduled to enable SDRM validation beginning September 1, 2026. IM508 and IM608 Series devices will be updated in subsequent phases.



User Registration Required: Eligible key and immobilizer programming functions may require the end user to maintain an active NASTF SDRM account.



Important Notice



NASTF SDRM registration is not included with the purchase of this Autel device. The end user must apply, pay and renew the SDRM qualification directly through NASTF. All eligibility requirements, fees and approval decisions are independently managed by NASTF and are not controlled by Autel or the seller.



Do I need a NASTF SDRM account?



For certain security-related key and immobilizer programming functions in North America, an approved and active NASTF SDRM account may be required.



Is the SDRM account included with the device?



No. The SDRM account must be registered and maintained separately by the end user through the official NASTF platform.



MaxiIM IM608 II Upgraded of IM608 PRO

The IM608 II is a comprehensive key and immobilizer programming package of the MaxiIM IM608 II 10.1-inch Android touchscreen tablet, XP400Pro key and chip programmer, the wireless JVCI+J2534 pass thru programming device and the Key Programming Adapter kit. The IM608 II enables key learning directly through the OBDII port for 85 percent of vehicles in North America. The tablet can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle. The IM608 II is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the IM608 II include the ability to perform active test, coding and adaptations.



🚘 Top Automotive Solution – No IP Restriction
The Autel IM608S II combines advanced ECU programming and high-end diagnostics with upgraded hardware and a powerful accessory bundle (XP400 Pro + G-BOX3 + APB112 + IMKPA Kit), making it an ideal choice for professional repair shops.

Key features include:

  • VIN & odometer check (read VIN and mileage stored in ECUs)

  • Live Data Fusion

  • No IP limitation

  • Supports DoIP, CAN FD, D-PDU, RP1210 protocols

  • Android 10 system, 4GB RAM + 128GB storage

  • 40+ service functions

  • 3000+ active tests

  • OE-level full system diagnostics

  • Auto VIN & license plate recognition

  • Supports FCA AutoAuth


🚘 Full Bi-Directional Control – 3000+ Active Tests
Similar to high-end tools like Elite II Pro, MS909, and Ultra, the IM608S II offers full bi-directional control.

It can send commands to ECUs, read data, and monitor actuator operations.
Perform active tests on components such as:

  • Fuel pumps

  • A/C fans

  • Mirrors

  • Headlights

  • Horns

Quickly determine whether systems and components are functioning properly and locate issues accurately.

🚘 40+ Service Functions for 150+ Vehicle Brands
Supports over 150 vehicle brands worldwide, including 2018+ FCA AutoAuth.
Includes 40+ commonly used maintenance services:

  • Oil Reset

  • EPB (Electronic Parking Brake)

  • SAS (Steering Angle Sensor)

  • BMS (Battery Management System)

  • ABS Bleeding

  • Injector Coding

  • Throttle Reset

  • Idle Relearn

  • Suspension Calibration

  • Gearbox Matching

  • AFS Headlight Reset

  • Crankshaft Sensor Relearn

  • Air/Fuel Reset

  • Start/Stop Reset

  • Language Change



🚘 OE-Level Full System Wireless Diagnostics
Delivers OE-level diagnostics for all available vehicle systems, including:
ABS, SRS, ECM, TCM, BCM, braking systems, and more.

Functions include:

  • Read & clear codes

  • View live data streams

  • Perform active tests

  • Retrieve ECU information

Bluetooth wireless connection supports up to 70 meters (210 ft), allowing flexible operation without space limitations.


🆕 Supports CAN FD & DoIP – Faster Communication
Equipped with the latest CAN FD and DoIP protocols for faster and more stable data transmission.

Compatible with modern vehicles such as:
Volvo, Land Rover, Jaguar, BMW (F/G chassis), and more.
Covers 150+ global brands including popular models from Toyota, Honda, Chevrolet, Ford, Benz, BMW, Audi, etc., with support for FCA SGW (AutoAuth).




1. VIN/Odometer Check

• Adds "VIN/Odometer Check" feature, which supports reading the mileage and Vehicle Identification Number (VIN) values stored in various control units of the vehicle.



• By comparing the values, it serves as reference information for the maintenance history of the vehicle module.



• Supported Manufacturers:Chrysler, Dodge, JEEP, Porsche, Hyundai, Kia, Genesis, Fiat, Alfa, Abarth, Lancia, VW, Audi, Bentley, Lamborghini, Seat, Skoda, Nissan, Infiniti, NissanGTR, Toyota, Scion, Lexus, Subaru, Suzuki, Ford, Mazda, Peugeot, Citroen, DS, LandRover, Jaguar, GM, Chevrolet, BMW, Mini, Renault, Dacia, Samsung, Volvo, Polestar, Benz, Maybach…





2.Live data fusion

•Adds “Live Data Fusion" feature, which enables the integration of live data from different systems onto a single interface, facilitating dynamic display.



•Widely applied in maintenance scenarios requiring simultaneous monitoring of live data from multiple systems, such as addressing U-code, ABS malfunctions, aftertreatment, and more.



•Supported Manufacturers: Chrysler, Dodge, JEEP, Hyundai, Kia, Genesis, VW, Audi, Bentley, Lamborghini, Seat, Skoda, Toyota, Scion, Lexus, Subaru, Suzuki, Ford, Peugeot, Citroen, DS, LandRover, Jaguar, Renault, Dacia, Samsung…



1000+ Extensive Vehicle & Functionality Coverage



1.Support Diagnostics & IMMO Programming for 10,000+ Models;

2.Support Models Up to 2022;

3.All System Diagnostics and Advanced Maintenance Services;

4.Benz -- 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD;

5.BMW -- Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost;

6.Volkswagen / Audi -- Add Key / All Key Lost via OBD for 2013 - 2020 Models;

7.GM -- Read IMMO Password, Add Key / All Key Lost up to 2020;

8.Ford -- Add Key / All Key Lost (No PIN Needed) up to 2020;

9.Mazda -- Add Key / All Key Lost (No PIN Needed) up to 2020;

10.FCA -- Read IMMO Password, Add Key / All Key Lost up to 2020;

11.Renault -- Add Key / All Key Lost (No PIN Needed) up to 2020

12.Jaguar LandRover -- Add Key / All Key Lost up to 2019

13.Volvo -- Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump



IMMO & Key Programming Expert





The XP400 Pro has been extended IMMO functionalities on BMW, BENZ and Audi etc., designed to work with IM508, IM608, IM608 Pro to perform various IMMO Key Pro/grammings, key chip Pro/gramming functions, MCU writing and reading,etc. Auto Detect Make, Model, Year, System. Read PIN (All Key Lost), Key Learning, IMMO ECU Reset/Adaption, IMMO ECU Refresh/Coding, Remote Learning





For AU-DI Q5/ A4/A5 2015-2017 Key Learning

For VW MQB Key Learning

For BM-W FEM/ BDC Key Learning and Adaption

For BM-W CAS4 Key Learning and Adaption

For Mercedes Key Learning

For 2015-2018 Land Ro-ver & Jag-uar write key via dump

For Volvo Smart Key Learning/ knob-style smart key, etc.





1) XP400Pro Adds Support for Following Chips:



EEPROM-->>AMD-->>AM29FXXX series chip

EEPROM-->> FUJITSU-->> MB29FXXX series chip

EEPROM-->> ST-->> M29FXXX series chip

Engine control module-->> ST-->> M29FXXX series chip

IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function

IMMO-->> BMW-->>EWS3 module read/write function

REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase



2) XP400 Pro Adds Support for Following Adaptor Board:



APB113 PCF79XXadaptor board

APB114 EWS3 adaptor board

APB115 NEC Adapter board

APB118 NEC ELV adaptor board

APB119 TB28FXXXadaptor board

APB120 TMS370adaptor board

APB121 AM29FXXX Adapter board

APB122 AM29FXXX adaptor board1

APB123 AM29FXXX adaptor board2

APB126 M35080/D80 adaptor board

APB127 MC68HC0(7)05BXX adaptor board

APB128 MC68HC05X32 adaptor board

IMKPA is a key programming kit (including 12 adapters for the XP400 PRO). When working with the XP400Pro Key & Chip Programmer, it enables mechanics to operate Read/Write/Erase for Mercedes Benz ESL_W209 / W906 Data, Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and VW/Audi/BMW/Benz Key Unlock.

IMKPA Features:

• MaxiIM Key Programming Adapter Kit
• Includes 12 Adapters, Compatible with the XP400Pro
• Enables Read/Write/Erase on Mercedes Benz ESL_W209 / W906 Data
• Enables Mercedes Benz OE NEC Key Learning
• Enables BMW EWS3 Key Learning
• Enables Volkswagen/AUDI/BMW/Mercedes Benz Key Unlock
• Compatible with IM608PRO/IM608 Tablet and IM508 Tablet with XP400Pro
Autel APB112 smart key simulator is designed to work with Autel IMMO key programming tool MaxiIM IM608 PRO, which can be used to collect the data sent from the ignition coil, identify ignition coil troubles, collect vehicle key chip data (Hyundai 46), simulate vehicle key chip (ex- 4D chip), calculate smart key password, etc.



APB112 Function List:

1. Smart key simulator
2. Compatible with IM608PRO/IM608, IM508, and MX808IM
3. Compact but would need to be used with the XP400/XP400PRO
4. Cannot be used with the XP200
5. 46, 4D data collection
6. 46 smart key password calculation
7. 46 chip simulation
8. For T0yota 4D (94/ D4, 98) smart key simulation
9.For T0yota H (88/ A8, A9, 39) smart key simulation
10. Collects data from the ignition coil
11. Identify ignition coil troubles
12. Decode vehicle key chip data
13. Simulate vehicle key chip (ex - 4D chip)
14. Must be used with an Autel diagnostic tool
15. For T0yota/ Lexus smart key all key lost
16. Chip decoding (Hyundai 46)
The Autel G-BOX3 is an advanced IMMO adapter designed to work with Autel MaxiIM key programming tools. It significantly accelerates password calculation and ECU data reading for Mercedes-Benz all keys lost situations, while also supporting BMW DME/DDE ISN reading and writing in Boot Mode.

Compared with G-BOX2, the new G-BOX3 provides faster operation, broader ECU coverage, and enhanced on-vehicle programming capabilities.


G-Box Main Features:

1.fit For Mercedes Benz All Keys Lost, Faster Password Calculation
2. Used with IM608/IM608PRO
3. Used for Faster fit for Mercedes ECU data and EIS password calculation
4. fit For Mercedes DAS3 can EIS / EZS all keys lost
5. Reduce time reading W204 ECU data & W207 EIS by over 85%
6. No need to remove and reinsert the key for W221 & W164 after 2009 models
7.fit For BMW DME / DDE ISN reading and writing in boot mode
8. G-Box is compatible with both the Autel MaxiIM IM608/IM608PRO and IM508 with XP400PRO, also compatible with Auro IM600 and Auro IM100 with XP400PRO
Specifications
VCI:JVCI+
Programmer: XP400 Pro
Hardware CPU:
4x 2.2GHZ (A73)
4x 1.8GHZ (A53)
OS: Android 10.0
Memory:4G RAM, 128G Flash
Display:10.1 inch
Resolution: 1920*1200
Battery: 15000mAh
VCI Connection: BT5.0/USB
DoIP: Yes, no need converter
CAN FD: Yes, no need converter
Diagnostic Function: Comprehensive diagnostic
Coding: Yes
Programming: BMW, Mercedes online programming
Immobilizer Function: Immo programming Full immo function
Programmer: Read/Write EEPROM, MCU
Key Tool Function: Yes
Remote Expert: Yes
Autel MaxiIM IM608S II Package Listing:
1 x Main Unit
1 x MaxiFlash JVCI+
1 x XP400PRO
1 x Main Cable
1 x USB Cable(2m)
1 x Mini USB Cable
1 x AC/DC Adapter(12V)
1 x Light Fuse 6*30mm(2pcs)
1 x Cigarette Lighter
1 x AAC001
1 x APC101 (USB Cable)
1 x APB104 (MCU_FQFP64)
1 x APB105 (MCU_FQFP80)
1 x APB106 (MCU_FQFP112)
1 x APB107 (MCU_FQFP144)
1 x APB108 (MCU_FQFP176)
1 x APB129 (EEPROM Adapter)
1 x APB125 (Mercedes infrared Collector)
1 x APA002 (EEPROM Socket)
1 x APA101 (Signal Cable)
1 x APA103 (EEPROM Clamp)
1 x APA107 (ECU Cable)
1 x APA108 (MCU Cable)
1 x APA109 (MC9S12 Cable)
1 x Connect Cable
1 x Quick Reference Guide
1 x Packing List
1 x Carrying Case (634*170*404mm)IMKPA Packing list:

1*APB113
1*APB114
1*APB115
1*APB118
1*APB119
1*APB120
1*APB121
1*APB122
1*APB123
1*APB126
1*APB127
1*APB128
1*Storage Case
G-BOX3 Package Included:

1pc x Autel G-BOX3
1pc x DB15 Cable
1pc x K-Line Cable
1pc x Fuse Cable
2pcs x Fuse (5A)
2pcs x Clamp Cable
1pc x OBDII Extension Cable
1pc x Quick Reference Guide
APB112 Package List:

1pc x APB112 Smart Key Simulator
1pc x USB cable
1pc x Quick Reference Guide
