AUTEL MaxiCOM MK908P PRO Full System Diagnostic Scanner J2534 Programmer ECU Coding OE Level Workshop - 1 YEARS FREE UPDATE

2 sold in last 8 hours
In stock
$4,199.00 $3,799.99
Title *
$3,799.99
customers are viewing this product
AUTEL MaxiCOM MK908P PRO - Auto Lines Australia

PRODUCT HIGHLIGHTS



*AUSTRALIA VERSION*

*1 YEARS FREE UPDATES*

*1 YEAR WARRANTY*

Autel MaxiCom MK908P OBDII ECU Tester Programming OBD2 Auto Diagnostic Scanner Tool J2534 Programmer PK Maxisys Elite MS908 Pro



The MaxiCOM MK908P Diagnostic Platform is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful A7 quad-core 1.30GHz processor, and a 10.1-inch capacitive touch screen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android Operating system, the MaxiCOM organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.

Support ECU Programming for BMW and BenzMaxiCOM MK908P is the Upgrade Version of Maxisys Pro MS908P.



■ 14 Kinds of Languages


English, Simplified Chinese, Traditional Chinese, Spanish,French, German, Polish, Italian, Japanese, Korean, Dutch,Portuguese, Swedish,Russian

After you get the product,  please tell us your SN of machine to activate the language you need .







Autel MaxiCOM MK908P J2534 ECU Programming Diagnostic Tool

Autel-平板产品改语言方法

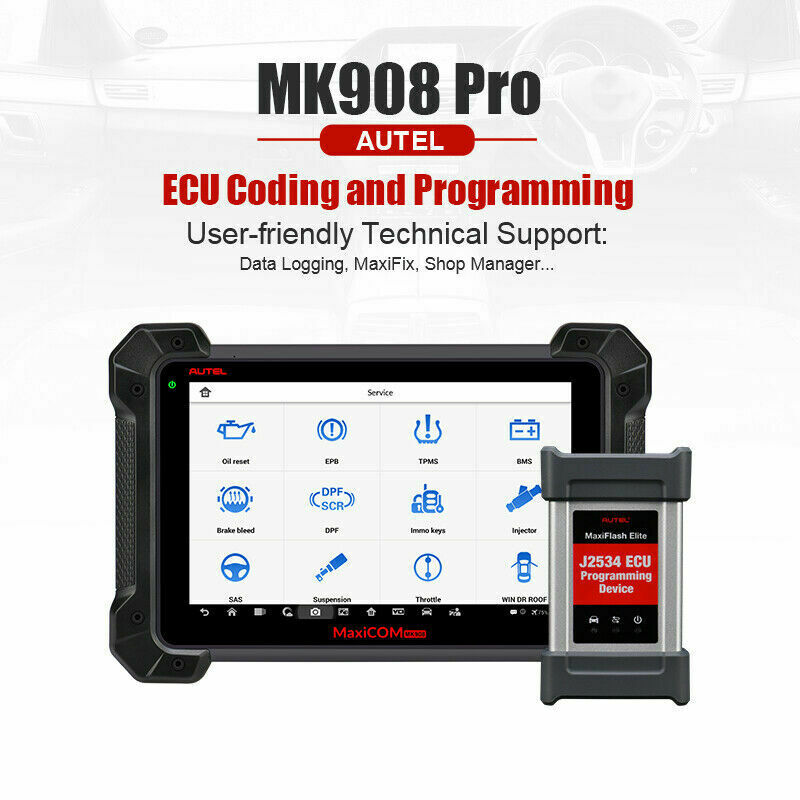

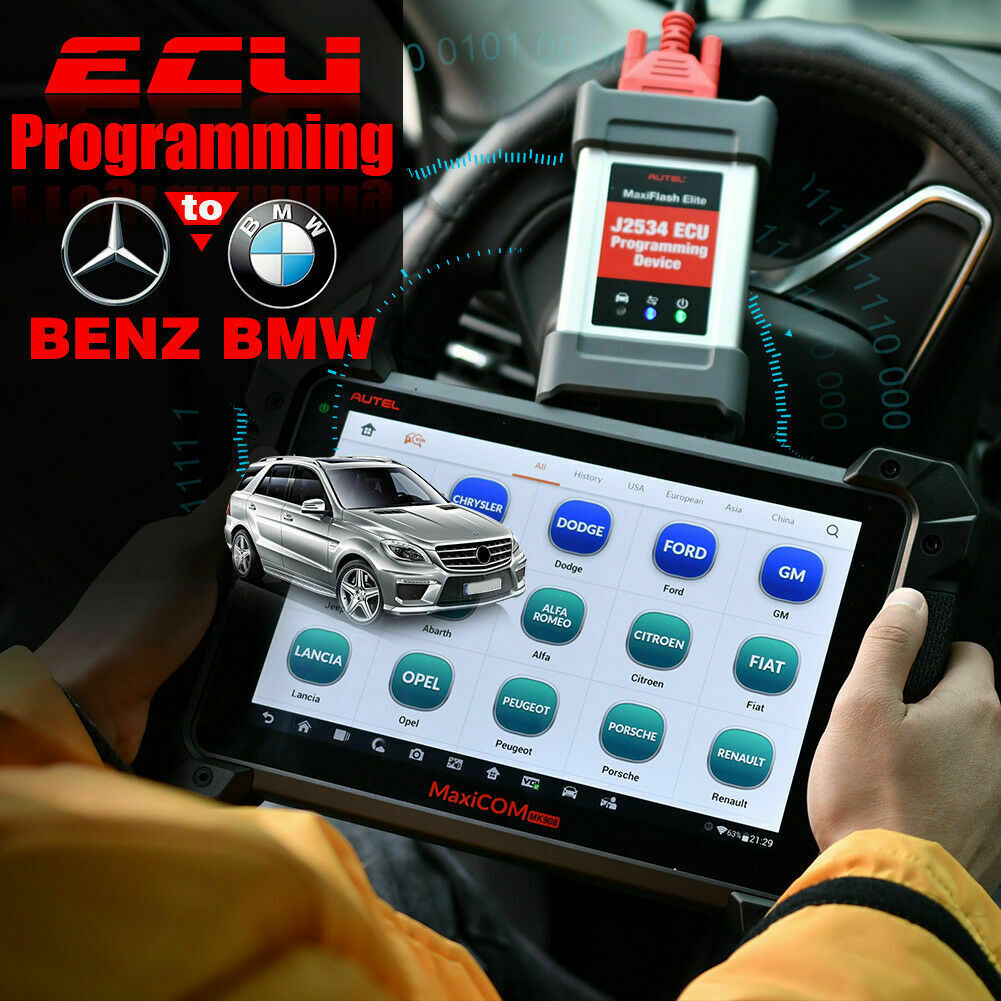

■ ECU Programming

The diagnostic tool comes with a free J2534 ECU programming device that helps Benz and BMW users replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues.

J2534 ECU programming tool (also used as a VCI box) that is a SAE J2534-1 & -2 compliant pass thru reprogramming interface device.

Using the updated OEM software, it is capable of helping BMW and Benz users replace the existing software/firmware in the Electronic Control Units (ECU), program new ECUs and fix software-controlled drivability issues and emission issues.

It supports BT and USB communications and can transmit vehicle data to the MaxiCOM display tablet with a physical connection.

6_04


■ There are 3 indicators on the J2534 ECU programming device:

Vehicle LED – Flashes green when communicating with the vehicle’s system


Connection LED –  Illuminates solid green when properly connected with the display tablet via the USB cable; Illuminates solid blue when connected with the display tablet via wireless (BT) connection


Power LED – Illuminates solid green when powered on: Flashes red when system failure occurs: Illuminates amber automatically at power up when the device is performing self-test procedure



■ ECU Coding

The Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts.

6_06

■ Remote Technical Support


By using this function, users can receive ad-hoc remote support from Autel’s technical engineers, colleagues, or friends, by allowing them to control this tablet device on their PC via the TeamViewer software.

MK808TS详情页补充03psd

■ Full Systems Diagnose

Simply accessing the diagnostic modes via AutoVin or Control Unit, and you’re able to perform diagnosis over all systems on the vehicle’s ECU in order to locate fault systems and retrieve DTCs.


ECU Information – provides the retrieved ECU information in detail.

Read Codes – displays detailed information of DTC records retrieved from the vehicle control module.

Erase Codes – erases DTC records and other data from the ECM.

Live Data – retrieves and displays live data and parameters from the vehicle’s ECU.

6_10

■ Active Test

The process of sending and retrieving information from a vehicle control module with a device is known as Actuation test or bi-directional control. The main aim of the actuation test function is to request the control module to perform a specific function including system tests, actuator tests, functional tests, inspection tests, reprogramming or reinitialization, thus saving diagnostic time.

Eg: You connect a fuel pressure gauge, cycled the key and cranked the engine but you couldn’t figure out anything regarding the fuel pressure. With the actuation test function of this diagnostic tool, you can send a fuel pump command on instruction and see the proper fuel pressure, figuring out if there is a problem with the fuel pump circuit or pump.

6_08

■ Auto VIN Scan

Just one touch, which allows technician to quickly detect vehicle and run diagnostics on the  selected system.

6_14



■ 30+ Special Functions

25 Service Functions for various scheduled service and maintenance performances including : Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, ABS/SRS, Cylinder, Turbocharging, Limit, Clutch, Trans Adaption, Airbag Reset.

It provides component adaptation or variant coding functions for custom configurations, and also allows you to reprogram adaptive values for certain components after making repairs.

The most commonly performed service functions include:


Oil Reset Service:

 Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.


EPB Service:

Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.


SAS Service:

Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.


DPF Service:

 Allows you to carry out numerous functions to the Diesel Particulate Filter system.
TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.


IMMO Service:

Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.


And Many More

更新31

123


■ Vehicle Coverage

The software of MK908P has a wide range of compatibility and can be used to diagnose vehicles from over 80 brands in the US, Europe and Asia. Moreover, you can get more newly added car models with the fast-release software update service.

MK908P_07


SUITABLE FOR ALL MAKE AND MODELS
AUSTRALIA VERSION: AU FORD / HOLDEN INCLUDED!




■ Advanced Hardware

MK908P, as the advanced version of MS908P, features Hexa-Core processor upgraded from Quad-Core, Android4.4.2 OS upgraded from Android4.2, the 10.1"1920*1200 screen upgraded from 9.7"1024*769, and 15000mAh battery capacity increased by 4000mAh.

6_22


■ Bi-directional Control

The diagnostic tool supports bi-direction control to check the vehicle operating conditions. The bi-directional control of the ECM in Component Test enables the MK908P to transmit control commands to operate the vehicle systems.

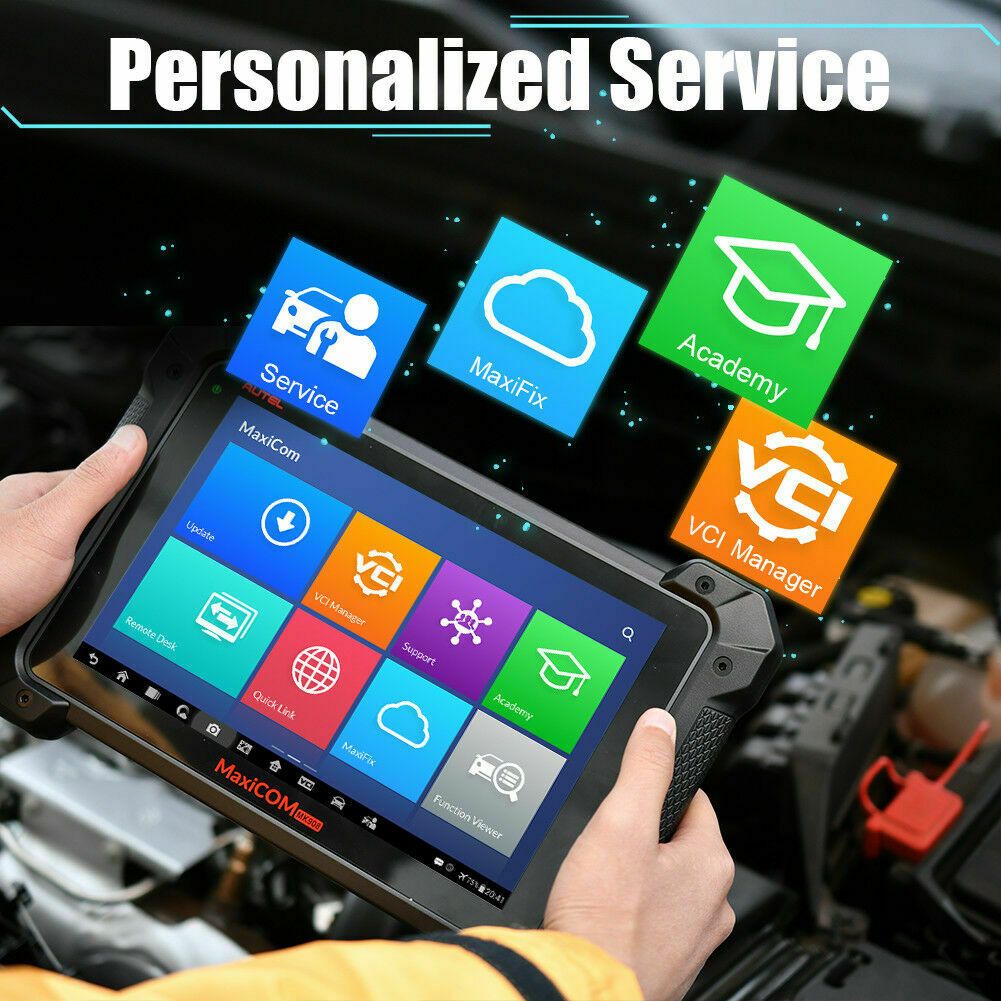

■ Additional service

To well serve the users, the diagnostic tool is equipped with rich array of features and functions in addition to the Diagnostic and Service functions,including Remote Desk, MaxiFix, Shop Manager, Digital Inspection, MaxiScope, etc.


Remote Desk:

With the simple, fast and secure remote control interface,

you can receive ad-hoc remote support from Autel’s support center, colleagues, or friends,

by allowing them to control your MaxiCOM tablet on their PC via the TeamViewer software.


MaxiFix:

This is an additional feature in the cloud which enables users to network and access a database of procedures, repair and diagnostic tools. You are able to interact with fellow technicians and share knowledge via MaxiFix.


Digital Inspection & MaxiScope:

The diagnostic scan tool can also be used in conjunction with the automotive oscilloscope Autel MP408 to perform electrical and electronic circuit testing and monitor signal activity,

and it also supports performing a close vehicle inspection with the Autel digital inspection camera MV105/MV108.
...

6_20

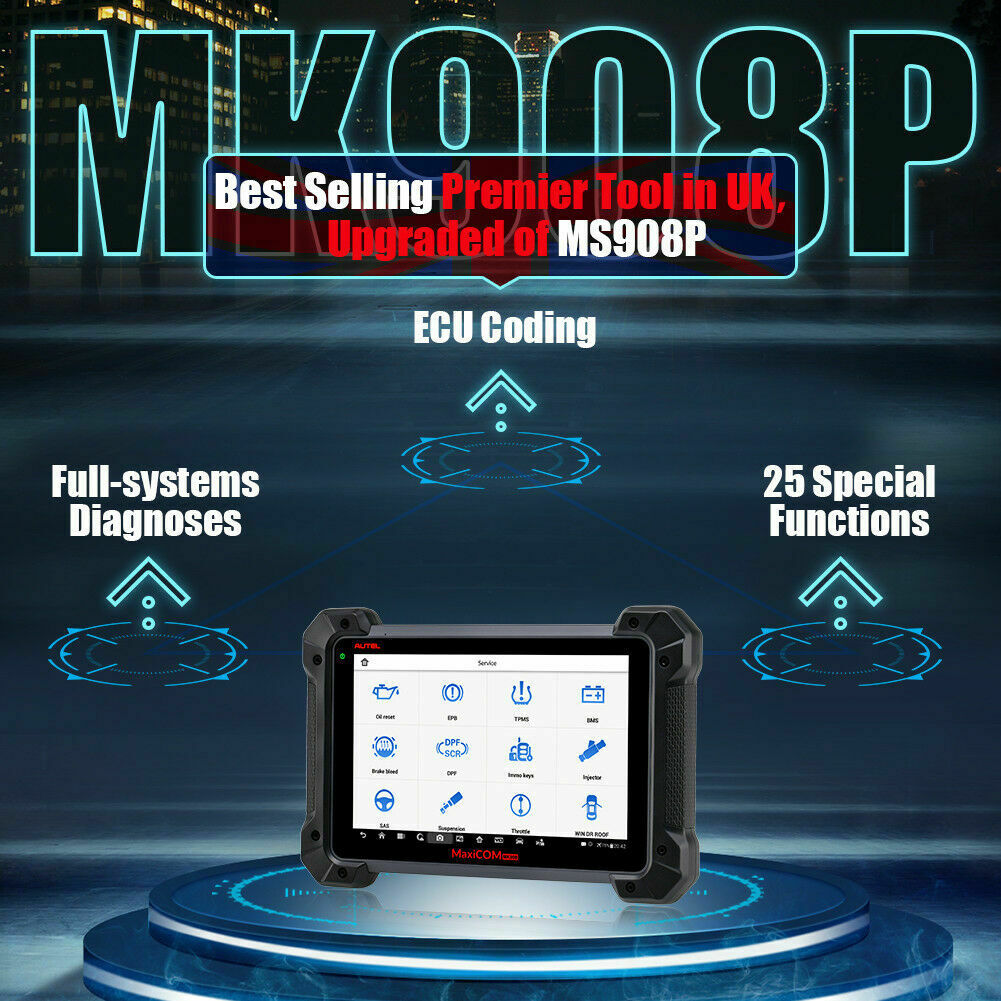

■ MK908P is an upgraded version of MS908P

 MK908P is equipped with more advanced hardware.


Processor:

The MK908P is processed by the powerful Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) while the MS908P is using the Samsung Exynos Quad-Core Processor 1.4GHz.


Operating System:

Diagnostic scan tool MK908P features Android4.4.2, KitKat operating system that is upgraded from Android 4.0, Ice Cream Sandwich.


Memory:

The MK908P is equipped with 2GB RAM & 64GB on-board Memory, but MS908P only has 32GB on-board memory.


Screen Size & Pixel:

The Automotive diagnostic scanner MK908P features 101.1 inches LED screen with 1920*1200 resolutions that provides a better user experience than MS908P’s 9.7 inches screen with 1024*768 resolutions.


Camera:

The camera of MK908P is designed to provide a more detailed images using 8.0 Megapixel, AF with Flashlight.


Battery Capacity:

For a tablet diagnostic tool that is equipped with built-in battery, the battery life greatly affects the integrity of the diagnosis and the user experience.

Compared to the MS908P, the MK908P extends the usage time by increasing battery capacity by 4000mAh.



MK908P_16



■ Software Update

The Autel company frequently releases new versions of the software and engine code library that makes it compatible for newly launched vehicles.

If any “Unknown” or “New Vehicle Found” error is reported, the custom software updates are made available to the users in time.

■ Warranty:

12-month warranty for any quality problem

■ Tips:

If you have any questions about our product, please contact us by Email or Q&A, You can also get more details on our official website.

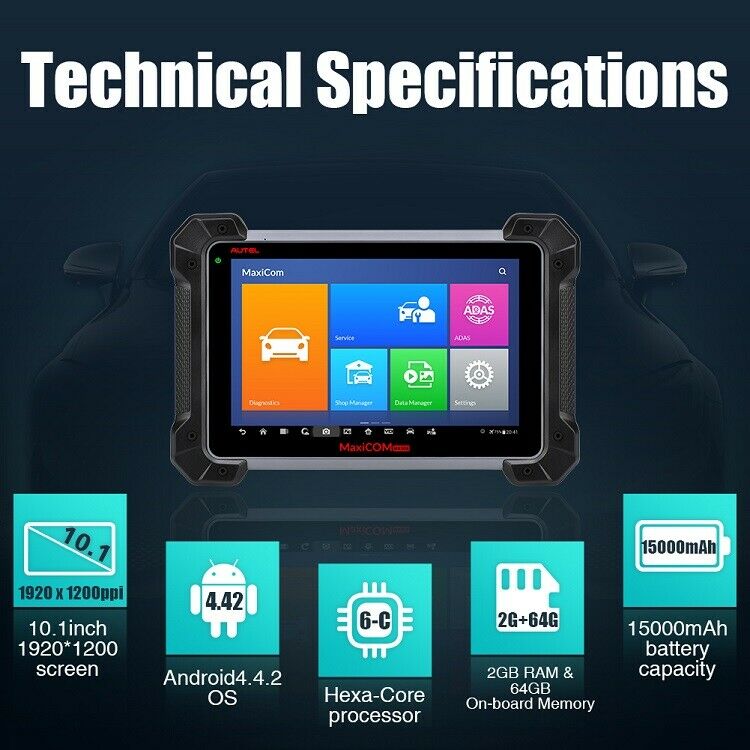

■ Specifications:

Operating System: AndroidTM 4.4.2, KitKat


Processor: Samsung Exynos hexa-core Processor

               (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)


Memory: 2GB RAM & 64GB On-board Memory


Display: 10.1-inch LED Screen with 1920x1200 Resolutions


Connectivity:Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI

Camera (rear): 8.0 Megapixel, AF with Flashlight


Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)


Audio Input/Output: Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack; Power and Battery;

                             15000mAh 3.8 V lithium-polymer battery;

                             Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C


Input Voltage: 12 V (9-24 V)
Power Consumption: 6.5 W


Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)


Housing: Strong plastic housing with protective rubber boot

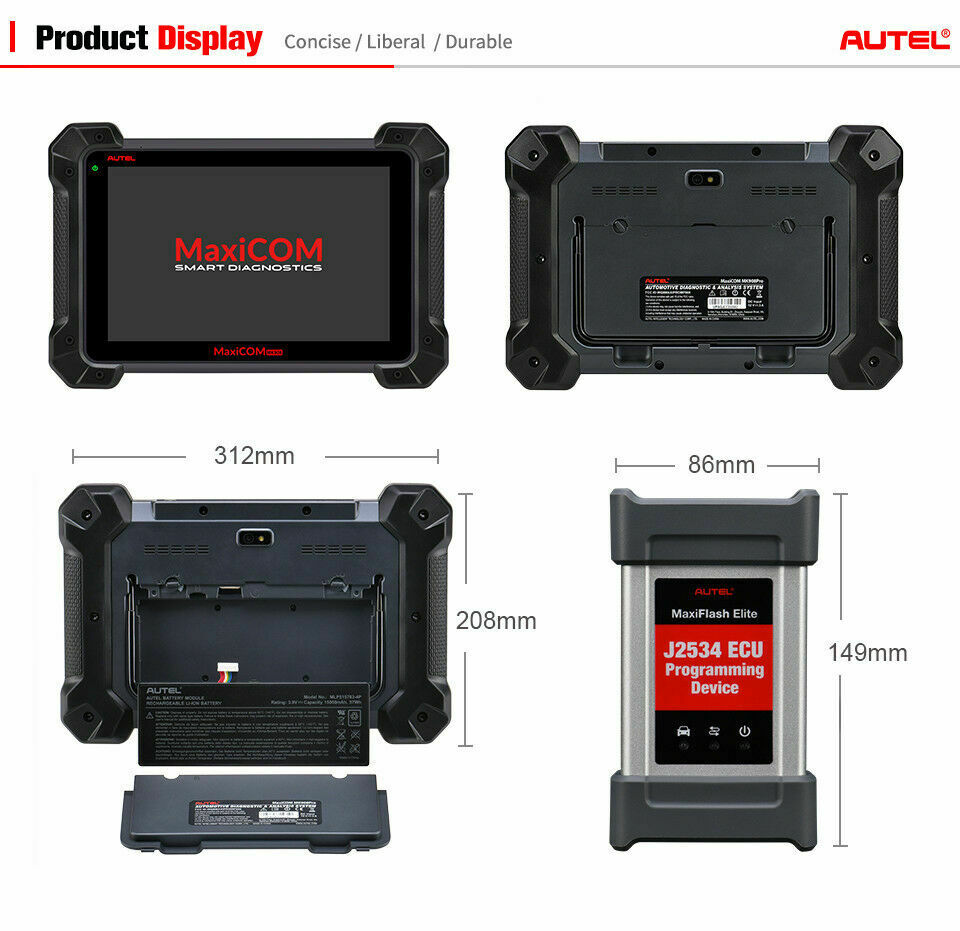

Dimensions (W*H*D): 312mm (12.28") * 208mm (8.18") * 36mm (1.41")

Weight (NW): 1.48kg (3.26lb)


Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code,

                 SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed,

                 Middle speed, Low speed and Singlewide CAN, GM UART, UART Echo Byte Protocol,

                 Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

MK908P_06



04 pacakge listGAI2

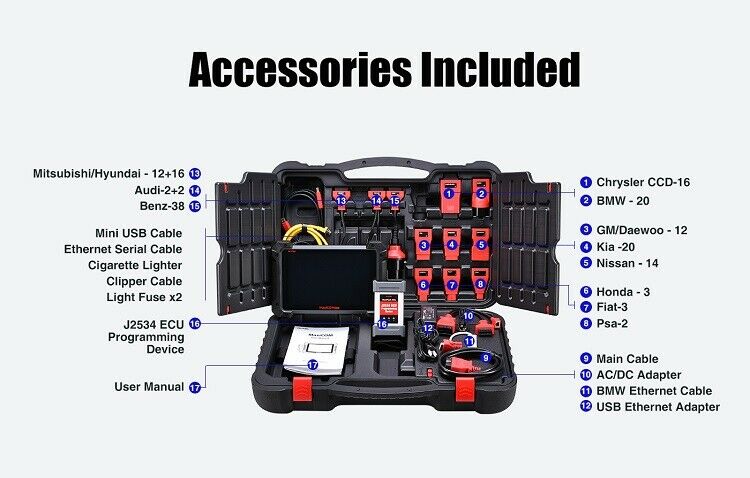

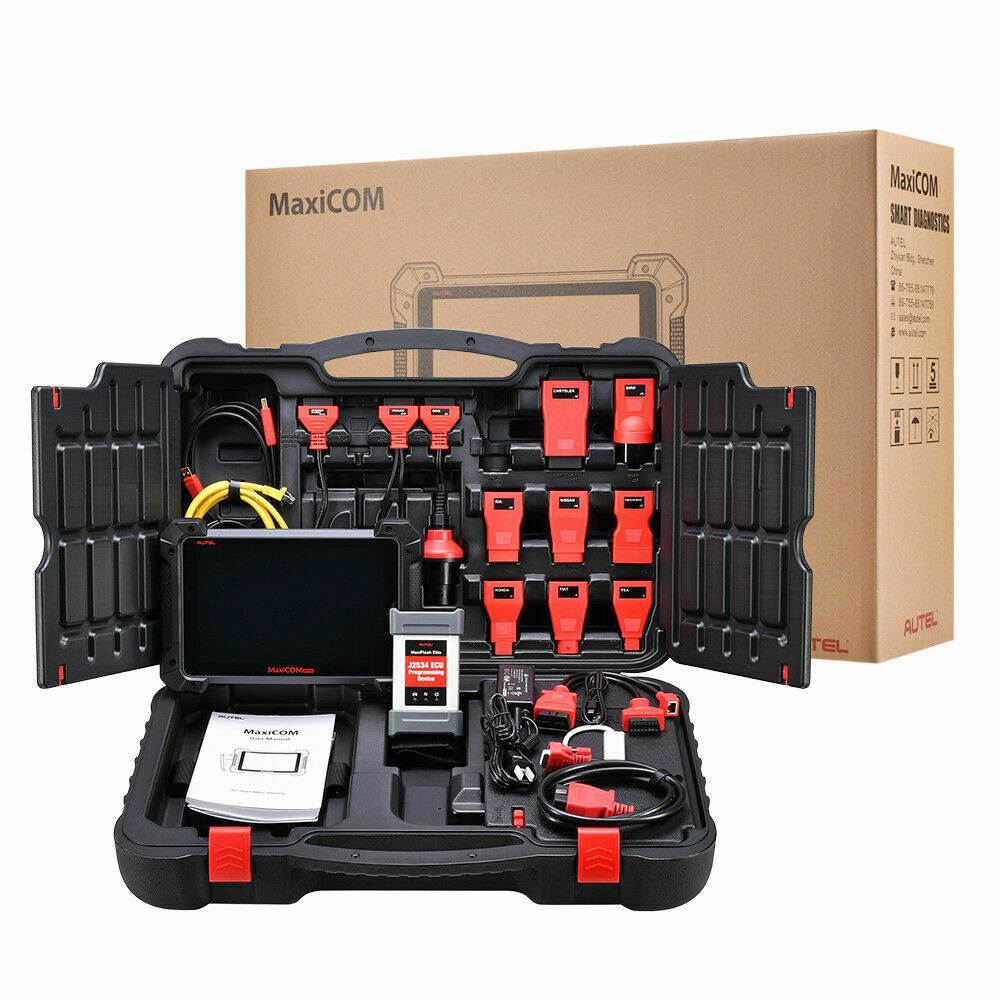

■ Package List:


1 * Main Unit – MK908P
1 * J2534 Box
1 * Main Cable
1 * Standard 2.0 USB Cable
1 * Mini USB Cable
1 * AC/DC External Power Adapter
1 * Ethernet Serial Cable
1 * Cigarette Lighter
1 * Clipper Cable
2 * Light Fuse
1 * BMW Ethernet Cable (Optional)
1 * USB Ethernet Adapter

14 * OBDI Adapters (Benz-14 (EU version MK908 PRO); Chrysler-16 (US version MK908 PRO); BMW-20; Kia-20; Nissan-14; GM/Daewoo-12;
Honda-3; Fiat-3; PSA-2 Benz-38; VW/Audi-2+2; Mitsubishi/Hyundai-12+16)
