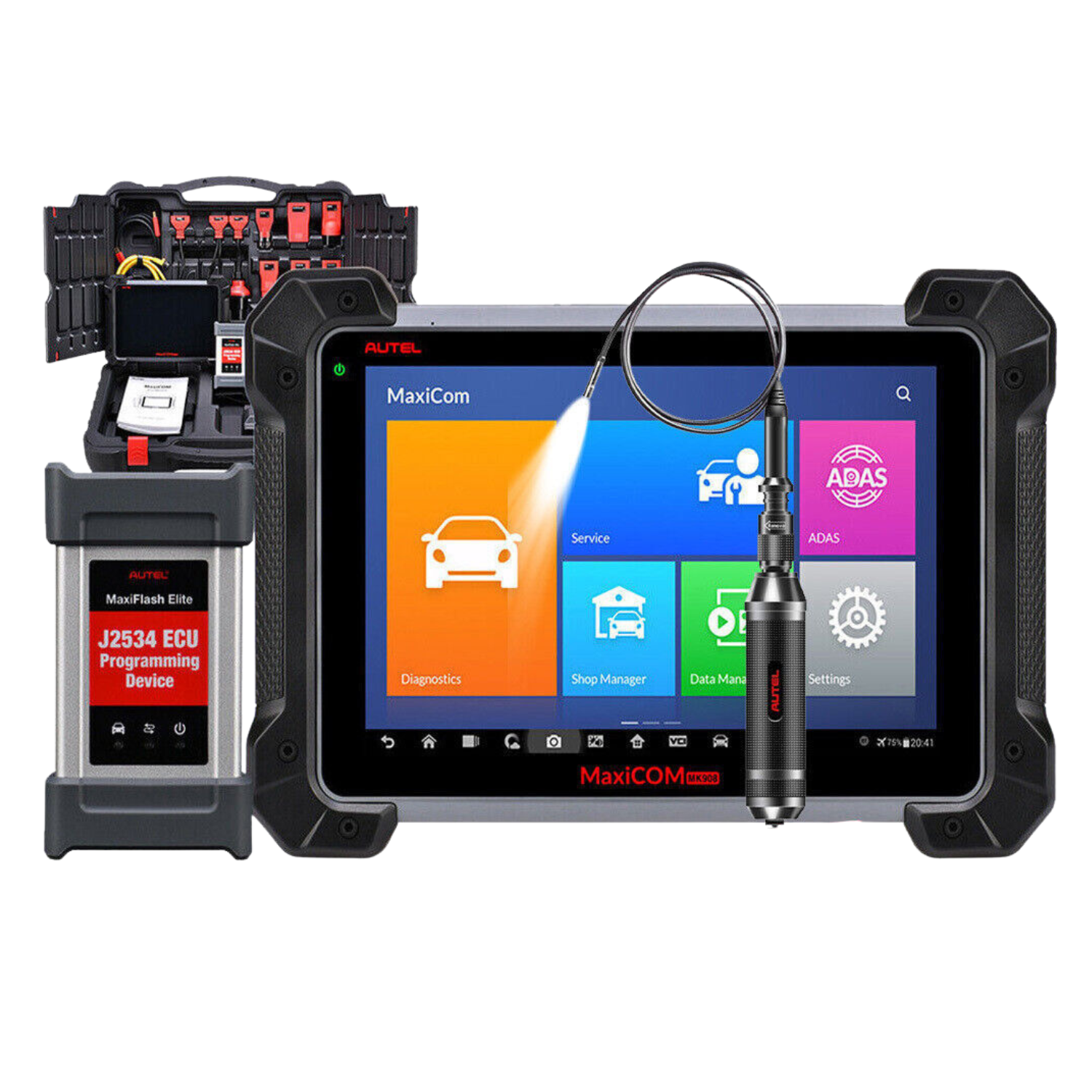

SupportECU ProgrammingforBMWandBenz.MaxiCOM MK908P is the Upgrade Version ofMaxisys Pro MS908P.

The diagnostic tool comes with a freeJ2534 ECU programmingdevice that helpsBenzandBMWusers replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues.

J2534 ECU programming tool (also used as a VCI box) that is a SAE J2534-1 & -2 compliant pass thru reprogramming interface device.

Using the updatedOEMsoftware, it is capable of helping BMW and Benz users replace the existing software/firmware in the Electronic Control Units (ECU), program new ECUs and fix software-controlled drivability issues and emission issues.

It supports BT and USB communications and can transmit vehicle data to the MaxiCOM display tablet with a physical connection.

■There are3 indicatorson the J2534 ECU programming device:

Vehicle LED–Flashes green when communicating with the vehicle's system

Connection LED–Illuminates solid green when properly connected with the display tablet via the USB cable; Illuminates solid blue when connected with the display tablet via wireless (BT) connection

Power LED–Illuminates solid green when powered on: Flashes red when system failure occurs: Illuminates amber automatically at power up when the device is performing self-test procedure

The Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as toreprogramadaptive data for certain components, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts.

By using this function, users can receive ad-hoc remote support from Autel's technical engineers, colleagues, or friends, by allowing them to control this tablet device on their PC via the TeamViewer software.

■Full Systems Diagnose

Simply accessing the diagnostic modes viaAutoVinor Control Unit, and you're able to perform diagnosis overall systemson the vehicle'sECUin order to locate fault systems and retrieve DTCs.

ECU Information– provides the retrieved ECU information in detail.

Read Codes– displays detailed information of DTC records retrieved from the vehicle control module.

Erase Codes– erases DTC records and other data from the ECM.

The process of sending and retrieving information from a vehicle control module with a device is known as Actuation test or bi-directional control. The main aim of the actuation test function is to request the control module to perform a specific function includingsystem tests, actuator tests, functional tests, inspection tests, reprogramming or reinitialization, thus saving diagnostictime.

Eg:You connect a fuel pressure gauge, cycled the key and cranked the engine but you couldn't figure out anything regarding the fuel pressure. With the actuation test function of this diagnostic tool, you can send a fuel pump command on instruction and see the proper fuel pressure, figuring out if there is a problem with the fuel pump circuit or pump.

Just one touch, which allows technician to quickly detect vehicle and run diagnostics on the  selected system.

30+ Service Functions for various scheduled service and maintenance performances including :Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, ABS/SRS, Cylinder, Turbocharging, Limit, Clutch, Trans Adaption, Airbag Reset.

It providescomponent adaptationorvariant codingfunctions for custom configurations, and also allows you toreprogramadaptive values for certain components after making repairs.

The most commonly performed service functions include:

Oil Reset Service:

Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.

EPB Service:

Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

SAS Service:

Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.

DPF Service:

Allows you to carry out numerous functions to the Diesel Particulate Filter system.
TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.

IMMO Service:

Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.

And Many More...

The software of MK908P has a wide range of compatibility and can be used to diagnose vehicles fromover 80 brandsin theUS, Europe and Asia. Moreover, you can get more newly added car models with the fast-release software update service.

■ADVANCED HARDWARE

MK908P, as the advanced version of MS908P, features Hexa-Core processor upgraded from Quad-Core,Android4.4.2 OSupgraded from Android4.2, the10.1＂1920*1200 screenupgraded from 9.7＂1024*769, and15000mAh batterycapacity increased by 4000mAh.

■BI-DIRECTIONAL CONTROL

The diagnostic tool supports bi-direction control to check the vehicle operating conditions. The bi-directional control of the ECM in Component Test enables the MK908P to transmit control commands to operate the vehicle systems.

■ADDITIONAL SERVICE

To well serve the users, the diagnostic tool is equipped with rich array of features and functions in addition to the Diagnostic and Service functions,includingRemote Desk, MaxiFix, Shop Manager, Digital Inspection, MaxiScope, etc.

Remote Desk:

With the simple, fast and secure remote control interface,

you can receive ad-hoc remote support from Autel's support center, colleagues, or friends,

by allowing them to control your MaxiCOM tablet on their PC via the TeamViewer software.

MaxiFix:

This is an additional feature in the cloud which enables users to network and access a database of procedures, repair and diagnostic tools. You are able to interact with fellow technicians and share knowledge via MaxiFix.

Digital Inspection & MaxiScope:

The diagnostic scan tool can also be used in conjunction with the automotive oscilloscope Autel MP408 to perform electrical and electronic circuit testing and monitor signal activity,

and it also supports performing a close vehicle inspection with the Autel digital inspection camera MV105/MV108.
.........

MK908P is equipped withmore advancedhardware.

Processor:

The MK908P is processed by the powerful Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) while the MS908P is using the Samsung Exynos Quad-Core Processor 1.4GHz.

Operating System:

Diagnostic scan tool MK908P features Android4.4.2, KitKat operating system that is upgraded from Android 4.0, Ice Cream Sandwich.

Memory:

The MK908P is equipped with 2GB RAM & 64GB on-board Memory, but MS908P only has 32GB on-board memory.

Screen Size & Pixel:

The Automotive diagnostic scanner MK908P features 101.1 inches LED screen with 1920*1200 resolutions that provides a better user experience than MS908P's 9.7 inches screen with 1024*768 resolutions.

Camera:

The camera of MK908P is designed to provide a more detailed images using 8.0 Megapixel, AF with Flashlight.

Battery Capacity:

For a tablet diagnostic tool that is equipped with built-in battery, the battery life greatly affects the integrity of the diagnosis and the user experience.

Compared to the MS908P, the MK908P extends the usage time by increasing battery capacity by 4000mAh.
