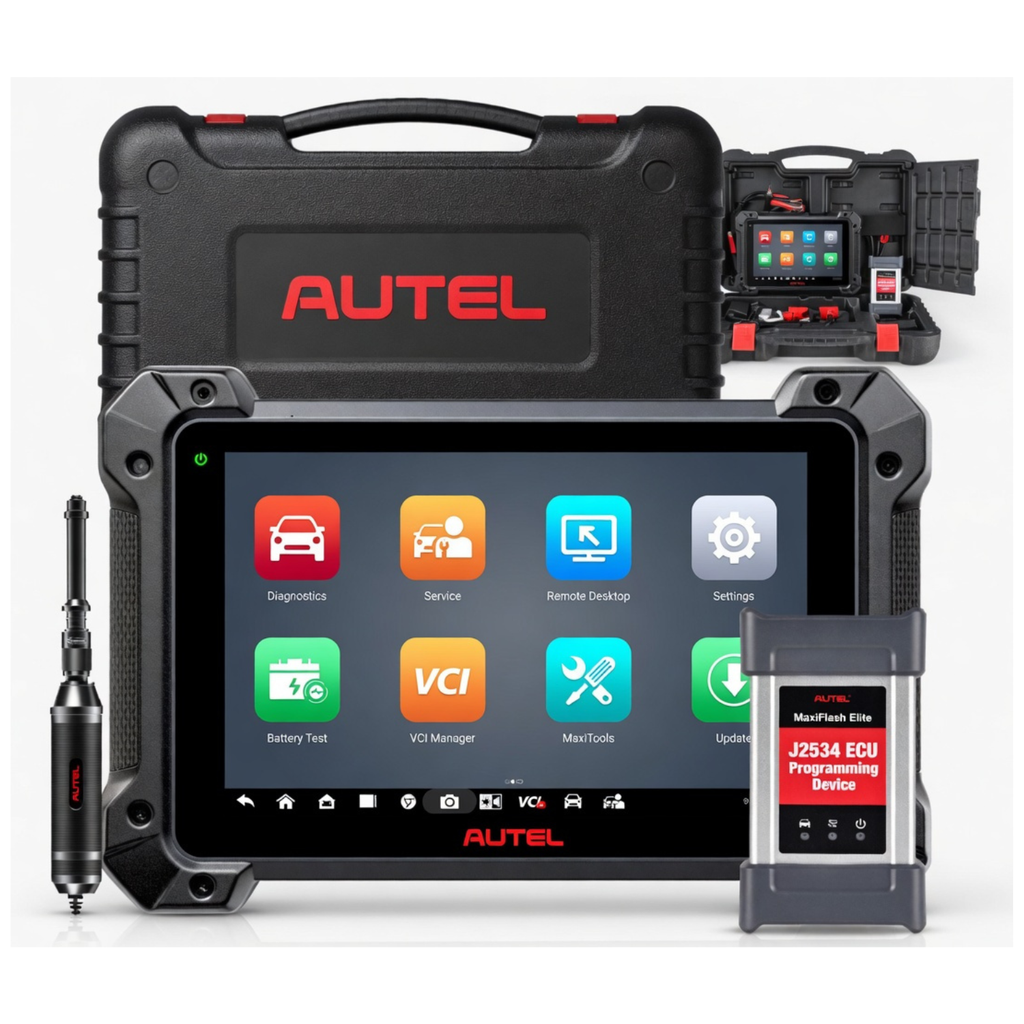

Newest Autel MK908PRO II Automotive Diagnostic Tools J2534 ECU Online Programming+Online Coding+36 Reset services+Active Test+Hidden Refresh+VAG Guided Function+Post-Scan Reports
Autel MaxiCOM MK908P II, the upgraded version of MS908P, is a professional diagnostic tool with a 10.1-inch touch screen and advanced hardware from the Samsung Exynos hexa-core processor and Android 7.0 OS for quick and comfortable car diagnostics. Offering comprehensive OE-level diagnostics, ECU coding and BMW/Benz ECU programming, the MK908P is an ideal automotive diagnostic tool for mechanics to troubleshoot the warning lights and fix the vehicle control modules'issues.
The Autel MaxiCOM MK908 Pro II is a professional-grade automotive diagnostic scanner designed to meet the demands of modern repair workshops and advanced technicians. As the upgraded 2026 version of MK908P and MS908S Pro, this powerful tool delivers enhanced hardware, advanced ECU programming capabilities, and full-system diagnostics for over 150 vehicle brands worldwide. Built on the latest Android 10 operating system and powered by the Qualcomm SDM660 octa-core processor, it features 4GB RAM and 128GB storage, ensuring fast processing speed, smooth multitasking, and reliable performance. With no IP restrictions and FCA AutoAuth support, the MK908 Pro II is a complete solution for global automotive diagnostics.
【Same as Maxisys Elite II with ECU Programming】
Coming with J2534 ECU reprogramming device, Autel MK908PRO II is competent for online programming specific BENZ/ BMW. EXACTLY the same functions as Autel MaxiSys Elite II, making itself the most cost-effective high-end diagnostic scanner in Autel product line. Also upgraded of MS908S Pro, Autel MK908P auto scanner enjoys superior configuration, serves 13 languages with no IP restrictions (MS908S Pro ONLY supports English).
The diagnostic tool comes with a J2534 ECU programming tool (also used as a VCI box) that is a SAE J2534-1 & J2534-2 compliant pass thru reprogramming interface device. Using the updated OEM software, it is capable of helping BMW and Benz users replace the existing software/firmware in the Electronic Control Units (ECU), program new ECUs and fix software-controlled drivability issues and emission issues.
It supports BT and USB communications and can transmit vehicle data to the MaxiCOM display tablet with or without a physical connection.
There are 3 indicators on the J2534 ECU programming device:
Vehicle LED - Flashes green when communicating with the vehicle's system
Connection LED -Illuminates solid green when properly connected with the display tablet via the USB cable; Illuminates solid blue when connected with the display tablet via wireless (BT) connection
Power LED-Illuminates solid green when powered on: Flashes red when system failure occurs: Illuminates amber automatically at power up when the device is performing self-test procedure
Advanced J2534 ECU Programming & Coding
The MK908 Pro II comes equipped with a J2534 pass-thru interface, enabling OE-level ECU programming and coding functions comparable to high-end tools such as MaxiSys Elite II Pro, MS909, MS919, and Ultra series scanners. This allows technicians to program new or replacement ECUs, update ECU software, and perform module matching with precision. In addition, it supports advanced ECU coding features, including unlocking hidden functions, customizing vehicle parameters, and optimizing system performance. This makes it an essential tool for complex repairs, module replacements, and performance enhancements.
【Online Coding + Active Test】
Autel MK908PRO II offer online coding for VW, Au di, Porsche, Benz, BMW. Online configuration for Renault is unique among diagnostic industries. Besides, Autel MK908P features Bi-Directional Control (Active Test) to request information or command an actuator to perform specific tests, like cycling the a/c clutch on and off, perform an evaporative emissions leak test and more tests to solve the specific repairing work.
【All-system Diagnose + 36 Service Functions】
Provided with full-systems diagnosis (ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System, etc.). MK908PRO II also offers another 36+ service functions to help your repairing work faster, easier, and more professional. These service functions include immo keys/throttle/injecor coding/trans adaption/suspension/tyre retrofit/brake bleed/oil reset and more.
【36+ Special Functions】
The various scheduled service and maintenance performances including : Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, ABS/SRS, Cylinder, Turbocharging, Limit, Clutch, Trans Adaption, Airbag Reset.
Oil Reset Service: Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.
EPB Service: Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
SAS Service: Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
DPF Service: Allows you to carry out numerous functions to the Diesel Particulate Filter system.
TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
IMMO Service: Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.
And Many More...
【VEHICLE COVERAGE】
The software of MK908PRO II has a wide range of compatibility and can be used to diagnose vehicles from over 80 brands in the US, Europe and Asia. Moreover, you can get more newly added car models with the fast-release software update service.
【Multiple Languages】
English, Simplified Chinese, Traditional Chinese, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Turkish, Swedish, Thai, Arabic, Russian
【Remote Technical Support】
By using this function, users can receive ad-hoc remote support from Autel’s technical engineers, colleagues, or friends, by allowing them to control this tablet device on their PC via the TeamViewer software.
Full-System Diagnostics & AutoScan 2.0
This professional diagnostic scanner provides complete all-system diagnostics, allowing users to read and clear DTCs, access live data streams, and perform in-depth system analysis across all vehicle modules. With AutoScan 2.0, the device can quickly scan the entire vehicle and generate comprehensive diagnostic reports. Pre-scan and post-scan reports provide clear documentation of vehicle condition before and after repairs, improving transparency for customers and supporting insurance claims. Real-time data ensures accurate and efficient troubleshooting without delays.
Bi-Directional Control (Active Tests)
The MK908 Pro II supports advanced bi-directional control, enabling direct communication with vehicle ECUs to perform active tests. Technicians can send commands to actuators such as solenoids, relays, switches, valves, and other components to verify their functionality. This feature helps isolate faults quickly and accurately, reducing diagnostic time and eliminating unnecessary part replacements. It provides deeper insight into vehicle systems compared to traditional code readers.
40+ Maintenance Services for 150+ Vehicle Brands
Designed for versatility, the MK908 Pro II includes over 40 essential maintenance and reset services applicable to more than 150 vehicle brands, covering 99% of models from 1996 to 2026. Key functions include oil reset, EPB reset, SAS calibration, DPF regeneration, injector coding, ABS bleeding, throttle adaptation, and more. Unlike many OEM tools limited to specific brands, this scanner offers multi-brand service capability, making it ideal for busy workshops handling diverse vehicles. It also supports secure gateway access such as FCA AutoAuth and Renault SGW, ensuring compatibility with modern vehicle security systems.
High-End Features & Intelligent Diagnostics
To meet the growing complexity of modern vehicles, the MK908 Pro II integrates over 10 advanced features that enhance diagnostic efficiency and repair accuracy. These include component matching, online account login for manufacturer systems, VAG guided functions for step-by-step diagnostics, power balance testing, hidden function activation, VIN and license plate recognition, and more. These intelligent tools streamline workflow and provide deeper control over vehicle systems, enabling faster and more precise repairs.
Professional Solution for Modern Workshops
With its powerful hardware, OE-level ECU programming, full-system diagnostics, and advanced service capabilities, the Autel MaxiCOM MK908 Pro II stands as a complete, future-ready diagnostic solution. It combines the functionality of high-end scanners with broader compatibility and cost efficiency, making it an ideal investment for professional automotive technicians, garages, and diagnostic specialists seeking performance, reliability, and advanced features in one device.
【Auto VIN Scan】
Just one touch, which allows technician to quickly detect vehicle and run diagnostics on the selected system.
【ADVANCED HARDWARE】
MK908P, as the advanced version of MS908P, features Hexa-Core processor upgraded from Quad-Core, Android4.4.2 OS upgraded from Android4.2, the 10.1" 1920*1200 screen upgraded from 9.7" 1024*769, and 15000mAh battery capacity increased by 4000mAh.
【Additional Features and Functions】
To well serve the users, the diagnostic tool is equipped with rich array of features and functions in addition to the Diagnostic and Service functions, including Remote Desk, MaxiFix, Shop Manager, Digital Inspection, MaxiScope, etc.
Remote Desk:
With the simple, fast and secure remote control interface, you can receive ad-hoc remote support from Autel's support center, colleagues, or friends, by allowing them to control your MaxiCOM tablet on their PC via the TeamViewer software.
MaxiFix:
This is an additional feature in the cloud which enables users to network and access a database of procedures, repair and diagnostic tools. You are able to interact with fellow technicians and share knowledge via MaxiFix.
Digital Inspection & MaxiScope:
The diagnostic scan tool can also be used in conjunction with the automotive oscilloscope Autel MP408 to perform electrical and electronic circuit testing and monitor signal activity,
and it also supports performing a close vehicle inspection with the Autel digital inspection camera MV105/MV108.
Technical Specifications
Core Performance
-
Operating System: Android™ 10.0
-
Processor: Qualcomm 660 Octa-core (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
-
Memory: 4GB RAM
-
Storage: 128GB On-board Memory (Expandable up to 64GB via SD Card)
Display & Visuals
-
Screen: 10.1-inch LED touchscreen
-
Resolution: 1920 x 1200 px
-
Camera: 16 Megapixel Rear Camera with Autofocus and Flashlight
Connectivity & Ports
-
Wireless: Wi-Fi (802.11 a/b/g/n/ac) | Bluetooth V5.0 + BR/EDR
-
USB Ports: 2x USB Type-A | 1x Mini USB
-
Video Output: HDMI
-
Audio: Dual Speakers | 3.5mm Stereo Headset Jack | Integrated Microphone
Power & Durability
-
Battery: Ultra-High Capacity 15,000mAh
-
Input Voltage: 12V (Operating range: 9–24V)
-
Power Consumption: 6.5W
-
Build: Heavy-duty plastic housing with a shock-absorbent protective rubber boot
-
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Advanced Vehicle Protocols
This device supports a comprehensive range of diagnostic protocols, including:
-
Standard CAN: ISO 15765-4, CAN ISO 11898 (High, Middle, Low speed, and Singlewire), Fault-Tolerant CAN.
-
Legacy Protocols: ISO 9142-2, ISO 14230-2, K/L-Line, SAE-J1850 VPW/PWM.
-
Manufacturer Specific: GM UART (Echo Byte), Honda Diag-H, TP 2.0 / TP 1.6.
-
Heavy Duty: SAE J1939, SAE J1708.
【 Package List】
1*Main Unit
1*Clamp Cable
1*Mini USB Cable
1*MaxiFlash Elite
1*Power outlet Adapter
1*Quick Reference
1*Main Cable
1*Spare Fuse
1*USB Cable
1*Ethernet Serial Cable
1*Soft Cloth
1*AC/DC Adapter(12V)
1*USB to Ethernet Adapter
1*Carrying Case
1*BWM Ethernet Cable
