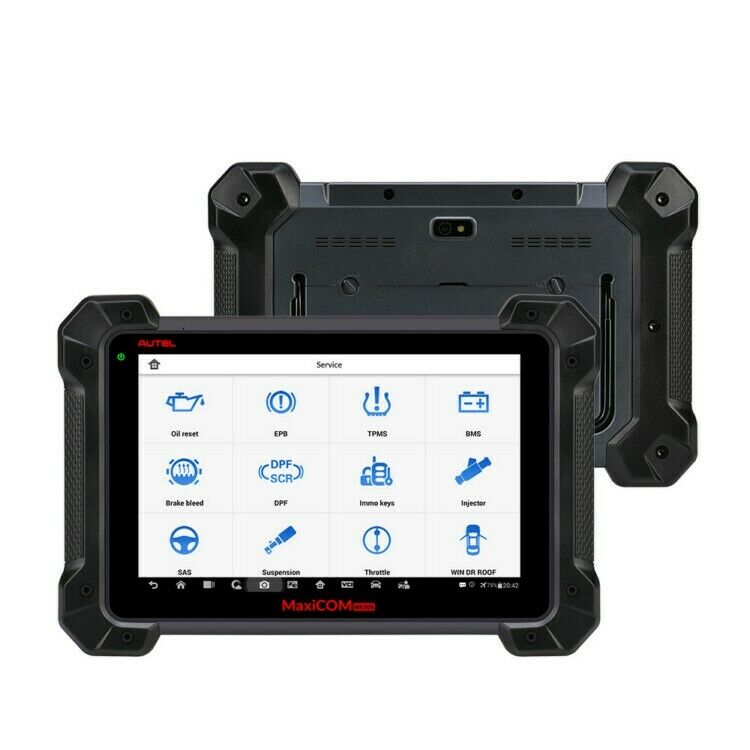

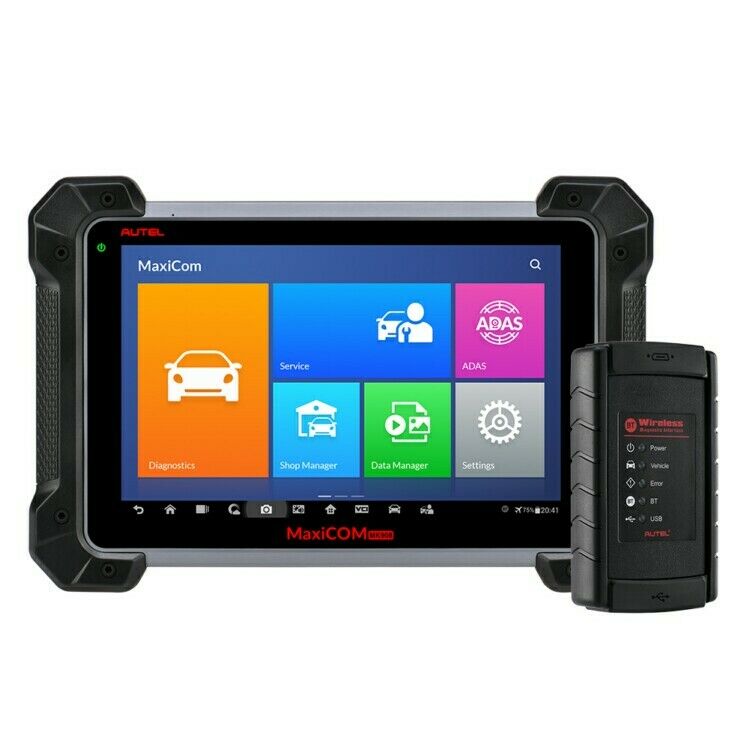

Autel MaxiCom MK908 Bluetooth Diagnostic ALL System ECU Coding Auto Scanner Tool
sold in last
Please add engraving text by clicking the Add Custom Engraving button.
customers are viewing this product
Autel MaxiCOM MK908 Professional Diagnostic Scanner ECU Coding Bi-directional Control All system Diagnosis
English, Spanish, French, German, polish, Italian, Japanese, Korean, Dutch, Portuguese, Swedish, Russian.
( Please tell us about your S/N of machine to activate the language you need after you get it. Thanks~)

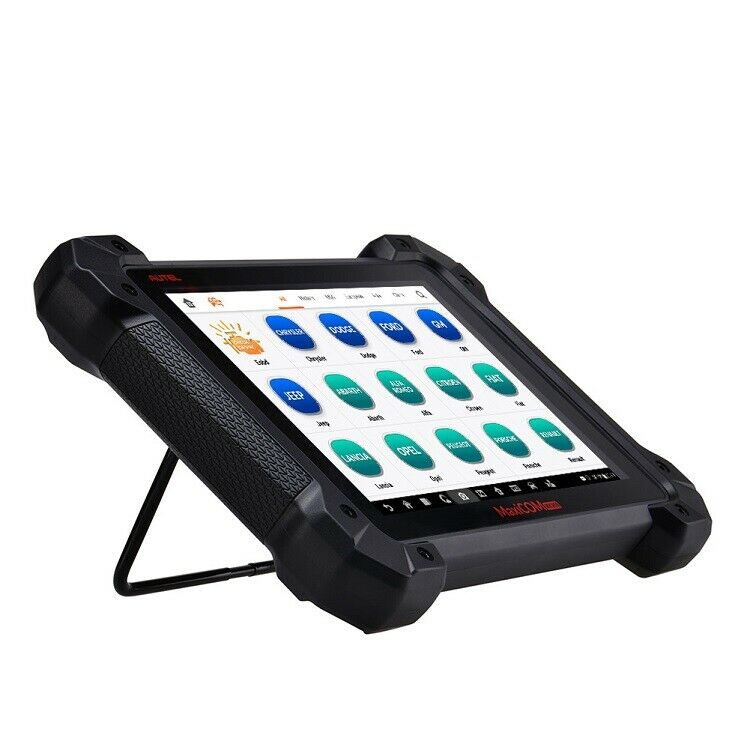

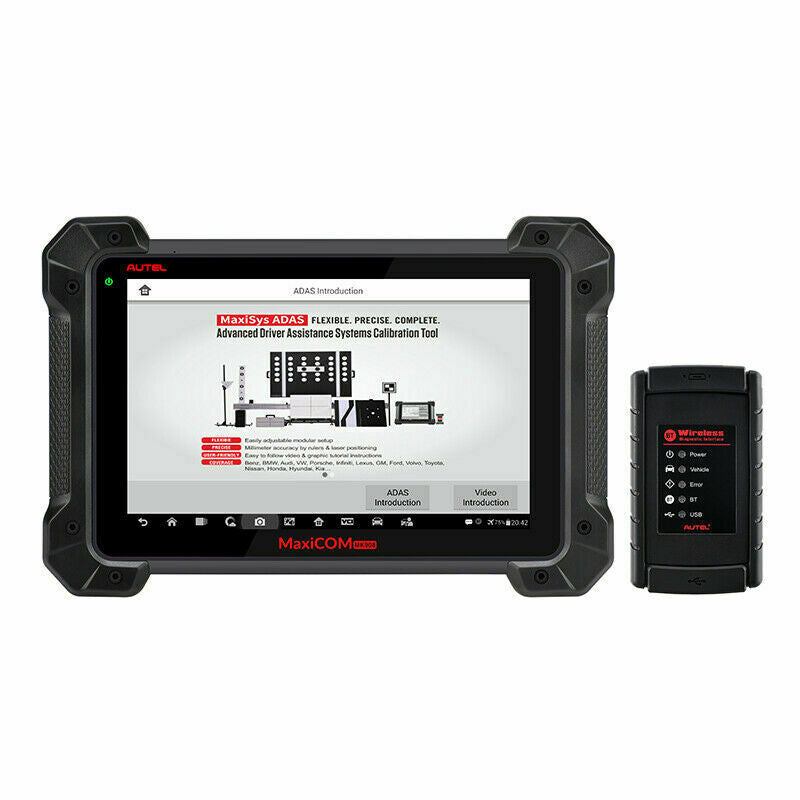

Autel MaxiCOM MK908, featuring the super-fast Hexa-Core (1.3GHz + 1.7GHz) processor, an intuitive 10.1-inch LED capacitive touch screen, multitask-capable Android 4.4.2 OS and the coverage of OE-level diagnostics, is the best possible auto diagnostic scanner providing evolutionary smart solution for professionals with Garage or Auto Repairing Shops.
■ BULLET POINTS
The diagnostic tool can replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues.

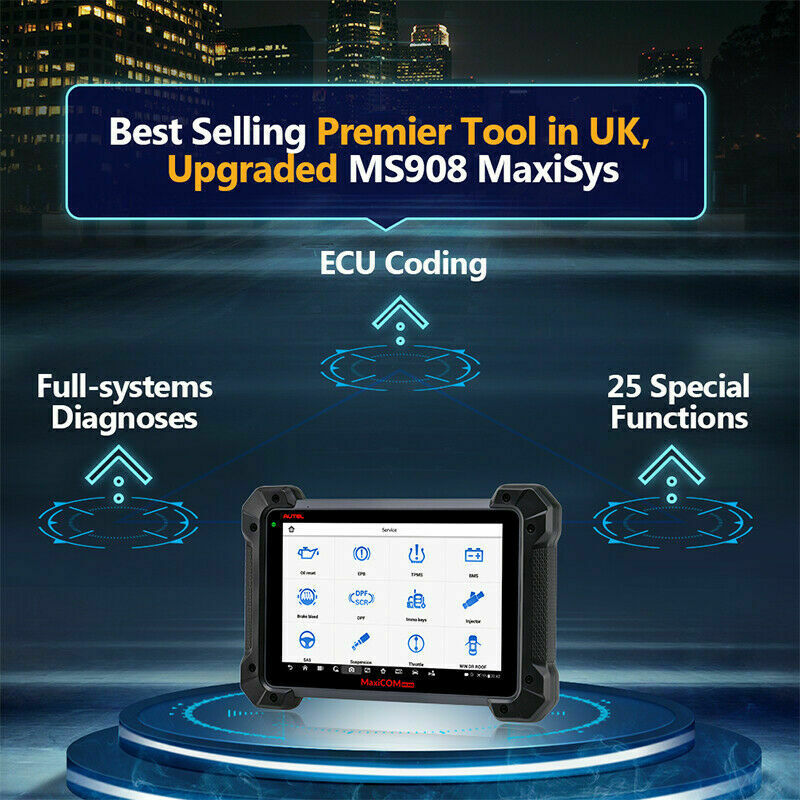

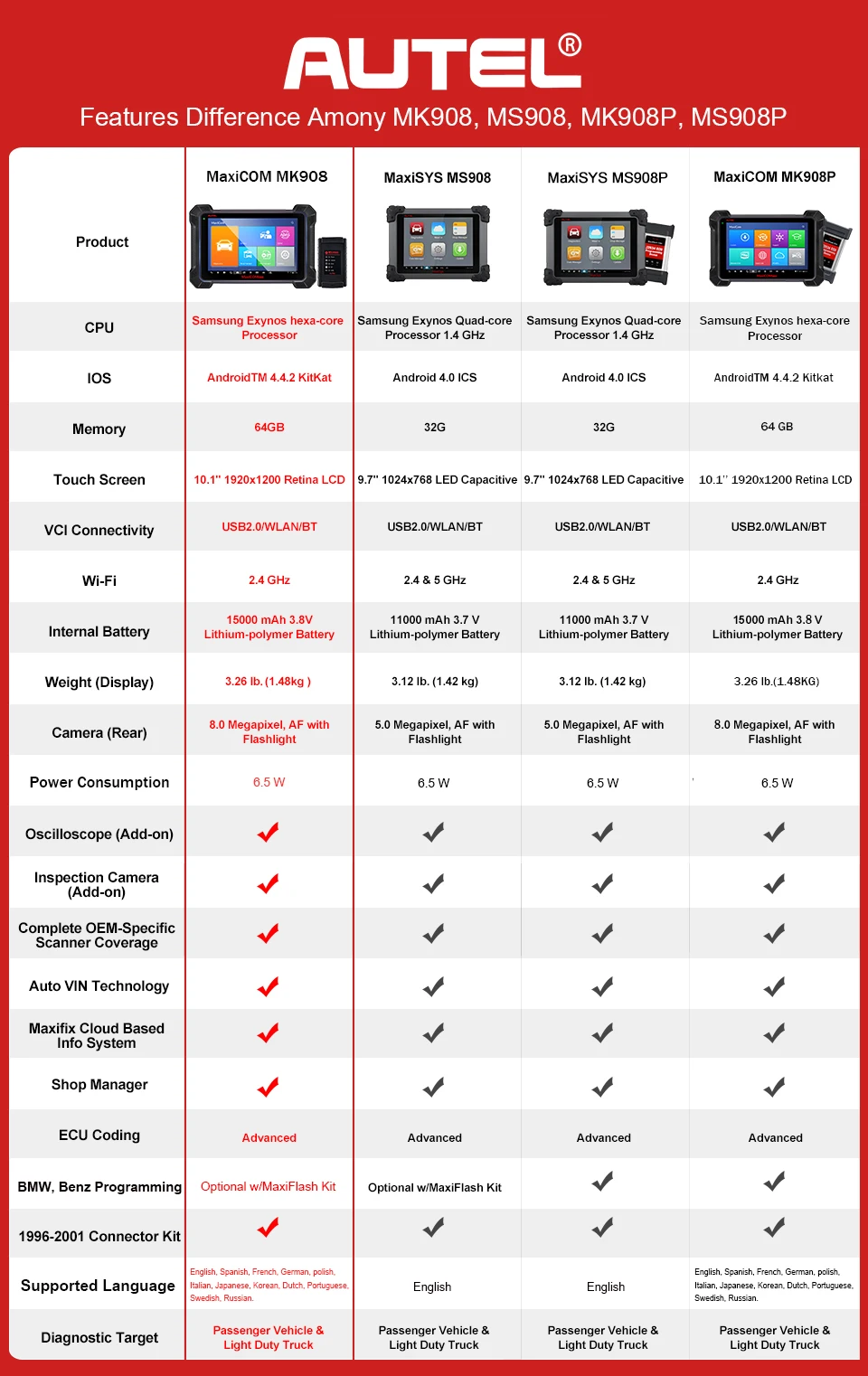

Being MS908 upgraded, it is Autel’s latest and most sophisticated diagnostic scanner which boasts the best hardware including Hexa-CPU, 2GB RAM etc. for fast boot-up and multitasking, and the ergonomic design to resist damage of heavy use.

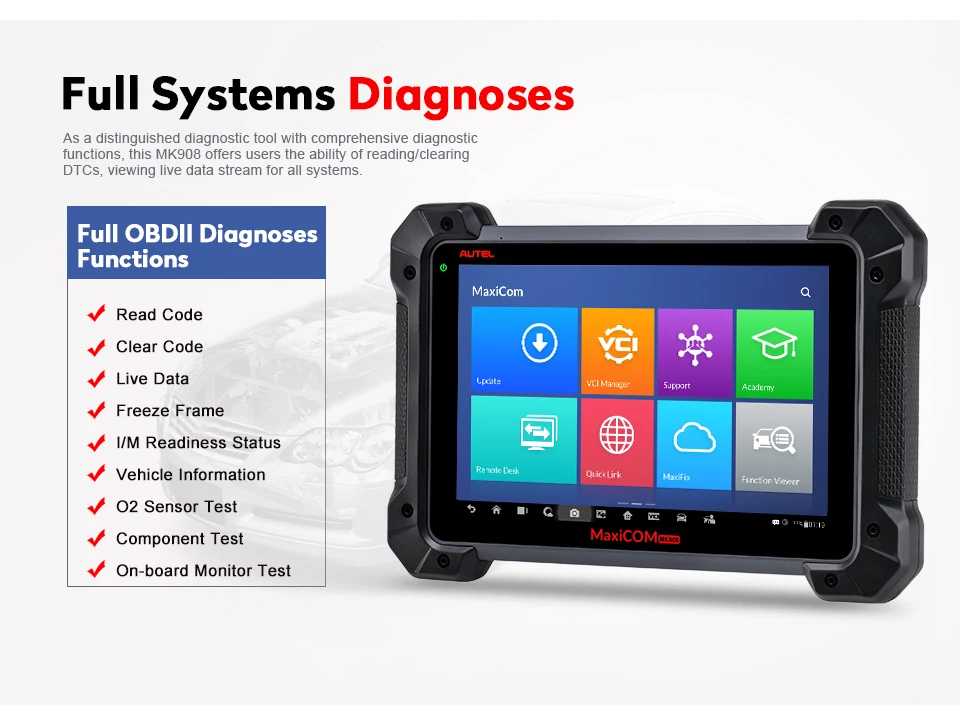

This diagnostic device can access to vehicle’s all systems and subsystems. It takes care of professionals who like to perform advanced functions as ECU coding, bi-directional control, active test etc., for getting complex diagnosis efficiently.

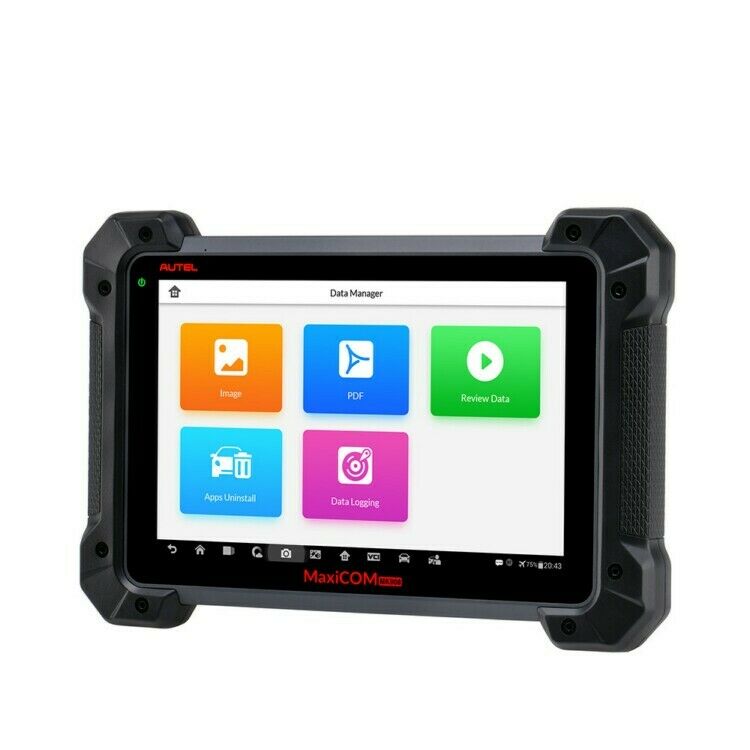

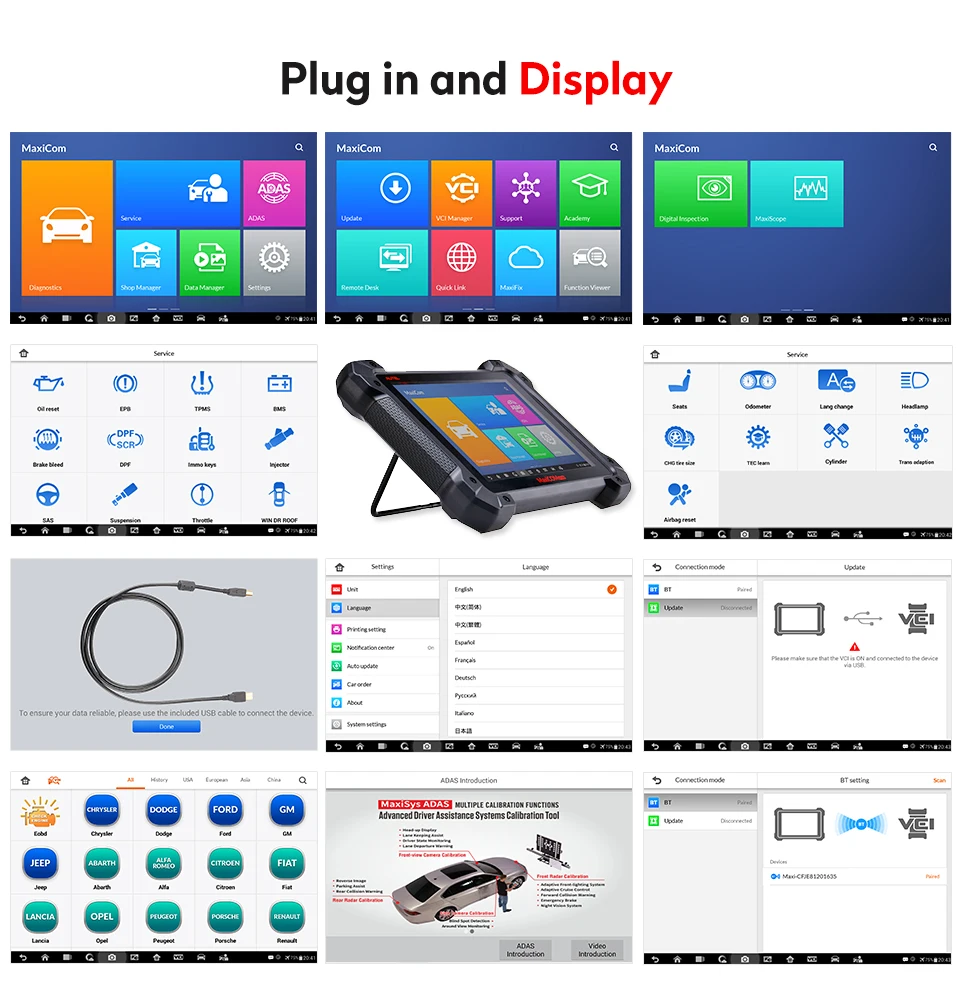

Easy and intuitive navigation makes finding what you need simple and fast. Displays live data in text, graph, analog and digital gauge for intuitive analysis. Data Manager saving diagnostic records for future reviews. And much more.
This automotive diagnostic tool can expand the diagnostic capabilities by working with MP408, MV108 to go deeper into the unseen details for locating the fault efficiently, or by working with TS601 for diagnosing comprehensive TPMS problems.
SUITABLE FOR ALL MAKE AND MODELS
AUSTRALIA VERSION: AU FORD / HOLDEN INCLUDED!

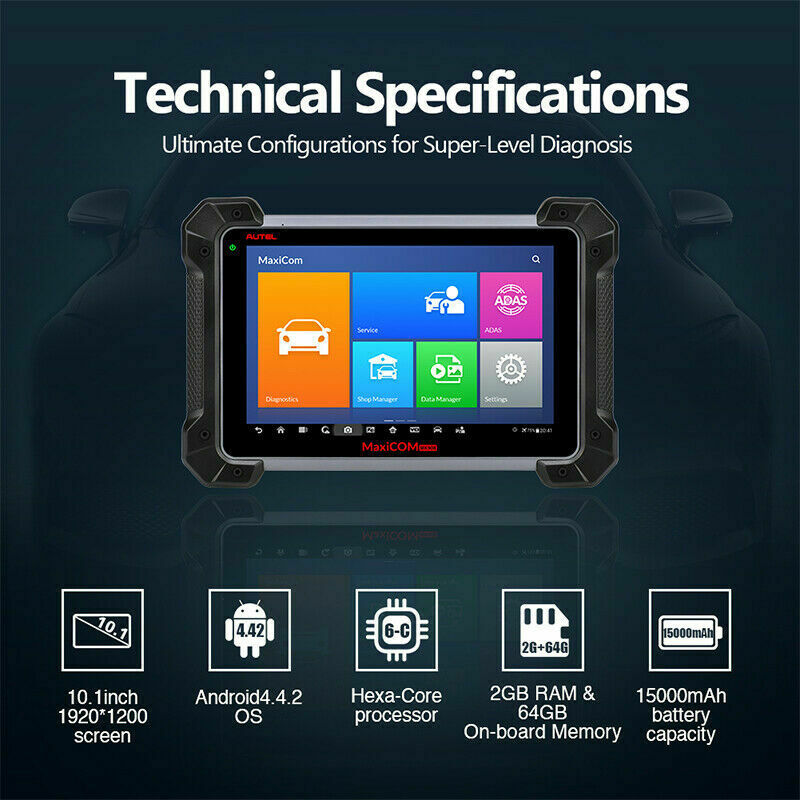

Operating System: AndroidTM 4.4.2, KitKat
Processor: Samsung Exynos hexa-core Processor
(1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory: 2GB RAM & 64GB On-board Memory

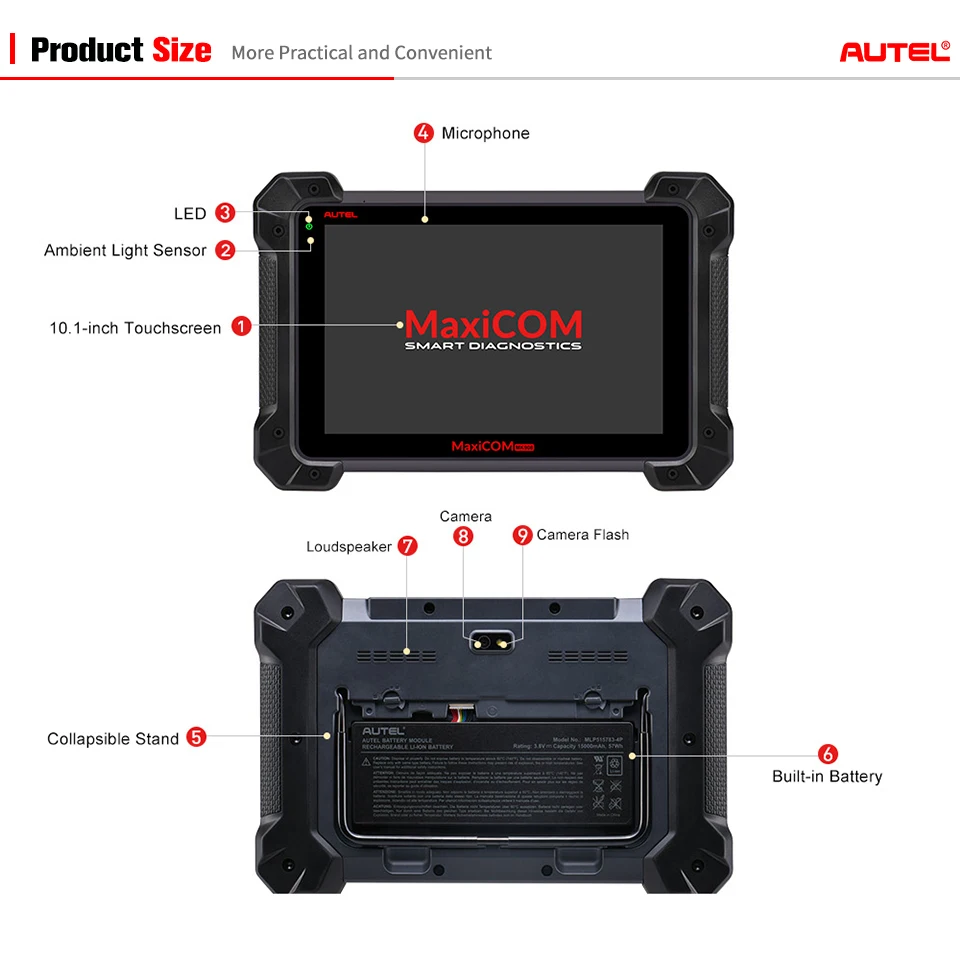

Display: 10.1-inch LED screen with 1920x1200 resolutions

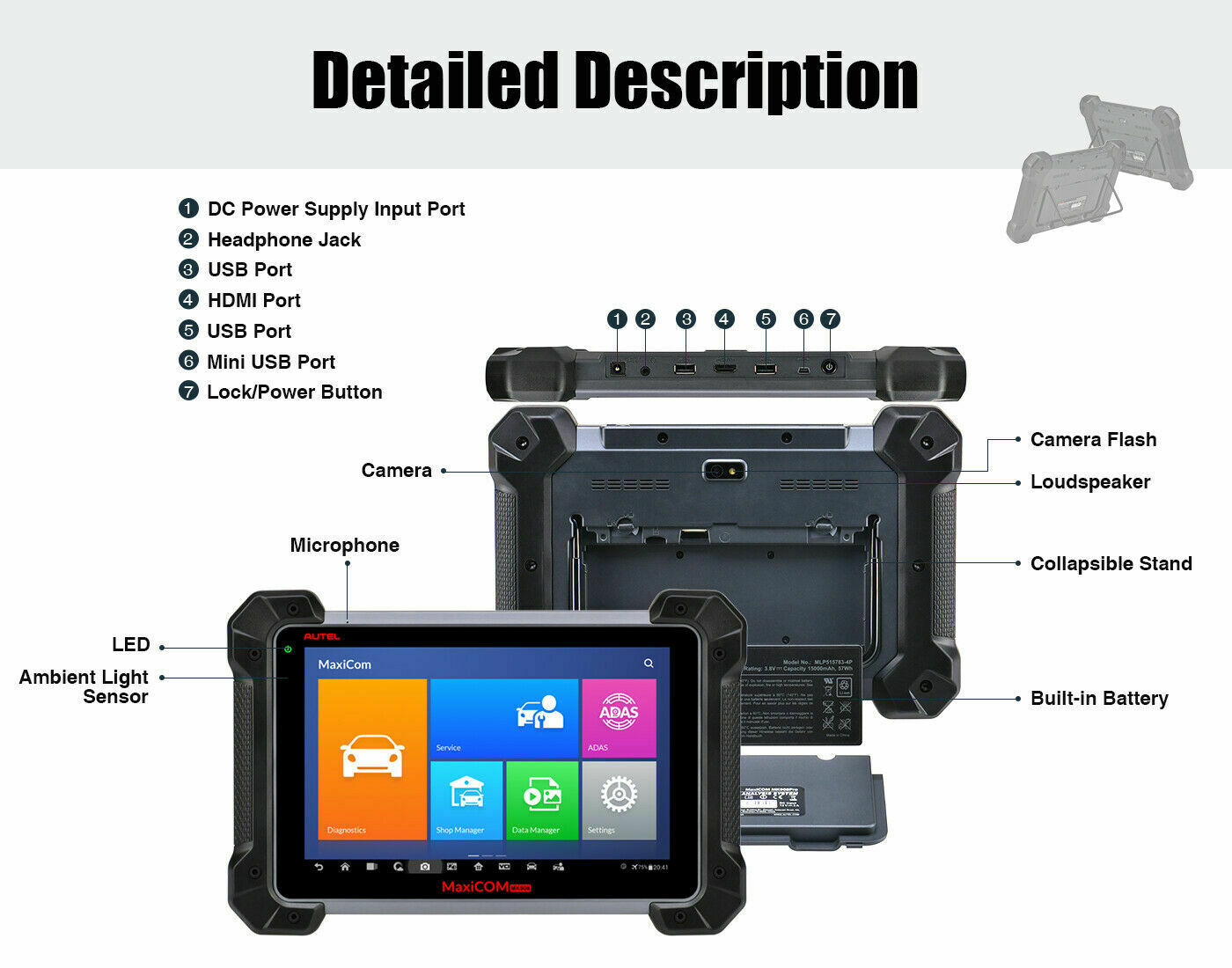

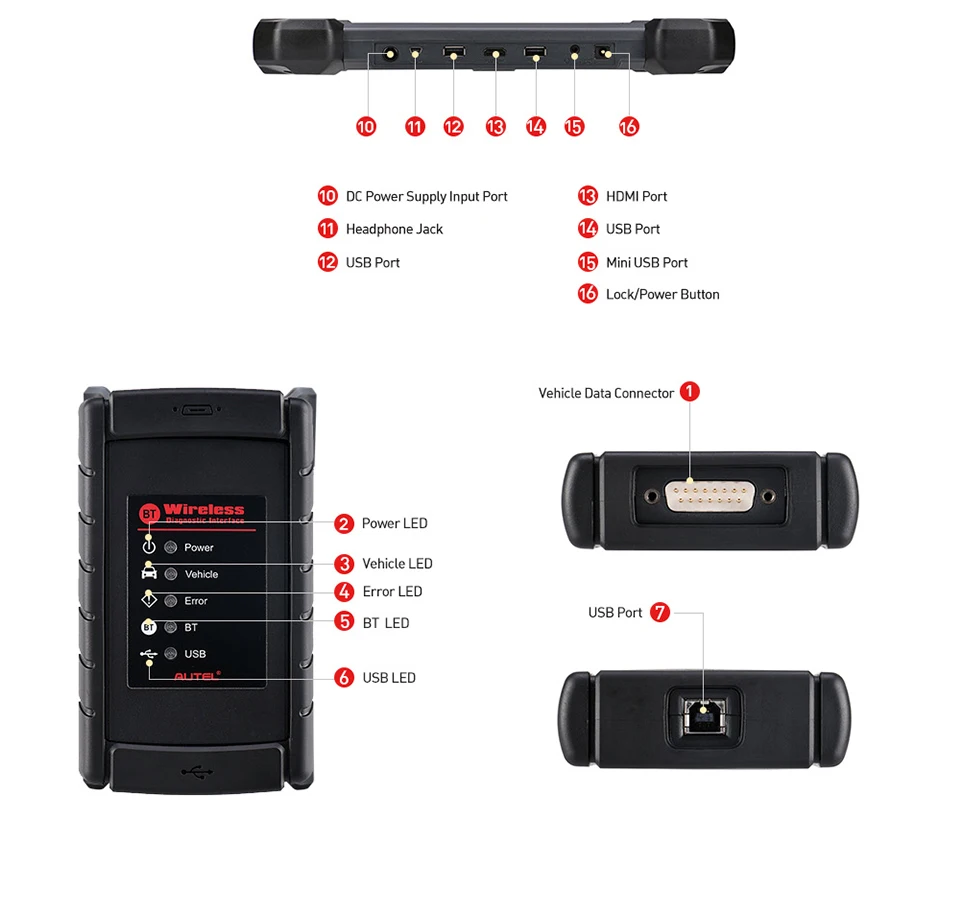

Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI
Camera (rear): 8.0 Megapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack; Power and Battery; 15000 mAh 3.8 V lithium-polymer battery; Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage: 12 V (9-24 V)
Power Consumption: 6.5 W
Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)

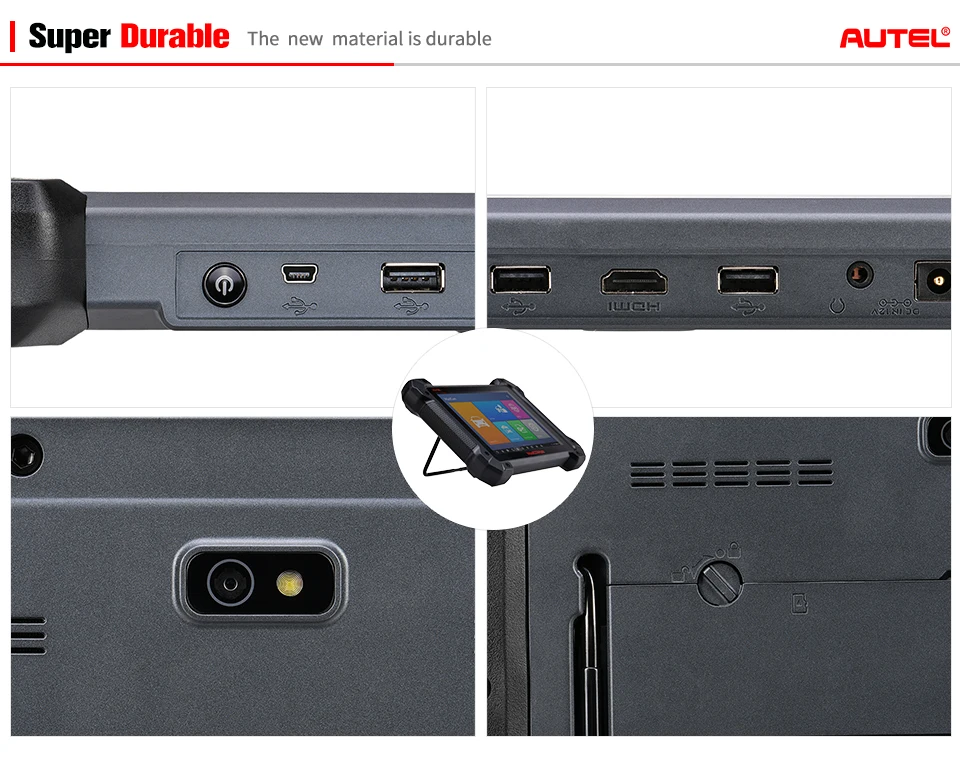

Housing: Strong plastic housing with protective rubber boot

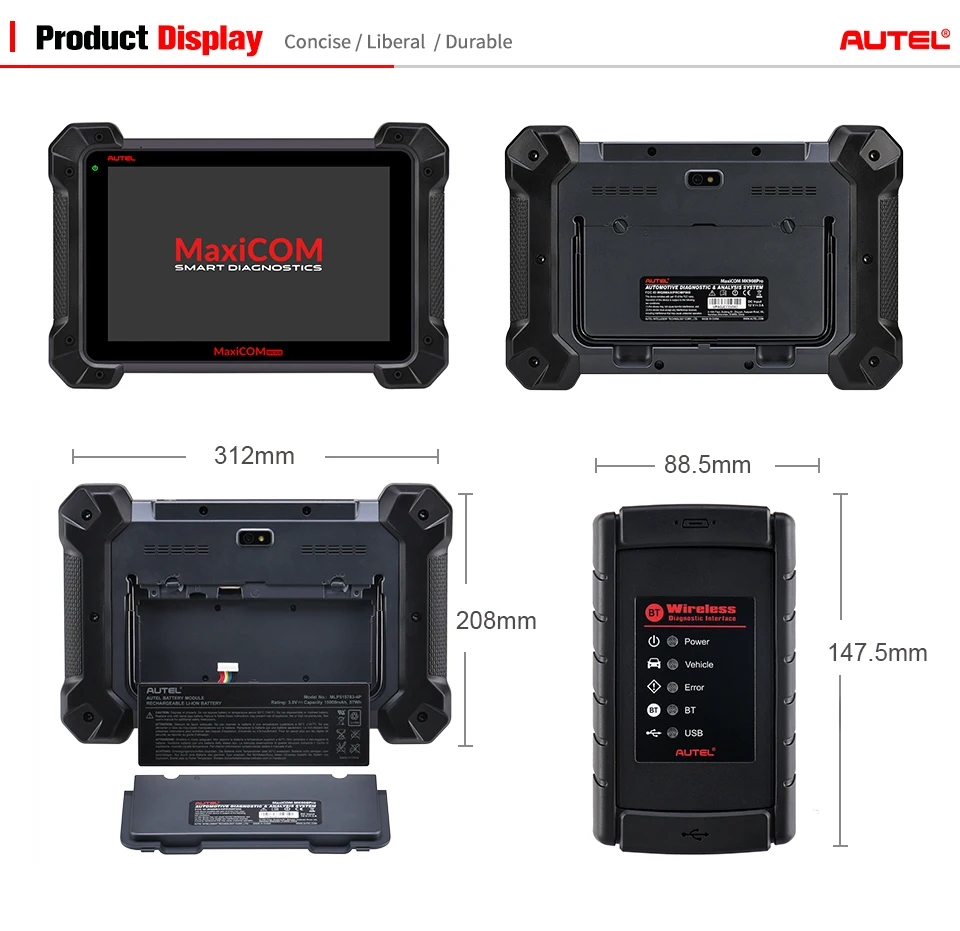

Dimensions (WxHxD): 312mm (12.28”) x 208mm (8.18”) x 36mm (1.41”)
Weight (NW): 1.48kg (3.26 lb)
Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed, Middle speed, Low speed and Singlewide CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
