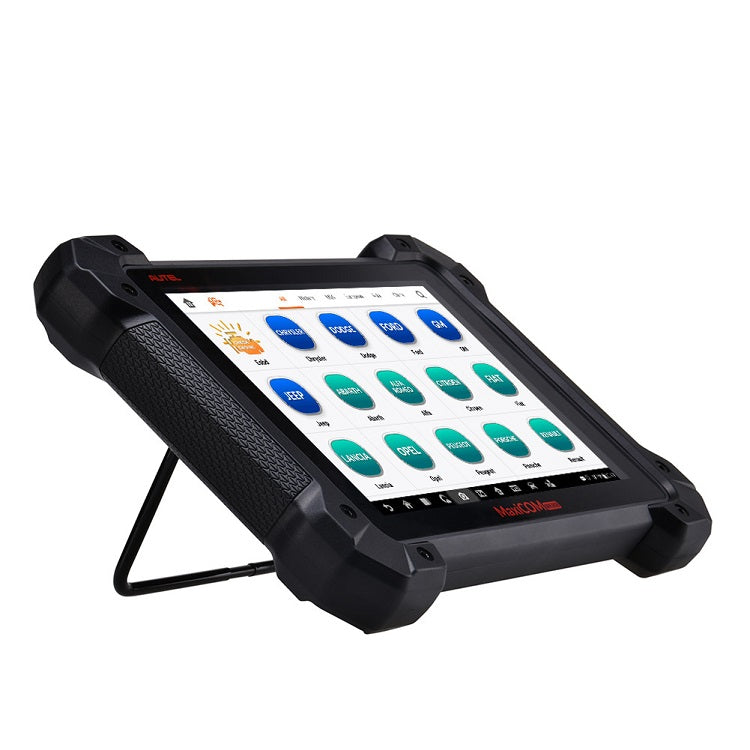

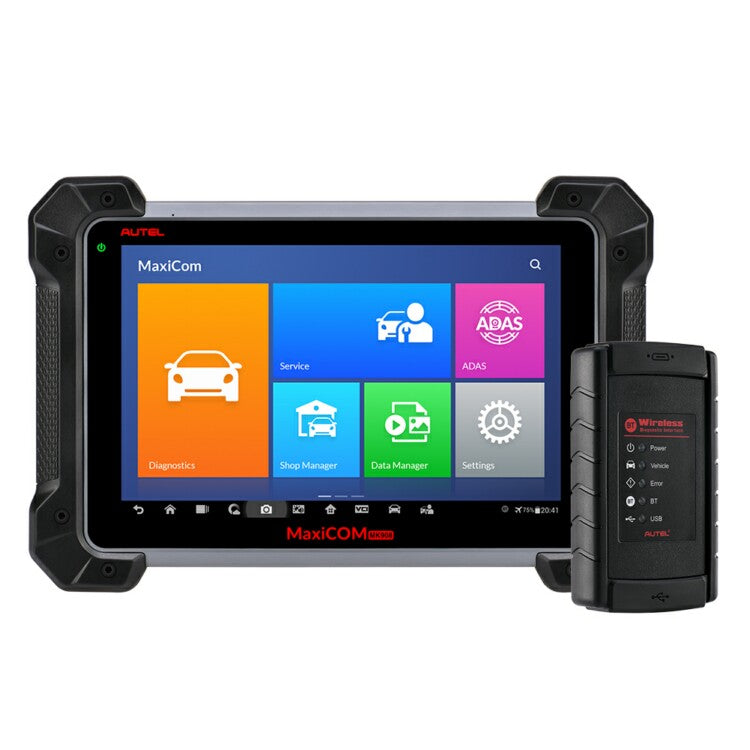

Autel MaxiCOM MK908 Professional Diagnostic Scanner ECU Coding Bi-directional Control All system Diagnosis

Supported Languages: English, Spanish, French, German, polish, Italian, Japanese, Korean, Dutch, Portuguese, Swedish, Russian. ( Please tell us about your S/N of machine to activate the language you need after you get it. Thanks~)

■ Introduction

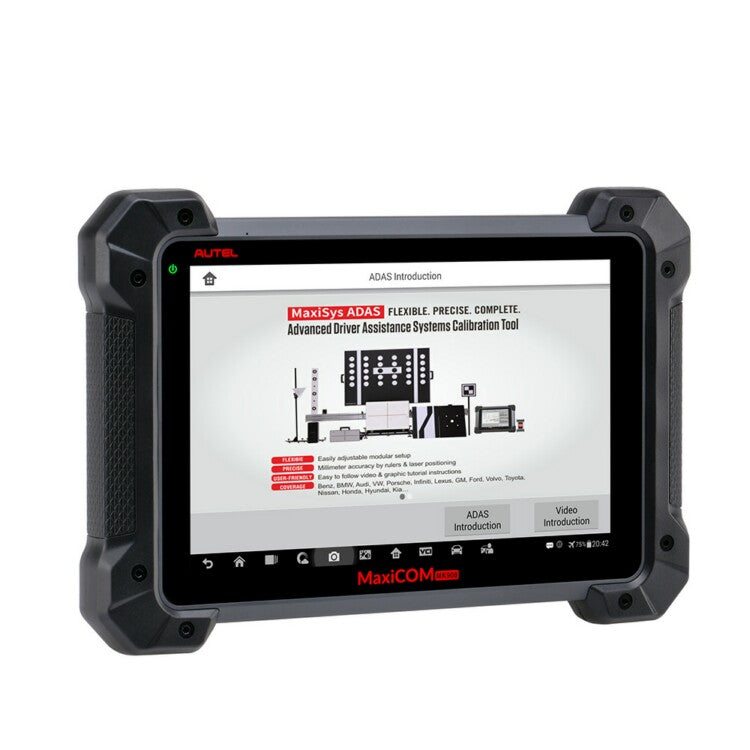

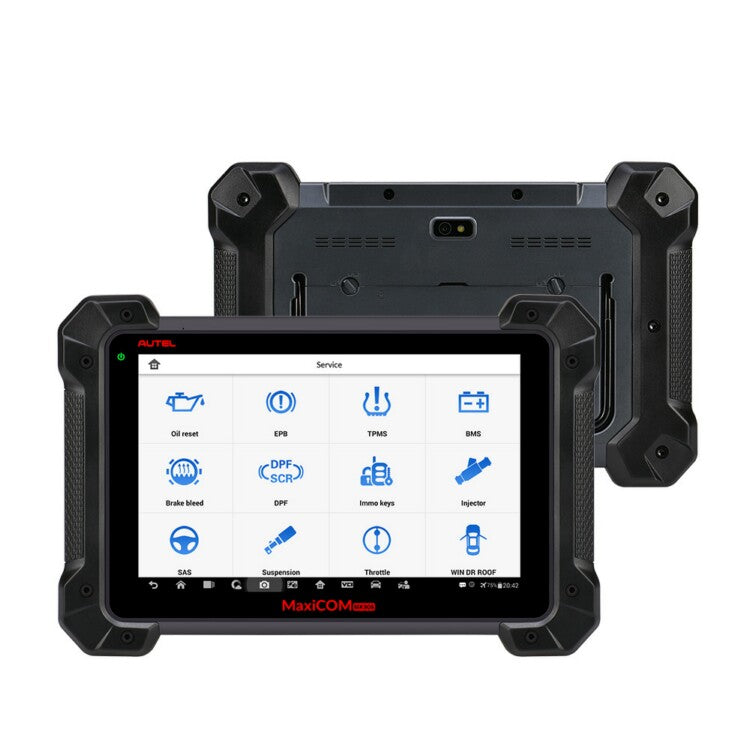

Autel MaxiCOM MK908,  featuring the super-fast Hexa-Core (1.3GHz + 1.7GHz) processor, an intuitive 10.1-inch LED capacitive touch screen, multitask-capable Android 4.4.2 OS and the coverage of OE-level diagnostics, is the best possible auto diagnostic scanner providing evolutionary smart solution for professionals with Garage or Auto Repairing Shops.

1.ECU PROGRAMMING:

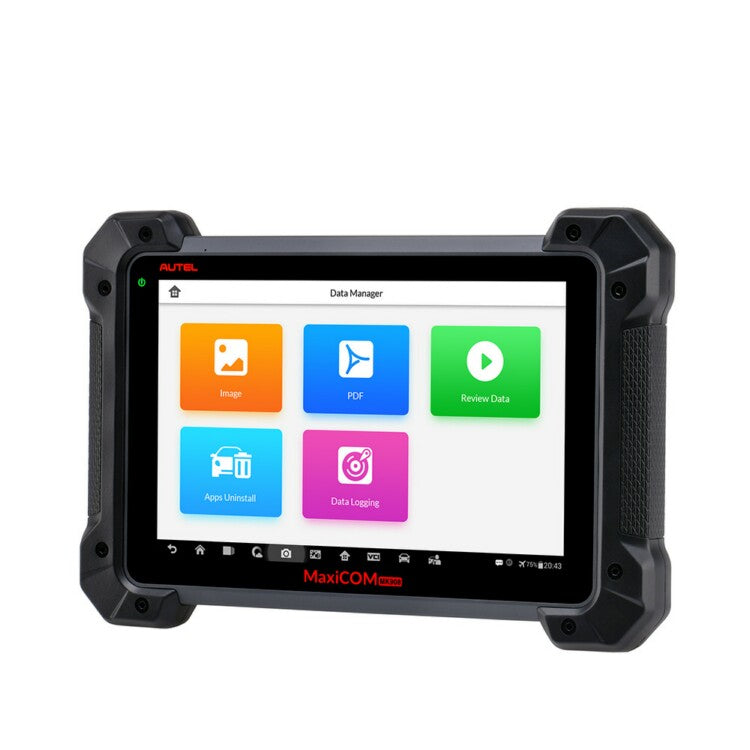

The diagnostic tool can replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues. 2.ULTIMATE SCANNER: Being MS908 upgraded, it is Autel’s latest and most sophisticated diagnostic scanner which boasts the best hardware including Hexa-CPU, 2GB RAM etc. for fast boot-up and multitasking, and the ergonomic design to resist damage of heavy use. 3.ALL-AROUND DIAGNOSES: This diagnostic device can access to vehicle’s all systems and subsystems. It takes care of professionals who like to perform advanced functions as ECU coding, bi-directional control, active test etc., for getting complex diagnosis efficiently. 4.EXCELLENT EXPERIENCE: Easy and intuitive navigation makes finding what you need simple and fast. Displays live data in text, graph, analog and digital gauge for intuitive analysis. Data Manager saving diagnostic records for future reviews. And much more. 5.EXTENDABLE FEATURE: This automotive diagnostic tool can expand the diagnostic capabilities by working with MP408, MV108 to go deeper into the unseen details for locating the fault efficiently, or by working with TS601 for diagnosing comprehensive TPMS problems.

■ Specifications

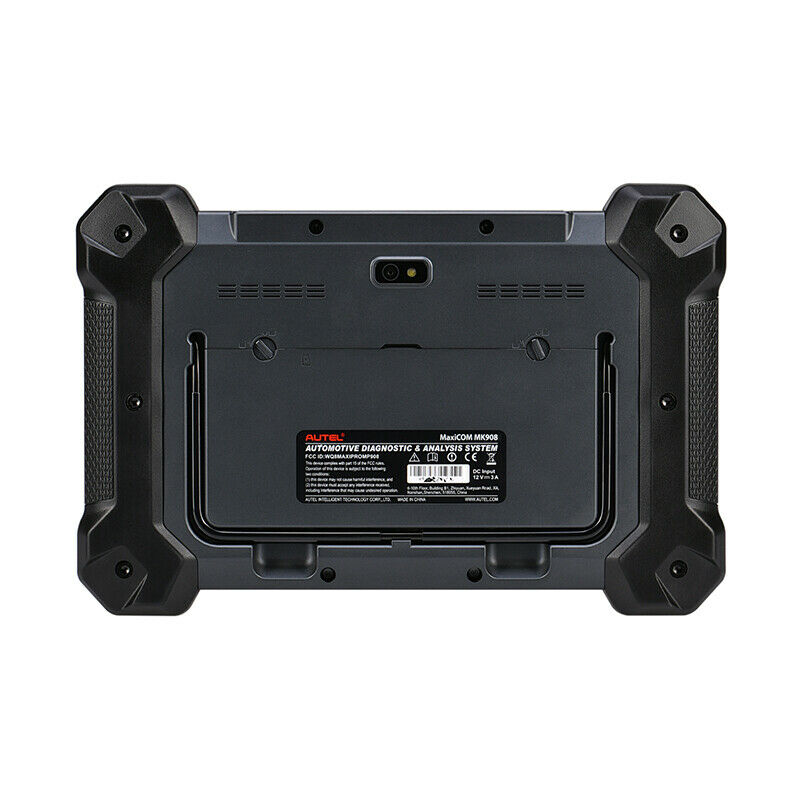

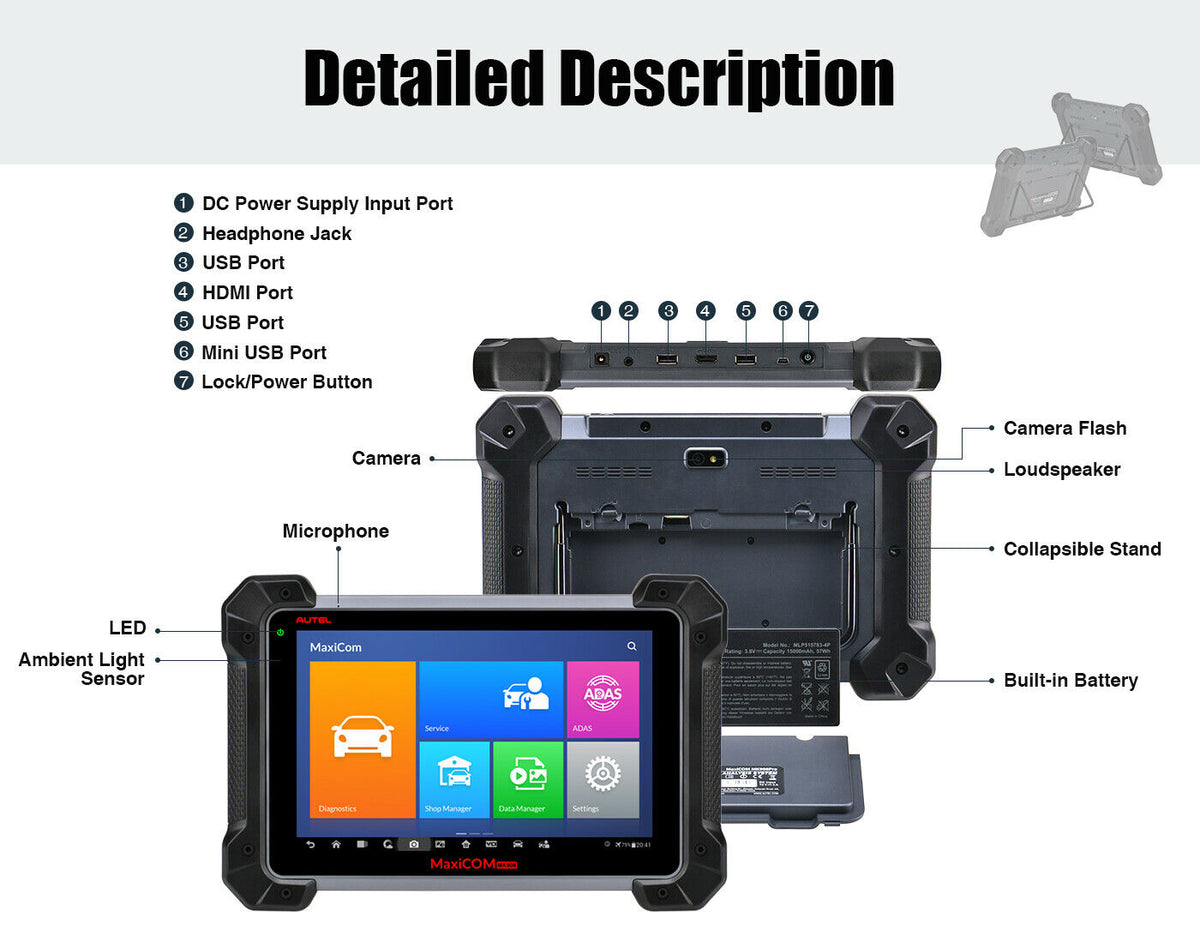

Operating System: AndroidTM 4.4.2, KitKat Processor: Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) Memory: 2GB RAM & 64GB On-board Memory Display: 10.1-inch LED screen with 1920x1200 resolutions Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI Camera (rear): 8.0 Megapixel, AF with Flashlight Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS) Audio Input/Output: Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack; Power and Battery; 15000 mAh 3.8 V lithium-polymer battery; Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C Input Voltage: 12 V (9-24 V) Power Consumption: 6.5 W Operating Temp.: 0 to 50°C (32 to 122°F) Storage Temp.: -20 to 60°C (-4 to 140°F) Housing: Strong plastic housing with protective rubber boot Dimensions (WxHxD): 312mm (12.28”) x 208mm (8.18”) x 36mm (1.41”) Weight (NW): 1.48kg (3.26 lb) Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed, Middle speed, Low speed and Singlewide CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

■ Packing List

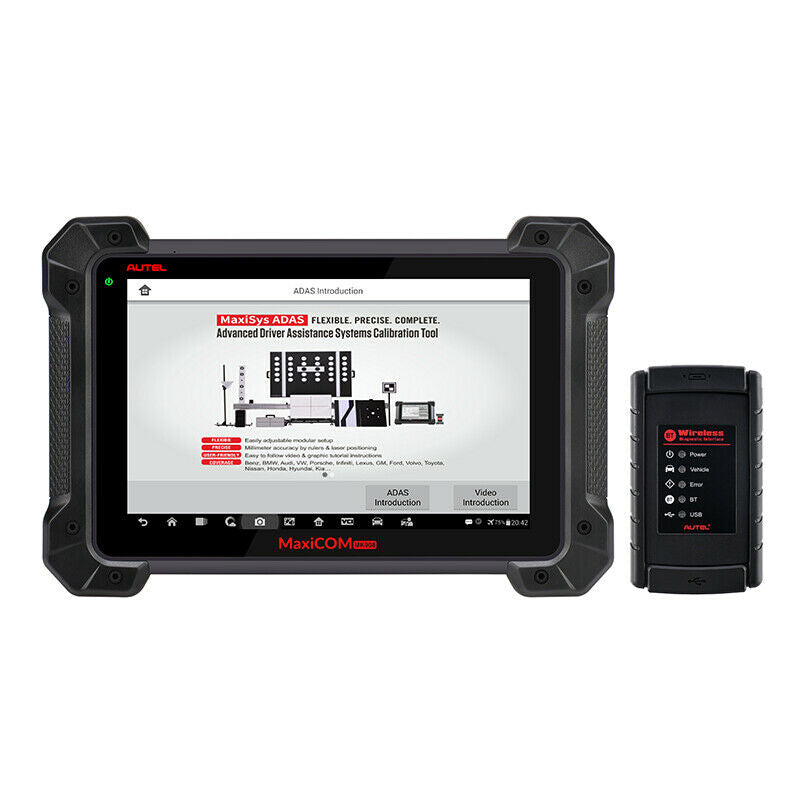

1*Main Unit – MK908 1*Standard 2.0 USB Cable 1*Mini USB Cable 1*AC/DC External Power Adapter 1*Cigarette Lighter 2*Light Fuse 1*BMW Ethernet Cable (Optional) 1*VCI – Wireless Diagnostic Interface 9*OBDI Adapters (Chrysler-16; BMW-20; Kia-20; Nissan-14; GM/Daewoo-12; Honda-3; Benz-38; VW/Audi-2+2; Mitsubishi/Hyundai-12+16) 1*User Manual
