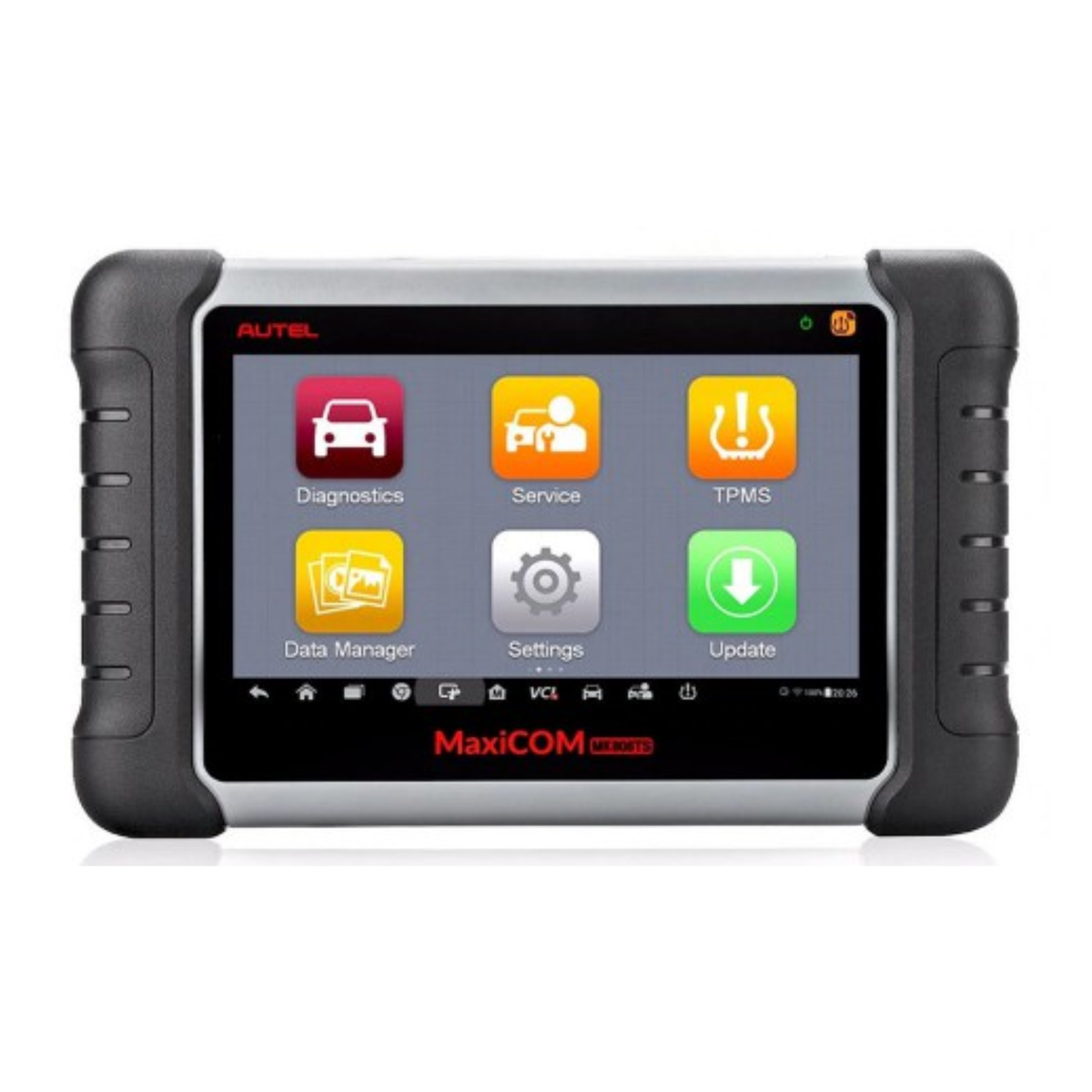

Autel MaxiCOM MK808TS Professional Bluetooth OBD2 Diagnostic Service Scan Tool Car Scanner Programing TPMS Sensor = MK808/MK808BT+TS608

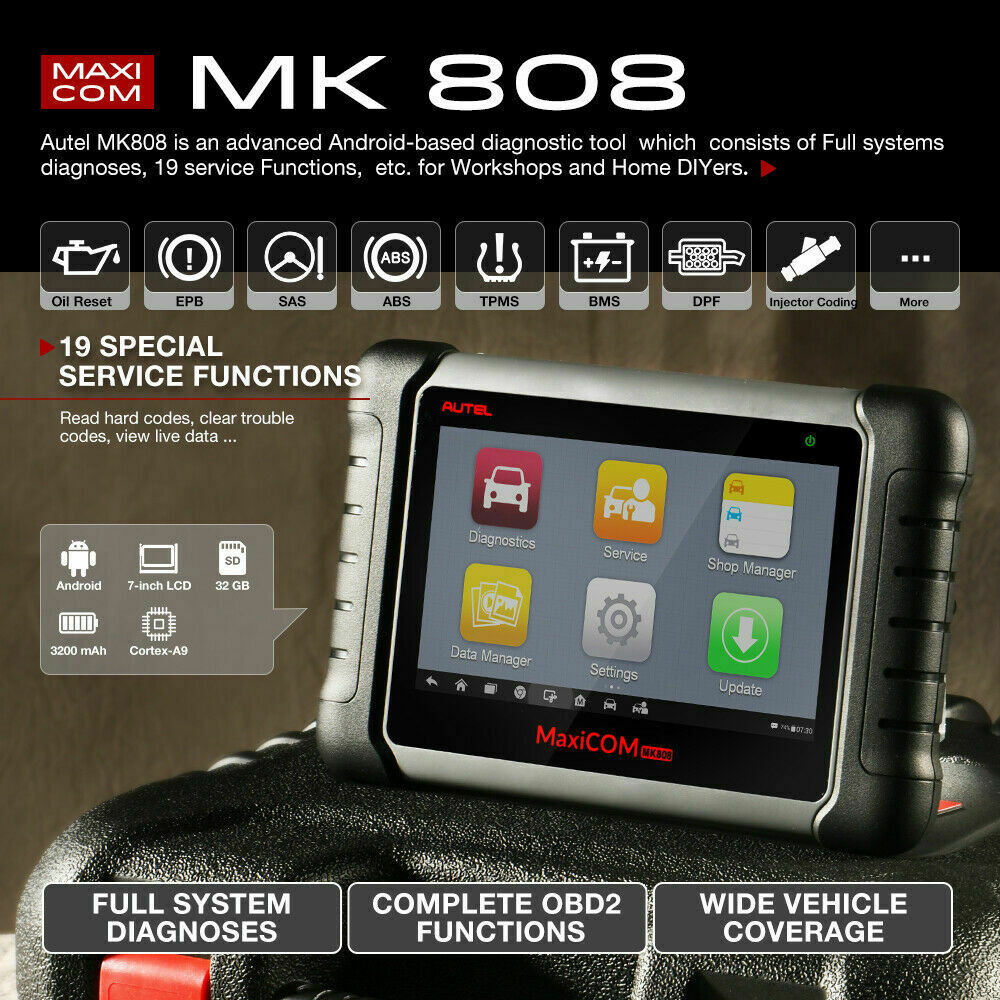

Autel MK808TS, as an advanced Android-based tablet diagnostic tool featuring all-around fixes of Oil Reset/EPB/BMS/SAS/DPF/IMMO and the comprehensive TPMS service, is the ideal combination of MK808and TS601 (Same Functions as MaxiTPMS TS608 )for DIY enthusiasts and auto repair stores to get faster and more accurate diagnosis.
Perfect Combination for a Diagnostic Scan Tool
Compared withMK808: Autel MK808TS offers the same features and functions as MK808 does, also it comes with additional benefit of TPMS function to perform TPMS Sensor Check, TPMS Relearn, TPMS Sensor Programming to all known OEM/Universal TPMS sensors for helping technicians to quickly locate the faulty sensor and turn off the MILs related.
Compared with TS608: Autel MK808TS offers the same features and functions as TS608 does.
WIRELESS BLUETOOTH MAXI-VCI MINI
The latest compact size Wireless Bluetooth MaxiVCI Mini OBDII connector can transmit vehicle data to the tablet without a physical connection. Enhanced wireless bluetooth connectivity between the tablet and VCI device allows greater service mobility and easier TPMS sensor interaction while the tablet is still connected to the vehicle for data transmission.
COMPLETE TPMS FUNCTIONS
MK808TS, being available to activate 98% of all-known TPMS sensors, provides the most advanced TPMS diagnosis and the most comprehensive OBD relearn coverage for a complete TPMS health check, allowing technicians to solve TPMS related problems with a series of quick and effective operations:
TPMS Check: The Check function allows users to activate TPMS sensors to view sensor data – sensor ID, tire pressure, tire temperature, battery condition and sensor location.
TPMS Diagnosis: The Diagnosis function is used to check the status of the TPMS system. communication with ECU and to retrieve sensor IDs and DTCs in the TPMS ECU. ， view the data stream of the sensor information.Special Functions ,Active Test. initiate desired vehicle lamp function list
Sensor Programming: The Programming function allows users to program the sensor data to the MX-Sensor and replace faulty sensor with low battery life or the one that is not functioning. There are four options available when programming MX-Sensor:
1.Copy by Activation - Once the sensors mounted on the vehicle have been triggered and the sensor information displayed on the tool, the Copy by Activation can be used to program a new MX-Sensor.
2.Copy by OBD - By using this function, the tablet will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensors.
3.Copy by Input - The Copy by Input allows users to program a new MX-Sensor with the ID of an original TPMS sensor.
4.Auto Create - The Auto Create function is used to automatically create a random sensor ID to program a new MX-Sensor.
TPMS Relearn: This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. There are three ways for Relearn: Stationary Relearn; Active Relearn; OBD Relearn.
TPMS by OEM Part No.: If the sensor’s OEM part number is known, this function is an efficient method to activate and program MX-Sensors.

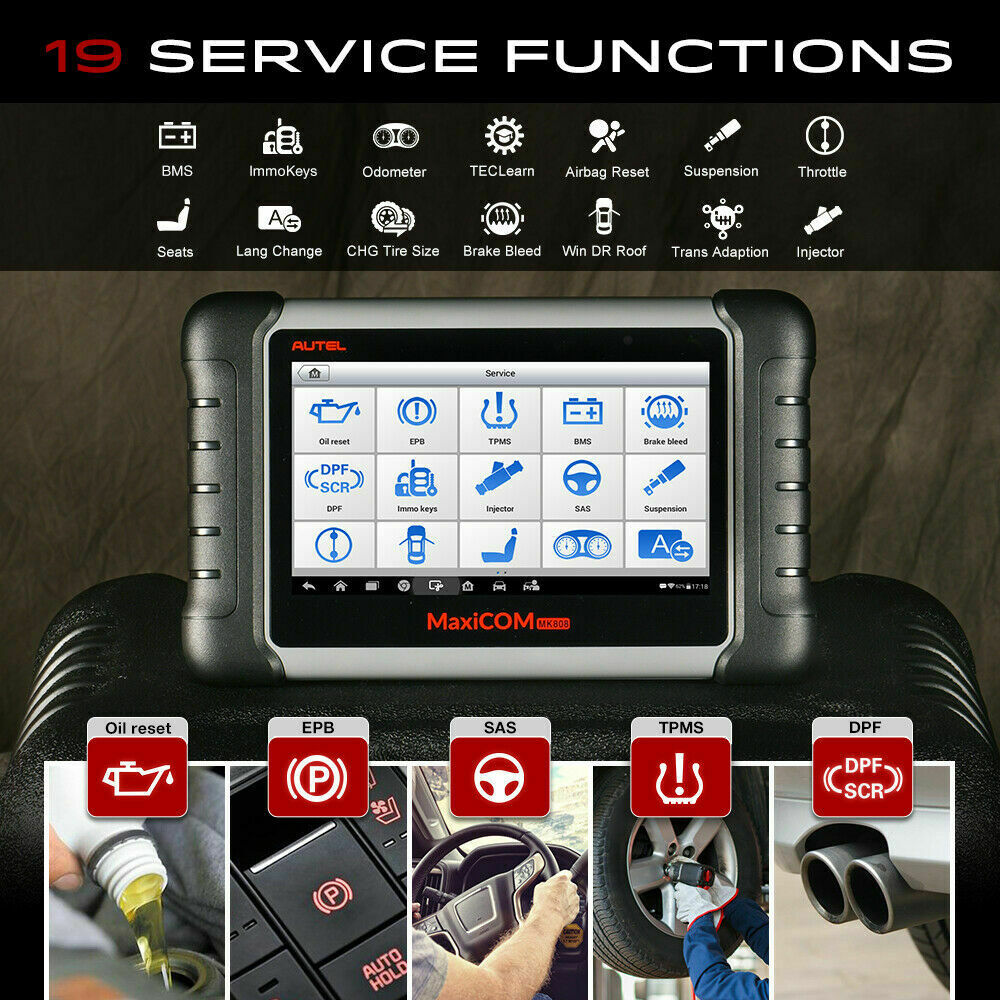

22 ADVANCED SERVICE FEATURES
As an advanced diagnostic tool, MK808TS has all kinds of services accessible for complete diagnoses and maintenance. You can quickly access to the vehicle systems within this function.
Oil Reset Service allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
Electronic Parking Brake (EPB) Service has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement,
Battery Management System (BMS) Service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
DPF service -Particle Filter Test It is advisable to carry out a series of particle filter tests as a result of constant DPF regeneration, such as checking oil level, oil change interval for diesel contamination, swirl flaps, backpressure sensors and particle filter soot remains.
Adjusting injectors - start fuel delivery matching， adjust the injection volume，adjust the injector rate for individual cylinders
Steering Angle Sensor (SAS) Service
Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. In addition, the vehicle identification number is also read from the instrument cluster and stored permanently in the steering angle sensor EEPROM.
Immobilizer (IMMO) Service is mainly used to disable the lost vehicle keys and program a new replacement key fob.
And Many More...

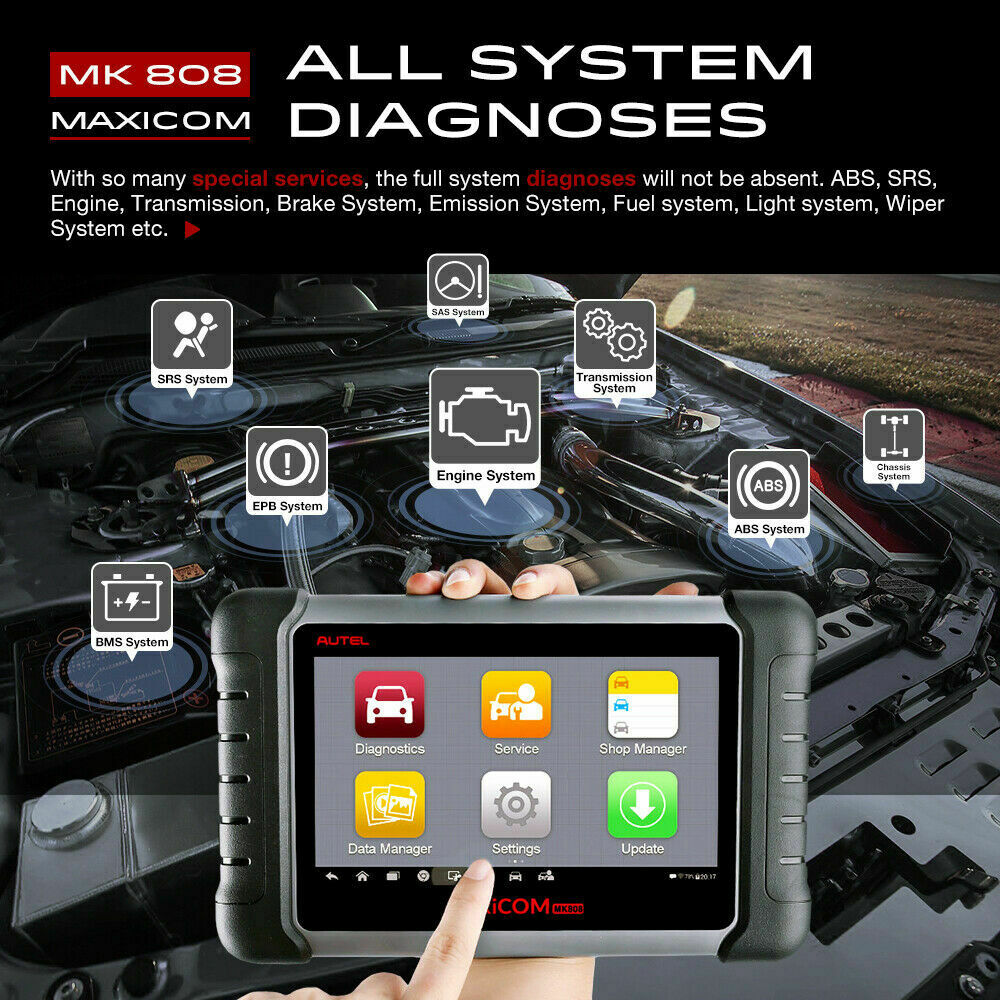

ALL SYSTEMS DIAGNOSTICS
The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.
The MaxiCOM diagnostic system supports 4 methods for Vehicle Identification.
1.Auto VIN Scan The MaxiCOM diagnostic system features the latest VIN-Based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles. 2.Manual VIN Input: For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN. 3.Automatic Selection: The Auto VIN Scan can be selected after selecting the test vehicle manufacturer. 4.Manual Selection: When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, the vehicle can be manually selected.
2 options available when accessing the Diagnosis section
1.Auto Scan –The Auto Scan function performs a comprehensive scanning of the ECUs in the vehicle’s system to locate and retrieve DTCs.
2. Control Units – displays a selection menu of all available control units of the test vehicle.
ECU Information – retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications.
Read Codes – displays detailed information of DTC records retrieved from the test vehicle’s ECU. On some vehicles, freeze frame data can also be retrieved for viewing.
Erase Codes – erases DTC records and other data from the test vehicle’s ECU.
Live Data – retrieves and displays live data and parameters from the test vehicle’s ECU.Display live data in text, graph & analog for easy data review.
Remote Technical Support By using this function, users can receive ad-hoc remote support from Autel’s technical engineers, colleagues, or friends, by allowing them to control this tablet device on their PC via the TeamViewer software.

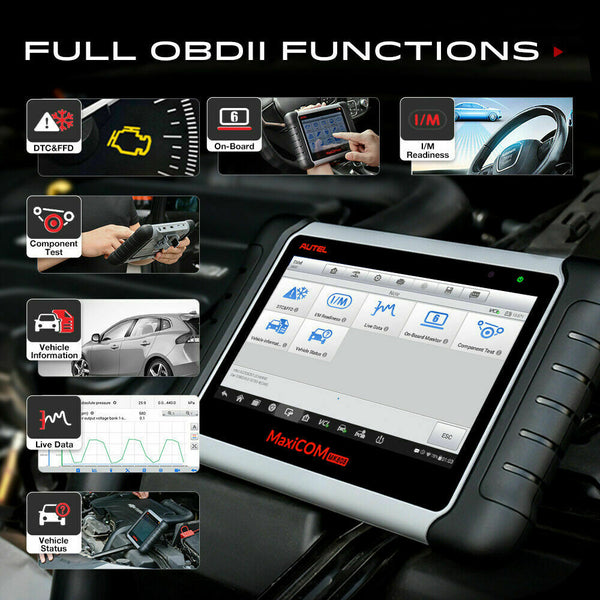

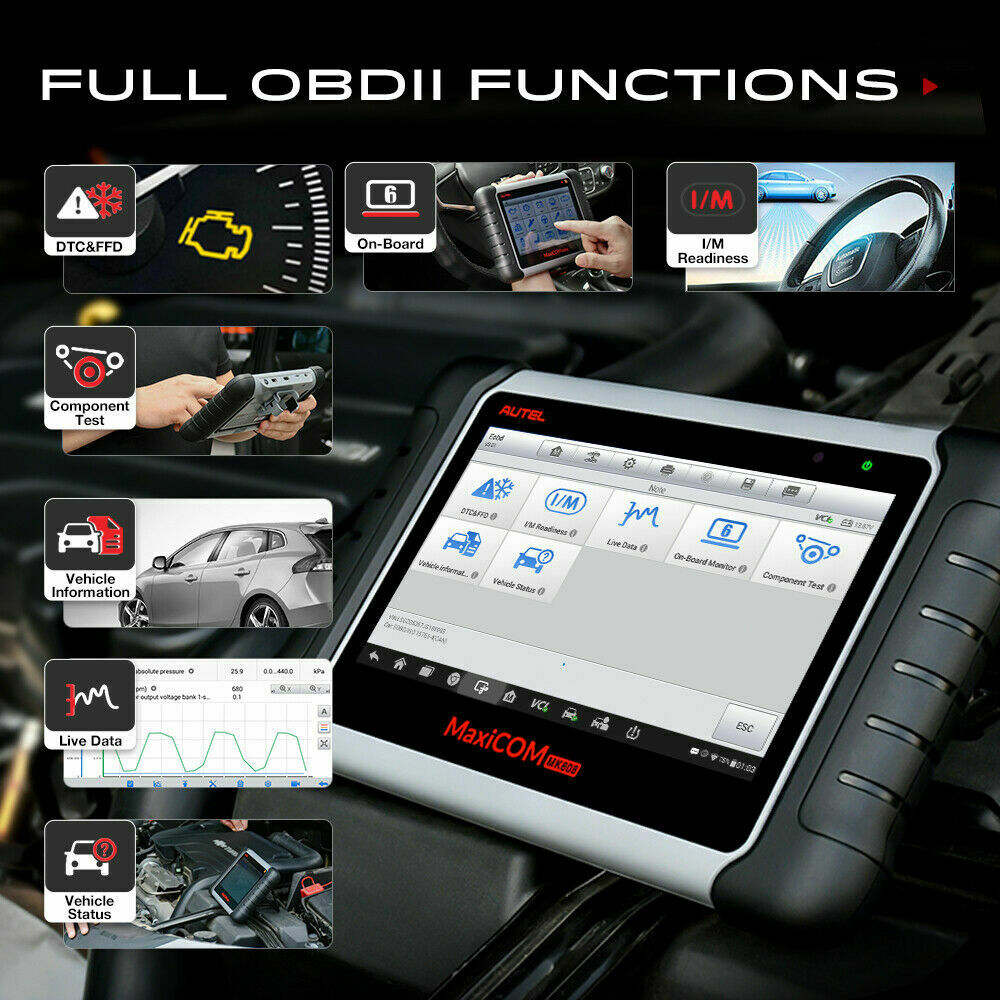

COMPLETE OBD2 FUNCTIONS
Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
Data Stream:Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
Read Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

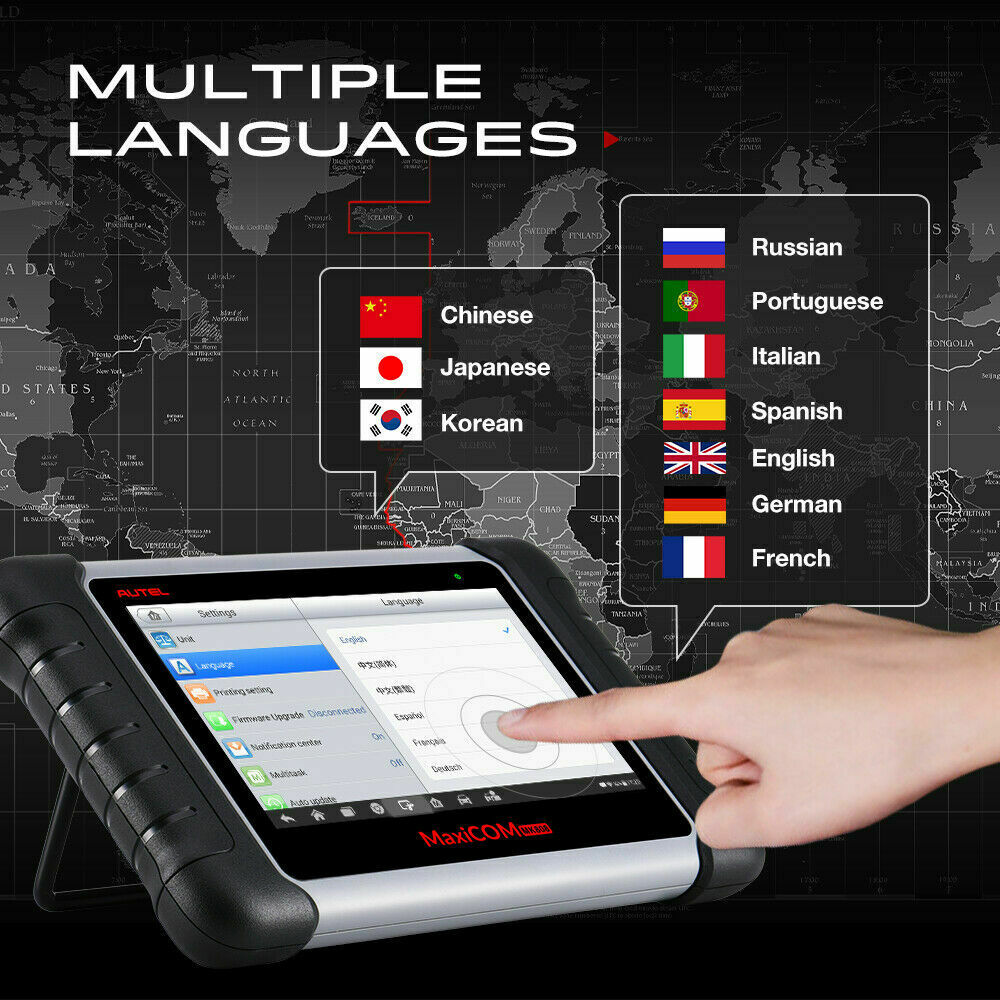

English, Traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, ItalianEnglish, Traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian
After get the machine, please contact with seller to activate language.

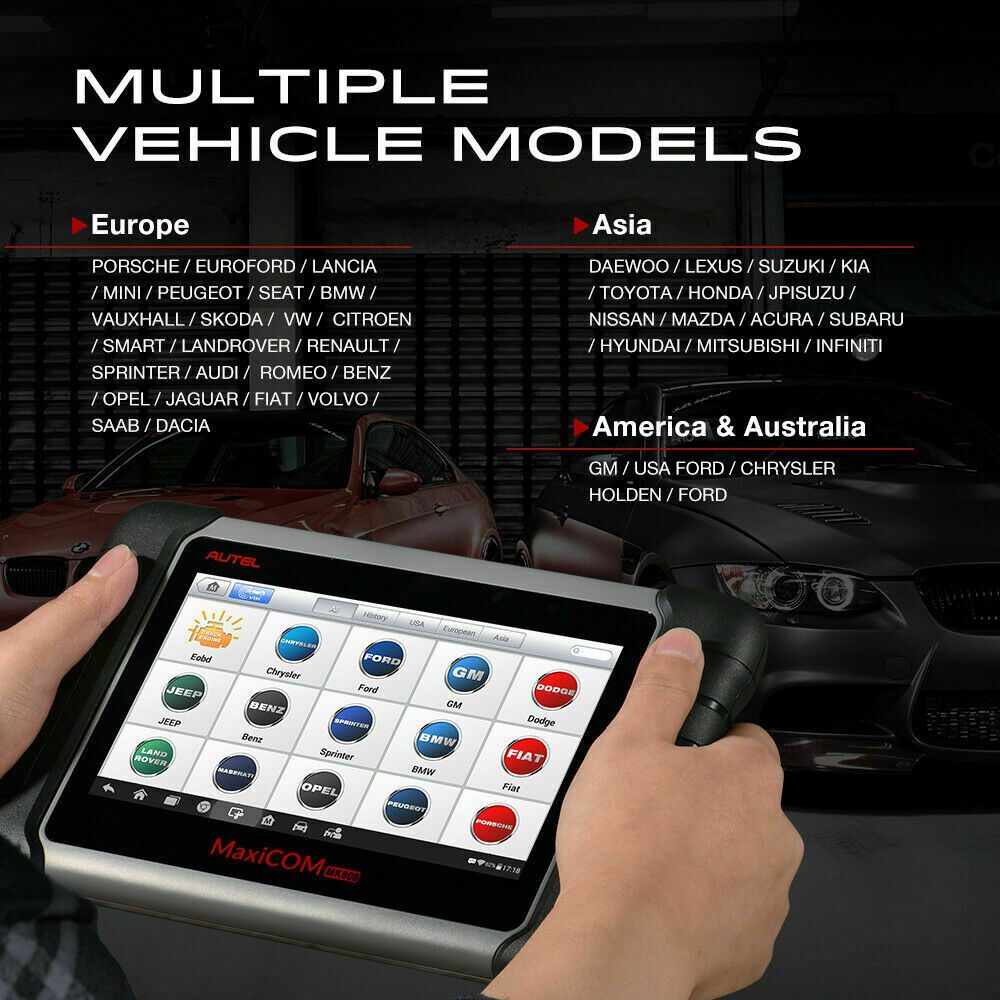

For Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GMC, Hummer, Jeep, Lincoln, Mercury, Oldsmobile, Pontiac, Saturn, Tesla

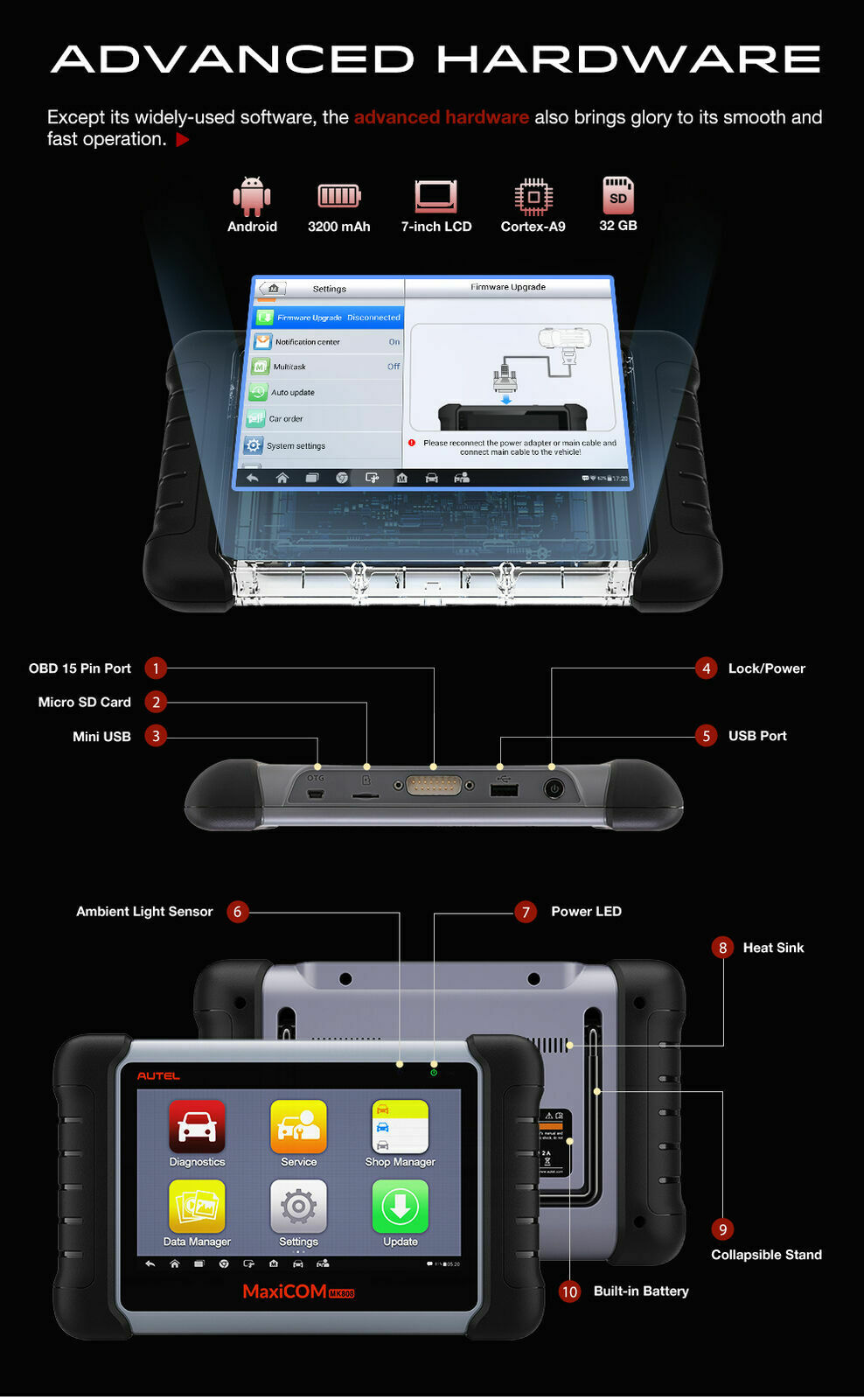

Android 4.4.4-based tablet diagnostic tool greatly improves the working efficiency with performance and power optimized 1.5GHZ Cortex-A9 Processor.
7 inchtouchable LCD screen with 1024*600 resolutions offers ultra-clear visuals of the diagnostic data, making it easy to navigate and read codes.
1GB RAM DDR3 / 32GB On-Board ROM Memory is not only an extended storage space but a way to reduce the possible issue of slow response.
Built-in 5000 mAh battery provides up to 7 hours continuous battery life for giving you a worry-free operation experience.
MaxiVCI Mini is equipped for connecting between the diagnostic tablet and DLC for wirelessly vehicle data transmission via the fast and reliable Bluetooth 2.1 EDR, allowing technicians to have complete freedom to move anywhere in the repair shop when the VCI is connected to the car.
12-month warranty for any possible quality problems.
