ANCEL PB600 12V 24V Car Circuit Power Probe Tester Relay Injector Battery Tool

ANCEL PB600 Car Circuit Probe Kit Circuit Tester Rleay Test 12V/24V Electrical Current Voltage Test Auto Battery Inspection Tools

Ancel PB600 Power Scan Kit is the most revolutionary circuit tester to date, working with 12-24 volt sources and providing DC voltage, AC voltage, Frequency, Duty Cycle, Injector Circuit, Resistor and Diode detection functions. Specifically in AC voltage, Frequency, Duty Cycle and Inject mode, the user can switch between waveform display mode and digital display mode by long pressing the mode button. The PowerScan is indeed the ultimate in performance and affordability, allowing the user to check circuits in a single step. An absolute must for any technician looking for a fast and accurate solution for diagnosing electrical systems.

ANCEL PB600 Automotive Circuit Tester – All-in-One Multimeter, Oscilloscope, Injector & Relay Tester for 12V/24V Vehicles

The ANCEL PB600 is a next-generation automotive circuit tester and diagnostic probe that combines the power of a multimeter, oscilloscope, injector tester, relay tester, and more—into one compact, easy-to-use tool. Whether you're a professional mechanic or a DIY auto enthusiast, the PB600 provides all the essential diagnostic functions you need to test, diagnose, and repair complex vehicle electrical systems efficiently and safely.

ANCEL PB600 Electrical System Circuit Tester Functions:

✔️ Diagnose 12 ~24V automotive electrical systems swiftly and accurately.

✔️ Show battery voltage reading and help user determine circuit polarity immediately after connecting the KM50 clips to the vehicle battery.

✔️ Test DC Voltage, AC Voltage, Frequency, Duty Cycle, Fuel Injection Circuit, Resistance, and Diode. Especially, in AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes, user can long press the mode button for 3 seconds to switch between Waveform Display Mode and Digital Display Mode.

✔️ Activate electrical components and test their functions without jumper leads – by depressing the rocker switch to conduct a positive or negative battery current to the tip so as to power up electrical components.

✔️ Test bad ground contacts instantly without performing voltage drop tests.

✔️ Help user to follow and locate short circuits without using external fuses.

✔️ Test continuity with the assistance of its auxiliary ground lead.

✔️ The tool is short-circuit protected. If it becomes overloaded, Its internal circuit breaker will trip to protect the instrument from overload.

✔️ When the circuit breaker is tripped, the tool will NOT be able to conduct battery current to the tip even when the rocker switch is pressed; however, all other functions of the tool are still active, which means you can still probe a circuit and observe the voltage reading.

PB600 - Upgrade of PB500

PB600 has Fuel Injector Testing, Frequency Testing, Duty Cycle Testing, and Display Forms: Waveform. These are the features that PB100 does not have.

Multimeter & Oscilloscope Test Module

The PB600 acts as a fully functional multimeter with advanced oscilloscope capabilities. Measure:

• DC/AC Voltage

• Resistance (0~1MΩ)

• Diode forward voltage

• Current (AMP)

• Frequency (0Hz–1MHz)

• Duty Cycle (0–100%)

Its oscilloscope mode offers a waveform view of AC voltage, frequency, and duty cycle, helping diagnose issues related to sensors, actuators, and signal integrity in real time. All data is displayed on a 2.4-inch HD LCD screen (320×240 DPI) with intuitive layout and clear visual indicators.

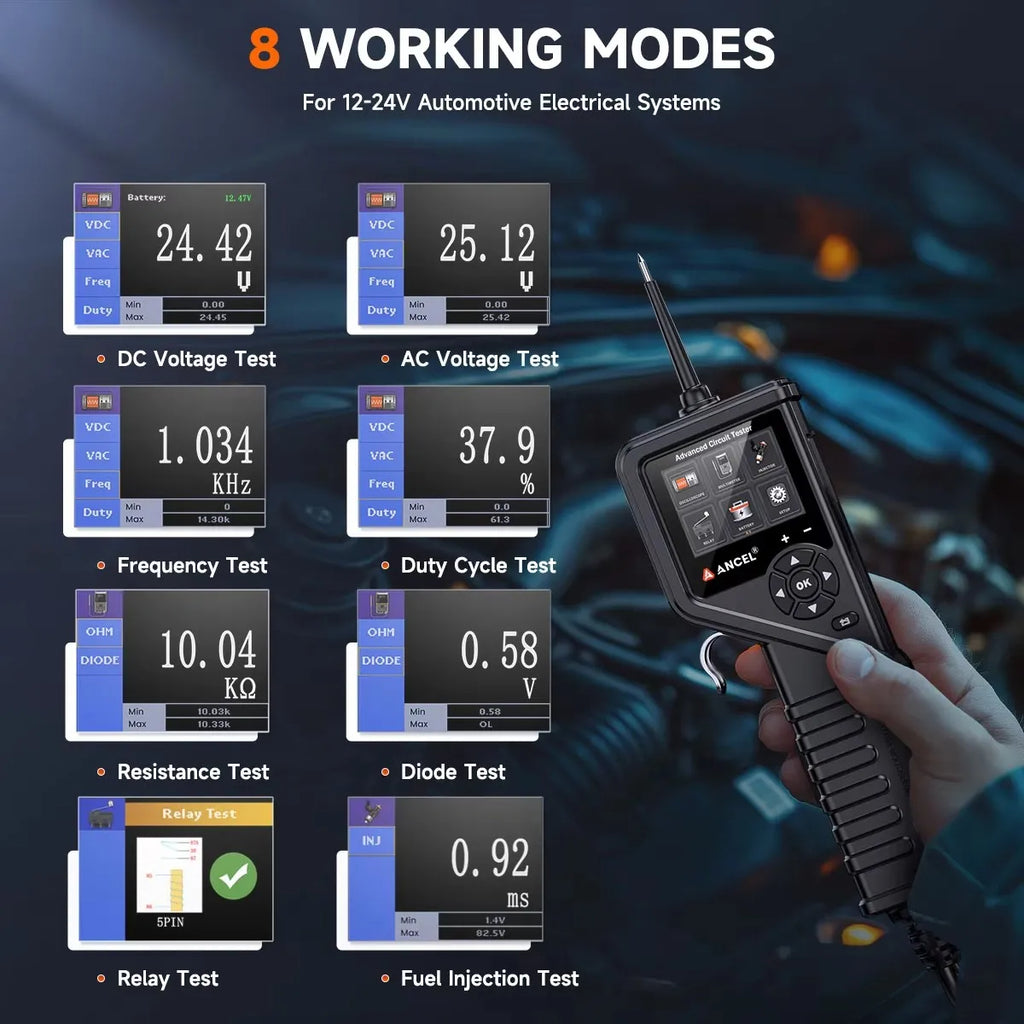

ANCEL PB600 has 8 test modes:

Especially, in AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes, user can long press the mode button to switch between Waveform Display Mode and Digital Display Mode.

Instant Component Activation & Electrical Testing

The PB600 lets you apply power or ground directly to components using the probe tip. This makes it ideal for:

• Activating lights, motors, fans, relays, injectors, and solenoids

• Testing bad grounds, open/short circuits, and voltage drops without the need to dismantle wiring

• Dynamic component testing without separate wiring or tools

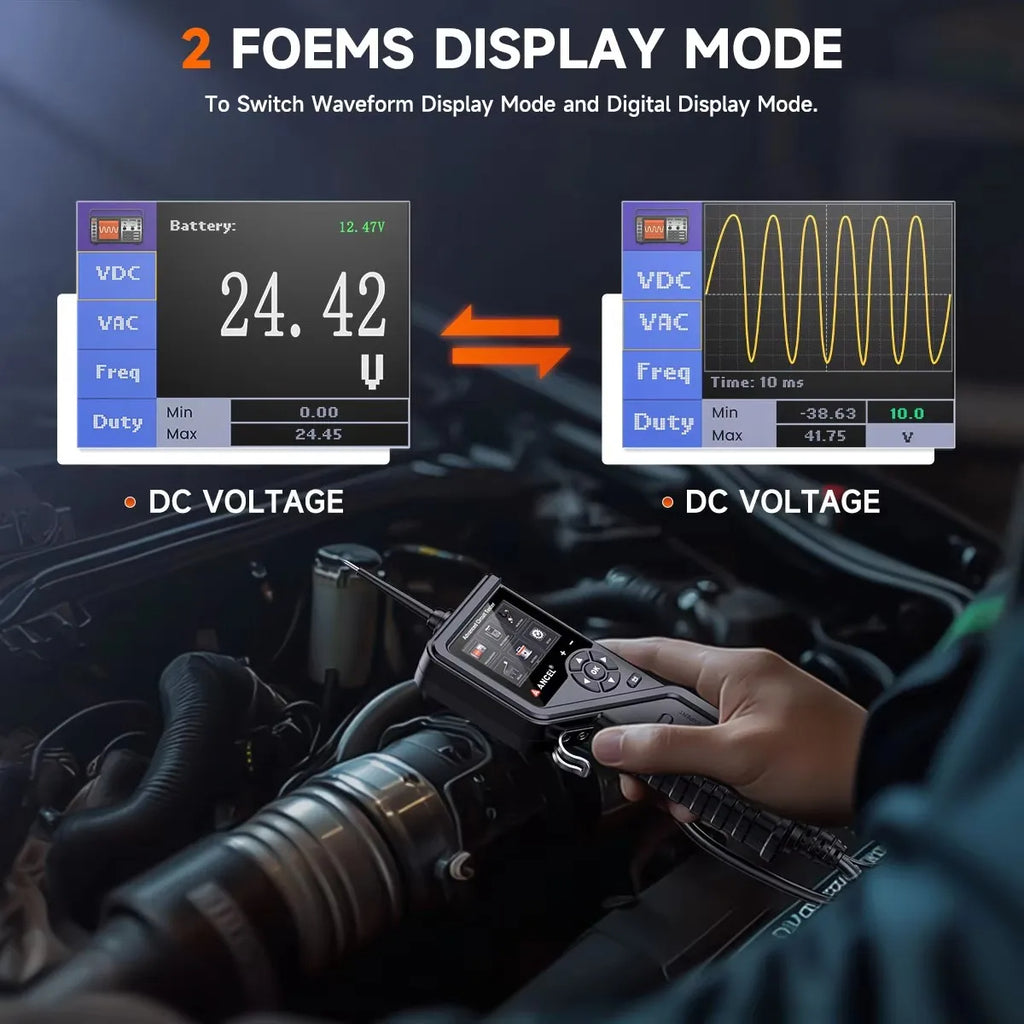

2 Forms Display Mode

To switch Waveform Display Mode and Digital Display Mode. (In AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes)

99% Vehicels Support:

Packing List：
