Product Features
l Lifetime Free Update & Continuous Enhancement - Benefit from direct feature additions and updates via the app, our heavy duty truck scanner will continue to have functionality added over time. This removes the hassle of lengthy update processes and the financial strain of renewing costly diagnostic gear.

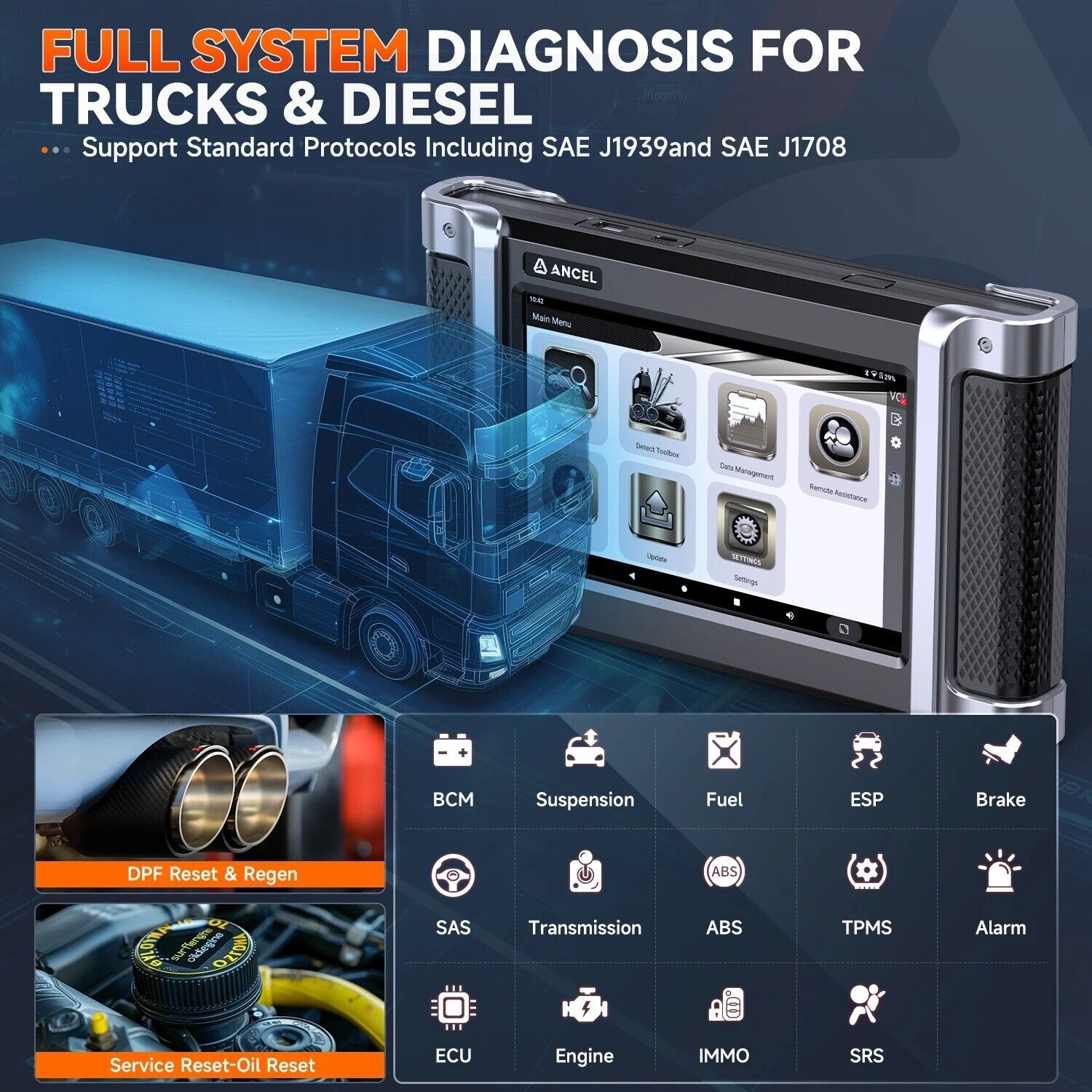

l Support the Full system diagnosis: Engine, Aftertreatment System, Transmission, ABS, Chassis, etc.
l Powerful DPF regeneration function: Users can test from the model diagnosis or DPF shortcut menu, and support a variety of models. l Overseas actual test: accumulated experience and data.
l Swift and Adaptable - This heavy duty truck scanner recognizes both diagnostic trouble codes (DTCs) and brand-specific error codes for prevalent heavy-duty truck brands in North America, such as Freightliner, Peterbilt, Mack, Kenworth, Volvo, Western Star, among others and give the ability to perform DPF regens on select model years of Cummins, International, Detroit, Isuzu, Paccar, Mercedes, Hino and Mack/Volvo.
l Fast update of product software: timely response to market demand and user feedback.
l Fast scanning VS slow scanning: ensuring efficient scanning results in different situations.
l Full OBD diagnostic functions: support standard OBD protocols and original factory functions: to meet the various needs of users and provide a more comprehensive experience.
l Support vehicle private protocol: Ensure that users can effectively diagnose and deal with problems in various situations.
l Supports CAN 3 diagnostics: richer diagnostic functions.
l Powerful and Cost-Effective - An essential heavy duty truck scanner designed for heavy duty truck owner-operators and small commercial fleets. With the Diesel Decoder, just plug the diesel VCI scan tool into the diagnostic port and pair with the free smartphone tablet to access in-depth HD diagnostic information.
l 8-inch high-definition touch screen: Equipped with 8-inch high-definition touch screen, providing clear display effect and convenient operation.
l Wi-Fi and Bluetooth support: Supports Wi-Fi connection and Bluetooth function, which is convenient for data transmission and connection to other devices.
l TeamViewer support: Realizes remote assistance, troubleshooting and other operations.
l One-click activation: Conveniently activate the device to start using it.
l One-click upgrade: Users can easily get the latest software version and feature updates to keep the device's performance and functionality up-to-date.
l One-click screenshot: Users can easily take screenshots of the device.
l One-click screenshot: Users can conveniently capture an image of the current screen, which can be used to record fault information or share with others.
l One-click feedback: With the one-click feedback function, users can quickly provide feedback to the development team on the device experience, problems and suggestions to help improve product quality and user experience.
Systems Coverage
1.Engine system
2.Body control system
3.SRS system Airbag
4.ABS-anti-lock brake system
5.Instrument System
6.Transmission system
7.Brake control system
8.Unit pump system
9.Common Rail System
10.Electronical control system
11.Natural gas system
12.Tail gas after-treatment system
13.Air-conditioning system
14.ATA-Anti-theft alarm system
15.AHA-Auxiliary heating system air-to-air
16.AUS-Audio system
17.BMS-Brake Management System
18.Bosch DENOX AdBlue System
19.Break control system
20.BWS-Preparation system
21.CCS-Climate control system
22.Comfort/assistance/safety systems
23.Compressed Air Reserve system
24.CSS-Collision safety system
25.CTS-Clock and Time System
26.EBS-Electronically Controlled Brake System
27.EHLA-Electrohydraulic steering system
28.EMS-Engine Management System
29.Fuel system
30.Exhaust Pressure Adjustment systems
31.ECM-Engine Control Module
32.Speed control systems
33.Turbo Control systems
etc.

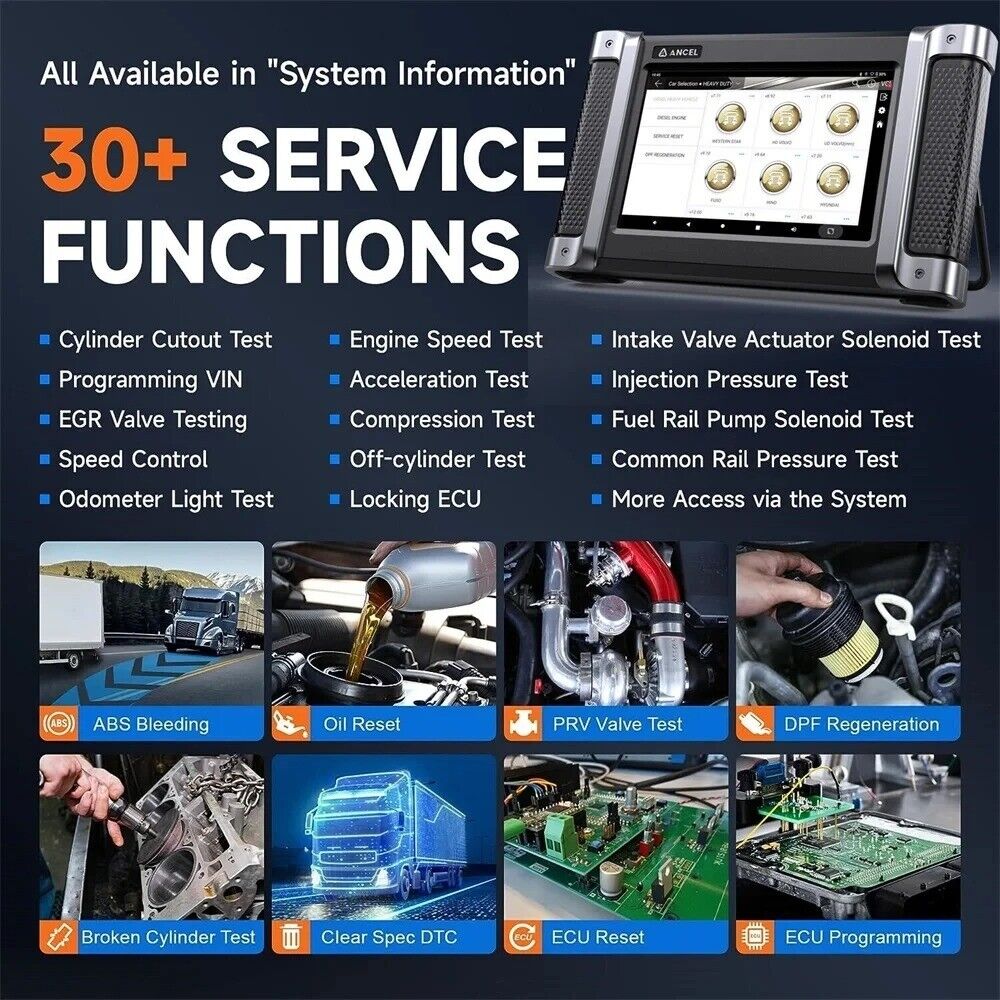

30+ Special Functions
It supports most models' common special functions, DPF, parameter setting, cylinder break test, maintenance zeroing, injector code, speed limit adjustment, idle speed adjustment, nitrogen and ox-ygen sensor and other 8 special functions, which are continuously updated.
Read ECU Info
Read Fault Code:Read DTCs，Clear DTCs.
Clear learning value
Read Live Data:Data Stream Waveform Display
Actuations test
DPF Stationary Regeneration
DPF System Reset
Read freeze frame data
Data Manage:Can manage Vehicle App,Testing pictures,etc.Users can make effective management of files and storage.
System Auto Detected:Automatically identify the vehicle model and information.
Basic Reset
Oil change
Cylinder shut off test
Cylinder compression test
Cylinder balancing test
EGR Solenoid Test （E-GR-exhaust gas recirculation）
EGR Pulse Ratio Test
DPF Manual Forced（DPF-diesel particulate filter）
DPF Normal Regeneration
ABS bleeding（ABS-antilock brake system）
Cylinder Cutout

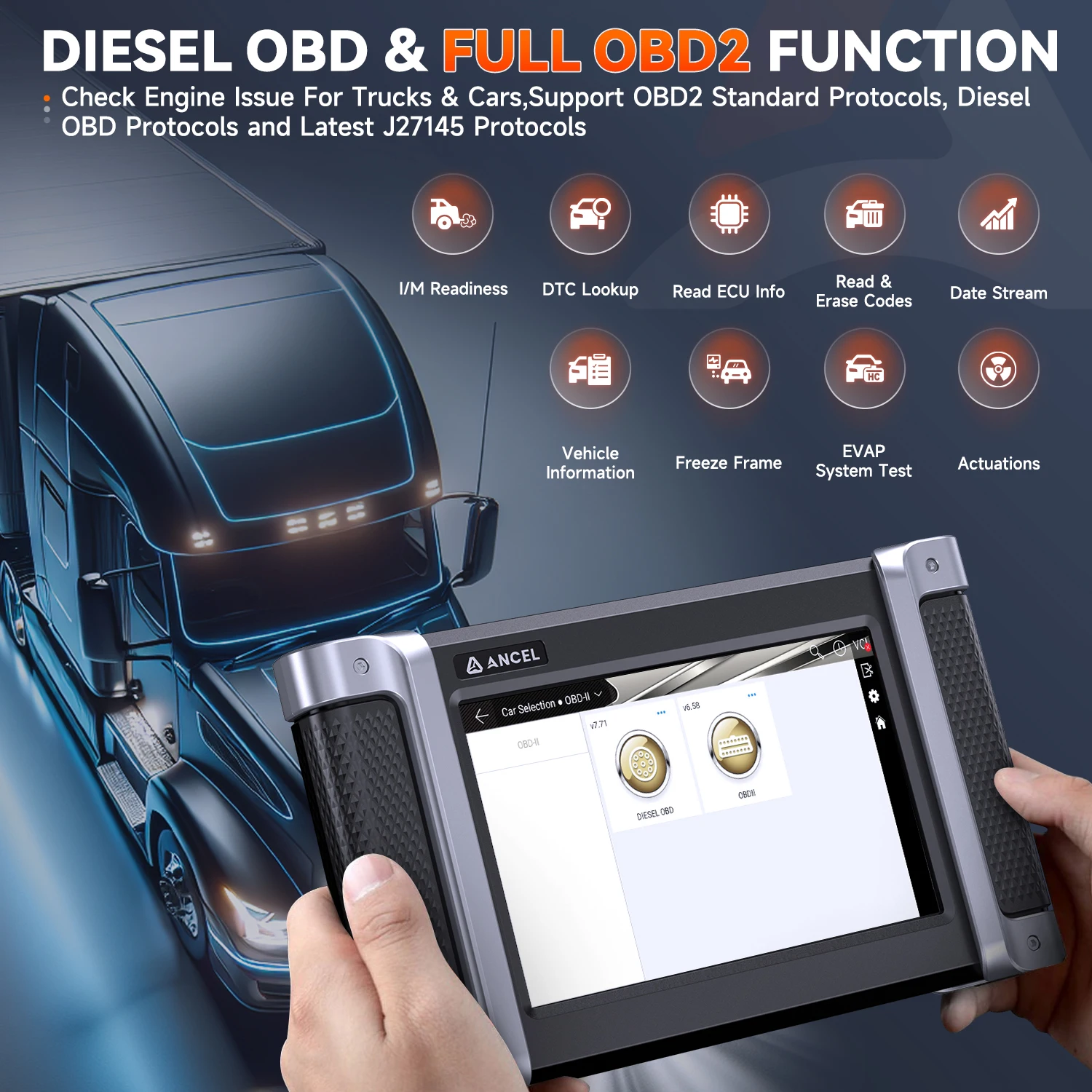

OBDII Functions Check
Mode 01 --- Request current powertrain diagnostic data.
Mode 02 --- Request freeze frame information.
Mode 03 --- Request emissions-related diagnostic code.
Mode 04 --- Clear/reset emissions-related diagnostic information.
Mode 05 --- Request oxygen sensor monitoring test results.
Mode 06 --- Request on-board monitoring test results for specific monitored systems.
Mode 07 --- Request emission-related diagnostic trouble codes detected during current or last completed driving cycle.
Mode 08 --- Request control of on-board system, test or component.
Mode 09 --- Request vehicle information.
Mode 0A --- Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.
Coding:
1.Control unit adaptations
2.Injector Codes
3.Read/Write VIN
4.Road speed limit optional vehicle speed set.
Programming:
1.Level calibration,
2.Idle speed learning,
3.Idle speed Adjustment,
4.Camshaft timing control learning, etc.
Kind reminder : These special service function doesn't fit for all trucks , thank you .

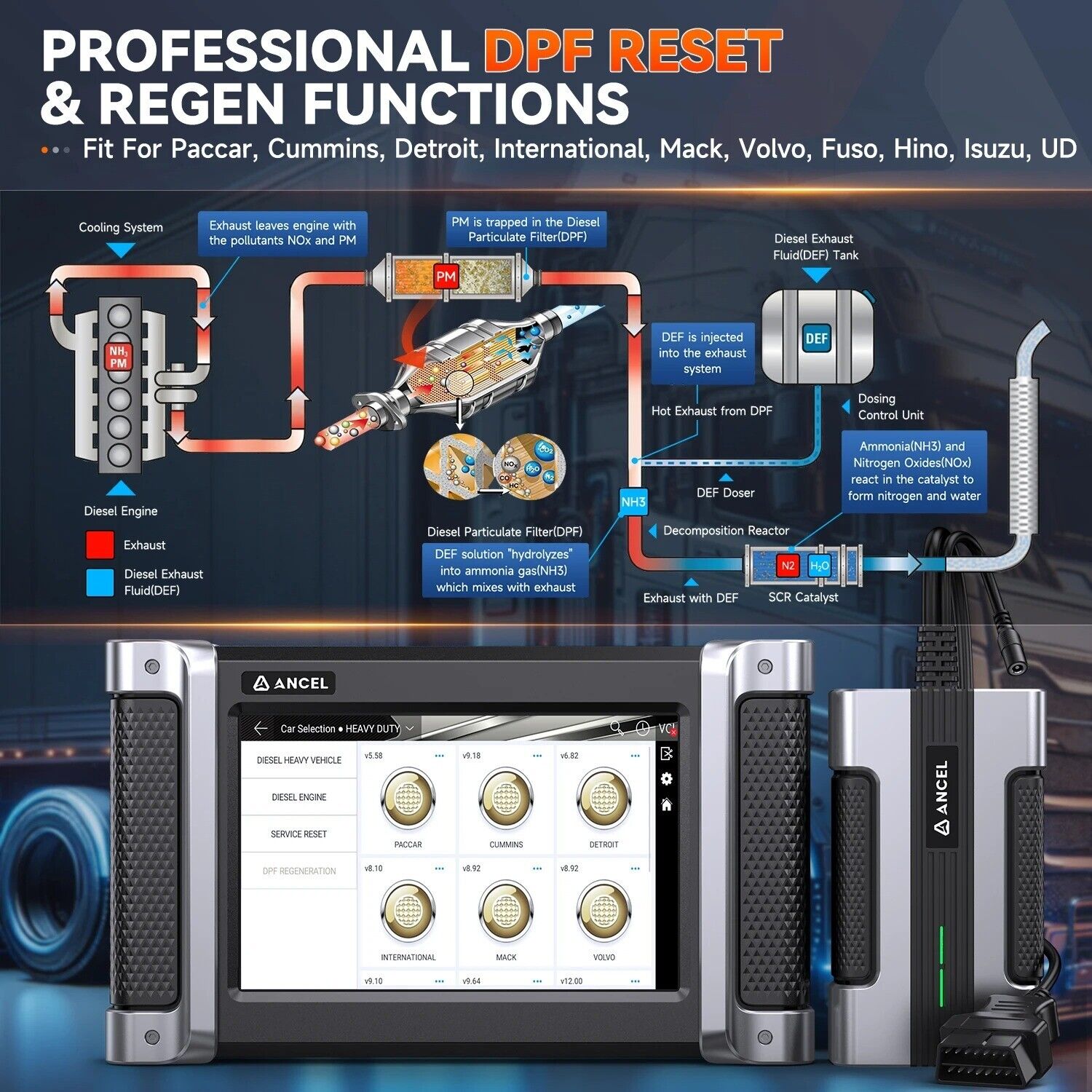

DPF Service Function
DPF Service function Including :
DPF regeneration,
DPF reset, BlueTec,
DPF related information reset,
DPR state reset,
Forced DPR regeneration,
Differential pressure check,
DPD forced regeneration etc.
DPF regeneration may be performed in the following cases:
(a) The exhaust back pressure sensor is replaced.
(b) The PM trap is removed or replaced.
(c) The fuel additive nozzle is removed or replaced.
(d) The cataytic oxidizer is removed or replaced.
(e) The DPF regeneration MIL is on and maintenance is performed.
(f) The DPF regeneration control module is replaced.
Operate Notice
For DPF regen, Generally to successfully perform the DPF regeneration, pls kindly meet these demands
1, Pls make sure the engine does not have trouble codes or other phisical malfunctions, if has, pls repair it firstly;
2, Engine running at idle speed, and water temperature should be higher than 80 Celse Degree.
3, Coolant temperature is higher than 60"C Degree; Fuel temperature is lower than 70"C degree;
4, The DPF soot level is higher than 80% full; Need to be regen.
Basic Function:
1.Read ECU Info
2.Read Fault Code:Read DTCs，Clear DTCs.
3.Clear learning value
4.Read Live Data:Data Stream Waveform Display
5.Actuations
6.Read freeze frame data
7.Data Manage:Can manage Vehicle App,Testing pictures,etc.Users can make effective management of files and storage.
8.System Auto Detected:Automatically identify the vehicle model and information
Diesel Commercial Truck Diagnostic Support
For Freightliner,For International,For Kenworth,For Mack,For Peterbilt,For HD Volvo, For UD Volvo(mm),For Ford Truck,For Fuso,For Hino, For Hyundai,For ISUZU,For KIA,For UD,For Western Star,For Sterling,For Blue Bird,For Irizar,For Thomas

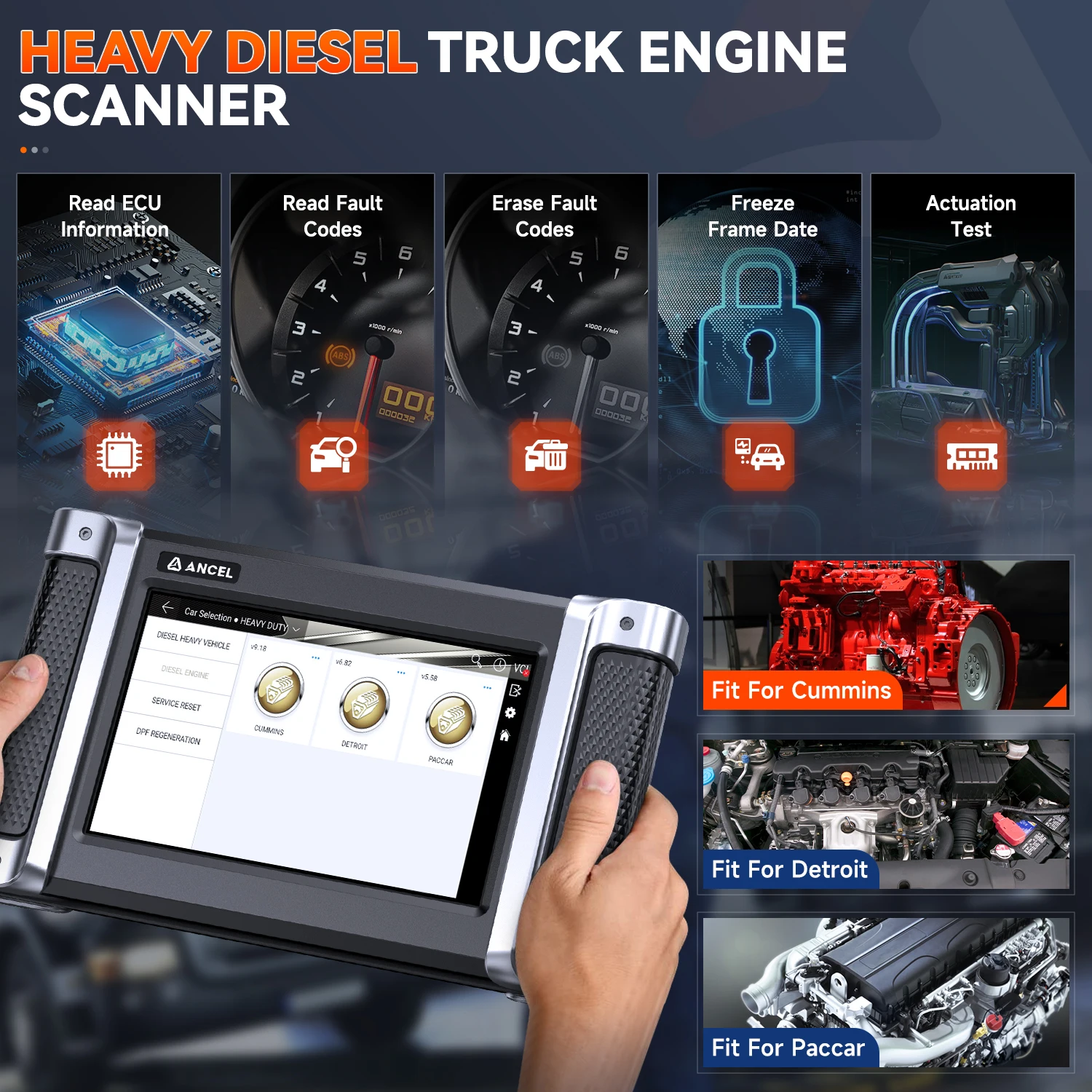

Diesel Engine
For Cummins,For Detroit,For Paccar,For Maxxforce,For MBE engine,For Caterpillar
D.PF Regeneration
For International,For Mack,For Volvo,For Fuso,For Isuzu,For UD,For Hino,For Cummins,For Detroit,For Paccar,For Hyundai,For KIA,For Maxxforce, For Freightliner, For Kenworth,For Peterbilt,For Western Star
ABS Transmission
For Allison,For Eaton,For Bendix, For Wabco,For Wabash

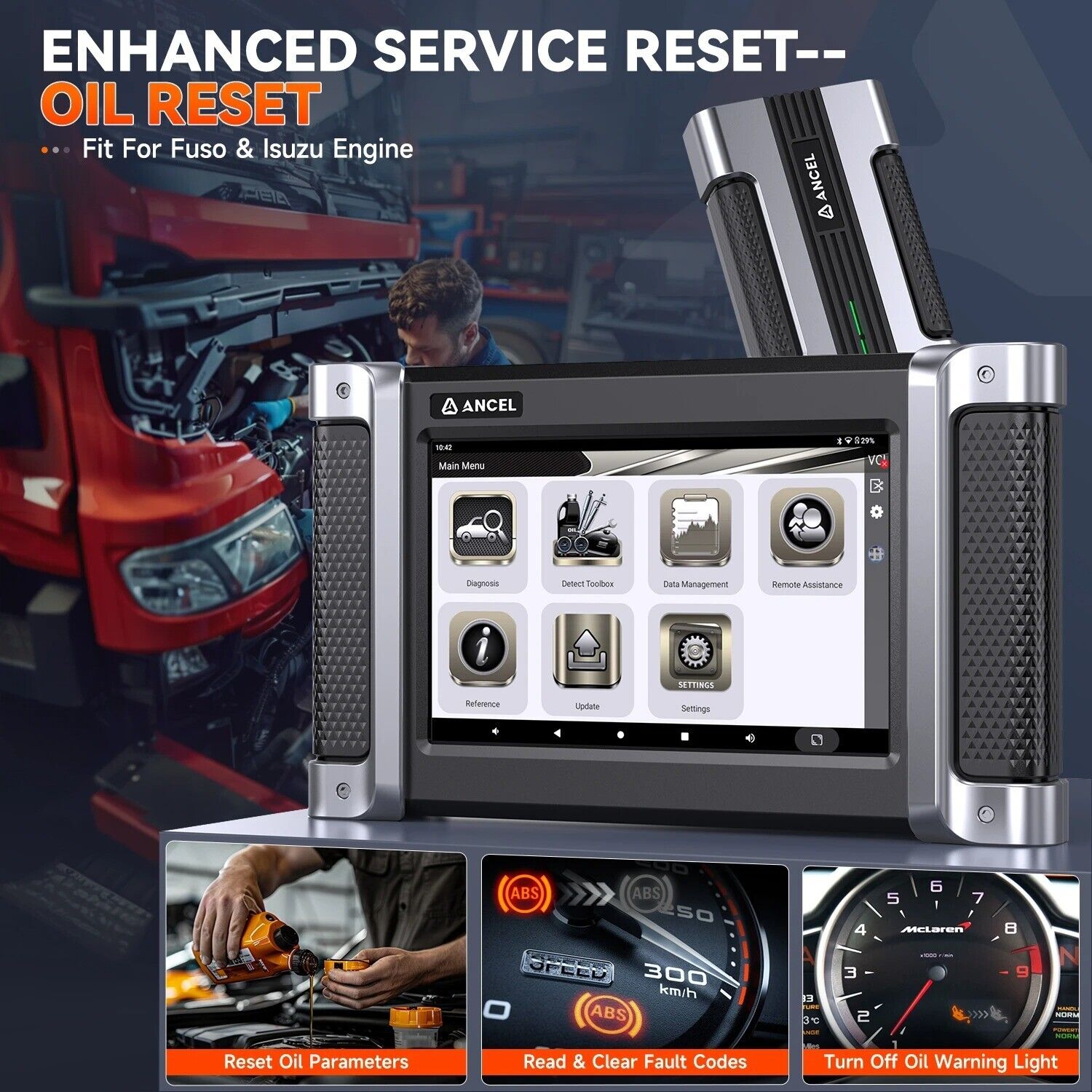

Serivce Reset
For Fuso, For Isuzu,For Hino

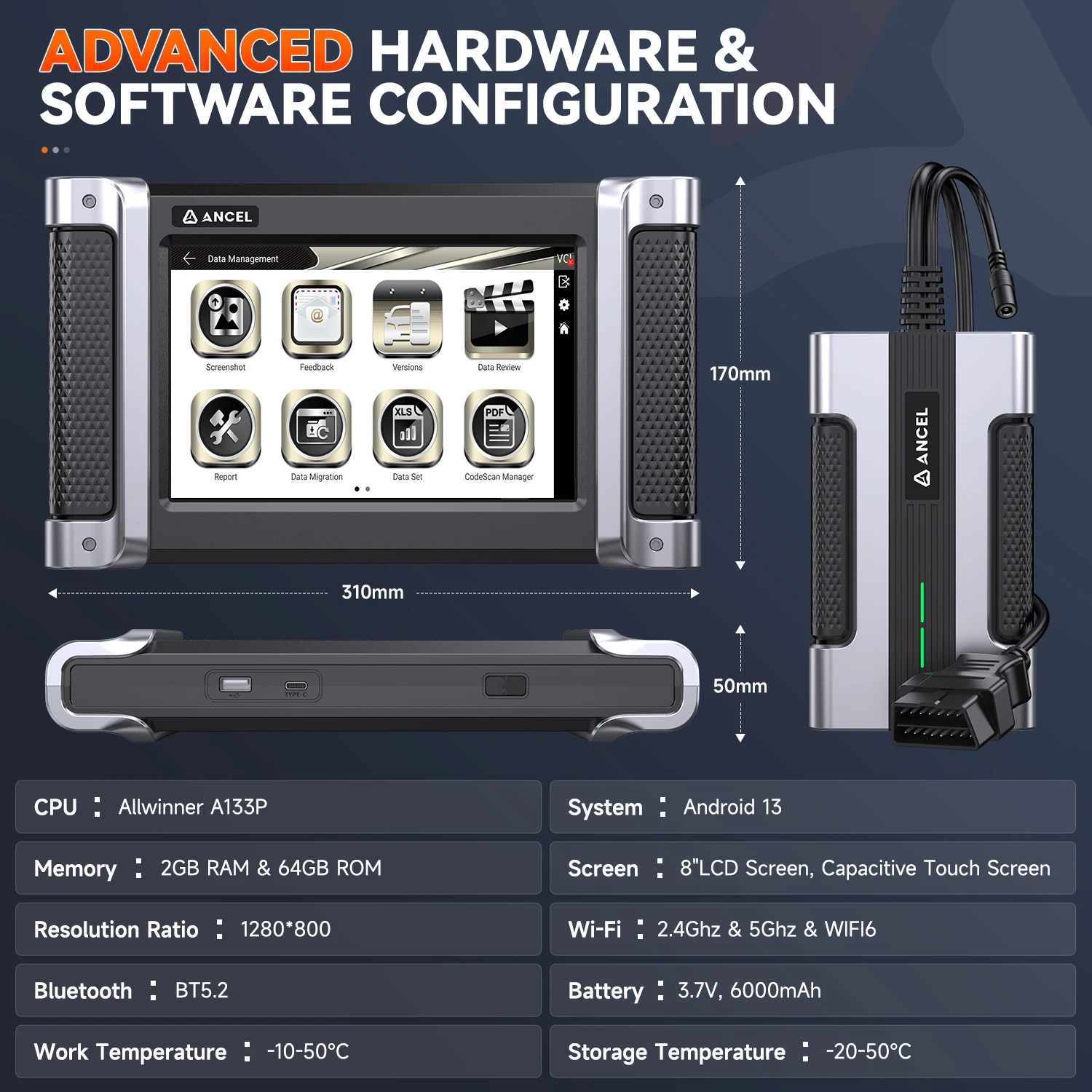

Tablet Parameters
CPU: Allwinner A133P
System: Android 13 Android 13
Memory: 2GB RAM & 64GB ROM
Screen: 1280*800 1280*800, capacitive touch screen
Wi-Fi: 2.4Ghz & 5Ghz & WIFI6
Bluetooth BT5.2
Battery: 3.7V, 6000mAh
Size: 310*170*50 mm

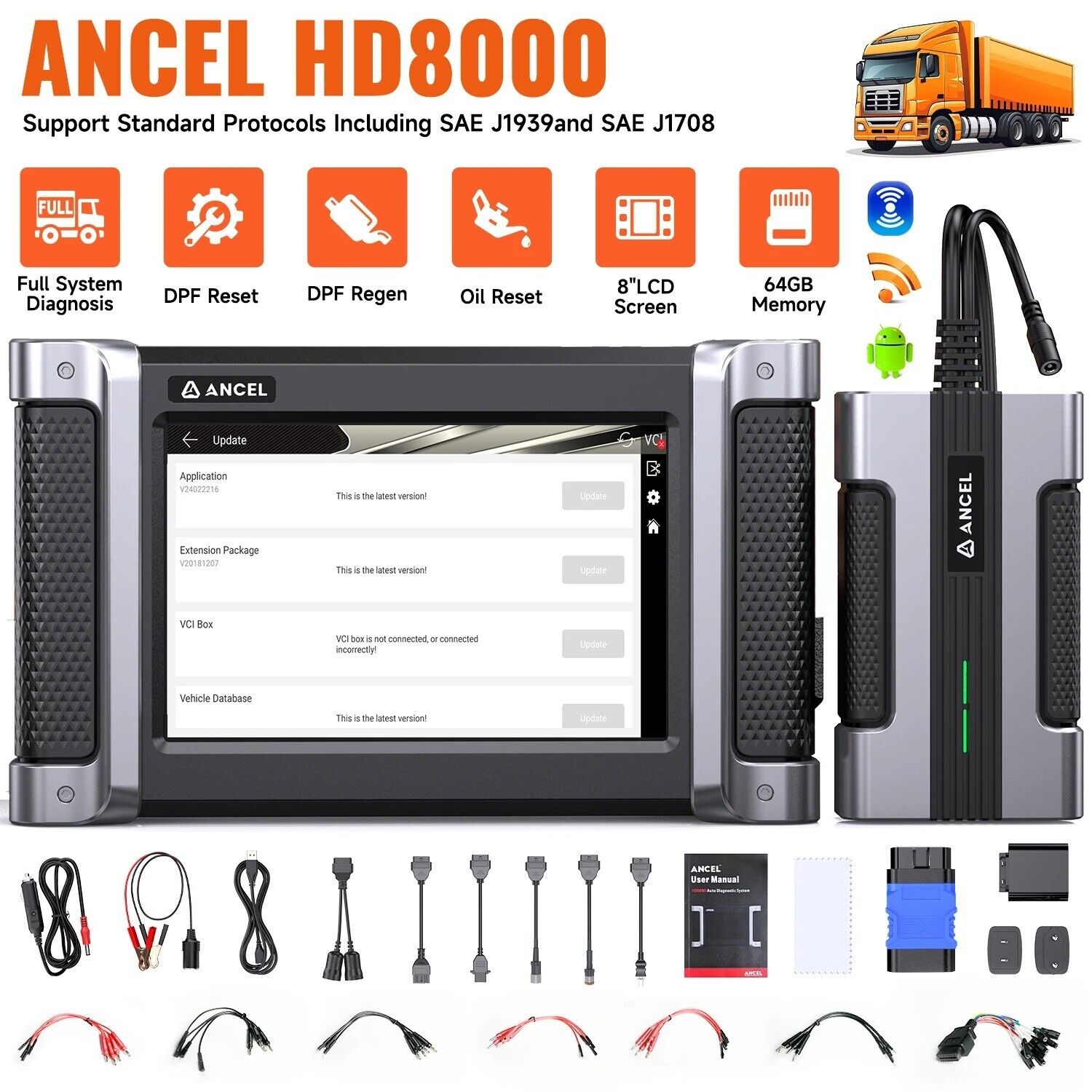

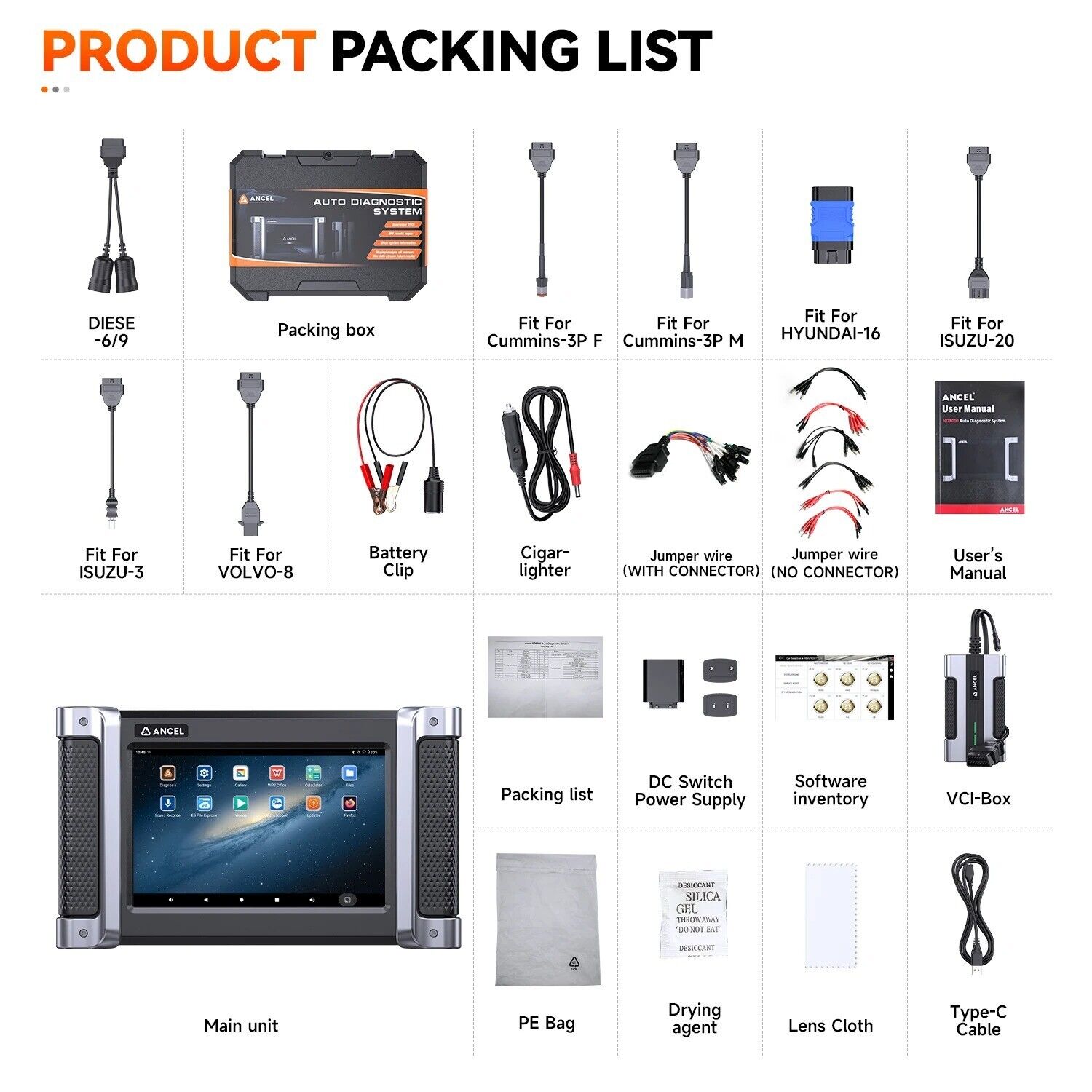

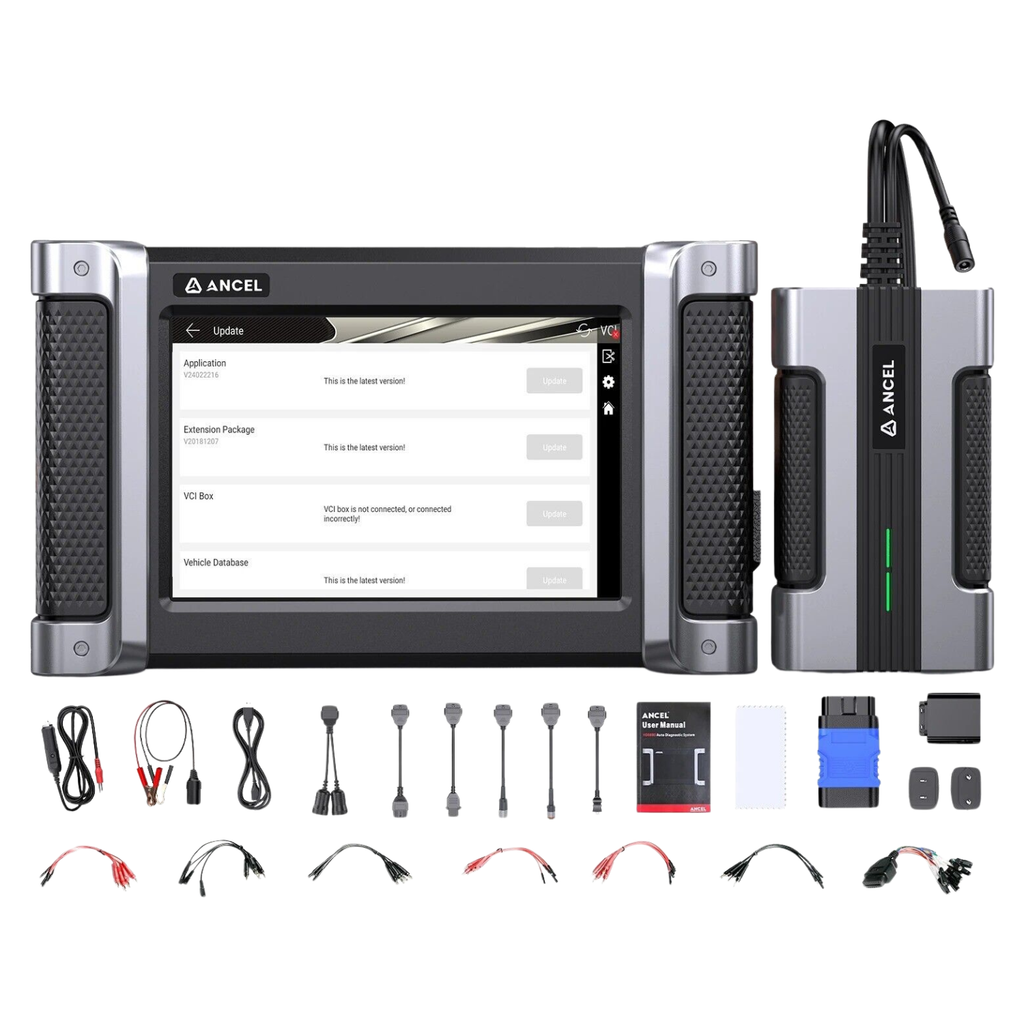

Package List
1* HD8000 tablet scanner ,
1*Diesel OBD 6pin & 9pin Adapter Cable ,
1* Fit for ISUZU-3 Adapter ,
1* Fit for ISUZU-20 Adapter ,
1* Fit for VOLVO-8 Adapter Cable ,
1* Fit for Cummins-3P F Adapter ,
1* Fit for Cummins-3P M Adapter,
1* Fit for Hyundai-16 Adapter ,
1* VCI Box ,
1* Cigar lighter ,
1* Jumper wires ,
1* Power plug ,
1* Type-C cable ,
1* User Manual ,
1* Battery Clip ,
1* Protect Carry Box
Screen: 1280*800 1280*800, capacitive touch screen
Wi-Fi: 2.4Ghz & 5Ghz & WIFI6
ANCEL HD8000 VCI Box Parameter
Processor: Arm Cortex-M33
