Note:This product just available for cars with OBD2 agreement (European region vehicles after 2004, Other region vehicles after 2007).This product doesn't support JOBD and OBDI. OBD model is not compatible with hybrid electric vehicle, diesel car, pickup truck, RV, computer modified car.

Description:

1. OBD Data Interface
2. Keyboard up and pull up
3. OK key, press down vertically
4. Down key, down dial

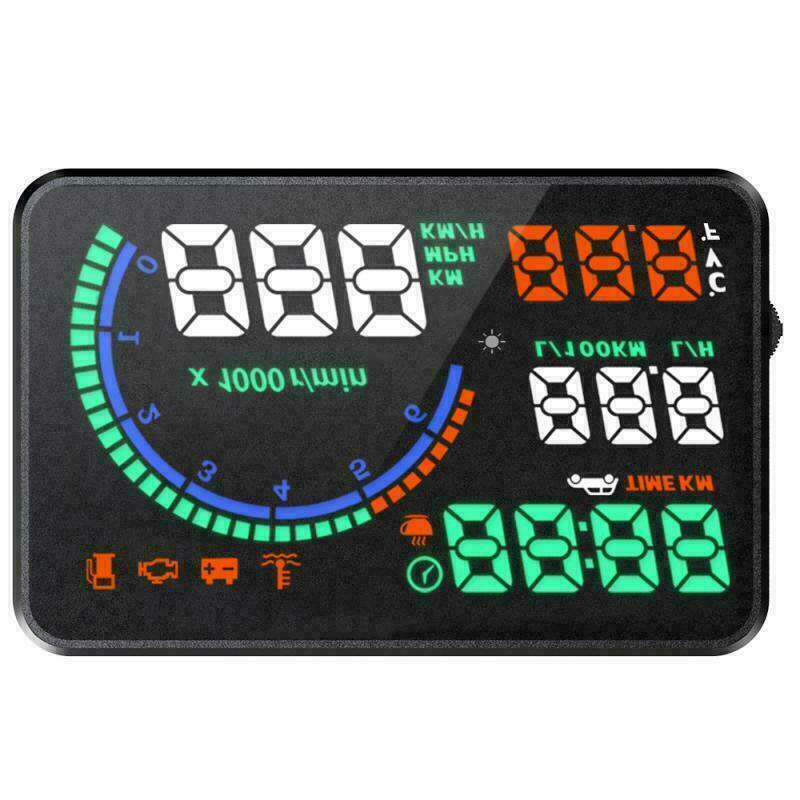

Screen introduction:
1. Speed: Digital display of the current speed, when the speed exceeds the set speed, it will flash quickly.Tips for speeding.
2. Unit symbols: KM-km, MPH-miles, KM/H-speed units
3. Engine speed Icon
4. Speed: Display the engine speed status, the brightness of the scale represents the speed achieved.
5. Fuel Mark: Start flashing when fuel is less than 10%. Refuel (some models are not applicable)
6. Engine failure: When the engine fails, the icon flashes to remind.
7. Battery Voltage: When the battery voltage is below 12V, the warning lamp will flash to warn.
8. Water Temperature Indicator: When the water temperature exceeds 130 degrees or below 10 degrees, it begins to flash.
9. Fatigue Driving Sign: When the single driving time exceeds two hours, it starts to flash for 10 seconds.Then flash every other hour for 10 seconds.
10. Real-time Time Marking
11. Multifunctional display area: can switch current time, single driving time statistics, single row Mileage statistics.
12. Comprehensive Statistical Signs: TIME for time, KM for kilometers.
13. Average/Instantaneous Unit of Fuel Consumption: L/100km L/H
14. Photosensitive components: automatically adjust the display brightness with the change of external brightness.
15. Unit symbols: -Celsius, V-Voltage Unit, -Fahrenheit.

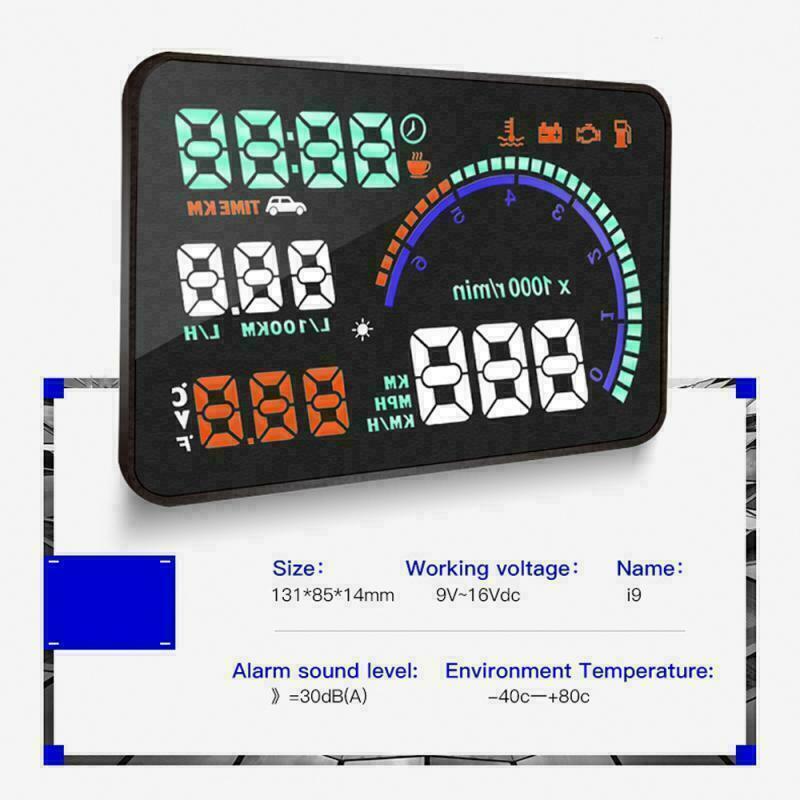

Specifications:
Size: 131*85*14mm
Working Voltage 9v-16vdc
Alarm level: >= 30dB (A)
Ambient temperature - 40 degrees Celsius to + 80 degrees Celsius
Chip: stm32

Package Included:
1x Host
1x OBD line
1x Reflective film
1x Stable sticker
1x Manual

Note:This product just available for cars with OBD2 agreement (European region vehicles after 2004, Other region vehicles after 2007).This product doesn't support JOBD and OBDI. OBD model is not compatible with hybrid electric vehicle, diesel car, pickup truck, RV, computer modified car.
