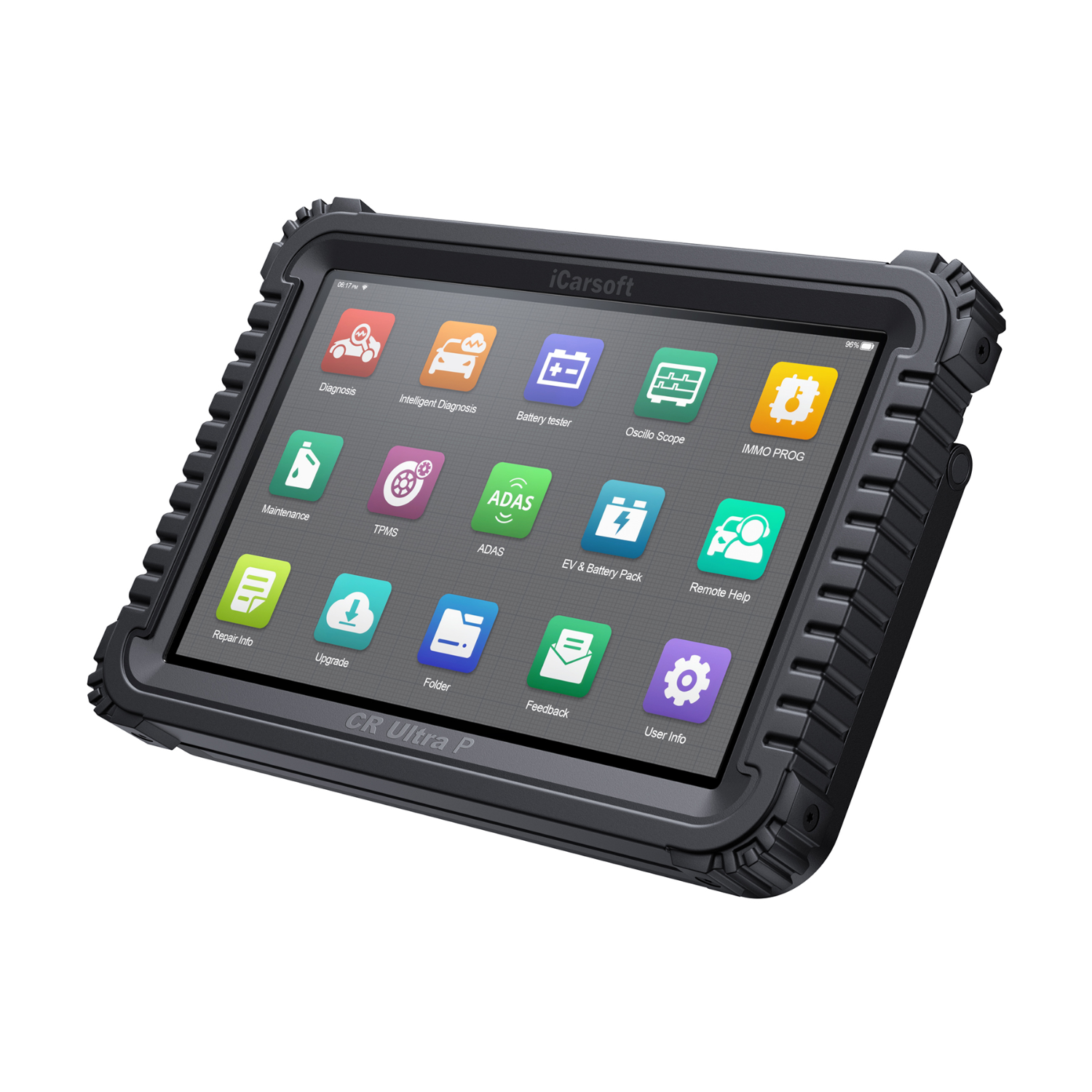

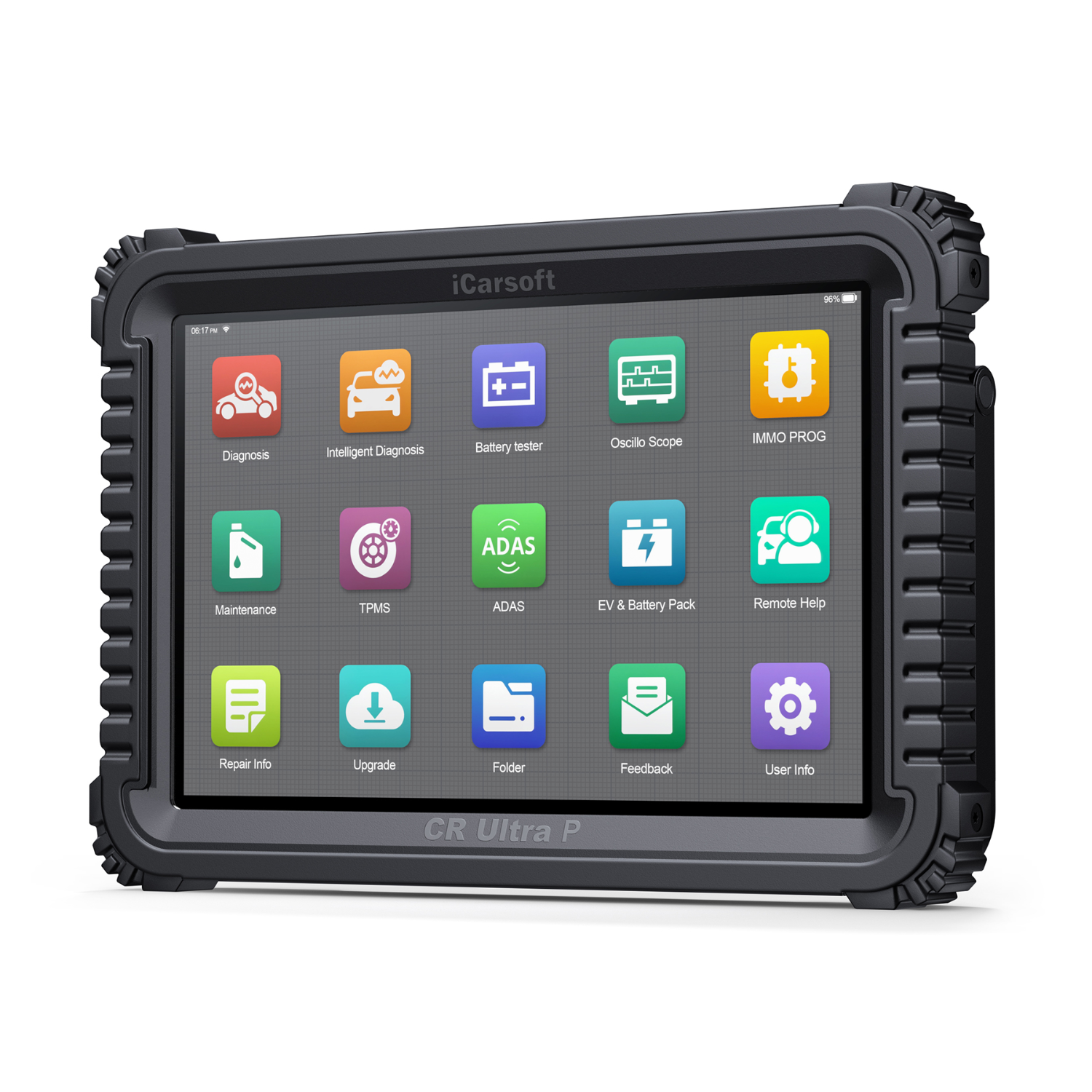

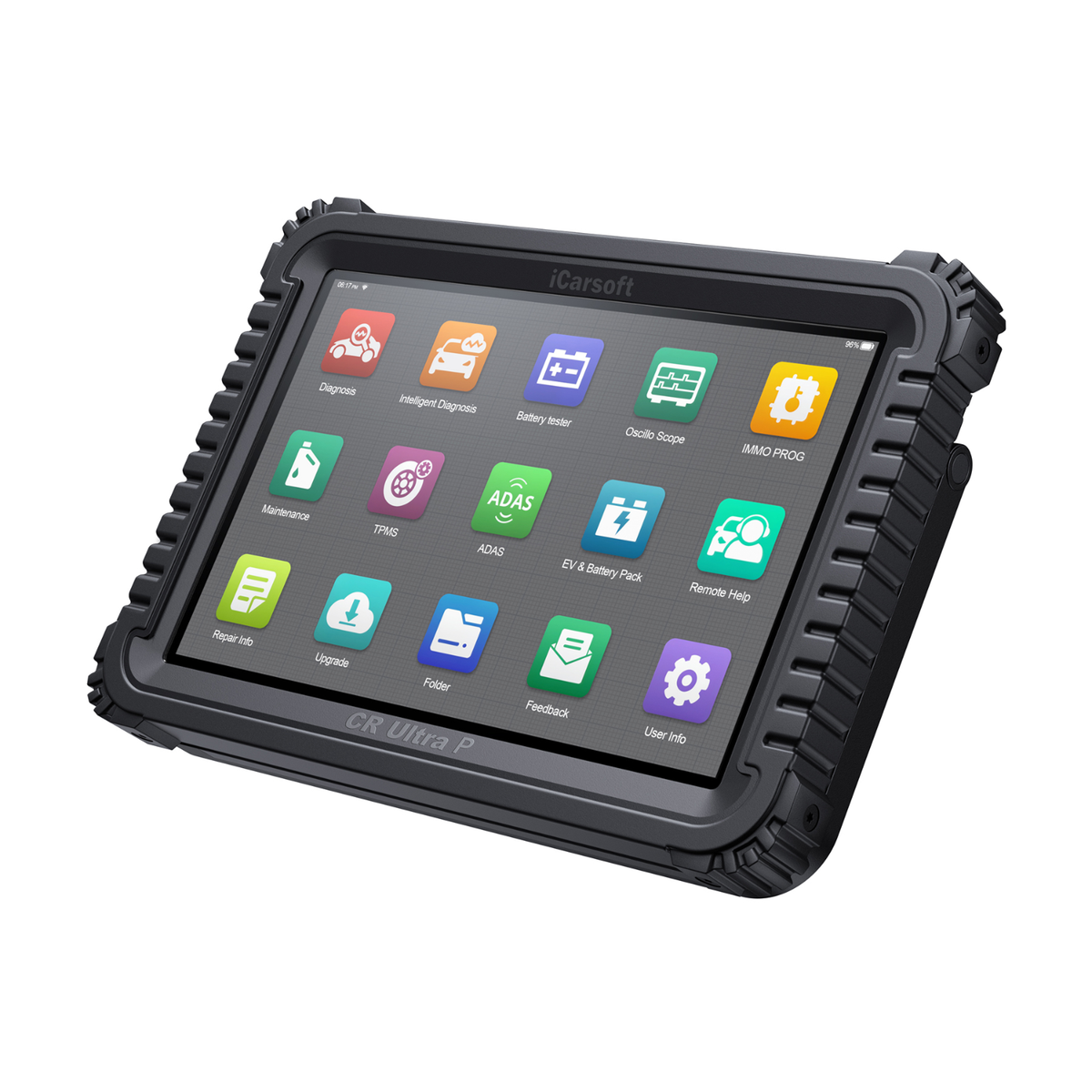

CR Ultra P Automotive Diagnostic & Analysis System – Professional OE-Level Car Diagnostic Tool with J2534 Programming

NEXT-GENERATION FLAGSHIP OE-LEVEL FULL-SYSTEM DIAGNOSTIC PLATFORM

The iCarsoft CR Ultra P is a premium, new-generation intelligent diagnostic tool engineered for professional technicians and advanced car enthusiasts. Driven by a powerful 2.0GHz quad-core processor and a vibrant 10.1-inch HD touchscreen, this platform delivers comprehensive one-click full-system code scanning. Equipped with a robust 12600mAh battery for uninterrupted, all-day workshop performance, the CR Ultra P supports cloud-based online programming for 13 leading car brands and comes with 3 years of free software upgrades.

• OE-Level Diagnostics
• J2534 Pass-Thru & Cloud ECU Programming
• Intelligent Topology Mapping
• 40 Service & Maintenance Functions
• Bi-Directional Control (Active Test)
• 3 Years of Free Software Updates

Dealer-Level Diagnostics

One flagship platform — from topology map to cloud coding.

The CR Ultra P is the next-generation flagship of the iCarsoft CR line: a 10.1-inch Android platform pairing OE-level full-system diagnostics with intelligent topology mapping, built-in J2534 pass-thru, cloud-based online ECU programming for 13 brands, FCA SGW secure-gateway access, full bi-directional control and 40 service functions — powered by a 2.0GHz quad-core CPU and a 12600mAh all-day battery, with 3 years of free software updates and no per-year subscription.

01 J2534 Pass-Thru Protocol & Cloud-Based Online Programming

Flash factory-grade firmware — J2534 pass-thru, straight from your PC.

• J2534 Standard Compliance: Built-in support for the SAE J2534 (Pass-Thru) protocol. This allows the CR Link Wireless J2534 VCI to act as a bridge between the vehicle electronics and PC-based OEM factory diagnostic/programming software, saving thousands on brand-specific hardware.
• Online ECU Programming: Supports high-end cloud programming for 13 premium vehicle brands, including Audi, BMW, Porsche, Mercedes-Benz, and Volkswagen, enabling flashing of the latest OEM software to replace existing software/firmware in the ECUs.
• Expert ECU Coding & Personalization: Modifies control module parameters to customize vehicle performance, improve drivability integration, and activate new features.

• Performance Restoring
• Vehicle Personalization
• Component Adaptation
• Advanced Troubleshooting

Note: Always connect a stable battery maintainer and back up the original module’s data before executing programming or coding functions.

02 OE-Level Global Vehicle Coverage

Over 170 marques deep — one dealer-grade scan, turnkey hardware included.

Extensive Compatibility: Supports comprehensive, dealership-level diagnostic scanning for 174 vehicle makes worldwide, fully equipped with turnkey hardware add-ons out of the box. A global database delivers deep-dive diagnostics for mainstream American, European, Asian, and Chinese passenger car models — and it is seamlessly expandable to heavy-duty commercial vehicle software to fit your growing business needs.

• 174 All Makes: Worldwide coverage
• 15 American: for Buick, for Buick (China), for Cadillac, for Chevrolet, for Chrysler, for Dodge, for Ford, for Ford (Australia), for Ford (Europe), for GM, for GM (Brazil), for Holden (Australia), for Jeep, for Lincoln, for RAM
• 43 European: for Abarth, for Alfa Romeo, for Audi, for Bentley, for BMW, for Borgward, for Bugatti, for Citroën, for Cupra, for Dacia, for DS, for EcuAid, for Fiat, for Fiat (Brazil), for GAZ, for Jaguar, for Lamborghini, for Lancia, for Land Rover, for MAN TGE, for Maybach, for McLaren, for Mercedes-Benz, for Mini, for Opel, for Opel (South Africa), for Peugeot, for Polestar, for Porsche, for Renault, for Rolls-Royce, for Saab, for SEAT, for Škoda, for Smart, for Sprinter, for Vauxhall, for VAZ, for Volvo, for VW, for VW CV, for VW (FAW), for VW (SAIC)
• 38 Asia-Pacific: for Acura, for Daewoo, for Daihatsu, for Force (India), for Fuso, for Genesis, for Hino, for Honda, for Hyundai, for Hyundai (Korea), for IKCO, for Infiniti, for Isuzu, for Isuzu (Thailand), for Kia, for Kia (Korea), for Lexus, for Mahindra, for Mahindra (India), for Maruti (India), for Mazda, for Mitsubishi, for Nissan, for GTR (Nissan), for Perodua, for Perodua (Malaysia), for Proton, for Proton (Malaysia), for Saipa, for Samsung Renault, for SsangYong, for Subaru, for Suzuki, for Tata, for Tata (India), for Toyota, for United Pakistan, for VinFast
• 78 Chinese: for Aion, for BAIC, for Baojun, for Beidouxing, for Bestune, for BJEV, for Brilliance, for BYD, for Changan, for Changan Kaicene, for Changan Kuayue, for Changan Oushan, for Changan Qiyuan, for Changhe, for Changhe Suzuki, for Chery, for Cowin, for DFCitroën, for DFNissan, for DFSK, for Dihao Jihe, for Dorcen, for Englon, for Exeed, for Fangchengbao, for FAW (Tianjin), for FAW Car, for Fengguang (Dongfeng), for Fengshen (Dongfeng), for Fengxing (Dongfeng), for Foday, for Foton, for Geely, for Geely Galaxy, for Geruisi Qiche, for Gleagle, for Gonow, for GWM, for Haima, for Haval, for Hongqi, for Huasong Qiche, for JAC, for JAC Refine, for Jetour, for Jinlong, for JMC, for Joylong, for Karry, for Kawei, for Leapmotor, for Leinuo Jinbei, for Lifan, for Luxgen, for Maxus, for MG (SAIC), for Ora, for Qoros, for Radar, for Roewe (SAIC), for Senoua (BAIC), for SGM, for Shenlan Qiche, for Shineray, for Skyworth, for Soueast, for SWM, for Tank, for Trumpchi, for Venucia, for Weiwang (BAIC), for WEY, for SGMW, for Wuling, for Yangwang, for Zhonghua Qiche, for Zotye, for ZX Auto

Don't see your car? Send us your VIN and our team will review compatibility against the current coverage information.

03 Intelligent Automotive Topology Mapping

See the whole network light up — faults in a single glance.

• Visual Network Architecture: Transforms complex raw ECUs and automotive communication networks into a clear, interactive visual tree or grid.
• Visual Network Map
• Color Coded Health
• Instant Fault Spotting (1)
• Instant Fault Spotting

Instant Fault Spotting: Uses smart color-coded indicators (Green for normal, Red for fault codes) to display system-wide health. Technicians can pinpoint bus disconnects or faulted modules at a glance, saving hours of manual diagnostic time.

04 FCA SGW Secure Gateway Access and AutoAuth Registration

Unlock the FCA secure gateway — no bypass cables, no workarounds.

• Authorized Secure Gateway Access: Provides native AutoAuth integration to seamlessly access and unlock the secure network on modern Fiat, Chrysler, Dodge, Jeep, RAM, and Alfa Romeo vehicles (2018–Present).
• Direct OBDII Control: Unlocks full authorization to clear diagnostic fault codes, stream live data, execute bi-directional active tests, and perform all 40 service resets directly through the standard OBDII port—eliminating the need for external bypass cables.

Note: Requires an active AutoAuth user account and subscription (additional fee applies).

• Fiat
• Chrysler
• Dodge
• Jeep
• RAM
• Alfa Romeo
• 2018–Present
• Native AutoAuth

05 Powerful Bi-Directional Control and Active Tests

Trigger it, watch it, verify it — no more guesswork.

Go beyond reading codes: the CR Ultra P commands actuators and reads live inputs so you can prove a fault before you replace a part.

• Activation Tests: Directly triggers electronic actuators to verify components, such as remote key fobs, hazard lights, or alarm systems.
• Sensor Testing: Monitors live inputs from temperature, pressure, and wheel-speed sensors to guarantee accurate operational reporting.
• Actuator Verification: Validates physical components like power windows, sunroofs, mirrors, and climate control flaps.
• System Calibration: Calibrates critical vehicle stability networks, including Steering Angle Sensors, braking electronics, and airbag modules.

06 Premium 3 Years of Free Software Updates

Three years of updates, on the house.

While standard industry tools charge for updates after just 1 or 2 years, the iCarsoft CR Ultra P includes 3 Years of Free online software updates, keeping your tool equipped with the latest vehicle models, J2534 definitions, and software enhancements without hidden fees.

• No subscription fees, ever: 3 years of free software updates included. After this period, you can continue using the software already downloaded. Further updates are available through an optional paid renewal. No automatic renewal or automatic charges.
• Wireless Wi-Fi delivery: Updates arrive over the air, no cables
• New protocols & model coverage: Continuously released as cars evolve

07 40 Hot Service Reset and Maintenance Functions

Forty OE-level resets and relearns, ready for any bay.

From oil resets and DPF regeneration to EV battery diagnostics and turbocharger matching, the CR Ultra P packs 40 standardized service and maintenance routines into one platform.

Search all 40 service functions — e.g. Oil Reset, DPF, IMMO, TPMS…

▸ 40 standardized service & maintenance functions:

• OIL (Oil Maintenance Light Reset): Resets the engine oil life system and turns off the oil service light after an oil change.
• ETS (Throttle Matching): Initializes the throttle actuators to restore default learned parameters for stable idling.
• SAS (Steering Angle Reset): Calibrates the steering angle sensor to ensure accurate feedback for electronic stability control.
• BMS (Battery Matching): Registers a new battery to the ECU to clear low-battery faults and optimize charging control.
• BLEEDING (ABS Bleeding): Bleeds air out of the ABS system to restore a firm, safe, and responsive braking performance.
• BRAKE (Electronic Parking Brake Reset): Deactivates and activates the brake control system to safely replace and reset brake pads.
• DPF (DPF Regeneration): Triggers forced PM burning to clear blockages and stabilize performance in diesel filters.
• GEAR (Tooth Learning): Performs crankshaft position sensor learning to stop false engine misfire diagnostics.
• IMMO (Anti-theft Matching): Erases lost car key data and programs new transponder keys or remote fobs.
• INJEC (Injector Coding): Writes new injector codes into the ECU for precise cylinder fuel injection control.
• TPMS (Tire Pressure Reset): Relearns tire pressure sensor IDs and turns off the TPMS warning light after tire service.
• SUS (Suspension Level Calibration): Calibrates the vehicle body height sensor to level electronic air suspension systems.
• AFS (Adaptive Front-lighting System Reset): Initializes the adaptive headlamp system to automatically adjust illumination angles based on steering.
• GEAR BOX (A/T Learning): Relearns transmission adaptive values after repairs to improve gear shifting quality.
• SUN (Sunroof Initialization): Resets the sunroof control unit to restore anti-pinch protection, one-touch control, and memory.
• EGR (EGR Adaption): Relearns the exhaust gas recirculation valve operating parameters after cleaning or replacement.
• ODO (Odo Reset): Synchronizes or writes odometer data into new modules during dashboard/cluster replacements.
• AIR BAG (Airbag Reset): Resets the airbag module to clear crash data and warning lights after part replacement.
• TRANSPORT (Transport Mode): Deactivates logistics/transport mode to unlock full electrical functionalities for vehicle delivery.
• A/F (A/F Reset): Sets or relearns Air/Fuel ratio parameters to maintain optimal engine combustion efficiency.
• STOP/START (Stop/Start Reset): Configures or resets the automatic engine start-stop system activation parameters.
• NOX (NOx Sensor Reset): Resets the NOx sensor adaptation values stored in the ECU to ensure emission compliance.
• ADBLUE (SCR / DEF System Reset): Resets and bleeds the SCR (Selective Catalytic Reduction) urea system after fluid refills or service.
• SEATS (Seat Calibration): Relearns the travel limits and memory positions of electric power seats.
• COOLANT (Coolant Bleeding): Activates the electronic water pump to bleed air out of cooling systems to prevent overheating.
• TYRE (Tire Reset): Configures tire dimensions after size upgrades to maintain accurate speedometer readings.
• WINDOWS (Windows Calibration): Restores the automatic one-touch lift and anti-pinch functions of door windows.
• LANGUAGE Change: Changes the system display language on the dashboard instrument cluster and infotainment unit.
• AC System Relearn/Initialization: Initializes climate control actuators and air flaps to optimize cabin ventilation.
• Engine Power Balance Monitoring: Monitors individual cylinder power contributions to isolate misfires and performance drops.
• Gas Particulate Filter Regeneration: Triggers forced regeneration for the GPF (Gasoline Particulate Filter) to reduce exhaust backpressure.
• High Voltage Battery Diagnostics: Analyzes State of Health (SoH), cell voltage consistency, and insulation safety for EV/HEV batteries.
• Intelligent Cruise Control System: Calibrates radar and camera sensors for the Adaptive Cruise Control (ACC) system.
• Motor Angle Calibration: Calibrates the rotor position sensor of the hybrid/EV traction motor for smooth power delivery.
• Clutch Matching: Calibrates the clutch engagement points for smoother gear transitions in AMT and DCT gearboxes.
• ECU Reset: Resets the Electronic Control Unit to clear internal adaptation memories and restore defaults.
• FRM Matching: Repairs and resynchronizes corrupted Footwell Modules (FRM) to restore body electronics.
• Gateway Module Data Calibration: Synchronizes and calibrates data between the central gateway and other vehicle network ECUs.
• Rainfall Light Sensor: Calibrates the sensitivity of automatic rain and light sensors after a windshield replacement.
• Turbocharging Matching: Relearns the turbocharger actuator limits to ensure precise boost pressure management.

• Oil Reset
• DPF Regeneration
• EPB-Brake-Pad Reset (EPB)
• Steering Angle Reset (SAS)
• Battery Management Service (BMS)

Additional functions may be available depending on the vehicle.

⚠ Compatibility Notice: Function availability is dynamically determined by the specific vehicle make, model, and manufacturing year.

08 Hardware Architecture and Protocols

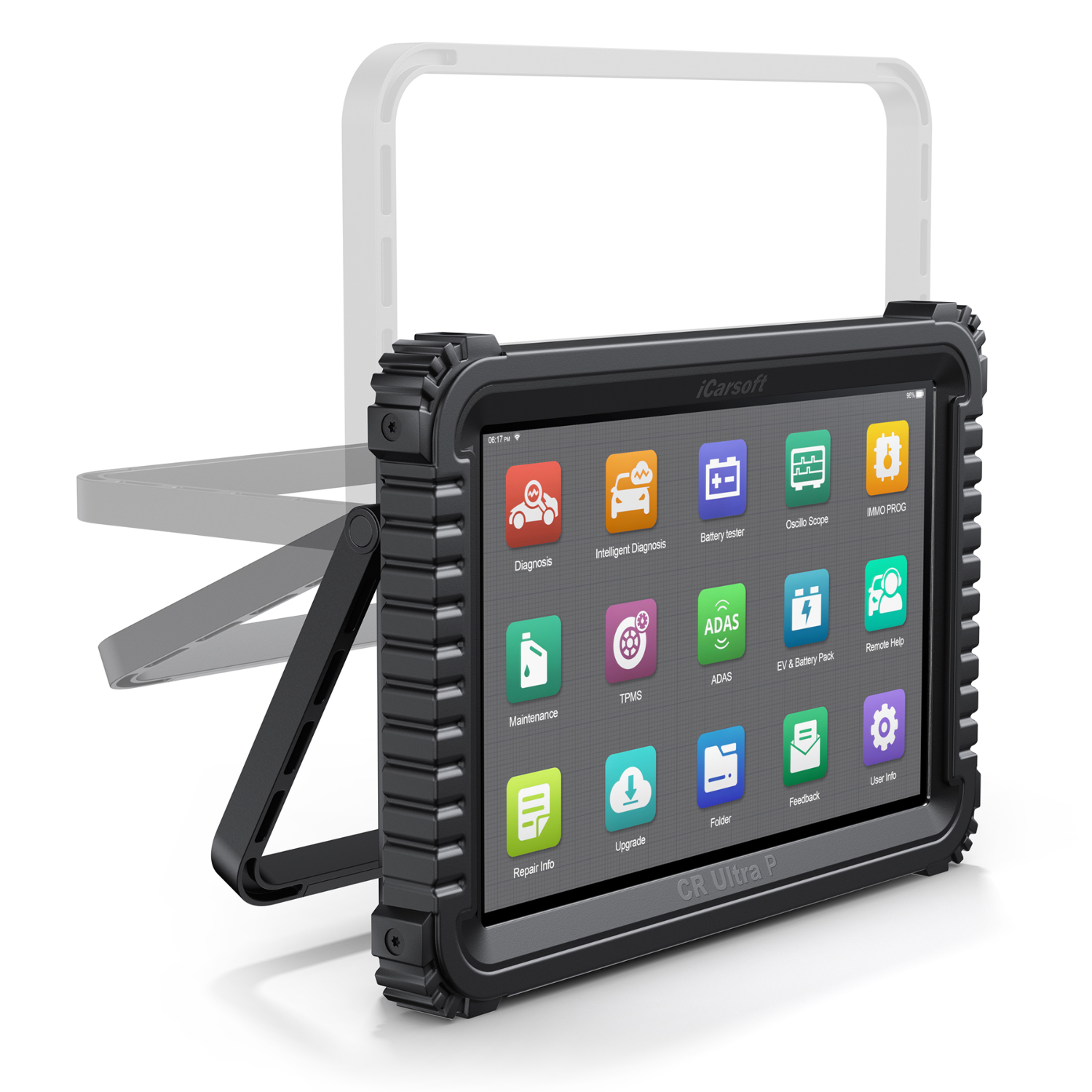

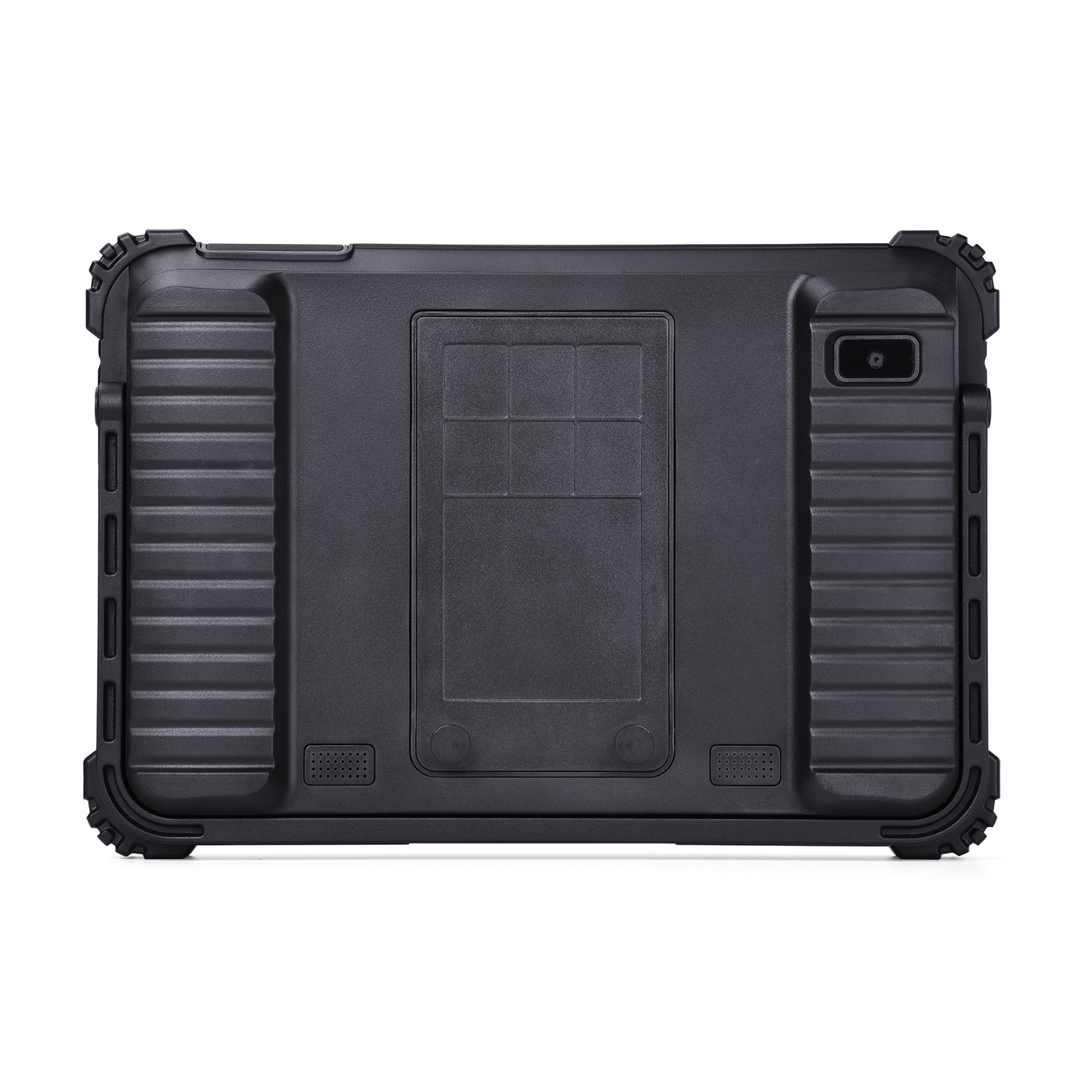

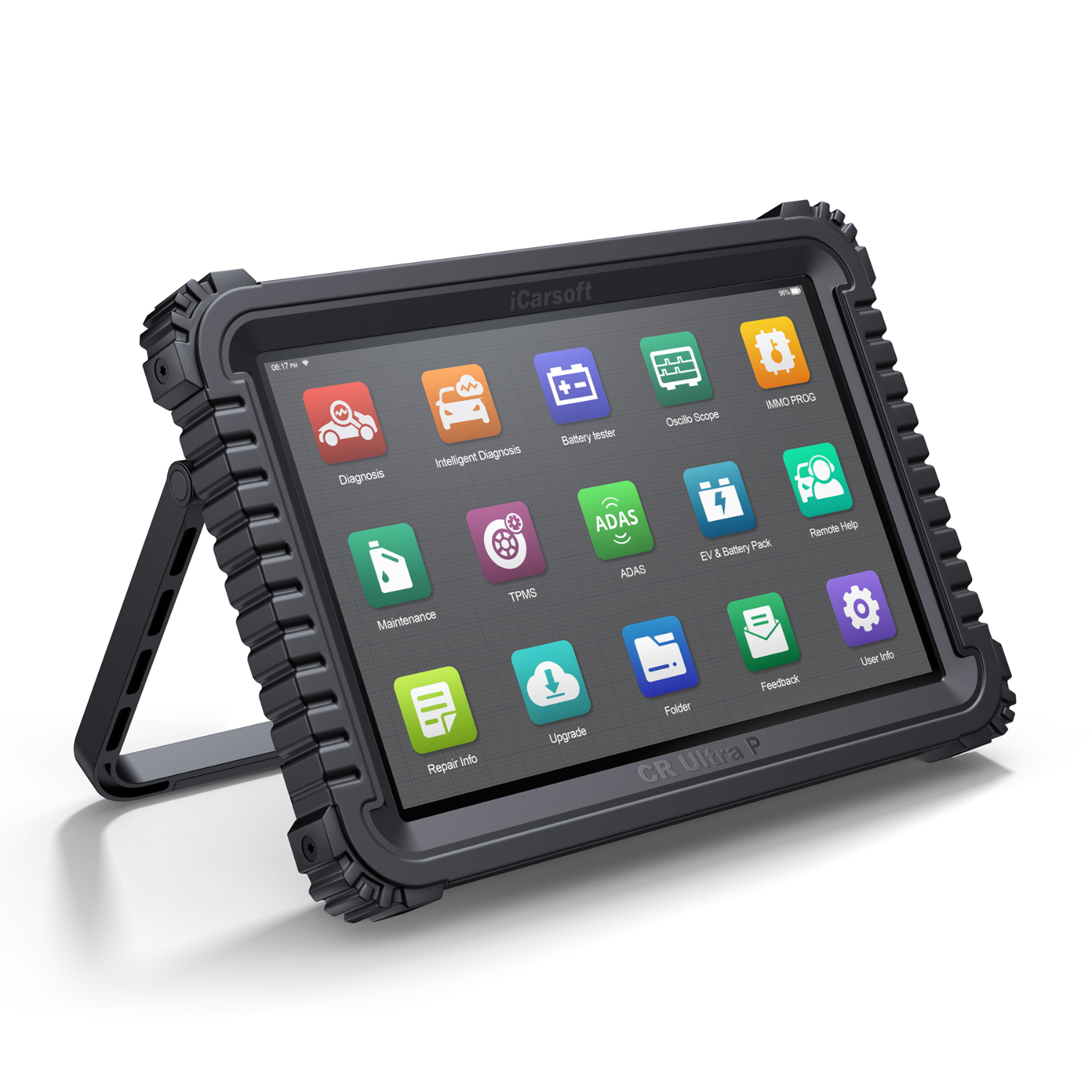

Ten inches of Android muscle, built for the all-day shift.

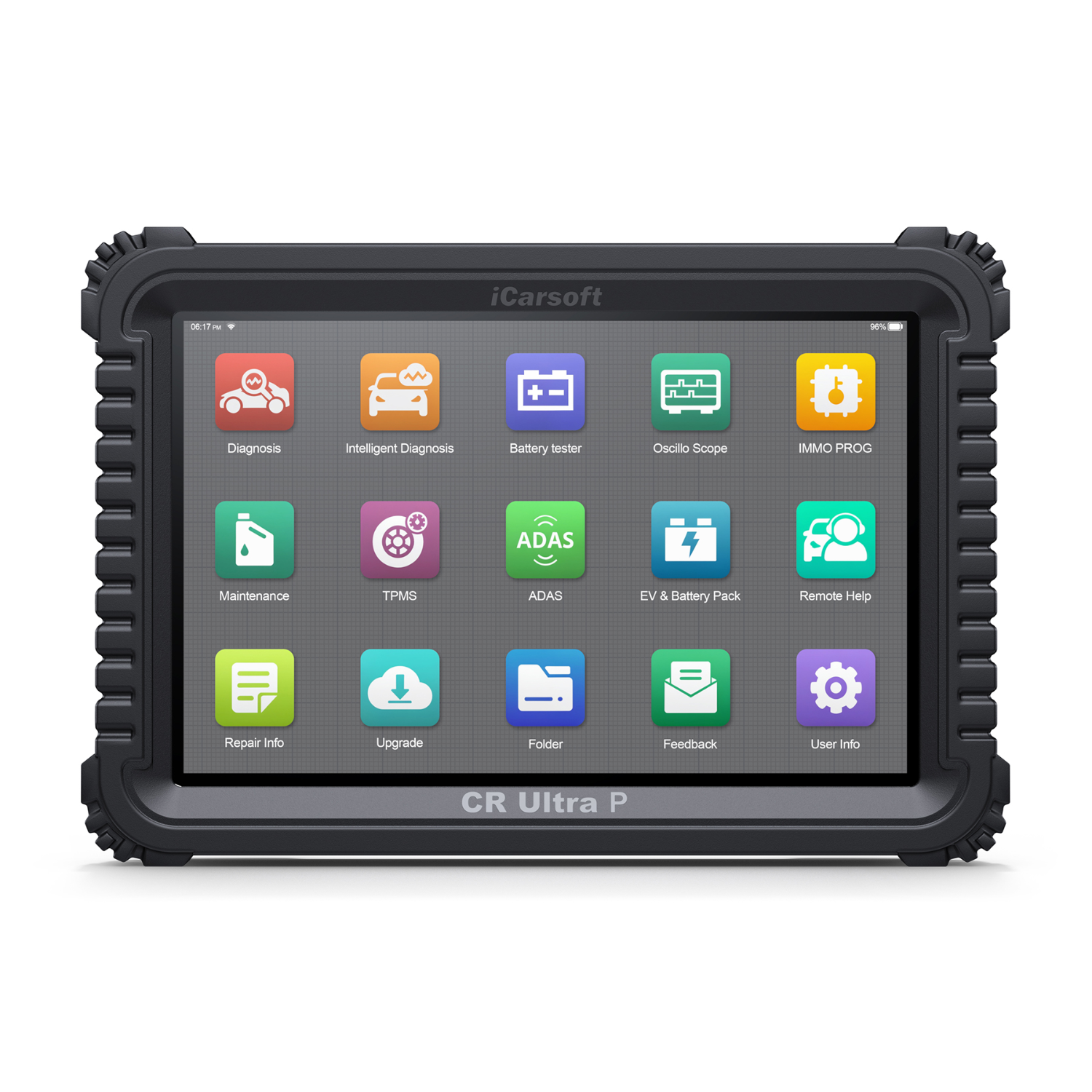

• 10.1″: Vivid HD 1280×800
• 2.0GHz: Quad-core CPU
• 4+128GB: RAM + ROM
• 12600mAh: All-day battery
• Android 10: Operating system
• 8.0MP: Auto-focus camera

• Operating System: Android 10.0
• Processor: 2.0GHz High-Performance Quad-Core
• Memory and Storage: 4GB RAM + 128GB ROM
• Display: 10.1-inch Vivid HD Touch Screen (1280 by 800 Resolution)
• Connectivity: Wi-Fi (802.11 b/g/n) and Bluetooth 5.0
• Battery Capacity: 3.8V 12600mAh
• Input Voltage: DC 5V/2.5A
• Camera: 8.0MP Rear-Facing Camera with Auto-Focus
• Audio: High-Fidelity Built-in Speakers
• Operating Temp.: 0 to 40°C (32 to 104°F)
• Storage Temp.: -20 to 70°C (-4 to 158°F)
• Operating Humidity: 5% - 95% non-condensing

09 Turnkey Hardware Add-ons Included as Standard

Open the case fully equipped — legacy cars and battery tests, day one.

The CR Ultra P ships ready for real-world work — with the adapters and modules most tools charge extra for, included as standard.

Out of the box and straight to work. Stop buying accessories separately and start maximizing your garage’s efficiency and daily revenue from day one!

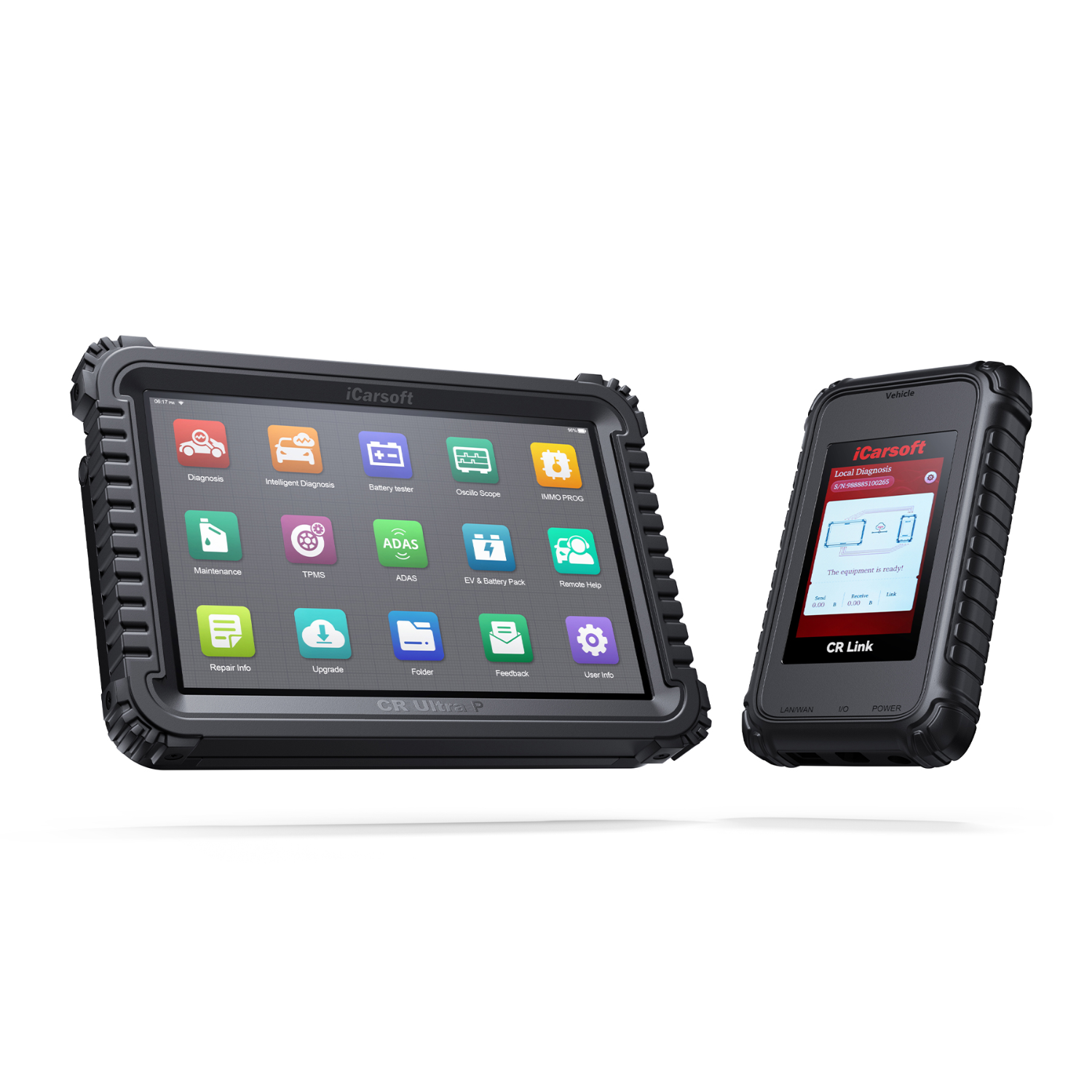

• J2534 Smart VCI Dongle: Dual-purpose wireless interface: Functions as both a heavy-duty diagnostic VCI and an SAE J2534-compliant programming interface.
• OBDI Compatibility: Comes standard with 10 essential OBDI adapters to effortlessly scan and repair older or legacy vehicles.
• Battery Management: Equipped with a premium Battery Tester Module (Battery Clamps) for standalone, comprehensive automotive battery health checks.

10 Modular Add-on Ecosystem (Sold Separately)

Grow into a total-shop hub — one platform, endless reach.

Transform your CR Ultra P into a total-shop diagnostic hub with specialized expansion hardware.

• HD6000 Heavy Duty Package: Enables full software diagnostics for heavy-duty commercial trucks.
• T-WAND9000 TPMS Tool: Delivers complete TPMS sensor activation, programming, and learning capabilities.
• Digital Oscilloscope: Captures and analyzes circuit waveforms for precision automotive electrical diagnostics.

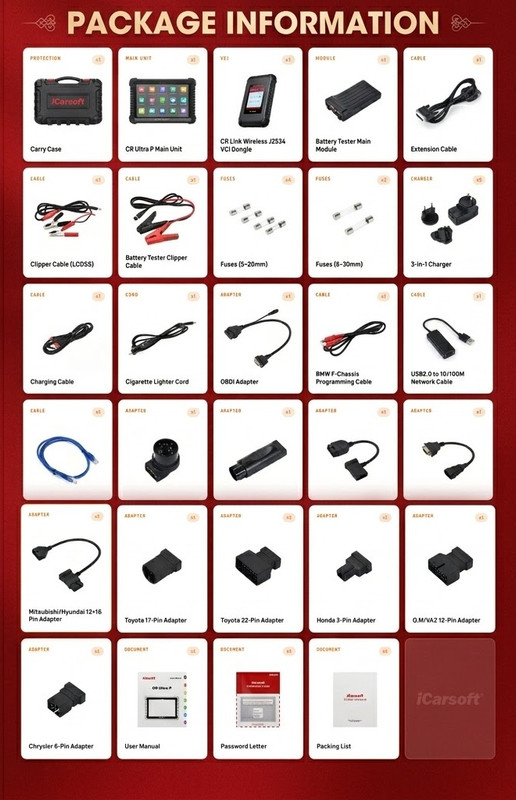

11 Packing List

Open the case — a complete pro kit, accounted for.

Everything you need to start earning on day one — main unit, VCI, battery tester, a full adapter set and more.

• Case (x1): Carry Case
• Main Unit (x1): CR Ultra P Main Unit
• VCI (x1): CR Link Wireless J2534 VCI Dongle
• Module (x1): Battery Tester Main Module
• Cable (x1): Extension Cable
• Cable (x1): Clipper Cable (LCDSS)
• Cable (x1): Battery Tester Clipper Cable
• Fuses (x4): Fuses (5×20mm)
• Fuses (x2): Fuses (6×30mm)
• Charger (x1): 3-in-1 Charger
• Cable (x1): Charging Cable
• Cord (x1): Cigarette Lighter Cord
• Adapter (x1): OBDI Adapter
• Cable (x1): BMW F-Chassis Programming Cable
• Cable (x1): USB2.0 to 10/100M Network Cable
• Cable (x1): RJ45 Network Cable
• Adapter (x1): BMW 20-Pin Adapter
• Adapter (x1): Mercedes-Benz 38-Pin Adapter
• Adapter (x1): Nissan 14+16 Pin Adapter
• Adapter (x1): Fiat 3-Pin Adapter
• Adapter (x1): Mitsubishi/Hyundai 12+16 Pin Adapter
• Adapter (x1): Toyota 17-Pin Adapter
• Adapter (x1): Toyota 22-Pin Adapter
• Adapter (x1): Honda 3-Pin Adapter
• Adapter (x1): G.M/VAZ 12-Pin Adapter
• Adapter (x1): Chrysler 6-Pin Adapter
• Document (x1): User Manual
• Document (x1): Password Letter
• Document (x1): Packing List

Frequently Asked

Good to know before you buy.

• Are software updates included, and for how long?: Yes. The CR Ultra P includes 3 years of free online software updates, keeping the tool equipped with the latest vehicle models and software enhancements without hidden fees.
• Does the CR Ultra P support online ECU programming and coding?: Yes. It supports cloud-based online programming for 13 premium brands — including Audi, BMW, Porsche, Mercedes-Benz and Volkswagen — plus expert coding, adaptation and personalization. Always connect a stable battery maintainer and back up the module’s data before programming or coding.
• Can it access FCA secure-gateway (SGW) vehicles?: Yes. The CR Ultra P provides officially authorized secure gateway access with native AutoAuth for 2018-present Fiat, Chrysler, Dodge, Jeep, RAM and Alfa Romeo vehicles — no external bypass cables required. An active AutoAuth user account and subscription are required to access the secure network, which involves an additional fee.
• Does it diagnose heavy-duty trucks or EV battery packs?: The CR Ultra P covers passenger vehicles out of the box. Heavy-duty commercial diagnostics require the optional HD6000 package. High-voltage battery diagnostics are among the 40 service functions, subject to vehicle support.
• How many service functions are included?: 40 standardized service and maintenance functions — from oil resets and DPF regeneration to EV battery diagnostics and turbocharger matching. Availability is dynamically determined by the specific vehicle make, model and manufacturing year.
• The CR Ultra P cannot recognize my vehicle automatically — is it faulty?: Not necessarily. You can select the vehicle manually and available functions depend on the exact vehicle and installed software. Contact our support team with your VIN and we’ll confirm coverage.
