Autel MaxiDiag MD906 Pro

Autel MaxiDiag MD906 Pro, Autel MD906 Pro OBD2 Scanner, All-System Car Diagnostic Tool, 11 Service Functions Scanner, CAN FD Diagnostic Tool, FCA SGW Gateway Scanner, VW SFD Access, Bluetooth VCI Scanner, Lifetime Free Updates, Engine ABS SRS Diagnostics, Automotive Code Reader

Autel MaxiDiag MD906 Pro Diagnostic Scanner is a professional all-system OBD2 scan tool designed for vehicle diagnostics, maintenance and fault detection across supported US, European and Asian vehicles from 1996 to newer models. It provides access to systems including the engine, transmission, ABS and SRS, with functions for reading and clearing fault codes, viewing live data, and performing AutoVIN and AutoScan. With 11+ service functions, CAN FD protocol support and access to secured gateways where authorisation is required, it offers versatile diagnostic capabilities for workshops and experienced DIY users.

Autel MaxiDiag MD906 Pro Diagnostic Scan Tool 2026 – All-System OBD2 Scanner with 11 Service Functions, CAN FD, FCA Gateway, Android OS & Lifetime Updates



Professional All-System Diagnostics for Most Vehicles

OE-level diagnostics for U.S., European, and Asian vehicles from 1996 to the latest models.

• Access all available systems including Engine, Transmission, ABS, SRS, HVAC, and more

• AutoVIN and AutoScan detect vehicle info and scan all modules automatically

• Read and clear diagnostic trouble codes with freeze frame and Mode 6 diagnostics

• View live sensor data in graph and text for real-time fault tracking



---

11+ Maintenance Service Functions for Efficient Repairs

Covers essential reset and adaptation services for workshop and DIY maintenance.

• Oil Reset: Reset maintenance light after oil change

• EPB: Safely release electronic parking brakes for service

• DPF Regeneration: Initiate cleaning of diesel particulate filter

• SAS Calibration: Relearn steering angle sensor for accurate alignment

• BMS: Register new battery after replacement

• Also supports Injector Coding, Throttle Relearn, TPMS Reset, Brake Bleeding, AFS Headlamp Reset, and Air/Fuel adjustment



---

Full OBDII Test Modes and Emissions Readiness

Supports all 10 modes of OBD2 for comprehensive emissions testing and engine diagnostics.

• Read/Clear codes, Live Data, Freeze Frame, and I/M Readiness

• On-board Monitor Test, O2 Sensor Test, EVAP System Test, Component Test

• Built-in DTC Lookup and Modules Present functions



---

Advanced Vehicle Protocols and Gateway Access

Equipped with modern protocol support for current and future vehicle diagnostics.

• Supports CAN FD protocol used in newer GM and advanced vehicle systems

• Access secured OEM gateways like FCA SGW and VW SFD (authorization required)

• Compatible with over 80 brands across U.S., European, and Asian markets





---

Android-Based Platform with User-Friendly Interface

Built for speed and usability with upgraded hardware and software experience.

• 5.5-inch HD touchscreen and Android OS for intuitive navigation

• 64GB storage for fast operation and data saving

• Bluetooth VCI connectivity for wireless diagnostics

• 5000mAh battery ensures long operation time without recharging



---

Free Lifetime Software Updates via Wi-Fi

Always up to date with the latest vehicle coverage and functions.

• One-time purchase with no subscription required

• Receive new diagnostic features, expanded model support, and DTC database updates

• Convenient OTA updates through Wi-Fi, no PC required

---

Professional-Grade Tool for Technicians and Advanced DIYers

Reliable, comprehensive, and cost-effective scan tool for all-level users.

• All-in-one diagnostics, service, and emissions solution

• Fast, stable, and accurate fault detection and reset capabilities

• Ideal for garages, workshops, mobile technicians, or serious enthusiasts

---

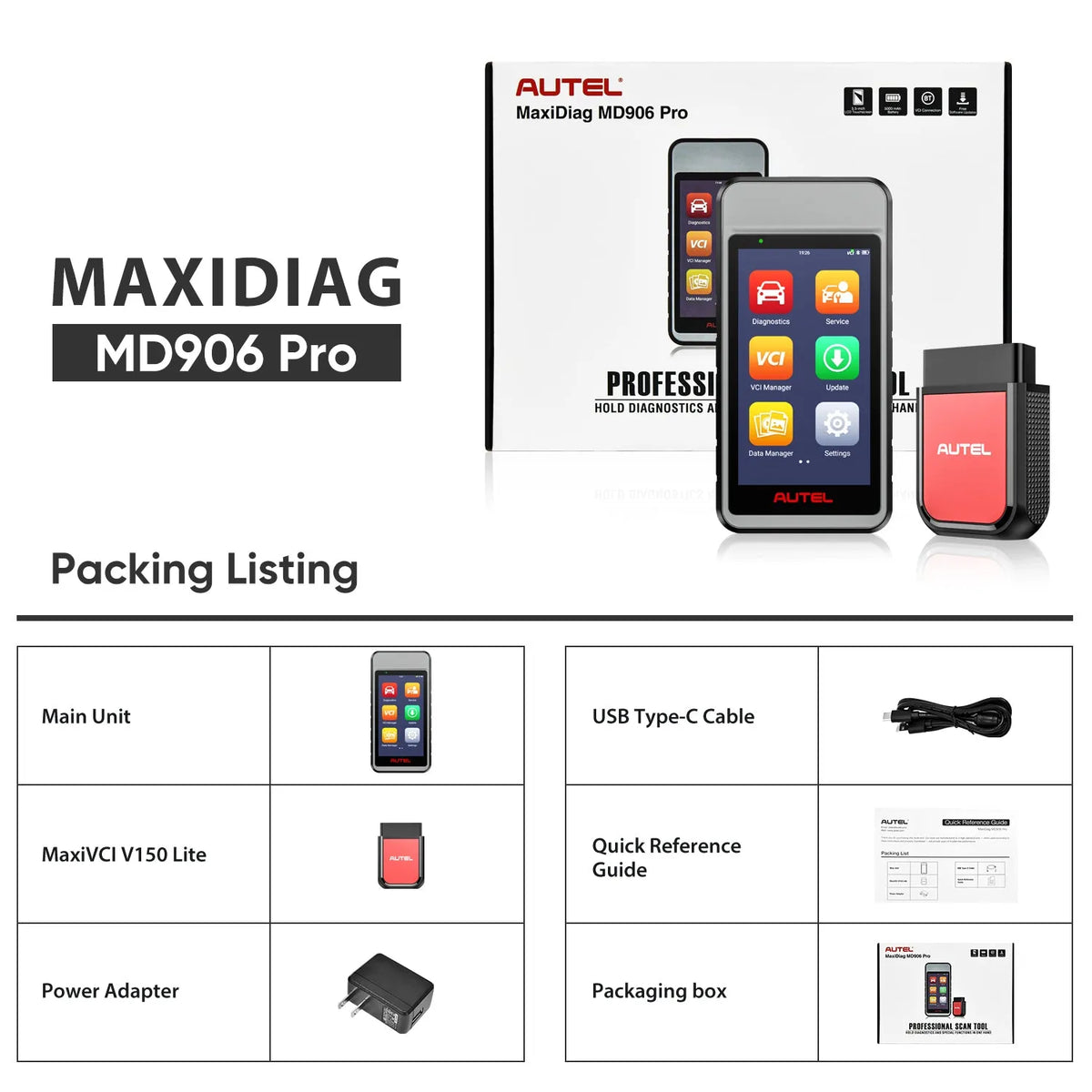

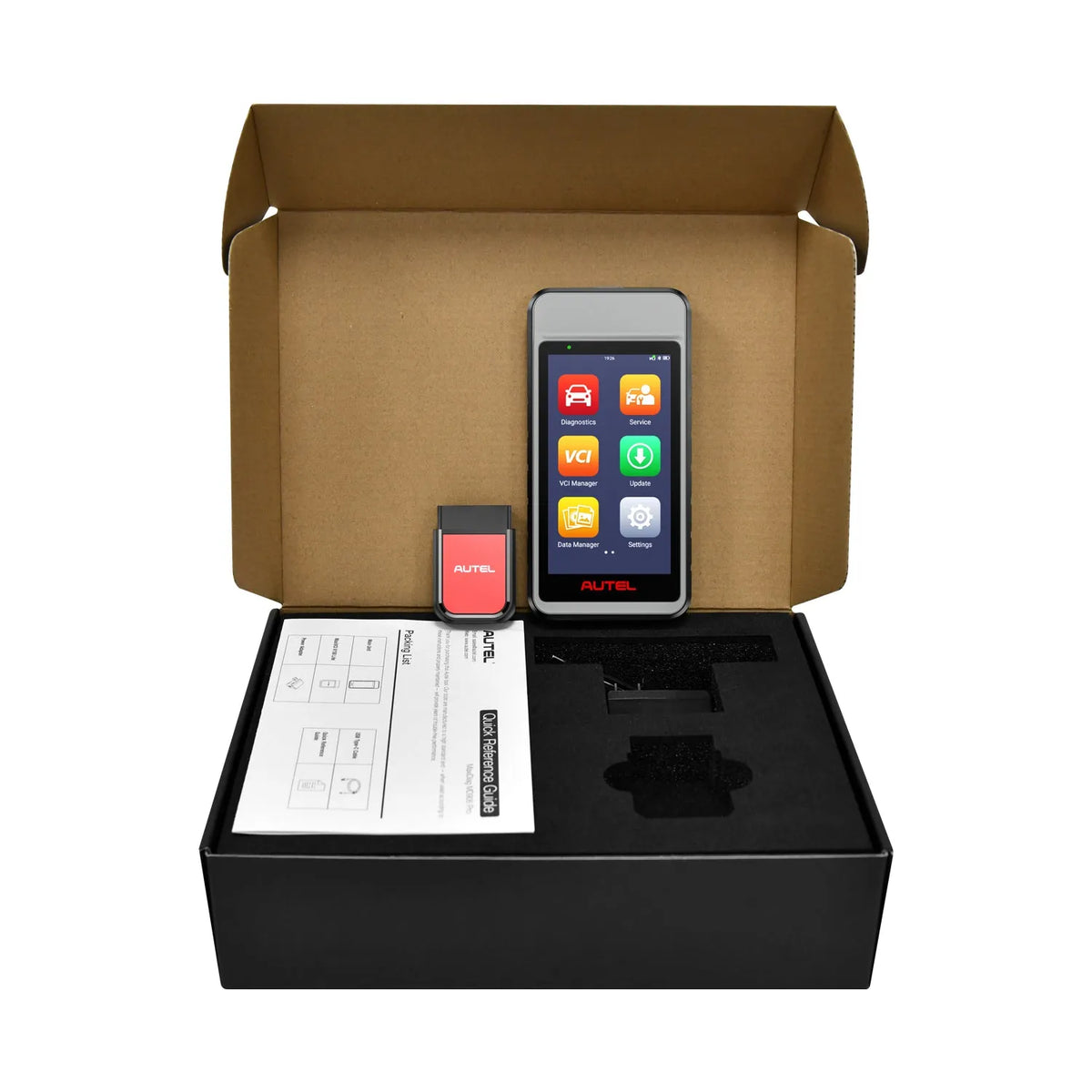

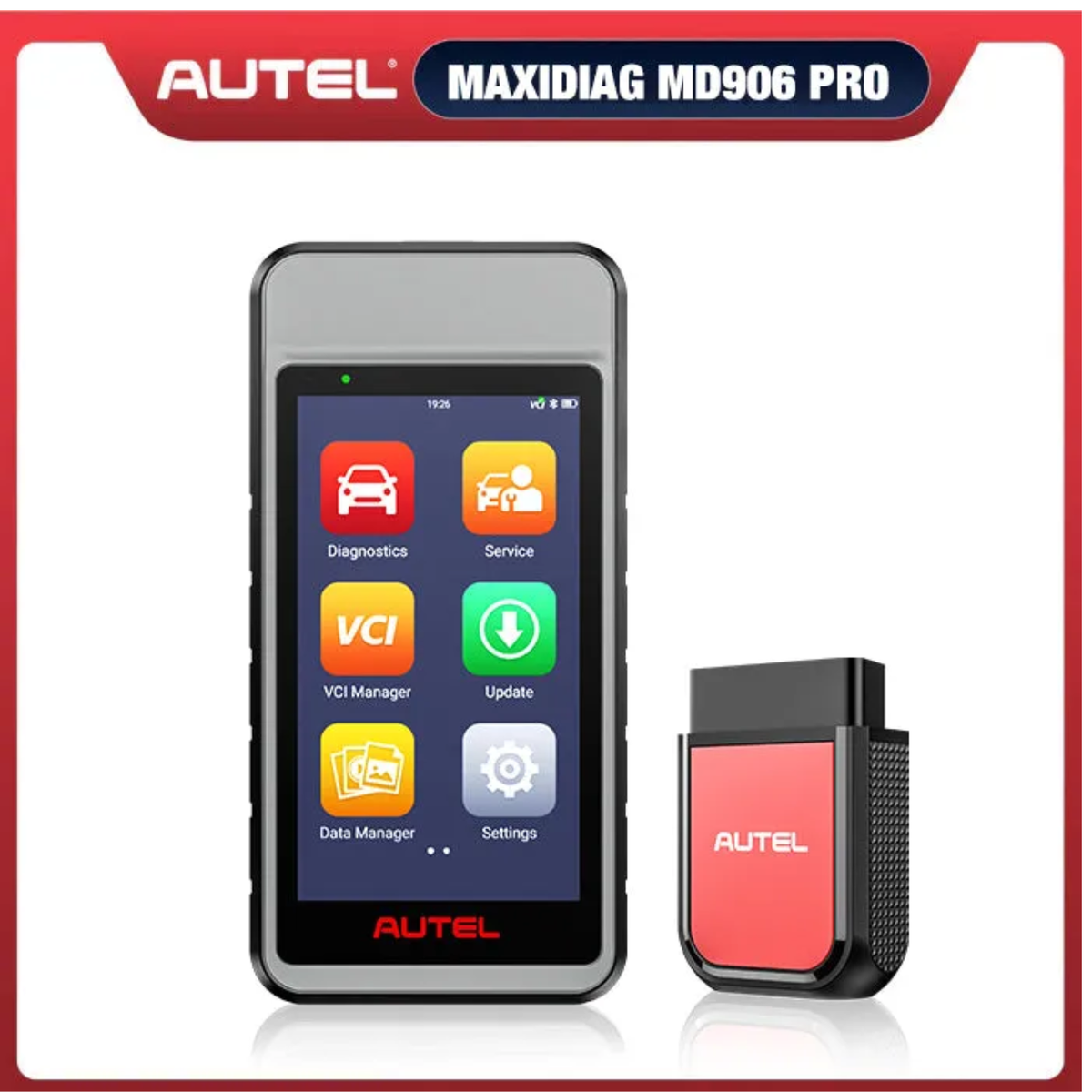

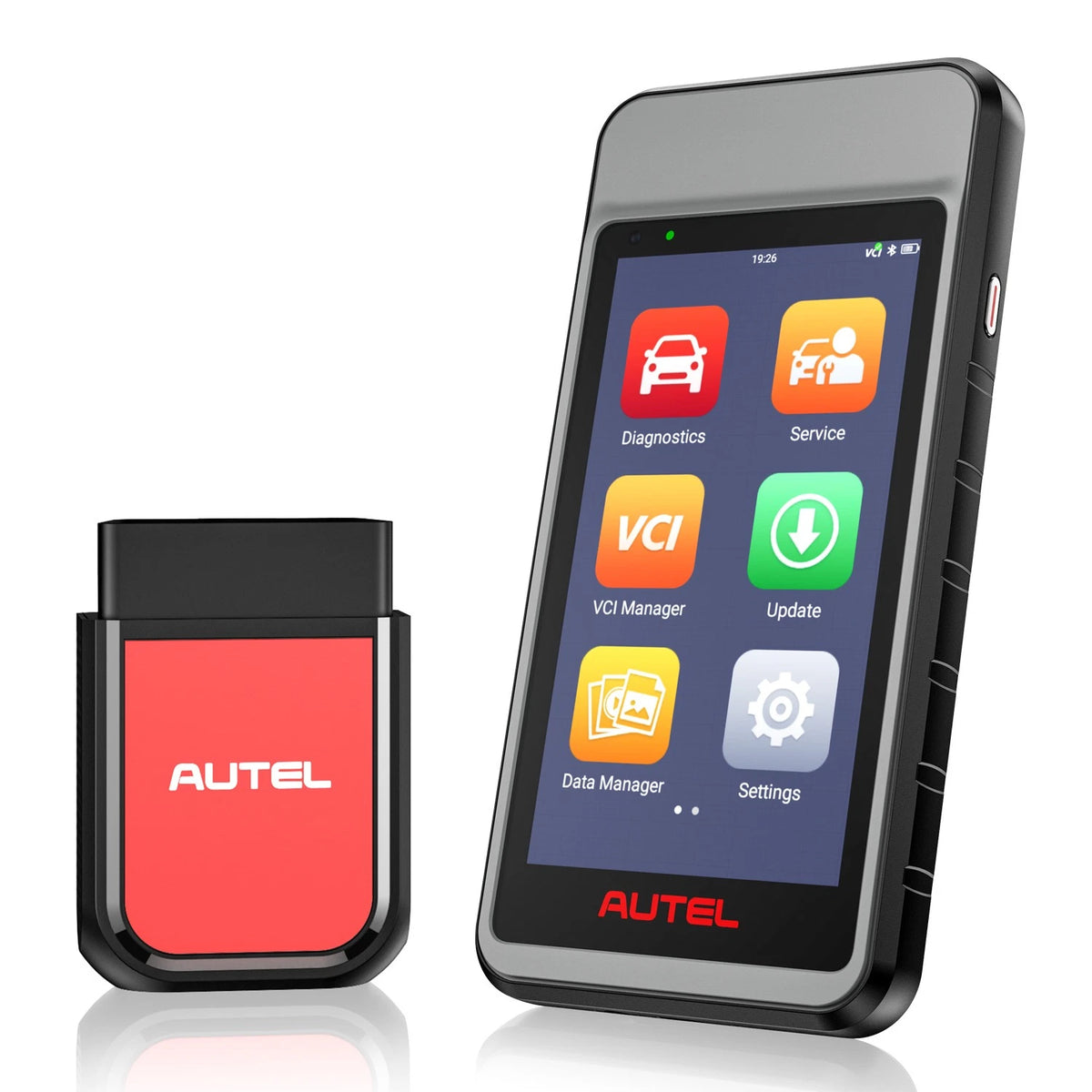

What’s Included

• Autel MaxiDiag MD906 Pro Main Unit

• MaxiVCI V150 Lite

• Power Adapter

• USB Type-C Cable

• Quick Reference Guide

• Packaging box

---

Autel MaxiDiag MD906 Pro Specifications

Description	MD906PRO
VCI	V150 Lite
System	Android 9
Power and Battery	3.8 V/5000 mAh lithium-polymer battery Charges via 5 V DC power supply
Storage	2 GB RAM & 64 GB ROM
Screen	5.5-inch LCD capacitive touchscreen with 1280 x 720 resolution
Connectivity	Wi-Fi (802.11 a/b/g/n/ac) USB Type-C Bluetooth
Sensor	Ambient Light Sensor (ALS)
Audio Input/Output	Input: Microphone Output: Speaker
Charging Input	5 V/1.5 A adapter
Power Consumption	700 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temp.	0 °C to 50 °C (32 °F to 122 °F)
Storage Temp	-10 °C to 60 °C (14 °F to 140 °F)
Dimensions(W x H x D)	89.0 mm (3.5”) x 183.0 mm (7.2”) x 22.0 mm (0.87”)
Net Weight	368 g (0.8 lb.)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, CAN FD

Improve your vehicle diagnostic workflow with the Autel MD906 Pro, combining system scanning, emissions testing and essential maintenance functions in one Android-based device. Its 5.5-inch touchscreen, Bluetooth VCI connectivity, 64GB storage and Wi-Fi software updates support convenient everyday use, while lifetime updates are provided without a subscription. Choose this diagnostic scanner for comprehensive troubleshooting and maintenance across compatible vehicles.
