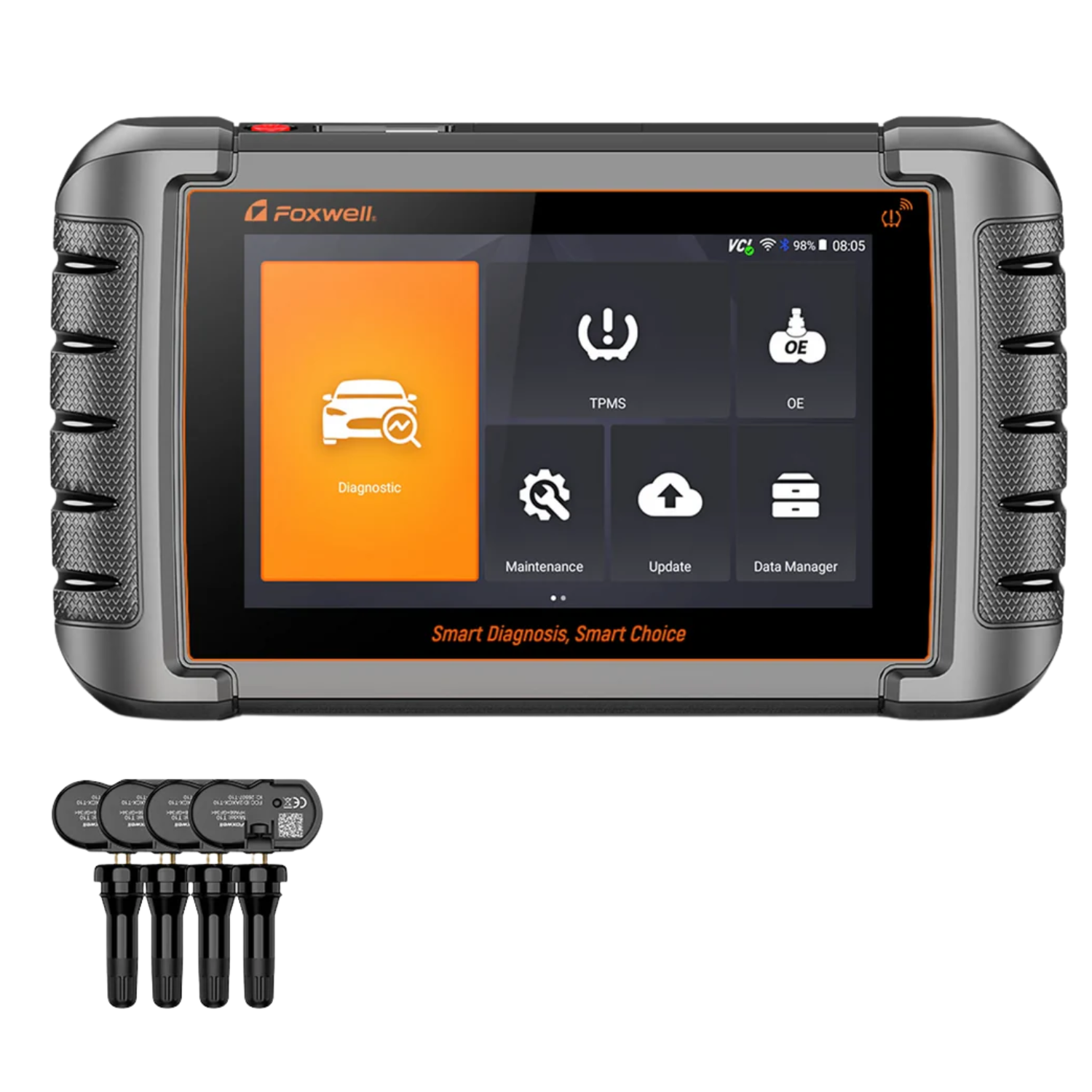

FOXWELL NT809TS OBD 2 Car Diagnostic Tools Tpms Programing A/F DPF BRT 30+ Reset Active Test OBD2 Bluetooth Automotive Scanner

Foxwell NT809TS is a 7-inch OBD2 scanner tablet capable of performing a variety of OBD2 functions and advanced services functions. As an upgraded model of NT809/NT809BT, it contains all the diagnostic functionalities and masterly integrates the functions of professional TPMS tool T2000 to perform complete TPMS functions. What might surprise you is that NT809TS contains all the functions of an advanced diagnostic scanner and a master TPMS tool but at a far more affordable cost than purchasing two devices.

Professional & Complete TPMS Services

TPMS Check & Sensors Activation: NT809TS is capable of activating all known sensors, once the sensor is successfully triggered, the information of the sensor will be display. The Check function allows users to activate TPMS sensors to view sensor data – sensor ID, tire pressure, tire temperature, battery condition, and sensor location.

TPMS Diagnostics: If there is a DTC presented in TPMS ECU, you can tap it for detailed definition, view the live data, and directly use the scanner to search on the Internet for more information. The active test is available for more accurate and comprehensive faulty issue analysis.

TPMS Relearn: This function can guide you to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. NT809TS provides 3 ways to match/relearn sensors: OBD Relearn, Automatic Relearn, Stationary Relearn.

Sensor Programming: NT809TS can program the original sensor ID data to the Foxwell MX-Sensors to replace existing sensors with low battery life and ones that are no longer functioning. This NT809TS programming tool offers 4 methods for programming MX-Sensor: Copy by Activation, Copy by OBD, Copy by Input, and Auto Create 1-16 Sensors.

All Available Modules OE-Level Diagnosis

Foxwell NT809TS auto diagnostic scan tool can access (both wirelessly and wired) and scan all available electronic systems on perform full diagnostics to read and clear codes, view live data stream of multiple sensors in text or graph, retrieve ECU information, such as ECM, TCM, ABS, Airbag, BCM, Parking/ Steering/ Suspension/ Radio, Lighting/ HVAC systems, etc.

●Read & Erase Codes: to locate problem and clear the fault codes;
●Live Data: View Live Data of each parameter item;
●Retrieve ECU information: Retrieves and displays the specific
●information for the tested control unit, including unit type, version numbers and other specifications.
●Freeze Frame: Displays the freeze frame data of the DCTs

All-around Bidirectional Control / Active Test

Auto diagnostic scan tool NT809TS performs active test for 99% vehicles on the market. To further shortening the troubleshooting time without tearing the vehicle apart, it can:

pass through the onboard control systems
send commands to modules to perform specific tests, such as:
✔rolling up / down a window
✔turning the fuel pump on and off
✔cycling the a/c clutch on and off
✔helping with an emissions leak test
……
By directly monitoring their operations, you can quickly locate the problems and solve them.

Complete Maintainence and Reset Service Functions

1. Oil Light Reset (for 85 brands)- Allows you to reset the service lamps for a new calculation of engine oil life system once changed the oil. The service indicator system is designed to alert the driver when the vehicle is due for a service.

2. ABS Bleeding (for 65 brands)- Air will get inside the brake system after replace components such as calipers, wheel cylinders. The air has to be removed by bleeding the brakes to keep a firm brake pedal. Note: This function only support the vehicles that can do AUTO bleeding.

3. Battery Matching (for 43 brands)- Lets you to have new battery validated after replacement, clear faults from the dashboard and display current battery details of the vehicle.

4. D-P-F Regeneration (for 59 brands)- Only for diesel 12V vehicle. lets you perform the forced regen cleaning to clear the blockage through continuous burning of the particulates captured in the D-P-F filter. When a regeneration cycle is completed, the D-P-F light automatically goes off.

5. SAS Match (for 87 brands)- Perform calibration of the Steering Angle Sensor to keep the car running straight. On successful calibration of the sensor, its fault memory is automatically cleared.

6. Injector Coding(for 61 brands)- Write the new injector code into the car system for correct cylinder injection quantity. -For gasoline or diesel 12V vehicle.

7. EPB Reset (for 63 brands)- Help replace and reset the brake pad. This function is required for maintenance of electronic braking system's safety and efficiency.

8. TPS(for 79 brands)- When the motion range is not known, the ECU simply has no idea where to set the throttle. The ECU must know the full range of motion of the throttle in order for it to properly control the engine. Using the throttle position sensors in the throttle body, the ECU learns the full open and full closed positions through various states (idle, part throttle, WOT) known as a Throttle Body Alignment (TBA).

9. Replace Airbag ECU Module(for 27 brands)- Note: It will not support the airbag crash data cleaning. Helps to match the new airbag information with the ECU and let it know the fault has been repaired.

Else: Seat Match/ A/F Reset/ Language Change/ TPMS Reset/ E-G-R Adaption/ Headlamp Reset/ Cluster/ Clutch Adaptation/ CVT/ EVAP Test/ Gear Learn/ ODS & OPDS/ Oxygen Sensor Test/ Prime Fuel Pump/ TCM Oil/ Transmission Adaptation/ T-U-R-B-O/ Windows-door etc.

Foxwell NT809TS Support Languages:

Korea, Spanish, Portuguese, French,Swedish, English, Dutch, Japanese, Italian, German,Russian，Hungarian, Slovak, Greek, Chinese, Traditional Chinese

English is Default Language, if you need other language, please send me the SN Number when you receive it (please register account and activation the sn number first), I will help you change it.

18 Months Free Update Onlie via WiFi

Foxwell NT809TS Support Model:

Russian Coverage
For LADA

American Coverage
For Chrysler, For Ford, For GM, For GMBRAZIL, For FiatBrazil(For Brazilian Market Only)

Asian Coverage:
For Acura, For Daewoo, For Daihatsu, For Fuso, For Hino, For Honda, For Hyundai, For Hyundaicv, For Infiniti, For Isuzu, For Isuzu Truck, For Kia, For Lexus, For Mahindra, For Maruti, For Mazda, For Mitsubishi, For Nissan, For Perodua, For Proton, For Scion, For Ssangyong, For Subaru, For TATA, For Suzuki, For Toyota, For Gtr Fordau, For Mahindra, For TATA(For India Market Only)

European Coverage:
For Abarth, For Alfa, For Astonmartin, For Audi, For Bentley, For Benz, For Bmw, For Bugatti, For Citroen, For Dacia, For Ferrari, For Fiat, For Fordeu, For Jaguar, For Lamborghini, For Lancia, For Landrover, For Maserati, For Maybach, For Mini, For Opel, For Peugeot, For Porsche, For Renault, For Rolls-Royce, For Saab, For Samsung, For Seat, For Skoda, For Smart, For Sprinter, For Vauxhall, For Volvo, For Vw, For Vw_Cv

Chinese Coverage:
For Baichuansu, For Baicmotor, For Baicsenova, For Baicweiwang, For Bjev, For Bjhyundai, For Brilbmw, For Brilliance, For Byd, For Changan, For Changheauto, For Changhesuzuki, For Chery, For Chery_Ne, For Citroen_China, For Cmc, For Dffg, For Dfhonda, For Dfnissan, For Dfvenucia, For Dfxk, For Dorcen, For Dyk, For Emgrand, For Englon, For Fawdaihatsu, For Fordchina, For Foton, For Geely, For Gleagle, For Greatwall, For Gtr, For Gzhonda, For Hafei, For Haima, For Hino, For Ivecold, For Jac, For Jiangling, For Karry, For Landwind, For Lifan, For Luxgen, For Maple, For Mazdachina, For Peugeot_China, For Rely, For Riich, For Roewe, For Saicmaxus, For Saicmg, For Sgmw, For Soueast, For Tjfaw, For Zoty

Convenient Bluetooth Diagnostic

With the help of the FoxLink , you no longer need to connect the scanner and conduct diagnosis through cables. Every command you make will be transmitted to the on-board ECU through Bluetooth.

Foxwell NT809TS Package List:

1 X NT809TS Main Unit
1 X Bluetooth VCI
4 X TPMS Sensor
1 X USB TYPE C Cable
1 X Quick Start Guide
1 X User’s Guide
1 X Warranty Card
1 X Bag
