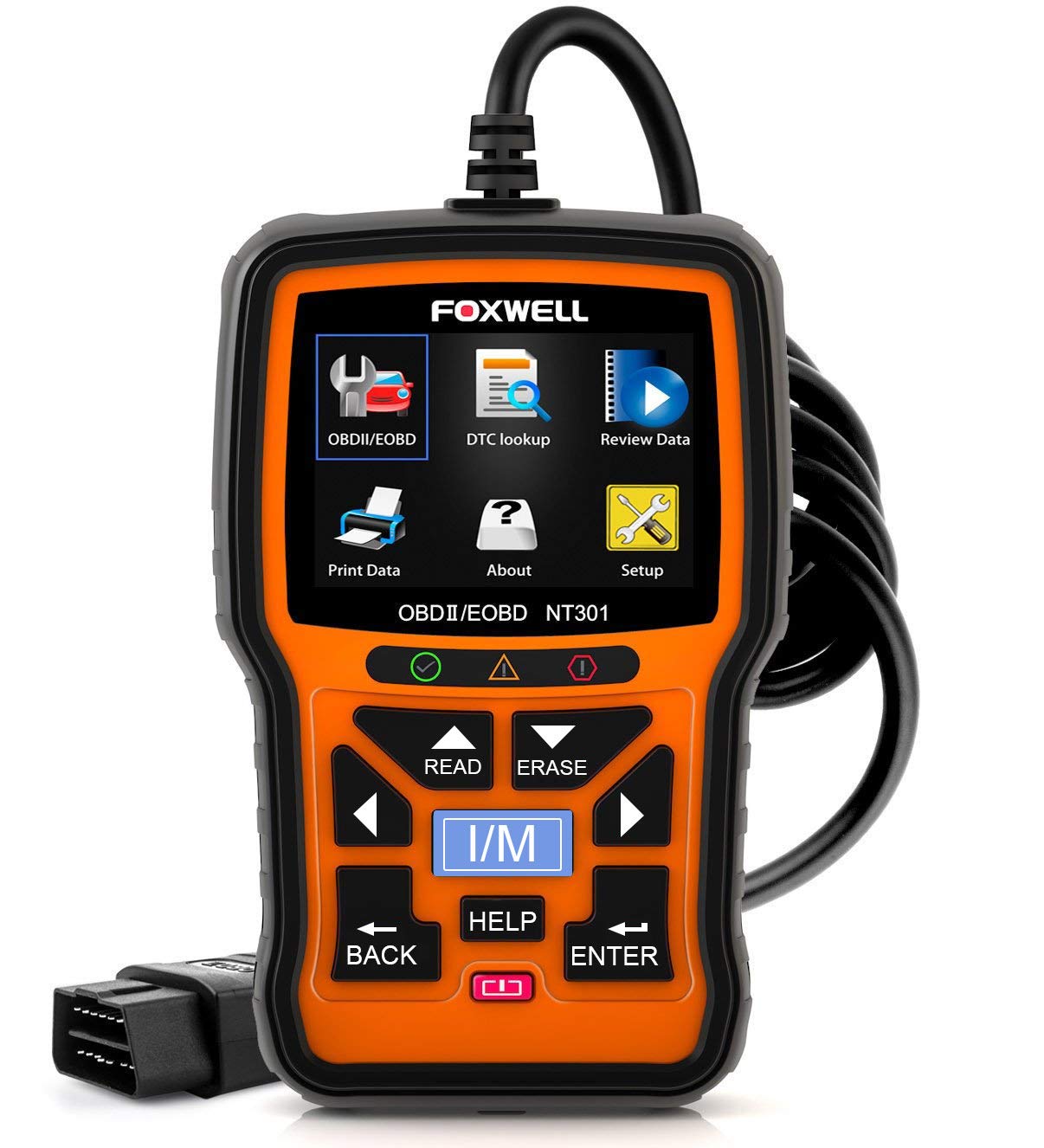

Foxwell NT301 OBDII/EOBD Diagnostic Code Reader and Scanner

• Genuine Foxwell product with LIFE-TIME FREE UPDATES
• Read Codes: Generic, Manufacturer Specific and Pending Codes
• Clears Codes, Turns off Check Engine Light (MIL) and Reset monitors
• Live Data (graphs, playbacks data logging & live sensor data)
• DTC definition can be automatically displayed after reading
• View Freeze Frame which shows engine conditions such as fuel trim, engine coolant temp, ect. at the time the Malfunction Indicator Lamp(MIL) was set
• I/M readiness one-click hot keys for reading/clearing DTCs
• Reads live O2 sensor
• On-board Monitor Test
• Component Test
• Retrieves Vehicle information (VIN, CID and CVN)

The NT301 CAN OBDII/EOBD Code Reader from Foxwell is the easiest and quickest solution for OBD faults. When it comes to diagnosing Check Engine issues you’d never go wrong with the new NT301 code reader. It offers such useful information for entry-level pro and savvy DIYer that they can quickly and efficiently troubleshoot OBD2/EOBD problems on today’s vehicles. In addition, it’s 2.8’’ TFT color screen and hot keys for I/M readiness test, and reading/clearing DTCs make it excellent value for money.

FEATURES

• Read / Clear engine related diagnostic trouble codes DTCs
• I/M readiness hot keys makes it easy to use with quick access to emission readiness status, DTC information and erase function
• Red / Yellow / Green LED and built in speaker indicate emissions monitor status. They can also help catch intermittent problems or confirm repairs during drive cycle.
• Supports multiple code requests: Generic and manufacturer specific and pending codes
• Clears codes and turns off CHECK ENGINE LIGHT (MIL)
• Reads freeze frame data which shows engine conditions such as fuel trim, engine coolant temperature etc at the time the Malfunction Indicator Lamp (MIL) was set
• Reads, records, graphs and plays back live sensor data
• Reads live O2 sensor / on-board monitor test data
• Retrieves vehicle information (VIN, CID and CVN)
• Enhanced mode 6 functions
• Automatic VIN acquisition and decoding makes it much easier to read manufacturer specific codes and enhanced mode data
• Thousands of code troubleshooters to help you determine your engine problems faster and easier
• Multilingual menu options and code definitions - English, Spanish, French, German, Portuguese and more
• Unique one-click update and automatic update reminder lets you stay current with the latest technology
• Free software and firmware updates with included USB cable
• Large easy-to-read 2.8" TFT colour screen
• Prints data through computer
• LIFE-TIME FREE UPDATES

VEHICLE COVERAGE: All OBD2 compliant models. Please click here to see our list of OBD2 compliant models.

SPECIFICATIONS

• Display: 2.8" TFT colour screen
• Operating temperature: 0 to 60℃
• Storage Temperature: -20 to 70℃
• External power: 8 to 18 V provided via vehicle OBD port
• Supported OBD Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
• Dimensions: 145*94*32
• Weight: 0.6 Kg

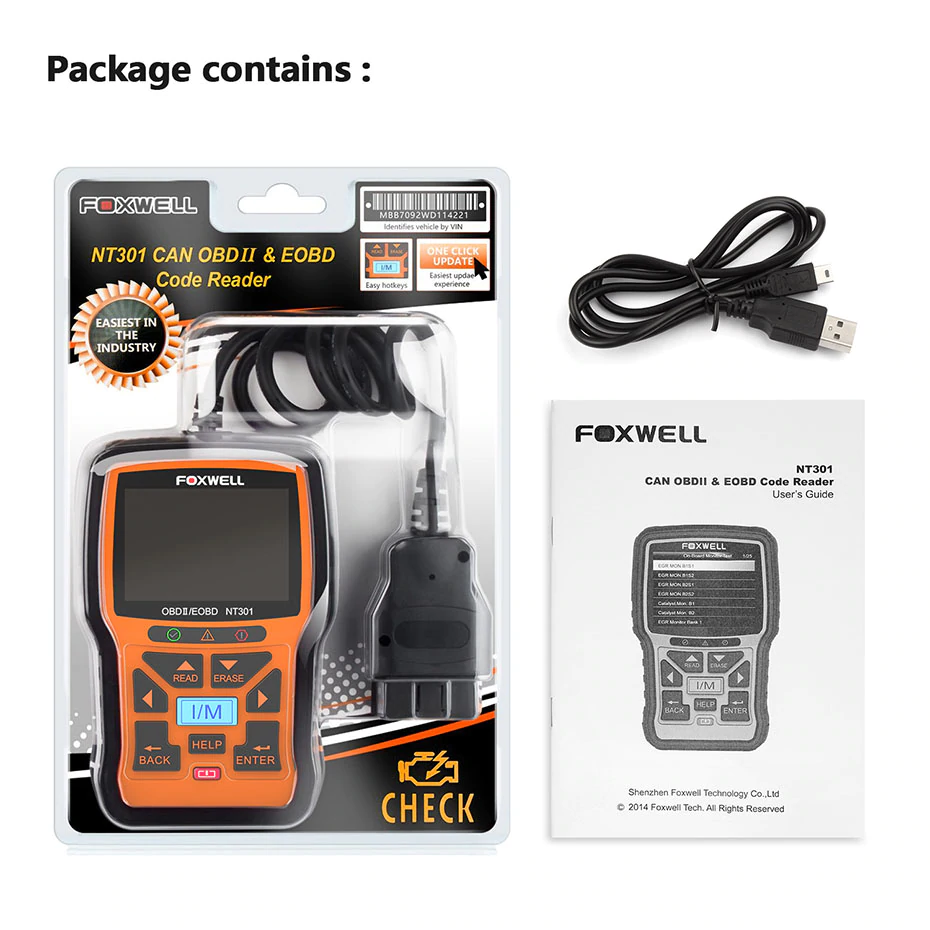

PACKAGE CONTENT:

• Foxwell NT301 Code Reader
• User's Guide
• USB Cable
