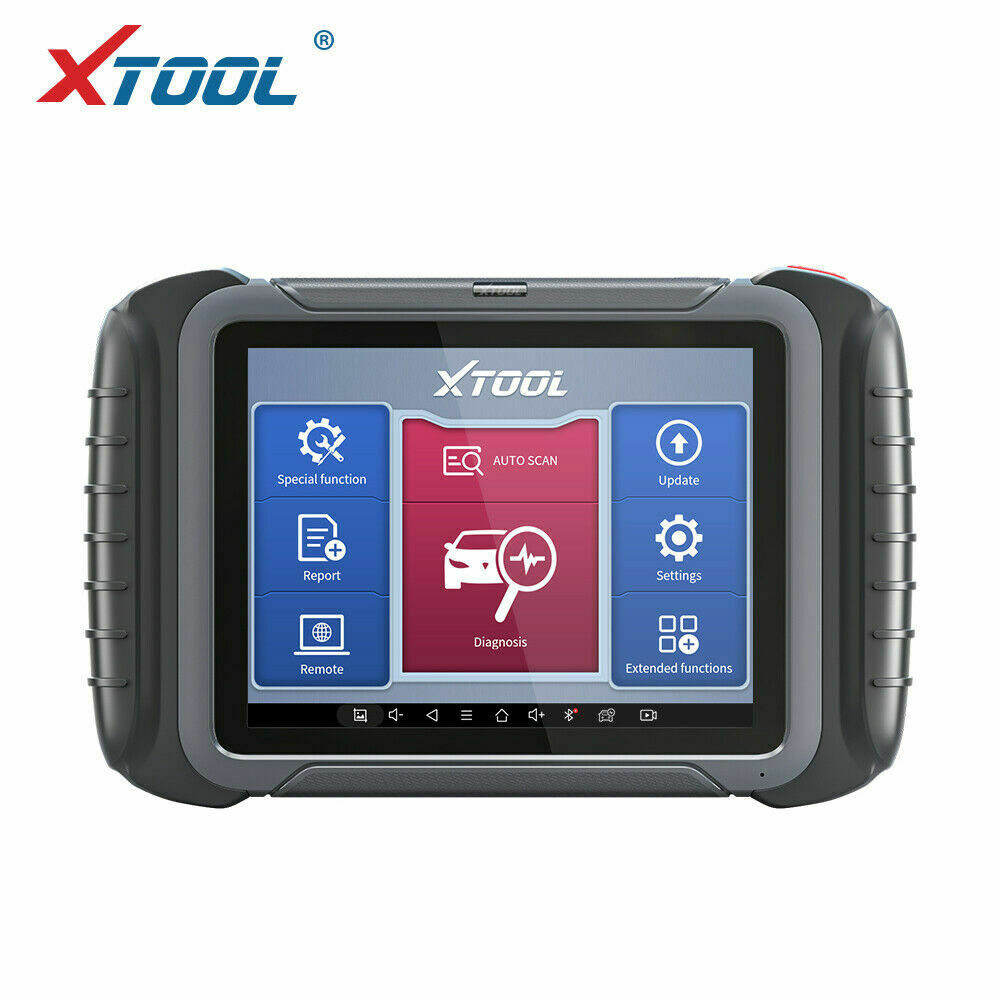

XTOOL D8 Auto OBD2 All System Diagnostic Scanner

SKU: 334109861979
Sale price  $990.99 Regular price  $1,190.00
Product subtotal: $990.99
Proudly Australian
Technical Support
Easy Returns
Fast & Free Shipping
XTOOL D8 Auto OBD2 All System Diagnostic Scanner
XTOOL D8 Auto OBD2 All System Diagnostic Scanner
Sale price  $990.99 Regular price  $1,190.00

Newly Upgraded D8 All-Car Diagnostic Tool – Simplify Your Auto Maintenance!

OE-Level All System Diagnostics: Read/Clear Trouble Codes + Live Data Stream in graphing/text like Engine rpm/ Misfire/ Transmission temperature and sensors, etc + Retrieve Freeze Frame + Read ECU Information + Active Tests to quickly troubleshooting the vehicle issues.

41+ Services Functions: Oil Reset, ABS Bleeding, Injector coding, Fuel Trim Learn, Transmisson Reset, Language Change, A/F Settings, Stop/Start Reset, SAS Reset, TPMS Reset, BMS Reset, Window Initialization, Power Balance, VGT Learn, Seat Calibration, etc.

Advanced ECU Coding (Only work on VW/AUDI/SKODA): For customize your car, unfold the hidden features, or disable the annoying functions(turn off the back up beep, turn the seat belt buzzer off); Re-identify the adaptive data for certain components after repairs or replacements. (NOTE: DO NOT Support ECU reprogramming)

Guided Functions: With VAG Guided Functions, D8 can perform complex functions such as special functions, ECU coding, etc., to help your diagnostic step by step with instructions for VW/Audi/Skoda, etc

Bi-directional Control/Active Test: Perform various active tests to check the integrity of systems or components and the operating conditions of various car systems or sub-systems without using the vehicle controls.

Support CAN FD & DOIP Protocol : XTOOL D8 is the only tool in this range that supports CAN FD protocol vehicles(for GM vehicles after 2020), saving on buying adapter and getting stable communication.

FCA AutoAuth for Chrysler, for Jeep, for Dodge 2018 and later) without gateway restrictions.The buyer is required to register an FCA account, any charges have nothing to do with the seller.

Key Programming + Disable lost vehicle key + Program the replacement key fob

Export Live Data as CSV & 8-In-1 Graphing: Exporting live data to track vehicle performance over time, select and graph up to 8 sensors.

Report Printing & Sharing: Generate a diagnostic report in PDF format and print it out and share with your customer for comparison before and after repair or present it to an expert for professional advises.

Superior Hardware: 8'' Touch Screen + 5000mAh, 7.3V Battery+ Android 10 + 2G/64G Storage for easily interpreting data and fast running and multitask easily.

3-Year Free Updates: Frequently update to optimize the software performance and add the more vehicle coverage.

Advanced ECU Coding

When replacing an ECU or module, precise coding and programming are vital to keep the vehicle running smoothly. This feature provides clear, step-by-step on-screen instructions, making complex OEM procedures faster, easier, and error-free — designed specifically for VW, Audi, and Skoda models.

Key Benefits:

  • Recode and configure new modules
  • Improve performance and fuel efficiency
  • Unlock hidden functions and custom settings
  • Restore ECU coordination and adaptive data
  • Reduce power loss and extend component life

Programmable Module Installation (PMI)

XTOOL D8 OBD2 scanner supports offline module programming for Ford, Lincoln, and Mazda vehicles. This function allows you to replace and program new or second-hand control modules by transferring the original configuration and coding of the old module to the new module, ensuring compatibility and normal operation of the system. This helps technicians avoid errors, save time, and reduce the need for costly dealership visits.

Full Bi-Directional Controls & Various Active Tests (Bi-Directional Control) as You Command

This 8” automotive diagnostic tool offers full bi-directional control capabilities over various vehicle sub-systems, and components to test the integrity like A/C Clutch, Fuel Injectors, ABS Pump Motor, Cooling Fan, Solenoid Valves, Relays, Interior Lighting, Window, Door, Sunroof, Car Wipers, and etc.

  • Fuel Injector Balance, Fuel Pump Enable, Fuel Trim Enable
  • Fuel Injector Tests, Injector Buzz Test, Injector Kill Tests, Injector Cut Out Test
  • Cylinder Deactivation
  • A/C Compressor Clutch Relay On/Off
  • Cycling ABS Pump Motor
  • EVAP Tests: EVAP Purge Solenoid Valve, EVAP Vent Solenoid Valve, EVAP Purge/Seal, EVAP Service Bay Test
  • EGR System Test
  • Switch on/off car wipers
  • Rolling up/down car windows/doors/sunroof
  • Cooling fan motor command
  • Interior lighting test
  • High beam test

Powerful Key Programming Functions

XTOOL D8 can perform Read PIN Code + Add new key + Disable lost key + Remote learning + Key Learning + Key Matching Functions etc

  • Remote Key/Key Fob add and programming + Read Pin Code + IMMO Reset, etc
  • Work With KC100 for VW 4th/5th IMMO
  • Work With KC501 For Benz infrared key
  • Work With KS01 (need Kc100 together) For toyota all key lost
  • Work With M821 (need with kc501) for benz all key lost
  • Work With M822 (need with kc501) For toyota 8A Key
  • Work With endoscope of XV100
  • Work With SK1 for Toyota Bench-free Pincode-free Auto Key Coding

NOTE: Accessories are not included, All the services/functions are not compatibility. Please check with us with your vehicle VIN.

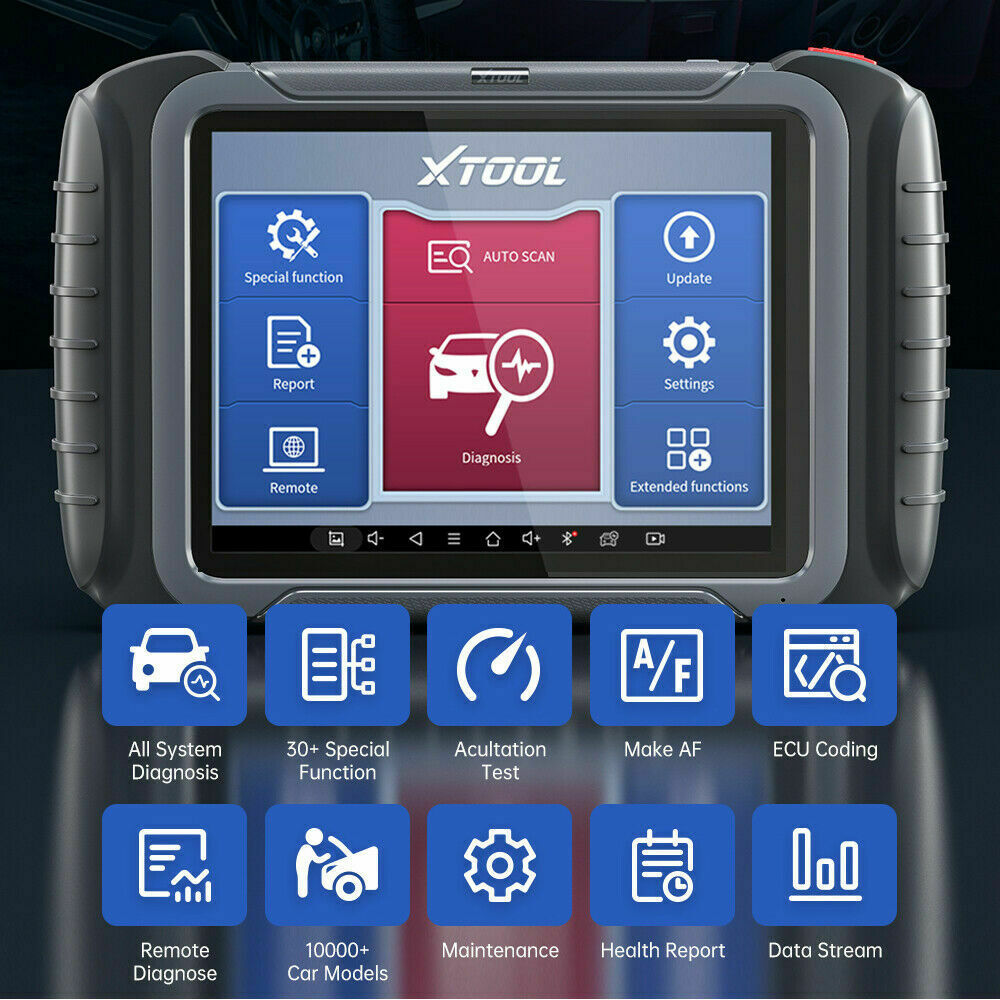

OE-Level All System Diagnose

XTOOL D8 automotive scanner allows access all available systems of your car to perform read/clear codes, read live data, read freeze frame, read ECU information and active test.

  • Read/Clear Codes
  • View the Live Data stream
  • View the Freeze Frame of faults
  • Perform Active Tests
  • Read ECU Information

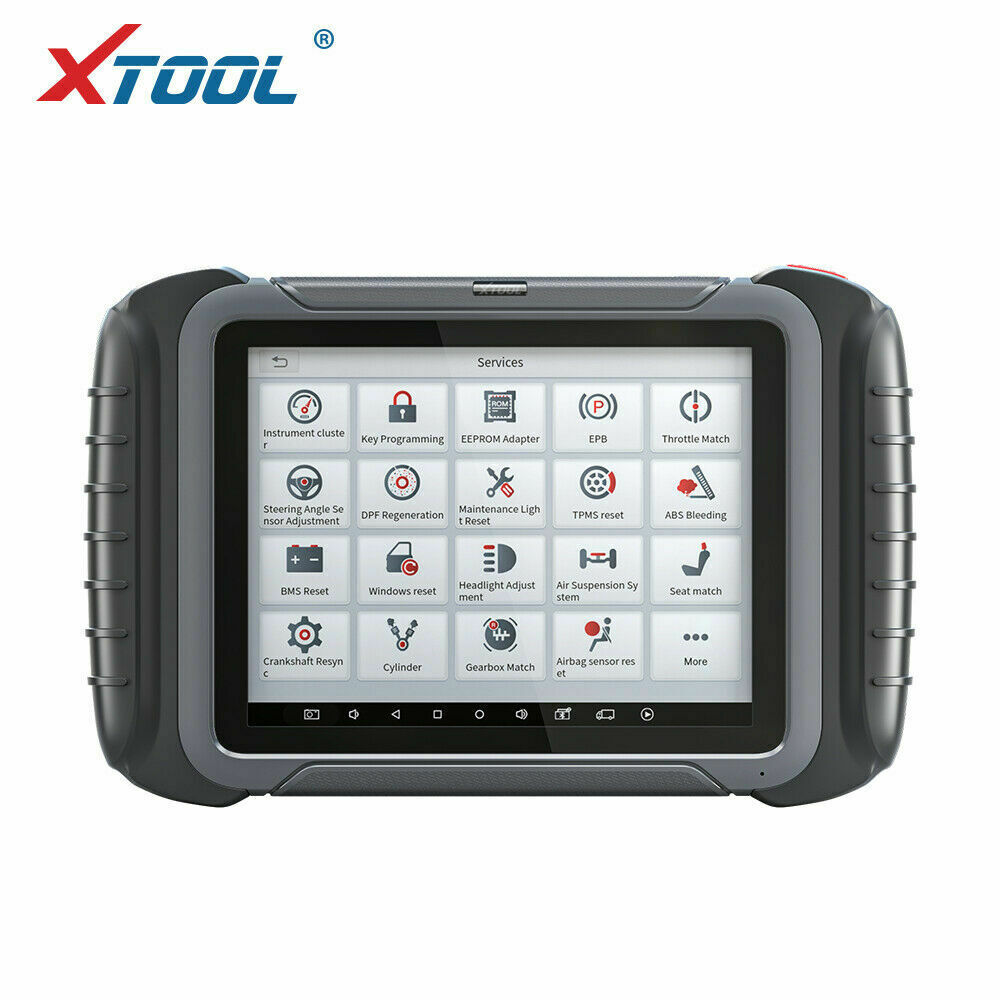

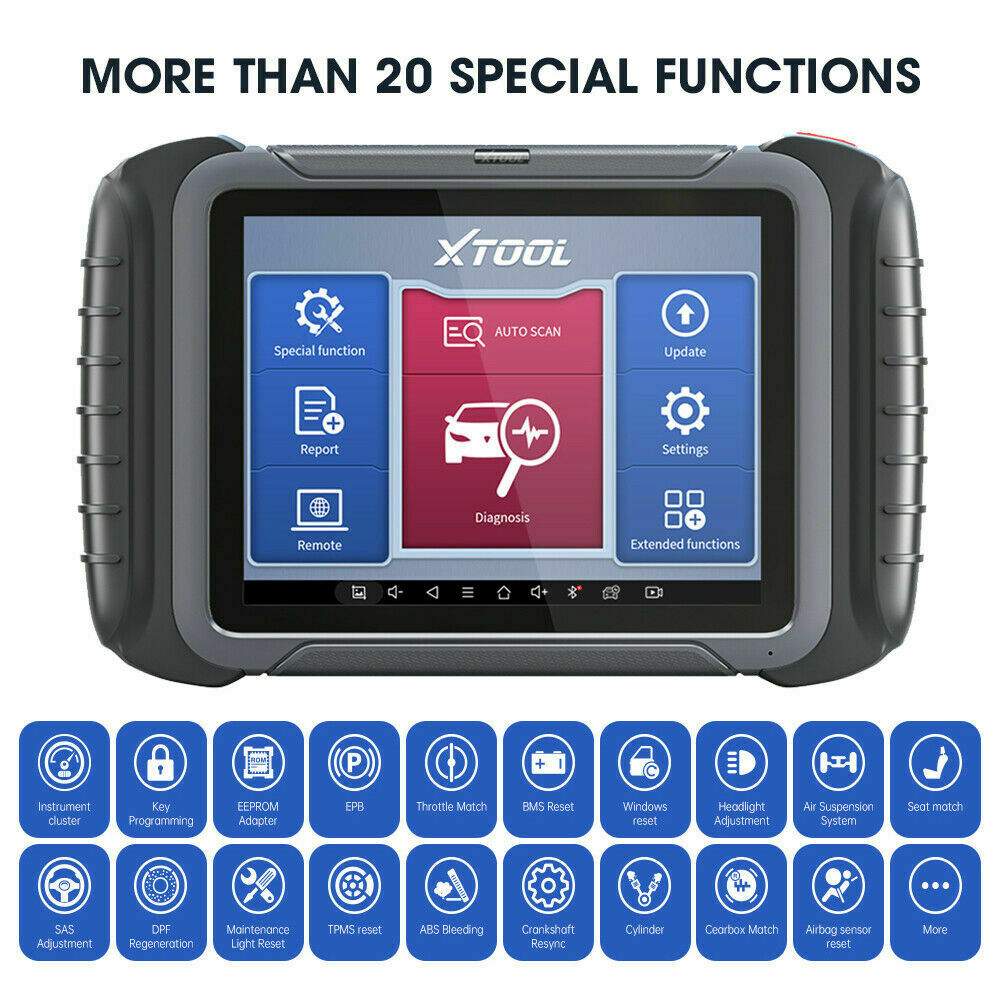

UP TO 41 Service Function Help You Solve 90% Car Problems:

  • 1. ECU Configuration: Re-flash the hidden function of the car and disable the annoying features.
  • 2. EPB: Reset the calipers, brake discs or pads after the electronic parking brake system is repaired.
  • 3. DPF Regeneration: Clear PM from the DPF filter through oxidation or combustion to stabilize the filter performance.
  • 4. Key Programming: Remote Key/Key Fob add and programming + Read Pin Code + IMMO Reset, etc.
  • 5. Injector Coding: Code a new injector to better identify injectors to accurately control fuel injection.
  • 6. ABS Bleeding: Perform to bleed the brake system to restore ABS braking sensitivity and obtain a firm brake pedal.
  • 7. SAS Adjustment: Clear the fault steering angle sensor memories, perform reset steering angle sensor, and turn off steering wheel warning light.
  • 8. Throttle Relearn: Reset the throttle actuators to accurately regulate throttle (or idle engine) operations, helps keep your idling and acceleration smooth.

Commonly-used Special Functions also include: TPMS Reset, Oil Reset, BMS, Air Suspension, Gear Learning (Cam Crankshaft Relearn), Gearbox (Transmission) Match, Headlight Adjustment, Window Initialization, Seat Configurations, Power Balance, Electronic Pump Activation, Disable Transportation, Tire Refit, A/F Reset, Start/Stop Reset, Language Change, ECU Configuration.

D8 also provides quick access to the vehicle systems for various advanced functions for specific vehicle models, such as Transmission Service Fast Relearn, Fuel Injector Balance, Crankshaft Position Sensors Relearn, CKP Learn, Idle Learn, Zero-Point Calibration, Fuel Alcohol Composition Reset, HVAC Actuator Calibration Test, WCS Reset, VIN Registration (Write), SWS Initialization, QuickLearn, Injector Fuel Rate Programming, Throttle Position Reset, etc are all available.

Warm Tips: Special function does not work on all cars, please come to us with the vehicle Make/Model/Year/VIN to check compatibility before order.

8 IN 1 Live Data Graphing

XTOOL D8 automotive scanner can display live data stream in text or graphs like cylinder misfires data, transmission fluid/Oil temperature, fuel trim, ATF temperature, cylinder balance rates, engine rpm, O2 sensors, mass air flow sensor data, fuel pressure, actual fuel temperature vs desired fuel temperature and etc.

Export Live Data as CSV: Exporting live data as CSV file to track vehicle performance over time.

8-In-1 Graphing: Allow you to customize specific PID, and merge graphs for up to 8 data PIDs combined at one time in one graph.

Graph up to 8 sensors individually on the same screen.

FCA Protocol & SGW Security Gateway

XTOOL D8 car diagnostic tool supports Chrysler vehicles manufactured from 2018 and newer, including Dodge and Jeep, with more brands coming soon. This function provides access to FCA diagnostics, bi-directional control, and advanced service functions.

Currently, FCA access is freely available in the United States, Canada, and Mexico. In other regions (such as Europe), an FCA account or FCA 12+8 bypass cable is required to unlock vehicles protected by the SGW (Security Gateway).

22 Languages Supported

English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Danish, Greek, Hungarian, Dutch, Norwegian, Swedish, Turkish and Traditional Chinese

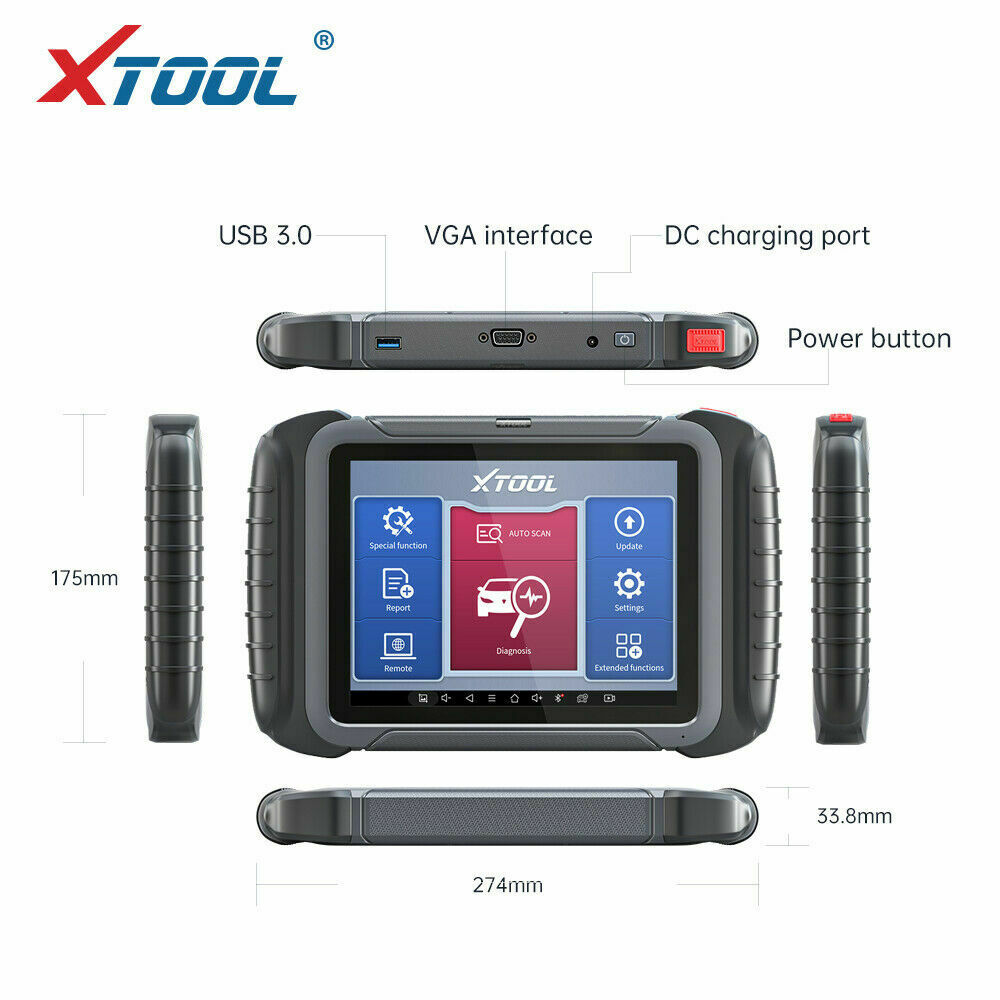

Parameters

  • Operating System: Android 10
  • Storage: 2G+64G
  • Processor: 4 Core 1.50GHz
  • Display: 1024 x 768 resolution
  • Screen: 8 inches touch screen
  • Sensor: Gravity Sensor
  • Audio Input: Microphone
  • Audio Output: Speaker
  • Interface: USB 3.0, DC Charging Port, VGA
  • Battery: 5000mAh, 7.3V Battery
  • Input Voltage: 12V
  • Working Temperature: -10-50°C
  • Humidity: <90%
  • Size: 274x175x33.8(mm)
