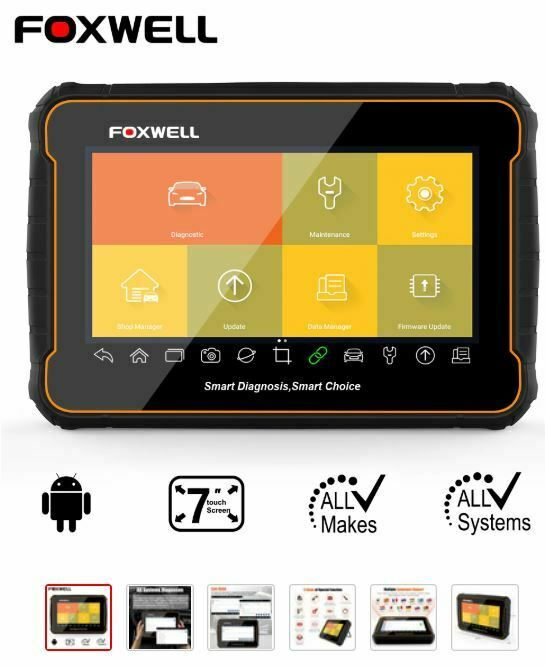

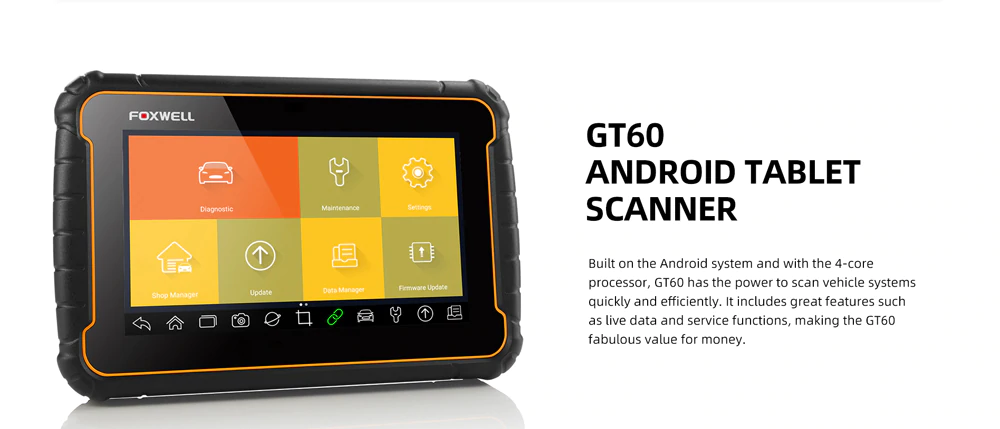

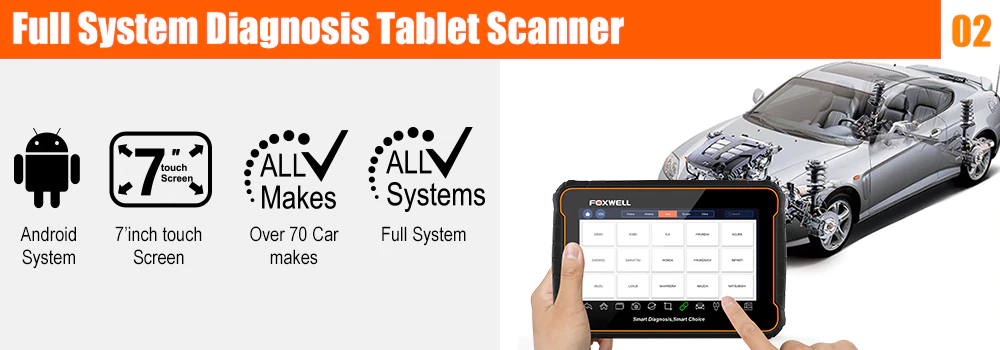

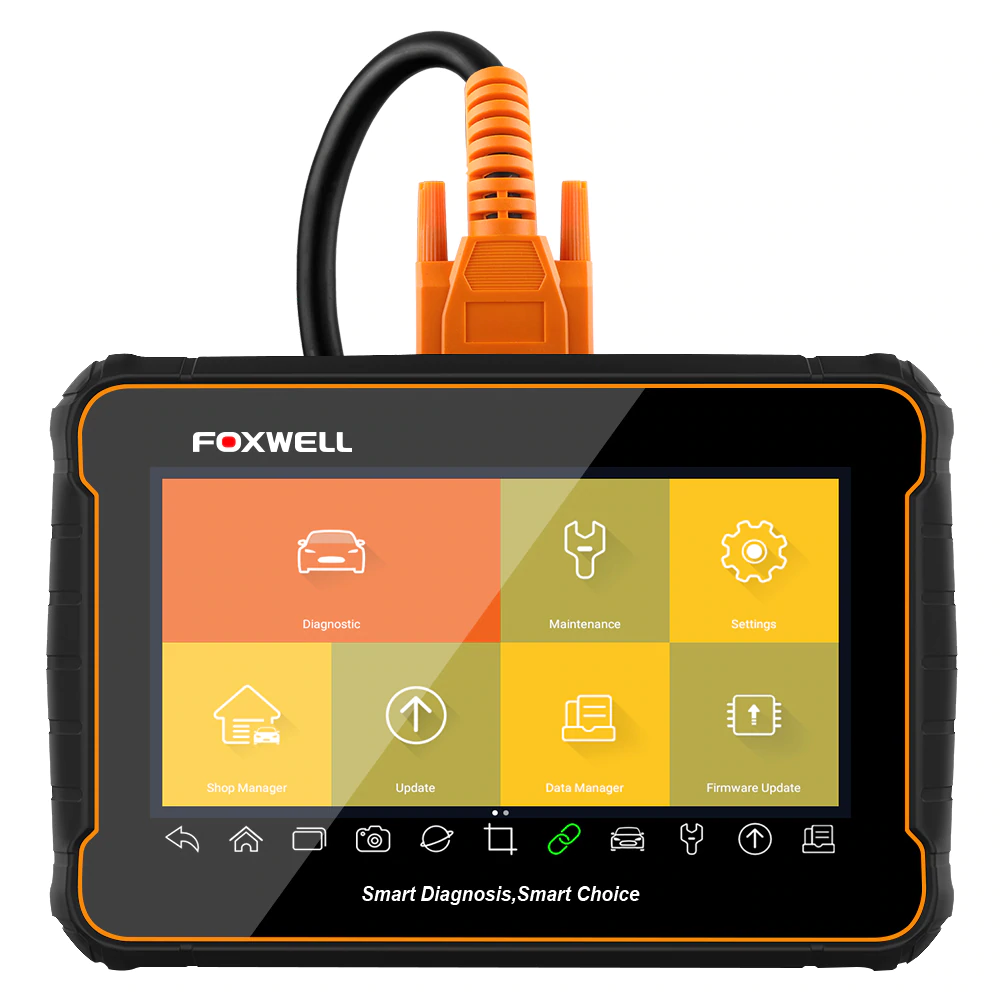

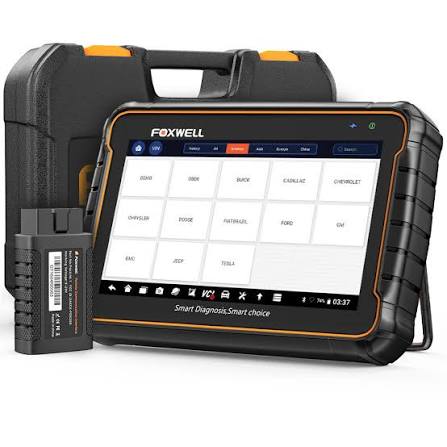

FOXWELL GT60 OBD2 Professional Car Diagnostic Tool

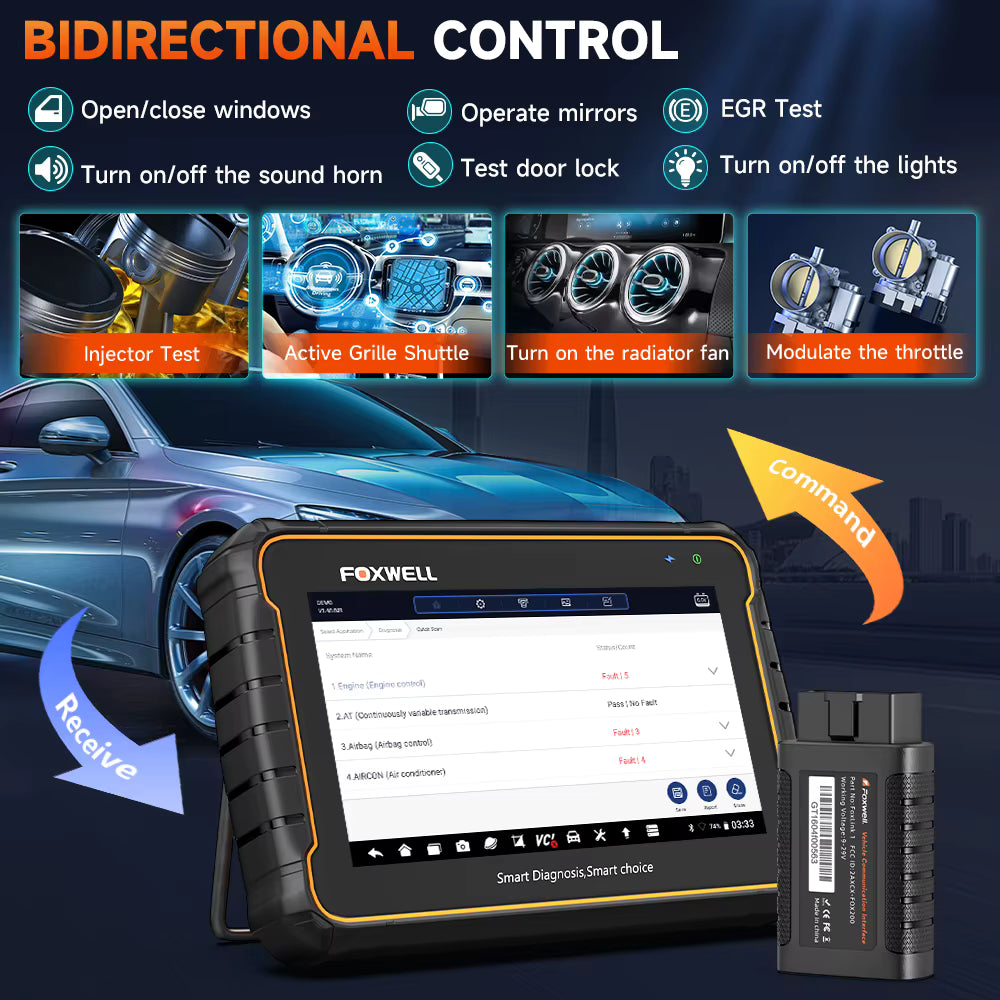

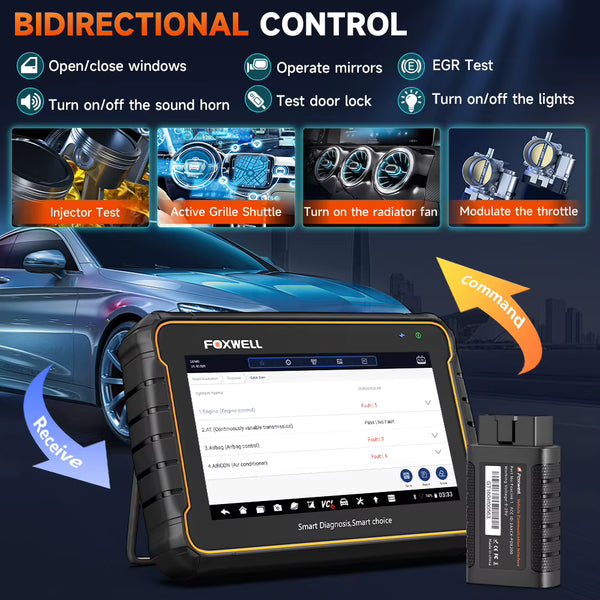

NEW FUNCTION--Bi-Directional Control（Active Test）

Bidirectional Control, also known as Actuation Tests, is used to send a command to vehicle ECU to perform component test for checking control modules' functionality. The tests let you use the scanner temporarily activate or control a vehicle system or component, and when you exit the test, the system/component returns to normal operation. After performing the active test of vehicle system parts, you could observe the resulting data to troubleshoot and fast repair, which is great for narrowing down problems or for maintenance like brake caliper resets when replacing the brake pads.

Bi-directional Control is a commonly-used function for mechanic/workshop, can save you a loads of time and help you get through more jobs every day. This function is newly released for f-ree to greatly meet customers' demand, which brings this device unbeatable value. You will hardly find this actuation test function on such a comprehensive all system car scanner with 28 service reset at thie cost range.

Commonly-Used Actuation Tests include:

Lock/unlock door
Turn A/C on/off
Roll window up/down
Cycling A/C Clutch On/ Off
Cycling ABS Pump Motor
Turn the Fuel Pump On/Off
Turn the Sound Horn On/Off
Open/Close the Sunroof
Turn on/off the radiator fan/interior & exterior lights
Operate Mirros/Fuel Injector Balance/ Injector Buzz Test Door Lock/Window/Horn/ Light/ Headlamp Test, etc

NOTICE: Kindly send your VIN to check compatibility as the function vary on cars.

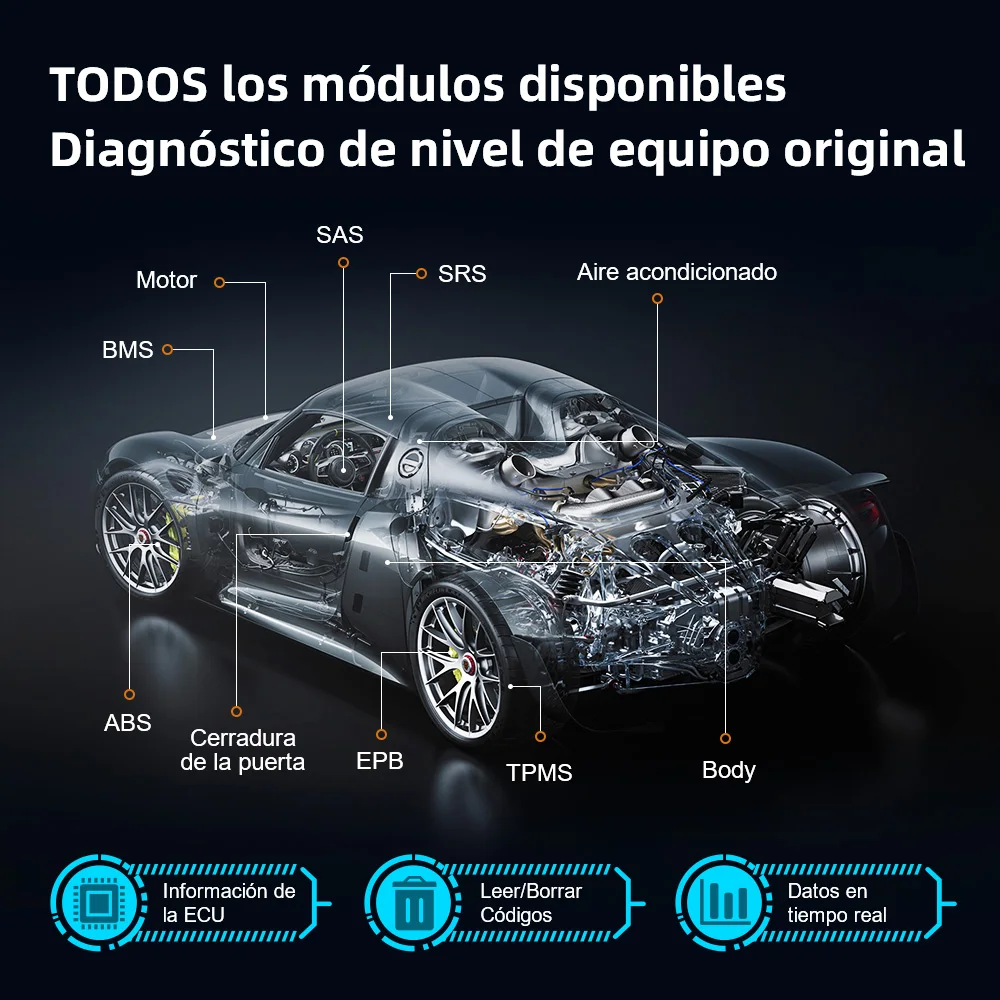

Automotive All Controlled Modules Scanning and Problem Diagnostics

Whether you are a professional maintance staff or not, it can provide professional technic support for your car. As a professional scan tool , it is able to deal with pretty much every auto repair scenario you can think of. Don’t worry, even a greenhand will feel it easy and convenient to use.

All Controlled Modules Scanning and Problem Diagnostics, such as Engine System, Airbags System, ABS System, Transmission System, Brake System, Alarm System, Keyless Entry System, TPMS System, Steering System, Wheel System, Fuel System, etc. It only takes a few minutes to finish full scanning of your vehicle and do a fast diagnosis and maintenance via reading/clearing codes, viewing freeze frame and graphing live data.

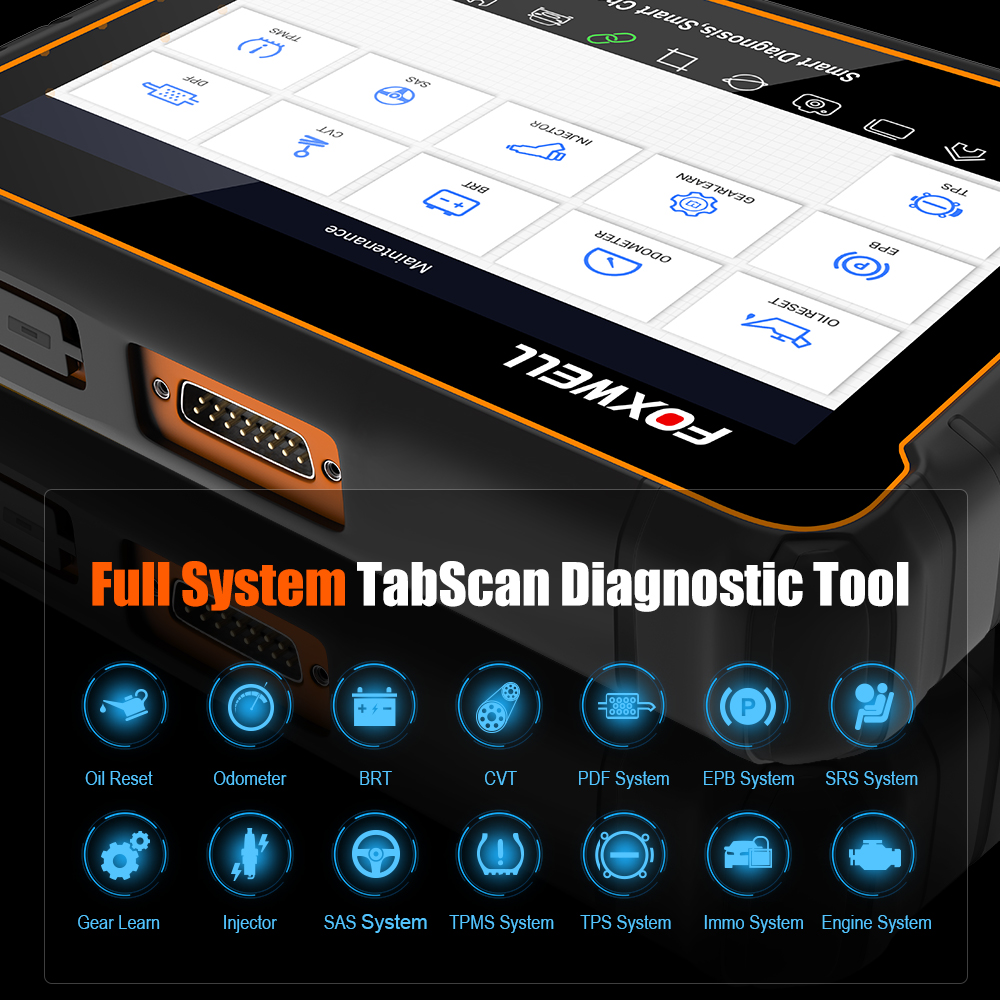

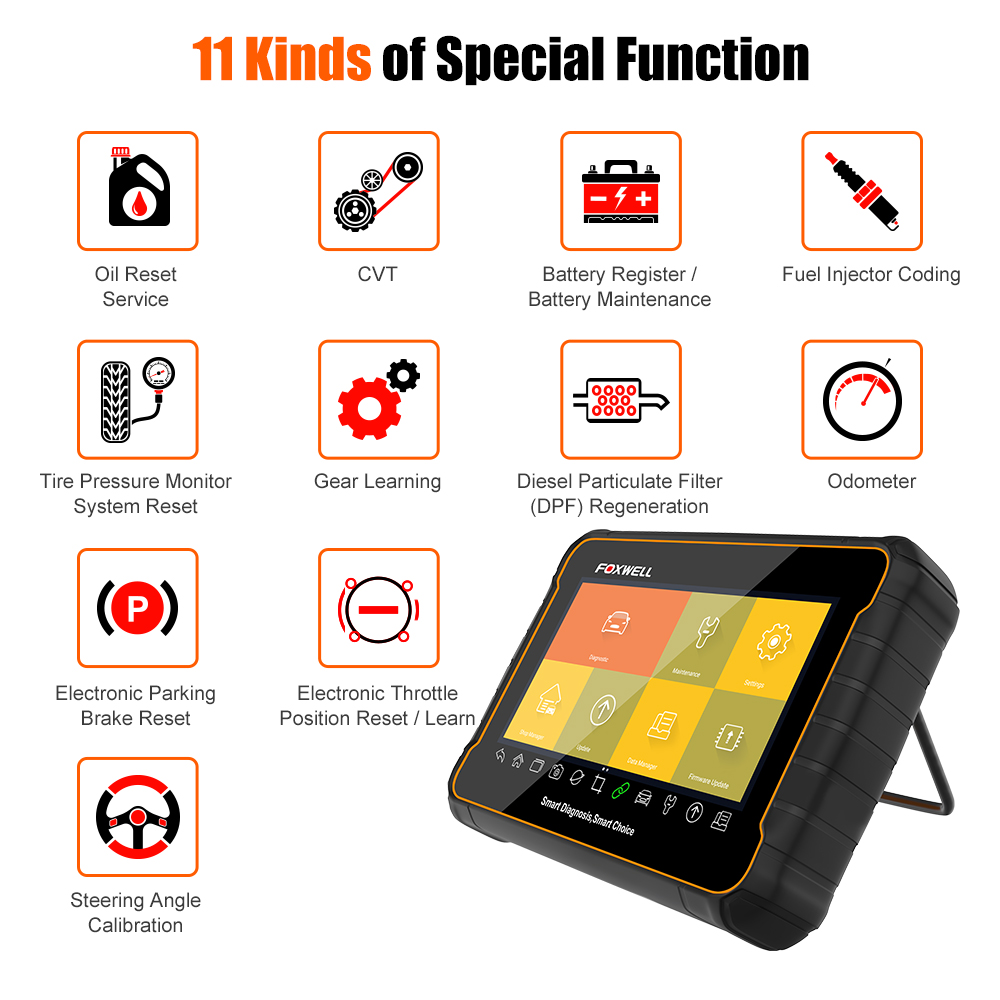

Foxwell GT60 All System Scanner with Special Functions:

1. Universal OBD2 Engine Scan,it supports all 10 OBDII test modes, includs the mode 6 test.

2. All System Diagnostics & Wide Vehicle Coverage. Read and erase codes for all available systems using the supported protocols. Compatible with almost all OBD II cars, SUVs, minivans, light-duty trucks sold worldwide since 1996 to 2019.

3. Transmission,to diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car.

4. ABS ( Antilock Brake System), helps clear the fault Airbag memories to reset.

5. SRS (Airbag),helps clear the fault Airbag memories to reset.

6. CVT (Continuously Variable Transmission), On these CVT transmissions, the timing of the release and application of elements (clutch packs and bands) is controlled by the transmission control module (a microprocessor)

7. SAS (Steering Angel Sensor), helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

8. EPB (Electronic Park Brake System), it is important in the maintenance of electronic braking systemrsquos safety and efficiency when replace brake pad or motor.

9. D-P-F (Diesel Particulate Filter), specially works for Diesel Particulate Filter system with D-P-F regeneration, D-P-F component replacement teach-in and D-P-F teach-in after replacing the engine control unit.

10. Oil Light Service Reset, allows you to perform reset maintenance mileage and data intervals for a new calculation of Engine Oil Life system once changed the oil.

11.TBA/TPS (Throttle Body Alignment), vehicle's throttle position system sensor connected to the butterfly spindle and is primarily used to monitor the throttle position within an inner combustion engine. Due to its location, the throttle position sensor is able to effectively observe where the throttle butterfly valve is positioned.

12. BRT (Battery Replacement Reset), allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the new battery replacement, and activate the rest state of the vehicle battery system

13. Injector Coding, diesel injector code need programming ID and parameters to the ECU for accurate communication and Injection control system

14. TPMS (Tire Pressure Monitoring Sytem), makes tpms senser in displaying sensor IDs from the vehiclersquos ECU, inputting TPMS sensor replacement IDs and activate tpms sensors.

15. Gear Learning, The scan tool monitors certain Camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running

16. A/F Adjust, Correspondingly change the fuel supply to change the steam production of boiler and maintanin the energy balance in the combustion process.

17. Prime Fuel Pump

18.CLUTH adaptation

19. Seat Match

20. Windowsdoor

21.Turbo

22.Headlamp

and more……

What Else You Can Get?

Auto VIN Scan
Smart AutoVIN technology for fast and precise identifying vehicles in one touch to scan ECUs, acquire vehicle info and run diagnostic on selected systems. Quickly get your car’s information,save your time.

Live Data Record & Playback
One of the cool features of GT60 has is Live Data Graphing. You can monitor all sensors and parameters in your car computer with 4-PID simultaneously. Besides, you can also through one-click screenshots, the crucial data can be recorded and played Q back for later analysis.

Health Report Print
Lifetime Technical Support

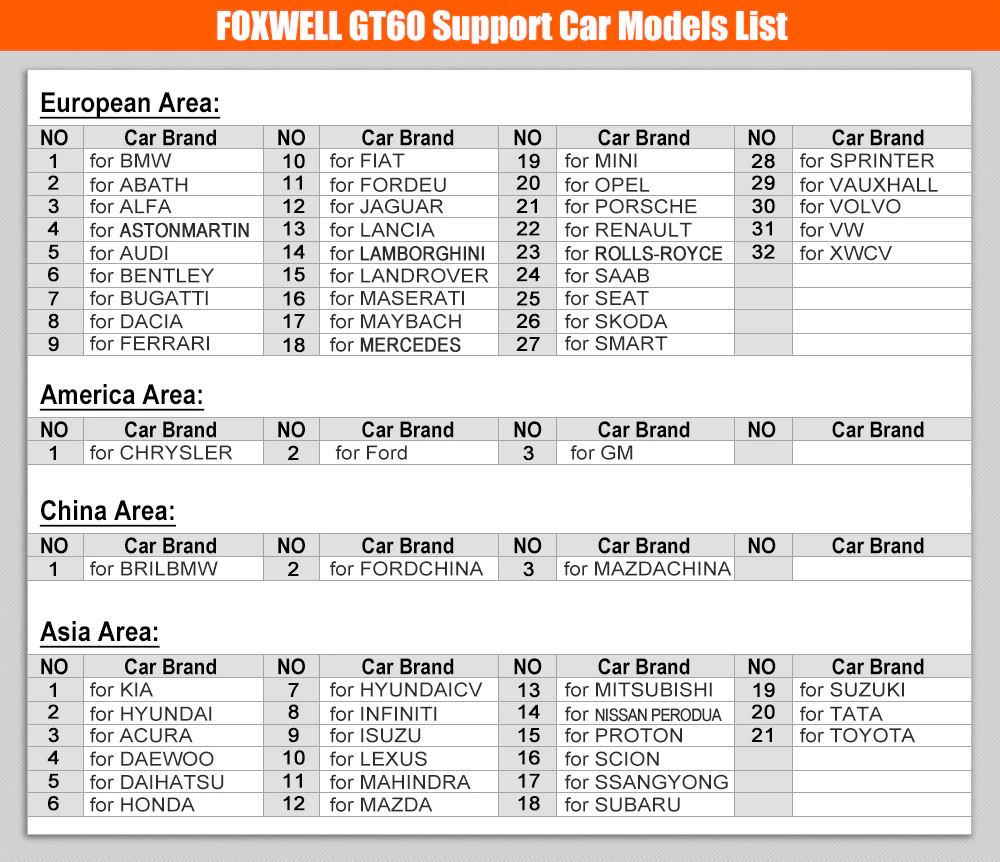

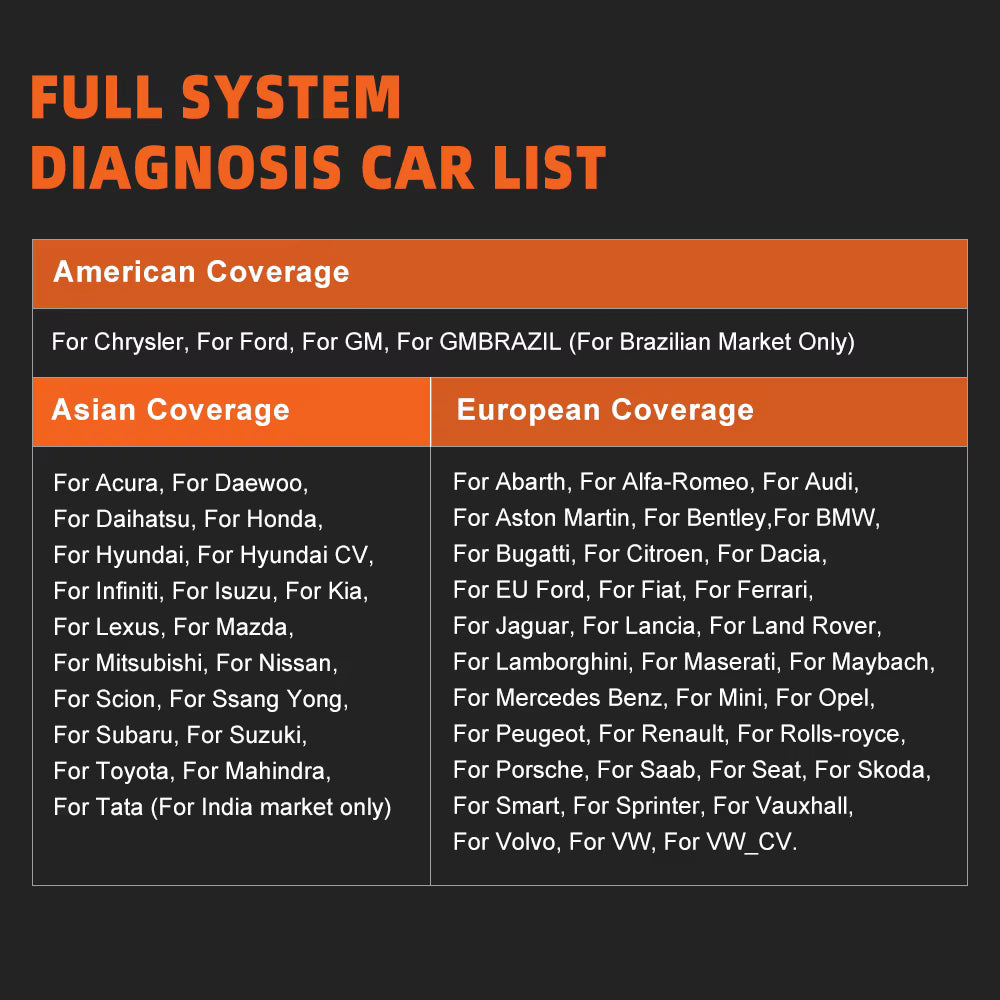

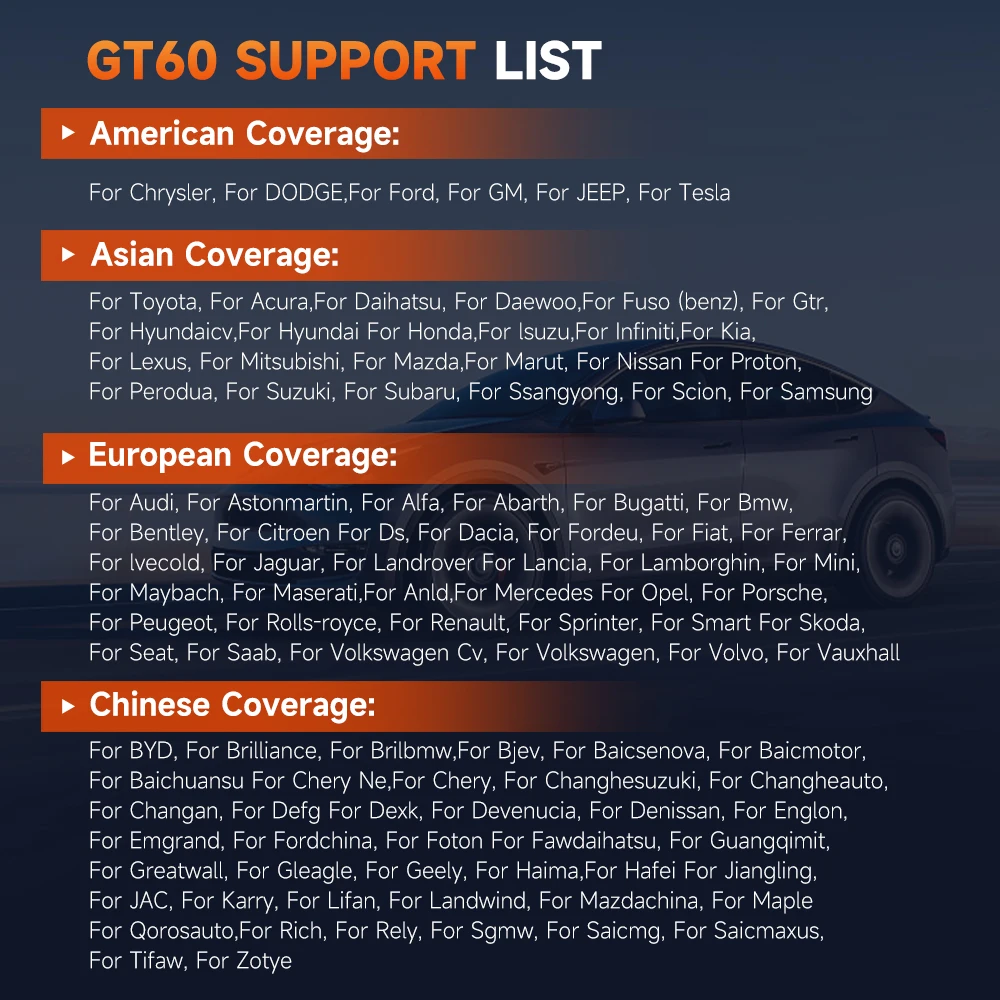

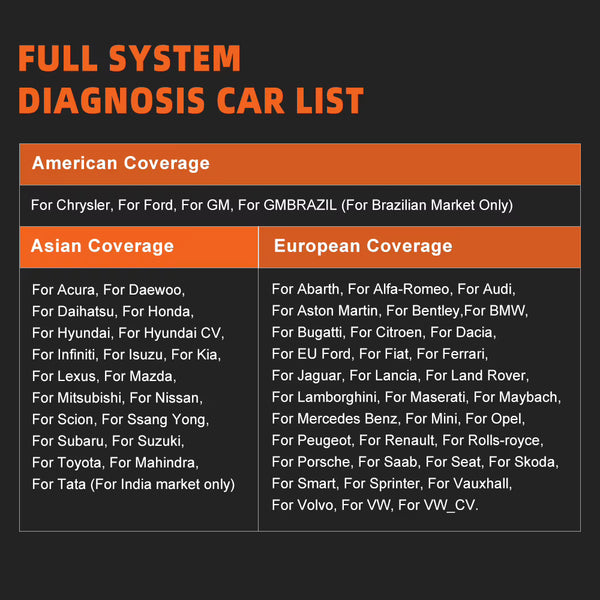

Foxwell GT60 Professional Scanne Support Vehicle Coverage:

America (1996-NOW model) :
for Chrysler, for Ford, for GM, for brazil GM, for brazil fiat

Asia(2003 to NOW model):
for Acura, for AU Ford (For Australian Market Only), for Daewoo, for Honda, for Holden (For Australian Market Only), for Hyundai, for Infiniti, for Isuzu, for Kia, for Lexus, for Mahindra , for Mazda, for Mitsubishi, for Nissan, for Perodua (For Malaysian Market Only), for Proton (For Malaysian Market Only), for Scion, for Subaru, for Suzuki, for TATA , for Toyota, for Daihatsu, for Hyundai_CV, for Ssangyong, for Proton

European (2001-NOW model):
for Abarth, for Alfa-Romeo, for Audi, for AstonMartin, for BMW, for Bugatti, for Bentley, for Citroen, for Dacia, for EU Ford, for Fiat, for Jaguar, for Lancia, for Land Rover,for Maserati, for Maybach, for Mercedes Benz,for Mini, for Opel, for Peugeot, for Porsche, for Renault, for Saab, for Seat, for Skoda, for Smart, for Sprinter, for Vauxhall, for Volvo, for VW, for VW_CV, for Ferrari, for Lamborghini, for Maybach, for Rolls-Royce

Foxwell GT60 Professional Scanner Support Languages:

The device only can install 2 languages , one is English , the other one you can choose from the following :

Korea, Spanish, Portuguese, French,Swedish, English, Dutch, Japanese, Italian, German,Russian, Hungarian, Greek

English is Default Language, if you need other language, please send me the SN Number when you receive it, I will help you change it.

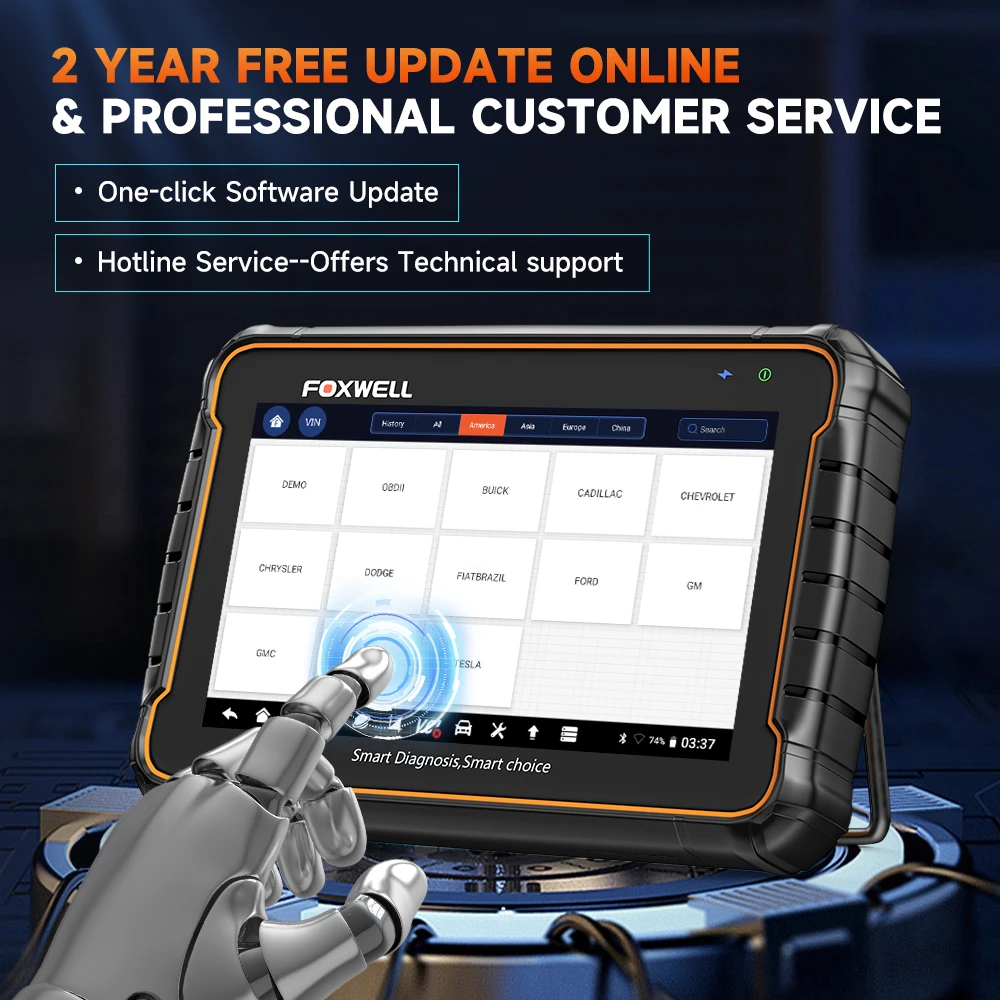

One-click update via Wifi, free update online for 2 Years

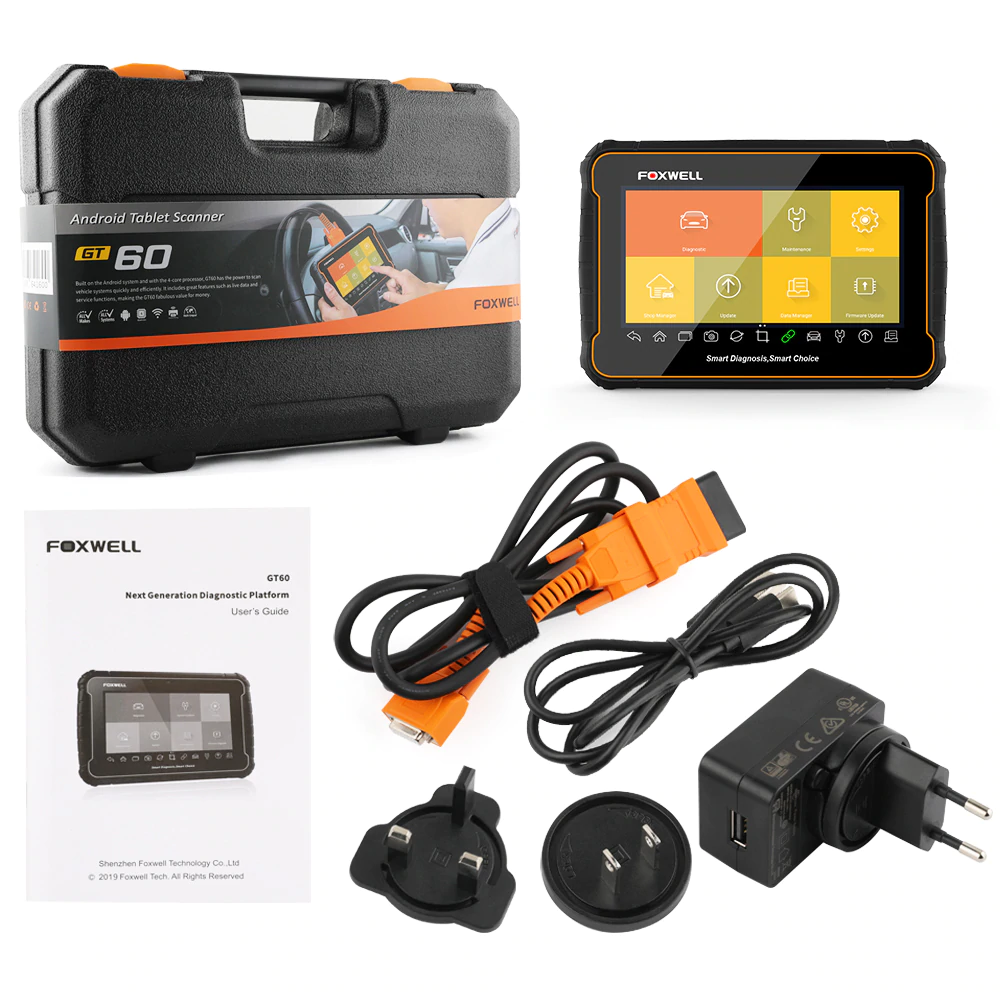

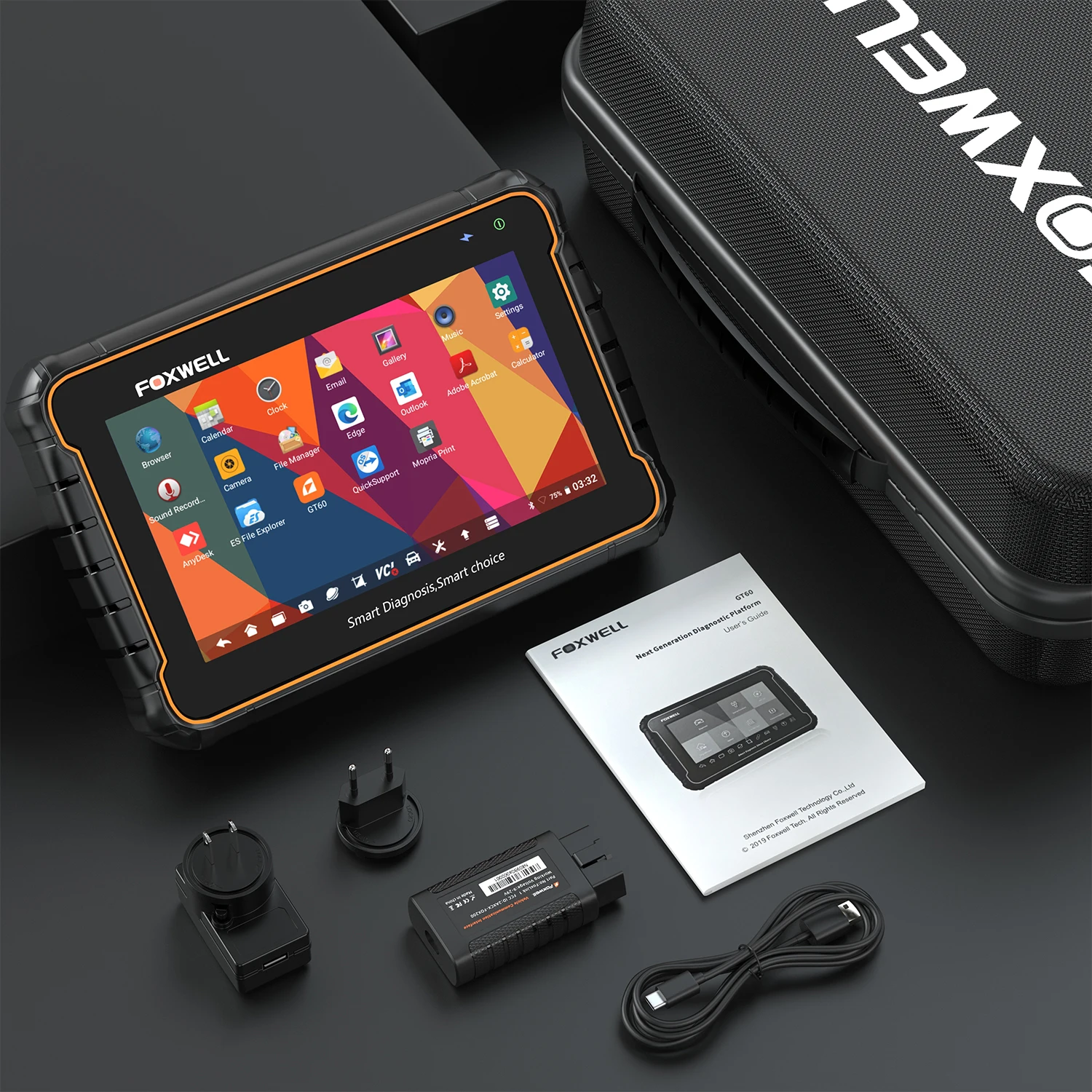

Foxwell GT60 Package List:

1 X GT60 Main Unit
1 X VCI
1 X USB TYPE C Cable
1 X USB Charging Adapter
1 X Quick Start Guide
1 X User’s Guide
1 X Warranty Card
1 X EVA Bag
