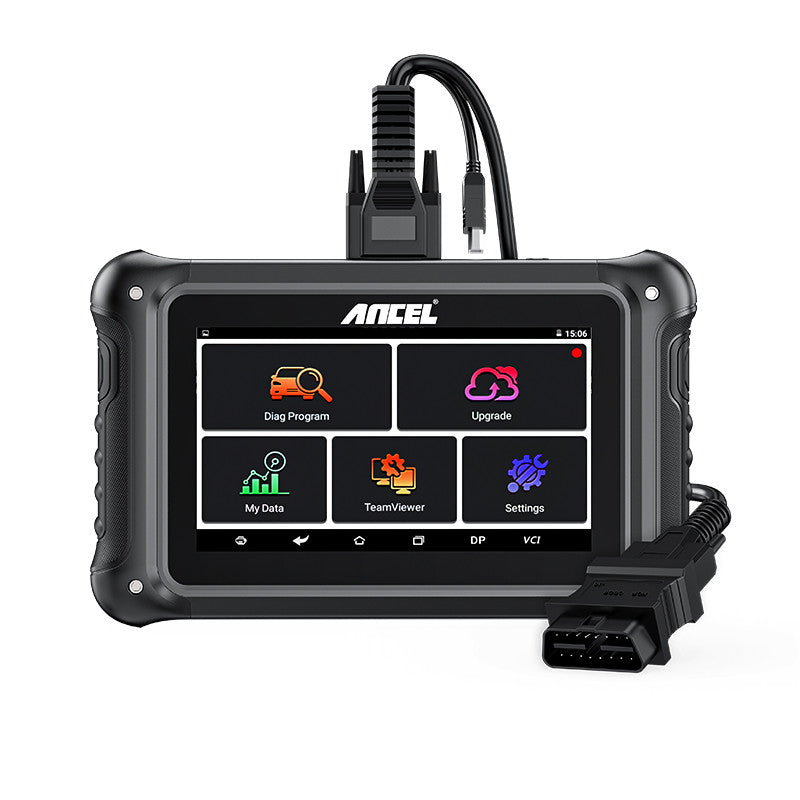

DP500 is a new Android-based vehicle trouble diagnostic device developed for internet applications. Contains diagnostic functions, mileage correction, oil/service reset, and special functions like ABS bleed, gear learning, EPB, TPS, SRS reset, etc. It covers a wide range of vehicles, features powerful functionality, and provides precise results. All-in-one machine structure, more convenient to use, full optimization hardware, running more stable, faster, and smoother.

ANCEL DP500 Supports Diagnostic Functions

Vehicle maintenance tools

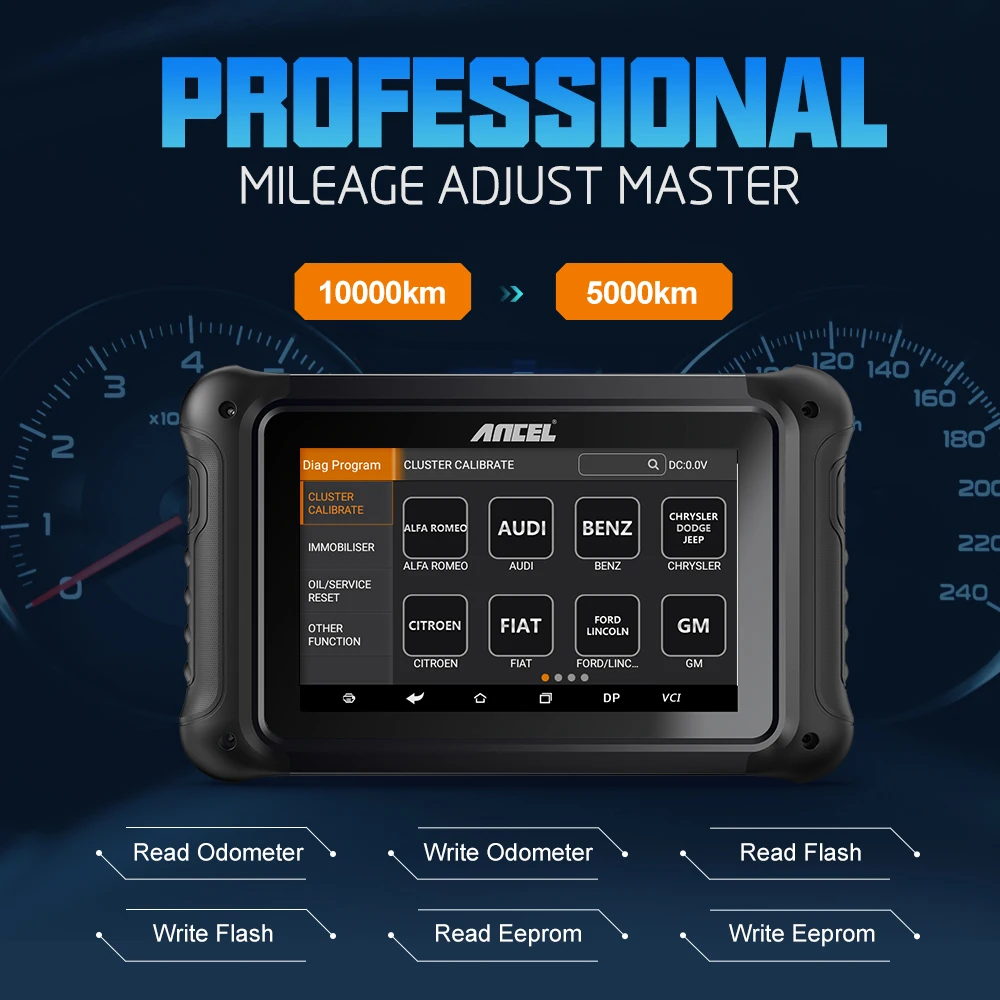

ANCEL DP500 Professional Mileage Adjustment Tool

Read Odometer
Write Odometer
Read Flash
Write Flash

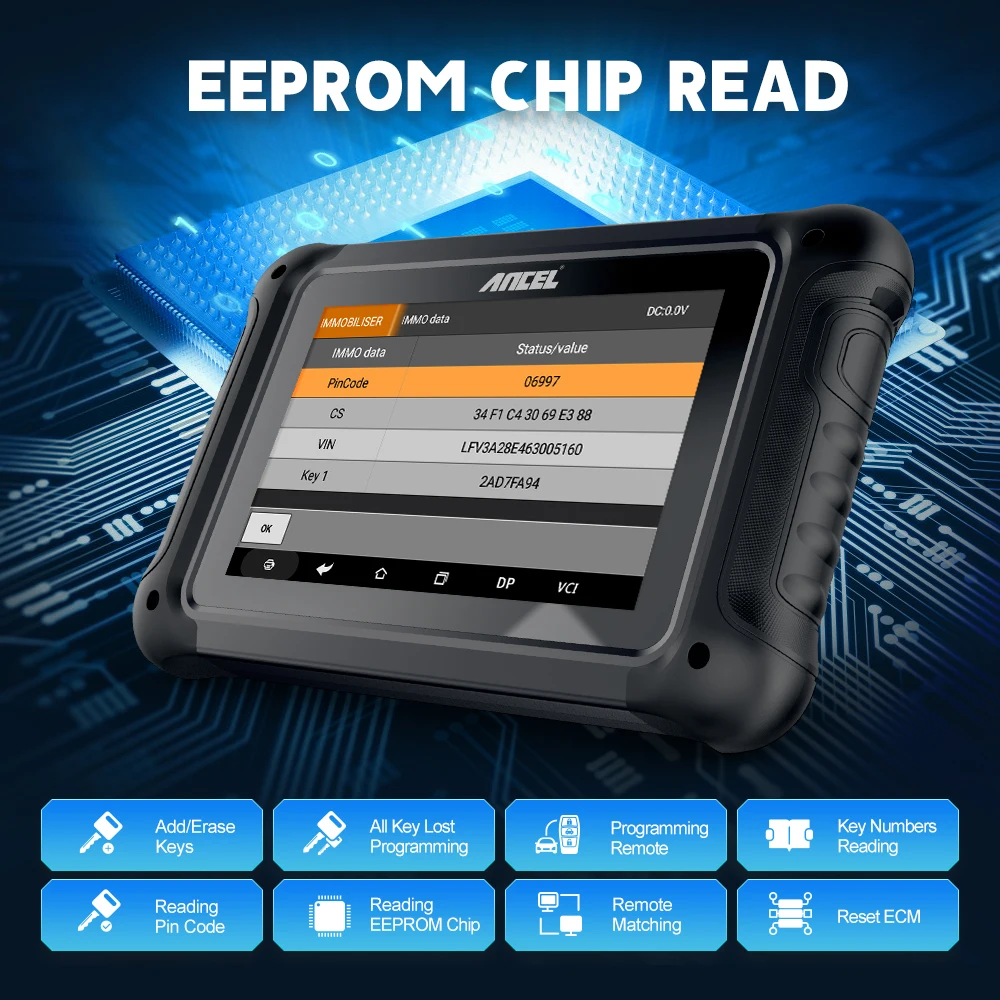

Read Eeprom
Write Eeprom

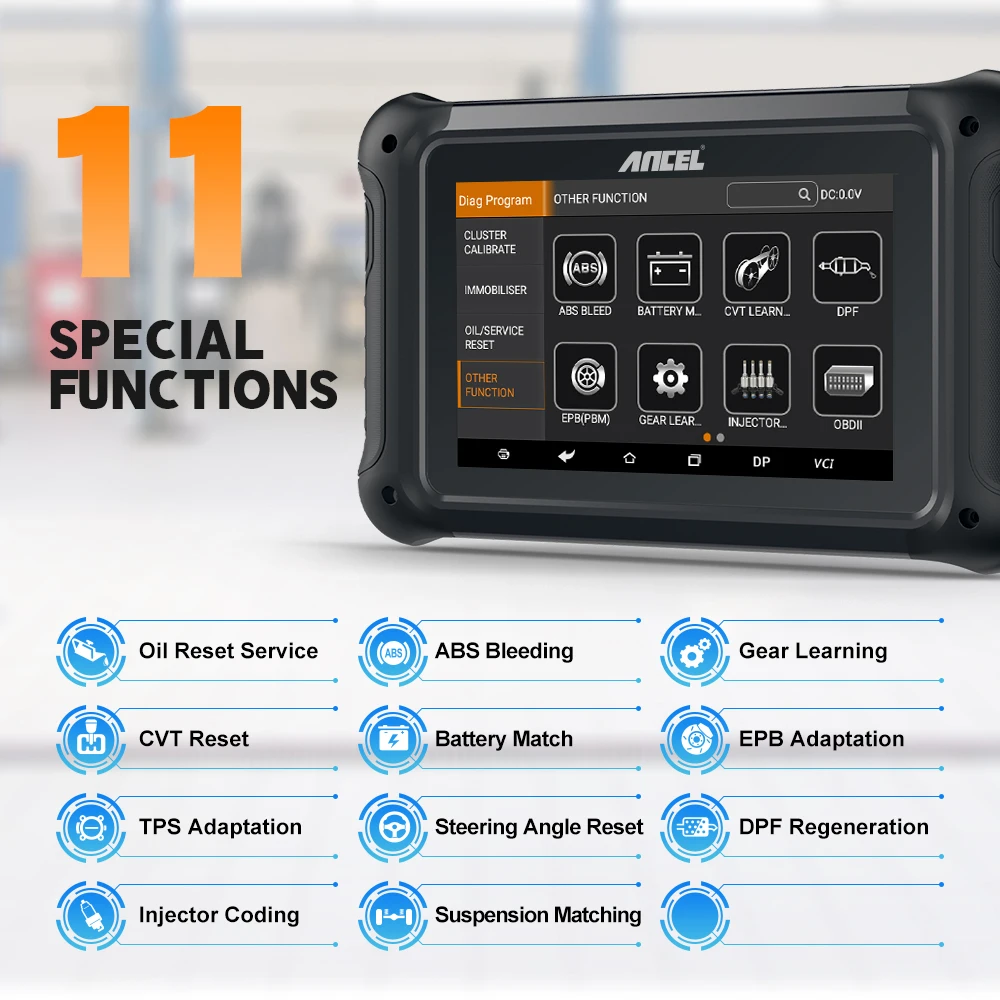

ANCEL DP500 Supports 11 Special Functions

✅Oil Reset Service
The lightening of the car maintenance light indicates that the vehicle needs maintenance. Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.

✅ABS Bleeding
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity. If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed.

✅Gear Learning

✅CVT Reset

✅Battery Match
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.

✅EPB Adaption

✅TPS Adaption

✅Steering Angle Reset
To reset the steering angle, first find the relative zero point position for the car to drive in a straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering. After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.

✅DPF Regeneration
DPF Regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive, or catalyst to reduce PM ignition combustion) to stabilize the filter performance.

✅Injector Coding
Writing injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.
✅Suspension Matching
This function can adjust the height of the body. When replacing the body height sensor in the air suspension system, or control module, or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration.

Noted

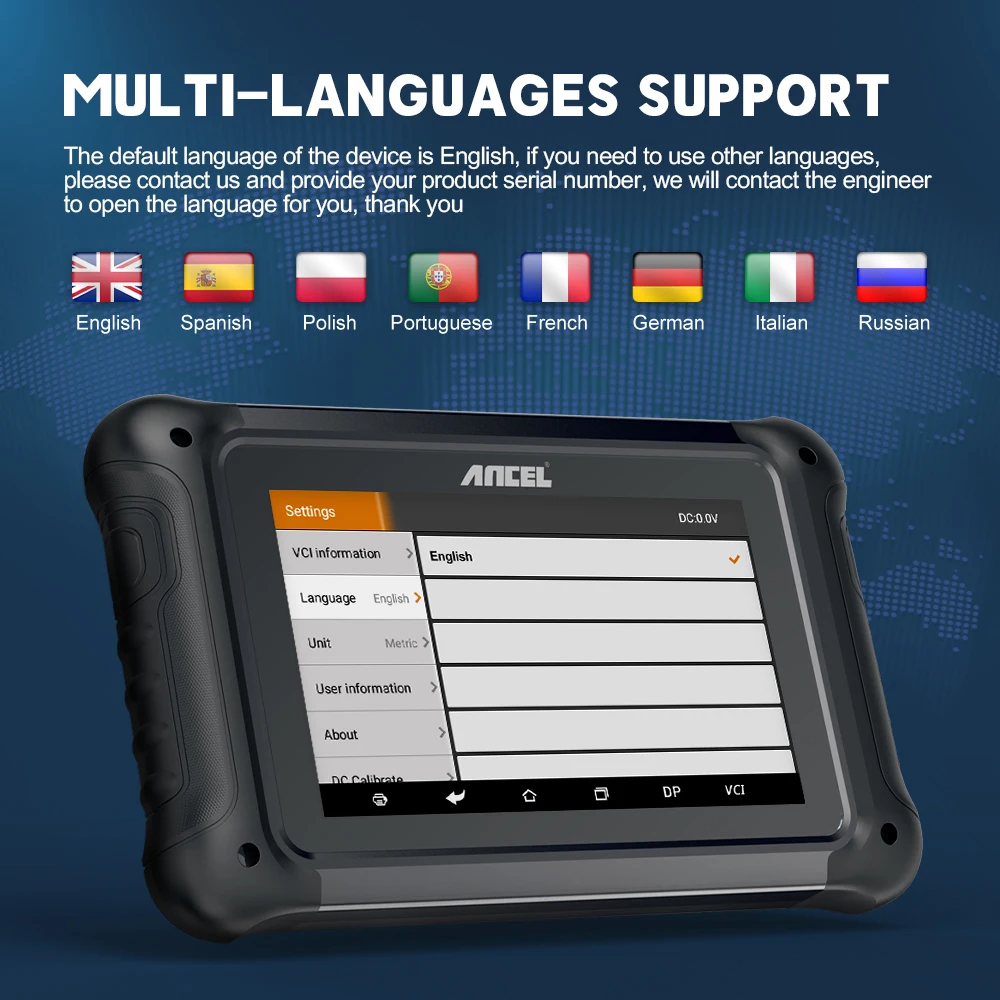

The default language of the device is English, if you want to update it to another language, please provide us with the product serial number

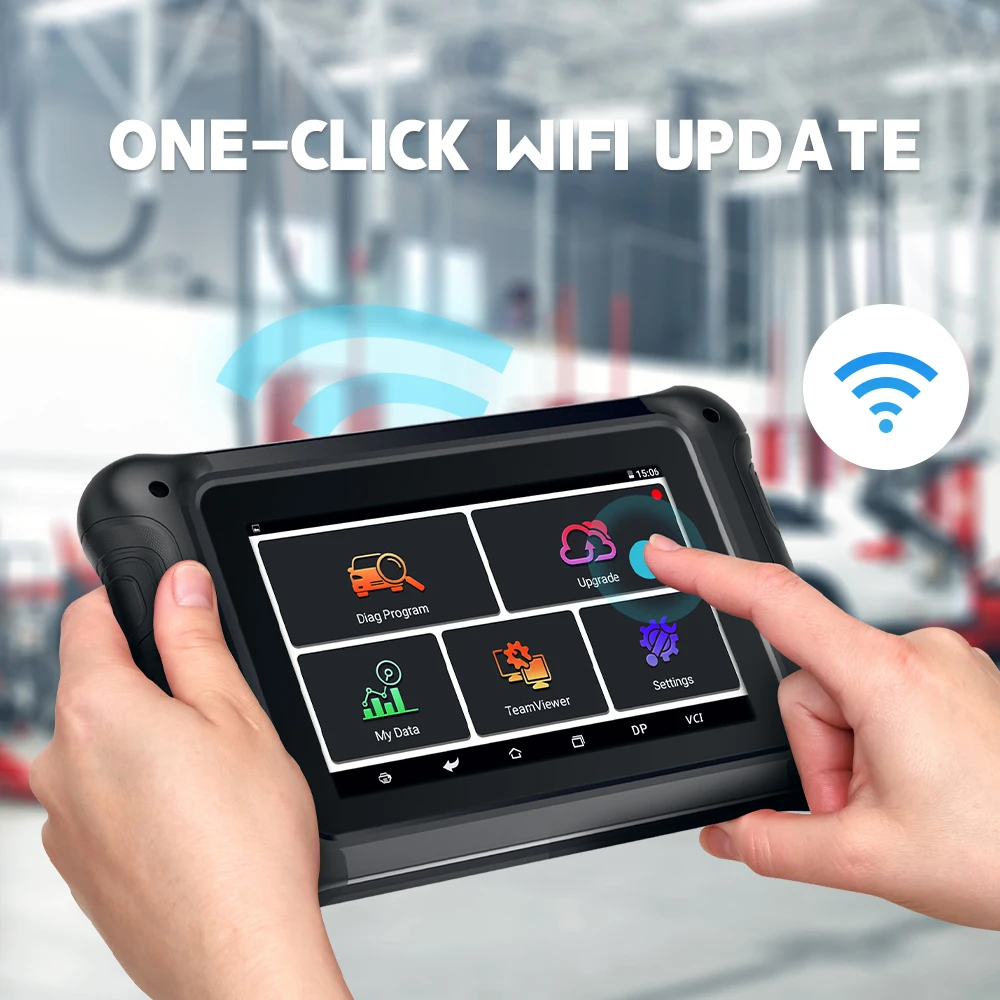

ANCEL DP500 Supports One Key Upgrade Via WiFi

Built-in WIFI mode can realize application, downloading, and diagnostic function by one key upgrade.

ANCEL DP500 Supports Remote Assistance

This application can realize remote hosting operation via the third party's software: Quick Support

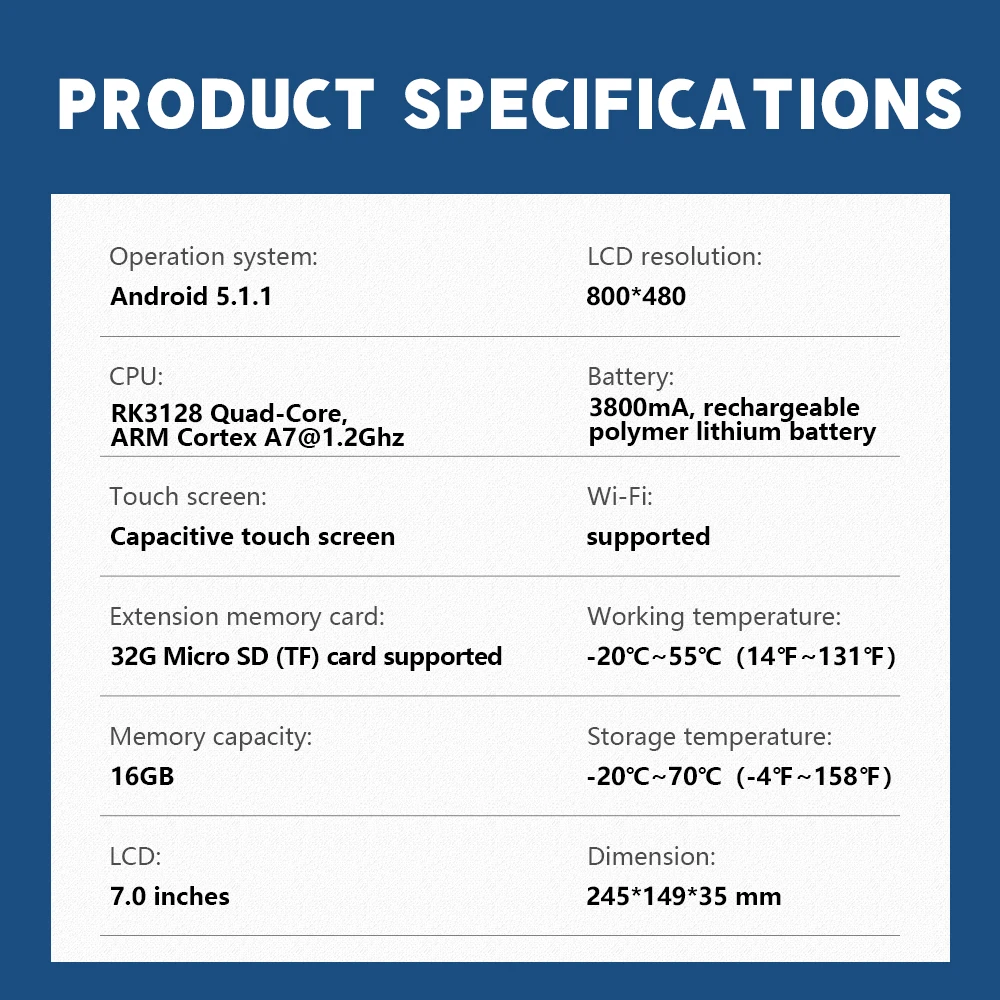

ANCEL DP500 Product Parameters

Operation System: Android 5.1.1
CPU: RK3128 Quad-core, ARM Cortex A7@1.2Ghz
Battery: 3800mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD: 7 inch
LCD resolution: 800*480
Touch screen: capacitive touch screen
Wifi: supported
Working temperature: -20℃～55℃（14℉～131℉）
Storage temperature: -20℃～70℃（-4℉～158℉）
Weight: 850g
Dimension: 214*133*28mm
Package Size: 388*120*298mm
Package Weight: 3.0kg



Package Including

1. DP500 Unit
2. Main Wire
3. 12V2A DC Charger (EU/US Plug)
4. KIA-20
5. OBD II-16 Connector
6. HONDA-3
7. HYUNDAI/KIA-10
8. P001 Programmer Unit
9. C001/C002 Circuit Board
10. W001
11. Configuration List/Certificate/Quick Start Guide Fold
