LAUNCH X431 Non-16 Pin Adapter Kit
Product Overview
The LAUNCH X431 Non-16 Pin Adapter Kit is an essential extension module designed to enhance the diagnostic capabilities of your LAUNCH X431 scanners. This kit includes 16 OE-compliant connectors tailored for vehicles produced between 1996 and 2002 that lack the standard OBD2 pin configuration. Housed in a professional carrying case, the adapter kit ensures you can perform accurate diagnostics on a wide range of older vehicles, making it a must-have for automotive technicians working with non-OBD2 systems.
Key Features
Expand your diagnostic reach with the Non-16 Pin Adapter Kit’s robust features, crafted for reliability and ease of use.
- OE-Compliant Connectors: Includes 16 connectors designed to match specific vehicle makes and models from 1996 to 2002, ensuring seamless diagnostics.

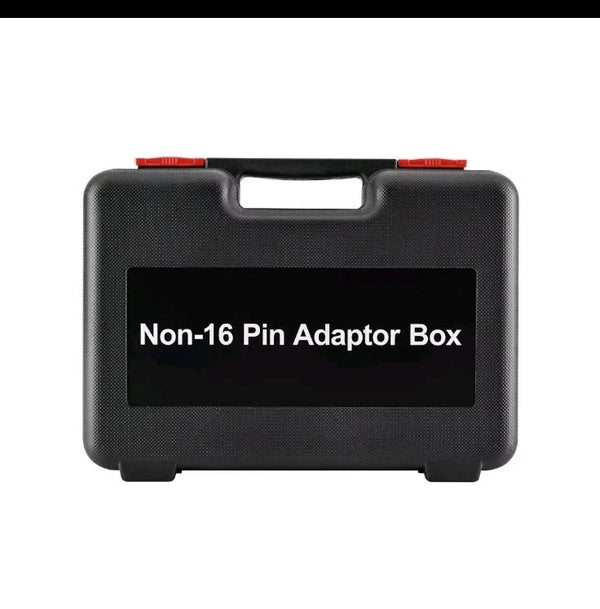

- Professional Carrying Case: Keeps all connectors, cables, and fuses organized and protected for easy transport and storage.
- Power Supply Options: Features a double clamp power cable and cigarette lighter cable for flexible power connections during diagnostics.

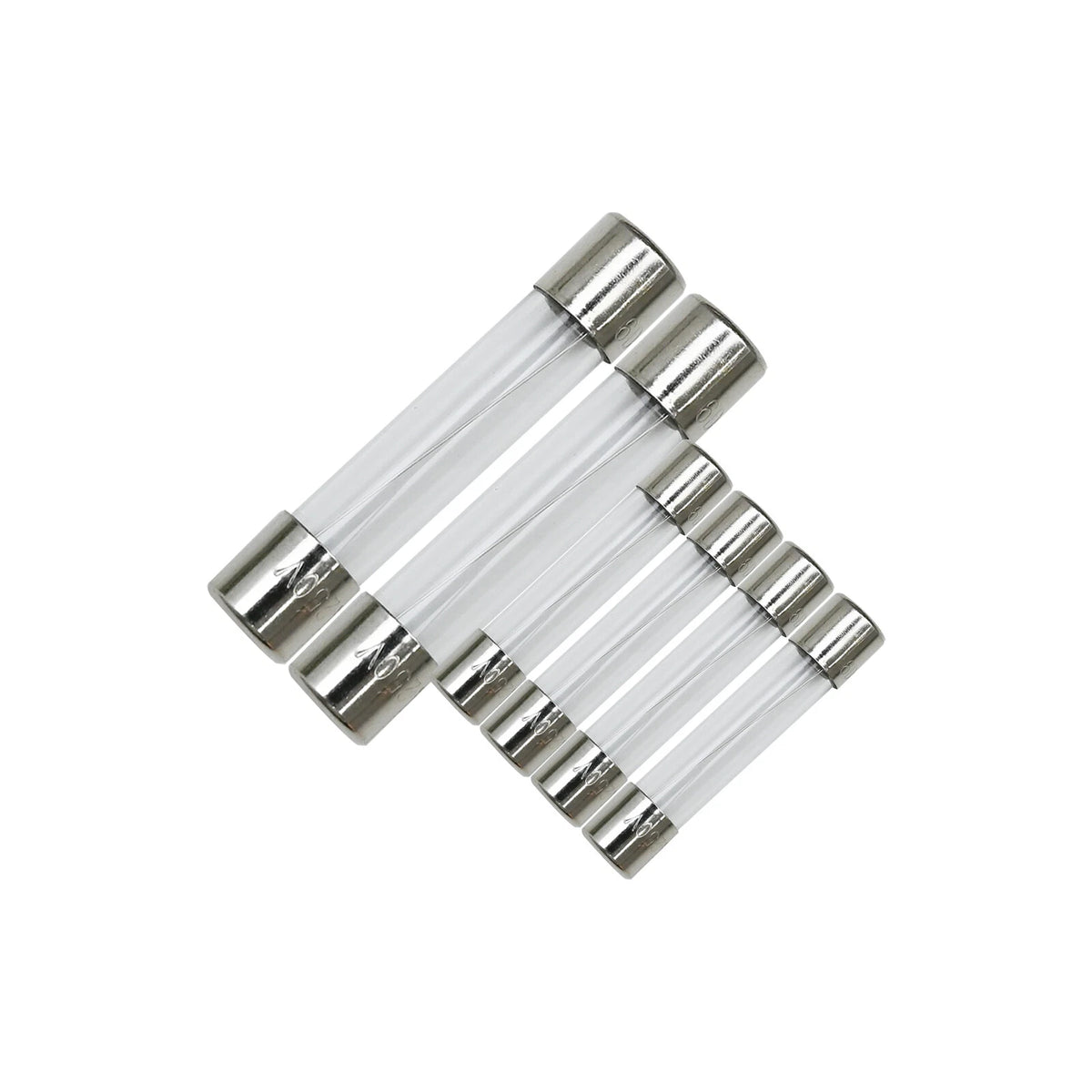

- Replacement Fuses: Comes with four 5*20mm clipper fuses and two 6*30mm lighter fuses to maintain uninterrupted operation.
Compatibility
The LAUNCH Non-16 Pin Adapter Kit is compatible with a variety of LAUNCH X431 scanners, enabling diagnostics on non-standard OBD2 vehicles.
-
Compatible Scanners:
- X-431 V
- X-431 V+
- PRO S
- PRO S+
- PRO 3S+
- PRO 5
- PRO MINI
- PAD III
- PAD V
- PAD VII
- Diagun V
- Vehicle Compatibility: Supports vehicles from 1996-2002 without standard OBD2 16-pin connectors, covering multiple brands with specific diagnostic needs.
Connector Details

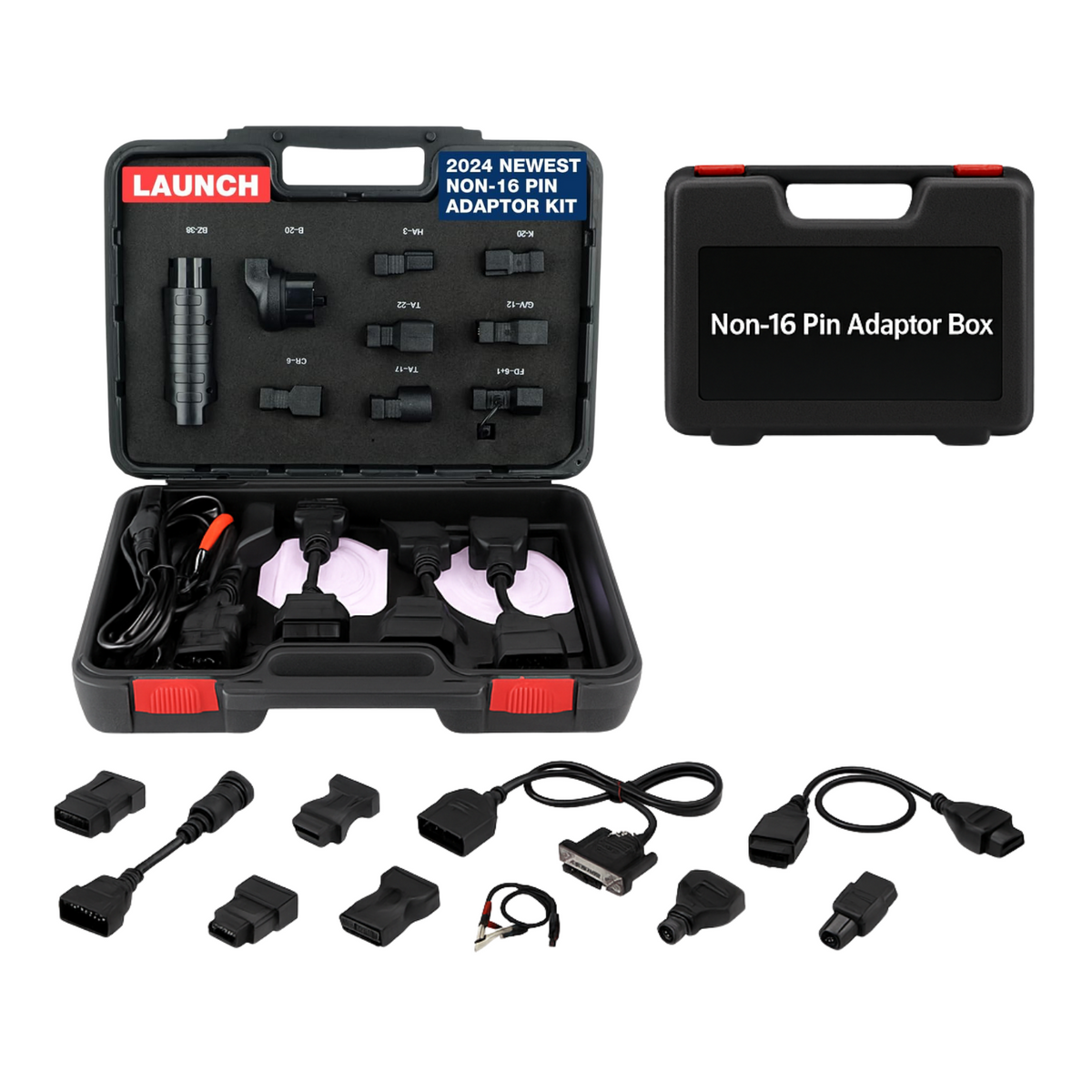

The kit includes 16 specialized connectors and accessories to interface with various non-OBD2 vehicle systems.
- Mercedes-Benz: MB-38 (small handle), MB-14
- Nissan: Nissan-14+16
- BMW: BMW-20
- Chrysler: Chrysler-6
- Ford: Ford-6+1
- GM/VAZ: GM/VAZ-12
- Honda: Honda-3
- Kia: Kia-20
- Mitsubishi/Hyundai: Mitsubishi/Hyundai-12+16
- Toyota: Toyota-17, Toyota-22
.
Packing List:
1. [Connector]DBScar, MERCEDESBENZ-38 Diagnostic Joints (Small Handle)
2. [Connector]DBScar, NI-SSAN-14+16 Diagnostic Connector
3. [Connector]DBScar, MERCEDESBENZ-14 Diagnostic Connector Line
4. [Connector]DBScar, BMW-20 Diagnostic Connector Integrated
5. [Connector]DBScar, CHRYSLER-6 Diagnostic Connector Integrated
6. [Connector]DBScar, FORD-6+1 Diagnostic Connector Integrated
7. [Connector]DBScar, GM/VAZ-12 Diagnostic Connector Integrated
8. [Connector]DBScar, HONDA-3 Diagnostic Connector Integrated
9. [Connector]DBScar, KIA-20 Diagnostic Connector Integrated
10. [Connector]DBScar, MITSUBISHI/HYUNDAI-12+16 Diagnostic Connector
11. [Connector]DBScar, TOYOTA-17 Diagnostic Connector Integrated
12. [Connector]DBScar, TOYOTA-22 Diagnostic Connector Integrated
13. [Test Cable]Double Clamp Power Line
14. [Test Cable] Cigarette Lighter Line
15. [Accessories]Clipper Fuse 5*20mm (4 Pcs)
16. [Accessories]Lighter Fuse 6*30mm (2 Pcs)
17. Pack List Paper
18. Carrying Case
