Vgate vLinker MC+ ELM327 OBD 2 OBD2 Scanner WIFI for BimmerCode FORScan Bluetoot

Vgate vLinker MC+ ELM327 OBD 2 OBD2 Scanner WIFI for BimmerCode FORScan Bluetoot

SKU: Does Not Apply
$99.04
Hurry up! Only 4 left
Product subtotal: $99.04
Proudly Australian
Technical Support
Easy Returns
Fast & Free Shipping
Return policy

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.
Shipping

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.
43587797
Vgate vLinker MC+ ELM327 OBD 2 OBD2 Scanner WIFI for BimmerCode FORScan Bluetoot
$99.04

Bluetooth 4.0

Description

  • ThevLinker is an OBD to UART interpreter IC designed to provide bi-directional half-duplex

  • communication with the vehicle’s On-Board Diagnostic system (OBD-II). It supports all legislated OBD-II protocols, as well as two proprietary networks:forGM Single Wire CAN (forGMLAN), andforFord Medium Speed CAN (MS CAN).

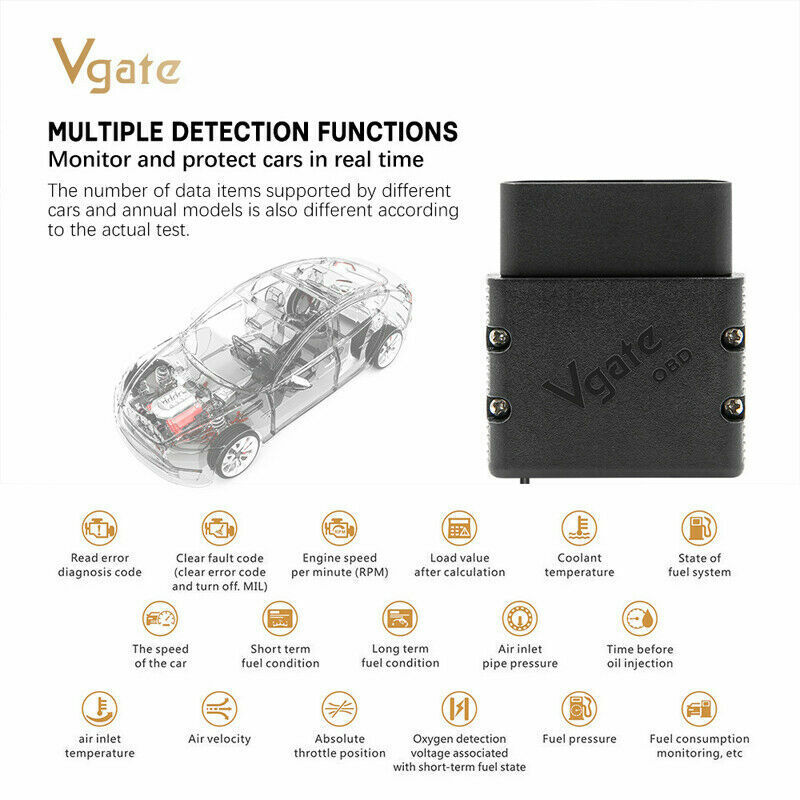

  • A wealth of information can be obtained by tapping into the OBD bus, including the status of the malfunction indicator light (MIL), diagnostic trouble codes (DTCs), inspection and maintenance (I/M) information, freeze frames, VIN, hundreds of real-time parameters, and more.The V_ Link01 is fully compatible with the de facto industry standard ELM327 command set. Based on a 32-bit processor core, the V_ Link01 offers more features and better performance than any other ELM327 compatible IC.

Feature

■Rich instruction set, compatible with more APP software.

  • Fully compatible with ELM's AT command set;

  • Fully compatible with STN's ST command set;

  • Expanded 7 AT commands for HS-CAN, MS-CAN, SW-CAN;

  • 39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.

■Multiple protocols

  • 15 ELM format protocols;

  • 23 STN format protocols;

  • Up to 64 user-defined protocols.

■ Multiple fieldbus

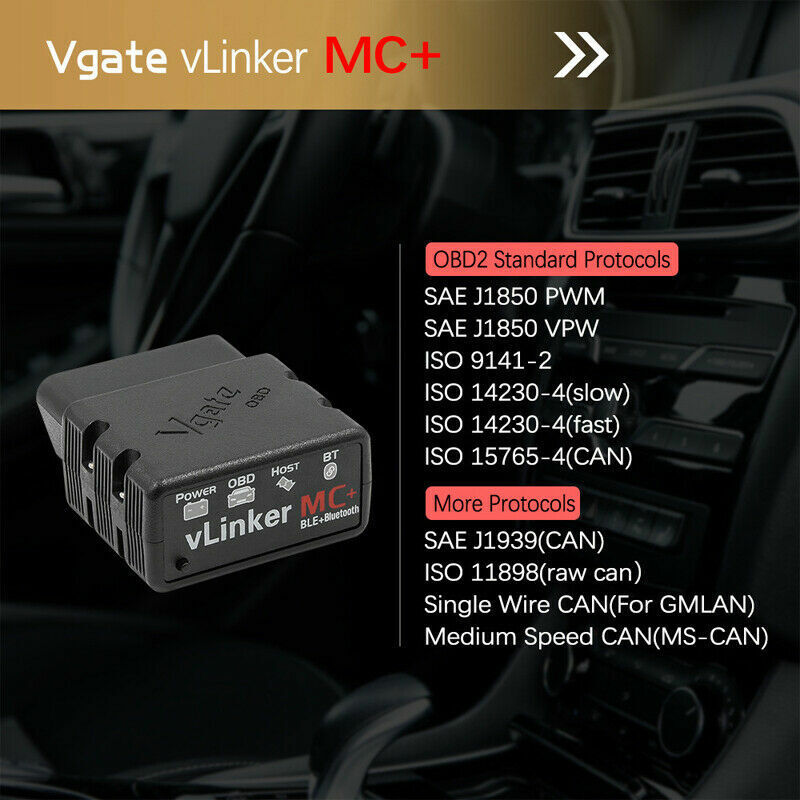

  • SAE J1850 VPW

  • SAE J1850 PWM

  • ISO 9141-2

  • ISO 14230-4

  • ISO 15765-4 CAN

  • SAE J1939 CAN

  • ISO 11898 (raw CAN)

  • For GMLAN Single Wire CAN (forGMW3089)

  • For Ford Medium Speed CAN (MS CAN)

■ Multiple power management solutions

  • Compatible with ELM and STN power management solutions.

  • Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;

  • Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.

  • Device sleep power consumption is less than 2 mA.

■ OBD request byte up to 48 bytes, can meet the needs of some special long frame

  • Communication.

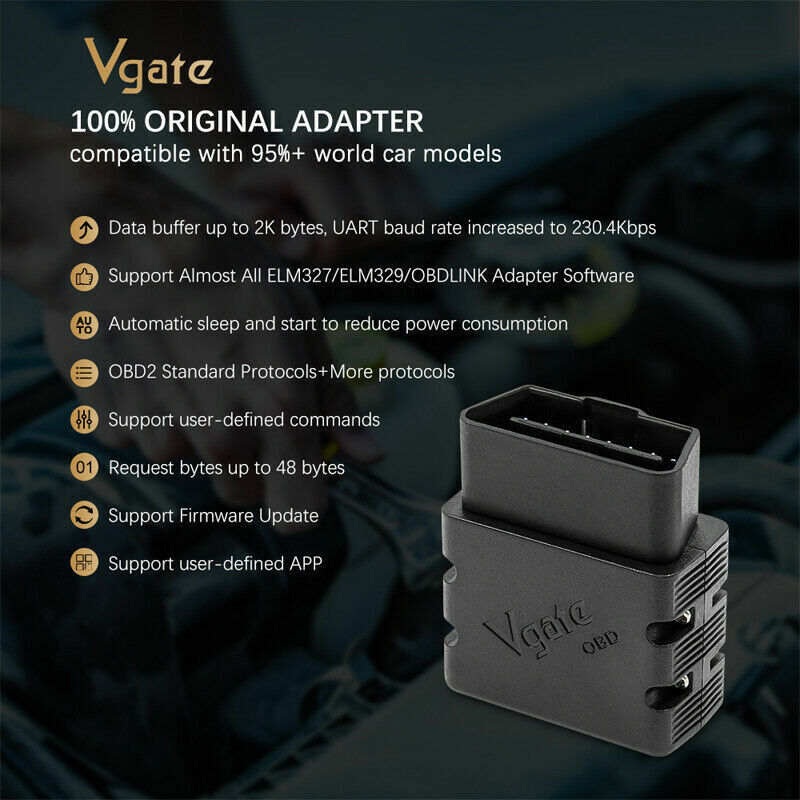

■ UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.

■ User-operated storage area

  • 256-byte storage unit

  • More than 100,000 erasable times

  • Read and write operations on any unit in the storage area by using the VT command

■ Mix ID Sending" mode of CAN protocol.

  • Optional formatted send data according to protocol

■ Multiple WM sequence settings

  • Support AT command to manually set WM sequence

  • Support for specifying a protocol or a full protocol-wide temporary WM sequence

  • Support for a permanent link between a protocol and a private WM sequence

■ Secure bootloader for easy firmware updates

  • Typical Applications

  • Vehicle telematics

  • Fleet management and tracking applications

  • Usage-based insurance (UBI)

  • OBD data loggers

  • Automotive diagnostic scan tools and code readers

  • Digital dashboards


Bluetooth 4.0

Description

  • ThevLinker is an OBD to UART interpreter IC designed to provide bi-directional half-duplex

  • communication with the vehicle’s On-Board Diagnostic system (OBD-II). It supports all legislated OBD-II protocols, as well as two proprietary networks:forGM Single Wire CAN (forGMLAN), andforFord Medium Speed CAN (MS CAN).

  • A wealth of information can be obtained by tapping into the OBD bus, including the status of the malfunction indicator light (MIL), diagnostic trouble codes (DTCs), inspection and maintenance (I/M) information, freeze frames, VIN, hundreds of real-time parameters, and more.The V_ Link01 is fully compatible with the de facto industry standard ELM327 command set. Based on a 32-bit processor core, the V_ Link01 offers more features and better performance than any other ELM327 compatible IC.

Feature

■Rich instruction set, compatible with more APP software.

  • Fully compatible with ELM's AT command set;

  • Fully compatible with STN's ST command set;

  • Expanded 7 AT commands for HS-CAN, MS-CAN, SW-CAN;

  • 39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.

■Multiple protocols

  • 15 ELM format protocols;

  • 23 STN format protocols;

  • Up to 64 user-defined protocols.

■ Multiple fieldbus

  • SAE J1850 VPW

  • SAE J1850 PWM

  • ISO 9141-2

  • ISO 14230-4

  • ISO 15765-4 CAN

  • SAE J1939 CAN

  • ISO 11898 (raw CAN)

  • For GMLAN Single Wire CAN (forGMW3089)

  • For Ford Medium Speed CAN (MS CAN)

■ Multiple power management solutions

  • Compatible with ELM and STN power management solutions.

  • Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;

  • Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.

  • Device sleep power consumption is less than 2 mA.

■ OBD request byte up to 48 bytes, can meet the needs of some special long frame

  • Communication.

■ UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.

■ User-operated storage area

  • 256-byte storage unit

  • More than 100,000 erasable times

  • Read and write operations on any unit in the storage area by using the VT command

■ Mix ID Sending" mode of CAN protocol

  • Optional formatted send data according to protocol

■ Multiple WM sequence settings

  • Support AT command to manually set WM sequence

  • Support for specifying a protocol or a full protocol-wide temporary WM sequence

  • Support for a permanent link between a protocol and a private WM sequence

■ Secure bootloader for easy firmware updates

  • Typical Applications

  • Vehicle telematics

  • Fleet management and tracking applications

  • Usage-based insurance (UBI)

  • OBD data loggers

  • Automotive diagnostic scan tools and code readers

  • Digital dashboards


WIFI

Description

  • ThevLinker is an OBD to UART interpreter IC designed to provide bi-directional half-duplex

  • communication with the vehicle’s On-Board Diagnostic system (OBD-II). It supports all legislated OBD-II protocols, as well as two proprietary networks:forGM Single Wire CAN (forGMLAN), andforFord Medium Speed CAN (MS CAN).

  • A wealth of information can be obtained by tapping into the OBD bus, including the status of the malfunction indicator light (MIL), diagnostic trouble codes (DTCs), inspection and maintenance (I/M) information, freeze frames, VIN, hundreds of real-time parameters, and more.The V_ Link01 is fully compatible with the de facto industry standard ELM327 command set. Based on a 32-bit processor core, the V_ Link01 offers more features and better performance than any other ELM327 compatible IC.

Feature

■Rich instruction set, compatible with more APP software.

  • Fully compatible with ELM's AT command set;

  • Fully compatible with STN's ST command set;

  • Expanded 7 AT commands for HS-CAN, MS-CAN, SW-CAN;

  • 39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.

■Multiple protocols

  • 15 ELM format protocols;

  • 23 STN format protocols;

  • Up to 64 user-defined protocols.

■ Multiple fieldbus.

  • SAE J1850 VPW

  • SAE J1850 PWM

  • ISO 9141-2

  • ISO 14230-4

  • ISO 15765-4 CAN

  • SAE J1939 CAN

  • ISO 11898 (raw CAN)

  • For GMLAN Single Wire CAN (forGMW3089)

  • For Ford Medium Speed CAN (MS CAN)

■ Multiple power management solutions

  • Compatible with ELM and STN power management solutions.

  • Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;

  • Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.

  • Device sleep power consumption is less than 2 mA.

■ OBD request byte up to 48 bytes, can meet the needs of some special long frame

  • Communication.

■ UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.

■ User-operated storage area

  • 256-byte storage unit

  • More than 100,000 erasable times

  • Read and write operations on any unit in the storage area by using the VT command

■  Mix ID Sending" mode of CAN protocol.

  • Optional formatted send data according to protocol

■ Multiple WM sequence settings

  • Support AT command to manually set WM sequence

  • Support for specifying a protocol or a full protocol-wide temporary WM sequence

  • Support for a permanent link between a protocol and a private WM sequence

■ Secure bootloader for easy firmware updates

  • Typical Applications

  • Vehicle telematics

  • Fleet management and tracking applications

  • Usage-based insurance (UBI)

  • OBD data loggers

  • Automotive diagnostic scan tools and code readers

  • Digital dashboards
