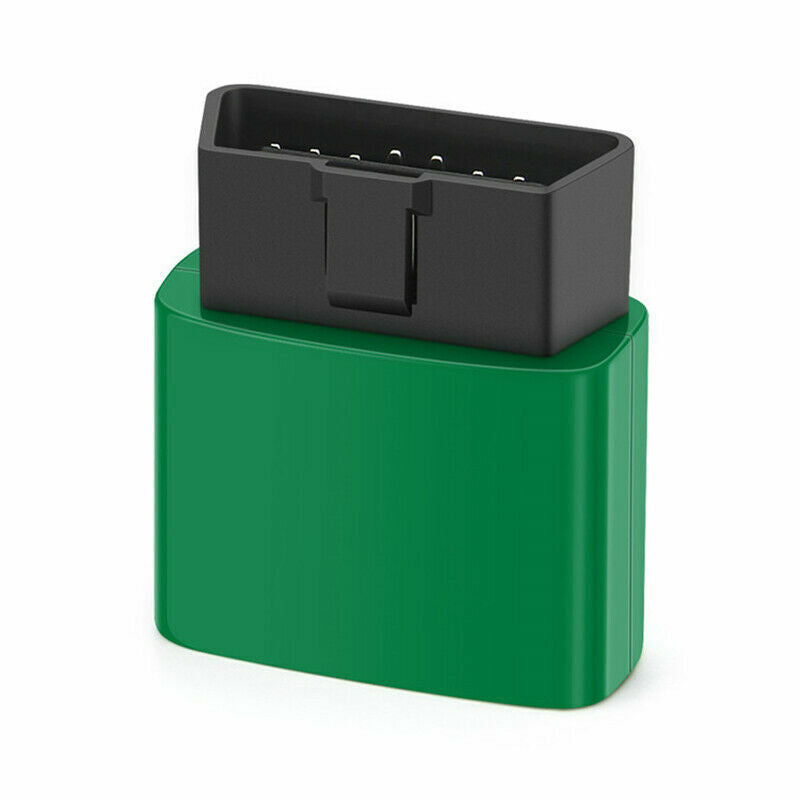

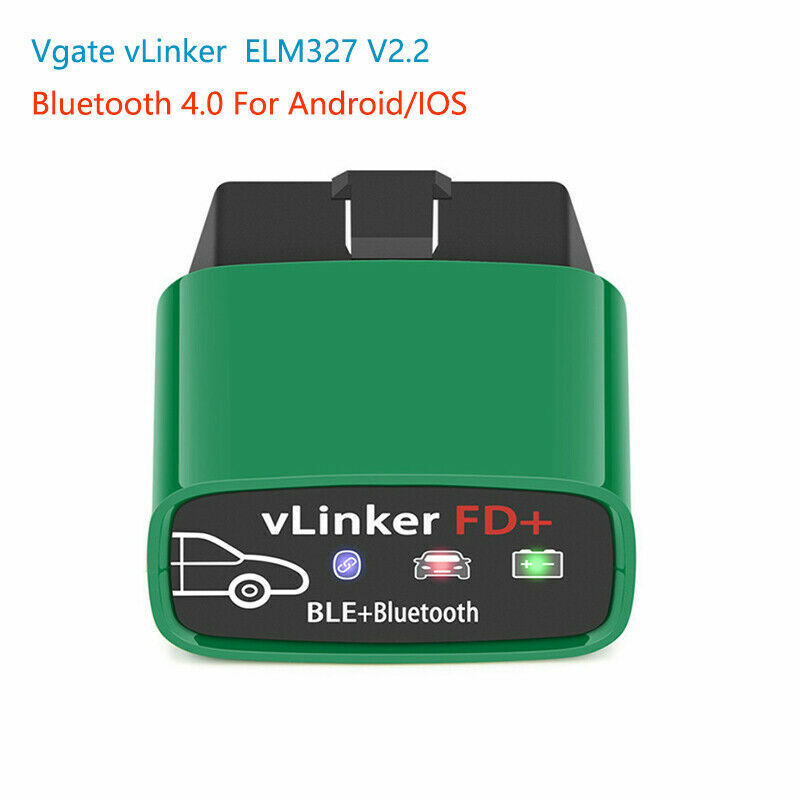

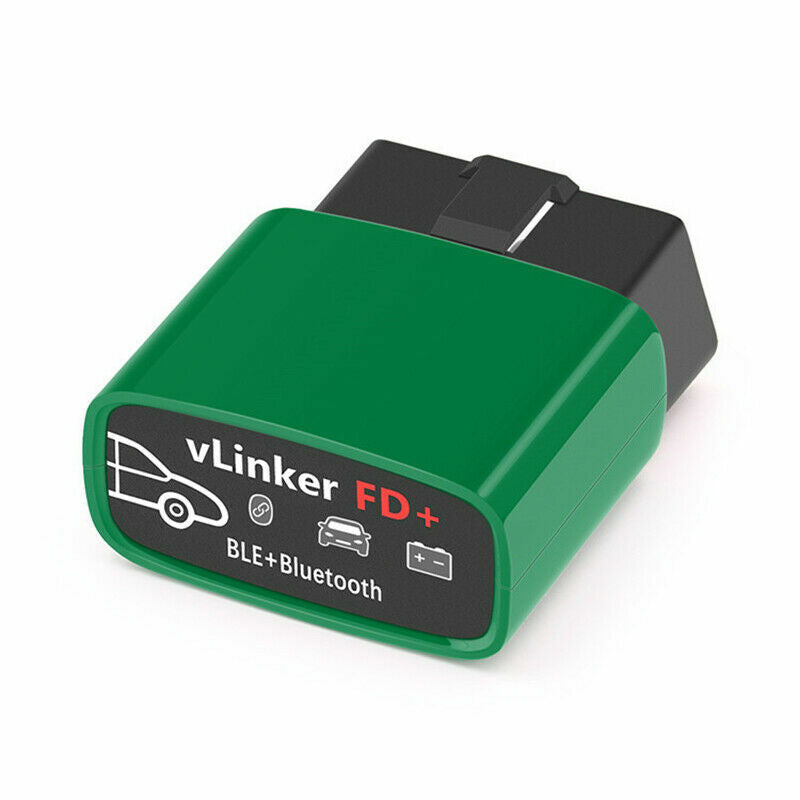

Vgate vLinker FD ELM327 Bluetooth Scanner OBD2 Car Auto Diagnostic Tool For Ford
2
sold in last
8
hours
In stock
$99.55
customers are viewing this product
Features:
13+ DETECTION FUNCTION:
1. Automatically lock
2. Speeding reminder
3. Emergency brake flashing lights
4. Lock the car and whistle
5. Xenon lamp mode
6. One-click skylight
7. Tire pressure monitoring
8. Snowflake logo
9. Cruise function
10. Compass
11. Average (instantaneous) fuel consumption
12. ECO energy saving mode
13. Steering power adjustment

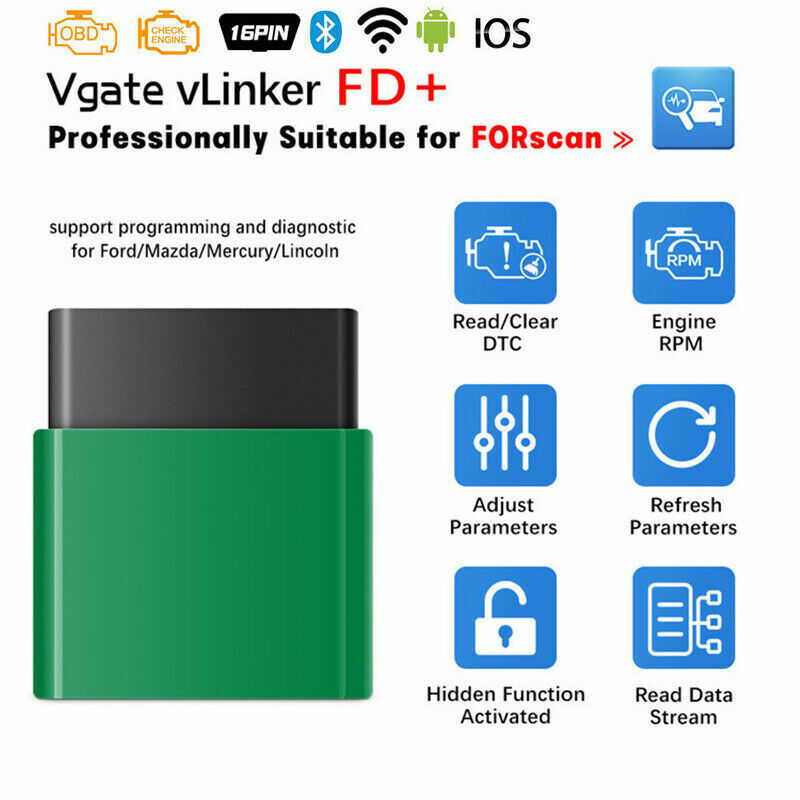

Vqate vlinker FD+ Professionally Suitable for Forscan
Support Programming And Diagnostic For Ford/Mazda/Mercury /Lincoln
Read / Clear
Engine DTC
Adiust Parameters
Refresh Parameters
Hidden Function Activated
Read Data Stream
Multiple protocols:
15 ELM format protocols;
23 STN format protocols;
Up to 64 user-defined protocols.
OBDII 5 standard protocols:
SAE J1850 VPW
SAE J1850 PWM
ISO 9141-2
ISO 14230-4
ISO 15765-4 CAN
Additionalprotocols:
SAE J1939 CAN
ISO 11898 (raw CAN)
Medium Speed（MS CAN）
Theseprotocolscover almost 99% of the OBDII Cars on the market
Rich instruction set, compatible with more APP software:
Fully compatible with ELM's AT command set;
Fully compatible with STN's ST command set;
39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.
Compatible with ELM and STN power management solutions.
Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;
Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.
Device sleep power consumption is less than 2 mA.
OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.
UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.
256-byte storage unit.
More than 100,000 erasable times.
Read and write operations on any unit in the storage area by using the VT command.
Mix ID Sending" mode of CAN protocol.
Optional formatted send data according to protocol.
Multiple WM sequence settings.
Support AT command to manually set WM sequence.
Support for specifying a protocol or a full protocol-wide temporary WM sequence.
Support for a permanent link between a protocol and a private WM sequence.
Secure bootloader for easy firmware updates
